HVAC FCU control
Office building in Jeddah
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Office building |
| Project Type | Commercial |
| Year of Completion | 2025 |
| Project Size | 1 – 100 |
| Number of KNX Devices Used | 1 – 25 |
| KNX Transmission Media | IP |
| Man Hours | 1 – 100 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Automatic Occupancy Detection
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Automatic Occupancy Detection, Weather Dependent Control, Individual Room Control / Zone Control
- Security and Safety
- Operation and Visualisation
- Energy Management/Smart Metering - Metering, Visualisation
- Other
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Remote Programming
- Blind and Shutter Control
Customers Description
Problem:
1, we have conventional A/C control system in our office building .
2,Temperature not effective in all location .
3,Need to go in person or required technical team support to adjust the temperature
4,A/C Units are running round the clock 24 x 7
Solution:
1.We used KNX based siemens sensor to measure the room temperature , room lux level and motion of the object
2.Integrated these sensor into siemens s7 1200 PLC using MBS KNX to Profinet

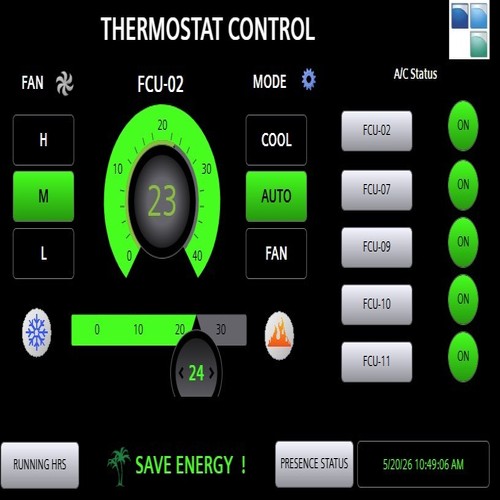

3.using siemens TIA unified HMI to display the status and control

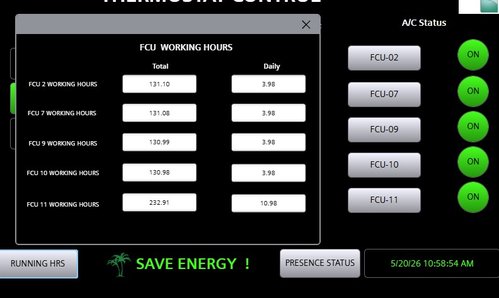

4.Measuring running hours and Energy
5.Highly protected and easily can be accessible via web page.
