Institut du Monde Arabe
Entertainment in PARIS
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Entertainment |
| Project Type | Commercial |
| Year of Completion | 2017 |
| Project Size | 1.001 – 5.000 |
| Number of KNX Devices Used | 101 – 300 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 501 – 1.000 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting
- Heating, Ventilation & Air conditioning (HVAC)
- Security and Safety - Faults (e.g. Leak Detection, Glass Break Detection, Window Contacts)
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Tablets and smart phones
- Energy Management/Smart Metering
- Other
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming, Messaging (e.g. SMS)
- Blind and Shutter Control - Individual Control, Group & Central Control, Automatic Programs, Sun Tracing (interaction with HVAC / lighting)
Customers Description

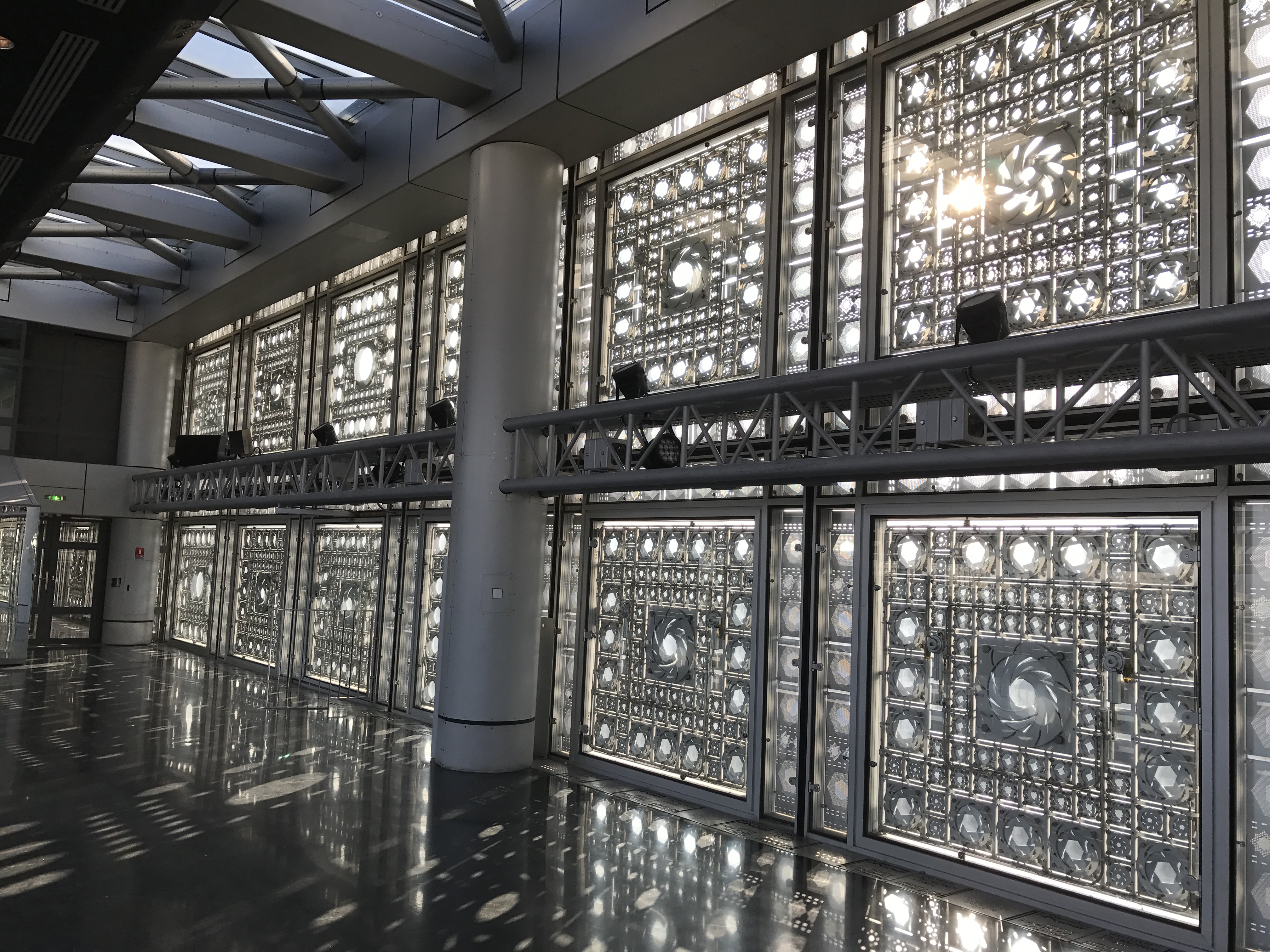

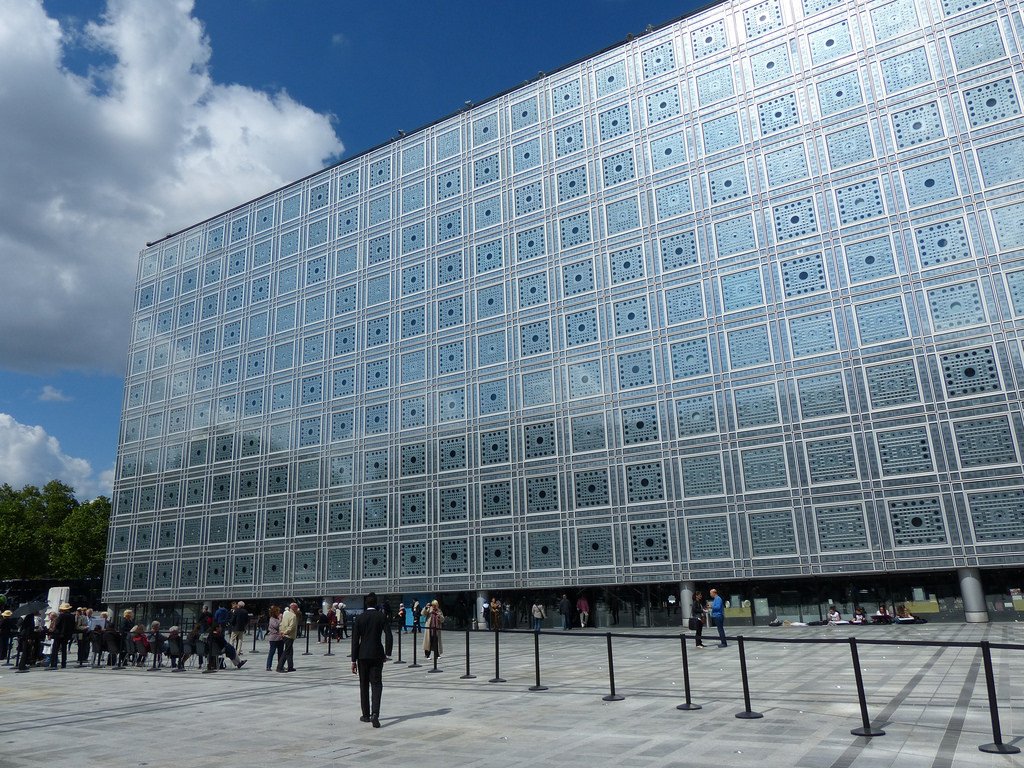

Renovation of the 240 artistic shutters - called Moucharabiehs - composed of geometric irises designed by renowned french architect Jean Nouvel.

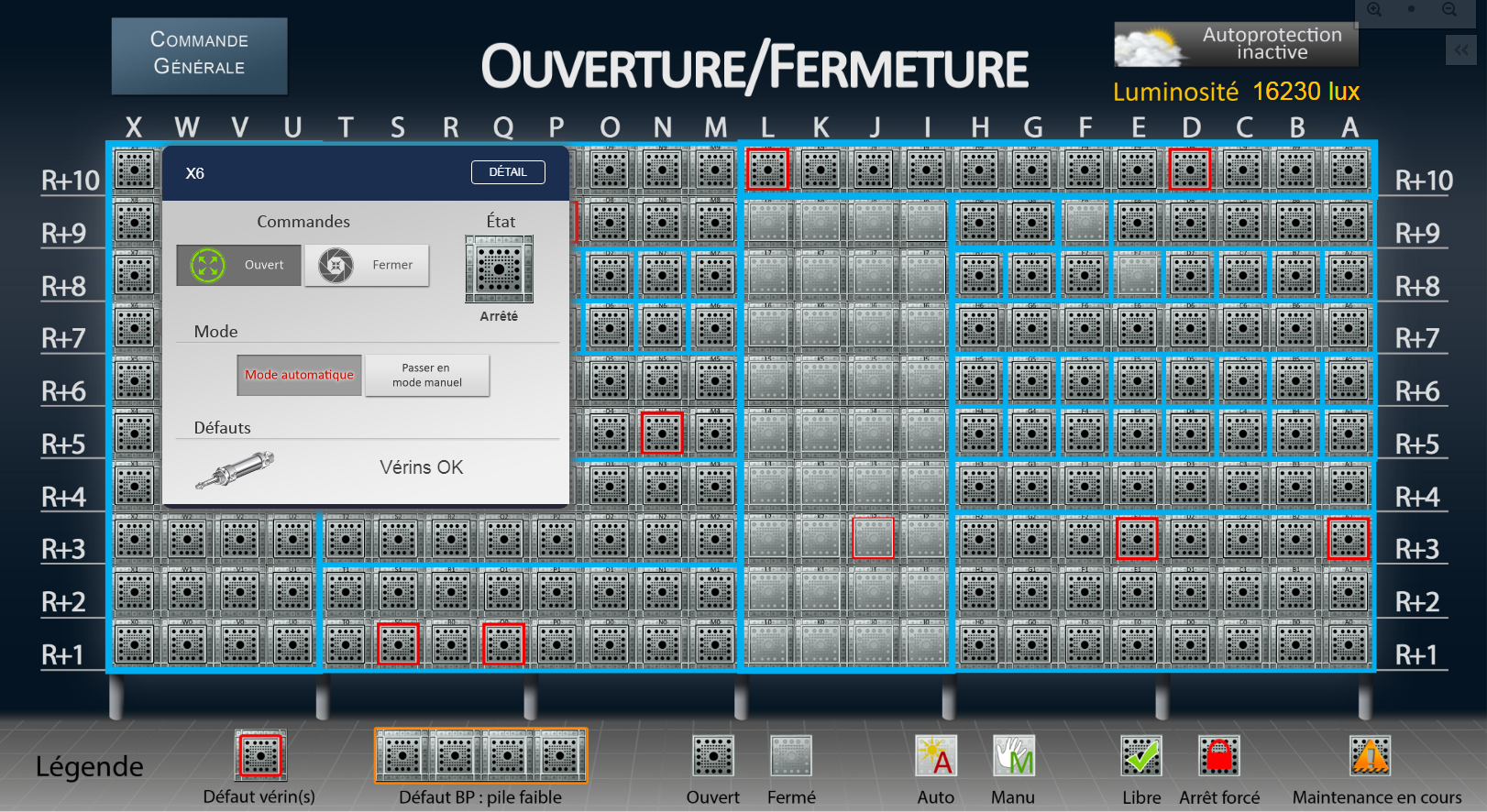

Engineering of a supervision system including individual and zone control, fault detection, scheduling, sun-tracking protection, global management by scenario for staging.
Key numbers:
- 11 KNX TP lines

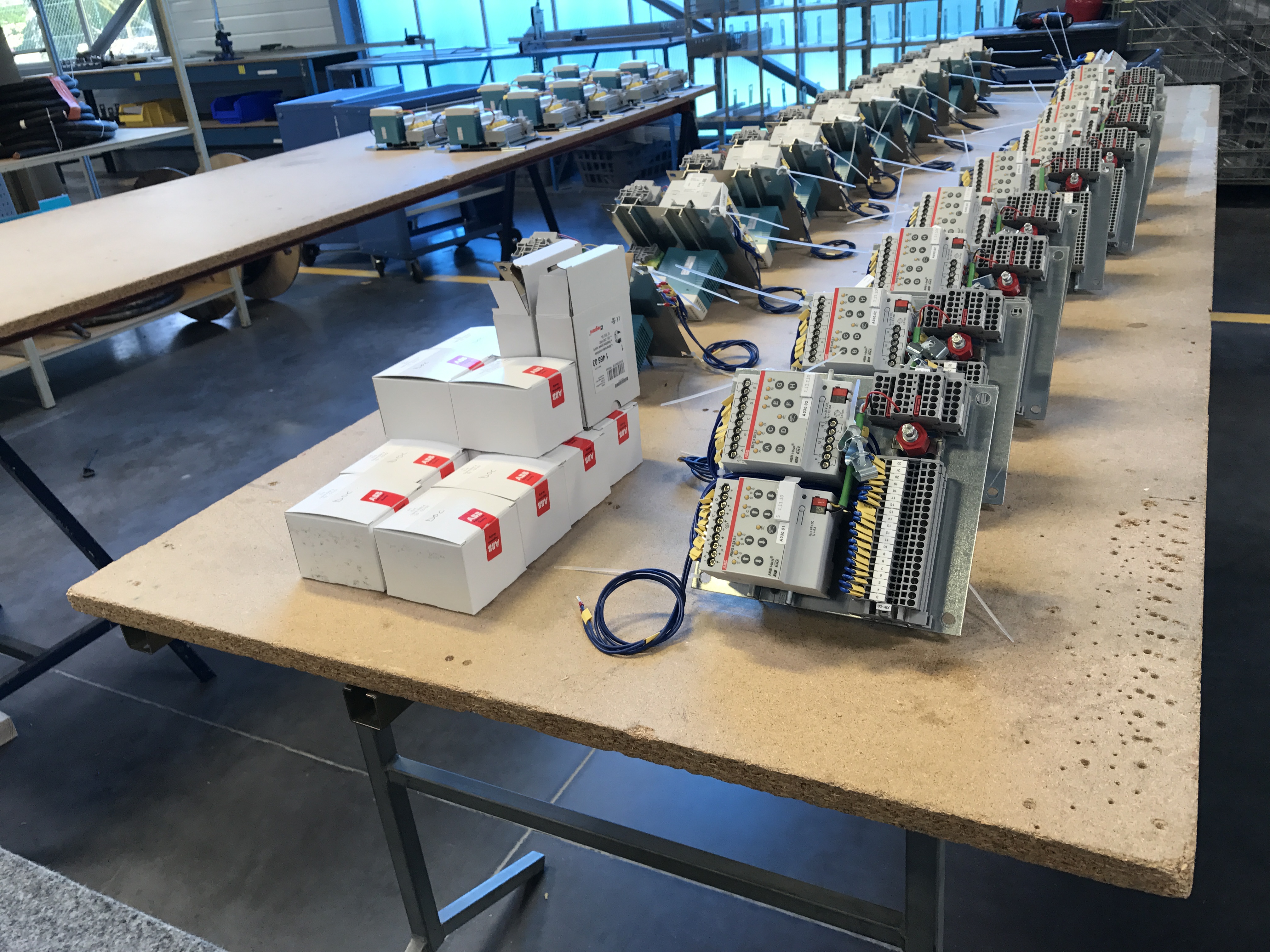

- 1 main electrical board and 120 auxiliaries
- 480 outputs, 960 inputs
- +2000 visualization points
Contact Information
| Company Name | CONNECTIBAT |
| Company Email | contact@connectibat.com |
| Company Website | http://www.connectibat.com |
| Contact Name | Jean-Pierre MOREAU |
| Contact Function | System Integrator |
