KNX Building Operations Platform
Other in Stuttgart
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Other |
| Project Type | Commercial |
| Year of Completion | 2026 |
| Project Size | 1.001 – 5.000 |
| Number of KNX Devices Used | 1.000+ |
| KNX Transmission Media | Twisted pair |
| Man Hours | 1.001 – 2.000 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Automatic Occupancy Detection, Weather Dependent Control, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control, Floor Heating Control, Boiler and burner Control
- Security and Safety - Smoke/Fire Detection, Faults (e.g. Leak Detection, Glass Break Detection, Window Contacts), Access Control, Emergency Lighting, Interaction with HVAC/Lighting
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection, Fuel or Water tank level control, Load Shedding , Energy Harvesting (Avoiding use of batteries), Use of Renewable Energies

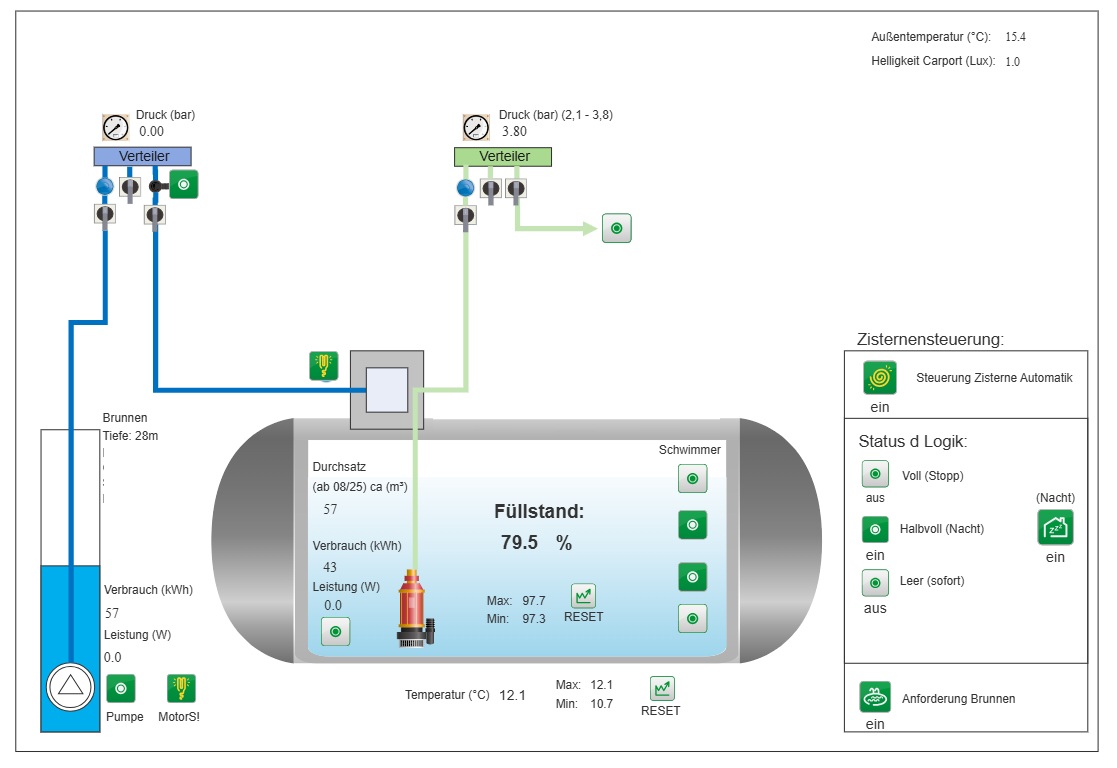

- Other - Audio Control, Irrigation Control
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming, Messaging (e.g. SMS)
- Blind and Shutter Control - Individual Control, Group & Central Control, Preset Positioning, Automatic Programs, Wind and Rain Protection
Customers Description
Das Projekt begann vor 12 Jahren mit den ersten Kernsanierungen von Wohn- und Gewerbeobjekten einer Projektentwicklungsgesellschaft. Von Anfang an wurde konsequent auf KNX als herstellerunabhängige und zukunftsfähige Grundlage gesetzt, um die Gebäude langfristig erweitern und optimieren zu können.

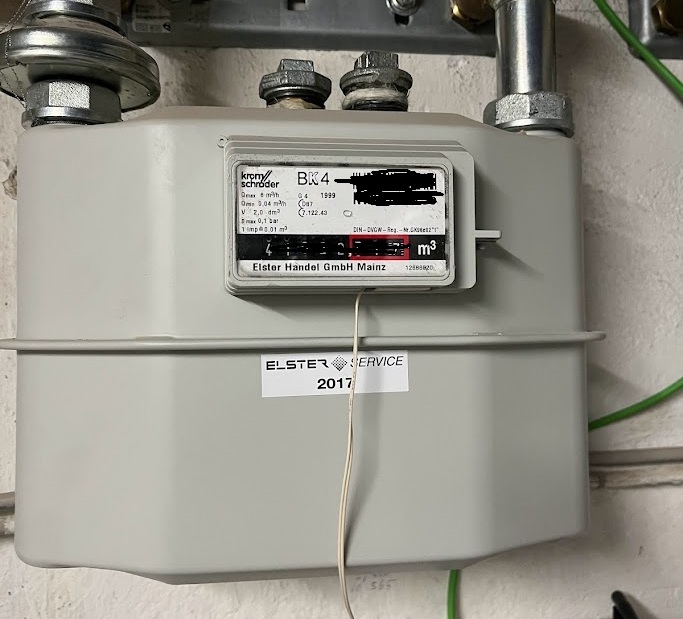

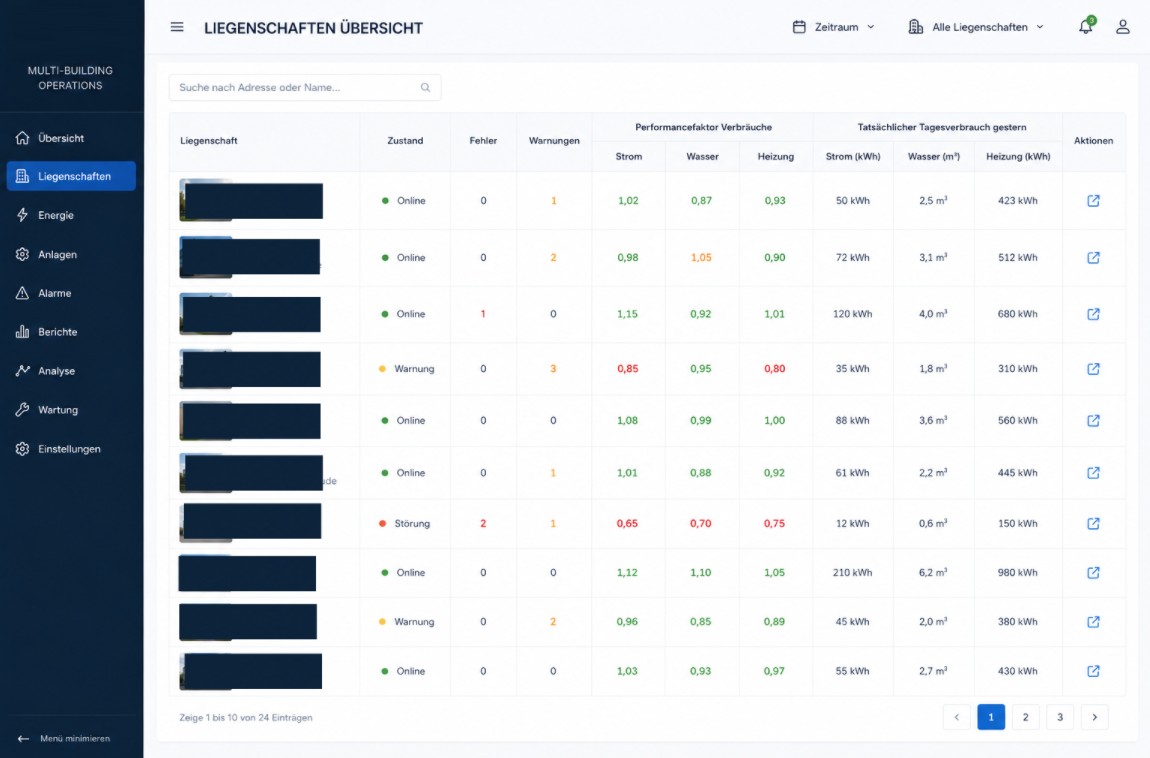

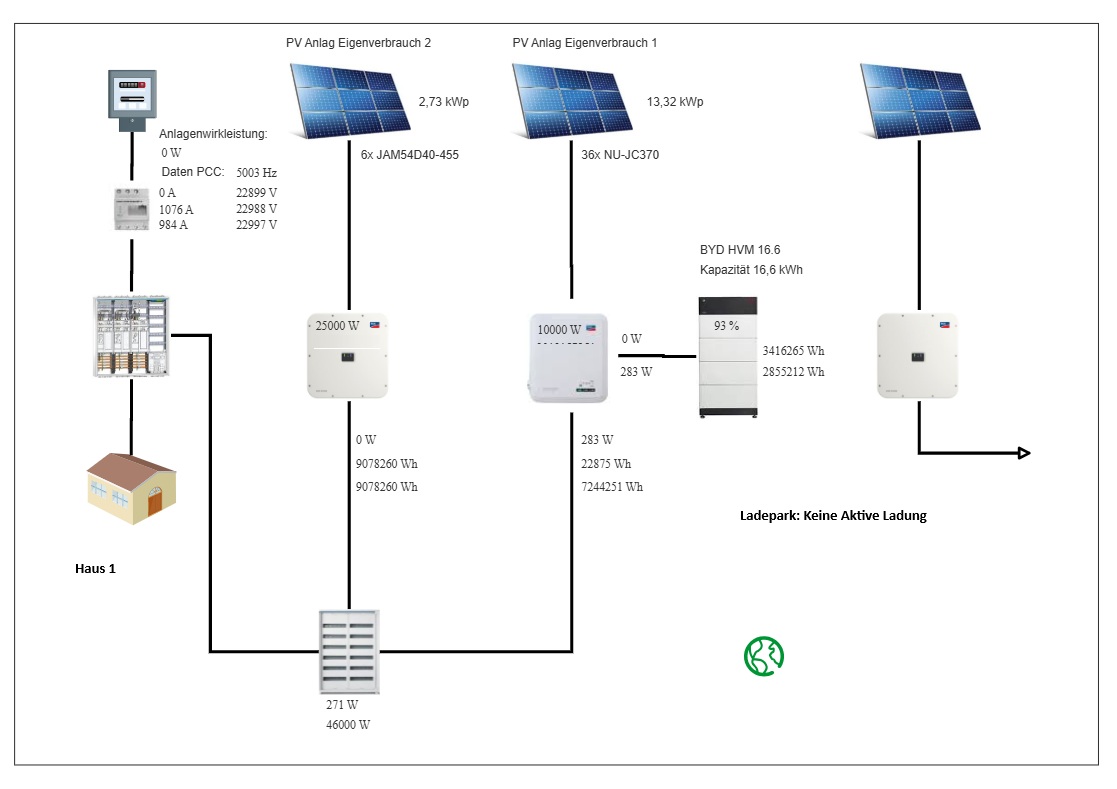

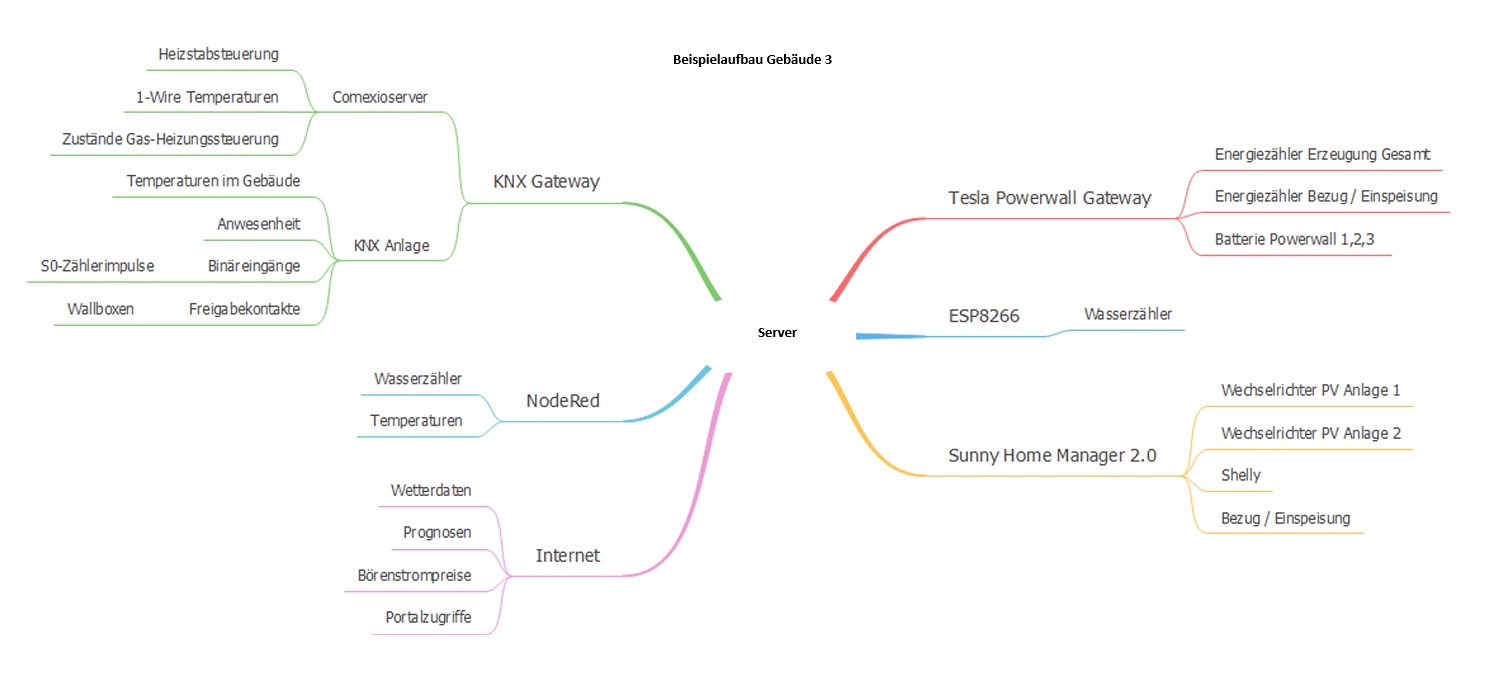

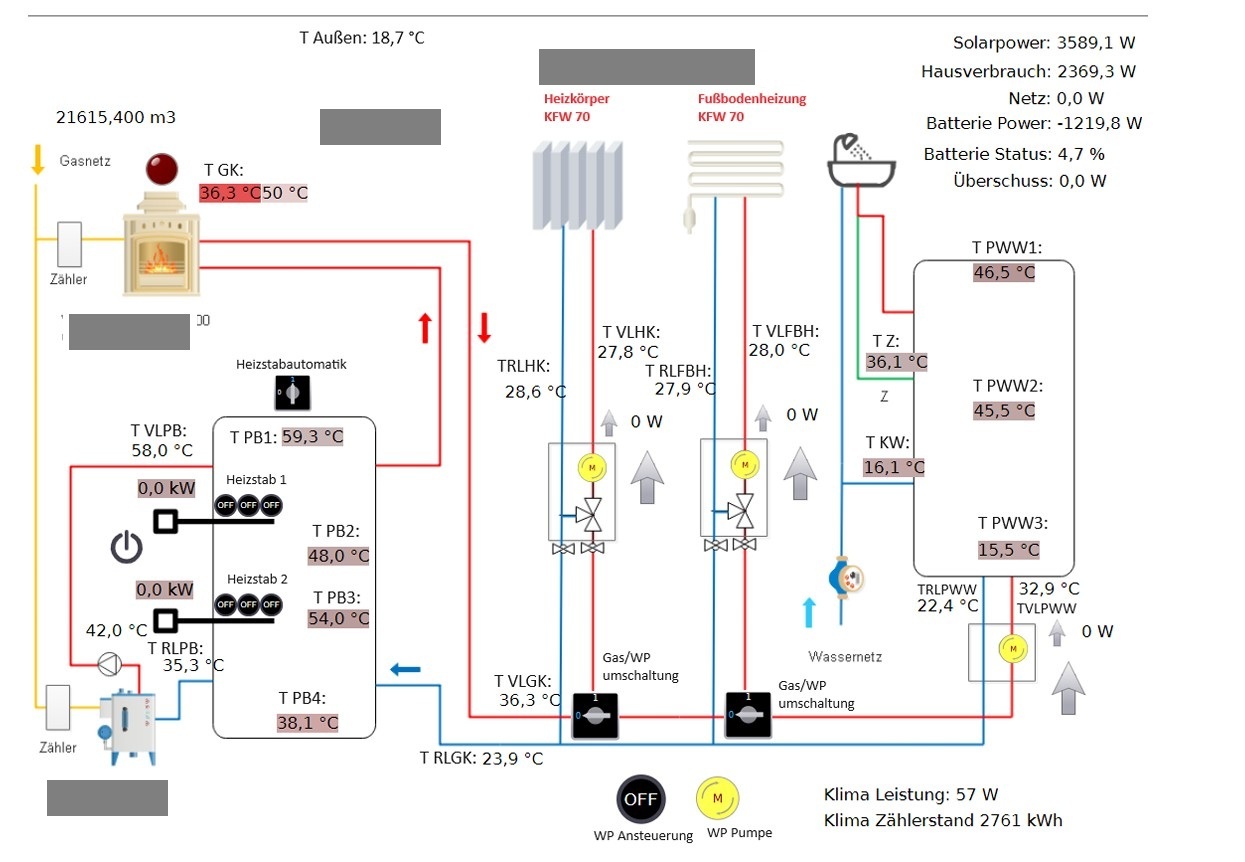

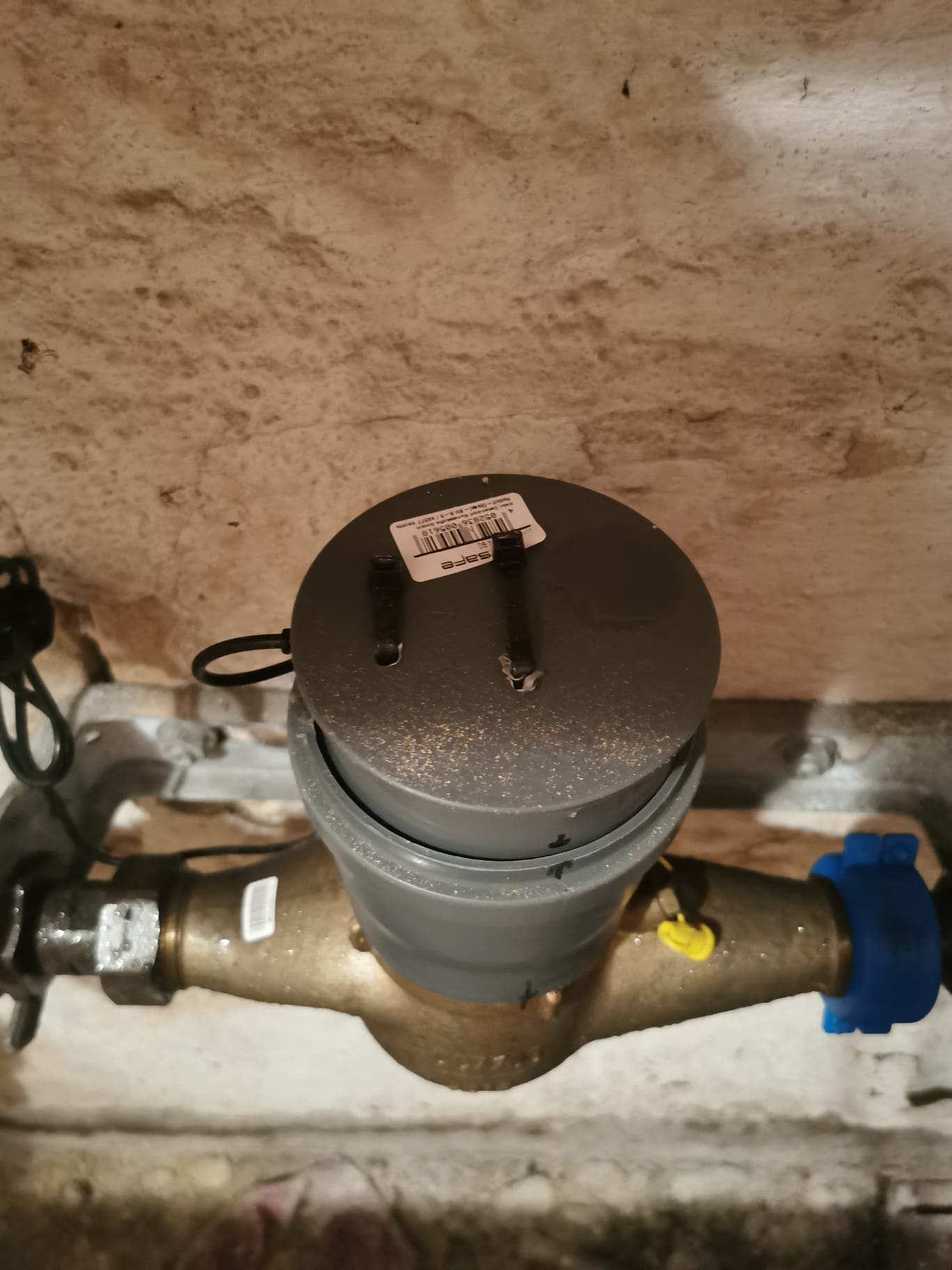

Im Laufe der Jahre wurden unterschiedlichste Wohnformen, Gewerbeeinheiten sowie Zählerdaten, Energiesysteme wie PV-Anlagen, Batteriespeicher, Wärmepumpen, Klimaanlagen und Ladeinfrastruktur integriert. Die einzelnen Gebäude senden Zustände, Verbrauchsdaten, Fehlermeldungen und Alarme an eine zentrale Plattform. Dadurch kann die Projektgesellschaft den technischen Betrieb aller Liegenschaften zentral überwachen, analysieren und kontinuierlich optimieren. Zusätzlich können remote Fehleranalysen sowie gezielte Steuerungseingriffe erfolgen, wodurch der Personaleinsatz vor Ort deutlich reduziert und eine überdurchschnittliche Reaktionszeit und Anlagenverfügbarkeit erreicht wird.
Contact Information
| Company Name | HEUT Projektservice GmbH |
| Company Email | zentrale@heut.eu |
| Company Website | https://proserv.heut.eu/ |
| Contact Name | Sebastian Utz |
| Contact Function | System Integrator |
