KNX / DALI system for CHILD HOSPITAL / AL-BASRA
Other in ALBASRA / AL-QIBLAH
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Other |
| Project Type | Other |
| Year of Completion | 2023 |
| Project Size | 1.001 – 5.000 |
| Number of KNX Devices Used | 101 – 300 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 1 – 100 |
| Man Power | 6 – 10 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Constant Light Control
- Heating, Ventilation & Air conditioning (HVAC)
- Security and Safety
- Operation and Visualisation
- Energy Management/Smart Metering
- Other
- Automation and Remote Access
- Blind and Shutter Control
Customers Description

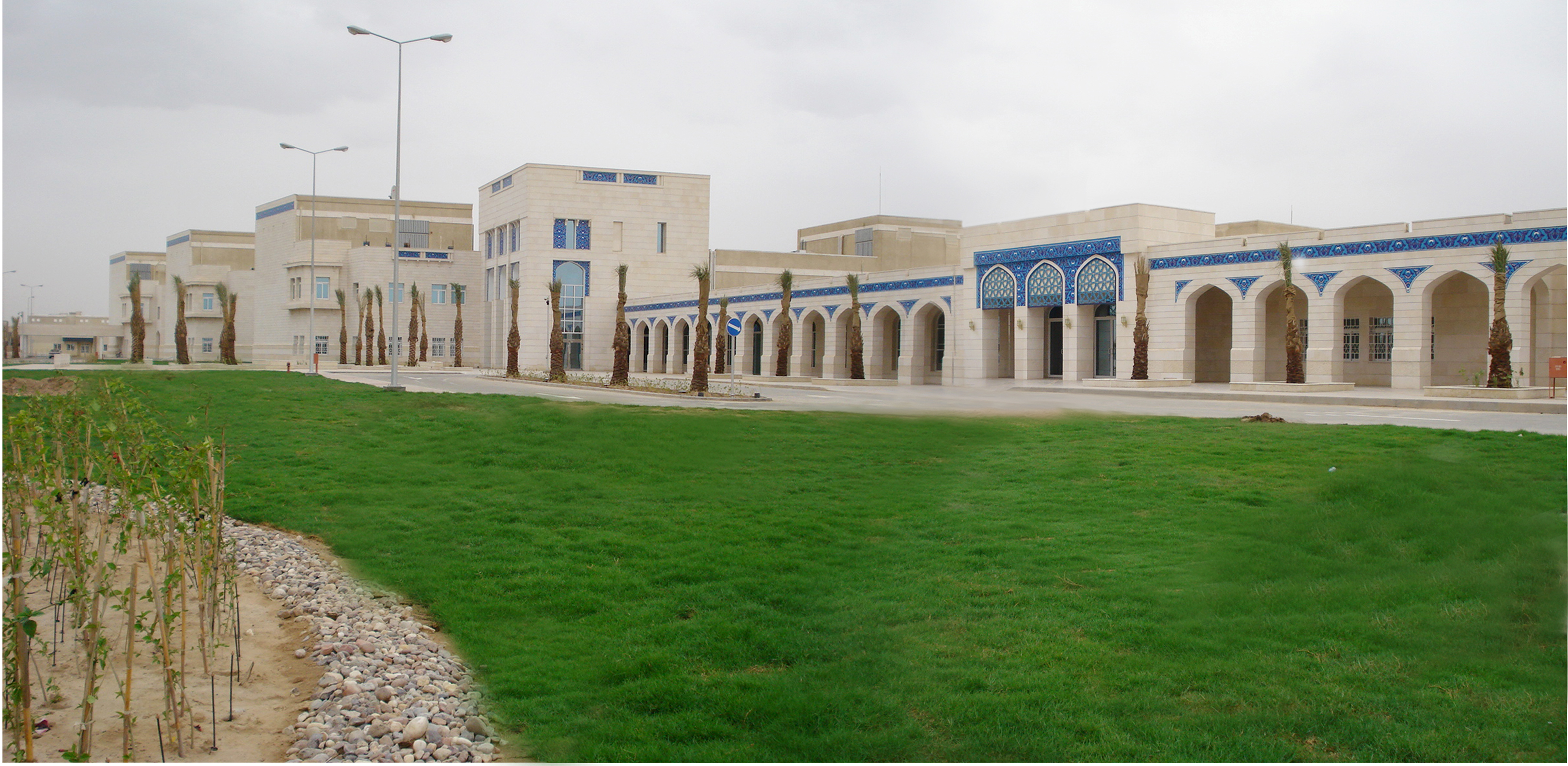

The project has 3 areas , 2 floors .

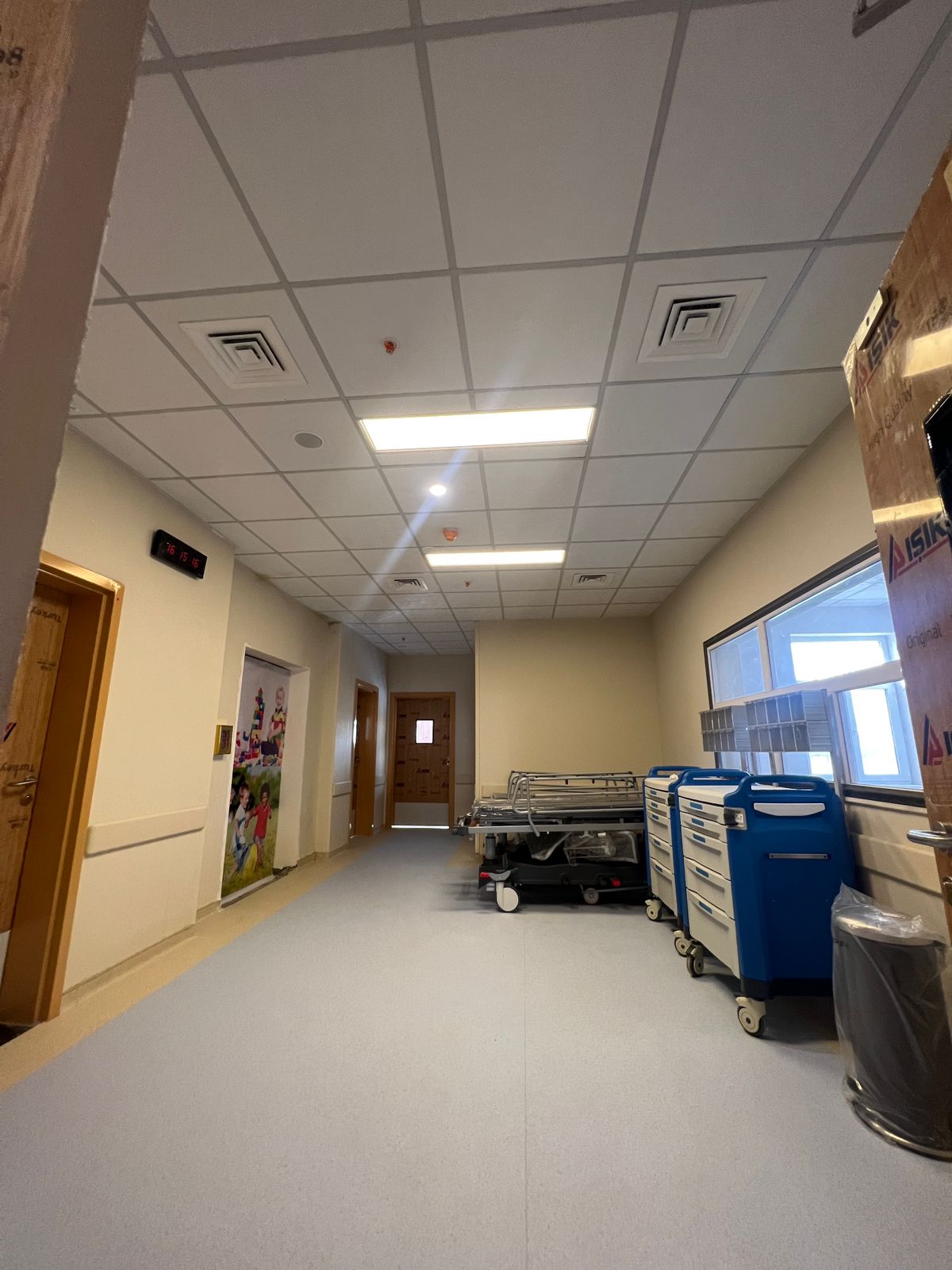

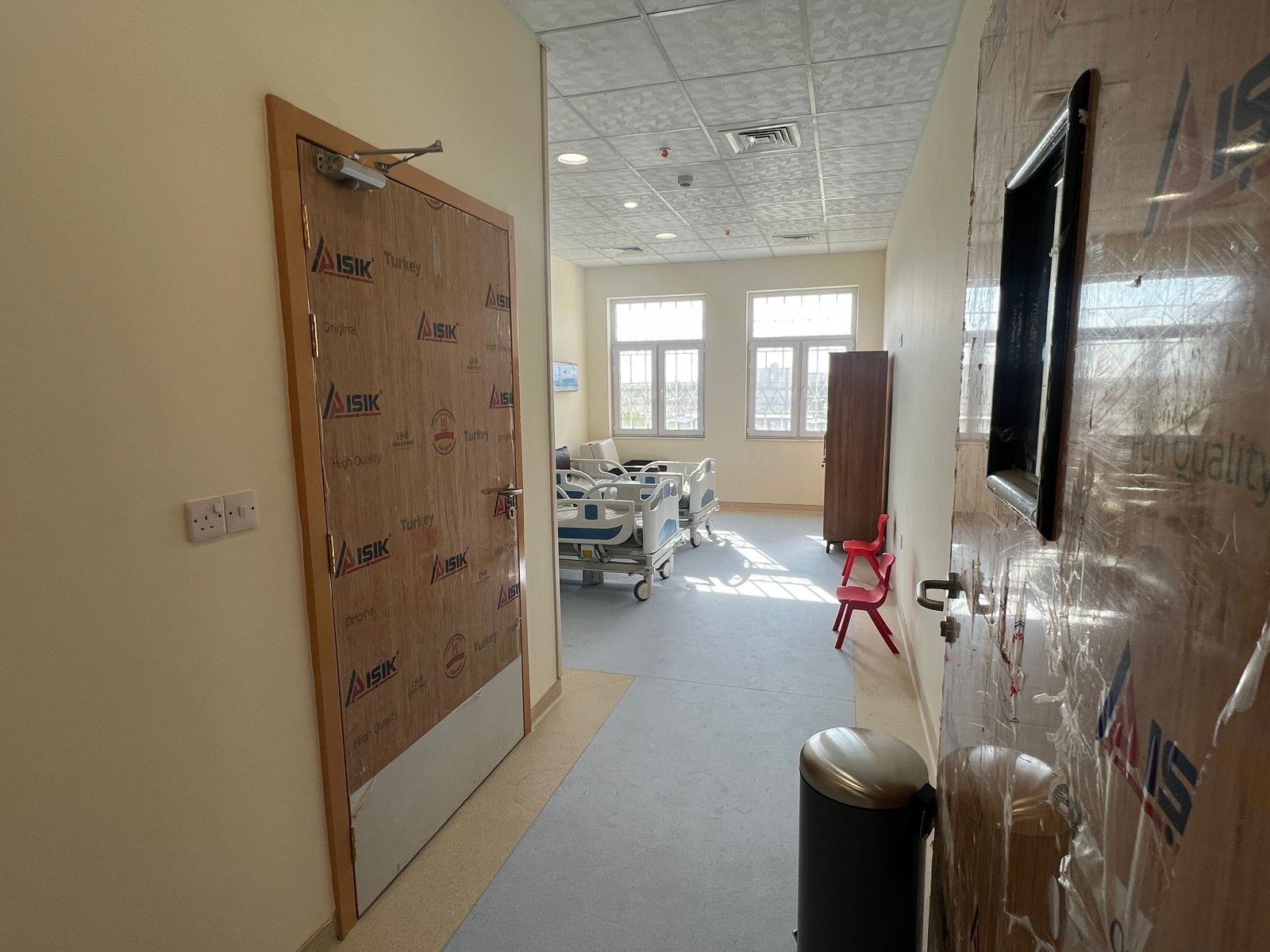

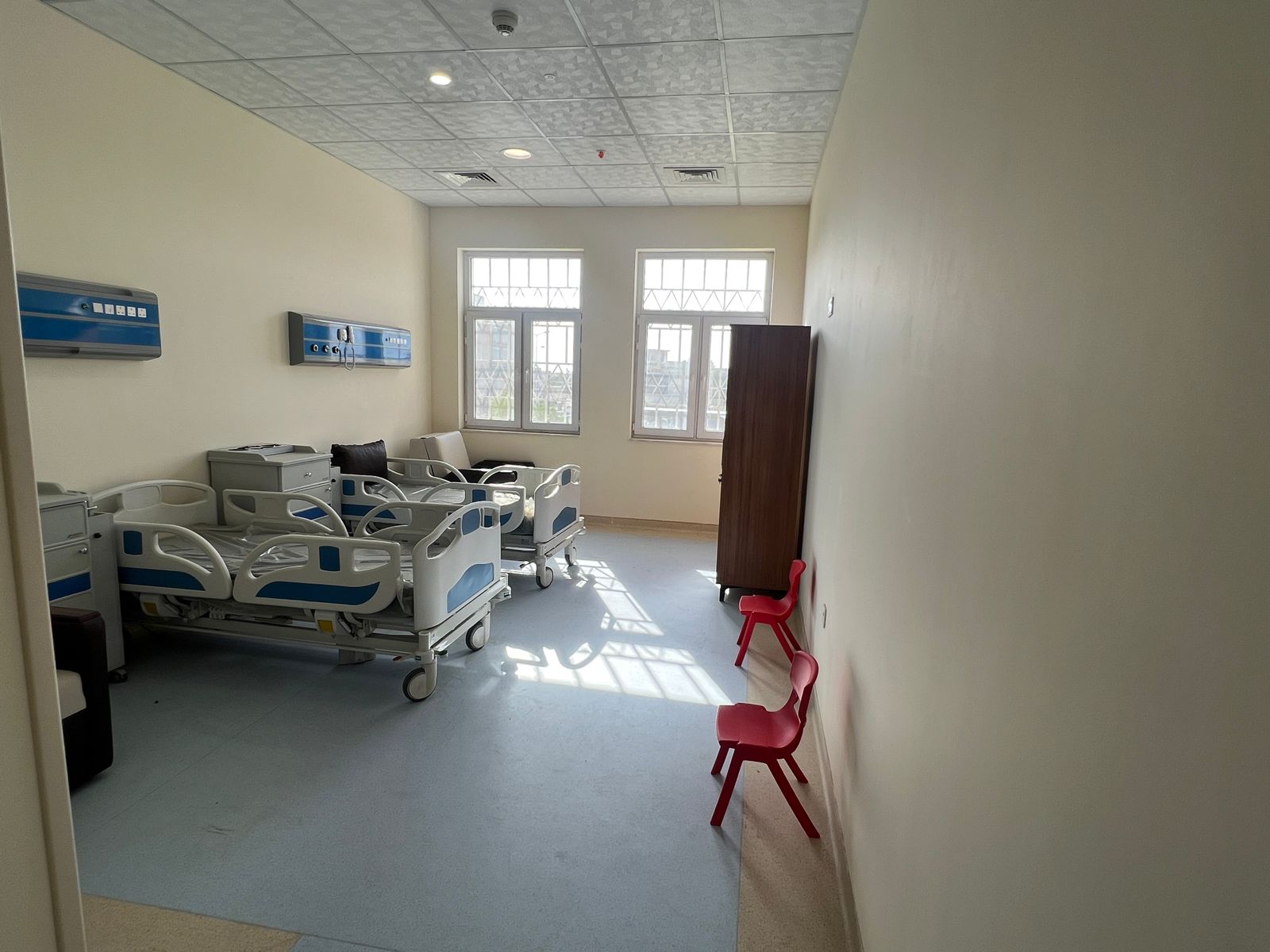

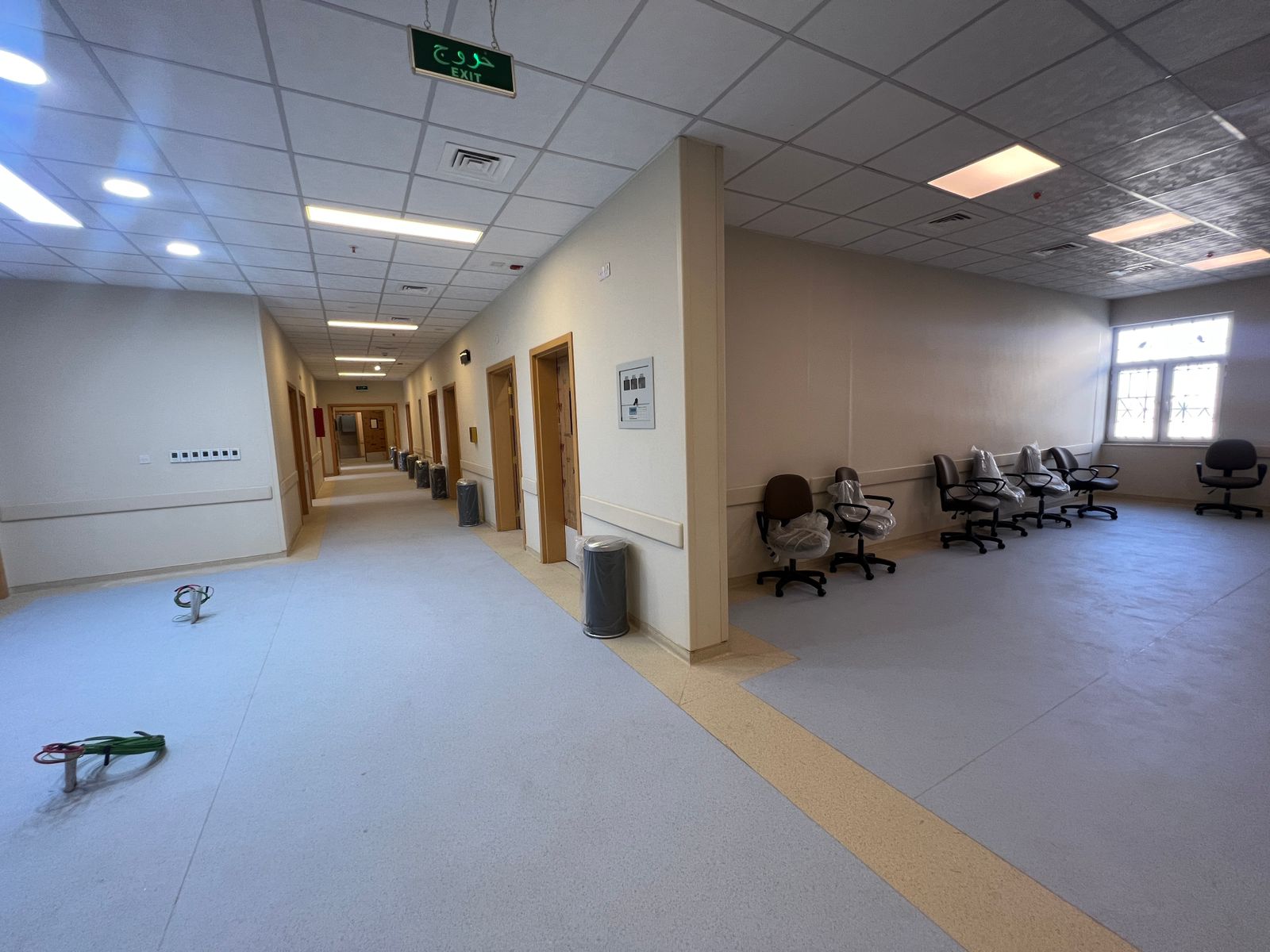

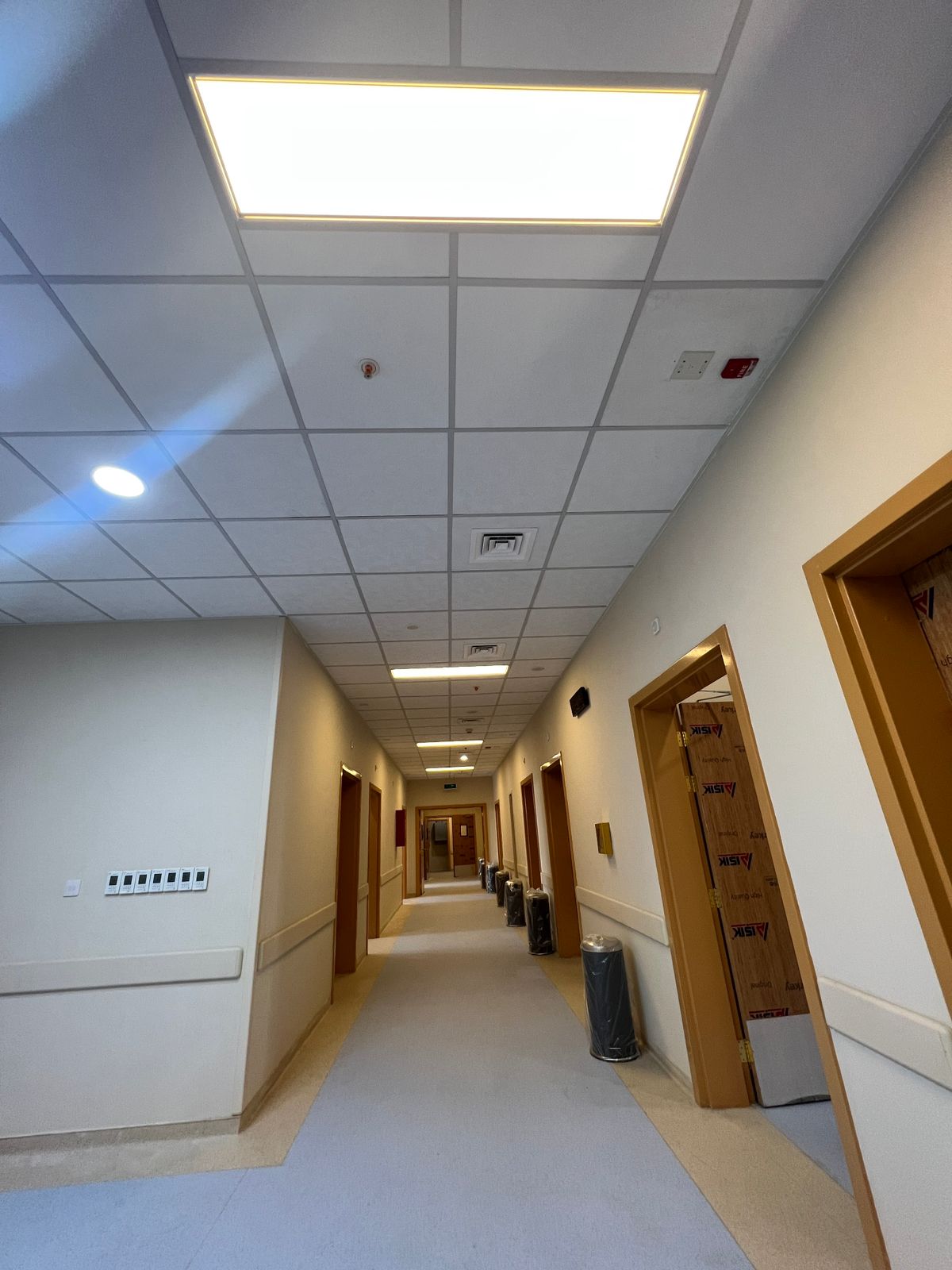

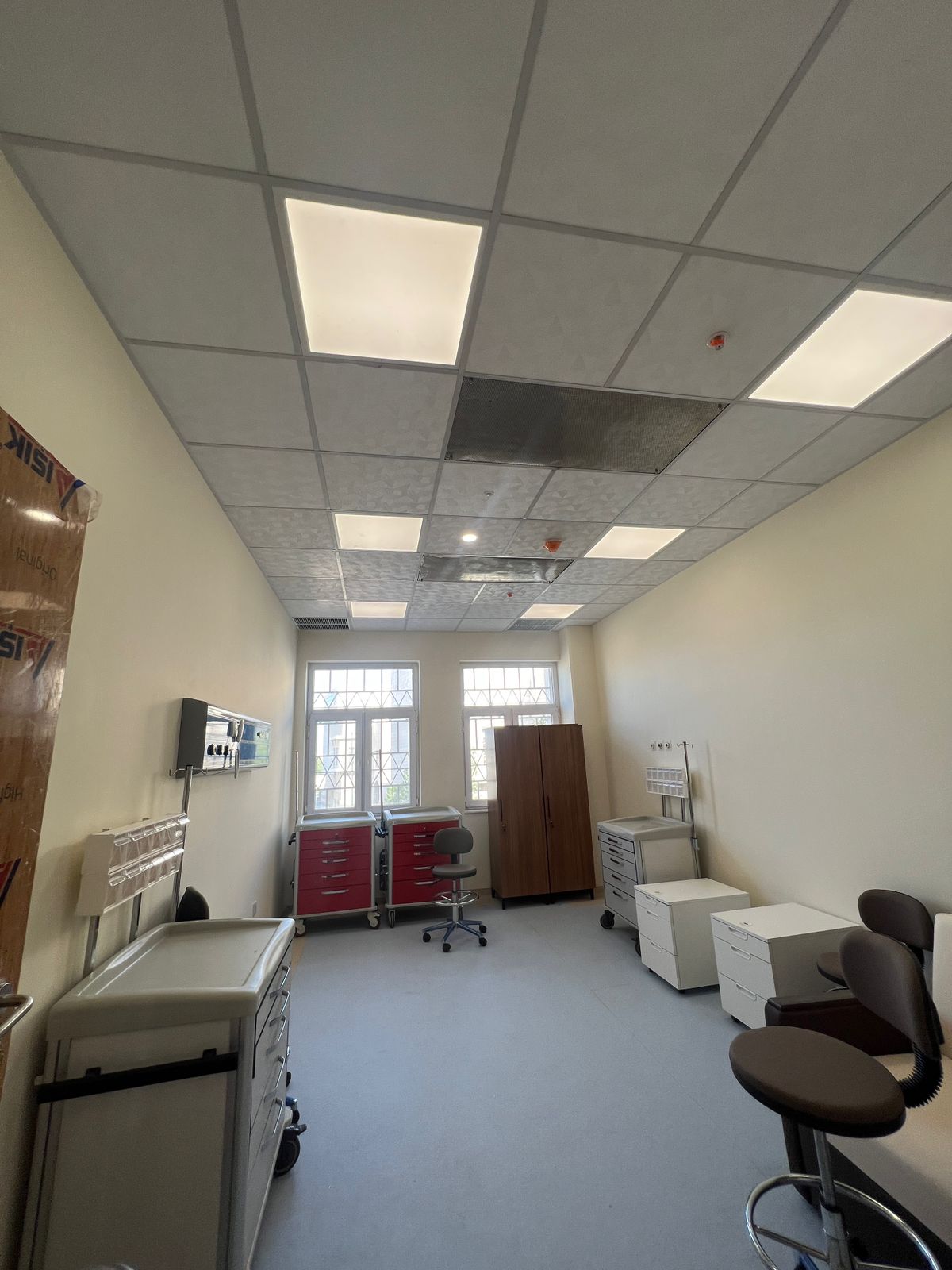

We used KNX / Dali2 System to control the lighting in corridors, general areas , staff rooms , and patient rooms .
All illuminance values used according to ministry of health standards /Iraq .
For large areas the KNX system is the best way to make the controlling system is applicable .
In this project used the following components:
- All motion and lux KNX sensors are from ZENNIO .
-All KNX/Dali2 gateways are from E-ELECTRON
-System devices Power supplies and USB interfaces are from MDT .
- KNX cable is from E-ELECTRON .
