KNX for LEED V4 Platinum Project in Brazil: case SANEPAR

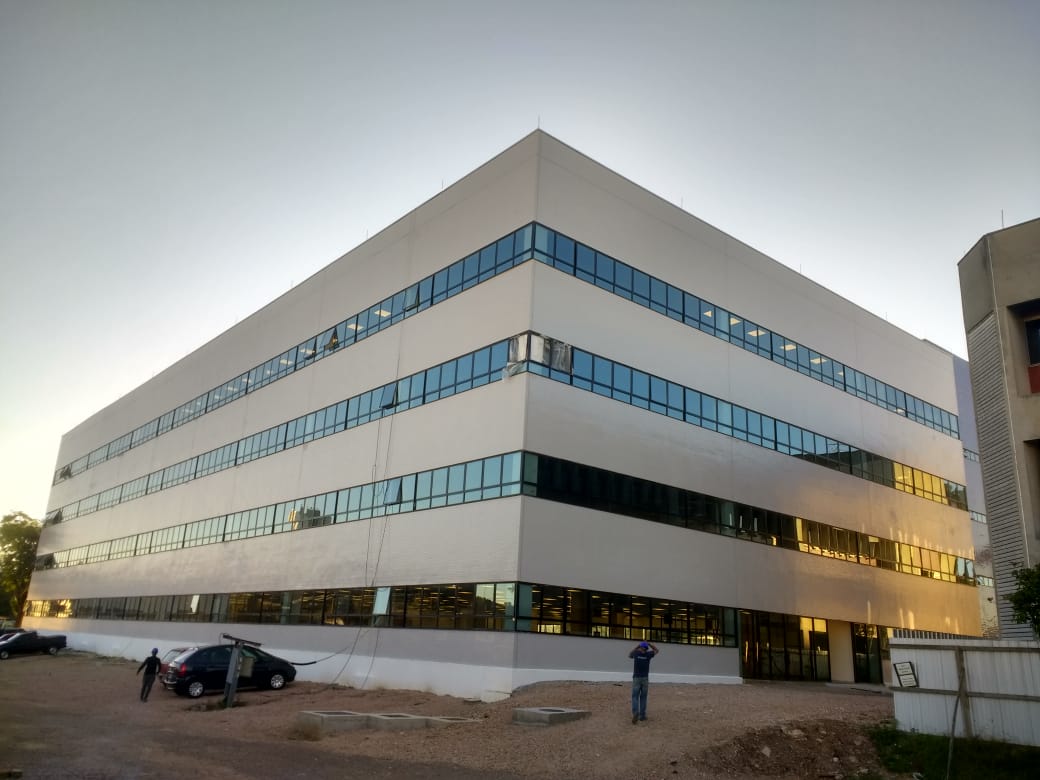

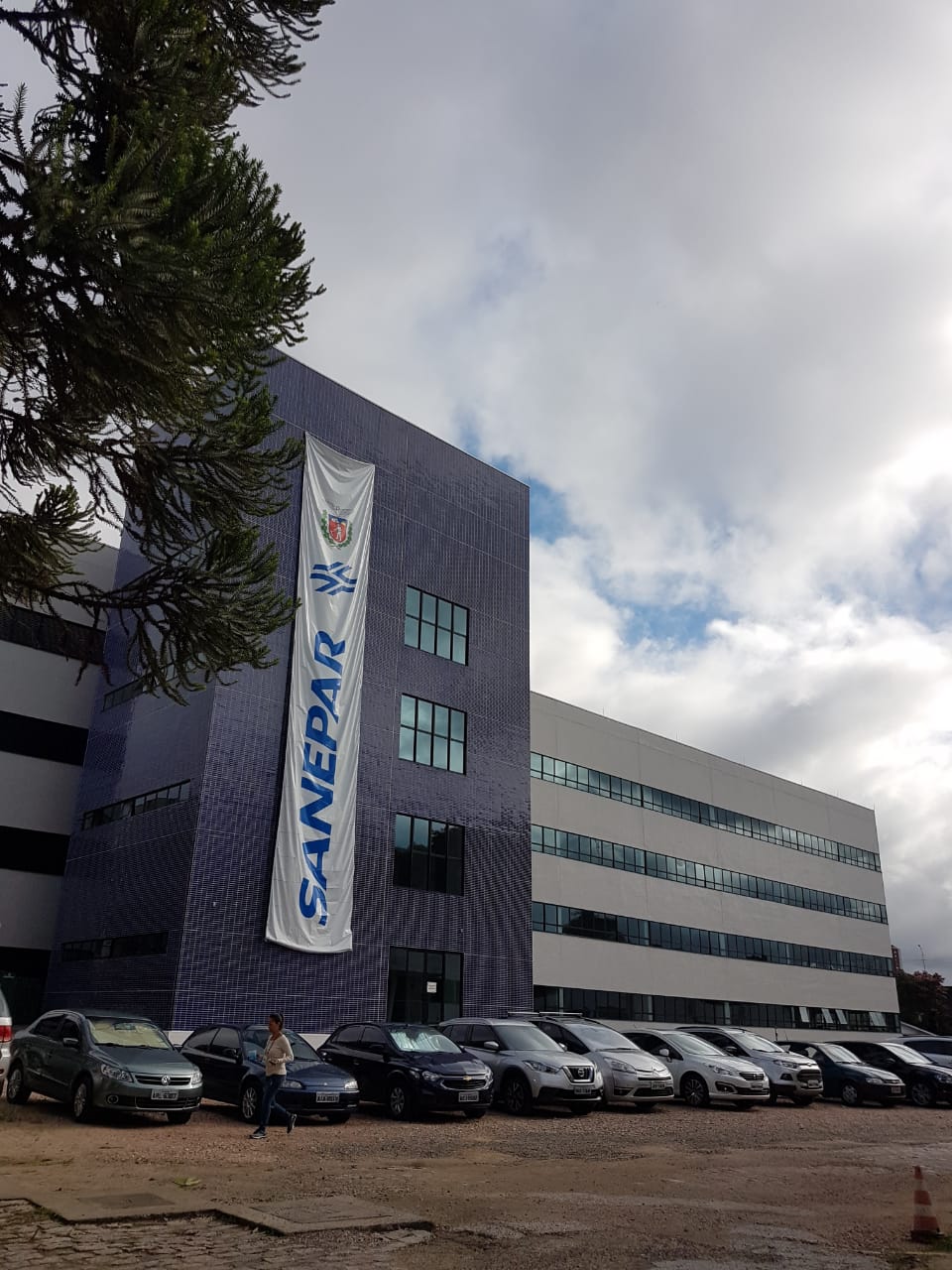

Public building in Curitiba
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Public building |
| Project Type | Commercial |
| Year of Completion | 2019 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 301 – 500 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 501 – 1.000 |
| Man Power | 11 – 25 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control, Lighting Colour Control

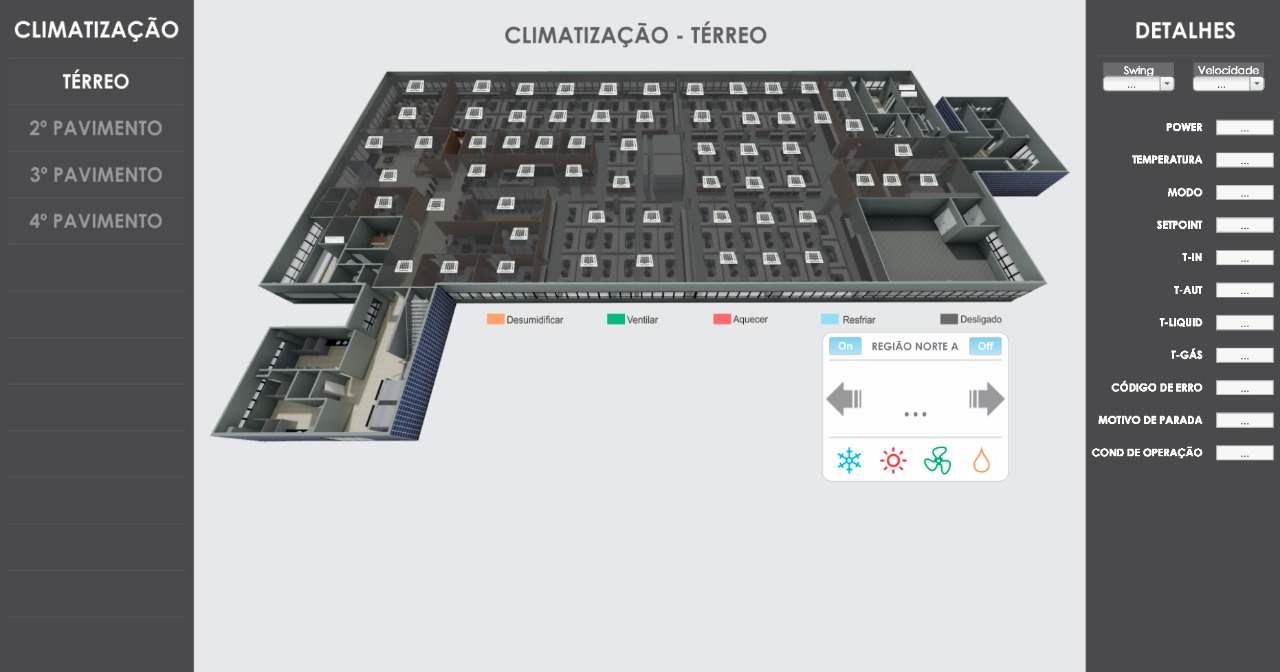

- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Automatic Occupancy Detection, Weather Dependent Control, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control, CO2 / Humidity Measuring, Natural Ventilation, Floor Heating Control, Boiler and burner Control
- Security and Safety - Smoke/Fire Detection, Faults (e.g. Leak Detection, Glass Break Detection, Window Contacts), Access Control, Presence Simulation, Interaction with HVAC/Lighting

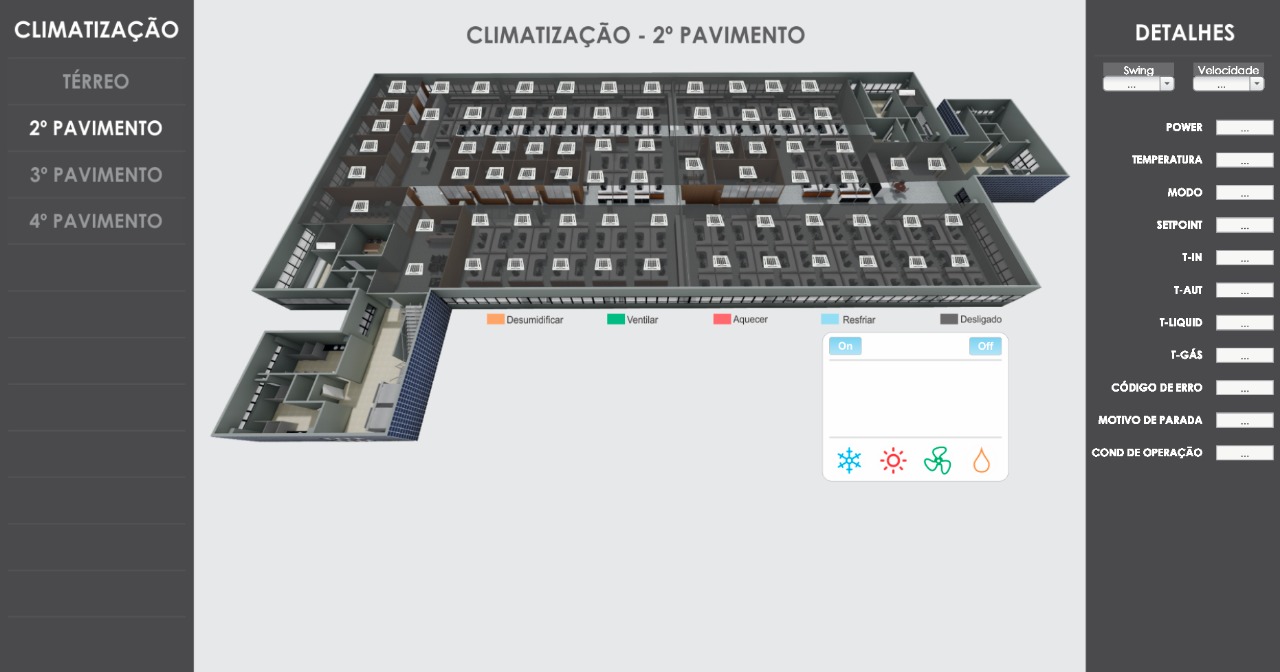

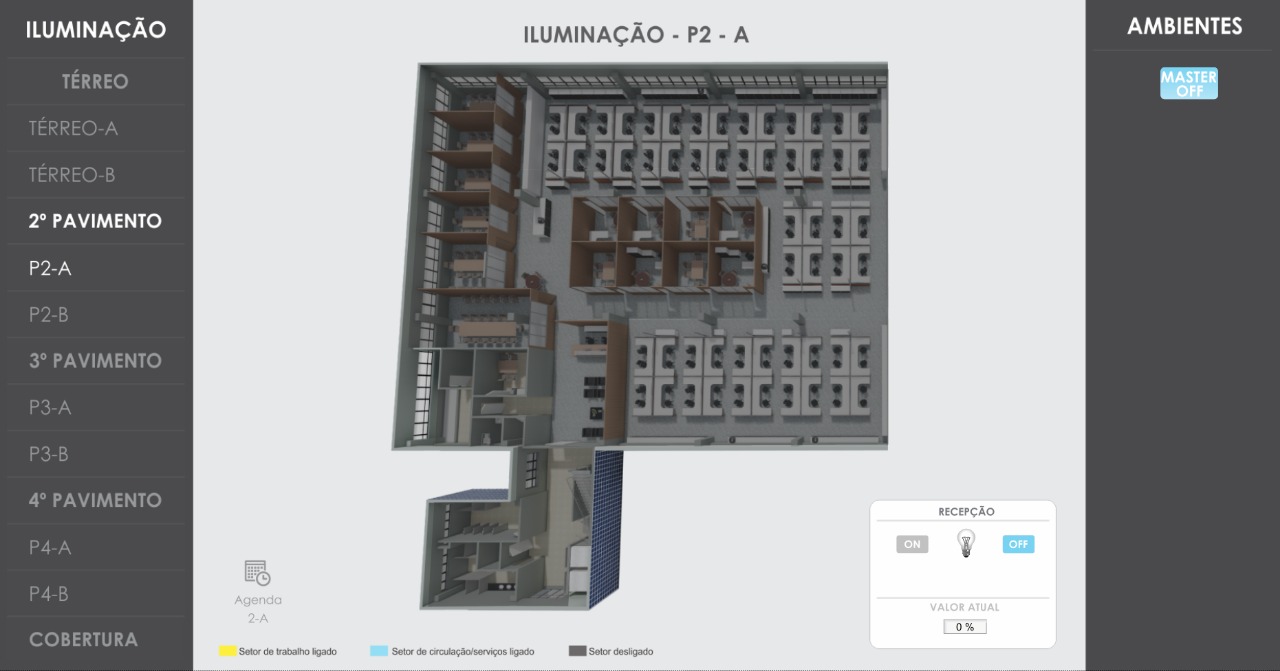

- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection, Fuel or Water tank level control, Load Shedding
- Other - Distributed Facilities
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming
- Blind and Shutter Control - Individual Control, Group & Central Control, Preset Positioning, Automatic Programs
Customers Description

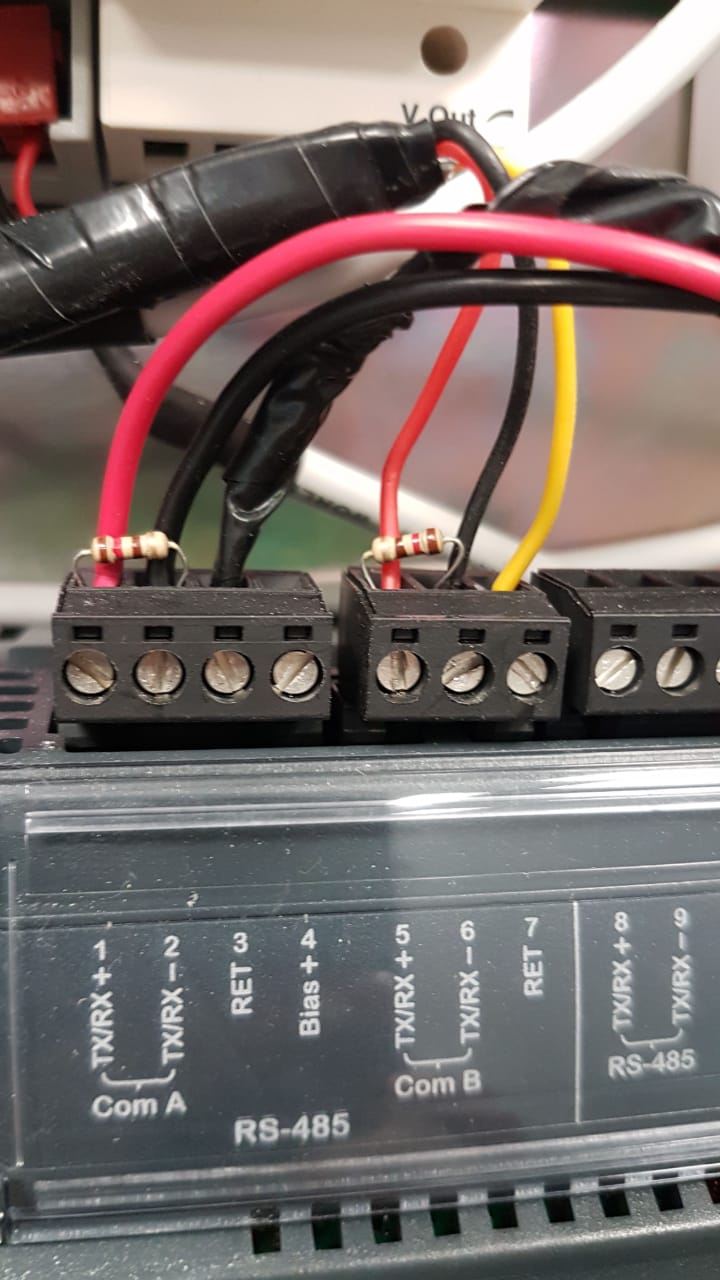

Office Building Administrative headquarters presents KNX as the biggest benefit of the ability to integrate Multiplus protocols: KNX, ModBus and BacNet, DALI, Hitachi and Somfy Animeo IP RS485
all systems integrated into the BMS Workstation SBO server

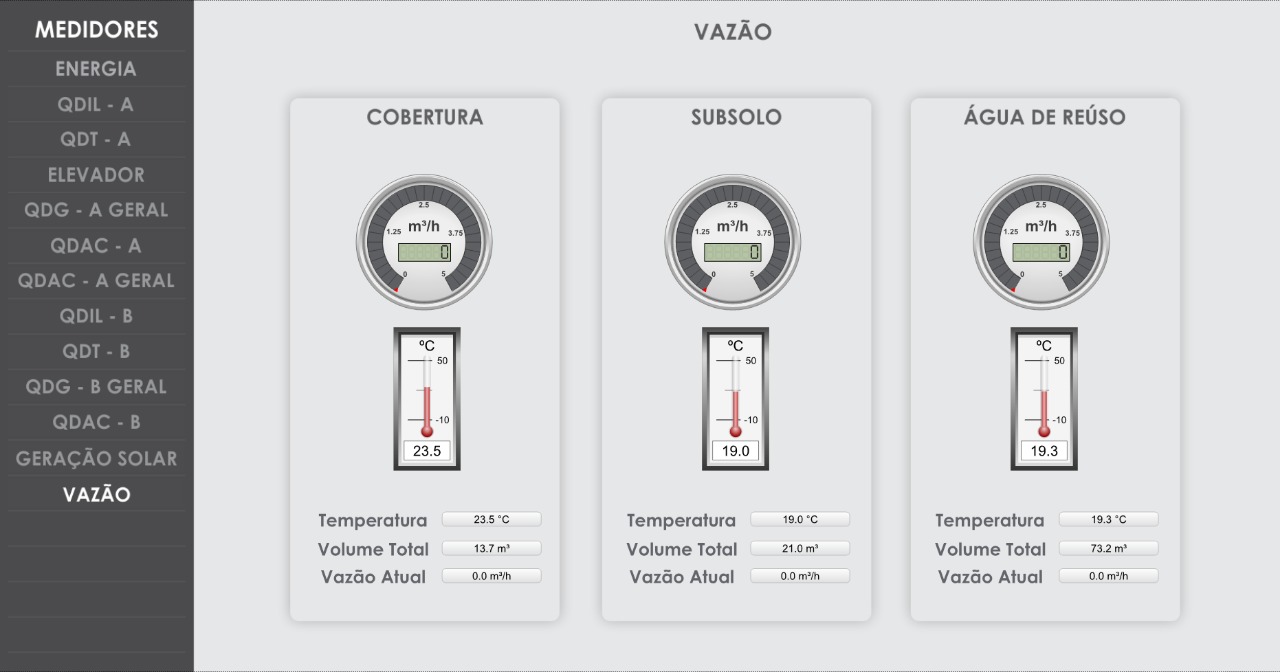

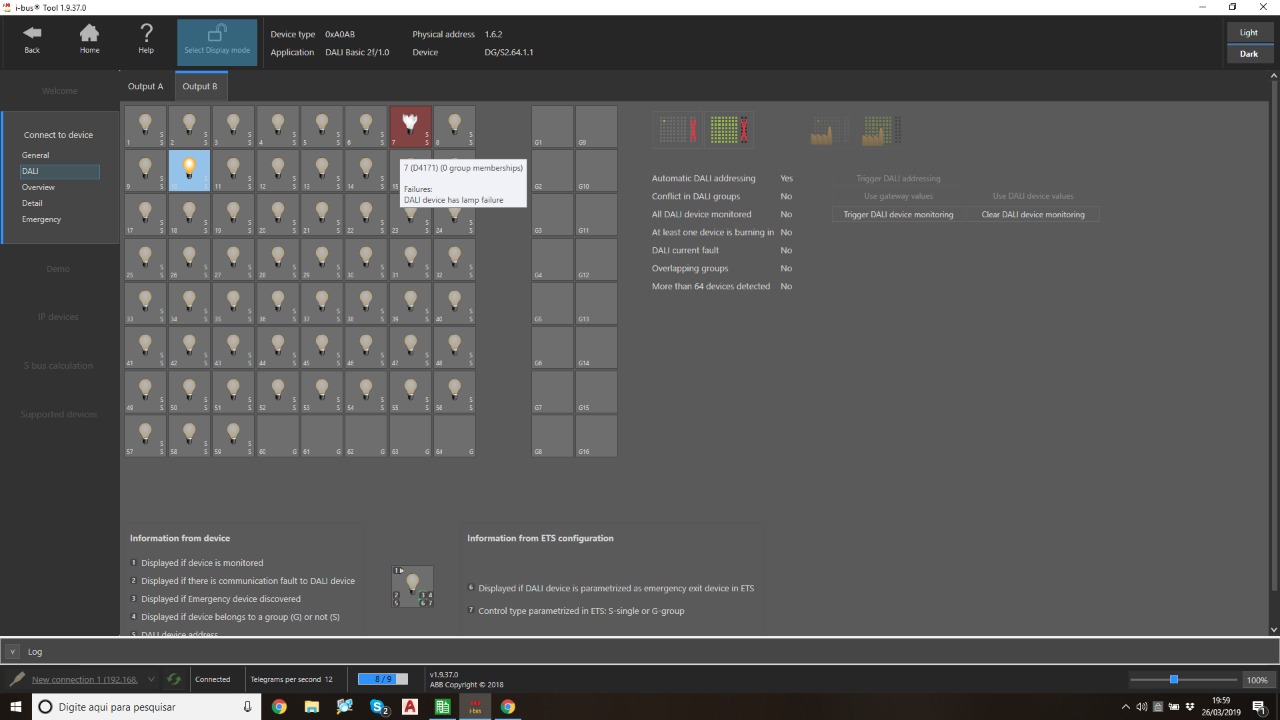

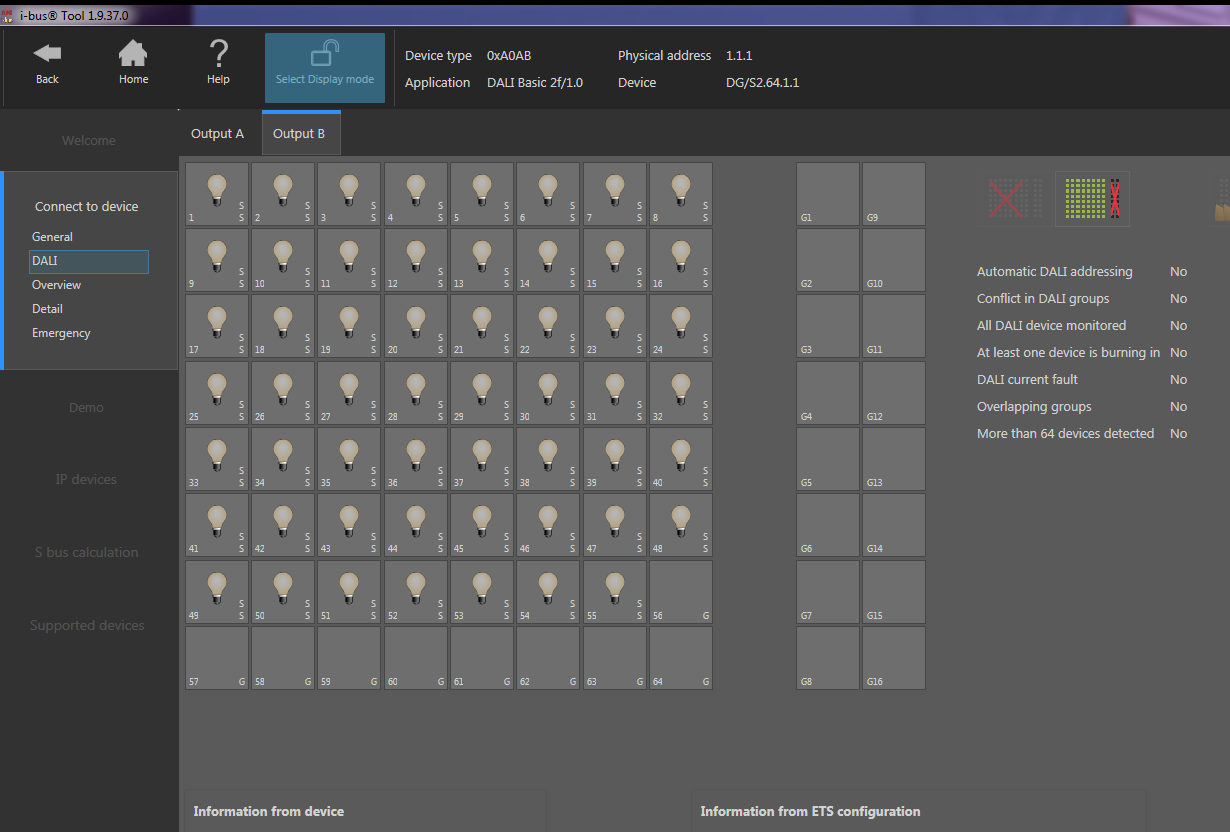

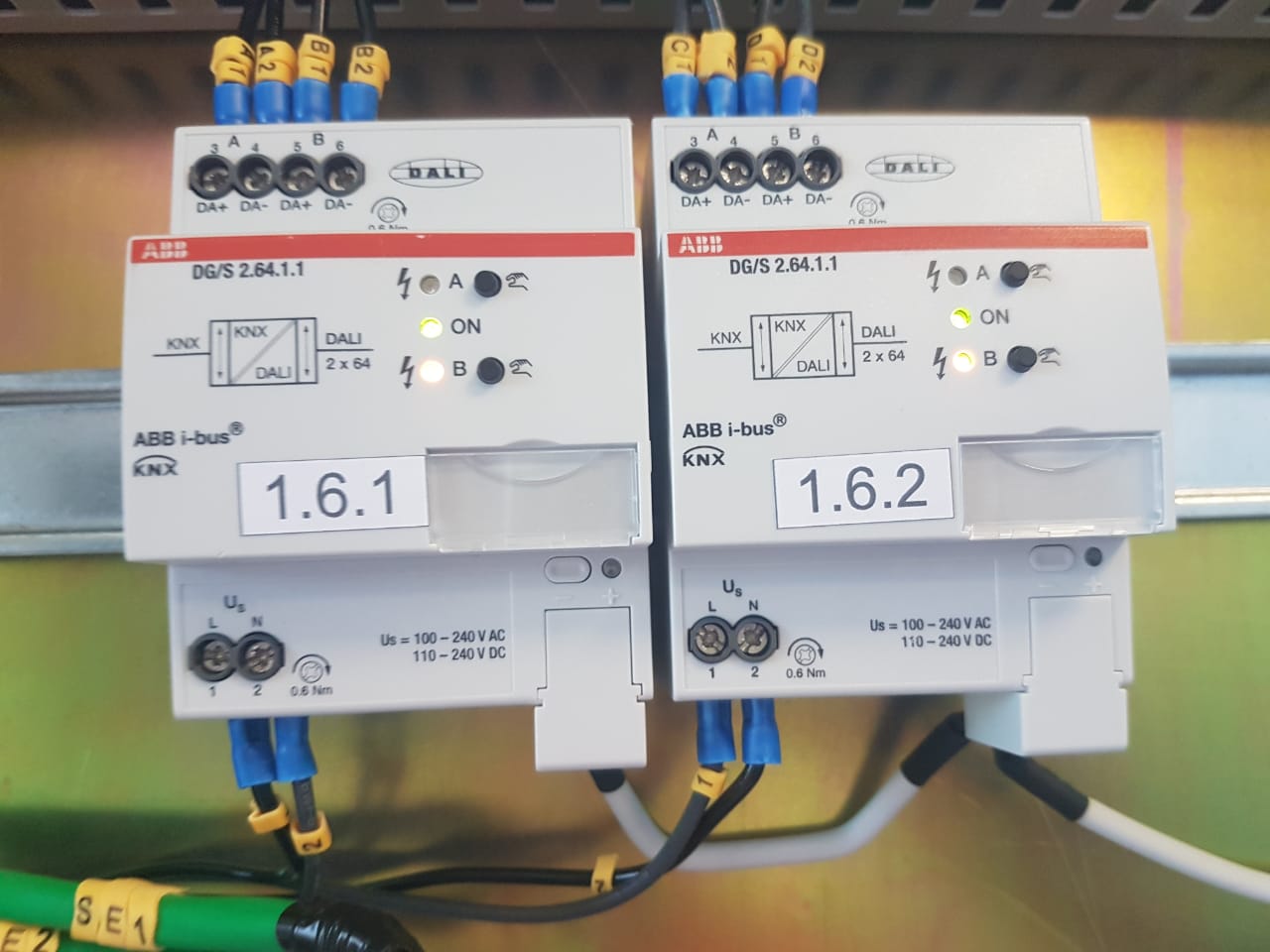

DALI Lighting Control, pumps and motors, measurements and water consumption, measurements and energy consumption, sensors: CO2, Motion and Light,

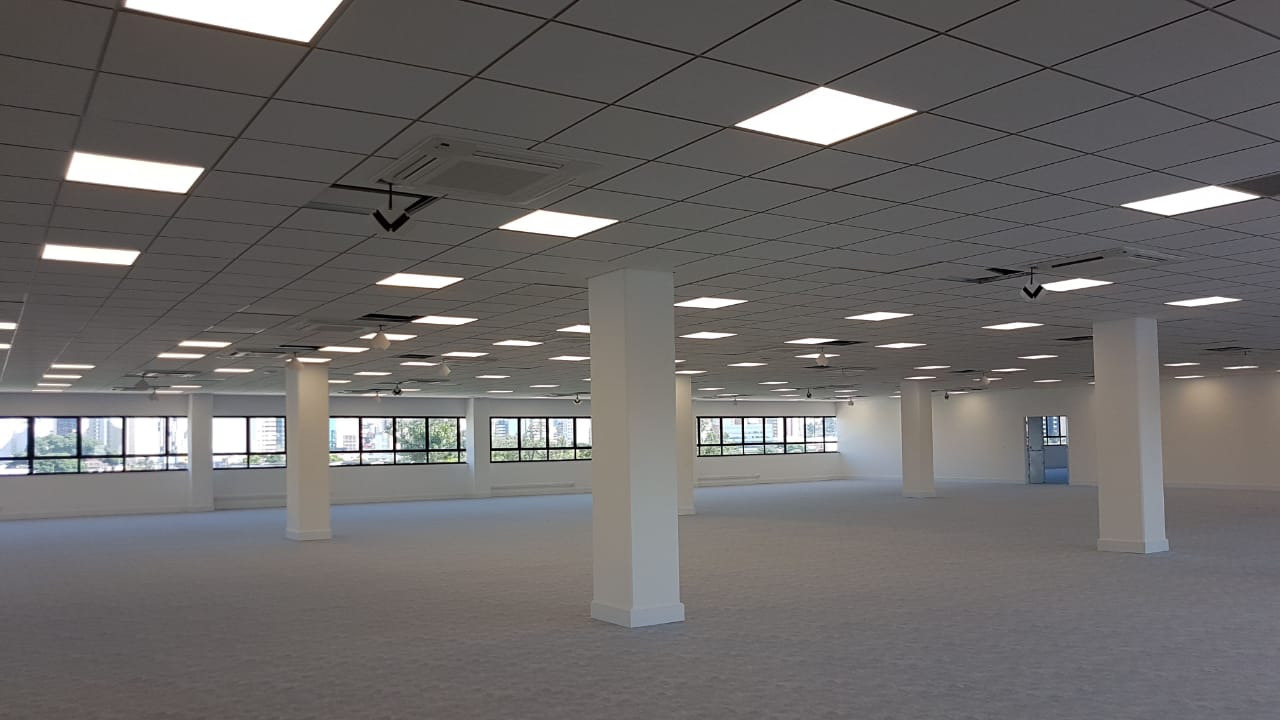

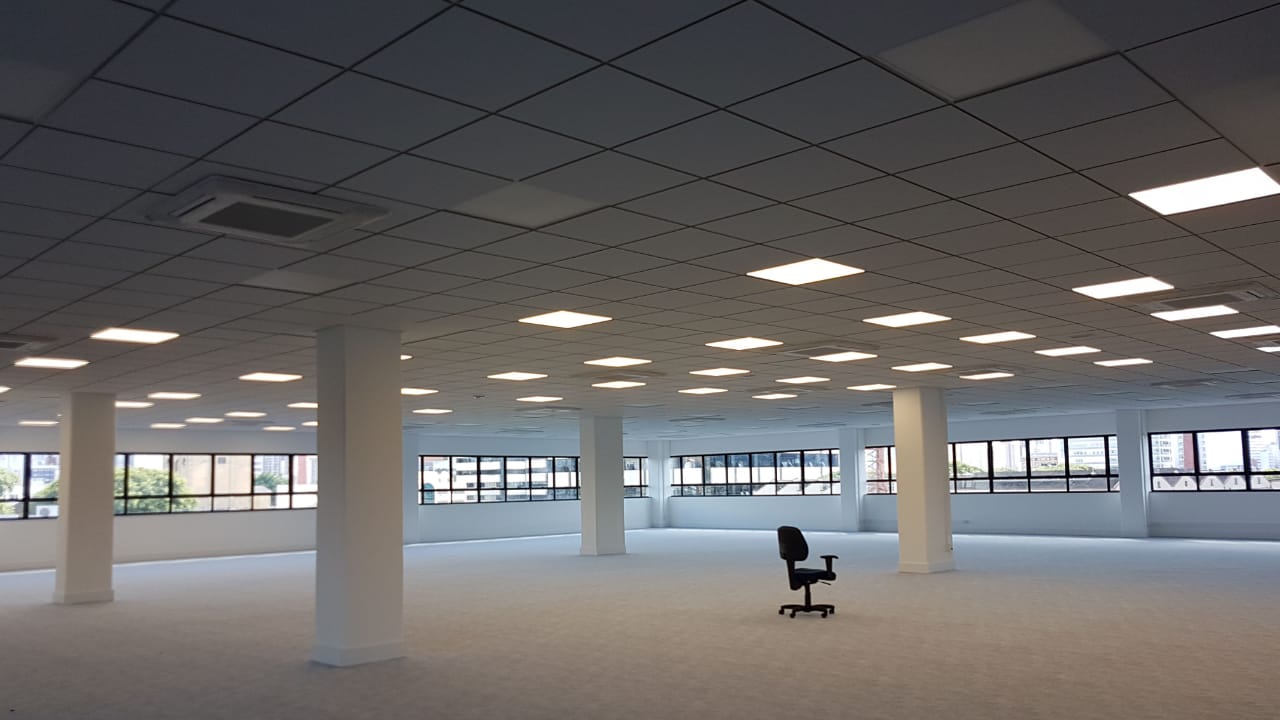

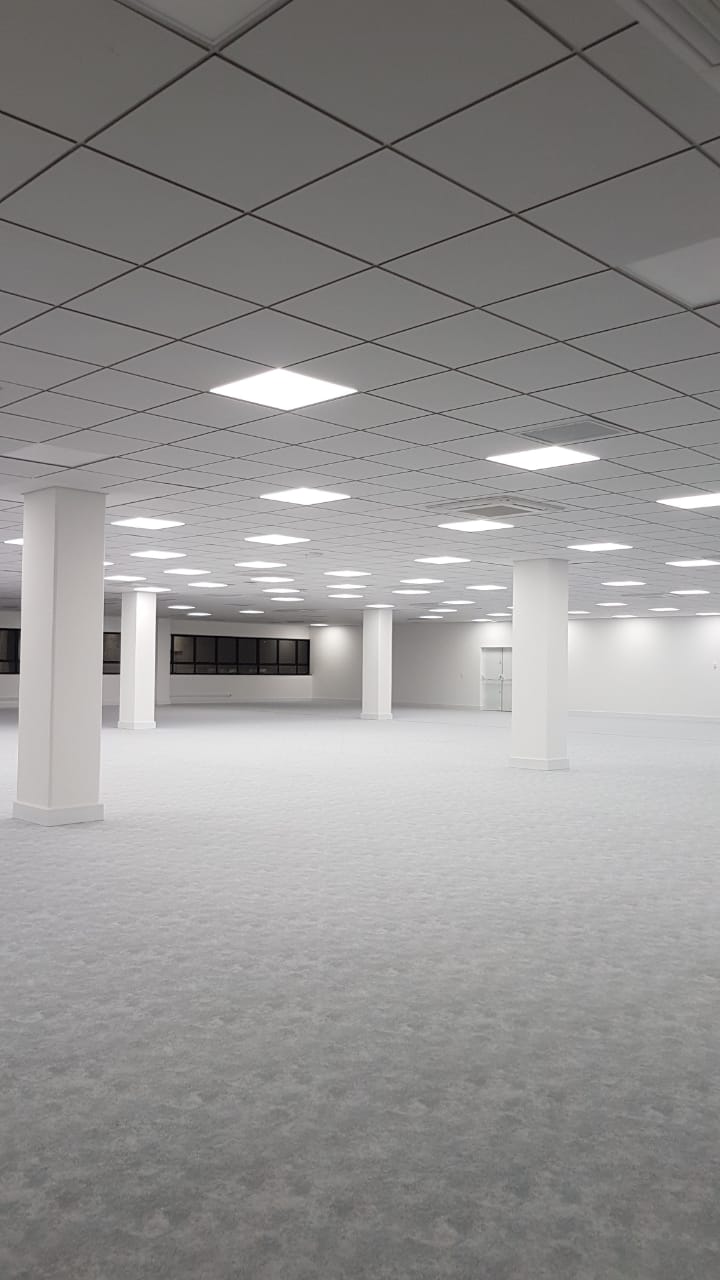

Efficiency and Control of: 1600 lighting ballasts, HVAC, pumps and motors and reuse water, photovoltaic daschboard, light sensors for continuous office dimming, pulses for local control and 50 custom building scenarios,

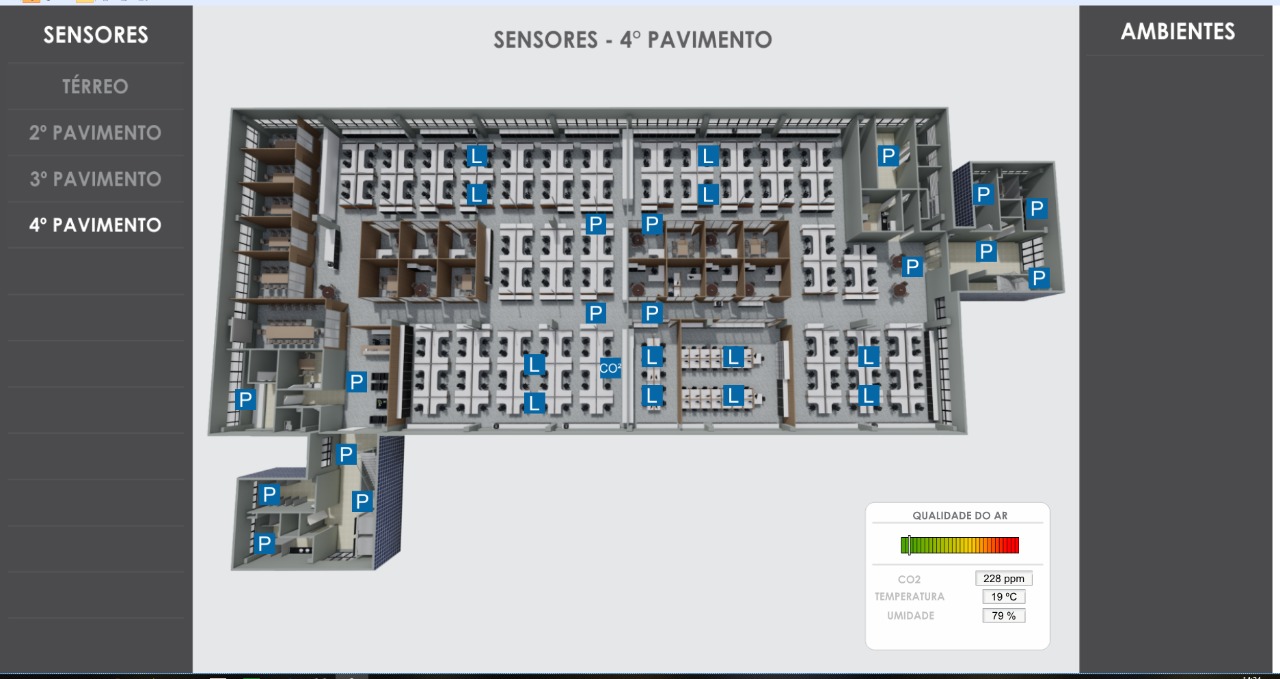

147 presence sensors allocated in the plan and around of service and circulation and toilets.

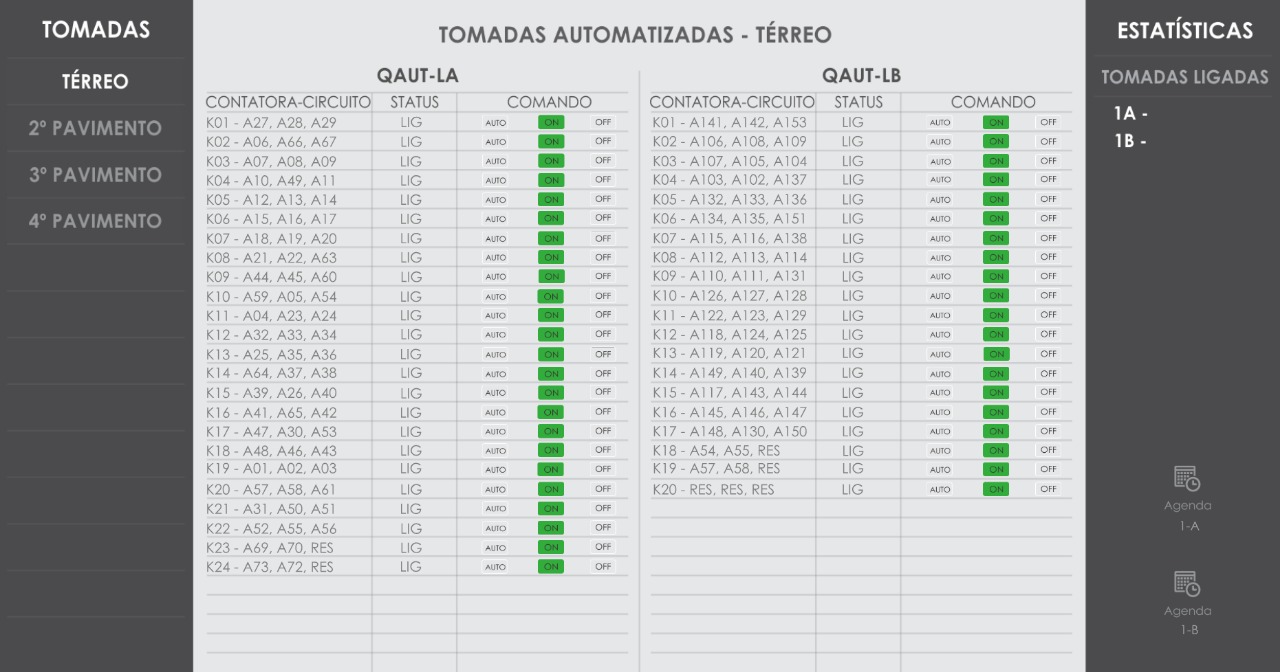

CO2 Sensors for Air Quality and Air Renewal Control, 50% Control the building sockets generate energy savings with time off schedule.

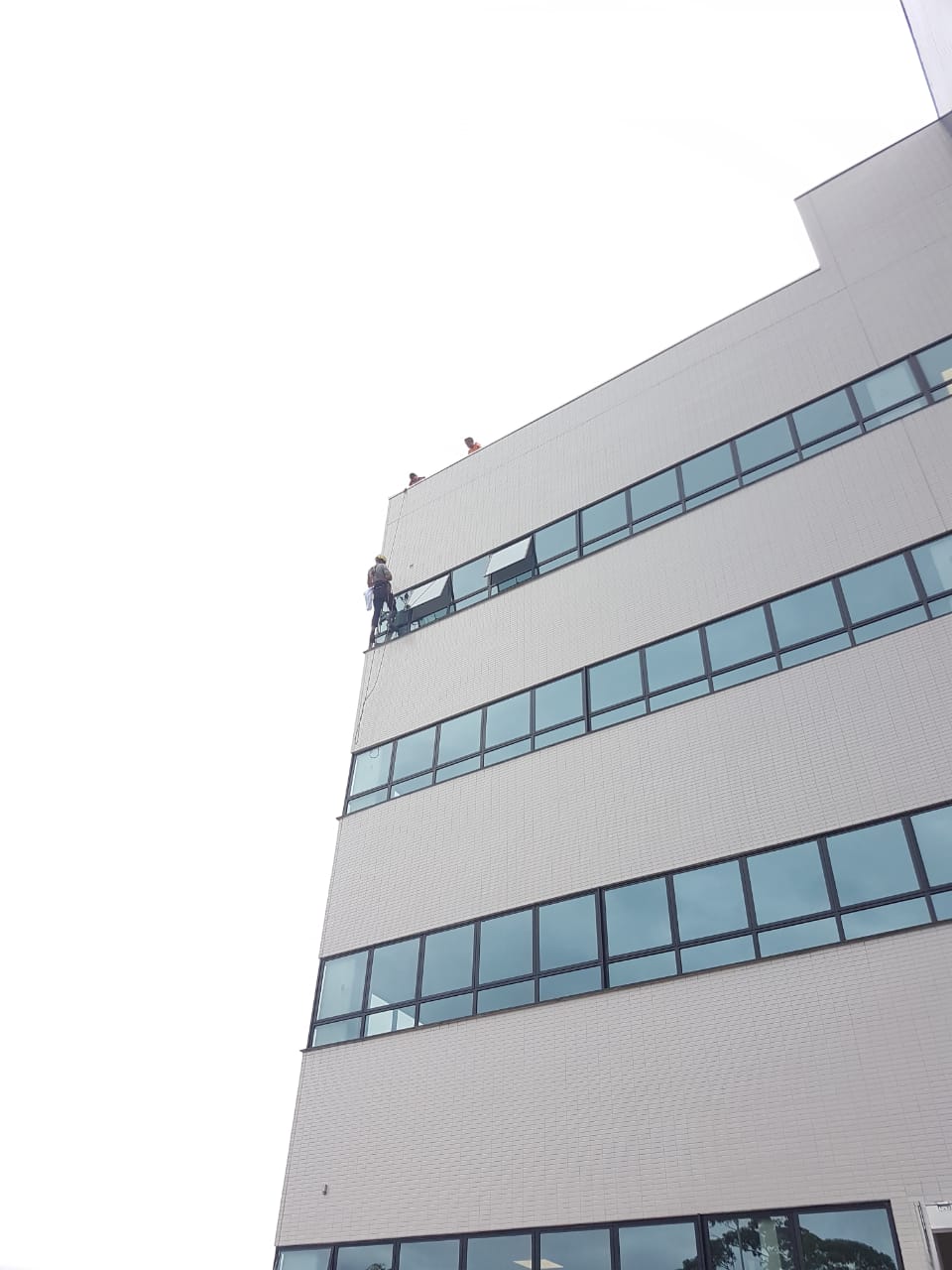

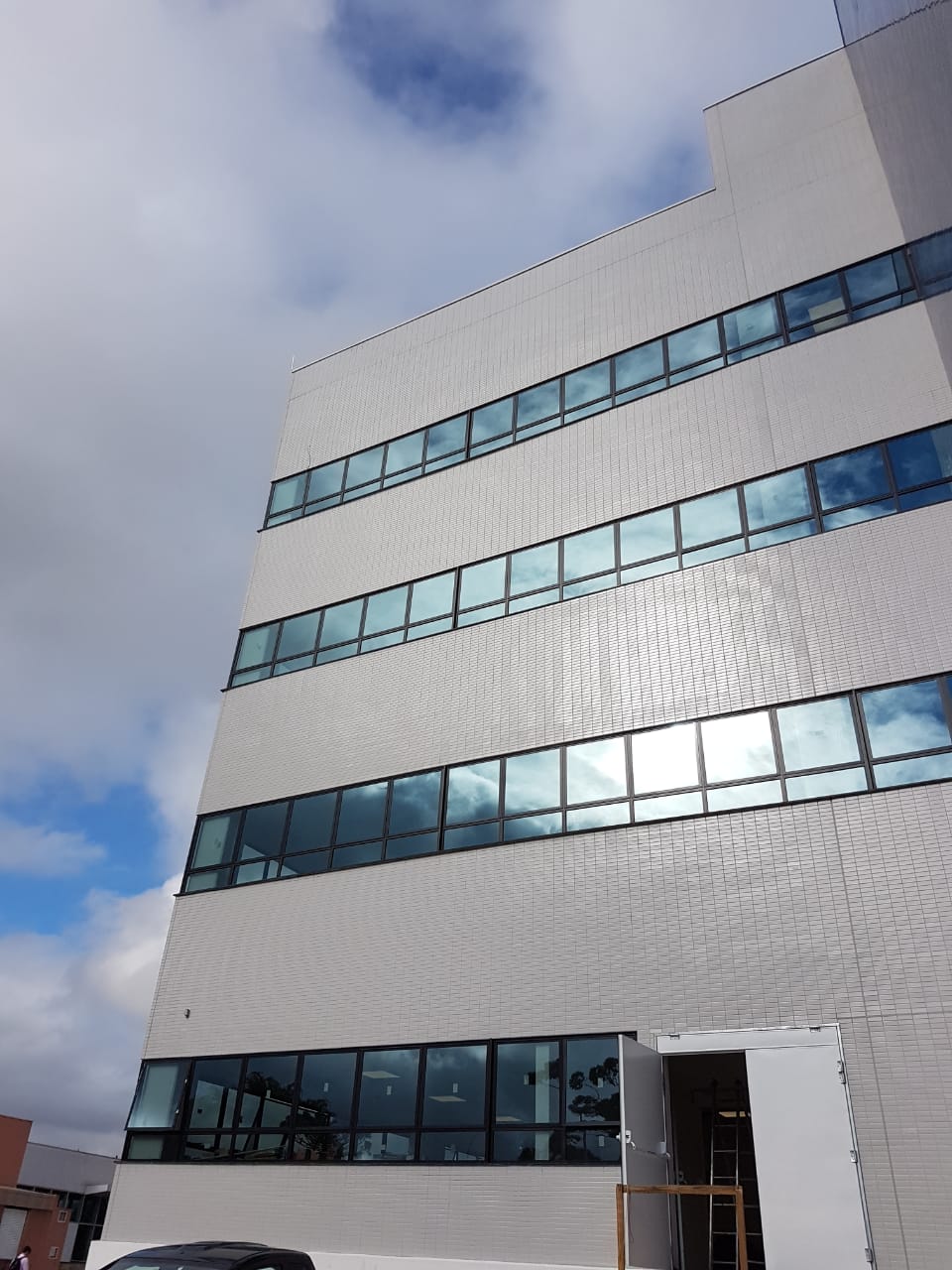

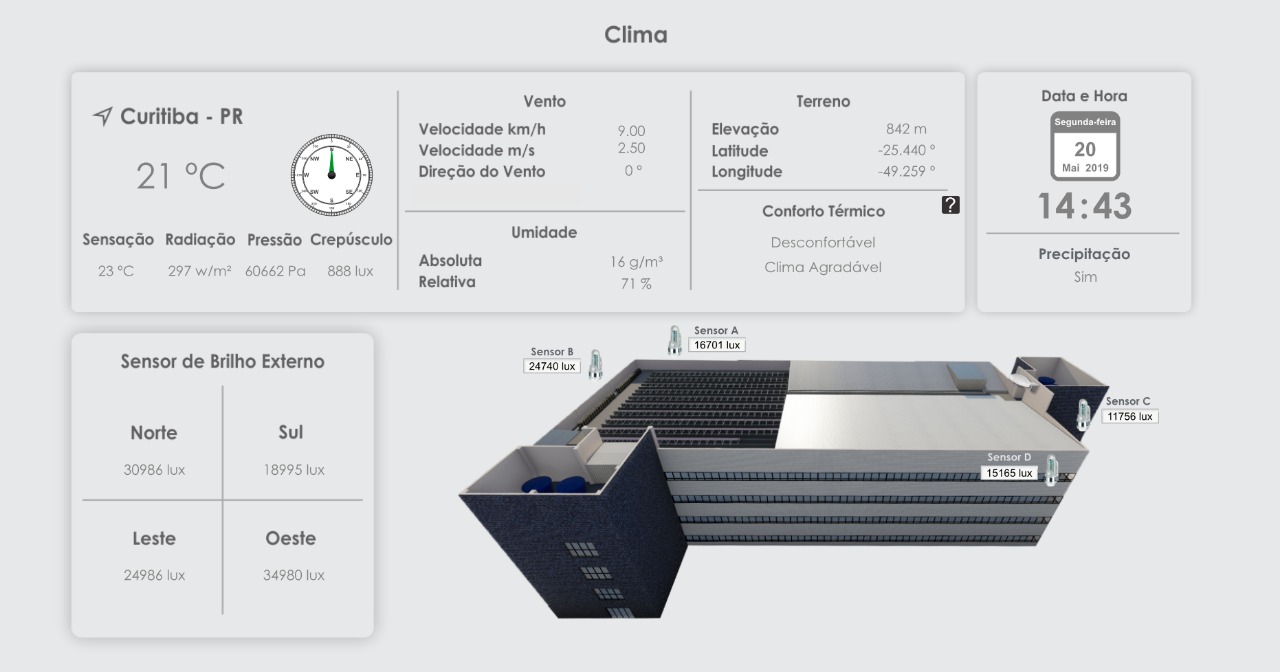

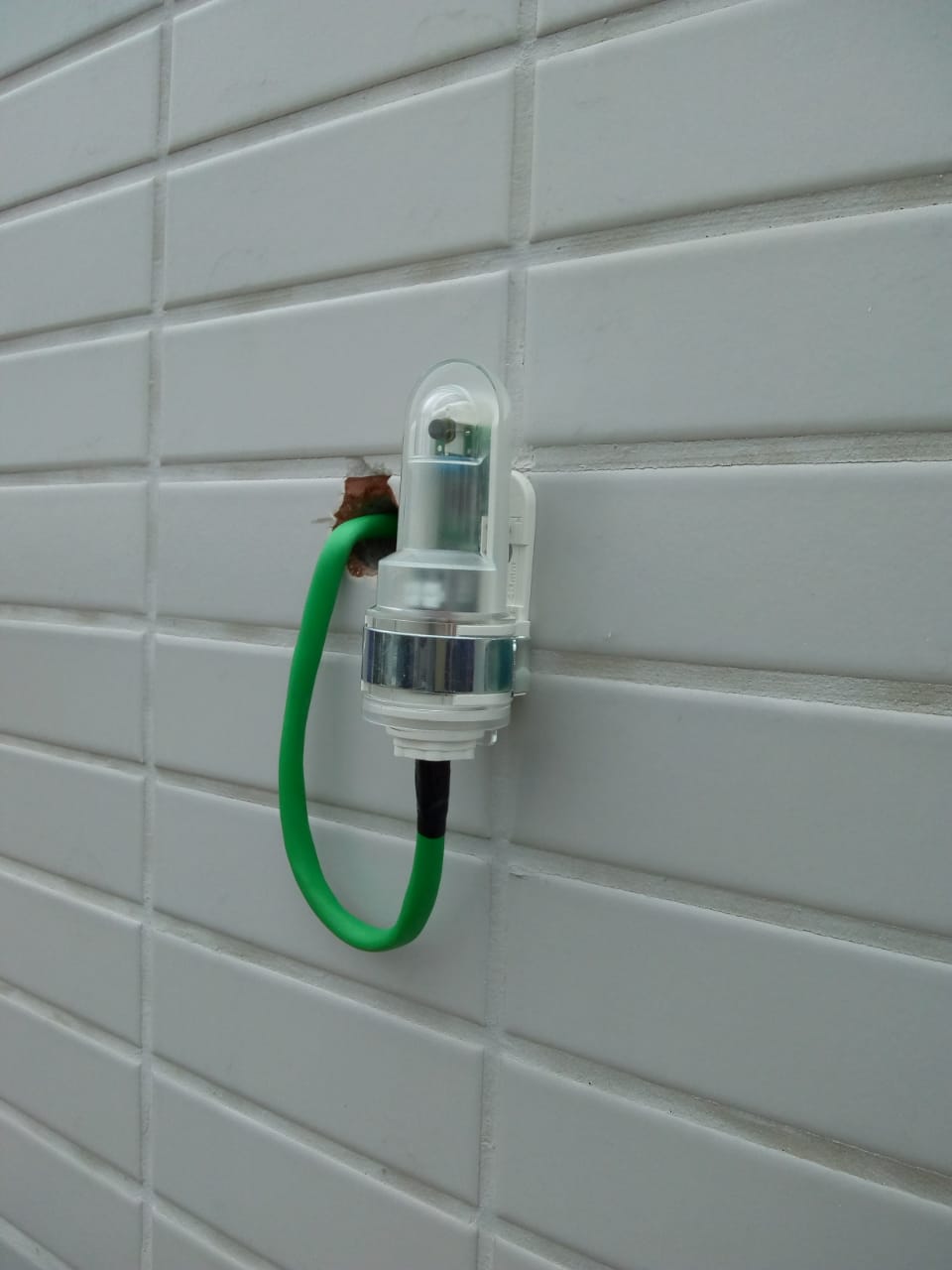

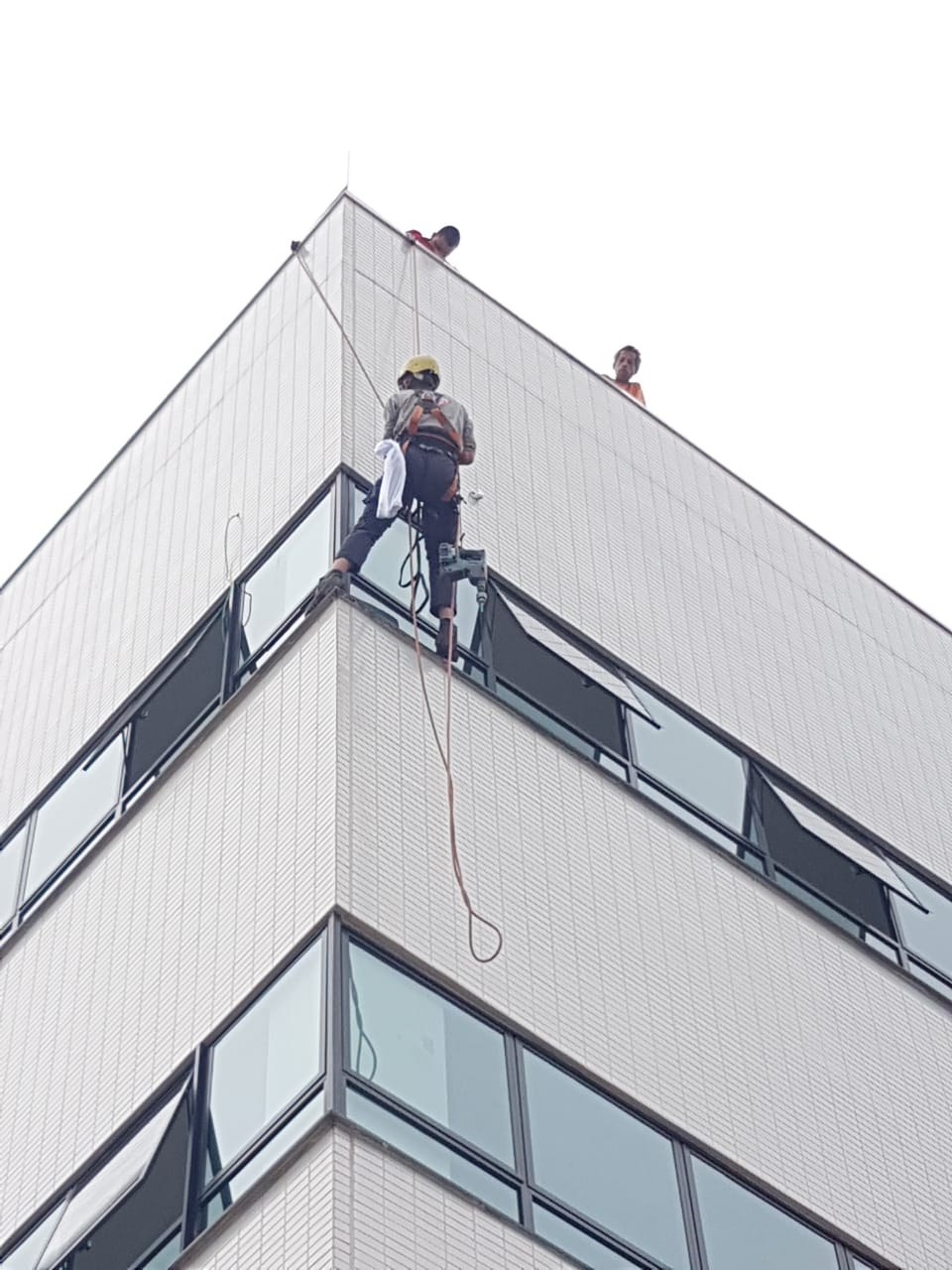

Allocated external lightness twilight sensors on the facades. Weather station installed.
Contact Information
| Company Name | Arqtech Automacao |
| Company Email | contato@arqtech.arq.br |
| Company Website | http://www.arqtechautomacao.com.br |
| Contact Name | Thais Giordani |
| Contact Function | System Integrator |
