The KNX Multibrand Living Lab: Empowering Future Experts
Educational in Manacor, Mallorca
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Educational |
| Project Type | Commercial |
| Year of Completion | 2026 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 101 – 300 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 251 – 500 |
| Man Power | 26 – 50 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control, Lighting Colour Control

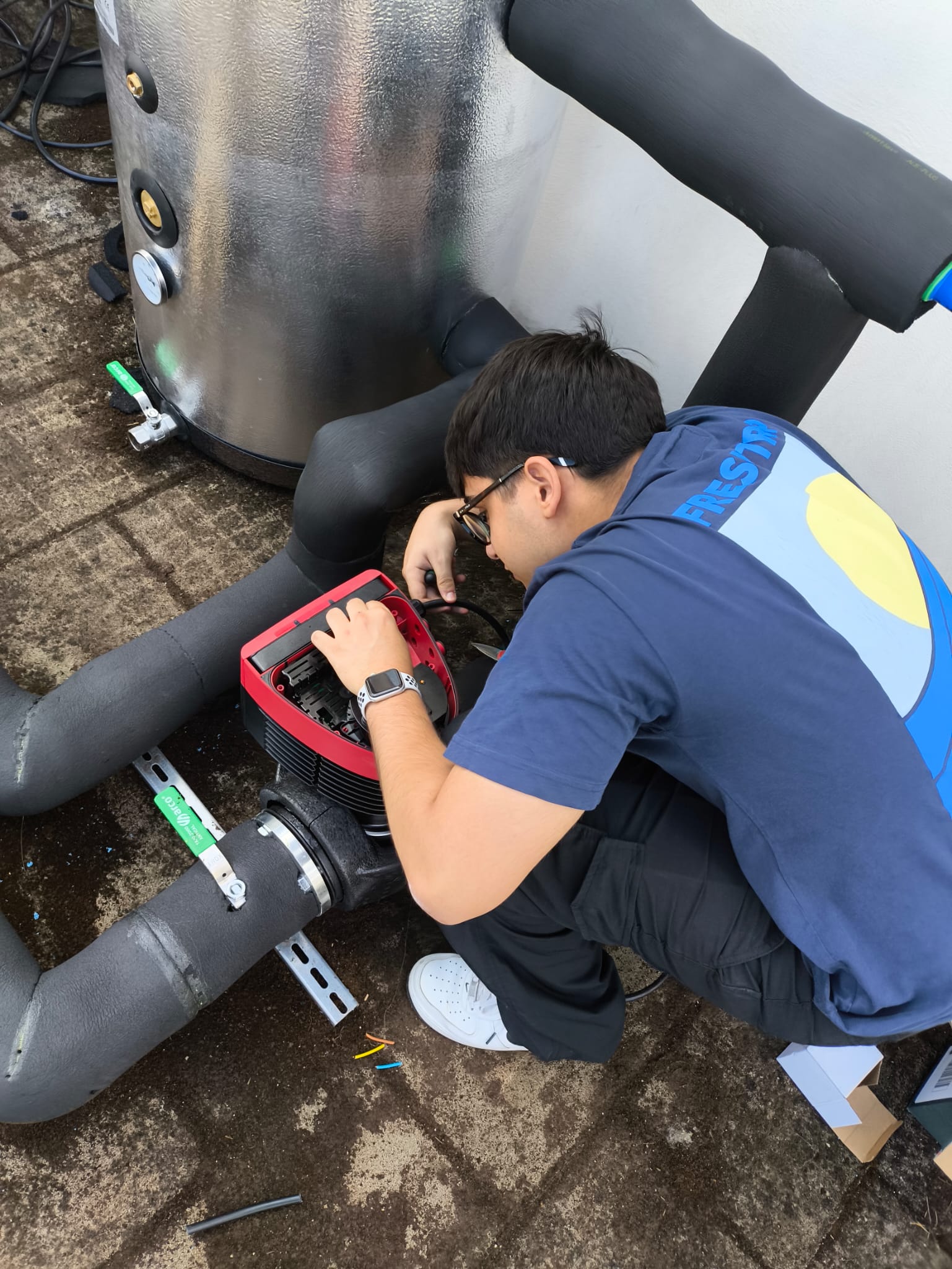

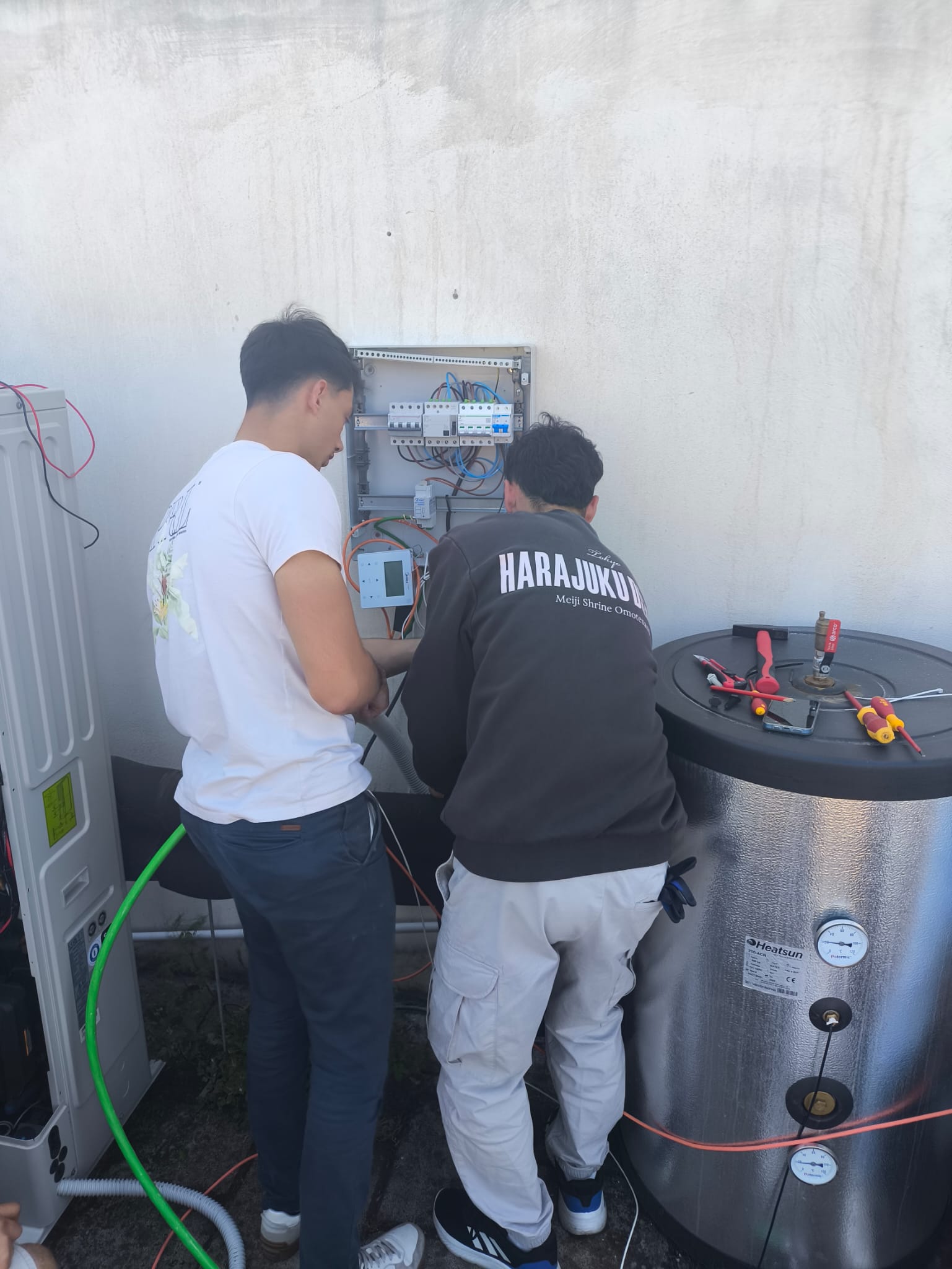

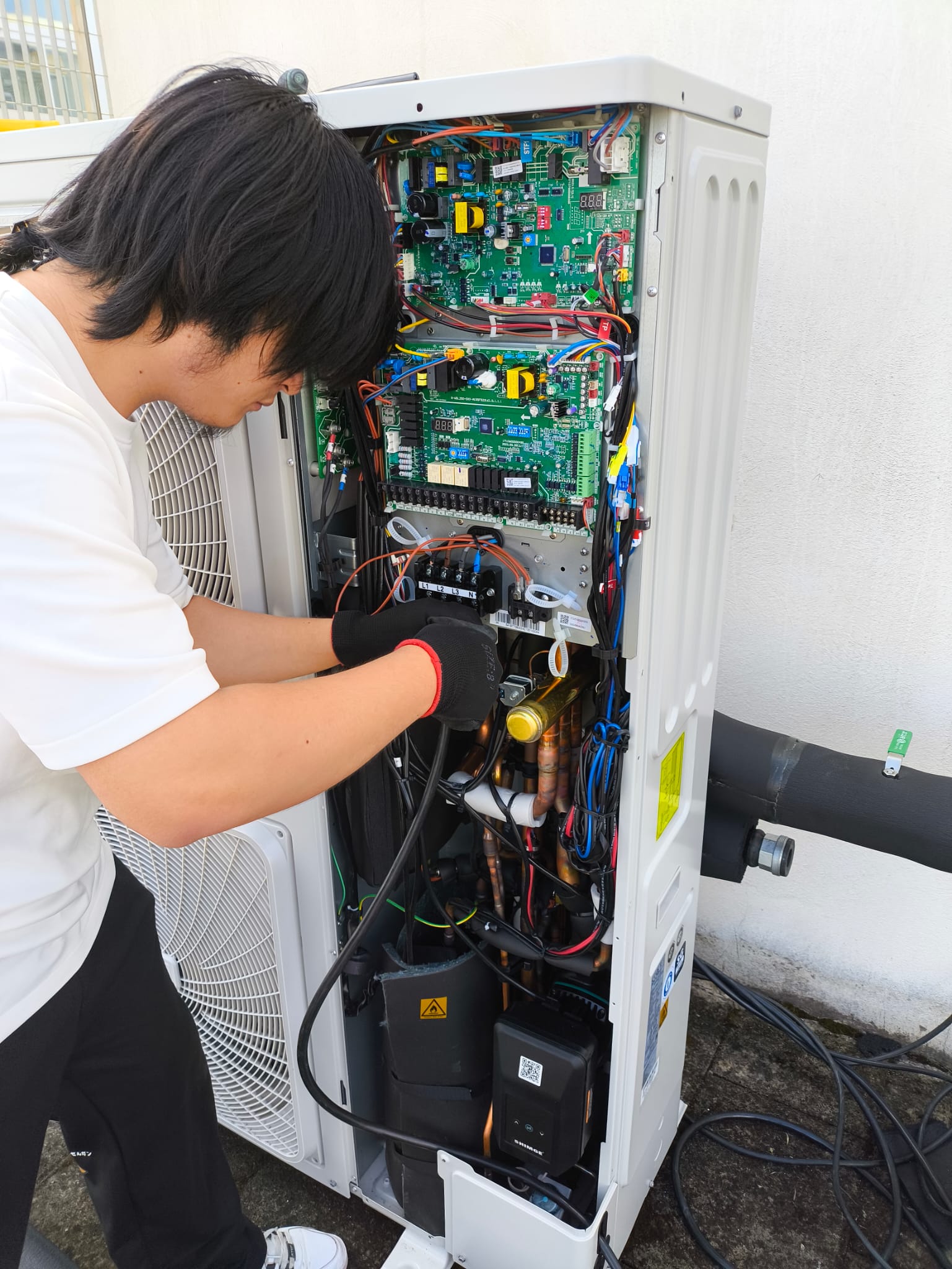

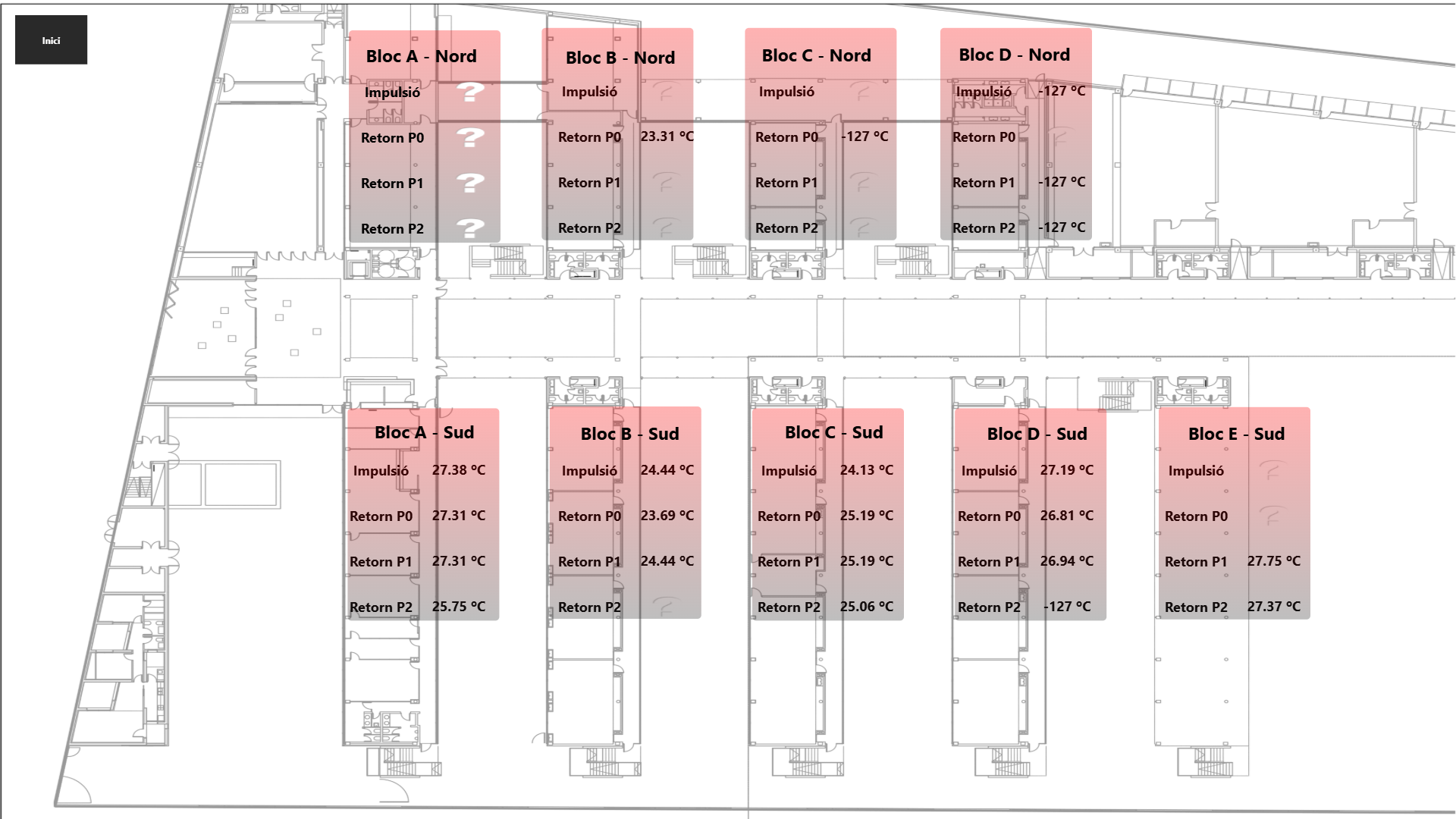

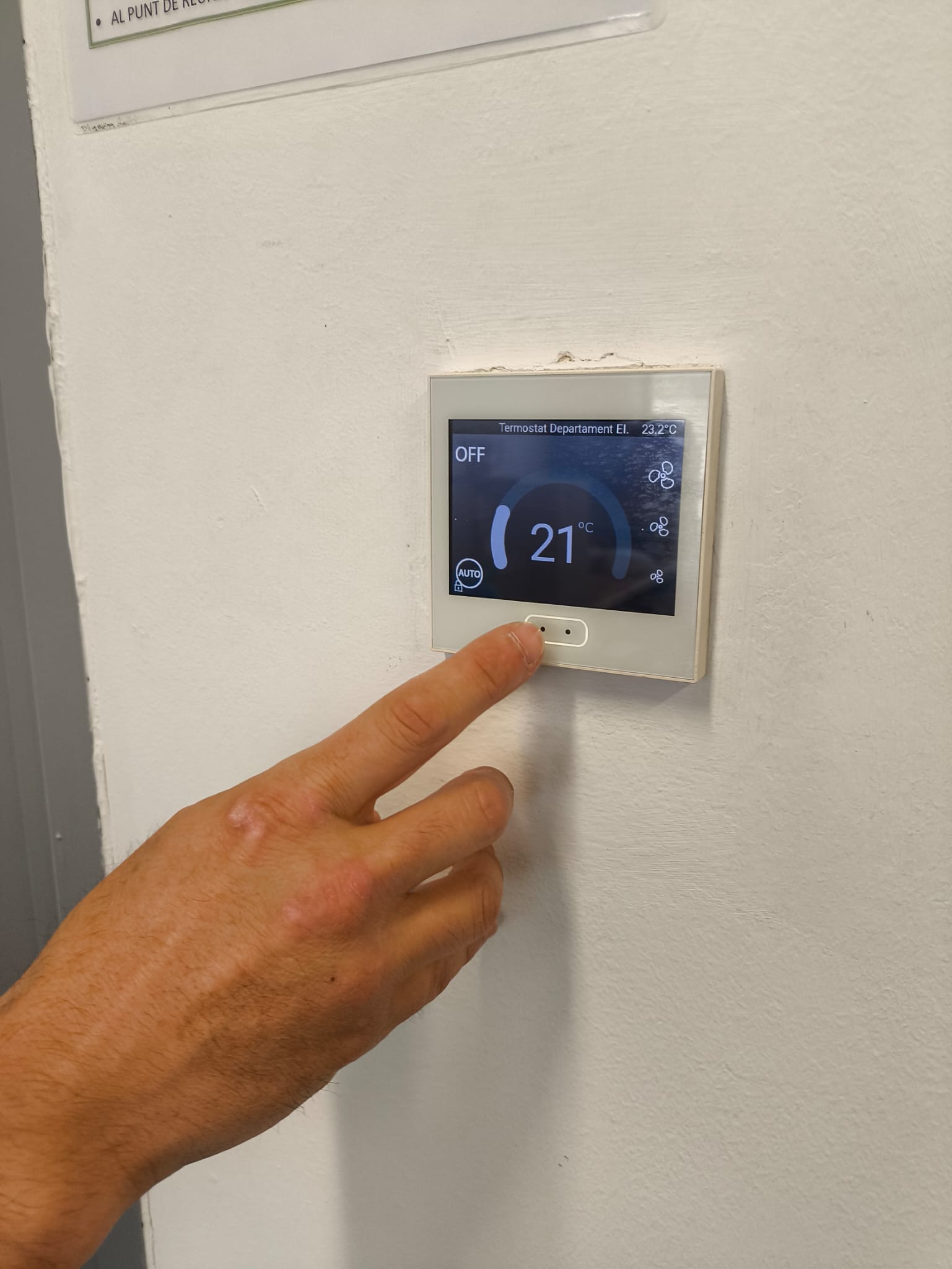

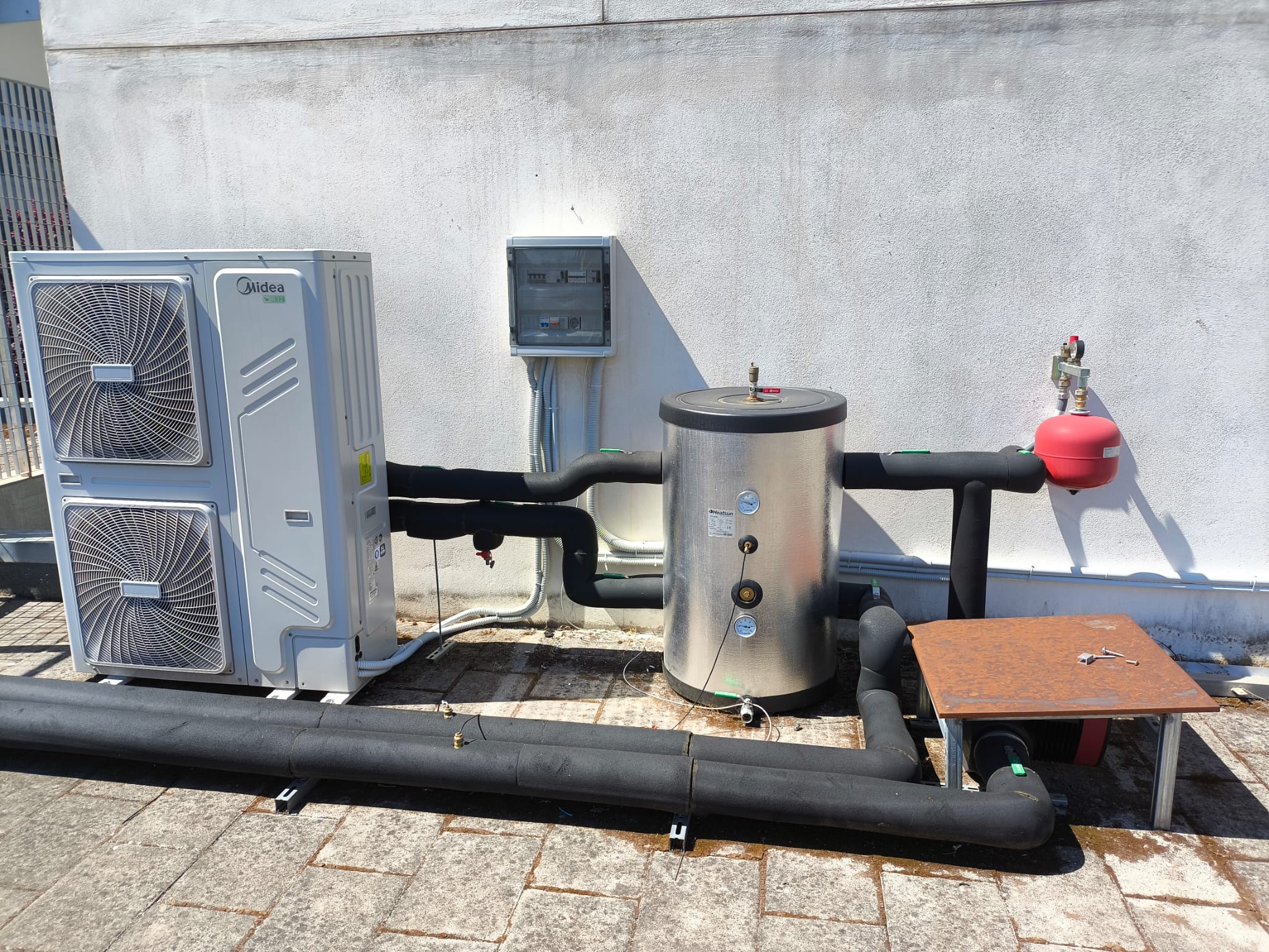

- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Weather Dependent Control, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control
- Security and Safety - Access Control, Presence Simulation

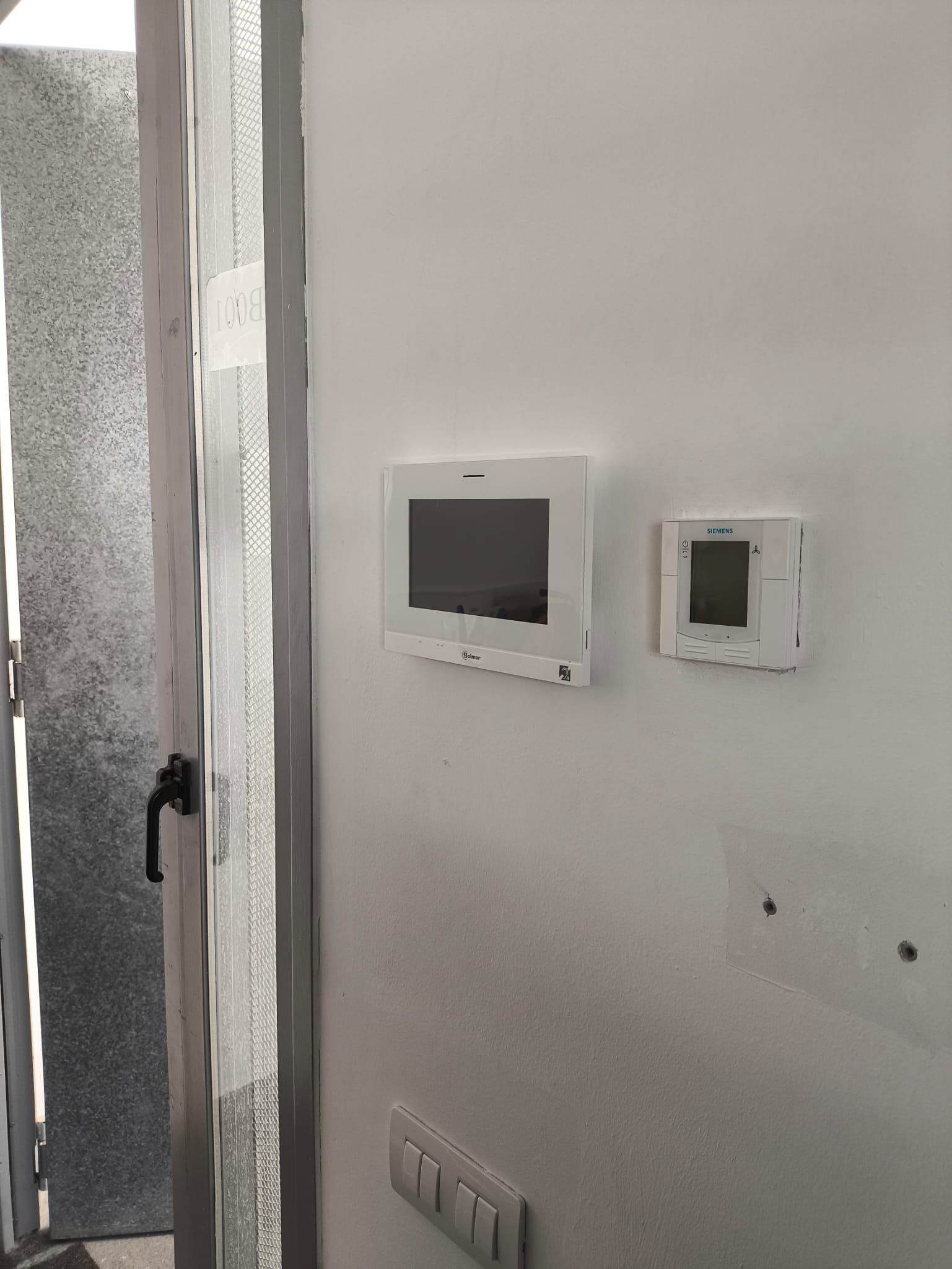

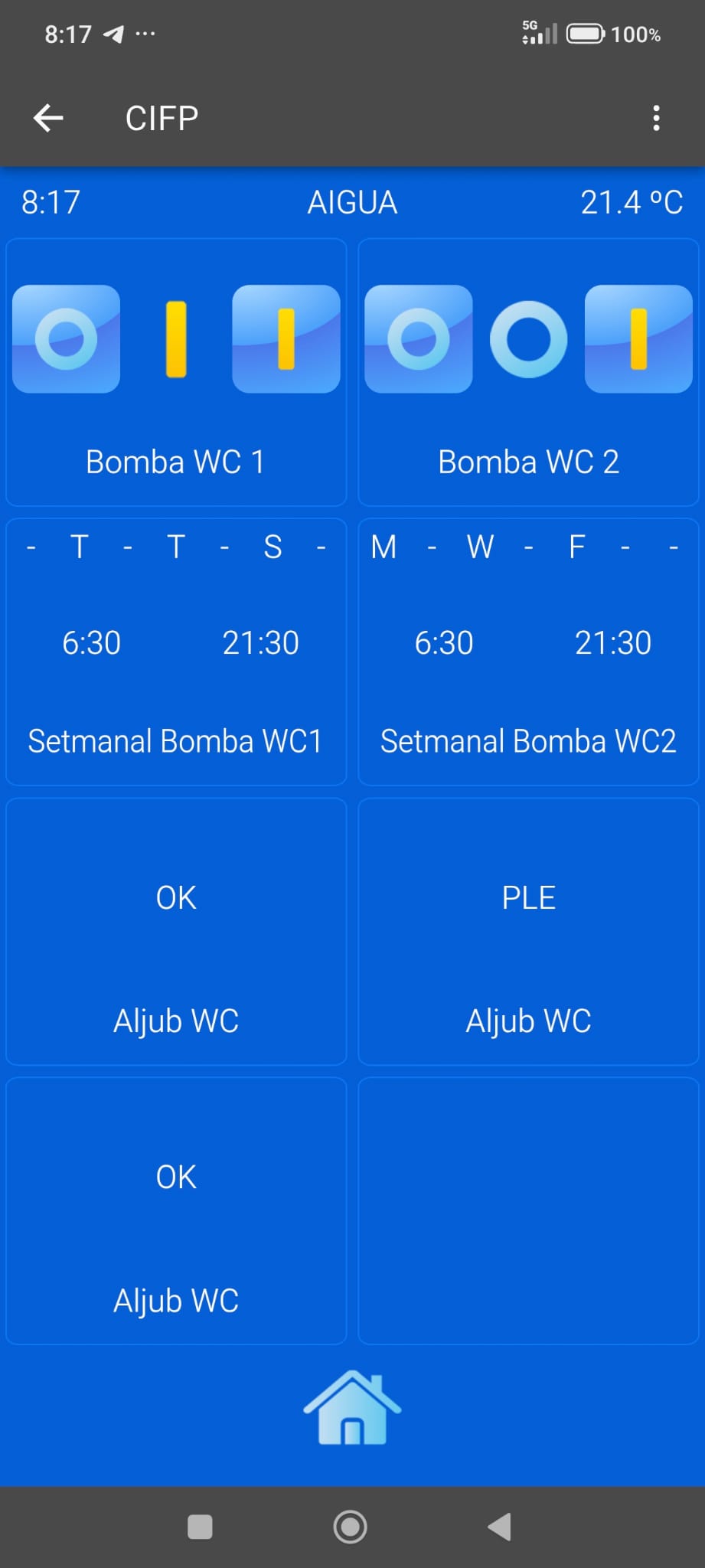

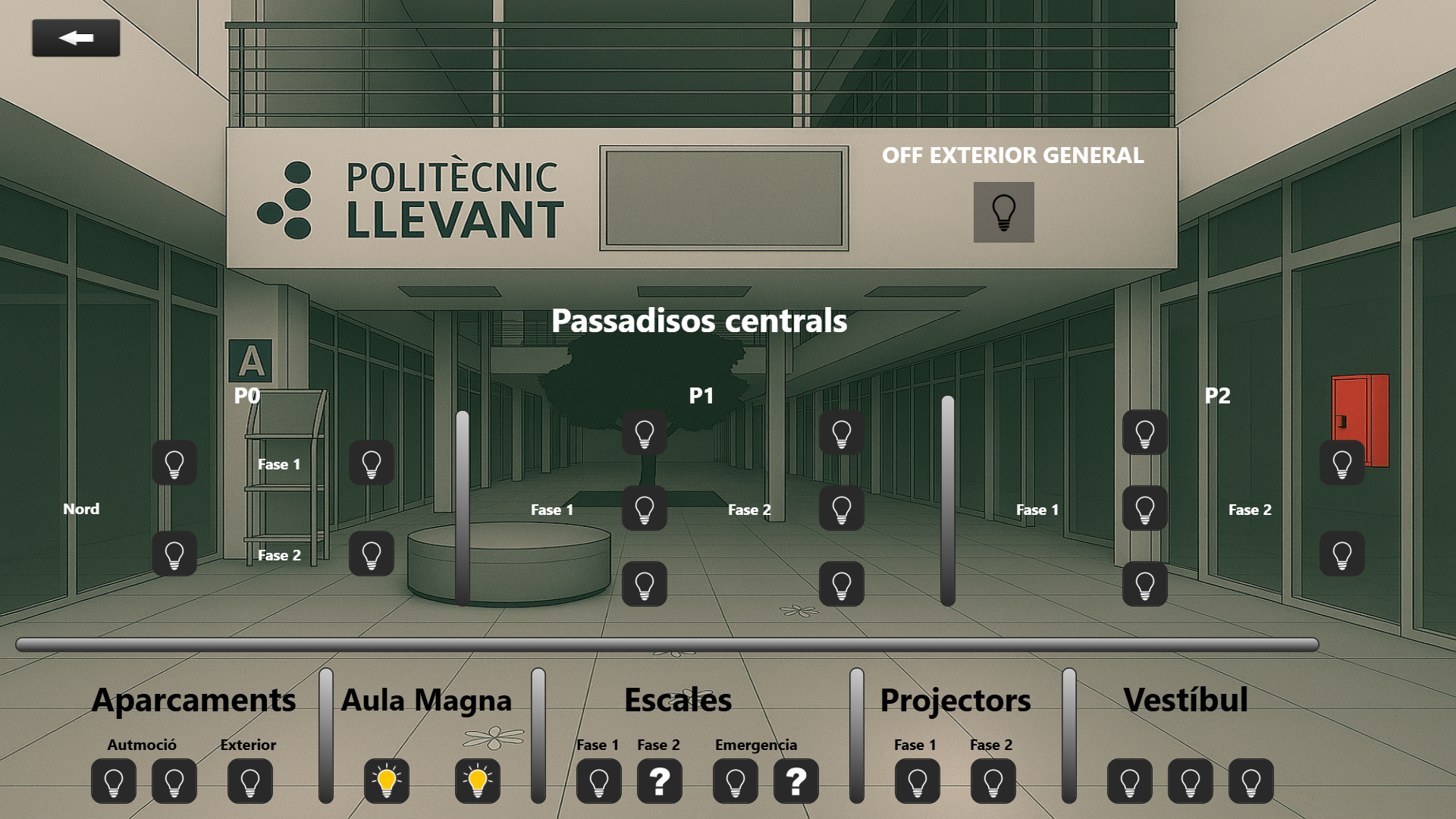

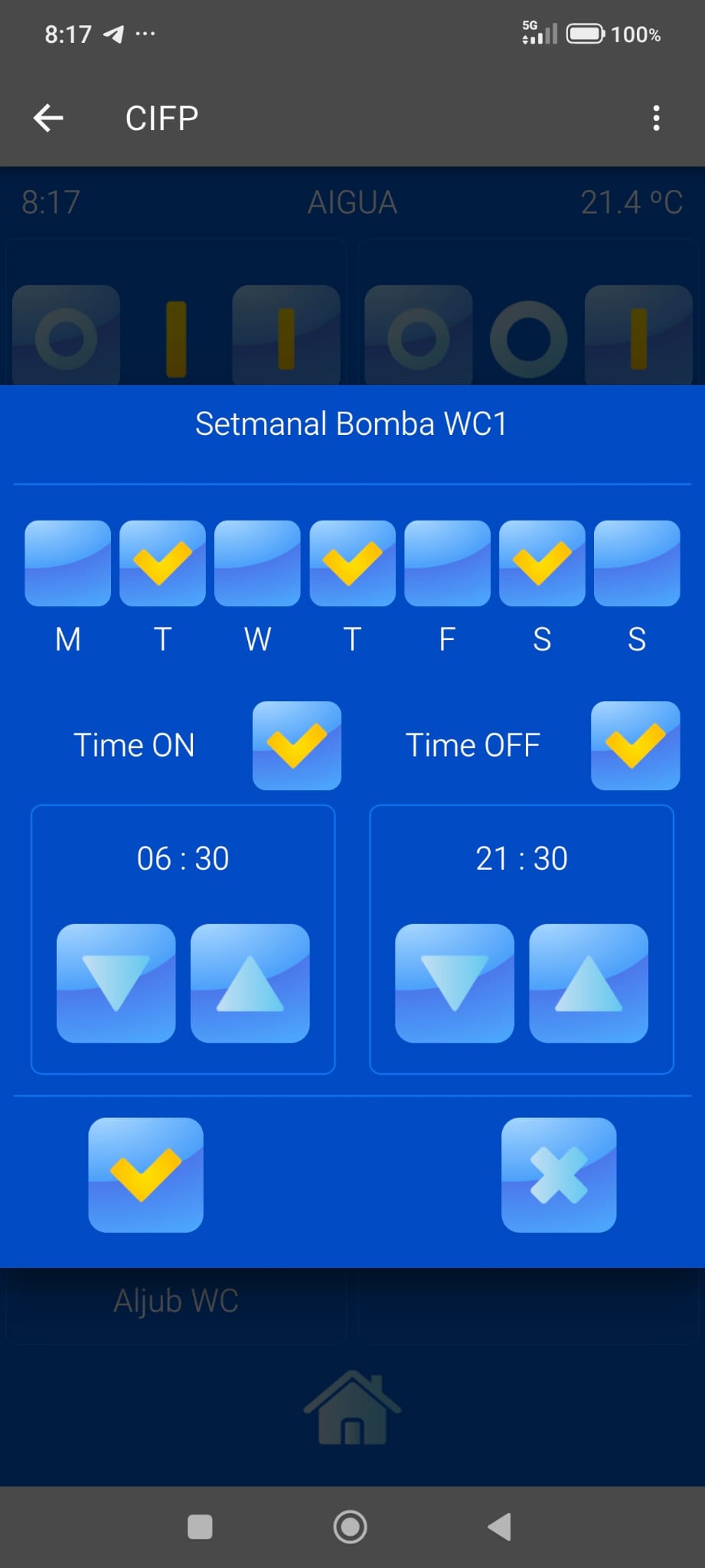

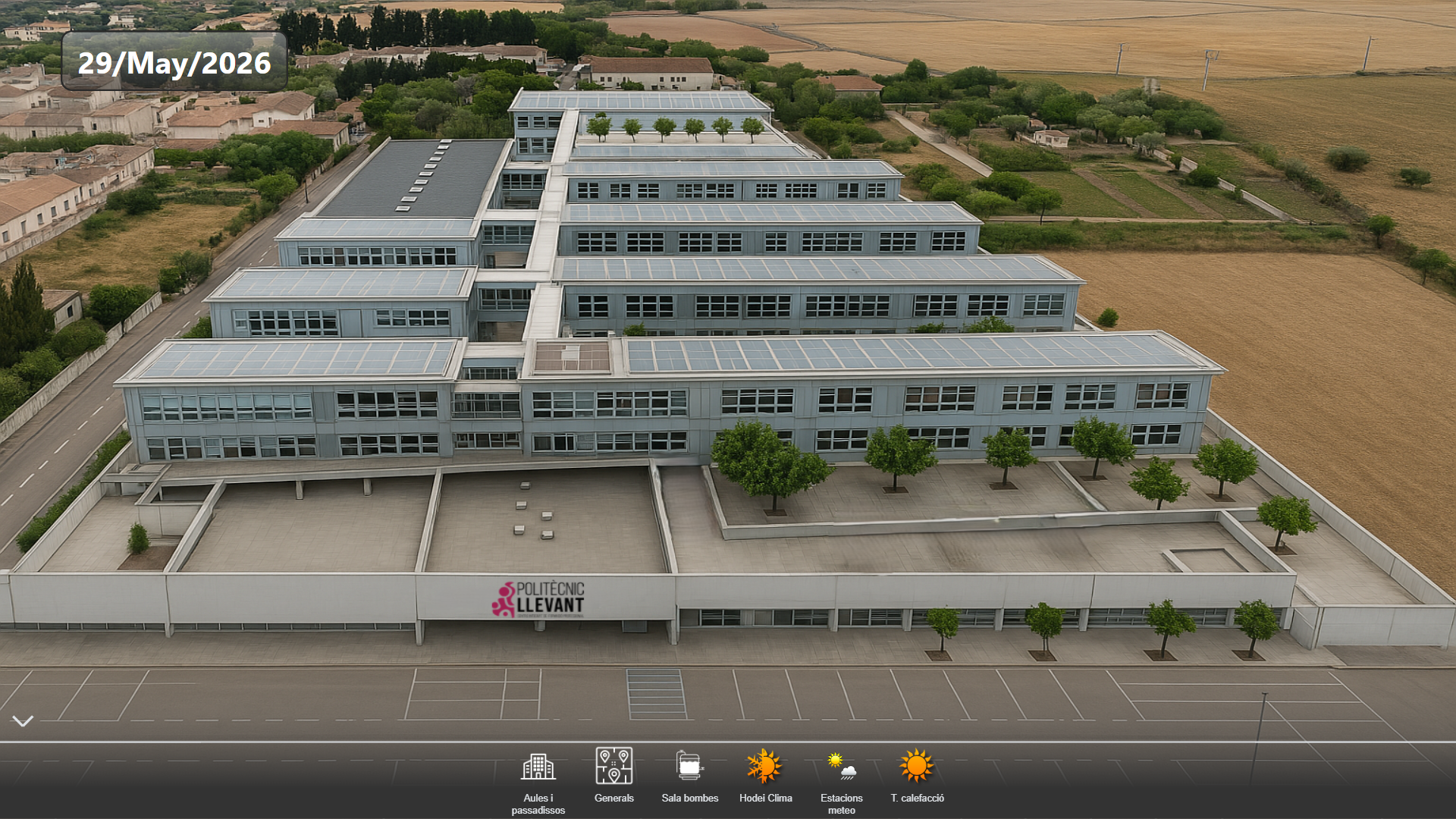

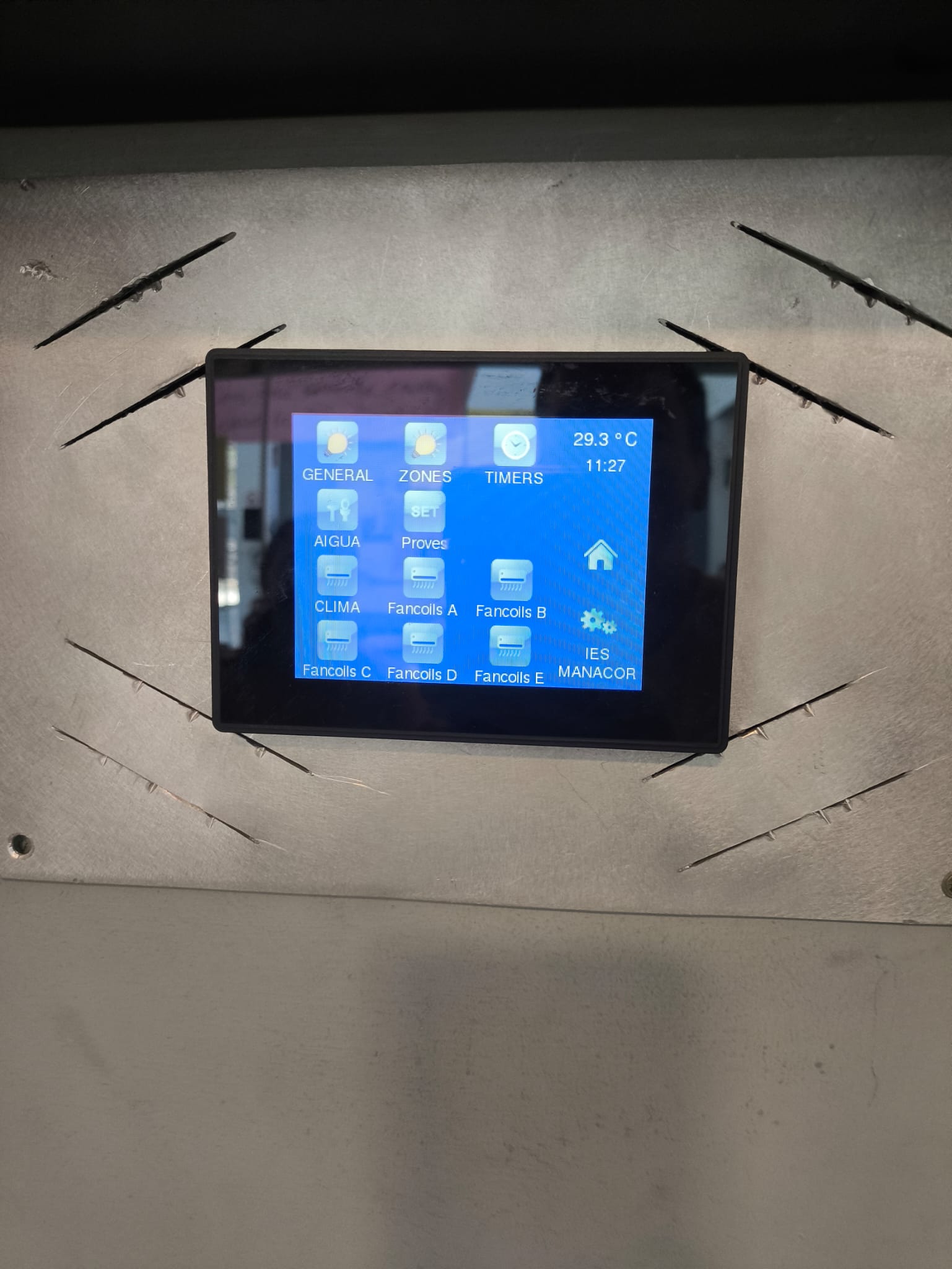

- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering - Metering, Visualisation, Fuel or Water tank level control

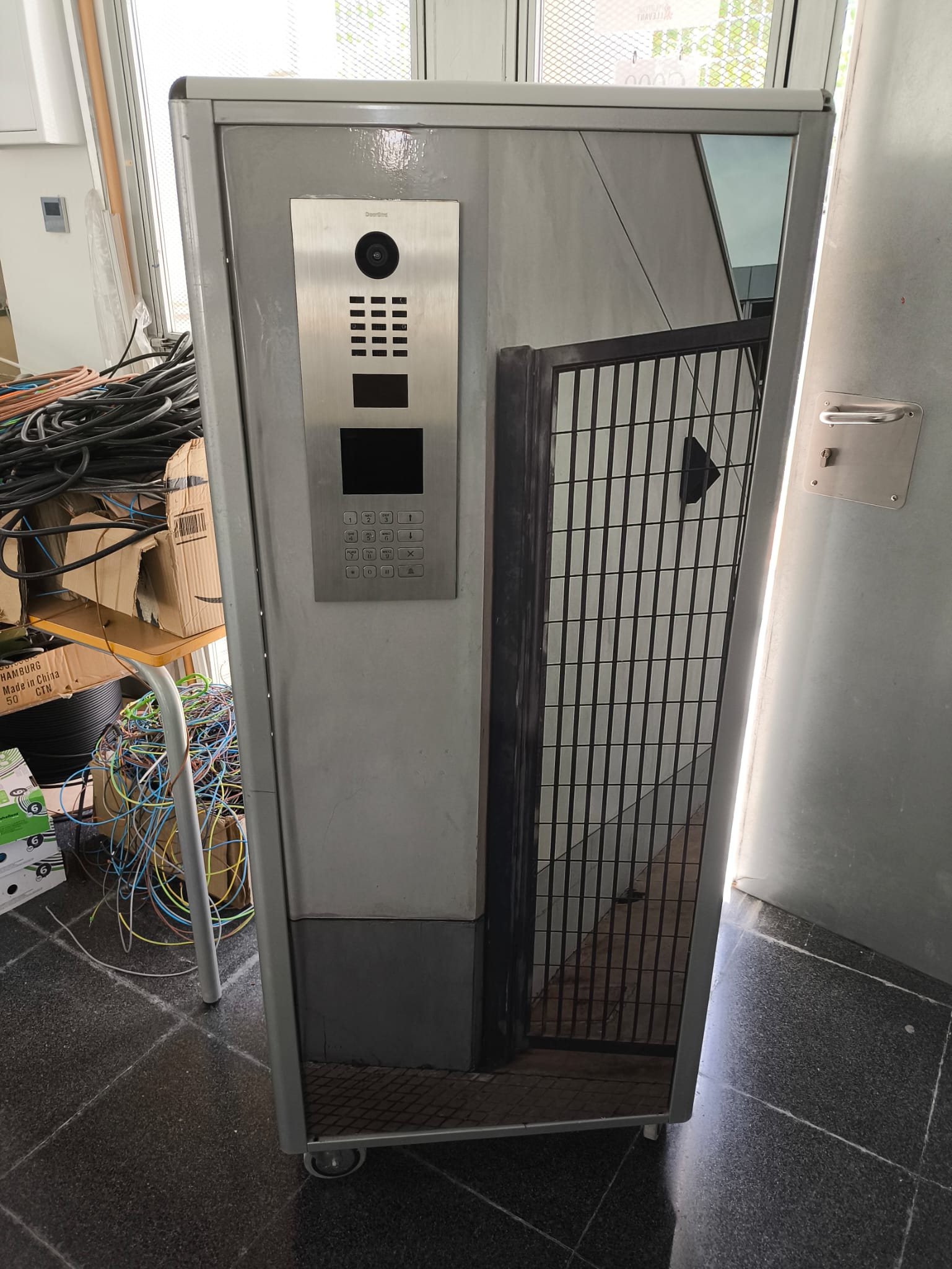

- Other - Intercom
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming, Messaging (e.g. SMS)
- Blind and Shutter Control - Individual Control, Group & Central Control, Preset Positioning, Automatic Programs, Wind and Rain Protection
Customers Description

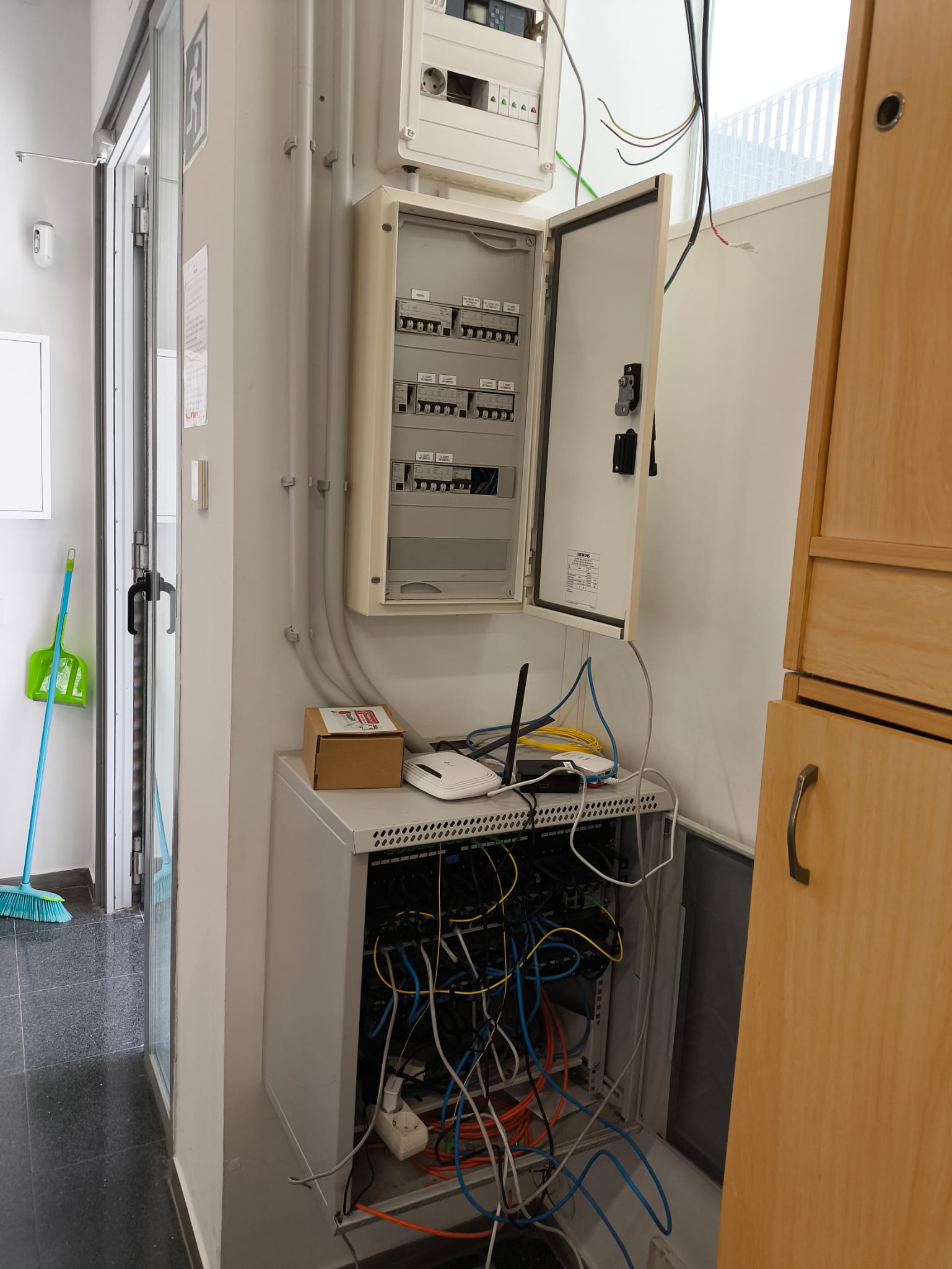

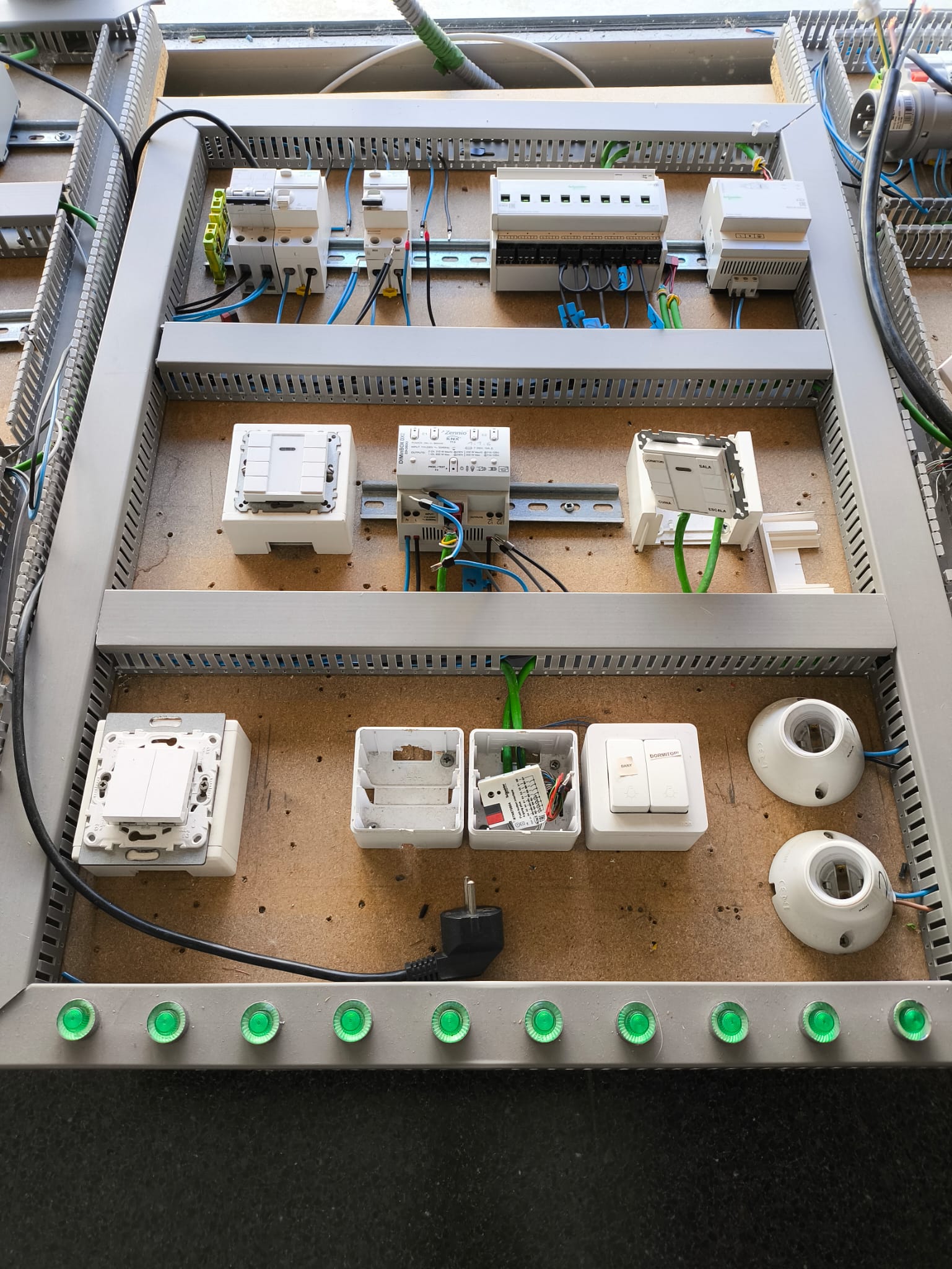

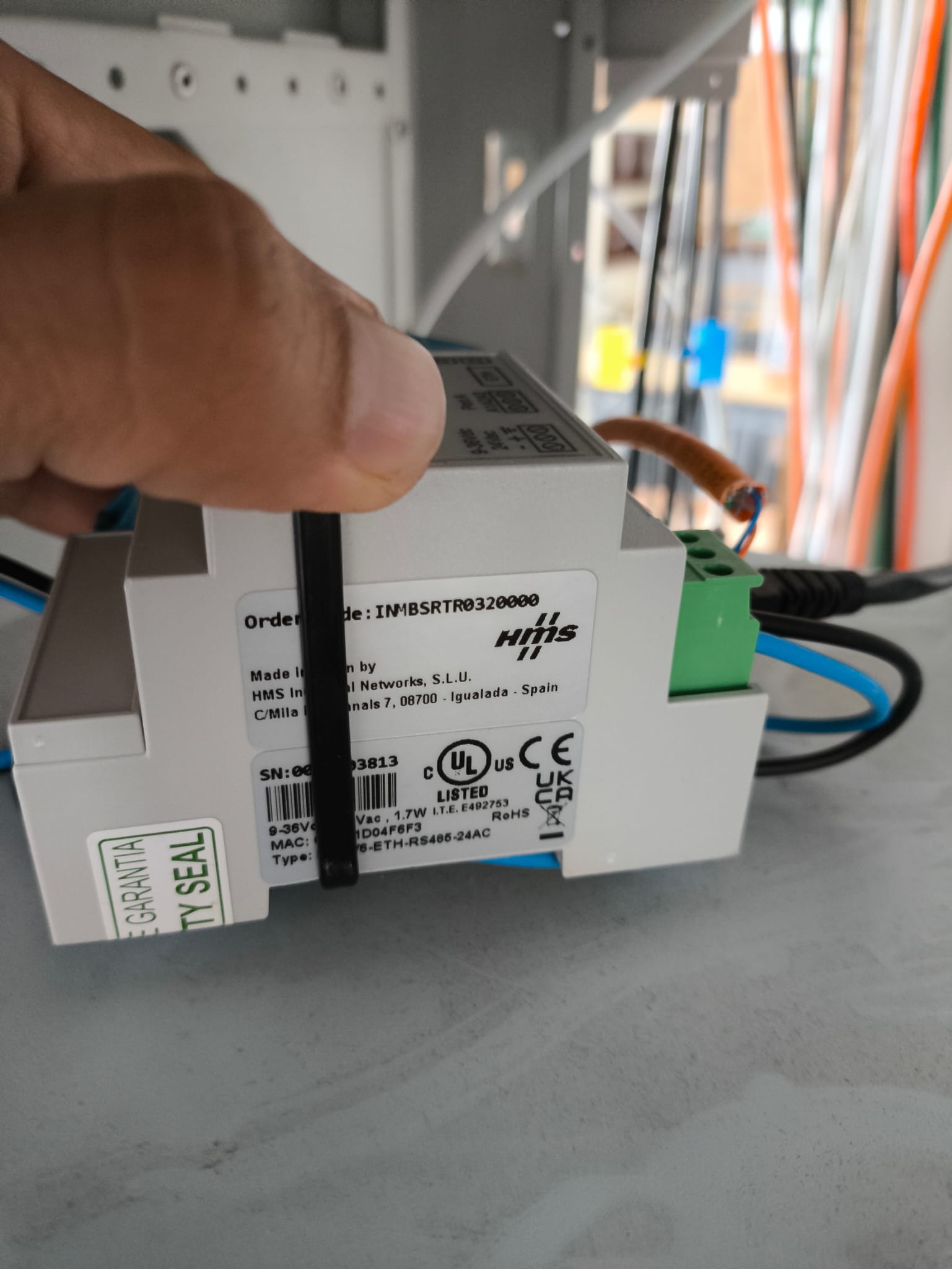

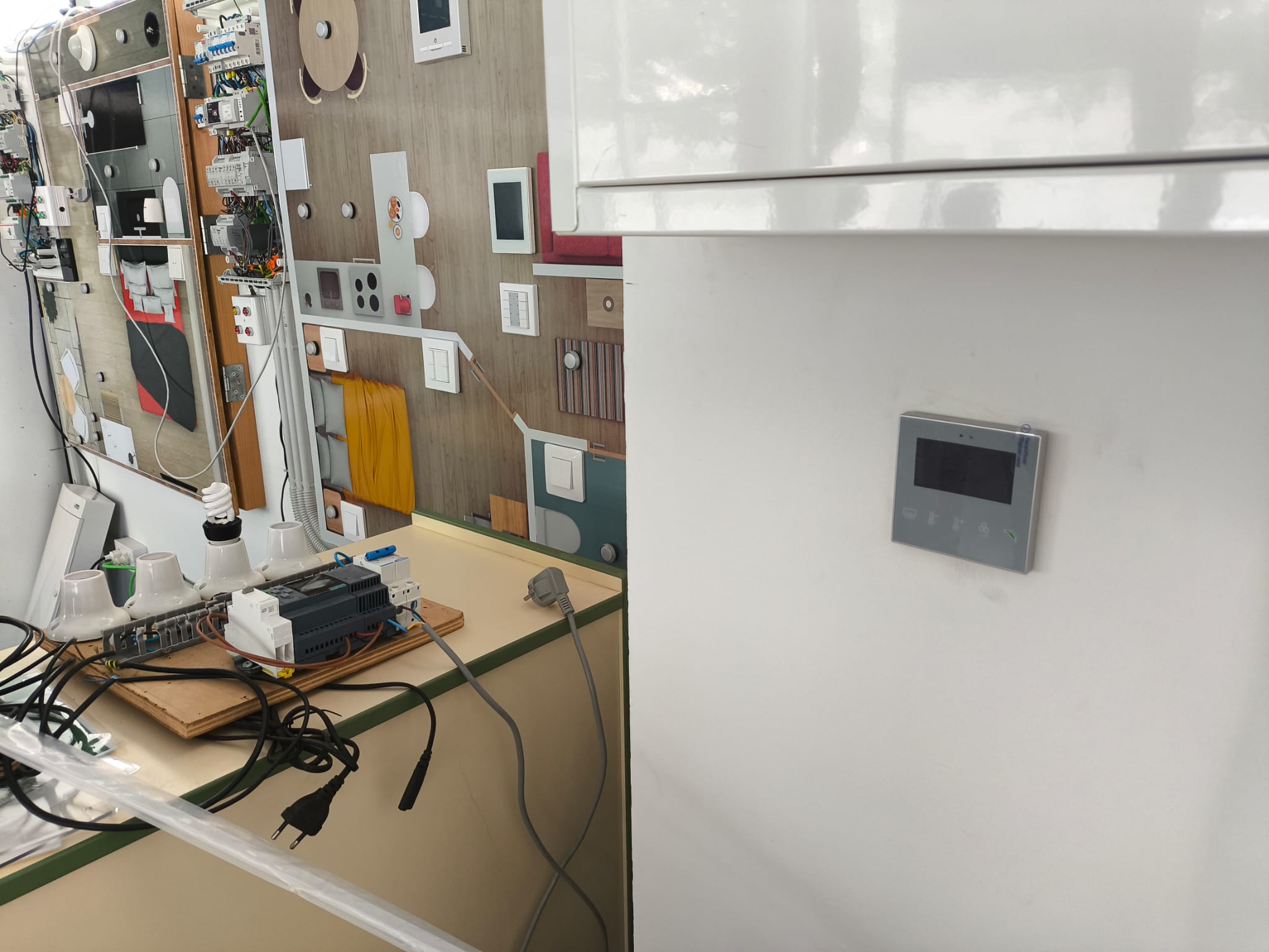

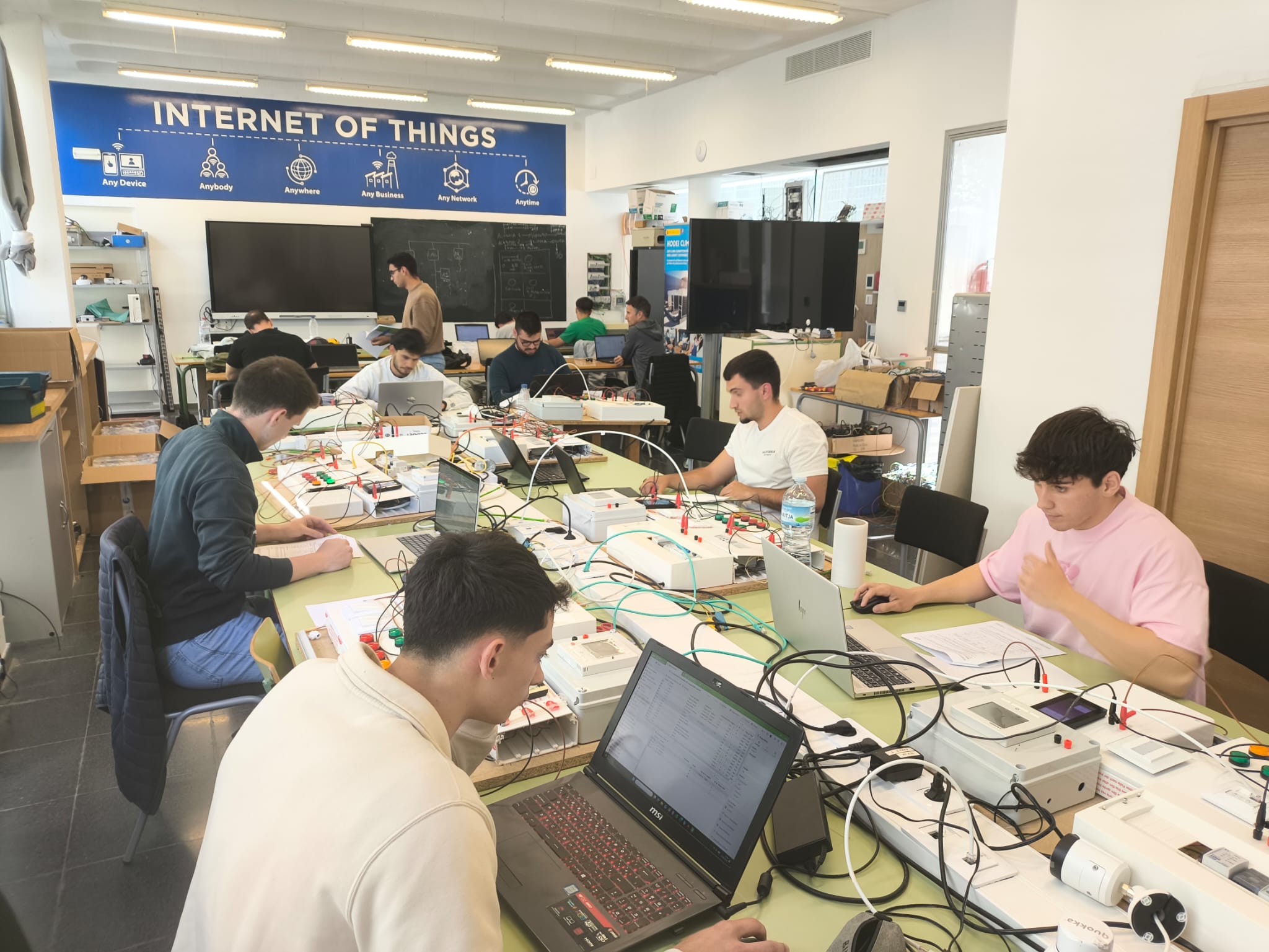

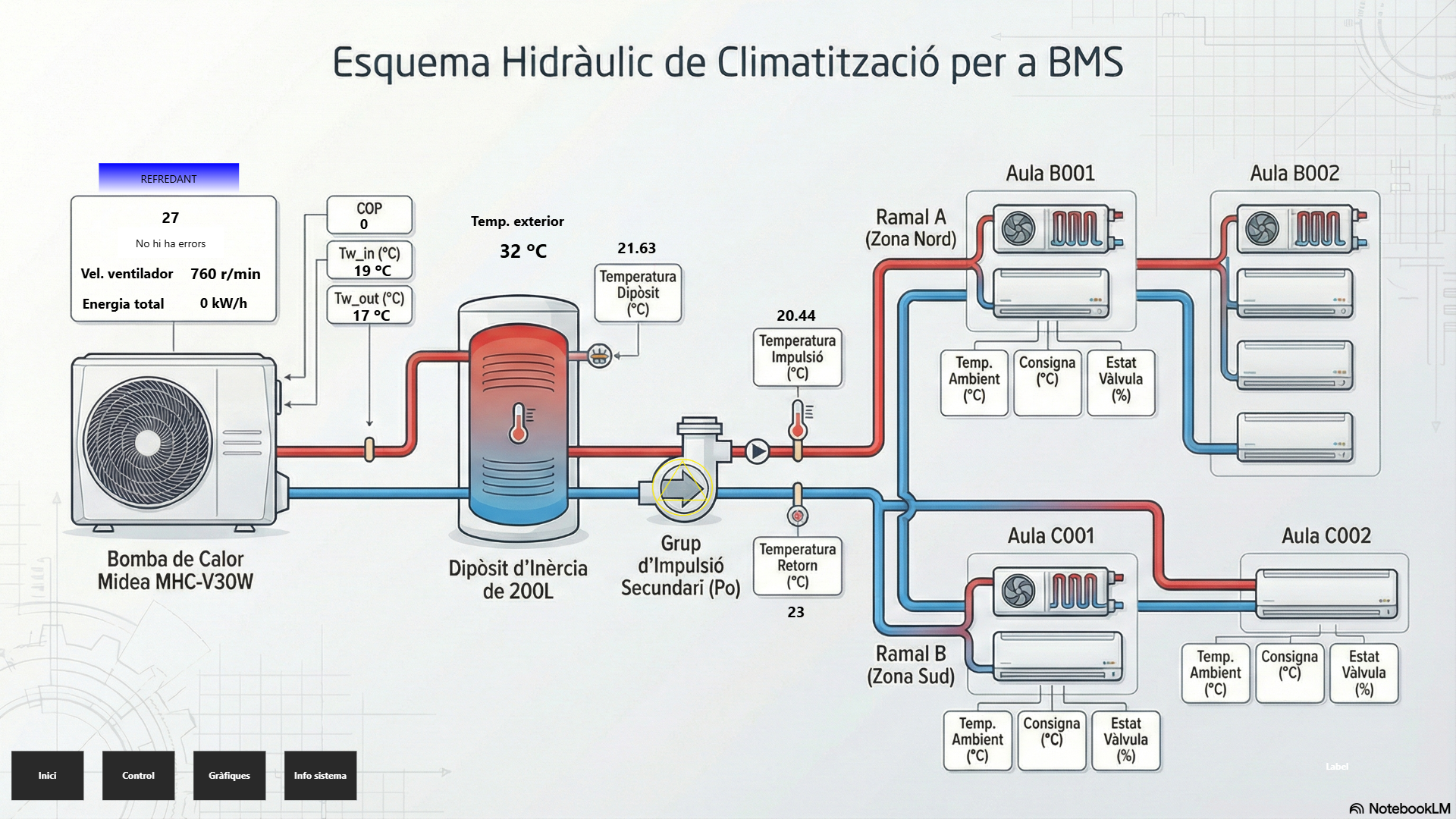

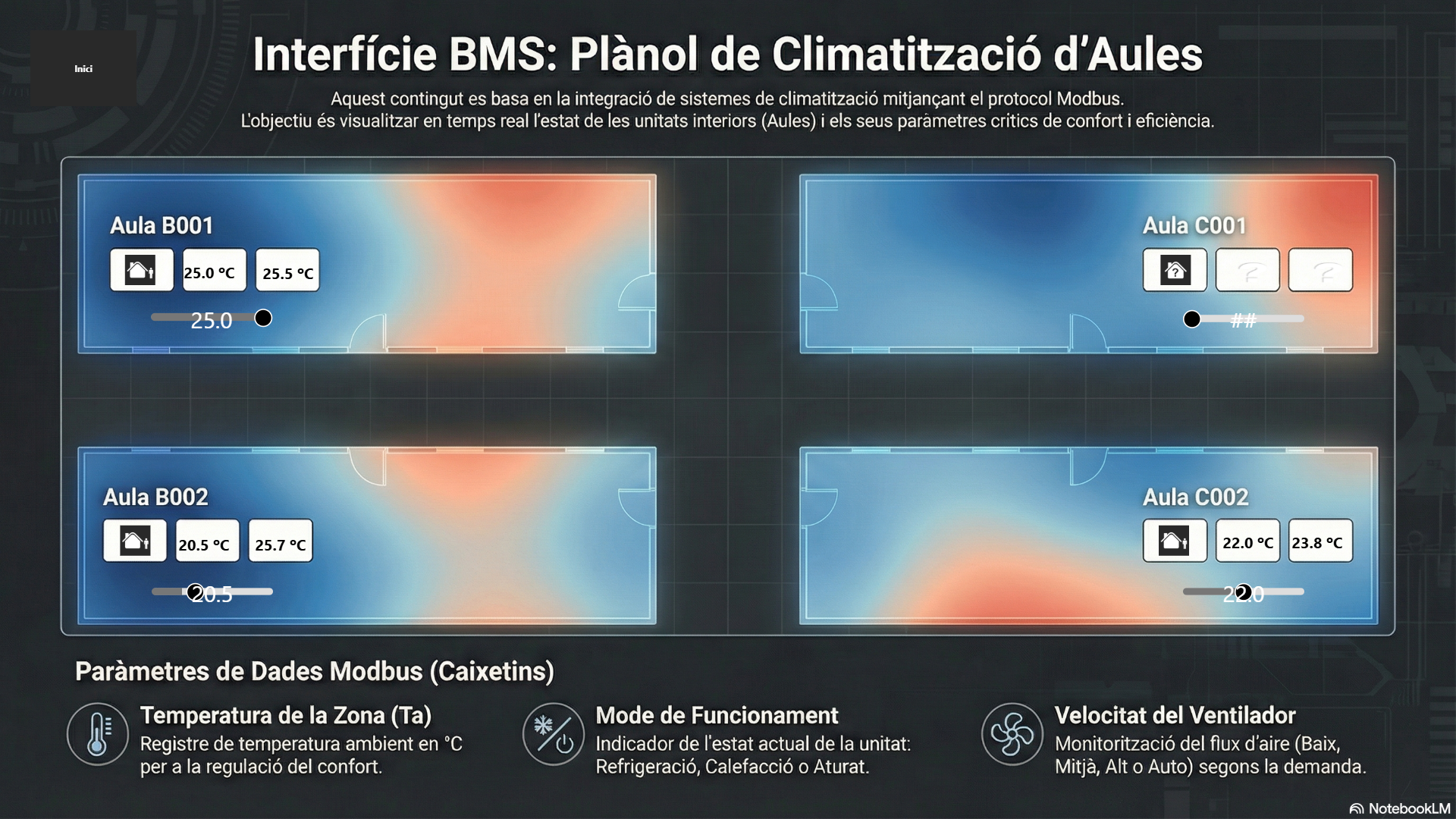

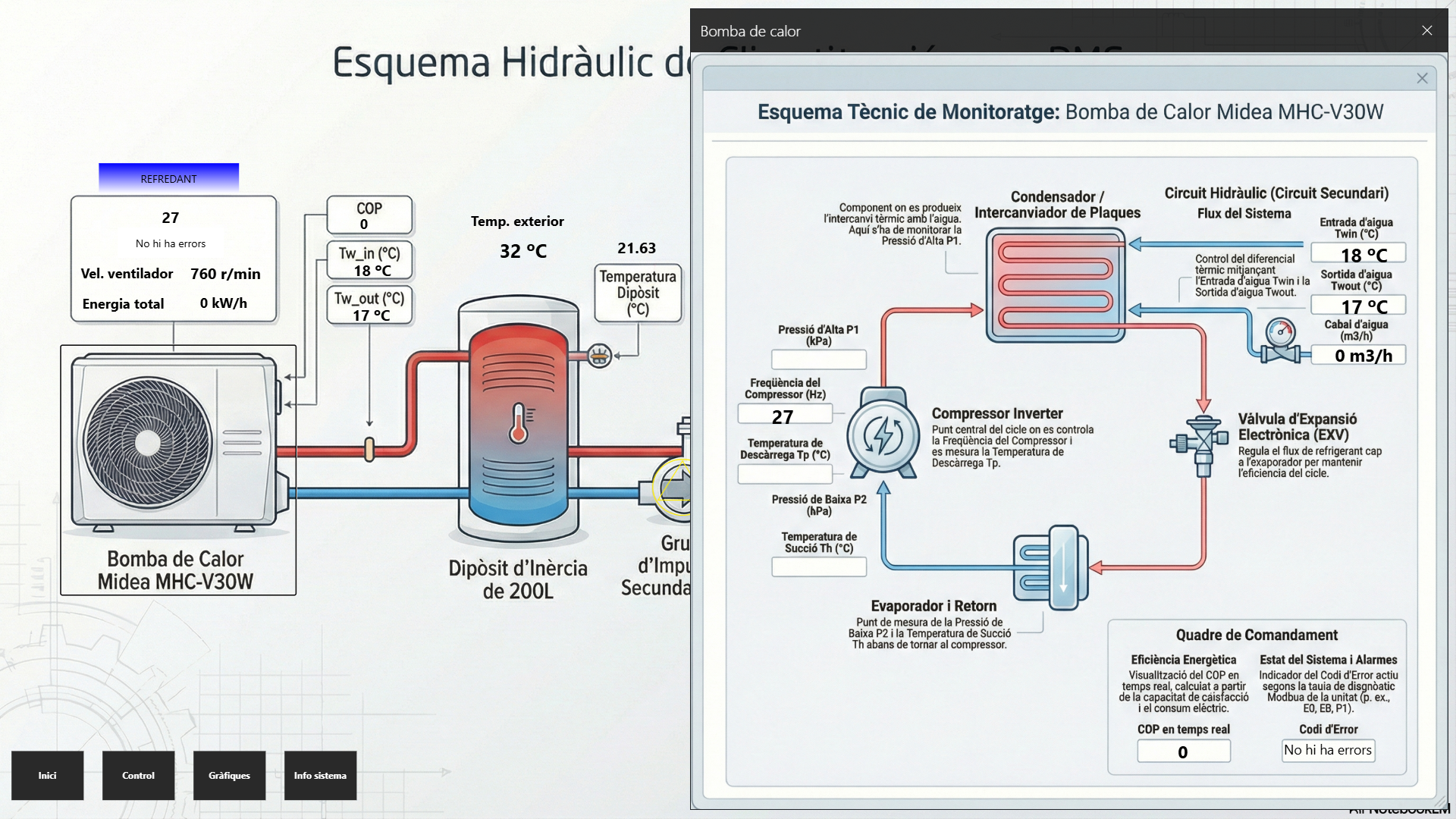

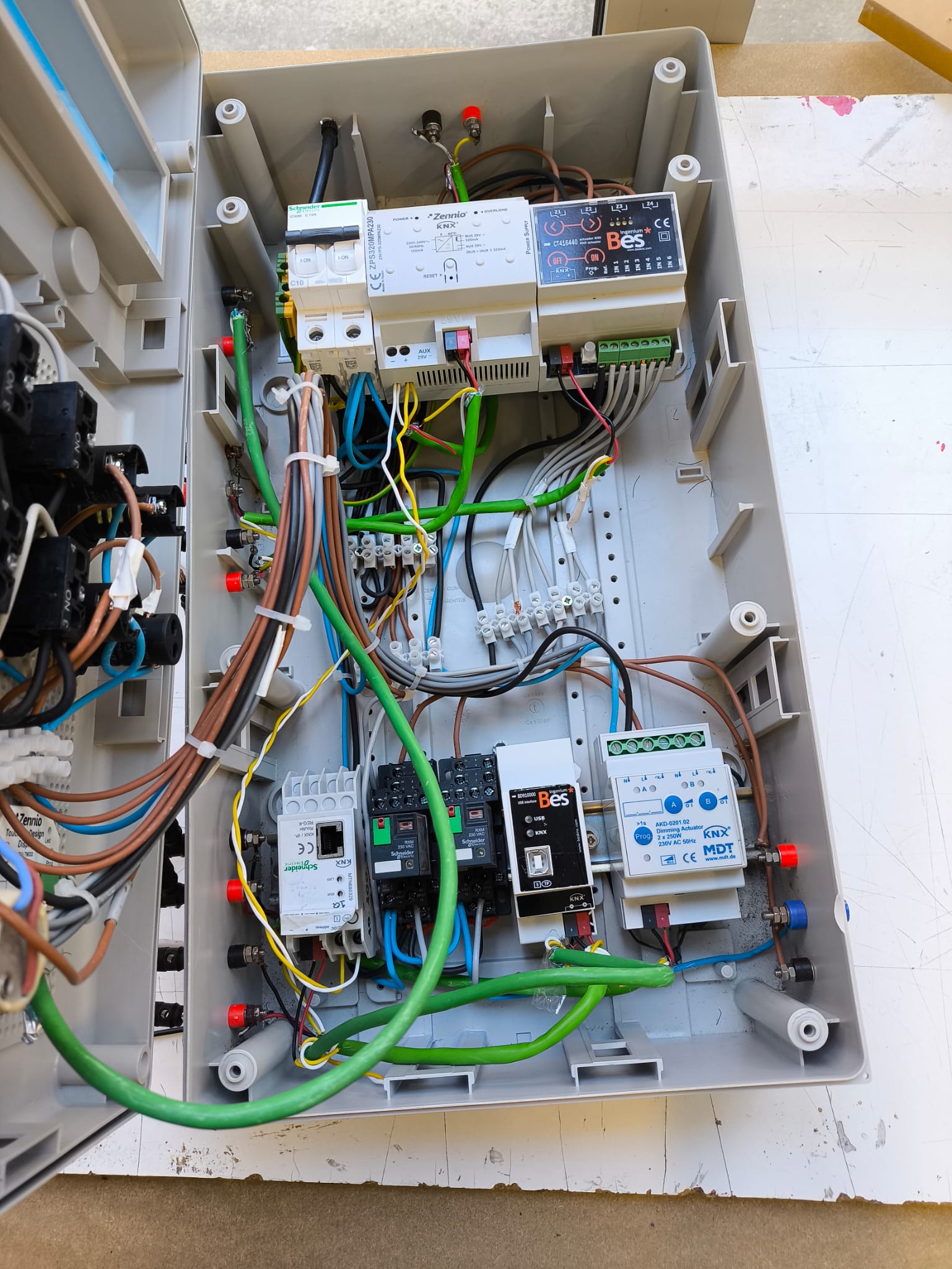

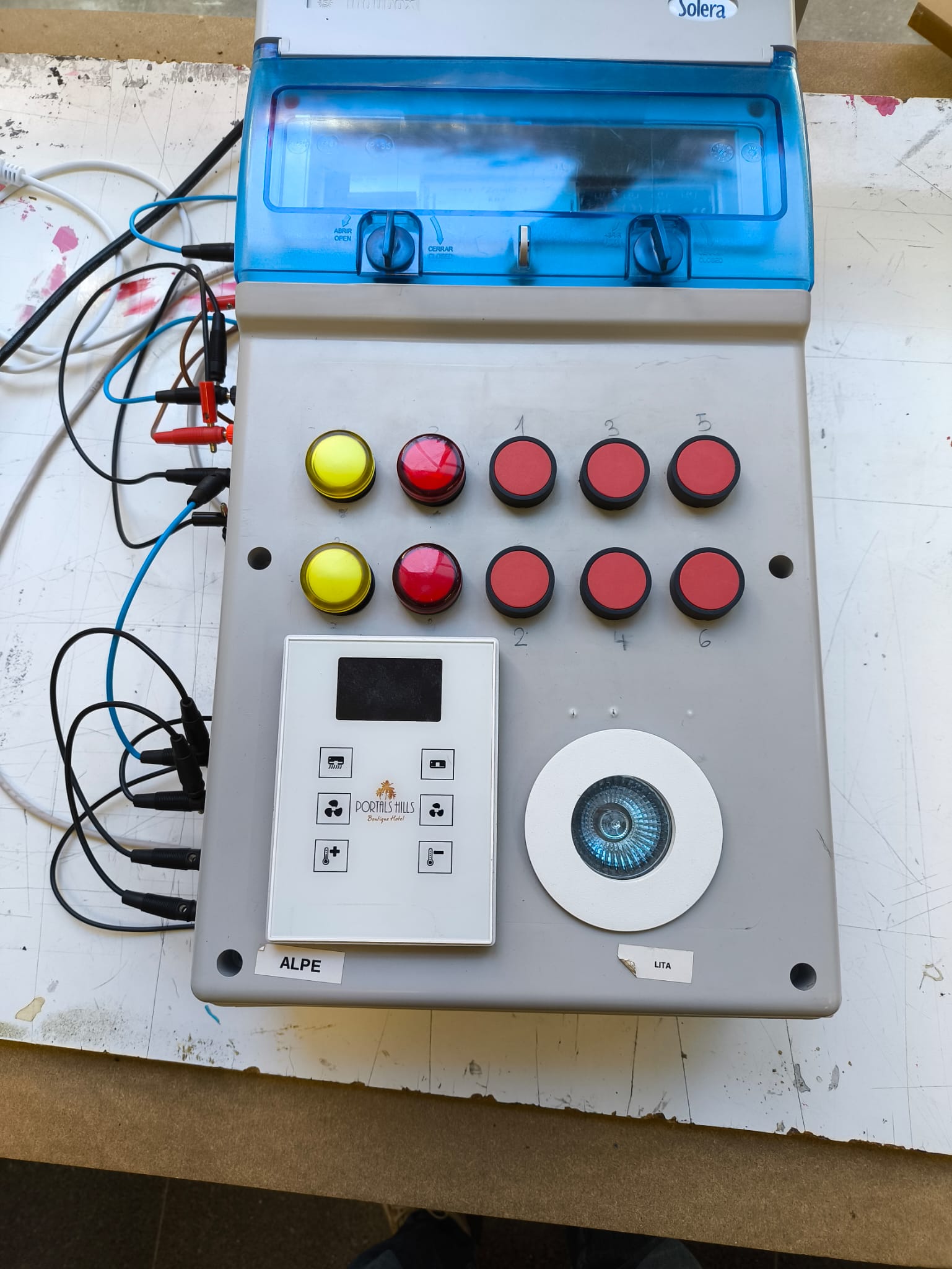

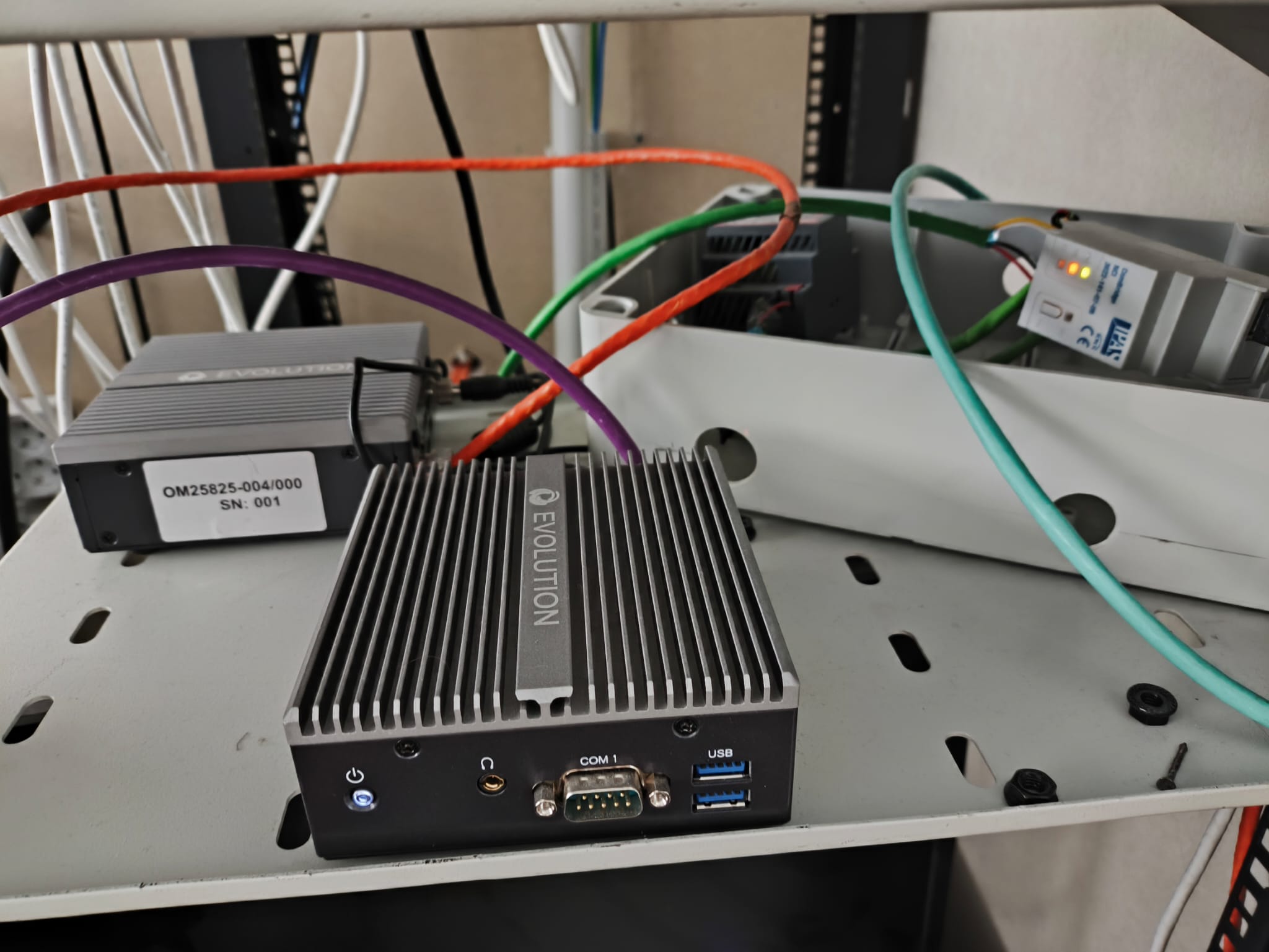

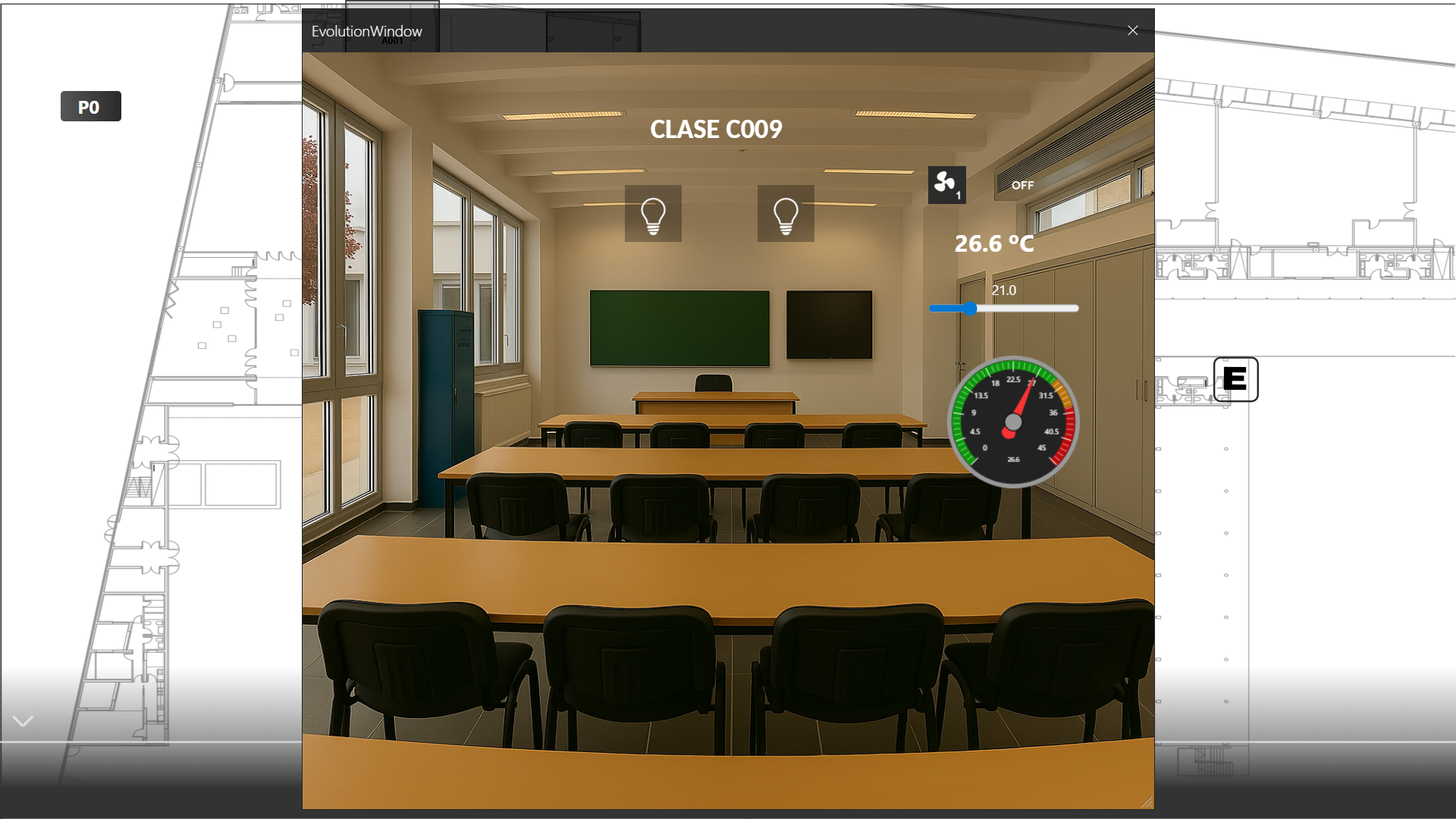

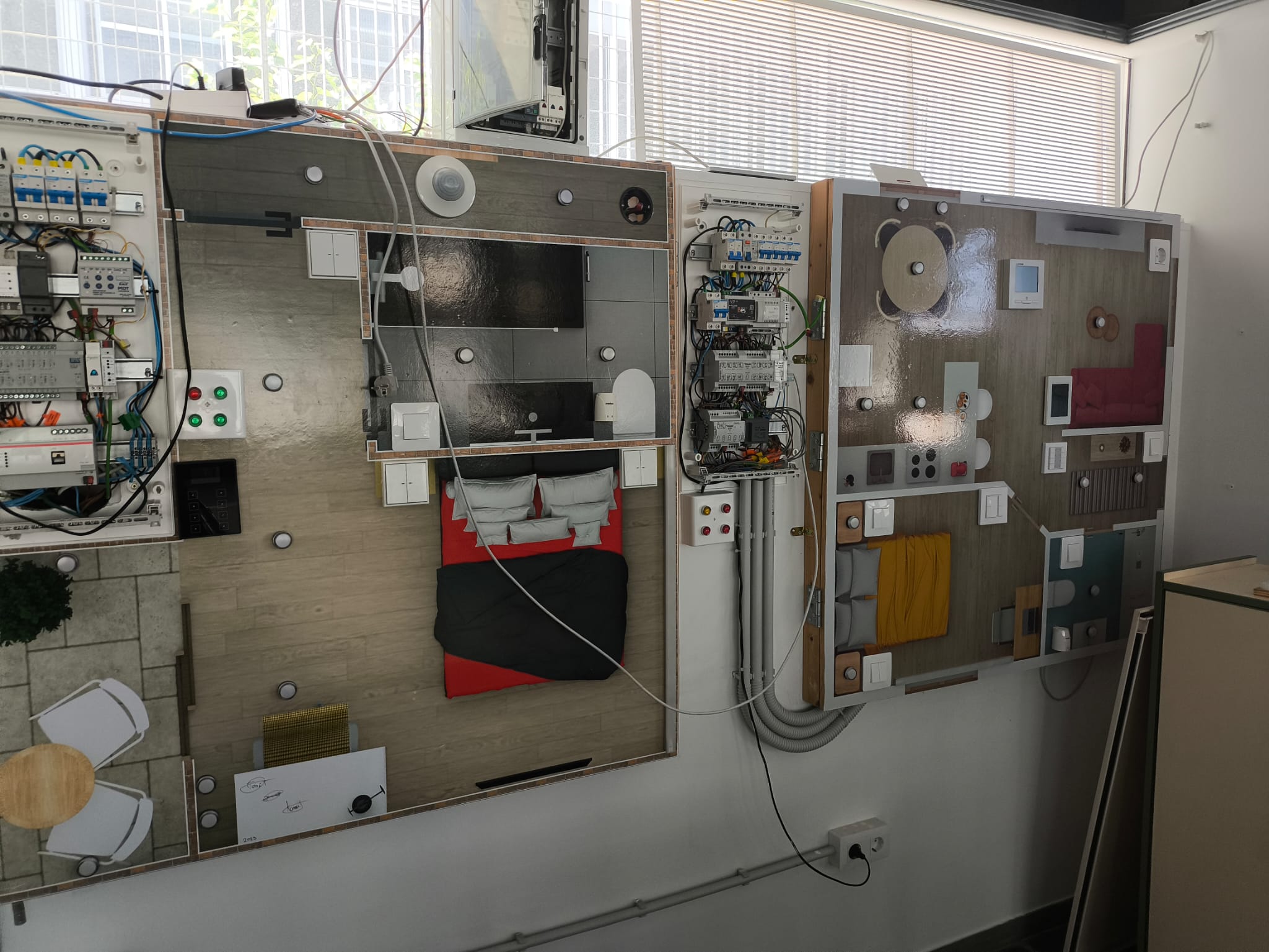

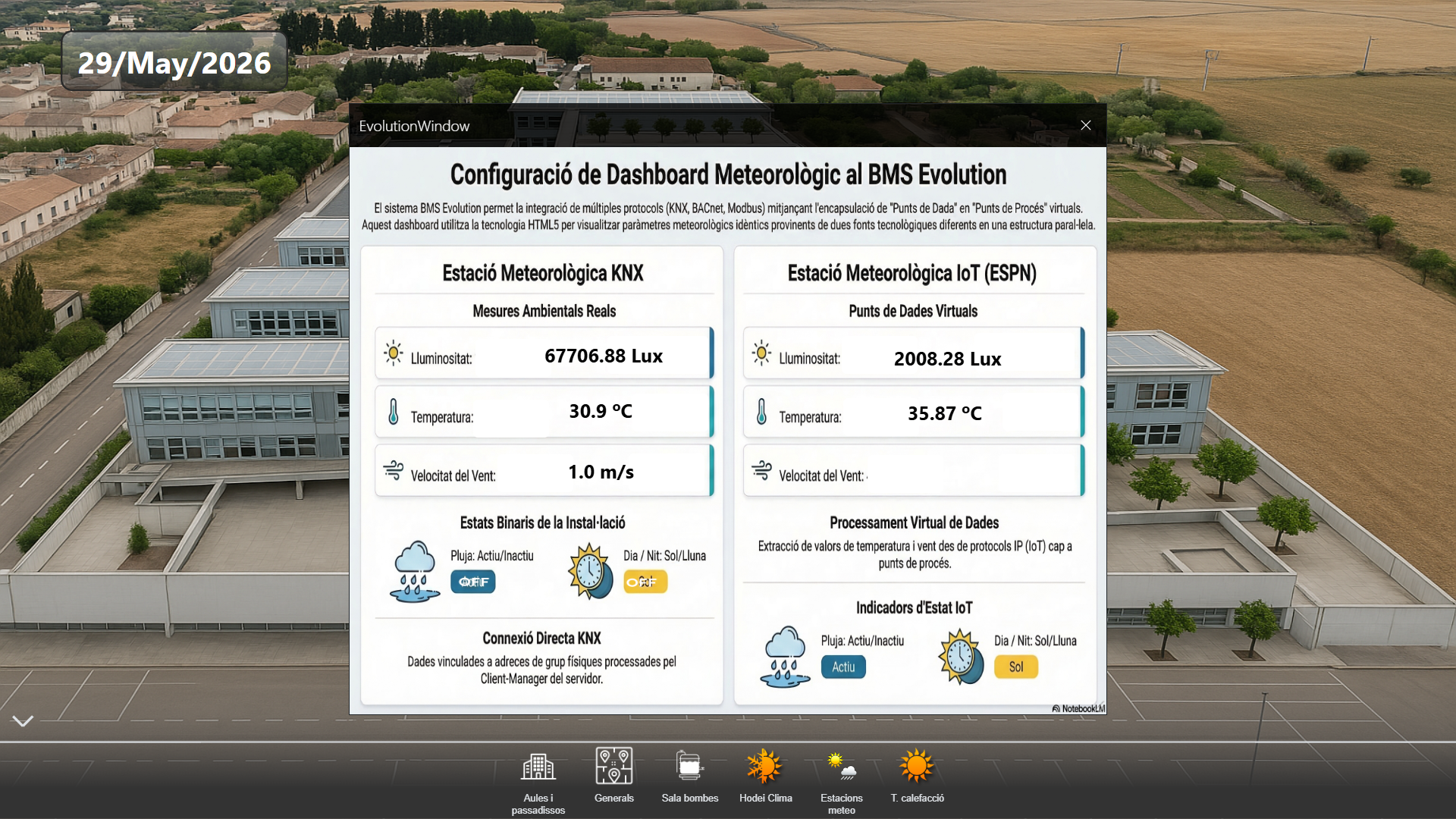

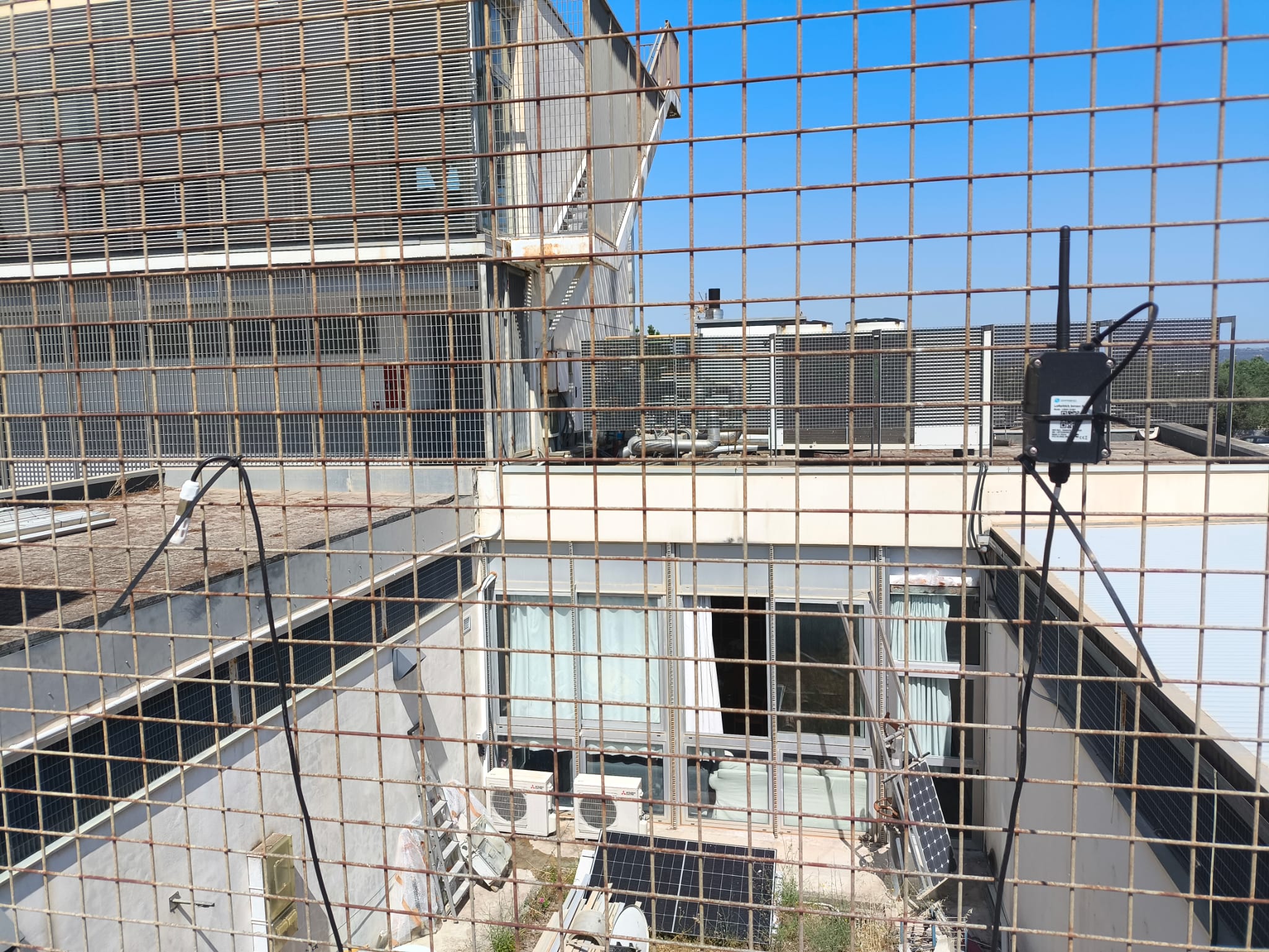

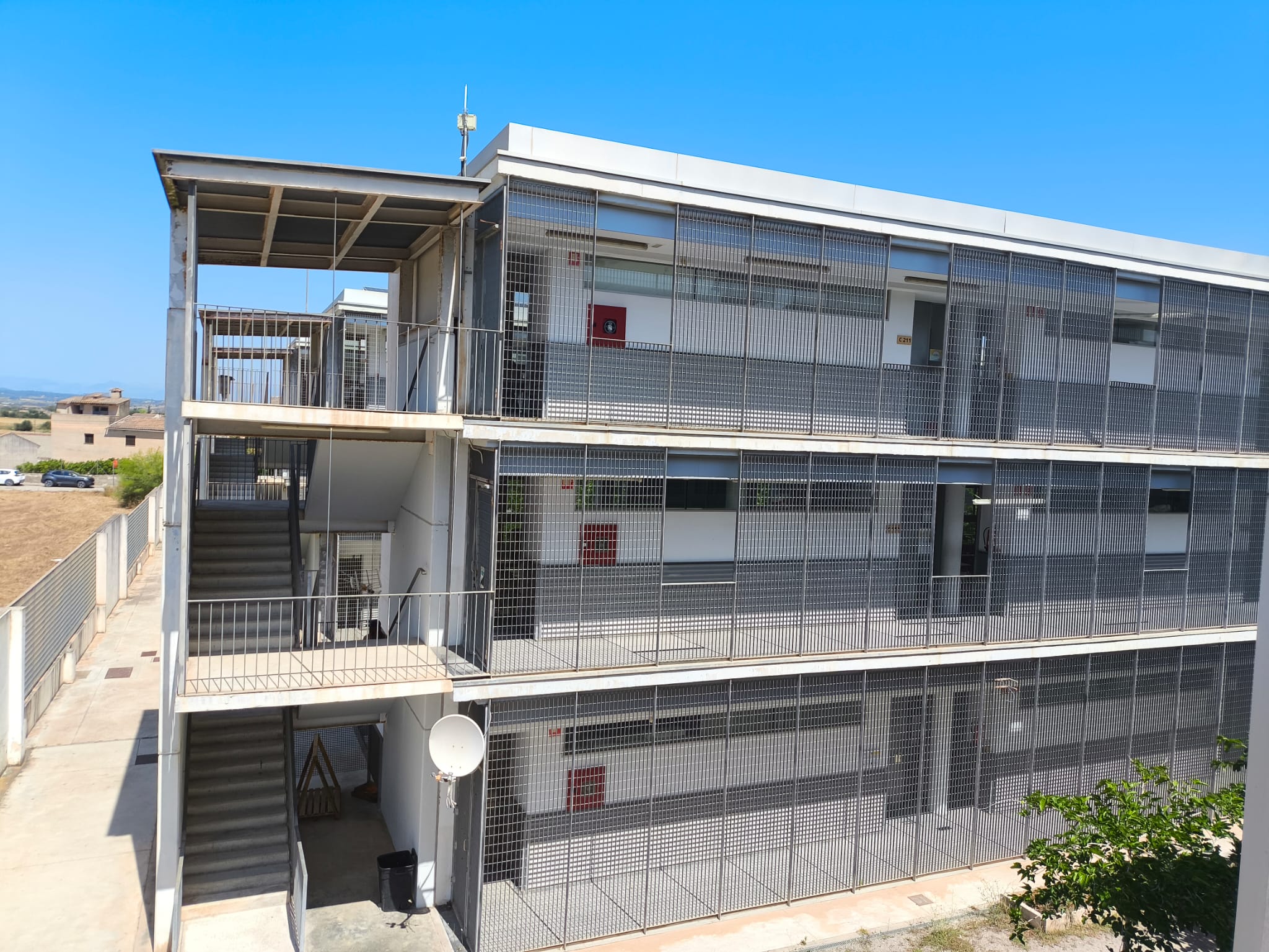

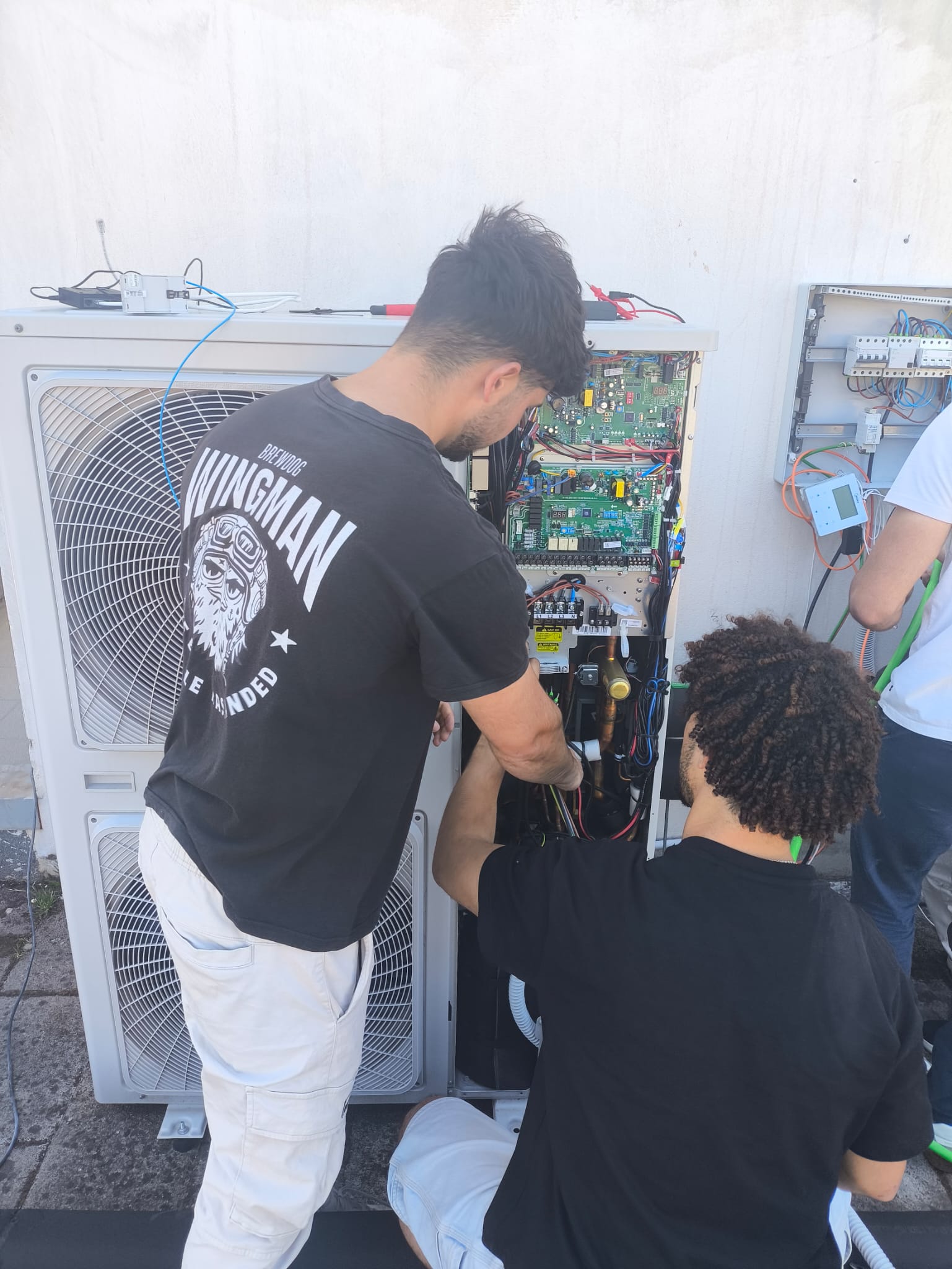

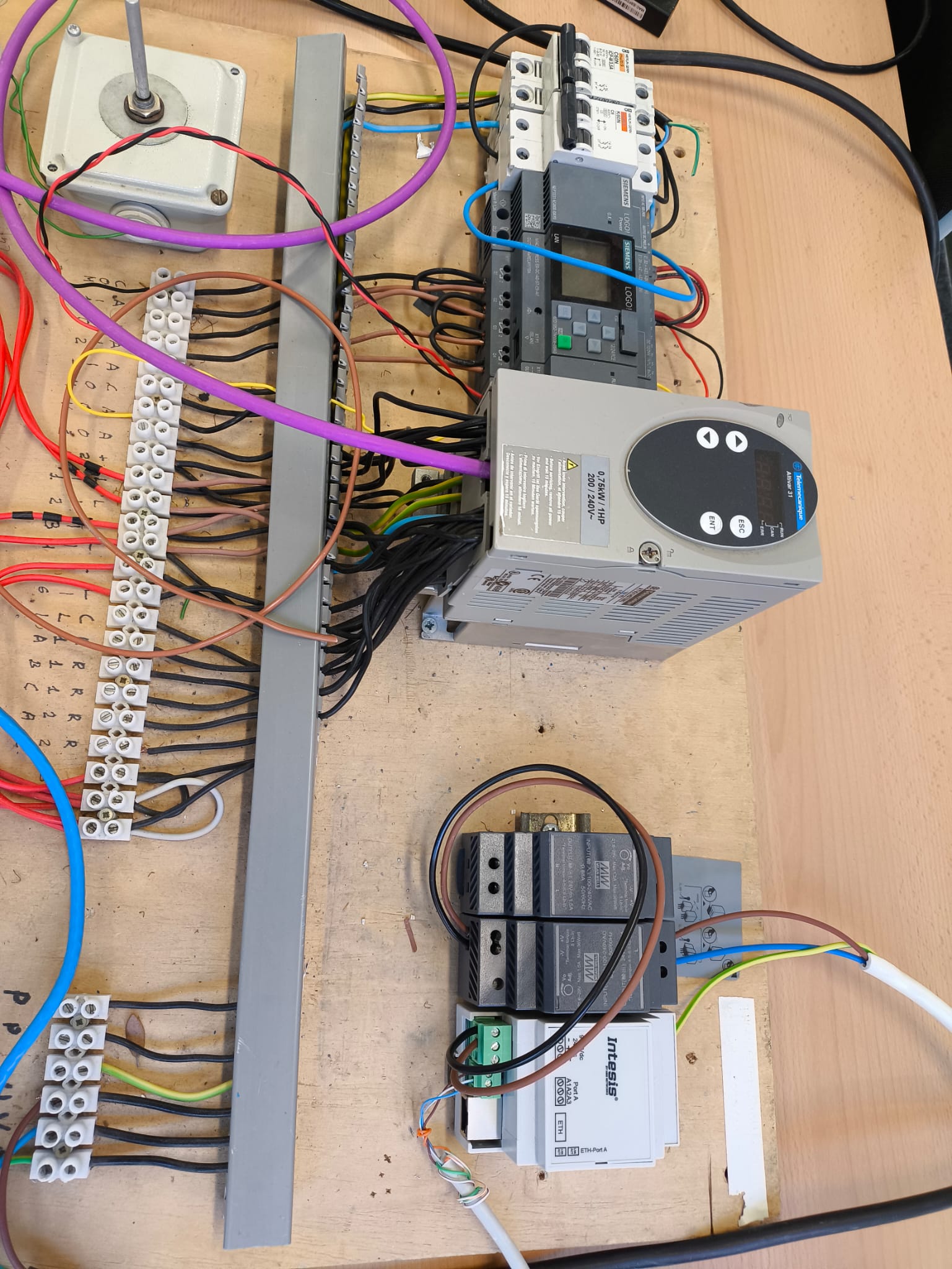

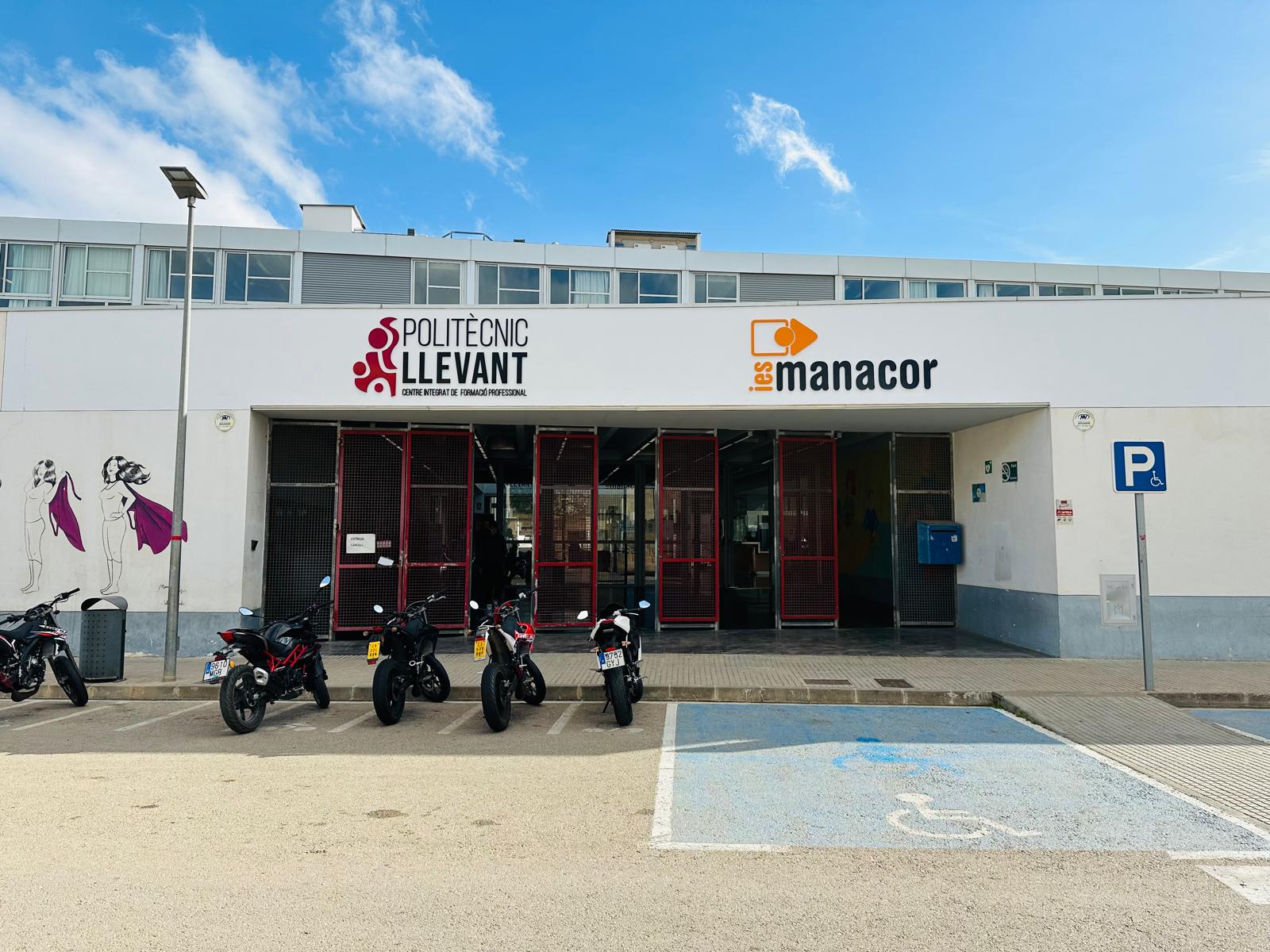

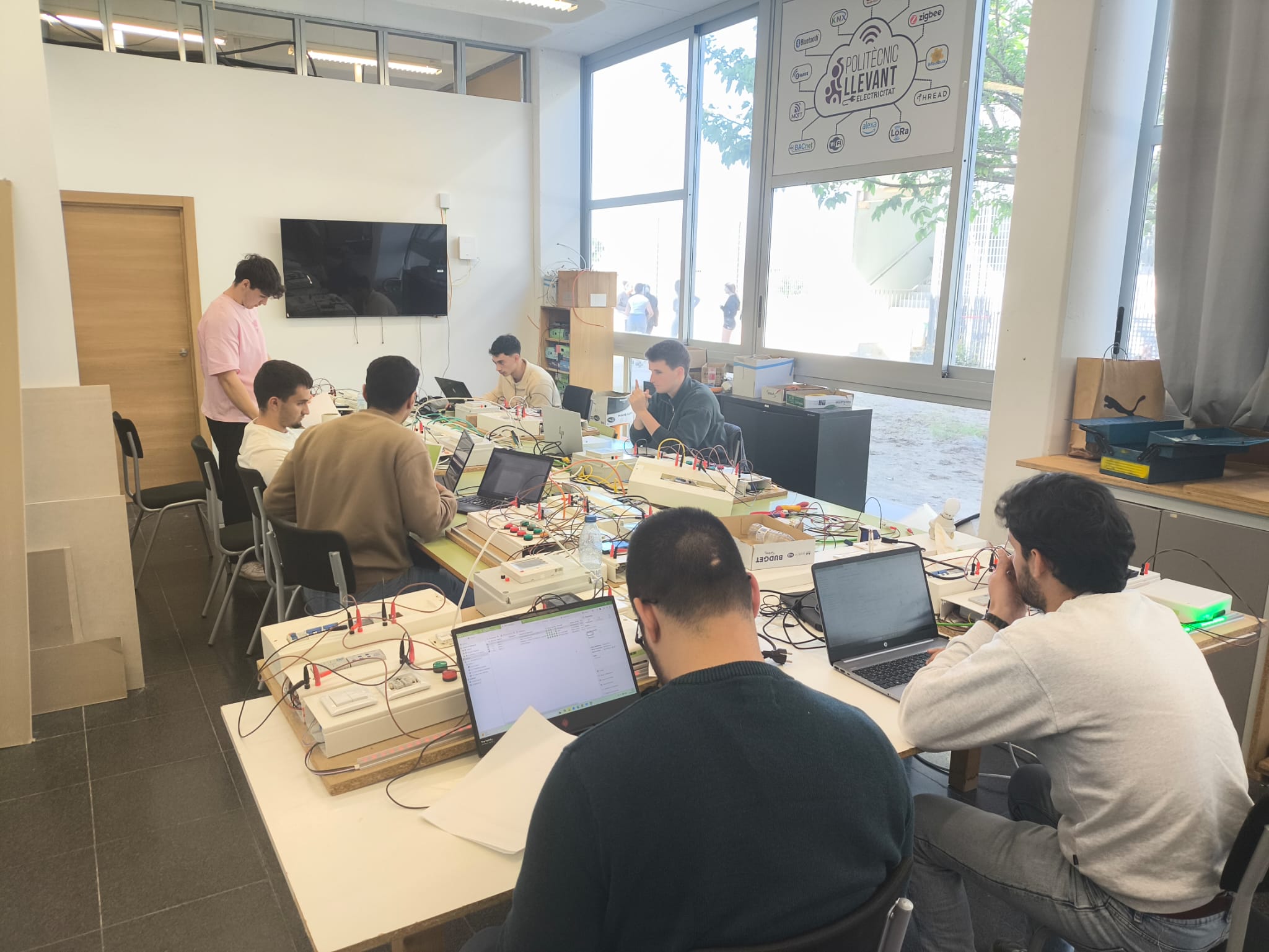

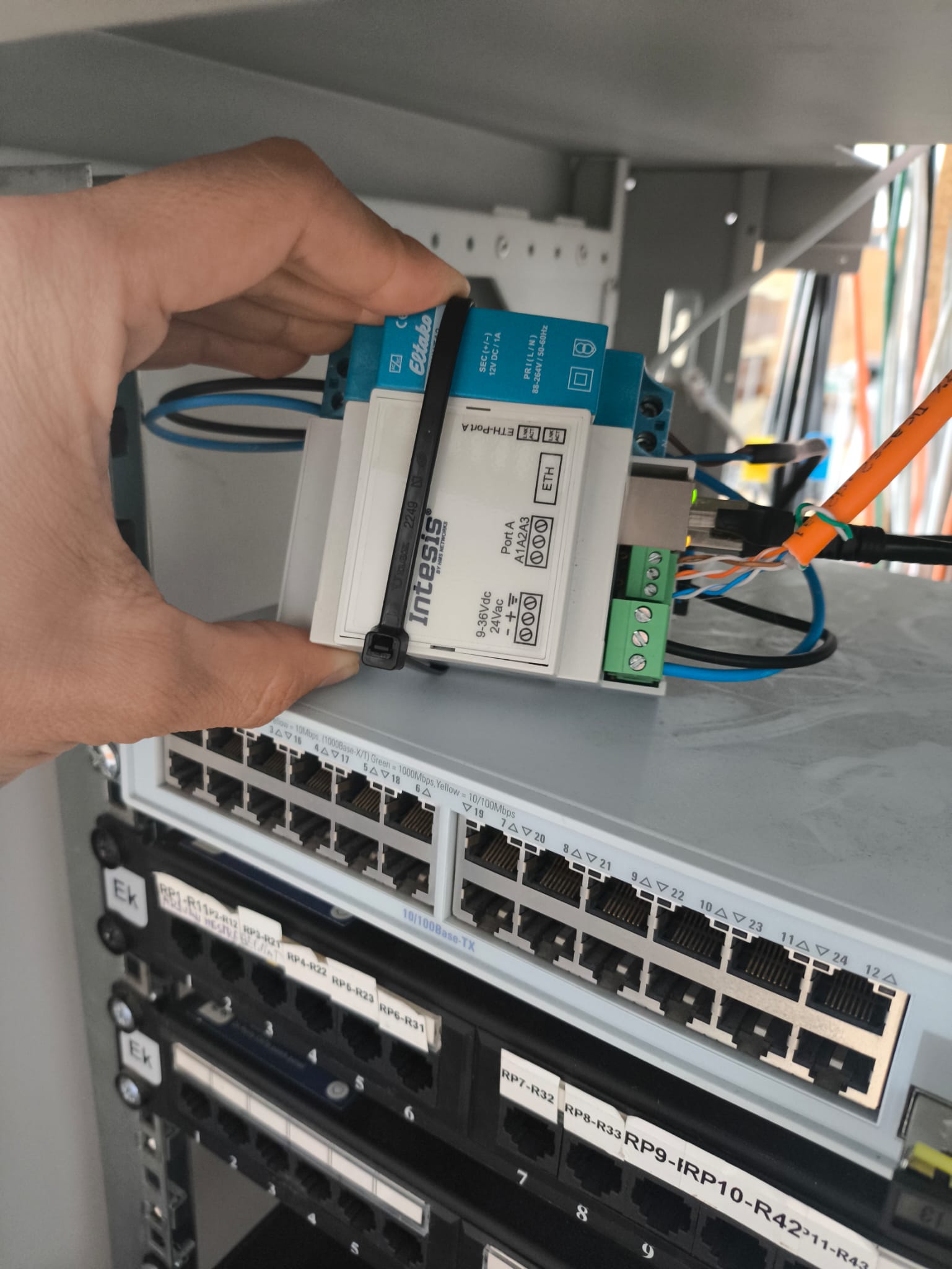

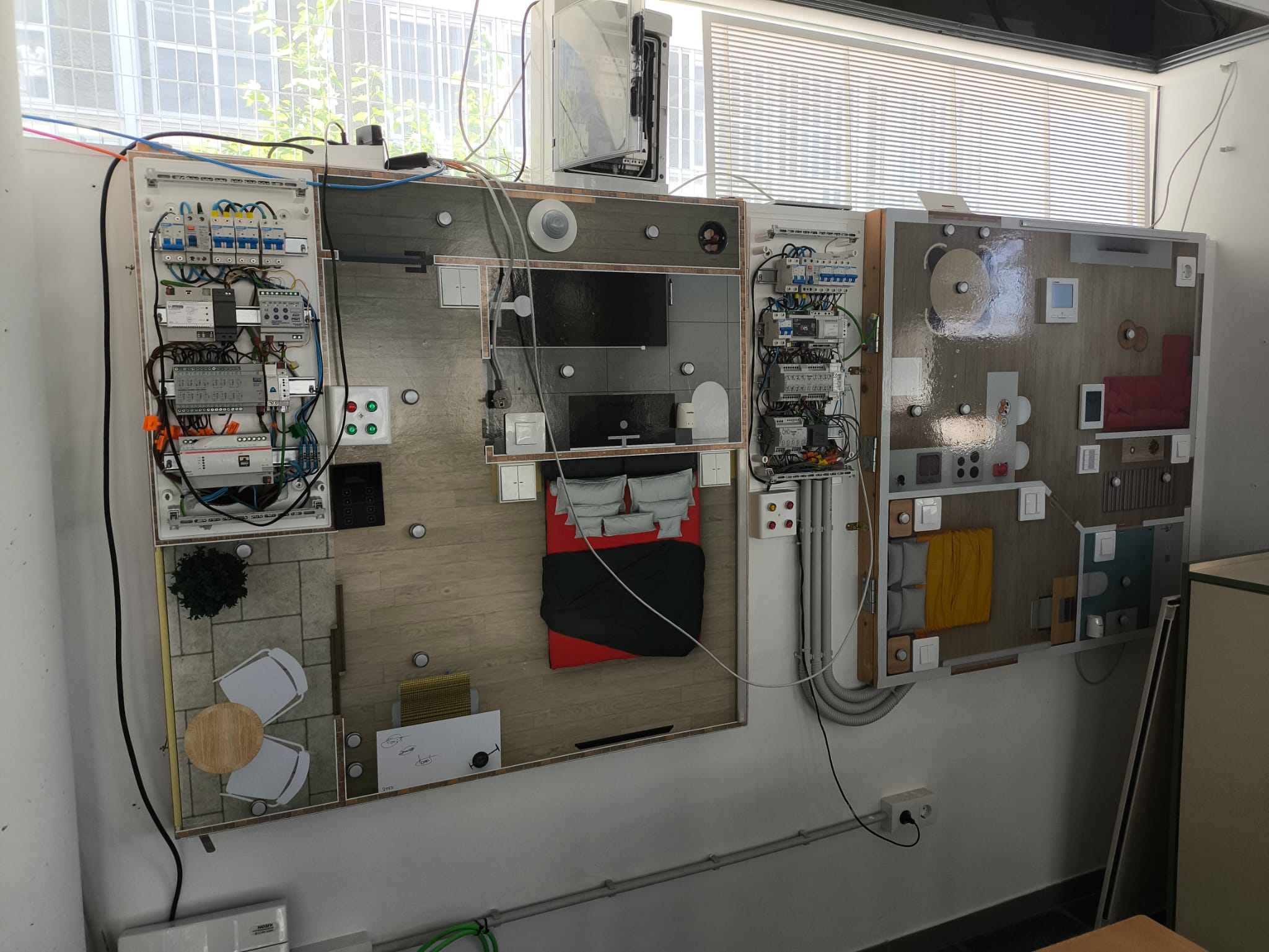

Instalación de vanguardia en el CIFP Politècnic de Llevant que evoluciona una red KNX de 15 años en un ecosistema educativo multimarca de alta complejidad. El proyecto destaca por integrar protocolos como Modbus para clima y DALI para iluminación, gestionados desde un BMS centralizado que incorpora IoT (ESP32) y autómatas Siemens LOGO!, demostrando una interoperabilidad real entre fabricantes líderes (Siemens, Zennio, MDT, iPas). Más allá de la eficiencia técnica, el edificio es el corazón pedagógico del centro: una plataforma real donde los alumnos se certifican anualmente como KNX Partner y Advanced (con Futurasmus) en nuestras propias aulas. Incluye paneles interactivos de simulación residencial y hotelera con tecnología RF, convirtiendo la infraestructura en un 'Living Lab' donde la formación reglada se une a una instalación profesional activa, garantizando la excelencia técnica y la certificación oficial de los futuros profesionales del sector.
Contact Information
| Company Name | CIFP POLITÈCNIC DE LLEVANT |
| Company Email | mferragut@politecnicllevant.cat |
| Company Website | https://www.politecnicllevant.cat/ |
| Contact Name | Miquel |
| Contact Function | System Integrator |
