KNX Siemens Mitras by Newroot
Manufacturer in Monterrey
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Manufacturer |
| Project Type | Other |
| Year of Completion | 2025 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 301 – 500 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 251 – 500 |
| Man Power | 100+ |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Automatic Occupancy Detection, Individual Room Control / Zone Control, CO2 / Humidity Measuring
- Security and Safety - Interaction with HVAC/Lighting

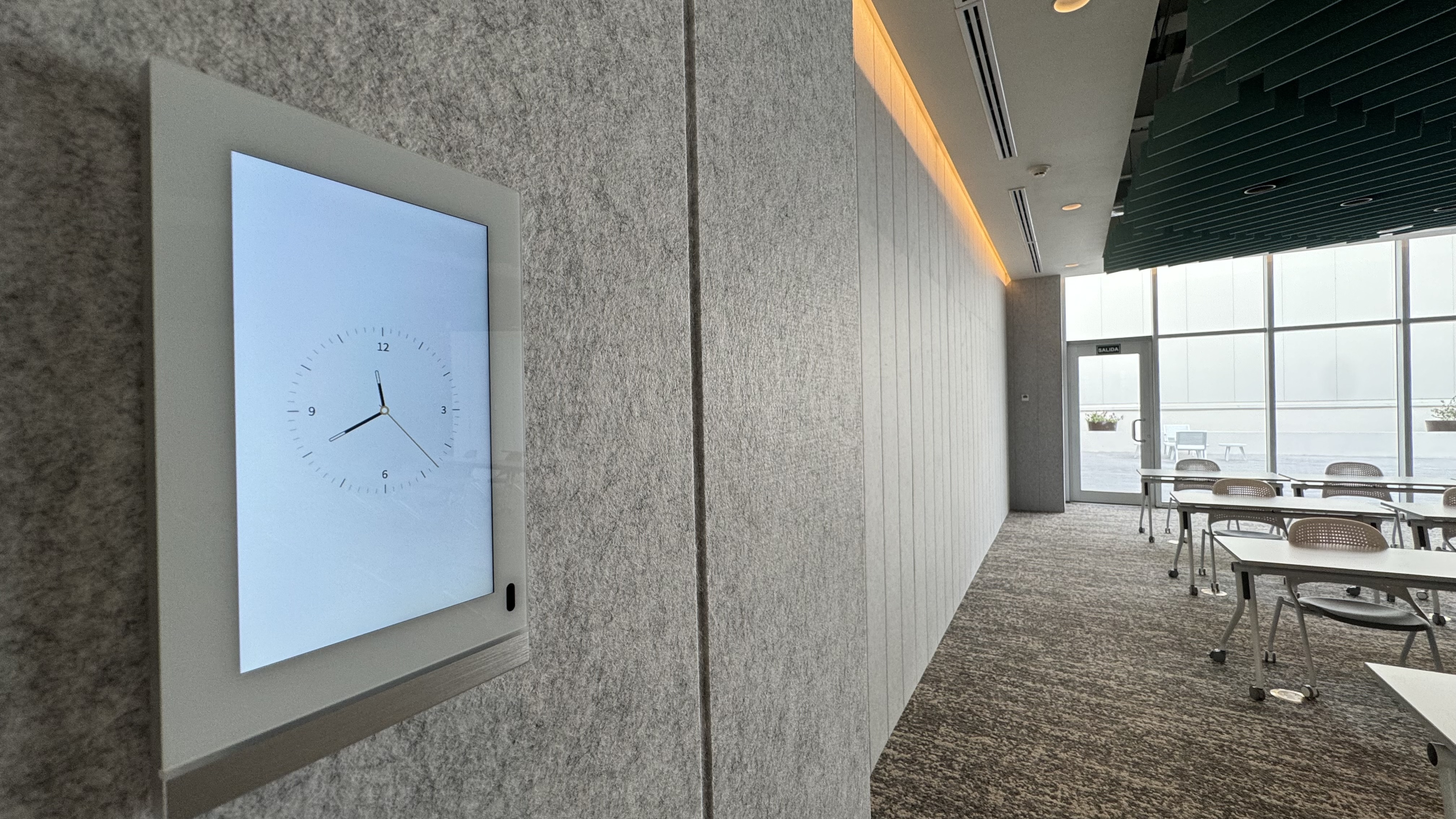

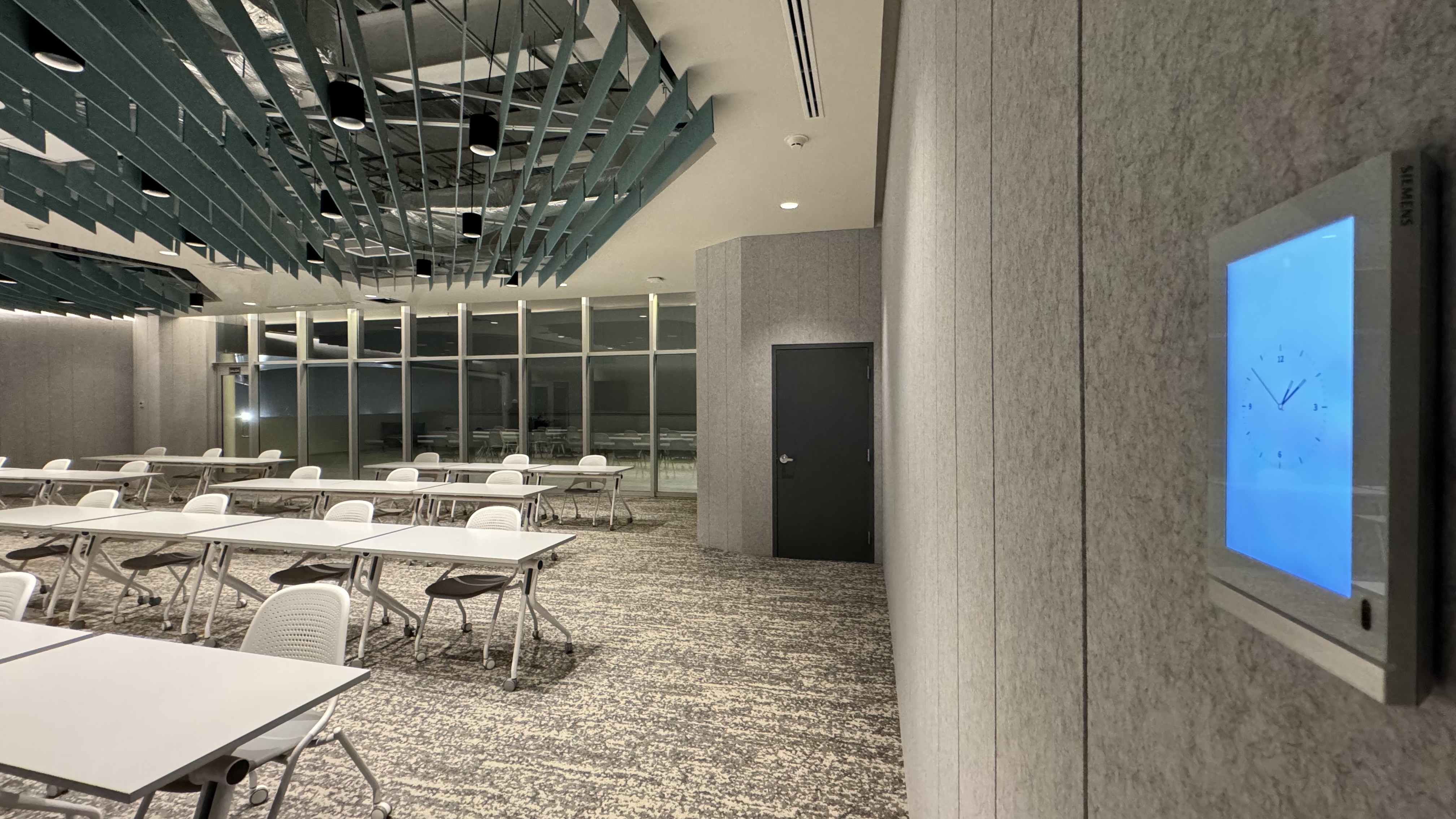

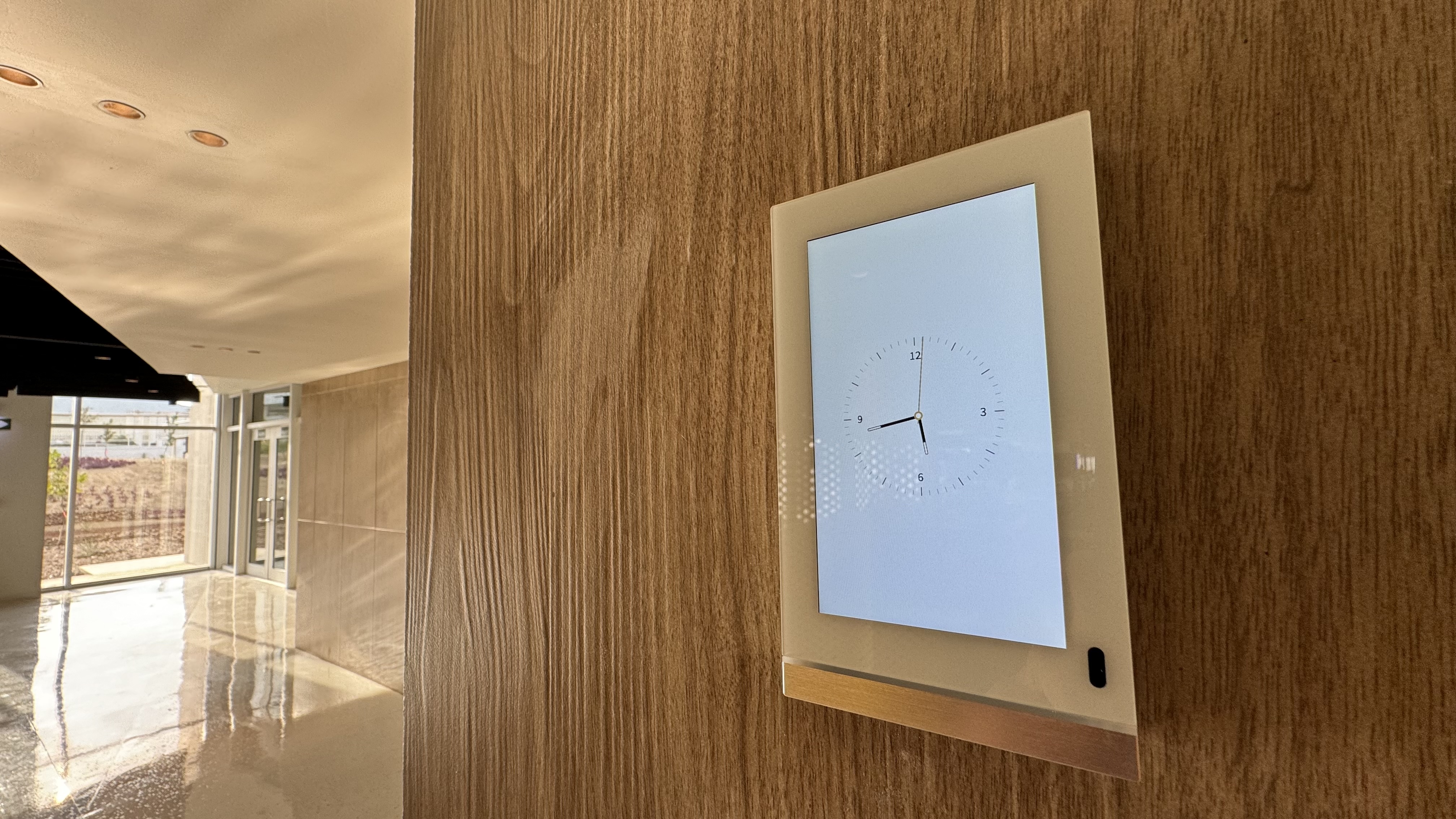

- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Touch Panels & Display Panels
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection, Load Shedding
- Other - Irrigation Control
- Automation and Remote Access - Timed Functions, System Supervision
- Blind and Shutter Control
Customers Description

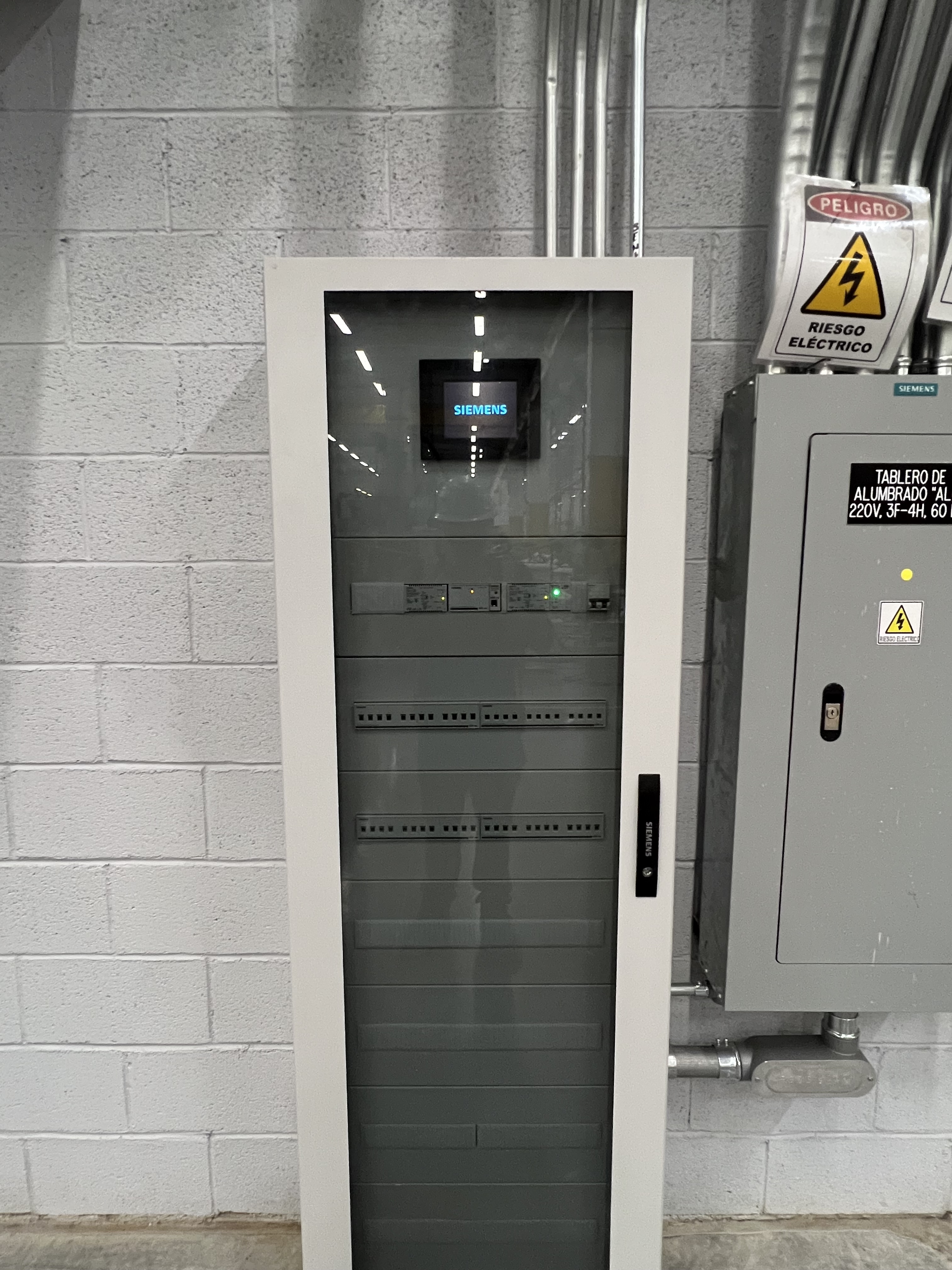

Siemens Mitras por Newroot es una modernización integral basada en KNX que convierte datos de luz, ocupación y ambiente en ahorro medible y operación simple. Implementamos diez tableros de control para oficinas, comedor/cocina, producción y almacén; regulación por iluminancia para aprovechar tragaluces y ventanales; sensores de presencia/ausencia; escenas horarias por turnos; y estación meteorológica (posición solar, viento, humedad) calidad de aire interior (CO2). La operación se centraliza en pantalla táctil, PC y acceso móvil, con medición por zonas y registro histórico para decisiones. La arquitectura abierta KNX Siemens es modular y escalable: preparada para integrar HVAC avanzado, riego, energías renovables y analítica con IA. Resultado: menor consumo, mayor confort, continuidad operativa y un BMS listo para crecer sin cambiar de plataforma, posicionando a Siemens Mitras como punta de lanza en eficiencia y automatización industrial en México y Latinoamérica.
Contact Information
| Company Name | Newroot |
| Company Email | leo@newroot.tech |
| Company Website | https://www.newroot.tech/ |
| Contact Name | |
| Contact Function | System Integrator |
