KNX Wohngebäude – Vollintegration Licht, HLK & Beschattung mit raumindividueller Steuerung

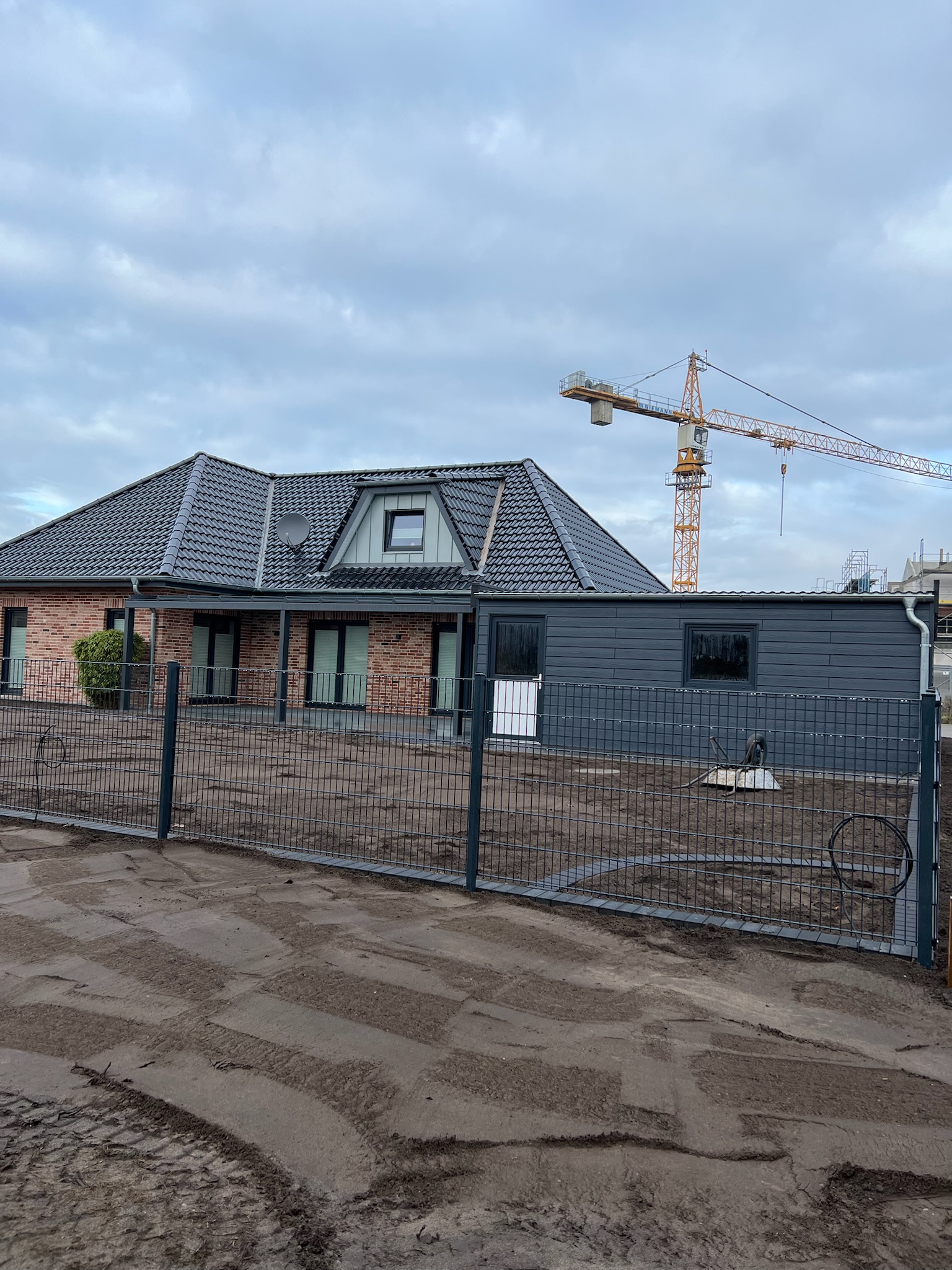

Family house in Hohn
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Family house |
| Project Type | Residential |
| Year of Completion | 2024 |
| Project Size | 101 – 500 |
| Number of KNX Devices Used | 26 – 100 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 101 – 250 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Weather Dependent Control, Individual Room Control / Zone Control, Floor Heating Control
- Security and Safety - Smoke/Fire Detection, Interaction with HVAC/Lighting
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering
- Other - Audio Control
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming, Messaging (e.g. SMS)
- Blind and Shutter Control - Individual Control, Group & Central Control, Preset Positioning, Automatic Programs, Wind and Rain Protection
Customers Description
Realisiert wurde eine vollständige KNX-Gebäudeautomation für ein Wohngebäude mit raumweiser Einzelsteuerung aller Gewerke. Jeder Raum verfügt über einen GVS V40 als Raumcontroller, die Küche wird über ein Gira G1 bedient. Die Bedienung erfolgt über Gira e2 Taster mit MDT Tasterschnittstellen.
Integriert sind Lichtsteuerung mit Dimmen, eine vollständige HLK-Anlage mit raumindividuellem Heizen und Kühlen sowie eine Rollladensteuerung in jedem Raum. Als Sicherheitsfunktion lösen Gira Rauchmelder automatisch das Hochfahren aller Rollläden aus und schalten das Licht ein – für sichere Fluchtwege im Ernstfall.
Aktorik und Schaltlogik basieren durchgehend auf MDT-Komponenten.
