Oman Shipping Company Head Office

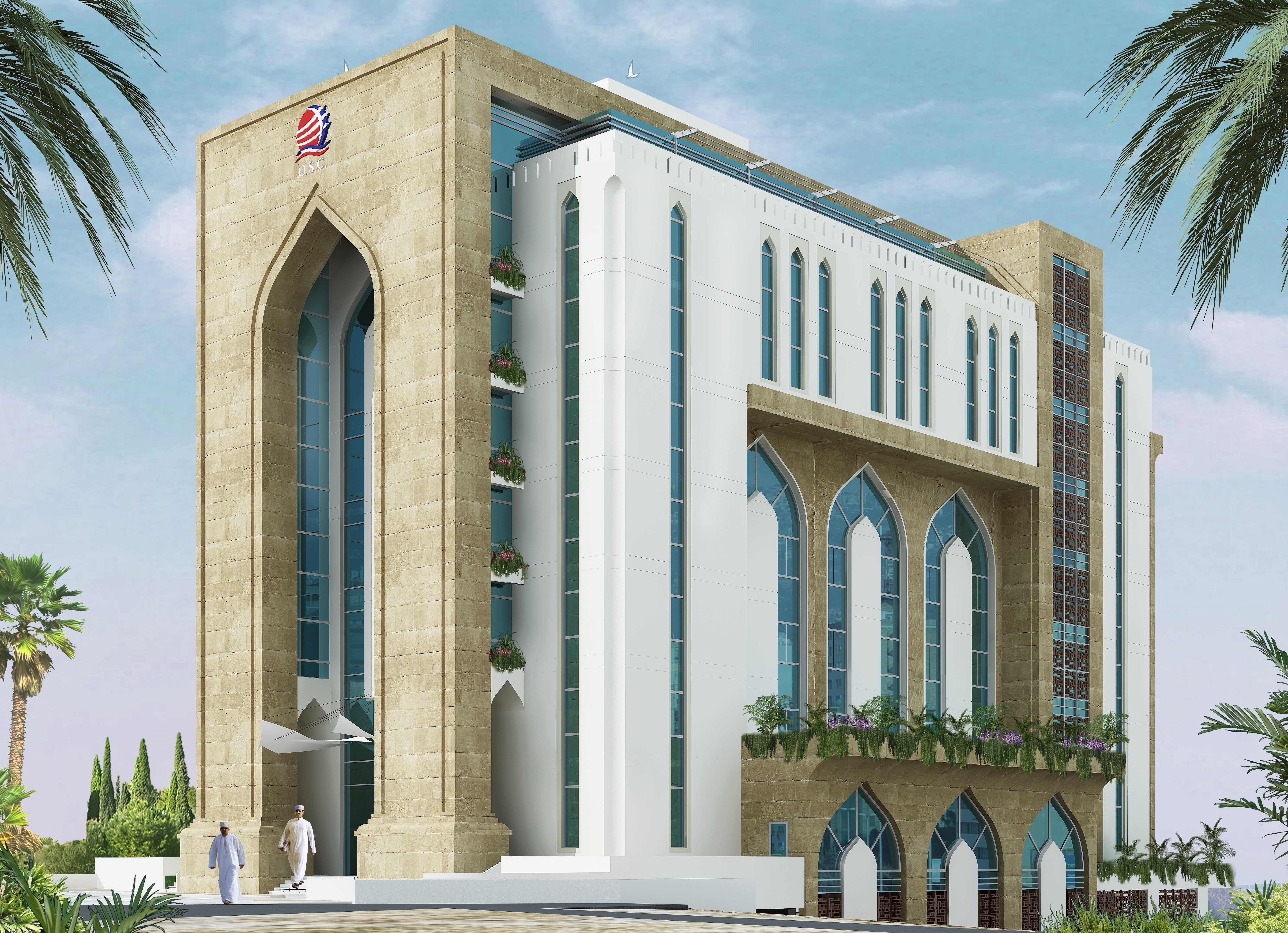

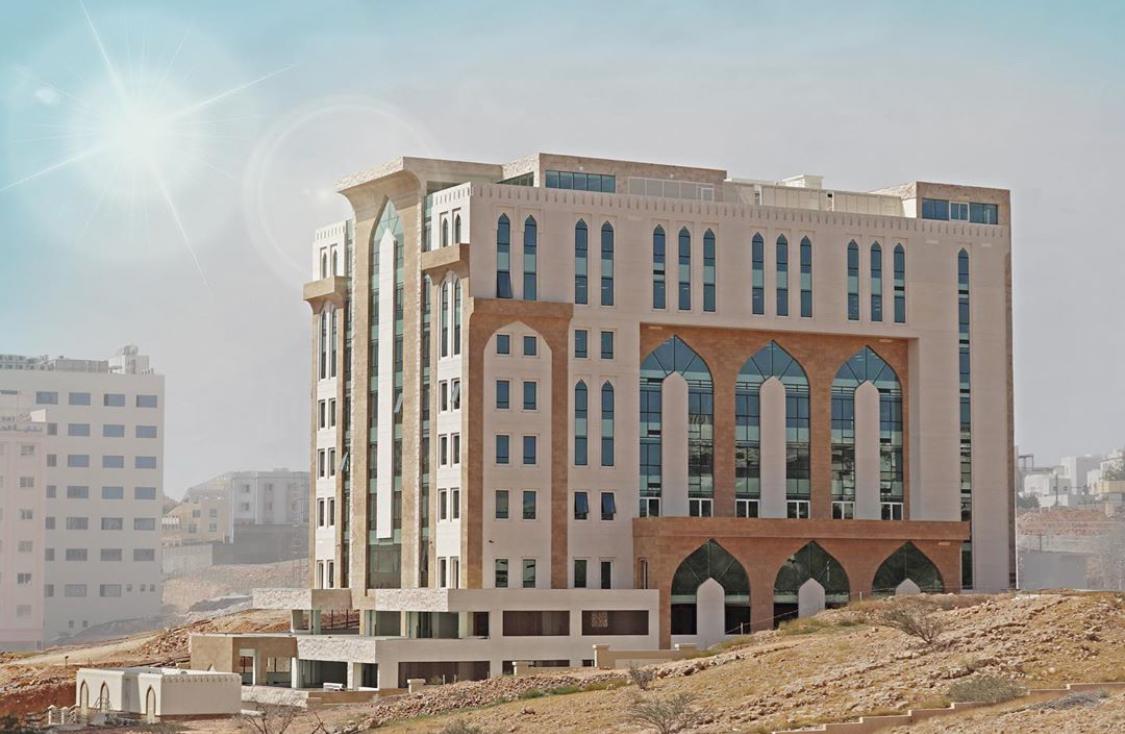

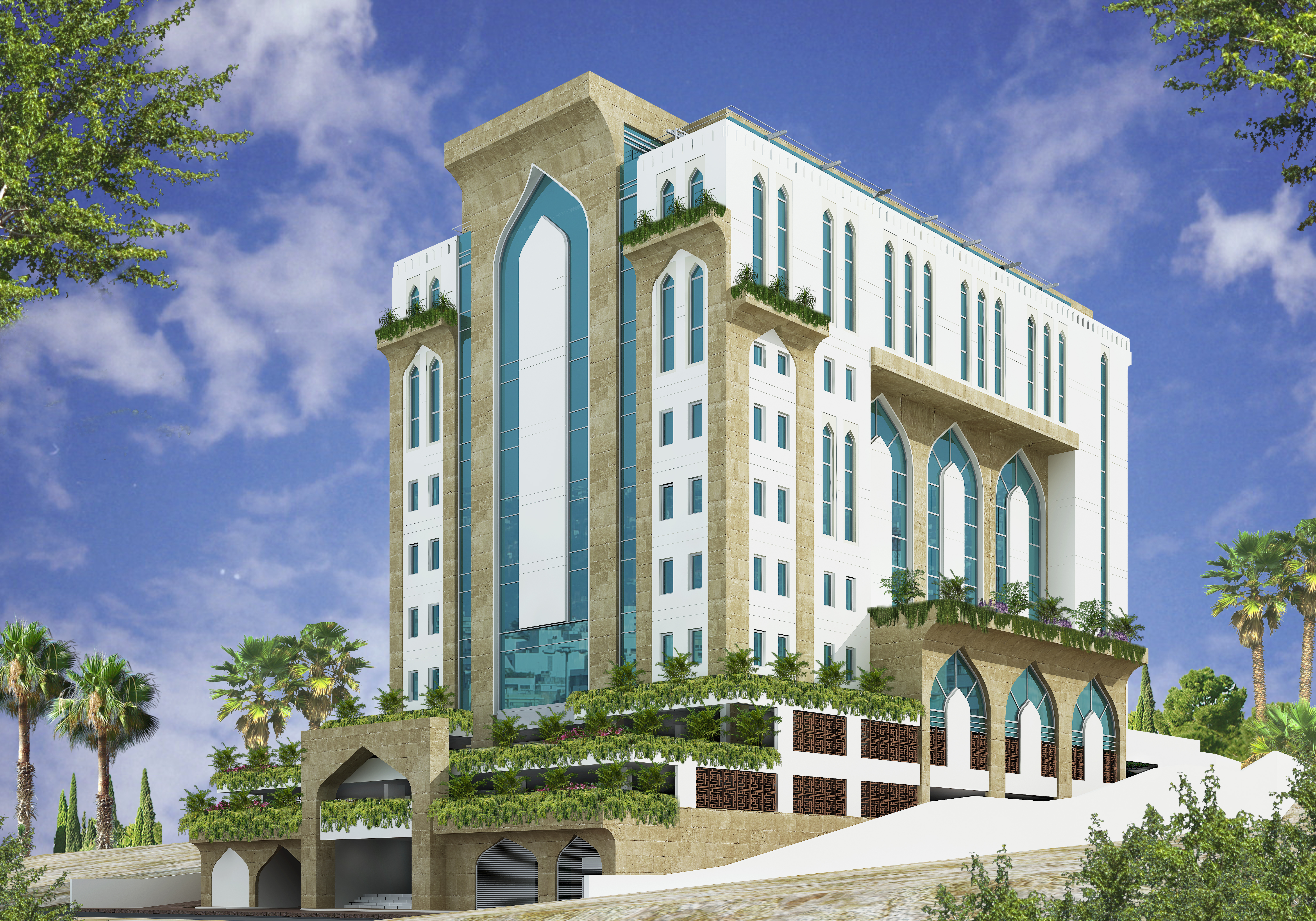

Office building in Muscat
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Office building |
| Project Type | Commercial |
| Year of Completion | 2021 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 1.000+ |
| KNX Transmission Media | Twisted pair |
| Man Hours | 1.001 – 2.000 |
| Man Power | 51 – 100 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control, Lighting Colour Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Automatic Occupancy Detection, Valve Drive Control / Fan Coil Control
- Security and Safety - Smoke/Fire Detection, Faults (e.g. Leak Detection, Glass Break Detection, Window Contacts), Access Control, Intrusion Detection / Alarm Systems, Emergency Lighting, Presence Simulation, Interaction with HVAC/Lighting
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering - Visualisation, Current Detection, Fuel or Water tank level control
- Other
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision
- Blind and Shutter Control - Individual Control, Group & Central Control, Automatic Programs
Customers Description

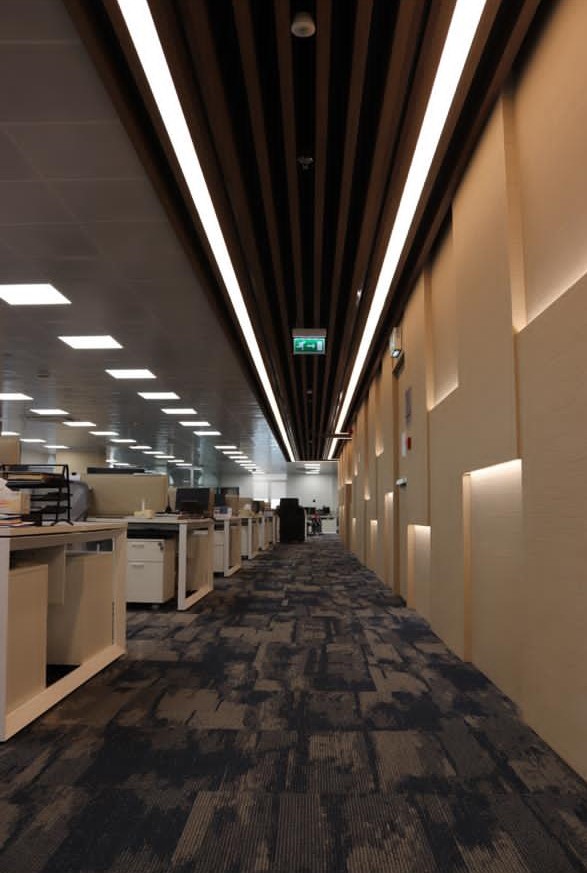

The building is providing high quality office space. The decision for a KNX solution was made due to the open and standardized system and the capability of being extended at any time. The lighting, HVAC, curtain control covers entire building. Parking area and external facade lighting is scheduled using timer and photocell. Over 90% of the lighting in the building is efficiently controlled by presence detectors, brightness sensors, time based functions and schedules ensure that lighting circuits are only switched as required.
The building individual offices with keypad scenes which can be called as required, for normal meetings and presentations. All the open workspace are with keypad with individual control and master control. Each floor will have tab for zone wise control. A visualization of the central operation, monitoring and control the system for full building. The system is interfaced with building’s MEP equipment’s using BACnet IP and ModBus
Contact Information
| Company Name | CUBE LLC |
| Company Email | sgonsalves@cube-llc.com |
| Company Website | https://cube-llc.com/ |
| Contact Name | Shawn Gonsalves |
| Contact Function | System Integrator |
