OMNI Sport Center
Leisure in Mitrovica
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Leisure |
| Project Type | Commercial |
| Year of Completion | 2017 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 101 – 300 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 101 – 250 |
| Man Power | 6 – 10 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Timed Control, Automatic Occupancy Detection, Constant Light Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Automatic Occupancy Detection, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control
- Security and Safety - Smoke/Fire Detection, Faults (e.g. Leak Detection, Glass Break Detection, Window Contacts), Access Control, Emergency Lighting, Supervision (e.g. Cameras), Interaction with HVAC/Lighting

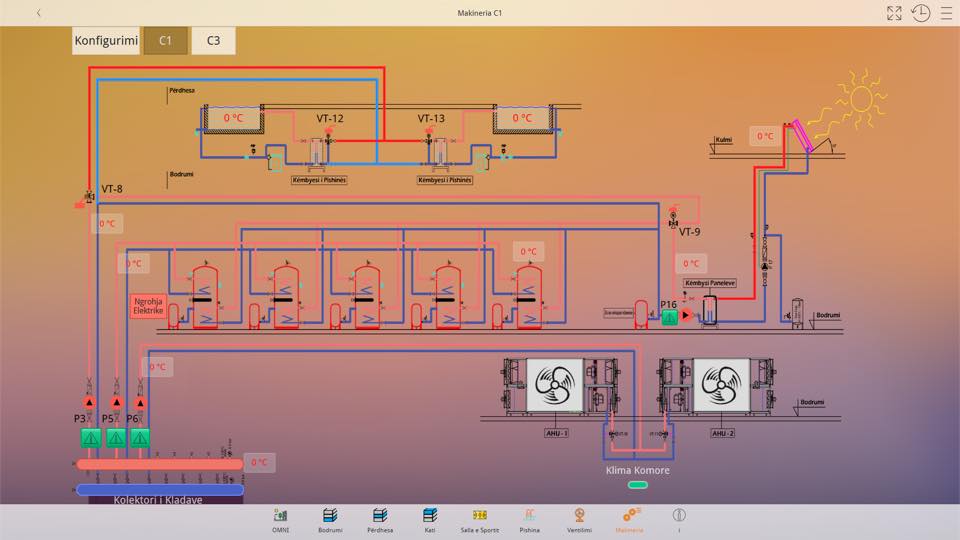

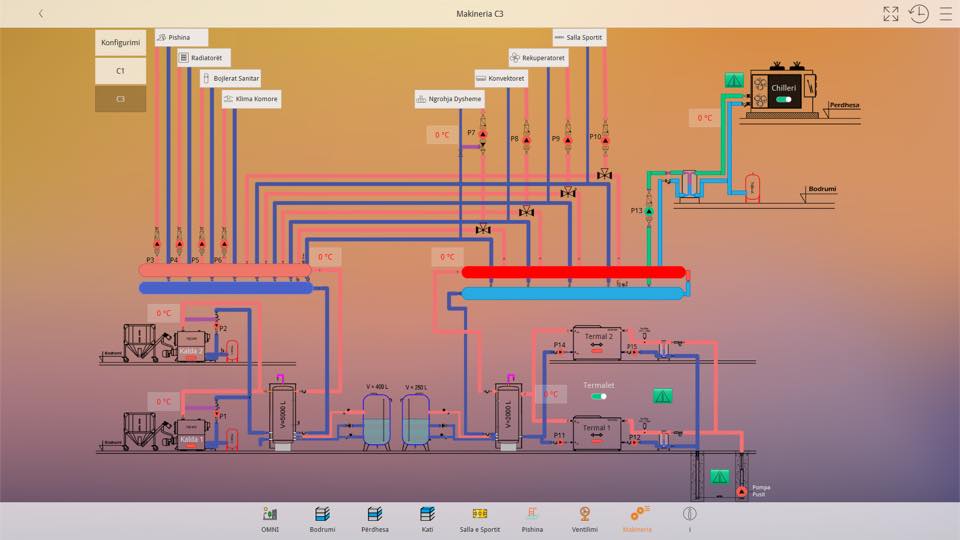

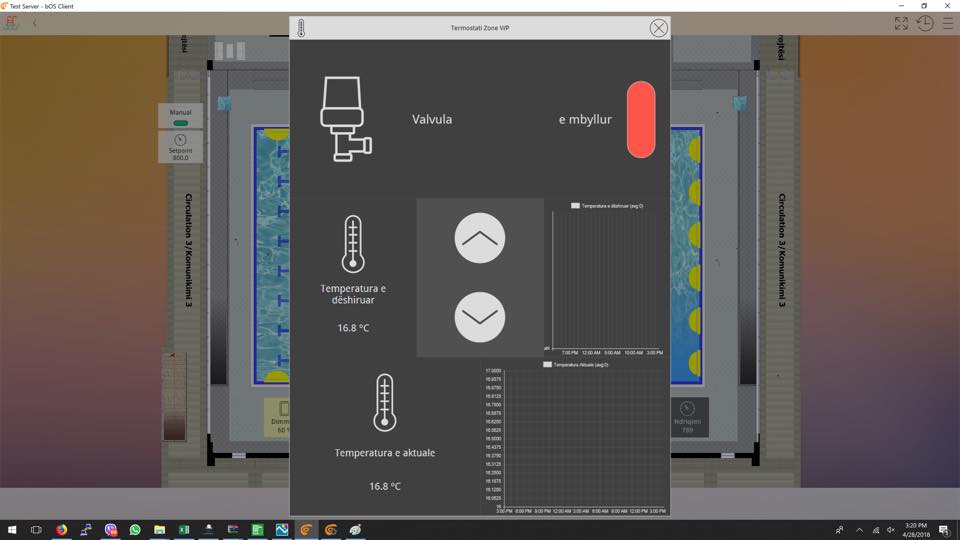

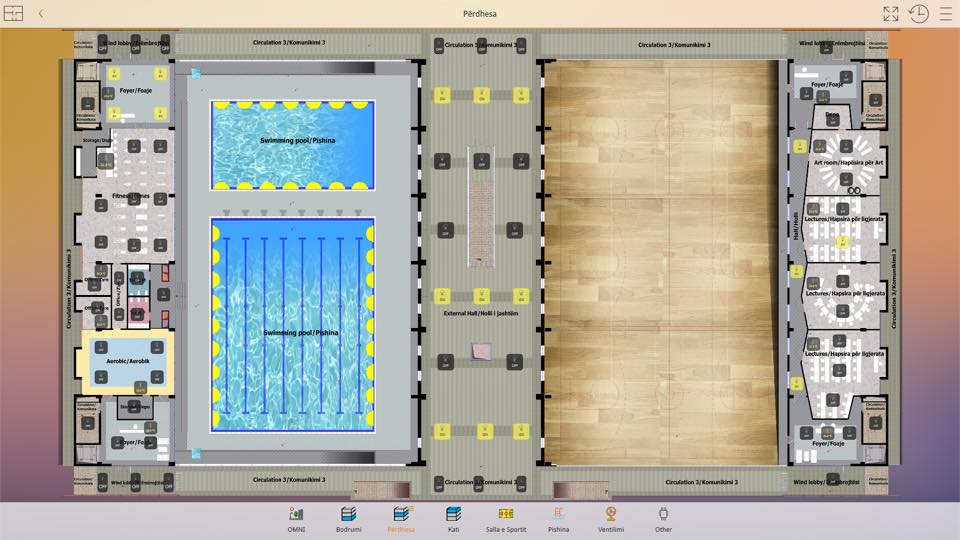

- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection, Fuel or Water tank level control
- Other - Audio Control, Video Control
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Messaging (e.g. SMS)
- Blind and Shutter Control - Individual Control
Customers Description
This building is a big sport center ( more than 15000 m2) located in Mitrovica - Kosovo.
There are numerous areas for all kinds of sports, including reading area, restaurants etc
There are more than 500 fancoil units, more than 3000 lighting fixtures, a lot of KNX presence detectors, a lot of KNX thermostats and other KNX controls.

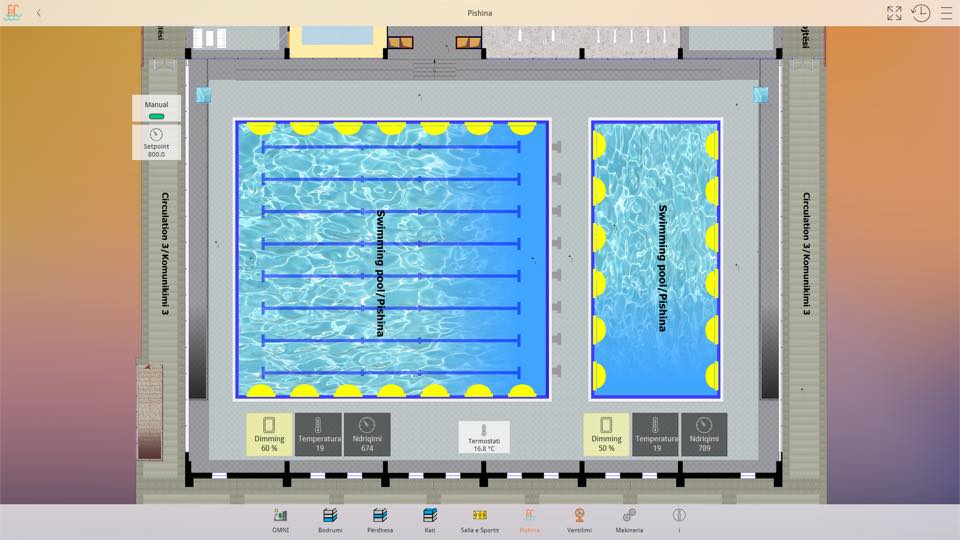

There is used Constant light control function for dimming, switching of HVAC units when no persons are inside, controlling of two swimming pools and other sports areas, field areas, athletic areas, restaurant, reading areas etc.
Contact Information
| Company Name | Call Home Electronics shpk |
| Company Email | zahirkoci@smart-elektrotech.com |
| Company Website | https://www.smart-elektrotech.com |
| Contact Name | Zahir Koci |
| Contact Function | Planner |
