Optimal Energy Management via CEMS and Submetering

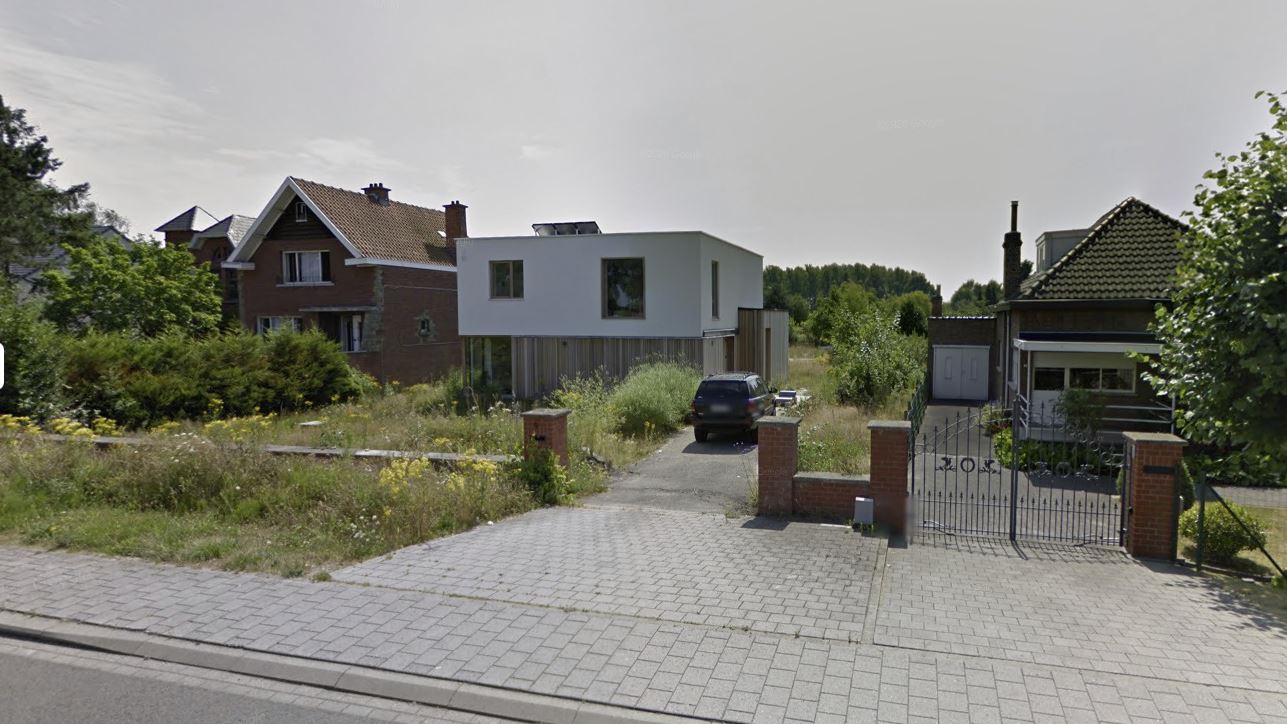

Family house in Hofstade
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Family house |
| Project Type | Residential |
| Year of Completion | 2022 |
| Project Size | 101 – 500 |
| Number of KNX Devices Used | 1 – 25 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 251 – 500 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Weather Dependent Control, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control, Floor Heating Control, Boiler and burner Control
- Security and Safety - Faults (e.g. Leak Detection, Glass Break Detection, Window Contacts), Access Control, Supervision (e.g. Cameras), Interaction with HVAC/Lighting
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Tablets and smart phones
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection, Peak Demand Monitoring, Load Shedding , Energy Harvesting (Avoiding use of batteries), Use of Renewable Energies
- Other
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming, Messaging (e.g. SMS)
- Blind and Shutter Control - Individual Control, Group & Central Control, Preset Positioning, Automatic Programs, Wind and Rain Protection, Sun Tracing (interaction with HVAC / lighting)
Customers Description
The building has screens which are driven by a weather station. The weather station measures the radiation of the sun, wind, rain, brightness and the position of the sun based on GPS localization.
The following actions are taken based on the temperature measured in the different zones of the building:
- position of the screens is adjusted based on the parameters measured by the weather station
- the floor and wall circuits are set for heating or cooling
Overview of the submetering:
- KNX P1 Gateway linked with the Smart Meter
- temperature sensors on Heat Pump tubes (departure, return, source in, source out, ...)
- calori meters (M-Bus)
- real-time price of electricity via IoT technology
The CEMS is placed in the cloud and stores an energy profile which has been created in cooperation with the customer
The customer is able to adapt the energy profile parameters via visualisation locally or via the Internet (VPN).
The CEMS is EN50491-12-2 compliant.
Contact Information
| Company Name | IoT Domotica Solutions |
| Company Email | contact@iot-domotica.solutions |
| Company Website | https://iot-domotica.solutions |
| Contact Name | Kurt Vermeylen |
| Contact Function | System Integrator |
