Private villa
Villa in Nesbru
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Villa |
| Project Type | Residential |
| Year of Completion | 2019 |
| Project Size | 101 – 500 |
| Number of KNX Devices Used | 26 – 100 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 501 – 1.000 |
| Man Power | 1 – 5 |
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Constant Light Control, Lighting Colour Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control, Floor Heating Control, Boiler and burner Control
- Security and Safety - Faults (e.g. Leak Detection, Glass Break Detection, Window Contacts), Intrusion Detection / Alarm Systems, Presence Simulation
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering - Data Logging, Visualisation, Current Detection
- Other
- Automation and Remote Access
- Blind and Shutter Control - Individual Control, Group & Central Control, Automatic Programs
Customers Description

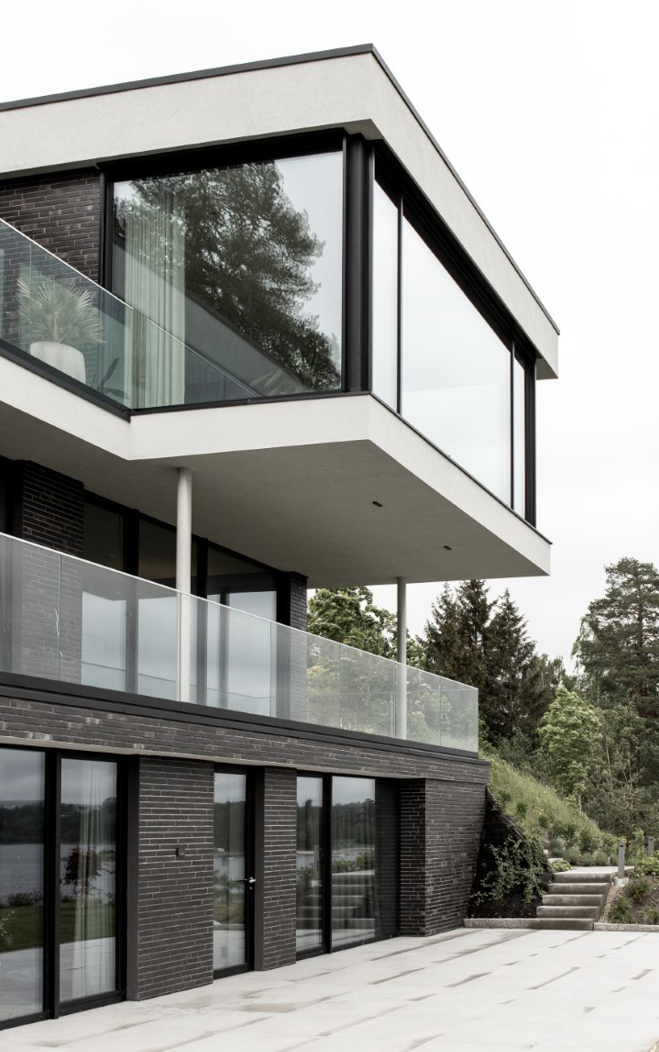

Private villa (450 m2) with KNX and DALI for complete control. Integration to heating valves (Uponor), central heating generator (NIBE) and ventilation (Smartair) and warm water (OSO).
Main devices include Schneider (80% of sensors and actuators), Gira (presence detectors) and Zenio (pills).
Both Schneider SpaceLYnk and Wiser for KNX used for automation and Pairot used to Alexa/Siri integration.
Constant lighting (both open and closed loops).
Weather station mainly used for informational purposes (+ open loop lighting via LUX reading).
Using TP with TP couplers, i.e. no IP coupling.
Contact Information
| Company Name | Euro Elektro AS |
| Company Email | firmapost@euroelektro.no |
| Company Website | https://www.euroelektro.no |
| Contact Name | Morten Hoel |
| Contact Function | Installer |
