Rakvere Vallimägi

Entertainment in Rakvere

Applications Used

Lighting

Heating, Ventilation & Air conditioning (HVAC)

Security and Safety

Operation and Visualisation

Energy Management/Smart Metering

Other

Automation and Remote Access

Blind and Shutter Control

Project Details

Category	Value
Project Category	Entertainment
Project Type	Commercial
Year of Completion	2020
Project Size	101 – 500
Number of KNX Devices Used	26 – 100
KNX Transmission Media	Twisted pair
Man Hours	1 – 100
Man Power	1 – 5

Featured in this project

Detailed Description

Energy Efficiency

The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation

Innovation

Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.

Applications Used

Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection
Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control, Natural Ventilation, Floor Heating Control
Security and Safety - Smoke/Fire Detection, Faults (e.g. Leak Detection, Glass Break Detection, Window Contacts)
Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Touch Panels & Display Panels
Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection
Other
Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming, Messaging (e.g. SMS)
Blind and Shutter Control

Customers Description

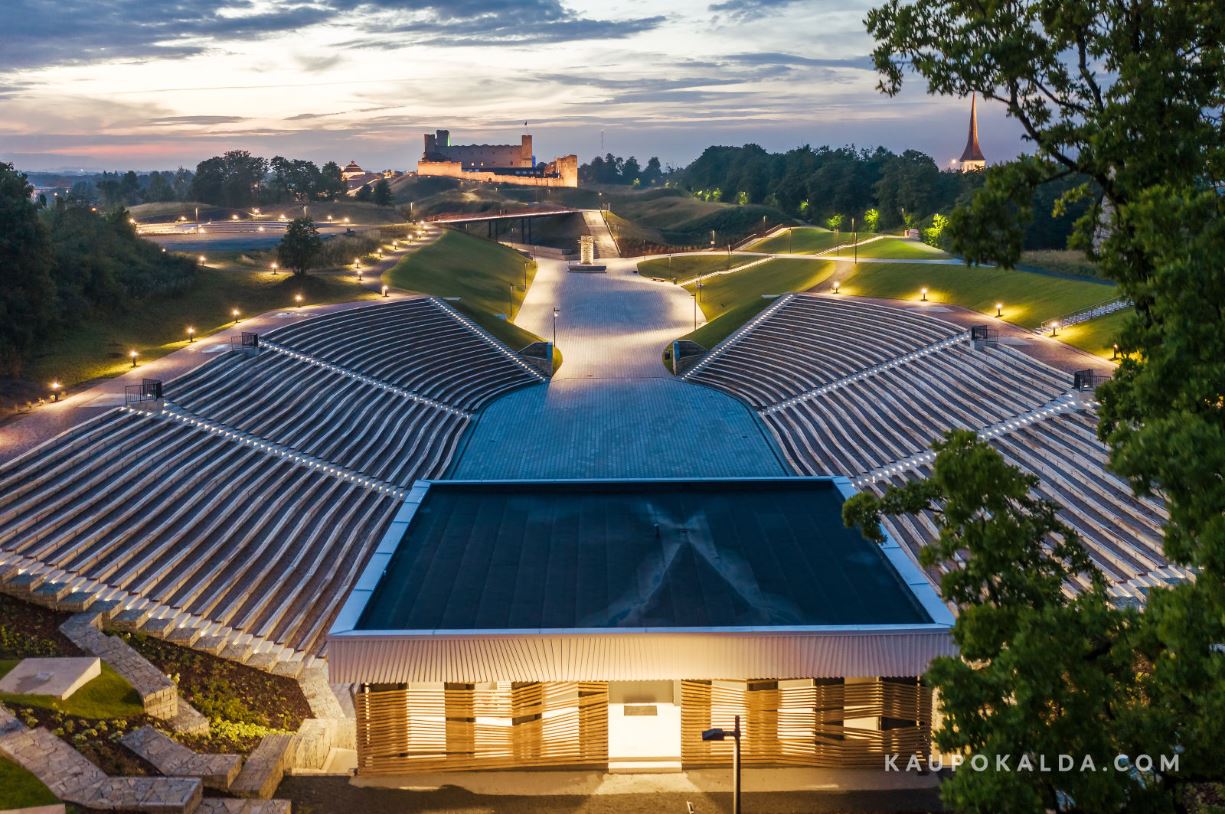

Outside theatre next to old castle. Outside lights are controlled over DALI protocoll. Inside all lights are controlled over KNX/DALI gateways. Lights are controlled with pushbuttons and presence detectors. Heating is controlled with KNX thermostats and floorheating. Ventilation unit is connected to KNX system over Comfort Click bOS server with Modbus interface. Building energy management is controlled with KNX energy meters and Modbus energy control devices. All systems are integrated over Comfort Click bOS server into one HMI.
