Revitalisation of Rother's Mills in Bydgoszcz Old Town, Poland
Public building in Bydgoszcz
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Public building |
| Project Type | Commercial |
| Year of Completion | 2022 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 501 – 1.000 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 251 – 500 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Timed Control, Automatic Occupancy Detection
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control, CO2 / Humidity Measuring
- Security and Safety

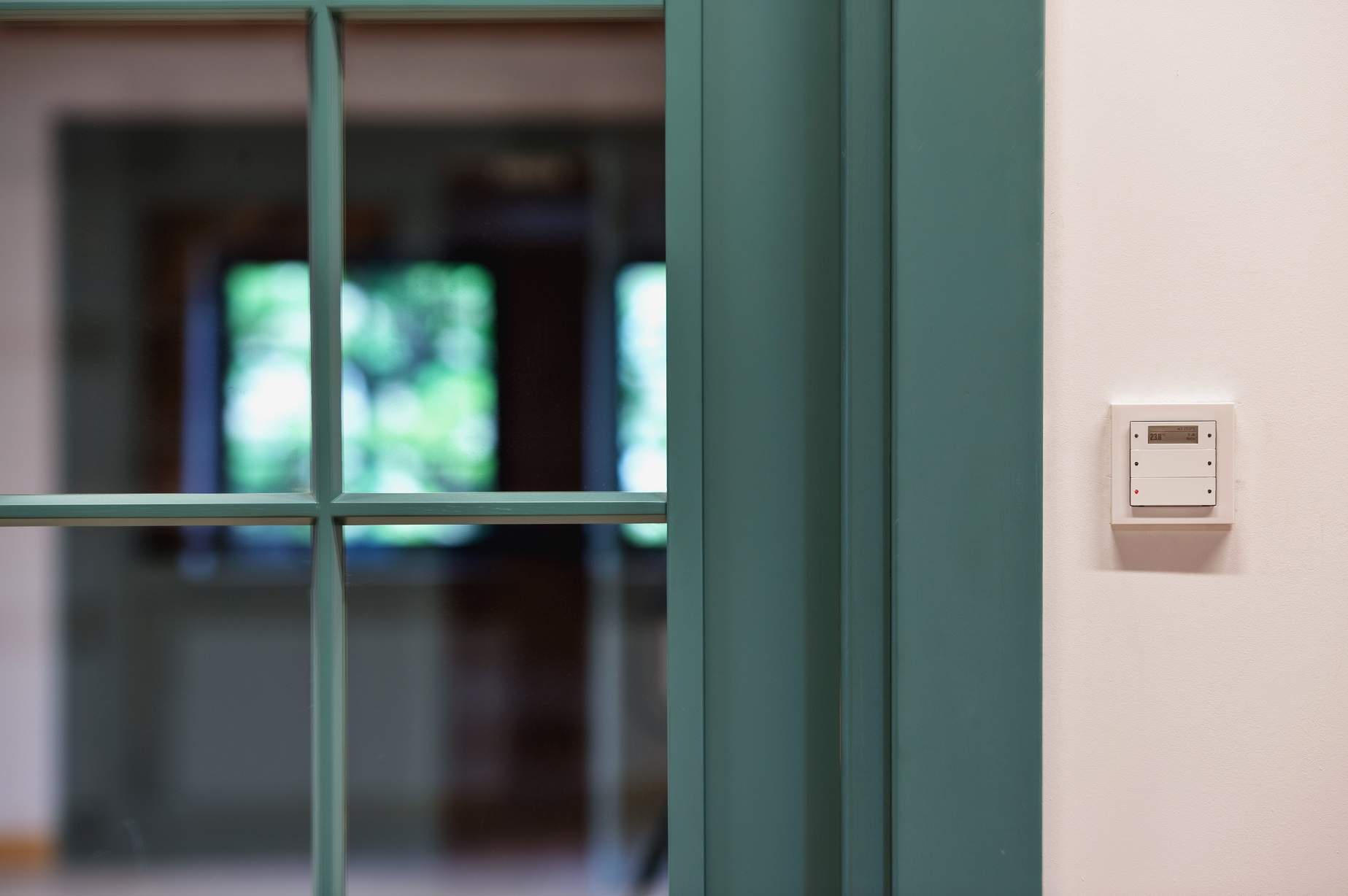

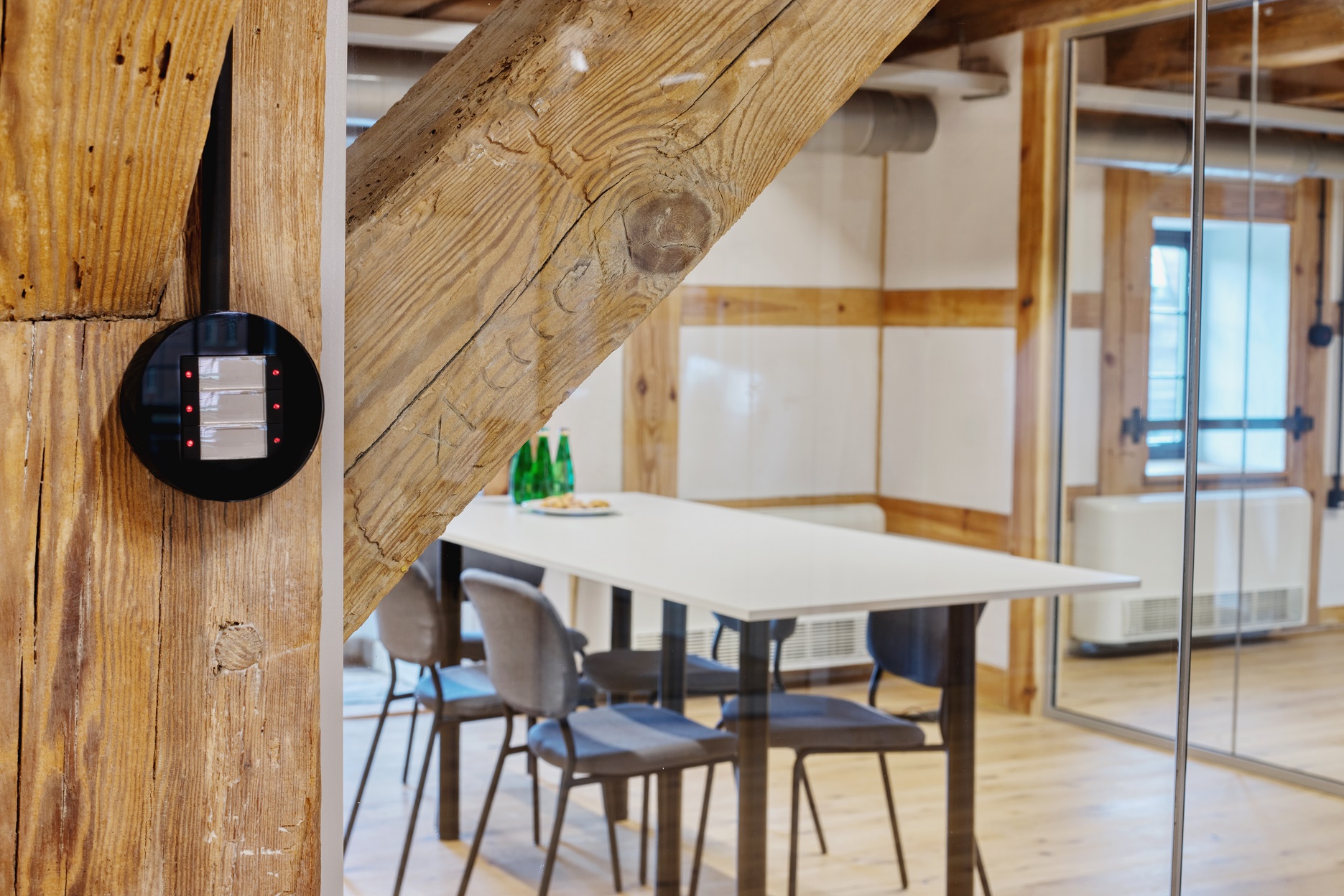

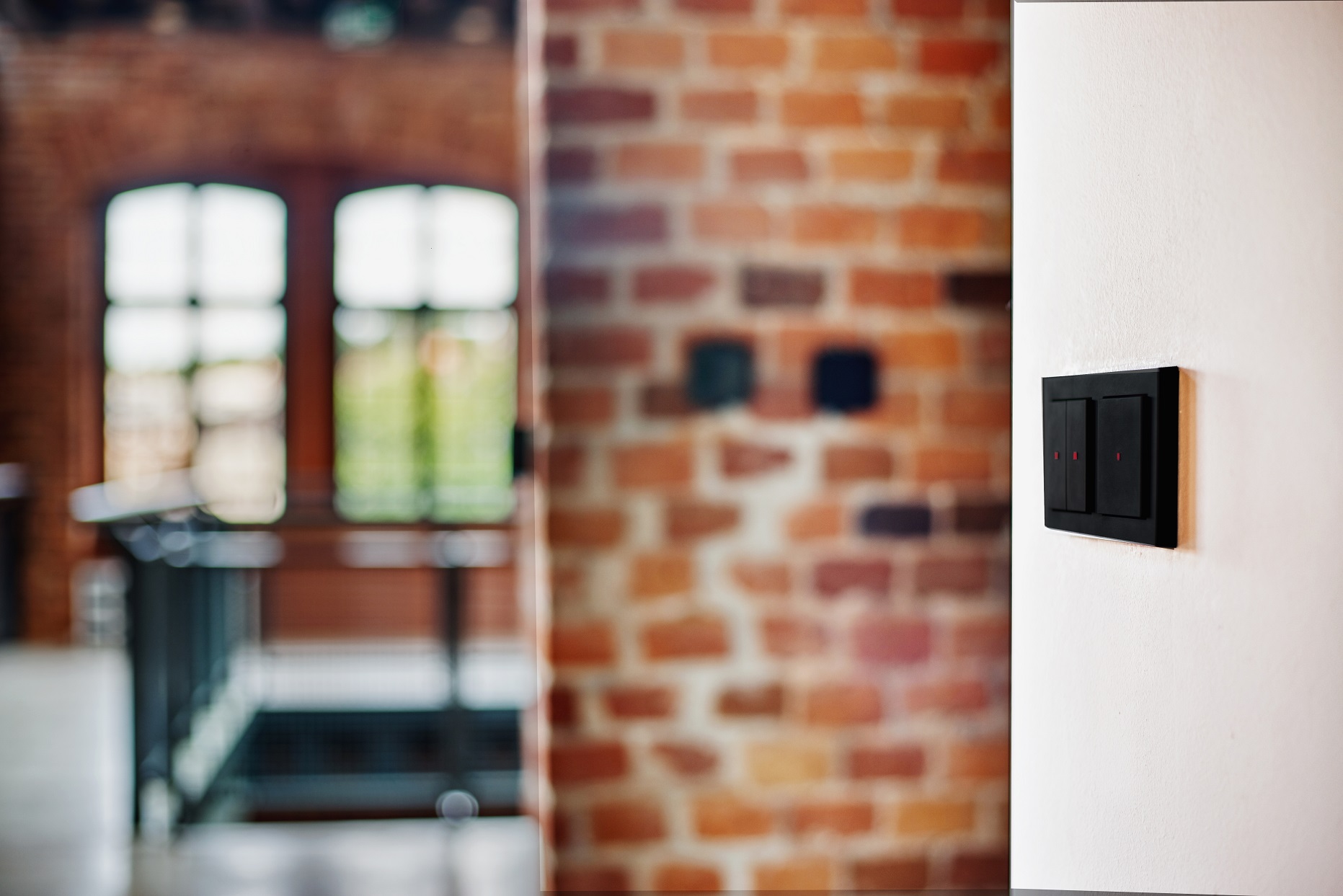

- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection, Fuel or Water tank level control, Peak Demand Monitoring, Battery Storage
- Other
- Automation and Remote Access - Timed Functions, Internet Access, Remote Programming
- Blind and Shutter Control
Customers Description

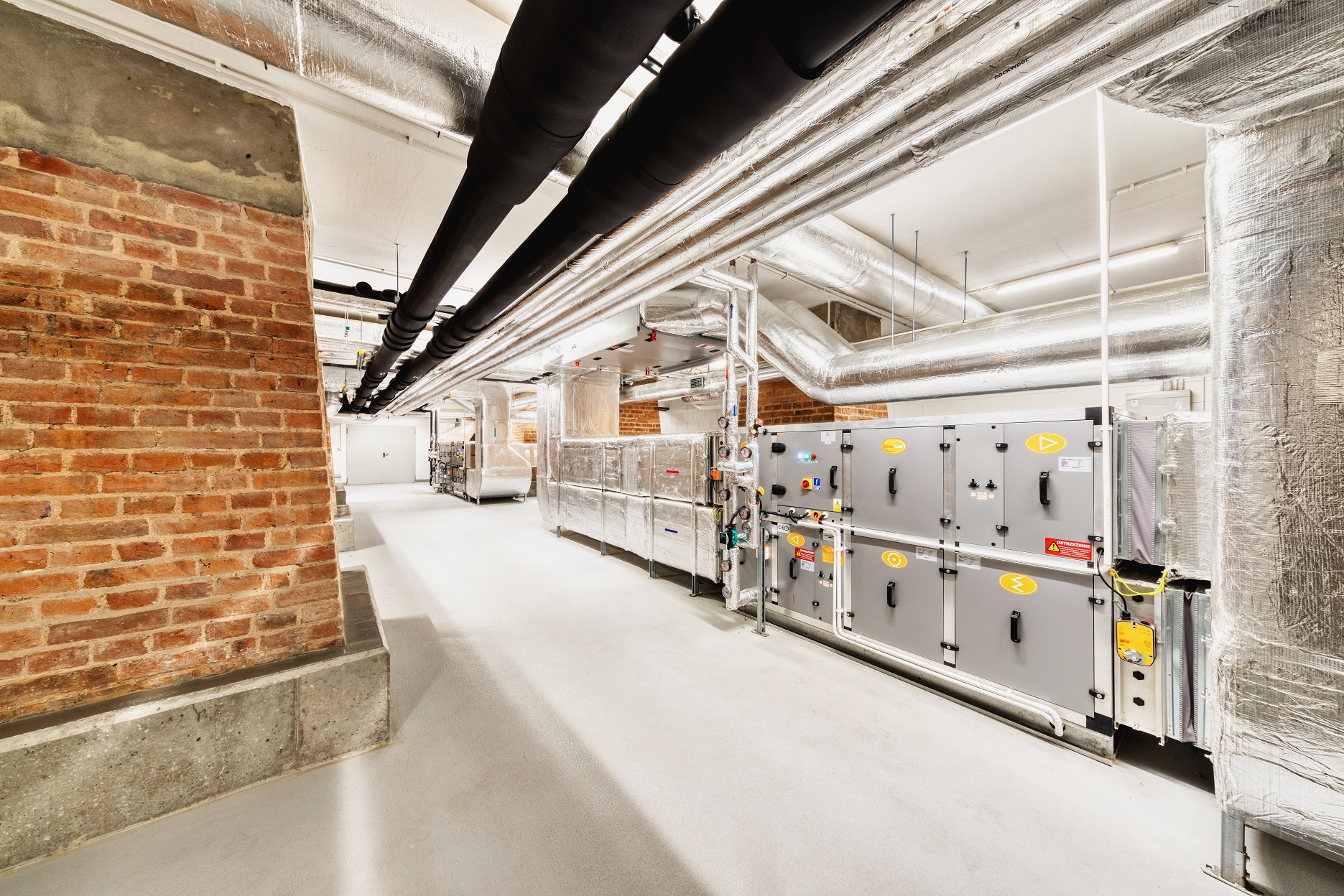

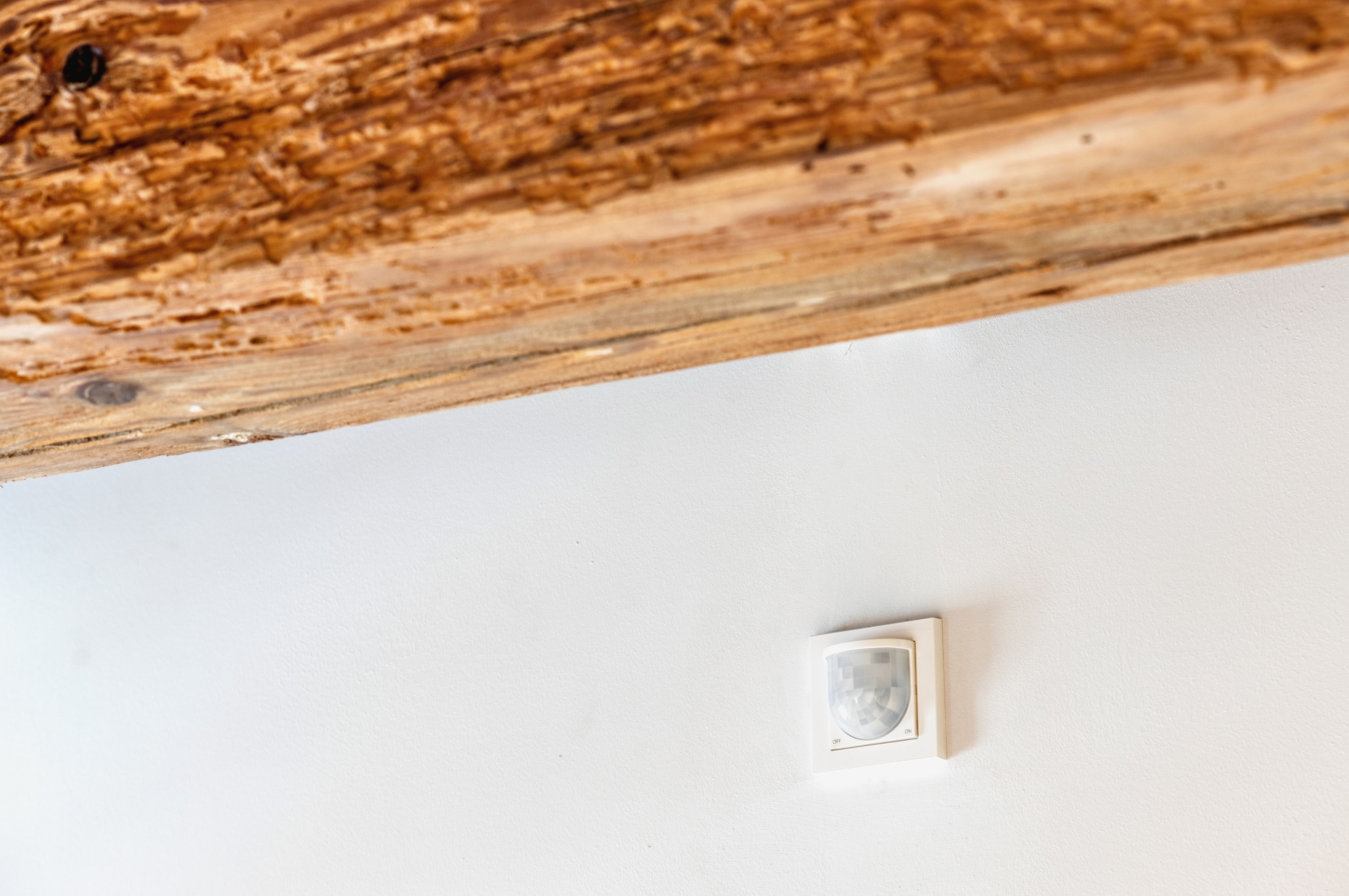

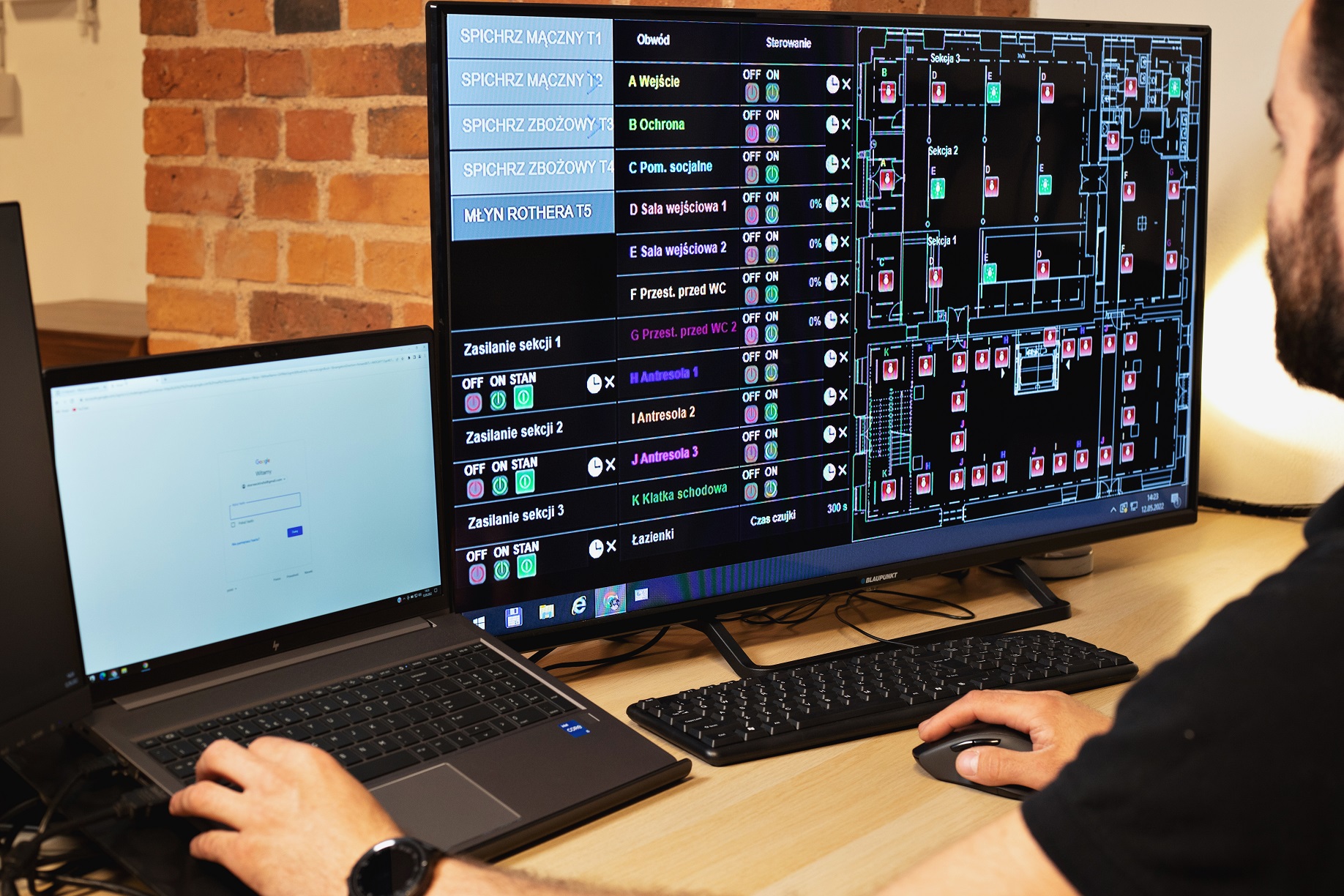

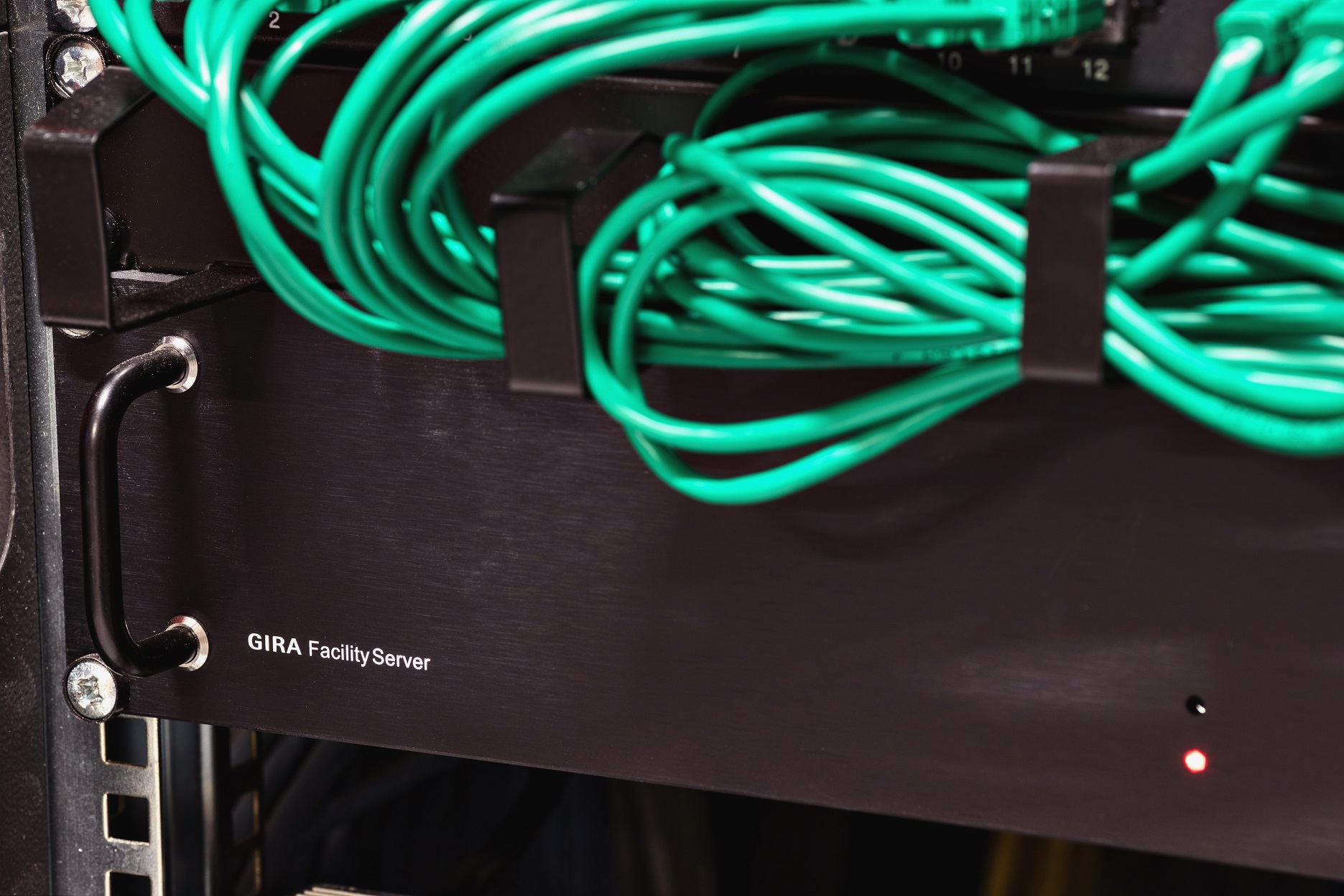

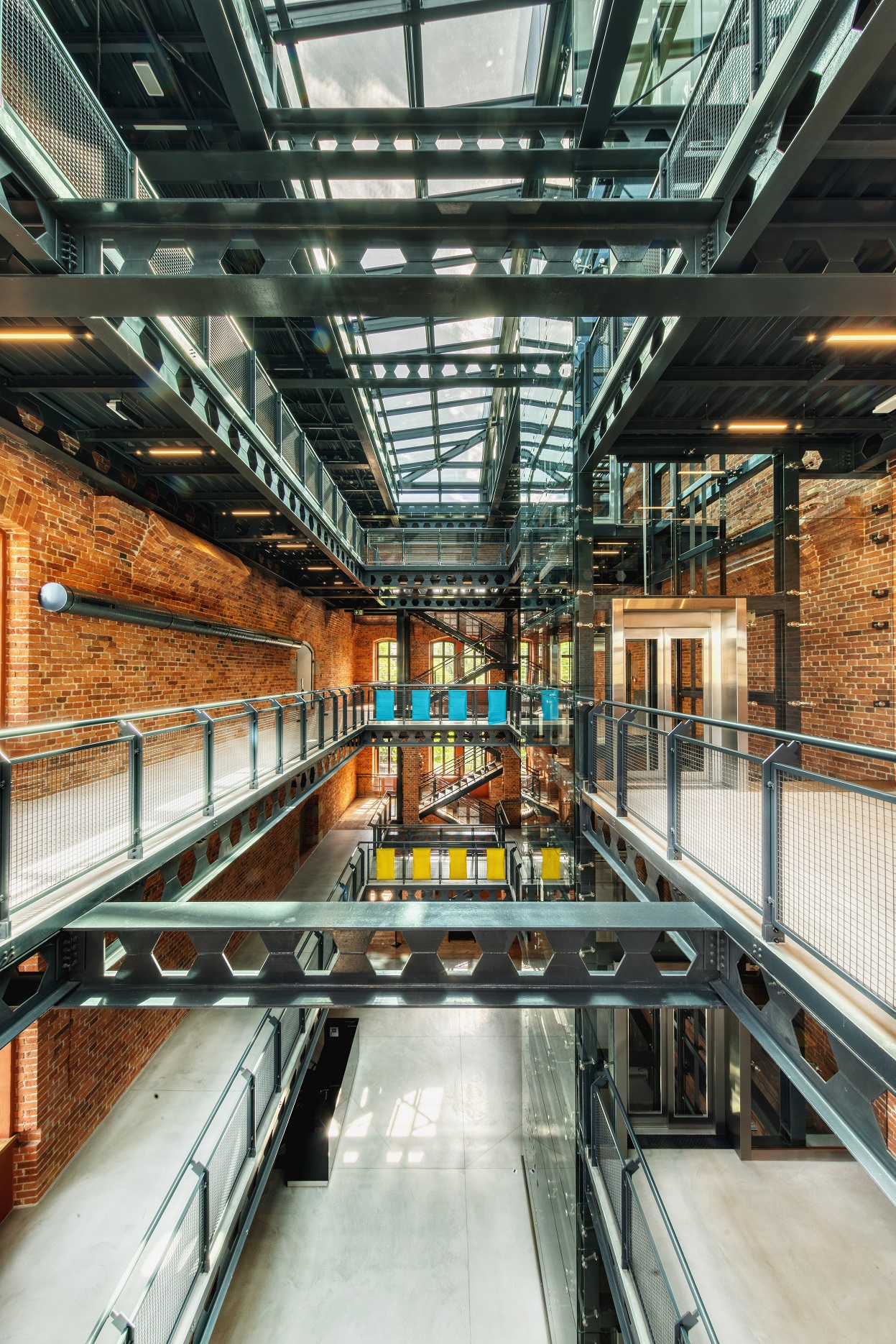

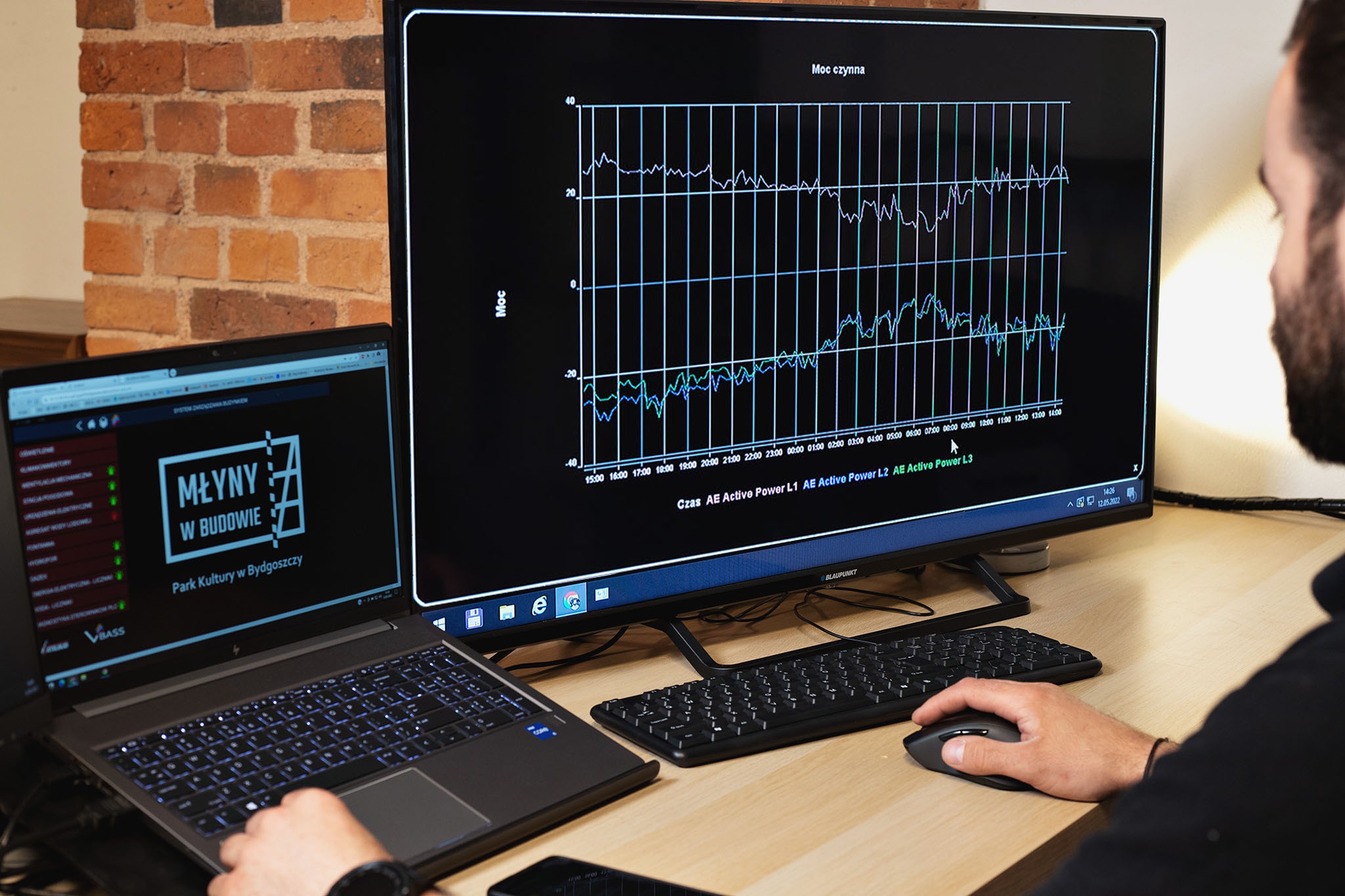

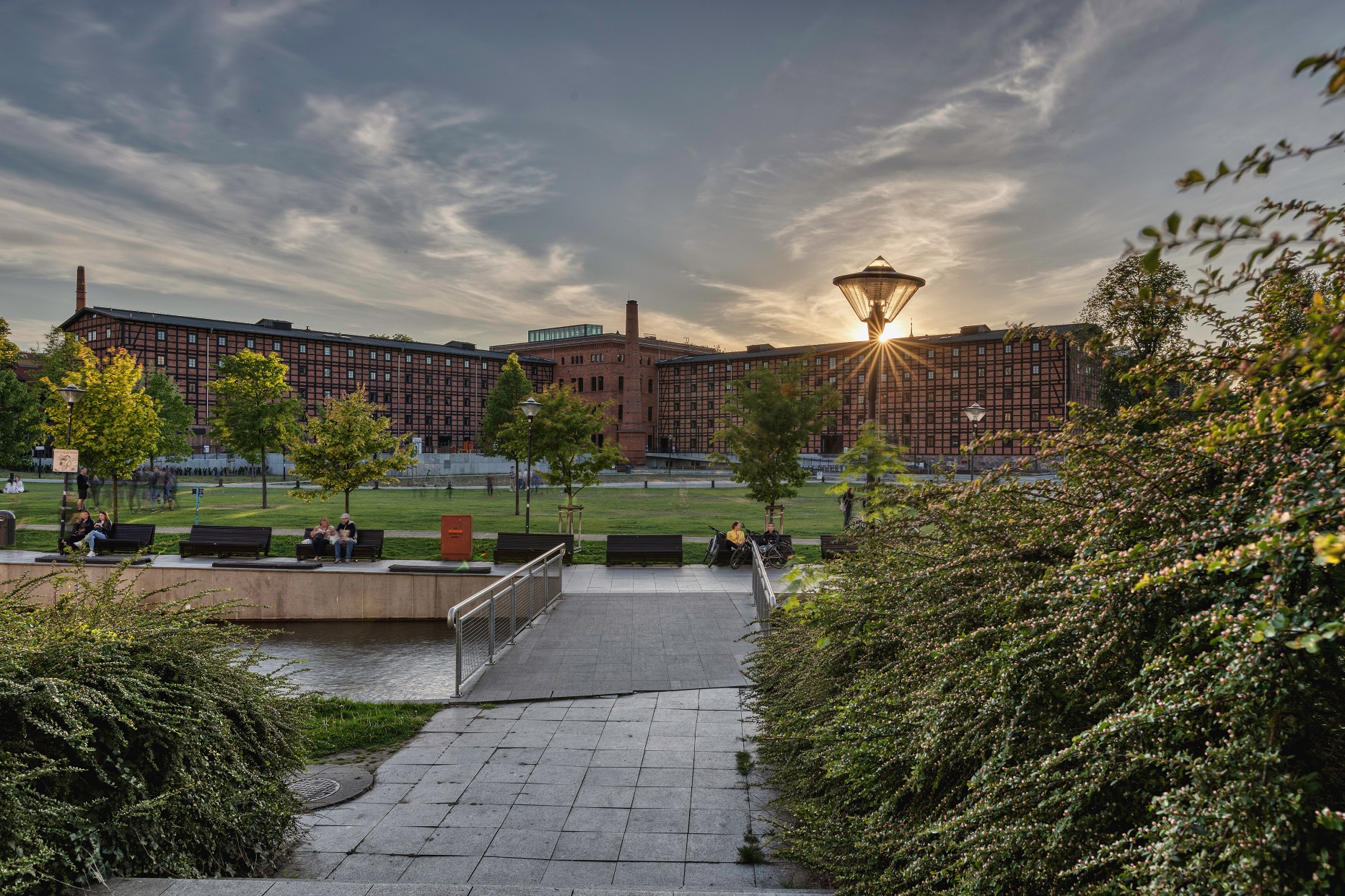

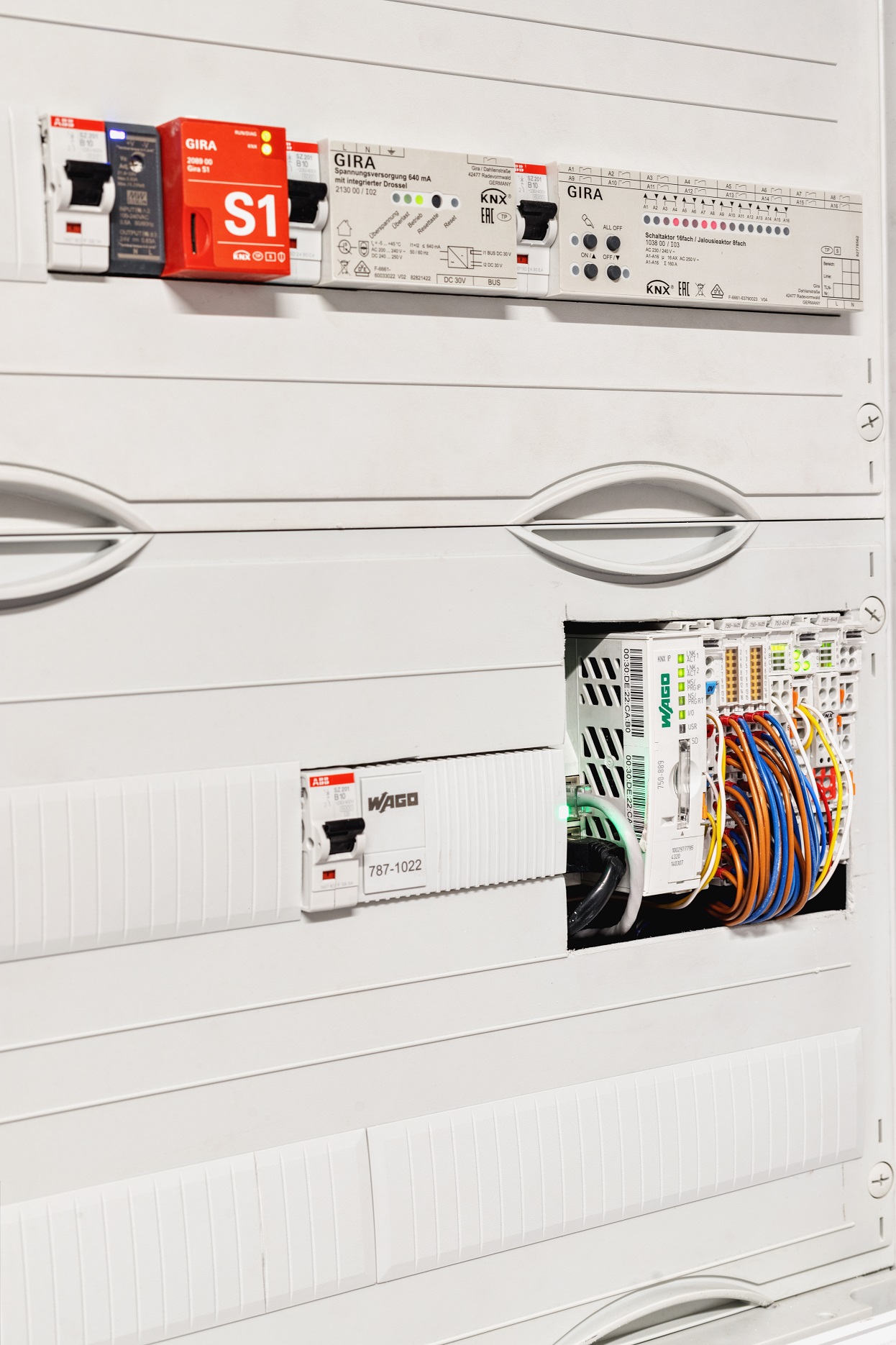

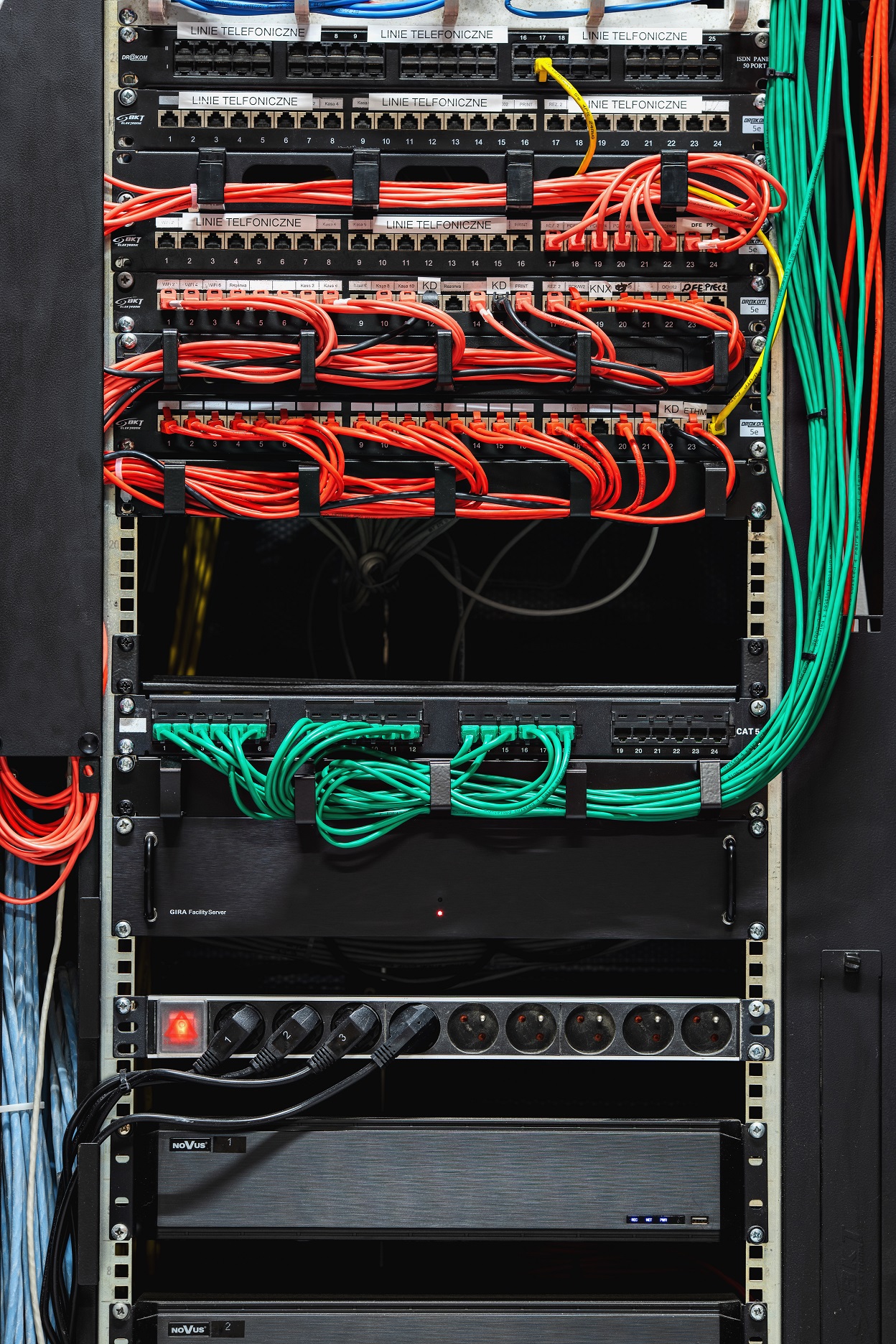

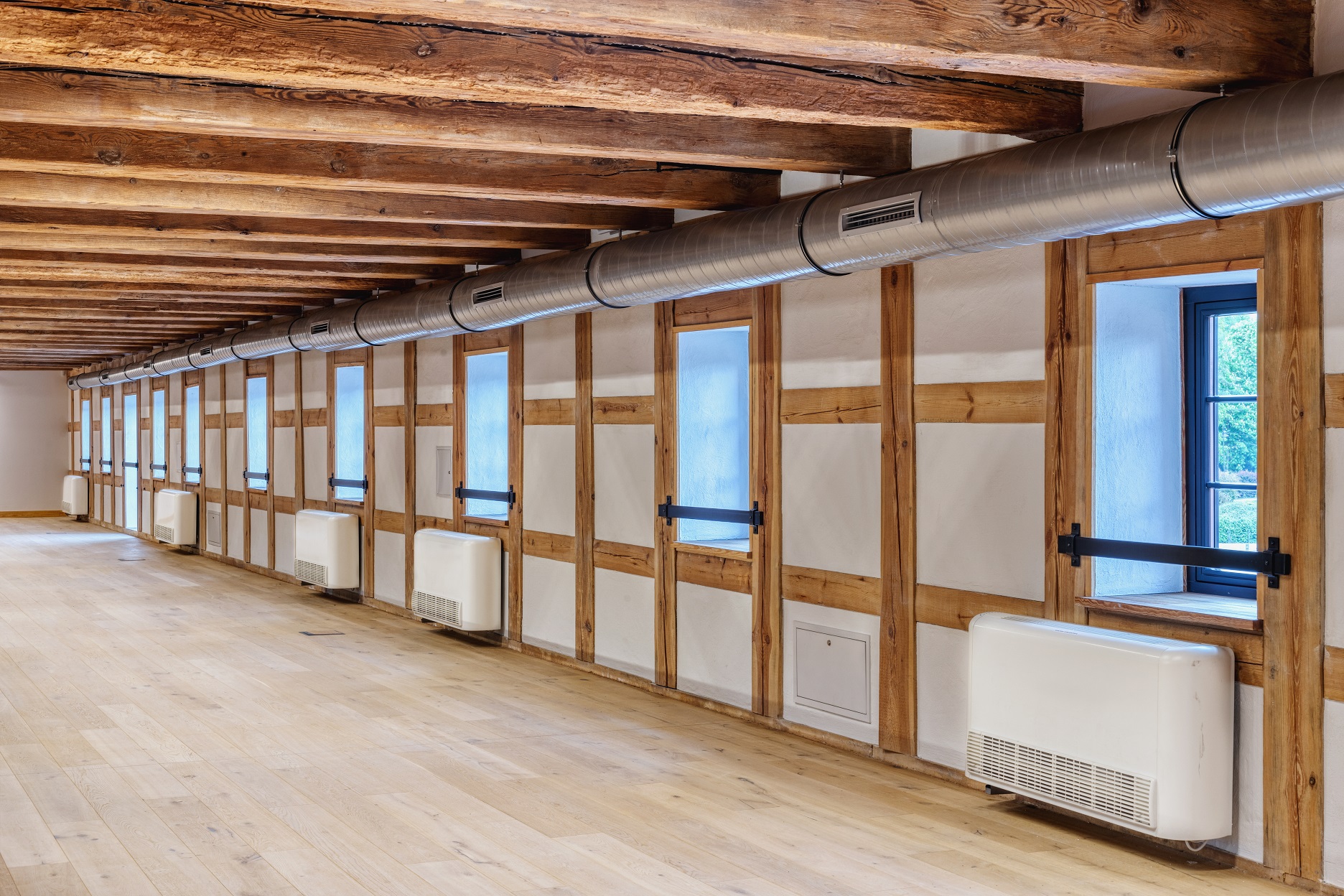

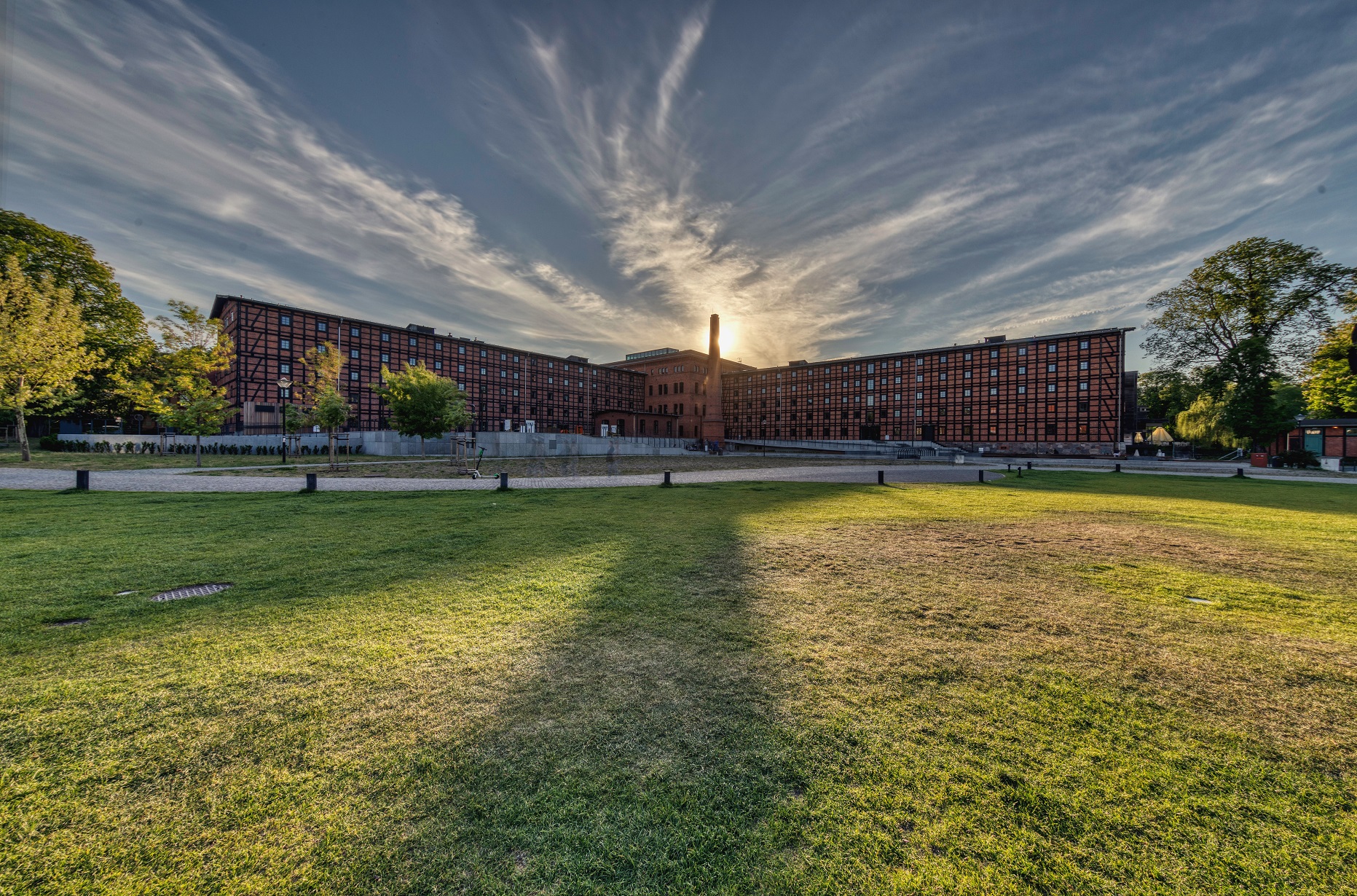

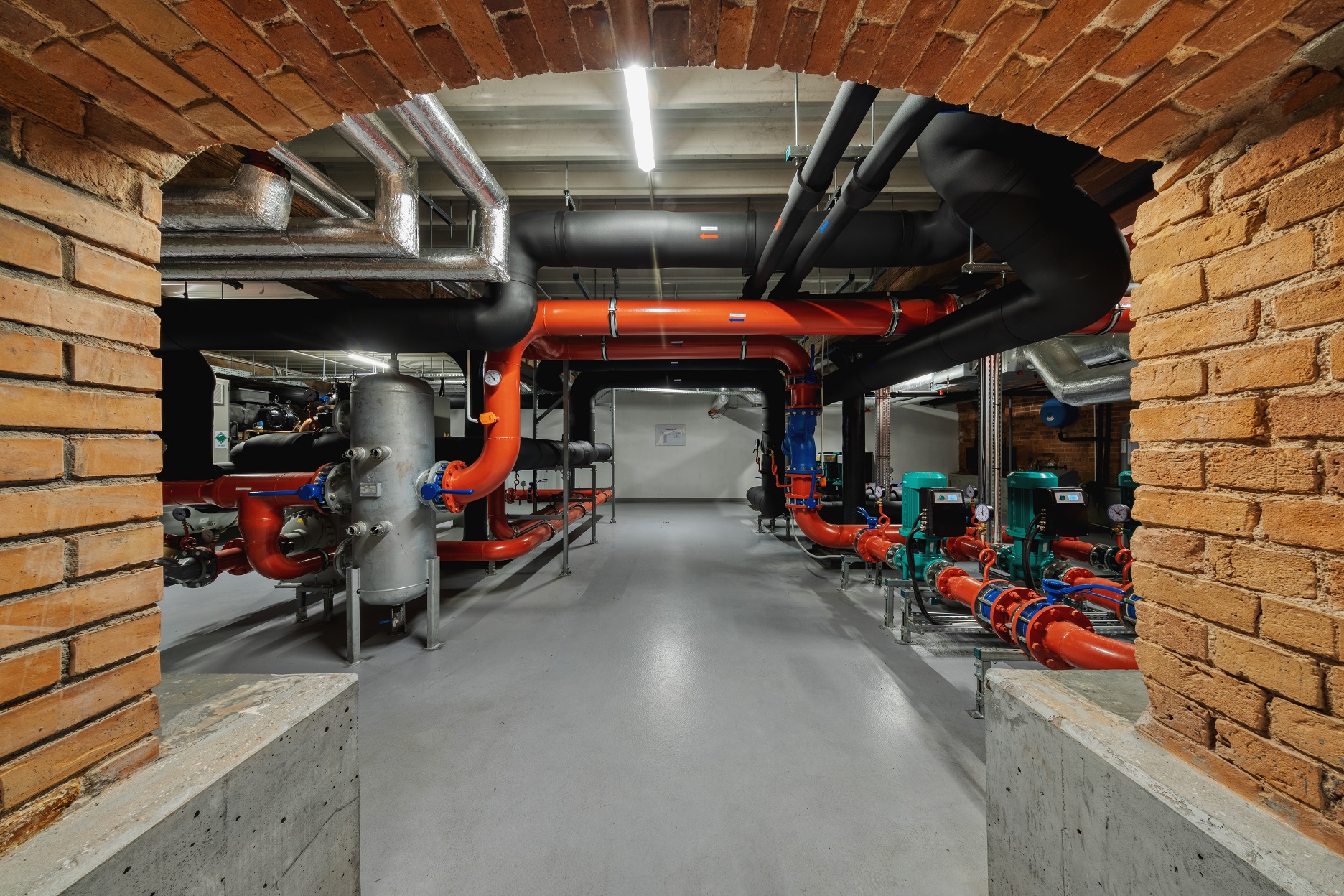

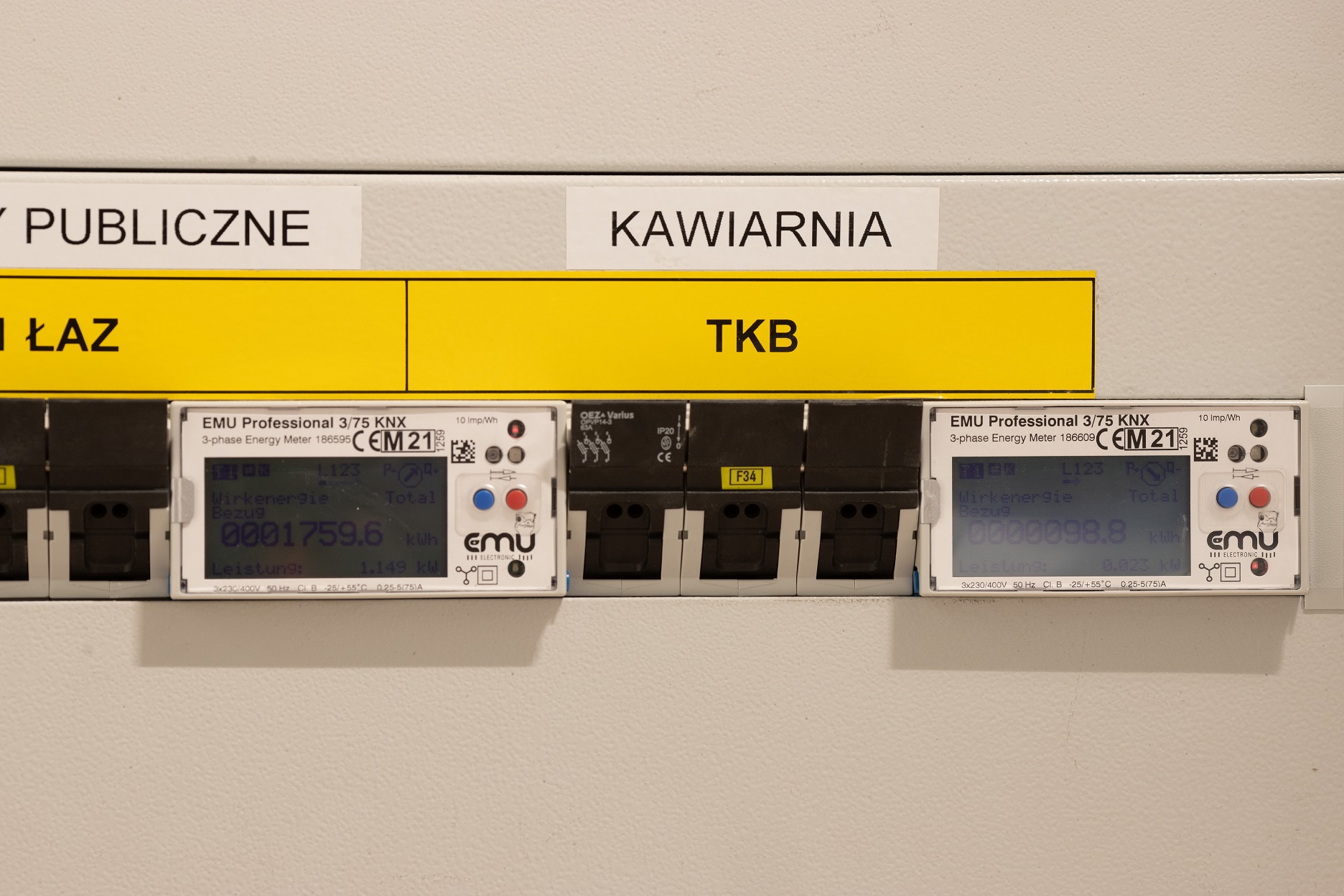

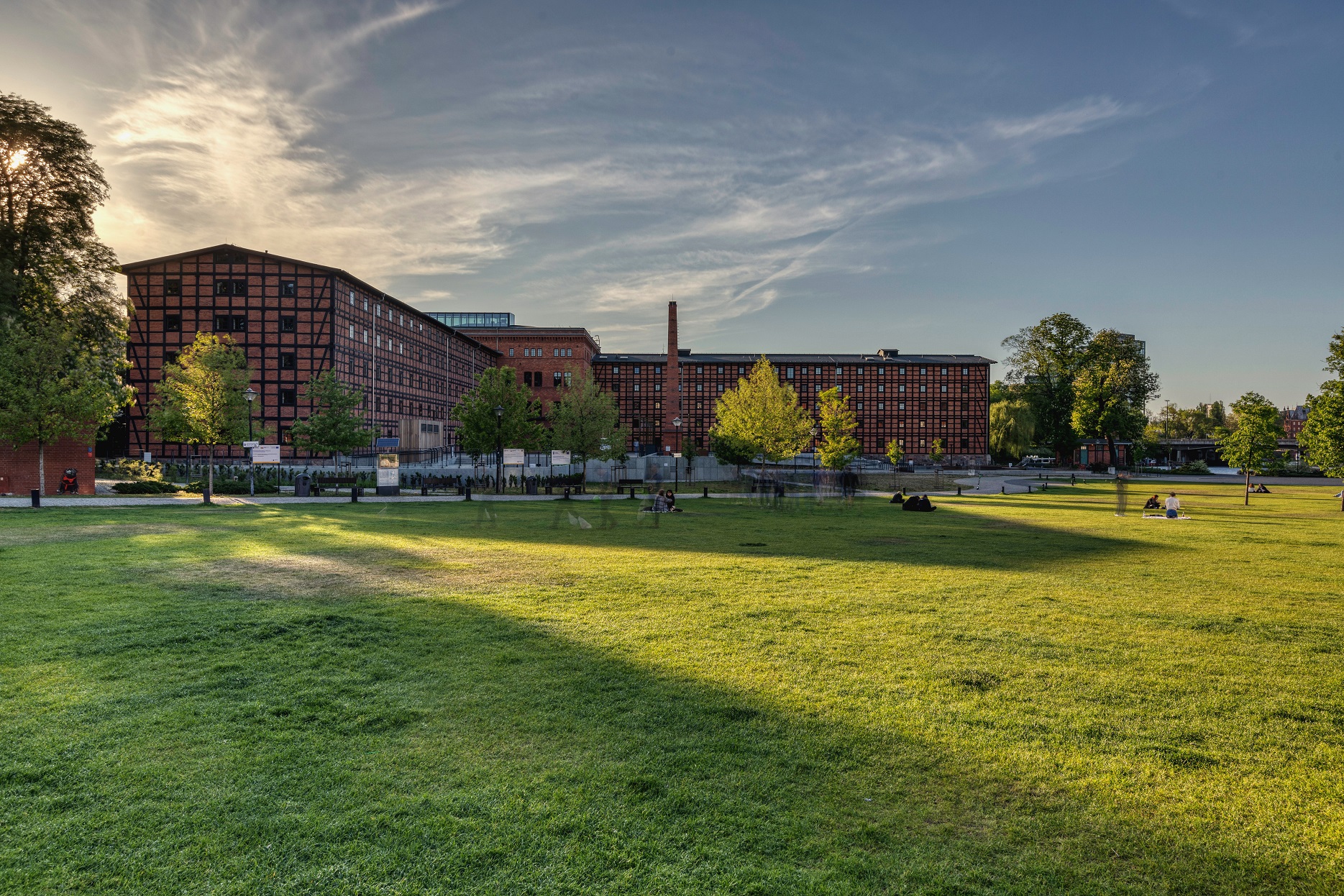

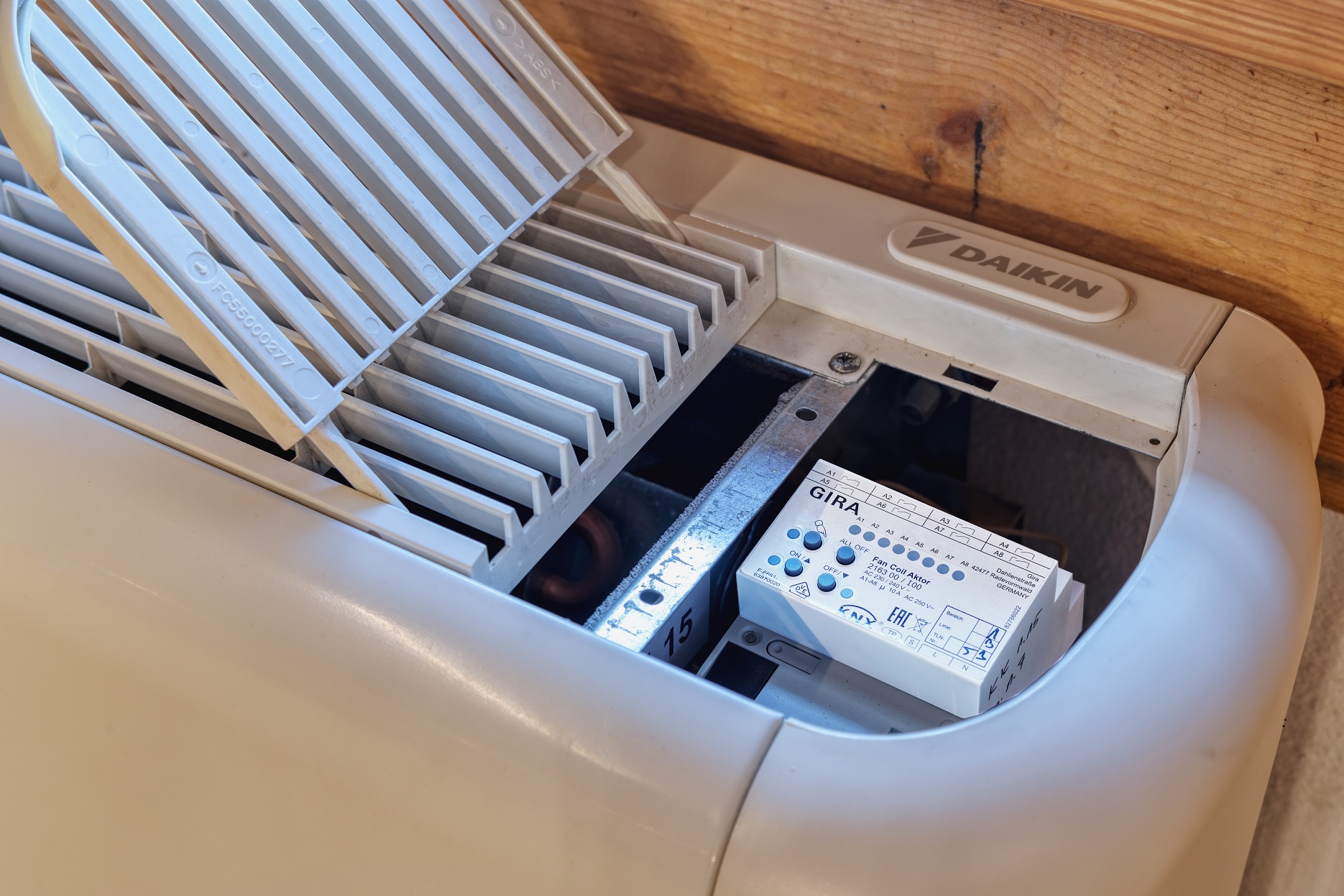

Rother’s Mills dating back to 1848-1849 and has a 12 844,84 m2 of usable area. "Mills under construction" is a keynote of Revitalisation of Mills Island made by Bydgoszcz City. We are glad that we could take part of making Rother's Mills alive and make them smarter, eco-conscious and fuel-efficient. We were responsible of: providing programmed KNX equipment, creating BMS project, commissioning of the lighting control system (22 DALI networks) and HVAC temperature control (203 FanCoil actuators,148 motion sensors), creating BMS visualisation based on GIRA FacilityServer. The greatest challenges during our project were integrations with other installations using KNX, M-BUS, Modbus. We integrated with energy and power meters, water meters, air-handing units, UPS, power generator, hydrophore, power analyser, gas detections unit, fountains, air-conditioner, snow melting and de-icing controller and monitoring smoke exhaust vents position statuses.
Contact Information
| Company Name | VBASS AUTOMATYKA BUDYNKOWA TOMASZ GRUDA |
| Company Email | ola.gawel@vbass.pl |
| Company Website | https://vbass.pl/ |
| Contact Name | Tomasz Gruda |
| Contact Function | System Integrator |
