SC401 SQUARE CORPORATE
Office building in Florianópolis
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Office building |
| Project Type | Commercial |
| Year of Completion | 2017 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 26 – 100 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 2.000+ |
| Man Power | 26 – 50 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Light Scenes, Timed Control, Automatic Occupancy Detection
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Individual Room Control / Zone Control, CO2 / Humidity Measuring
- Security and Safety - Smoke/Fire Detection, Faults (e.g. Leak Detection, Glass Break Detection, Window Contacts), Access Control, Intrusion Detection / Alarm Systems, Emergency Lighting, Supervision (e.g. Cameras), Interaction with HVAC/Lighting
- Operation and Visualisation - Switches / Push Buttons, IR Remote Control, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection, Fuel or Water tank level control, Peak Demand Monitoring, Load Shedding , Energy Harvesting (Avoiding use of batteries)
- Other - Intercom, Audio Control, Video Control, Home Appliances Control, Irrigation Control, Distributed Facilities
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming, Messaging (e.g. SMS)
- Blind and Shutter Control - Individual Control
Customers Description

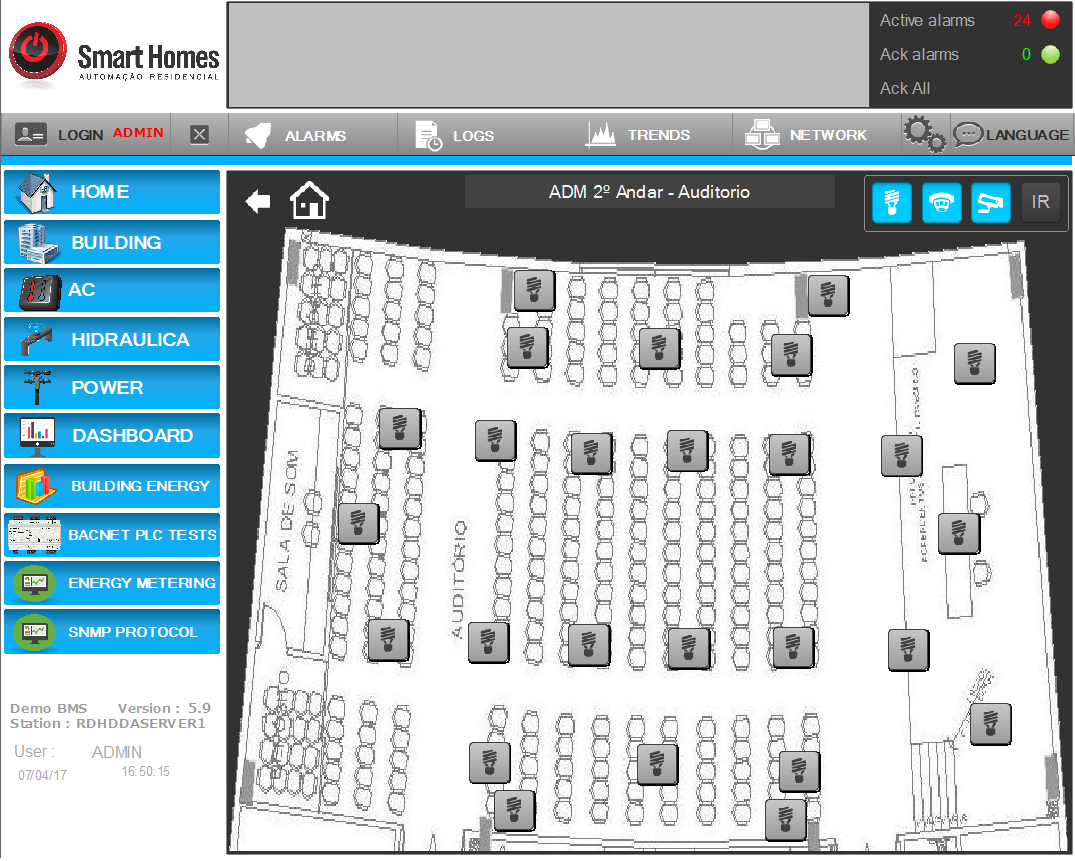

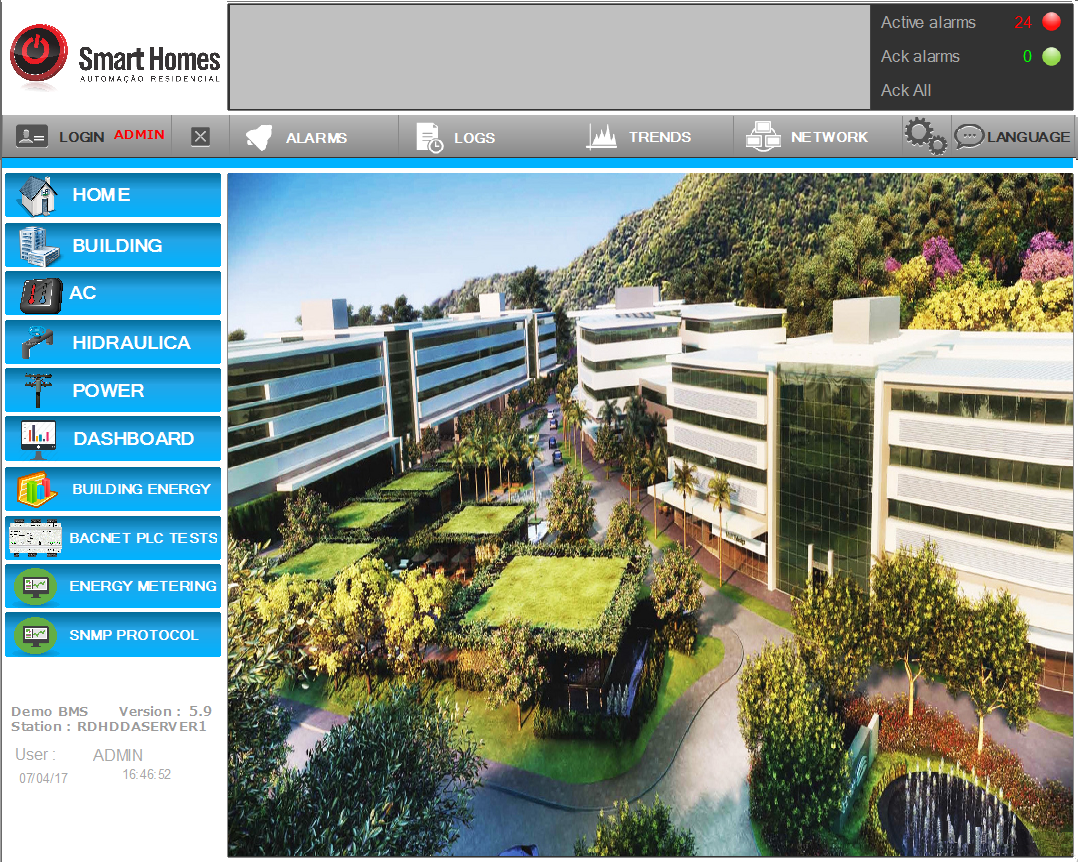

Commercial Complex with 7 Towers (630 stores) and all systems integrated in a single BMS server: TYCO CCURE BMS

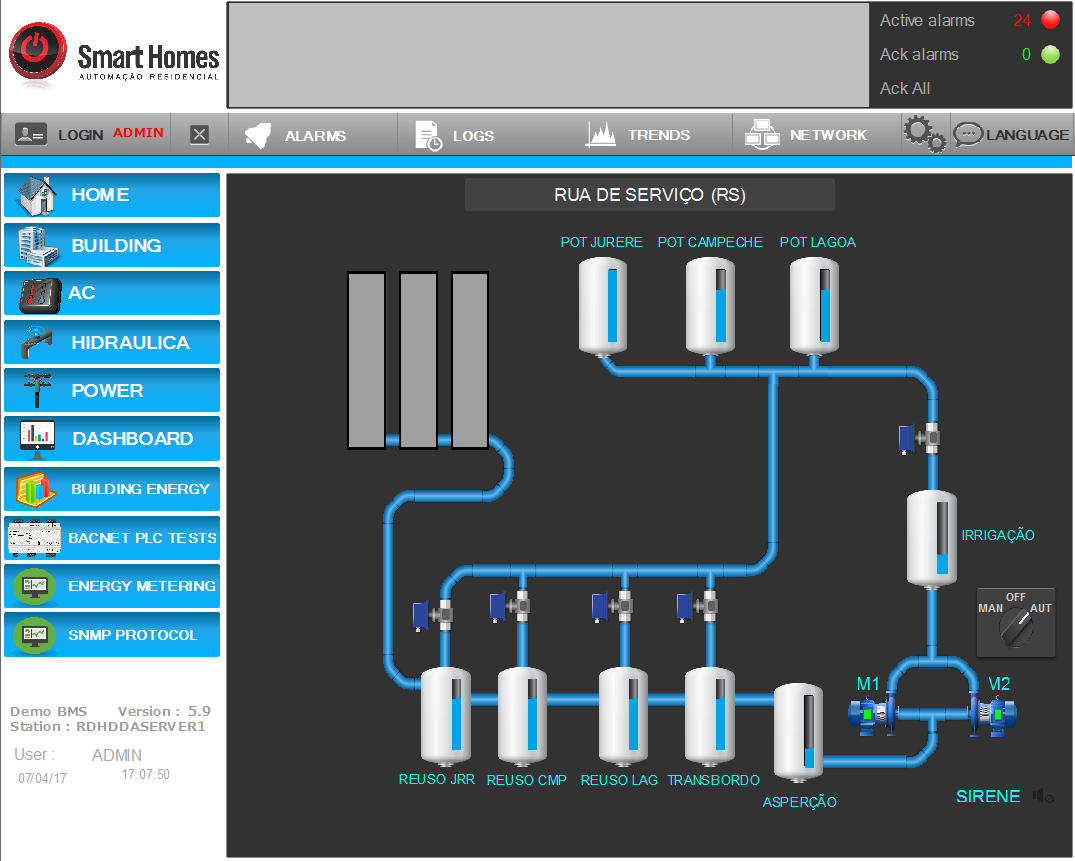

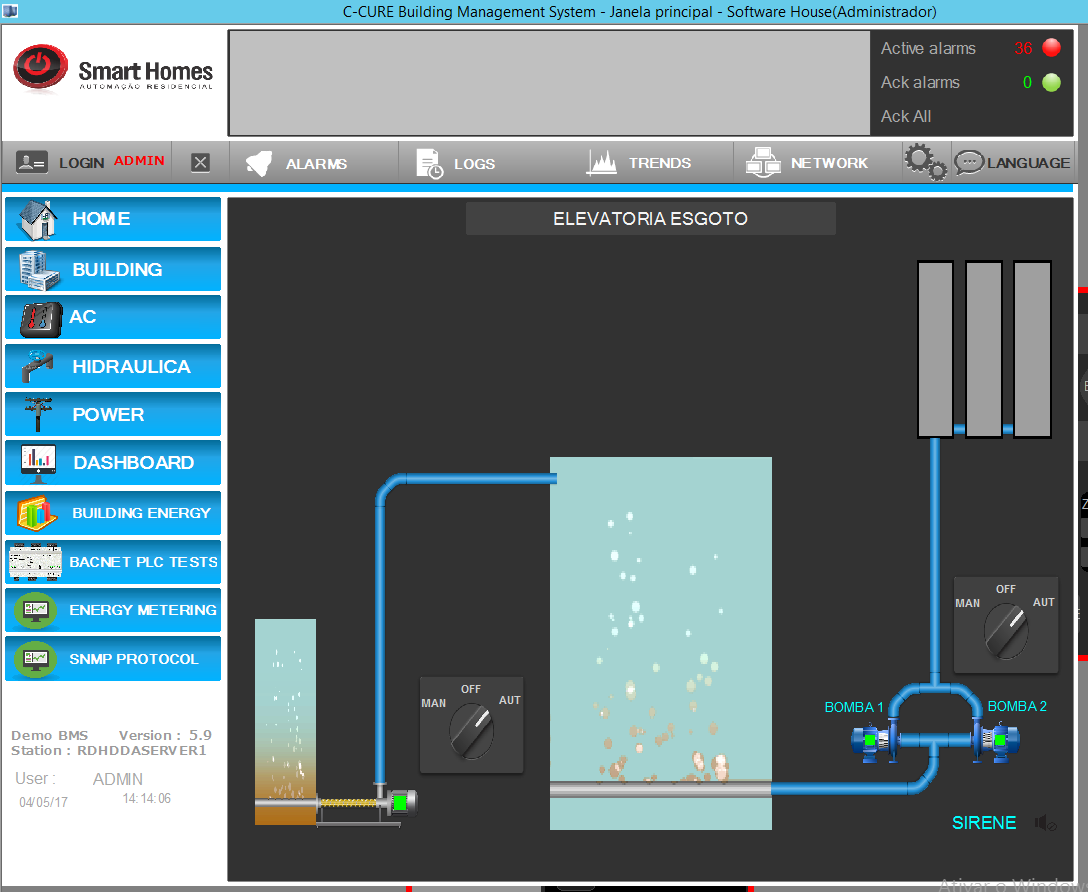

Water Pumps, Water Levels, Water Consumption, Sewer Treatment, Lights Control, Eletrical Consumption, Generator Control, HVAC, Access, Network, CFTV.

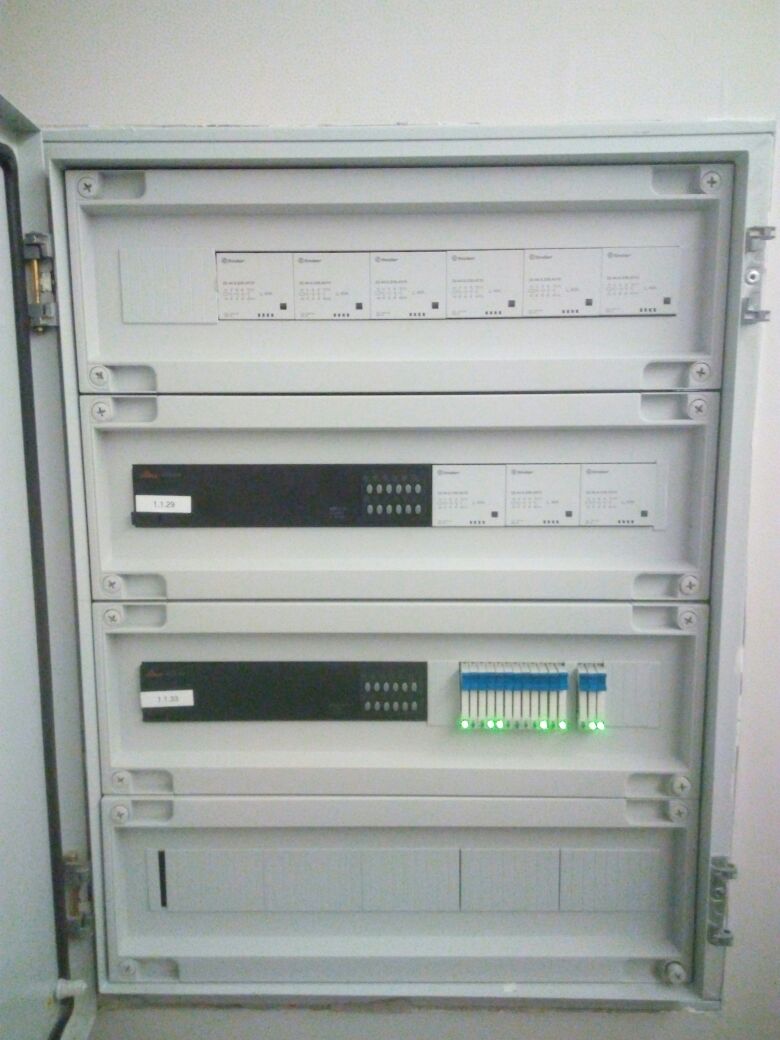

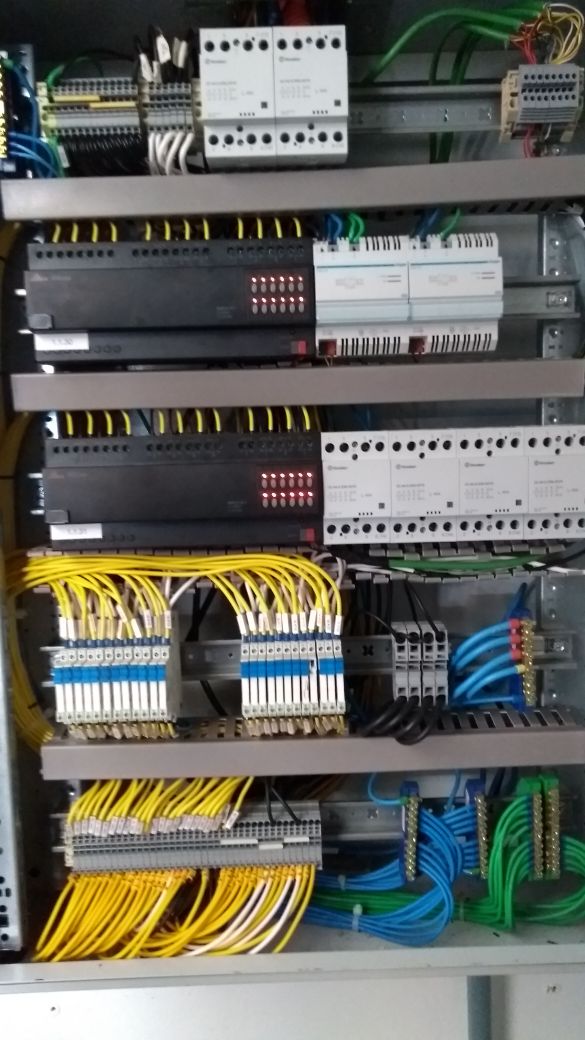

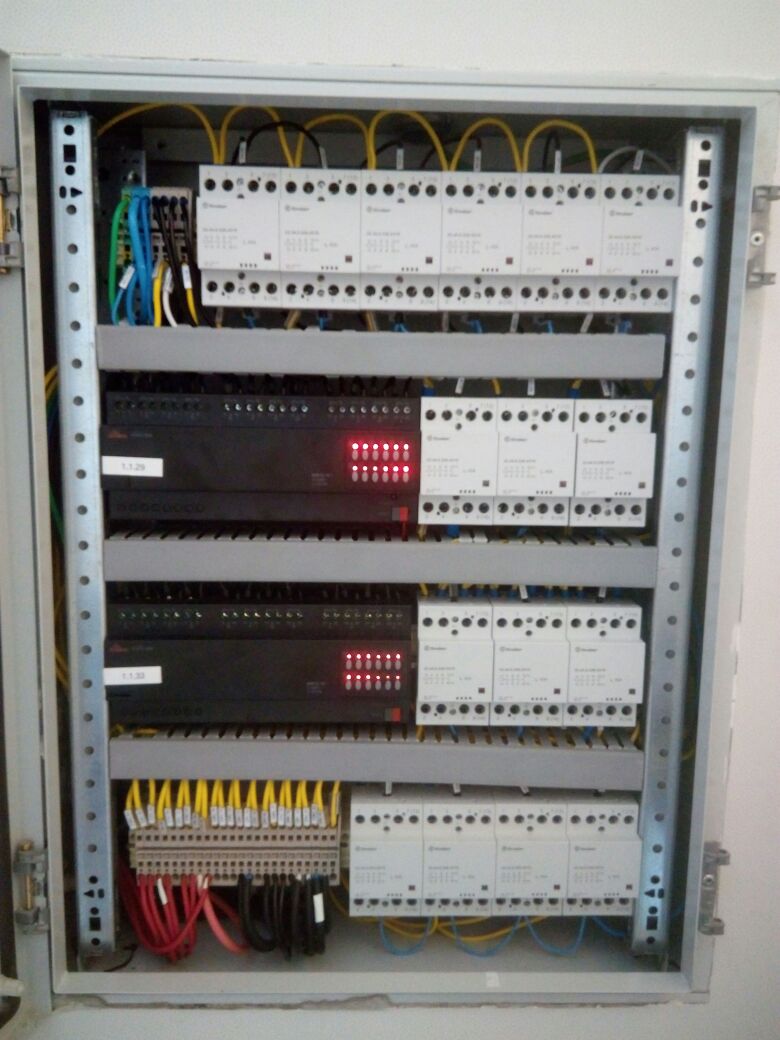

80 KNX devices
40 km Optic Fiber - GPON FURUKAWA
196 IP Cameras - Hikivision with TYCO ExacqVision Server
60+ RFID readers - iSTAR Controllers / TYCO CCURE 9000

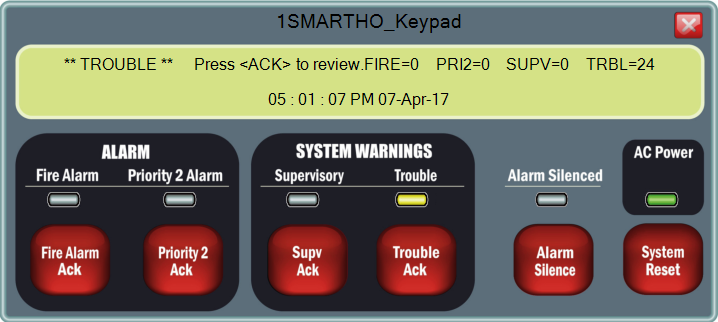

200+ Fire Detection devices - TYCO Simplex 4100 Panel
All conected and supervised.
Contact Information
| Company Name | SMART HOMES |
| Company Email | contato@smarthomes.com.br |
| Company Website | http://www.smarthomes.com.br |
| Contact Name | Eng. Guilherme Angeloni |
| Contact Function | System Integrator |
