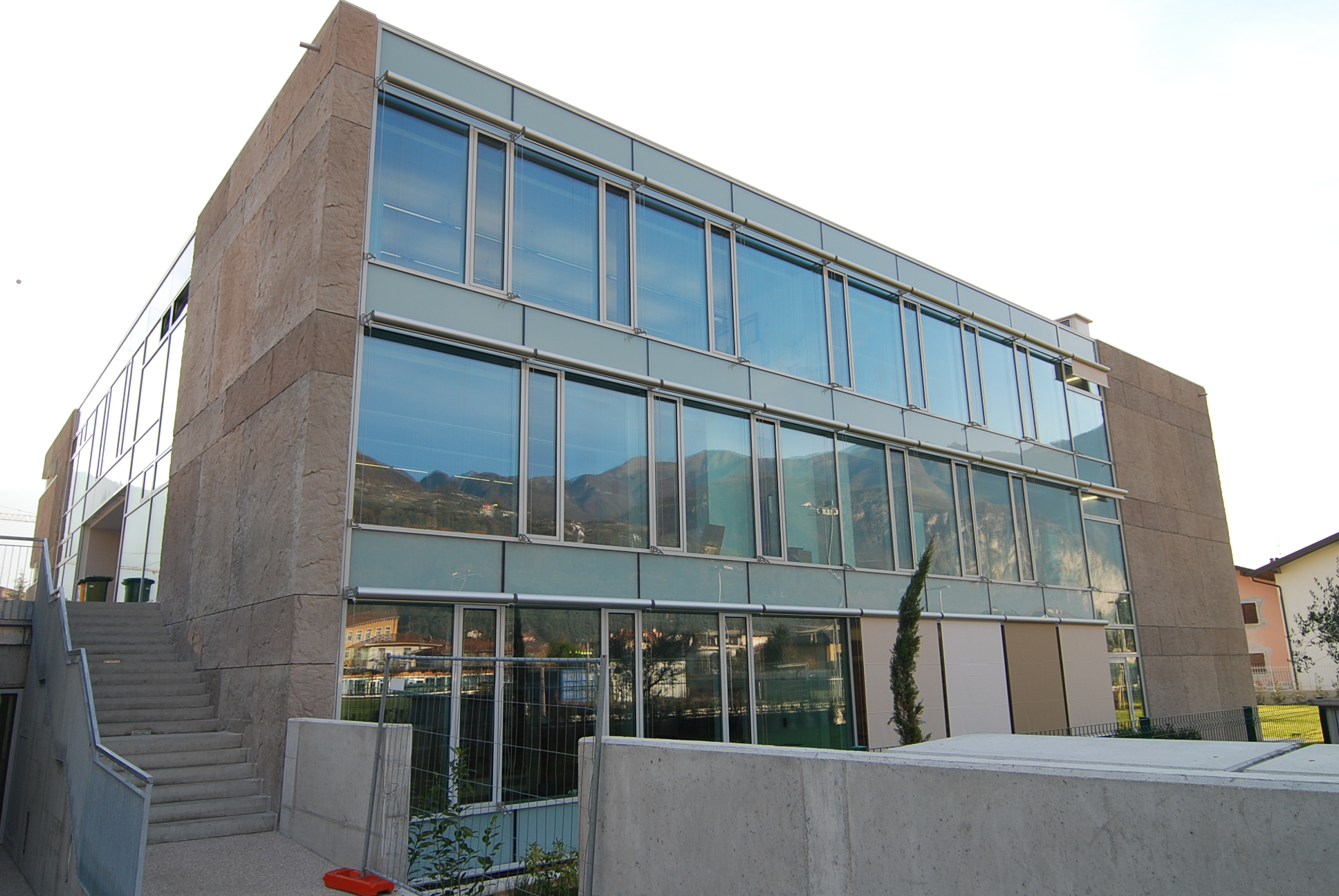

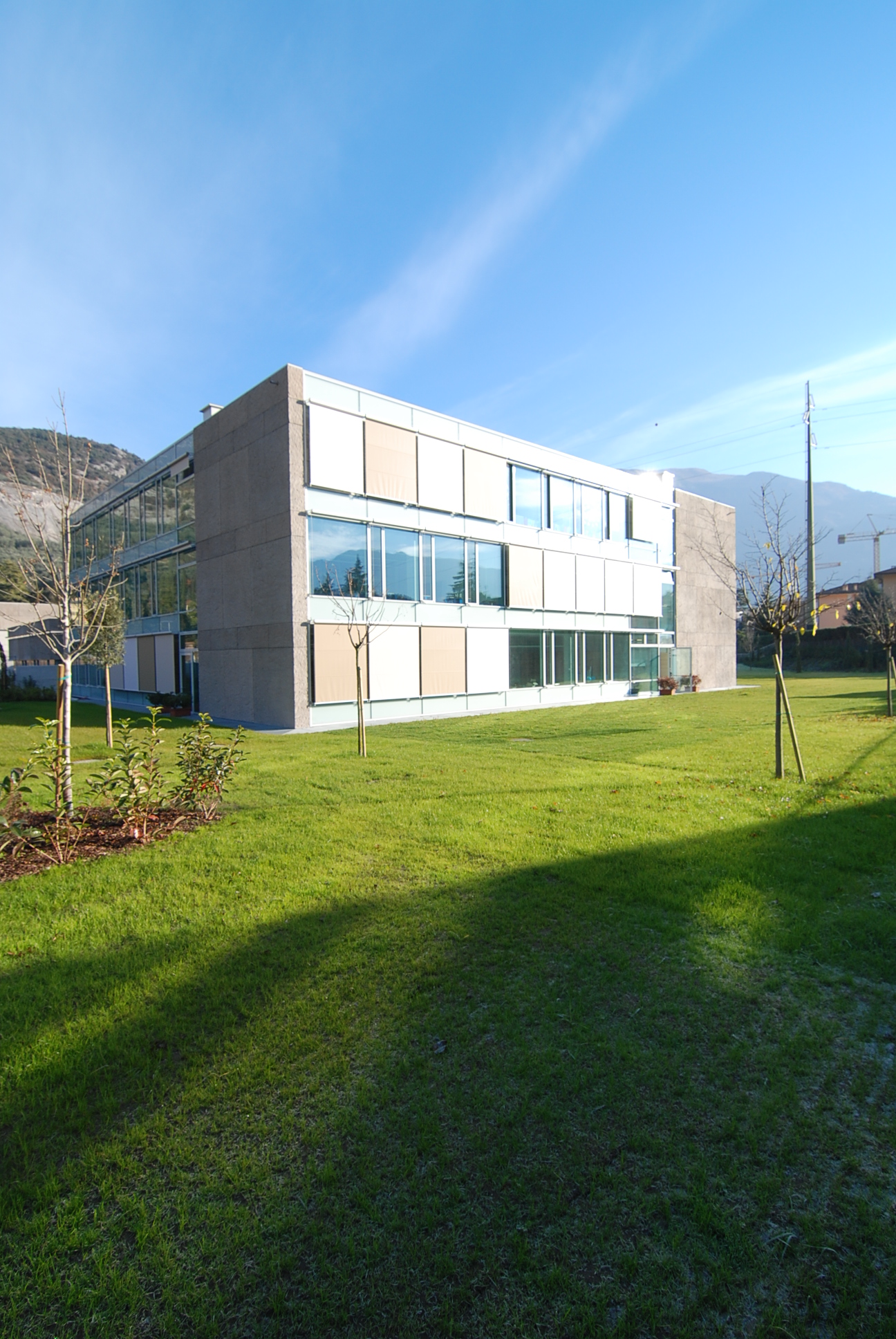

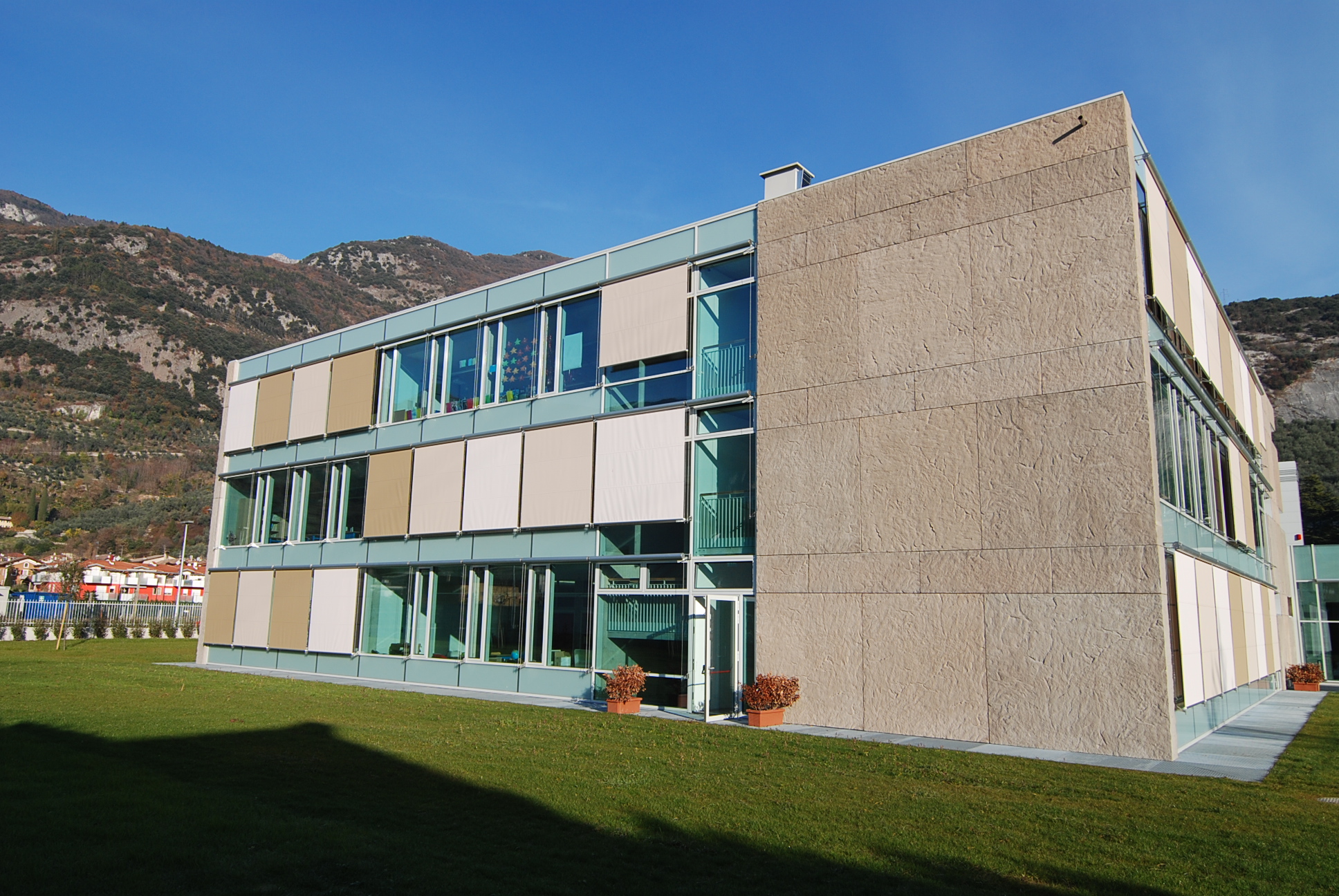

Scuola Primaria di Romarzollo - Arco di Trento
Other in Arco di Trento
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Other |
| Project Type | Other |
| Year of Completion | 2012 |
| Project Size | 1.001 – 5.000 |
| Number of KNX Devices Used | 301 – 500 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 501 – 1.000 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Automatic Occupancy Detection, Individual Room Control / Zone Control, CO2 / Humidity Measuring, Floor Heating Control
- Security and Safety - Emergency Lighting
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Touch Panels & Display Panels
- Energy Management/Smart Metering
- Other
- Automation and Remote Access - Logical Functions, System Supervision, Remote Programming
- Blind and Shutter Control - Individual Control, Group & Central Control, Preset Positioning, Automatic Programs, Wind and Rain Protection
Customers Description
KNX controlla l'illuminazione di tutti i locali della scuola in funzione della presenza e dell'illuminamento totale; è disponibile il controllo manuale in locale di ogni fonte luminosa.
KNX controlla il sistema di riscaldamento a pavimento di ogni locale con un room controller ABB Triton, in funzione di cicli orari, occupazione e set-point; per ogni ambiente è disponibile la regolazione manuale, che ogni sera viene azzerata automaticamente. I room controller pilotano anche il sistema di VMC, in funzione dell'occupazione e della temperatura rilevata. Le UTA di ogni locale dispongono di uno scambiatore di calore regolato in modo proporzionale dalla richiesta del room controller.
KNX controlla la concentrazione di CO2, emettendo un allarme al superamento di una soglia data.
KNX controlla le tende esterne di ogni locale. Una stazione meteo le estende o ritira secondo l'altezza del sole, vento e/o pioggia. E' disponibile il comando manuale in ogni locale.
