SLR appartment
Apartment in Sofia
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Apartment |
| Project Type | Residential |
| Year of Completion | 2024 |
| Project Size | 101 – 500 |
| Number of KNX Devices Used | 26 – 100 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 101 – 250 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control, Natural Ventilation
- Security and Safety - Smoke/Fire Detection, Faults (e.g. Leak Detection, Glass Break Detection, Window Contacts), Access Control, Intrusion Detection / Alarm Systems, Supervision (e.g. Cameras)

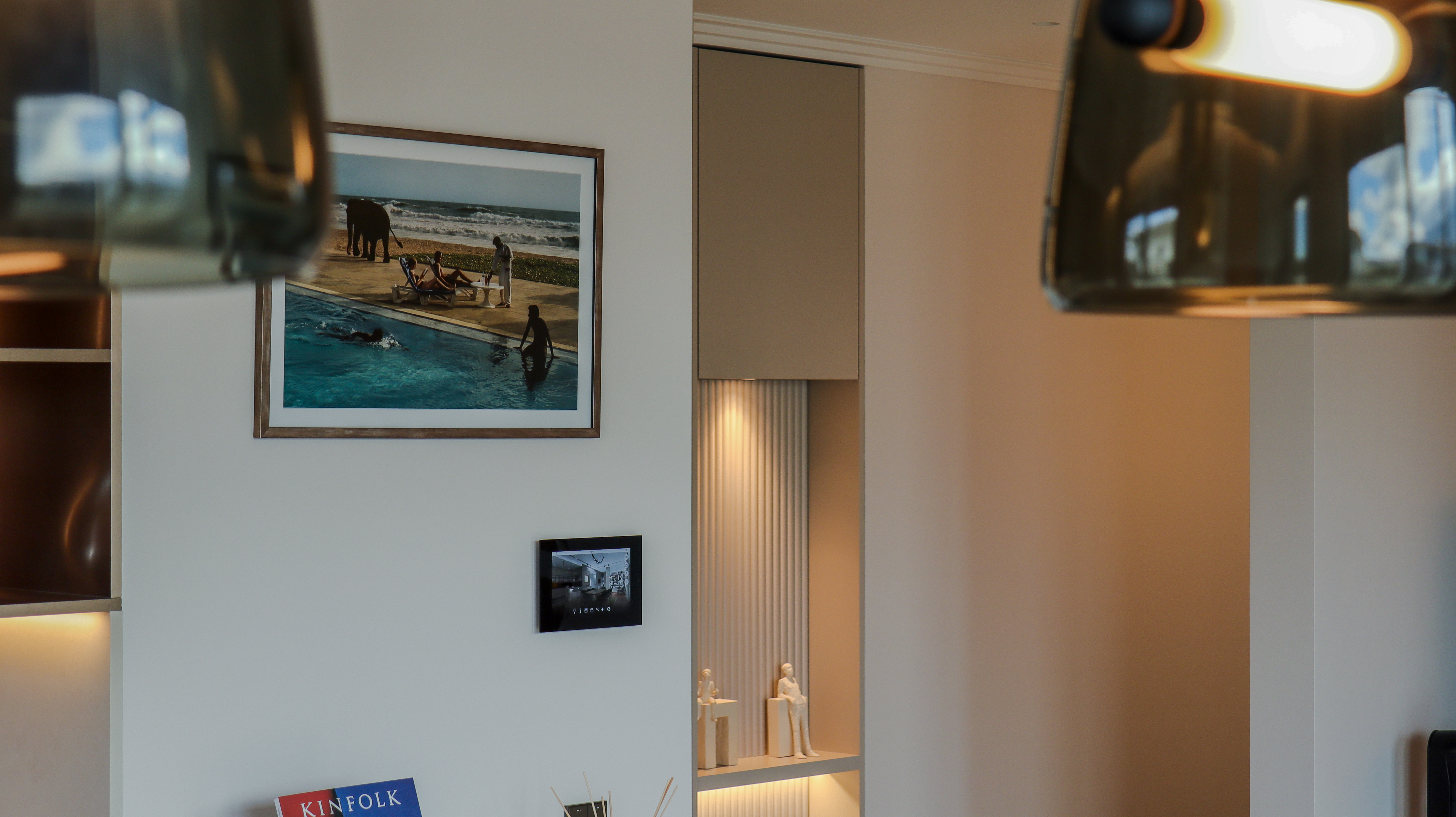

- Operation and Visualisation - Switches / Push Buttons, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering
- Other - Audio Control
- Automation and Remote Access - Logical Functions, System Supervision, Internet Access, Remote Programming
- Blind and Shutter Control - Individual Control, Group & Central Control
Customers Description

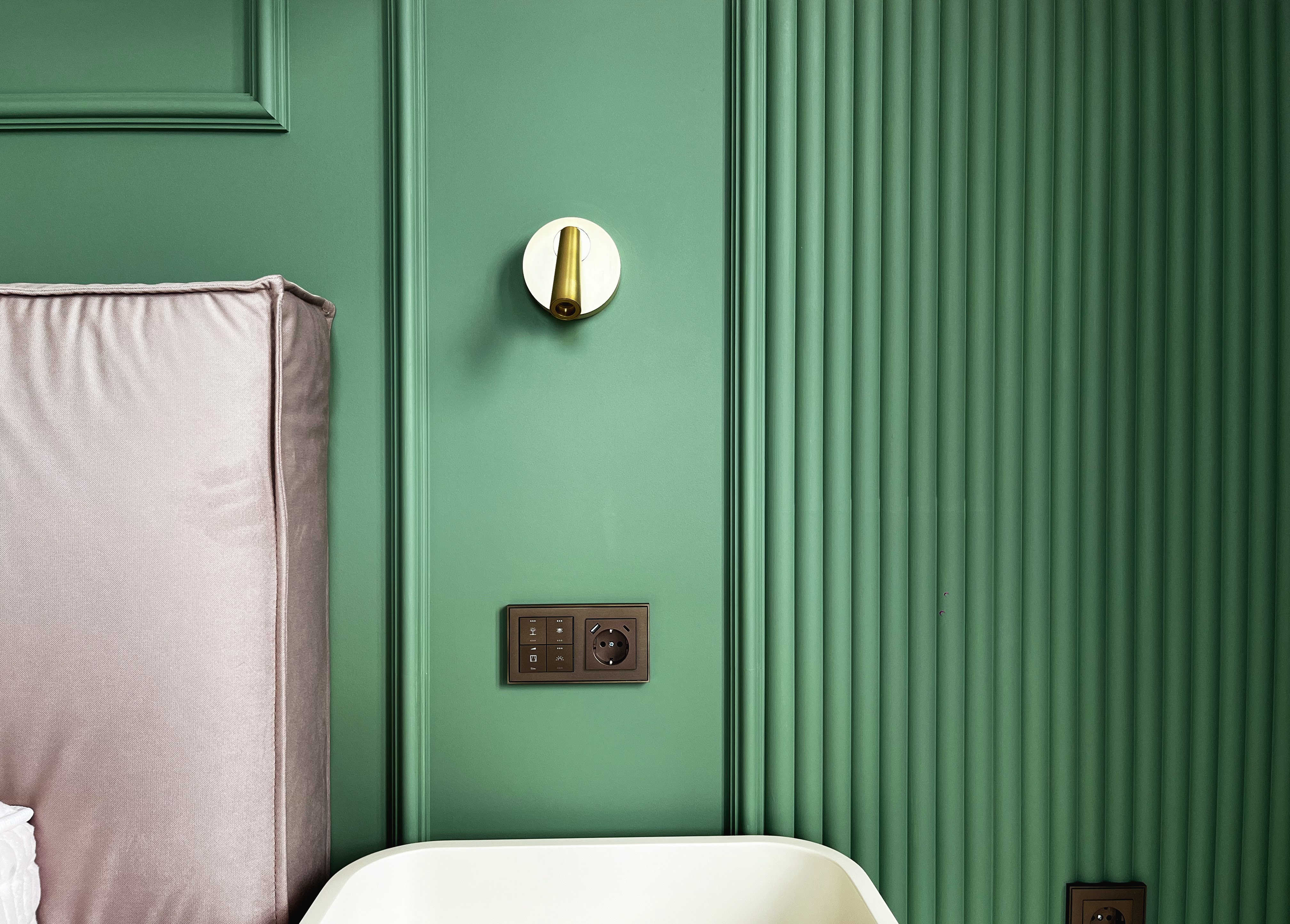

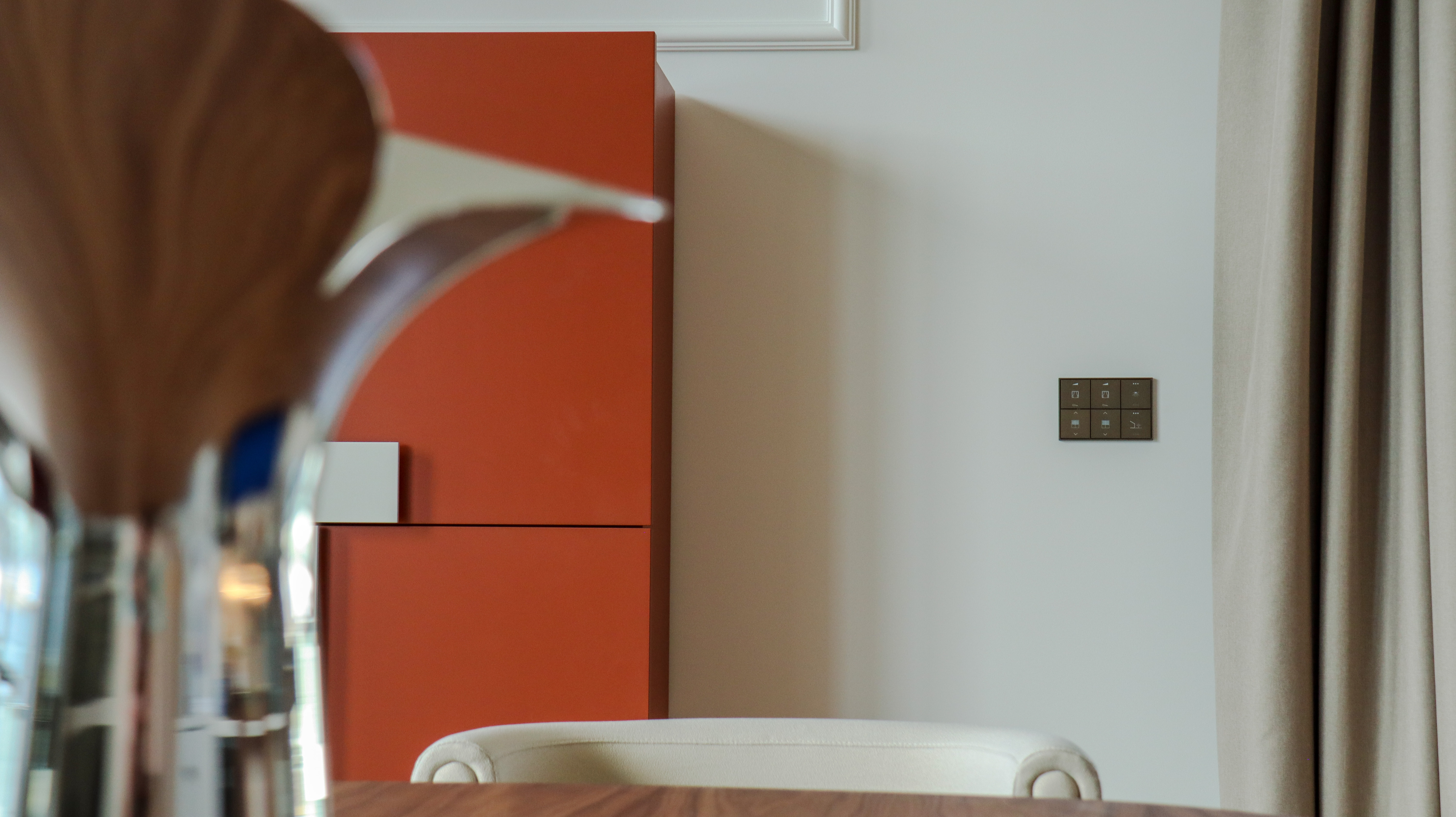

The KNX system is installed in a large residential appartment in Sofia, Bulgaria. The scope of the installation and the features were carefully planned in advance so even the icons of the push-buttons could be pre-ordered according to the requested functions.
The system itself enables the complete control over every aspect of the home comfort using a combination of ABB actuators and Ekinex wall-mounted devices. It includes more than 120 DALI-enabled lights, fan coil, electric floor heating, air conditioning, ventilation, curtains, and 6-zones audio control. In addition there are smoke sensors and flood sensors which disable the water flow in case of alarm.
There is a variety of automations related to the lighting, ventilation, and heating control based on different scenarios - time of the day, presence, temperature, and humidity. In addition, there are scenes based on the occupancy (All off, Holiday mode, Back home) and the occasion (dinner, TV, party).
Contact Information
| Company Name | Valkrea EOOD |
| Company Email | office@valkrea.house |
| Company Website | http://www.valkrea.house |
| Contact Name | Mitko Tsonev |
| Contact Function | System Integrator |
