Smart building control with KNX solution
Office building in Shenzhen
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Office building |
| Project Type | Commercial |
| Year of Completion | 2024 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 301 – 500 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 251 – 500 |
| Man Power | 6 – 10 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Automatic Occupancy Detection, Constant Light Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Automatic Occupancy Detection, Valve Drive Control / Fan Coil Control
- Security and Safety
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Touch Panels & Display Panels
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection
- Other
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision
- Blind and Shutter Control - Individual Control
Customers Description

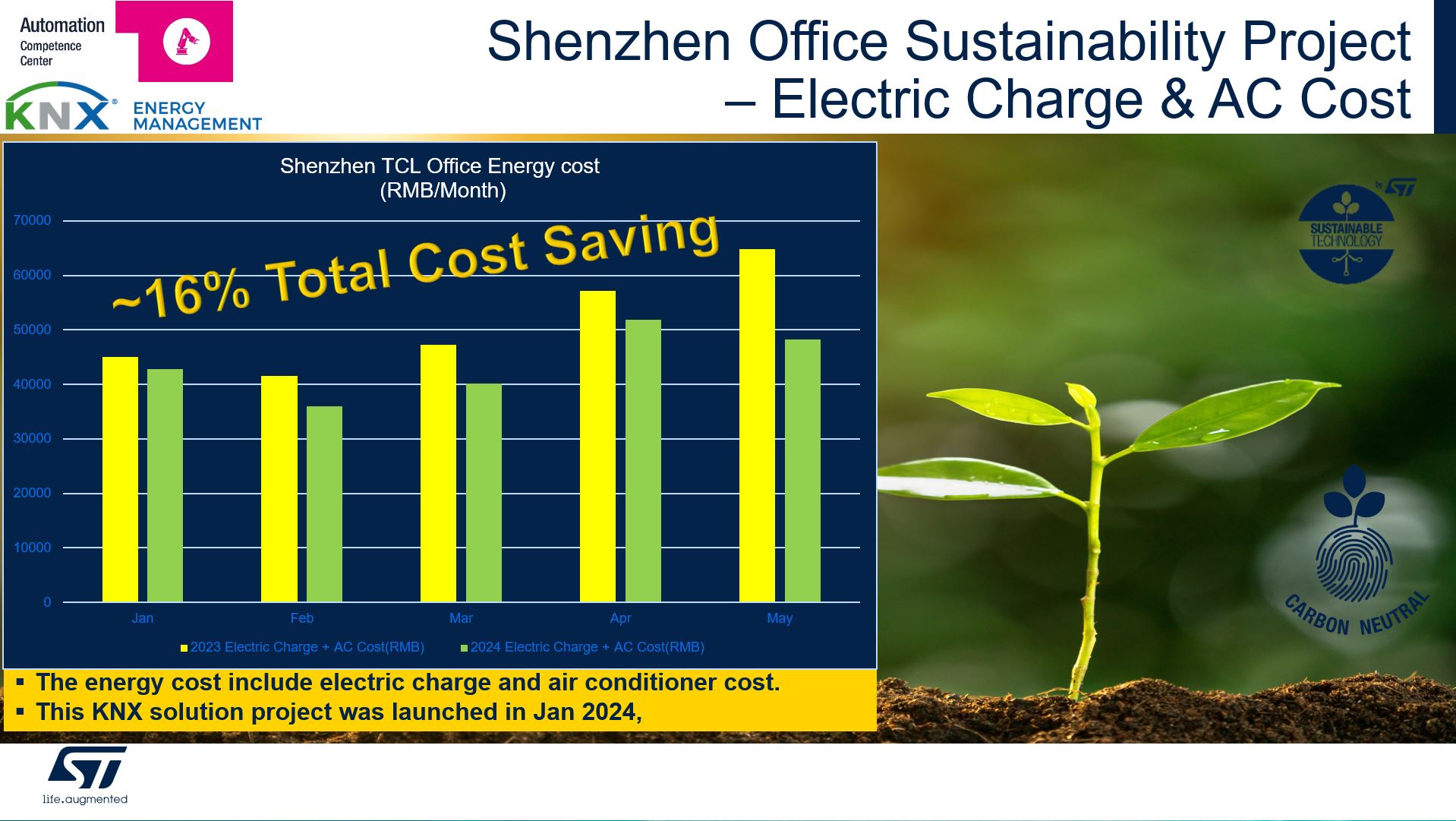

It's a company sustainability project for energy saving. It's also a renovation project that covers more than 5000 square

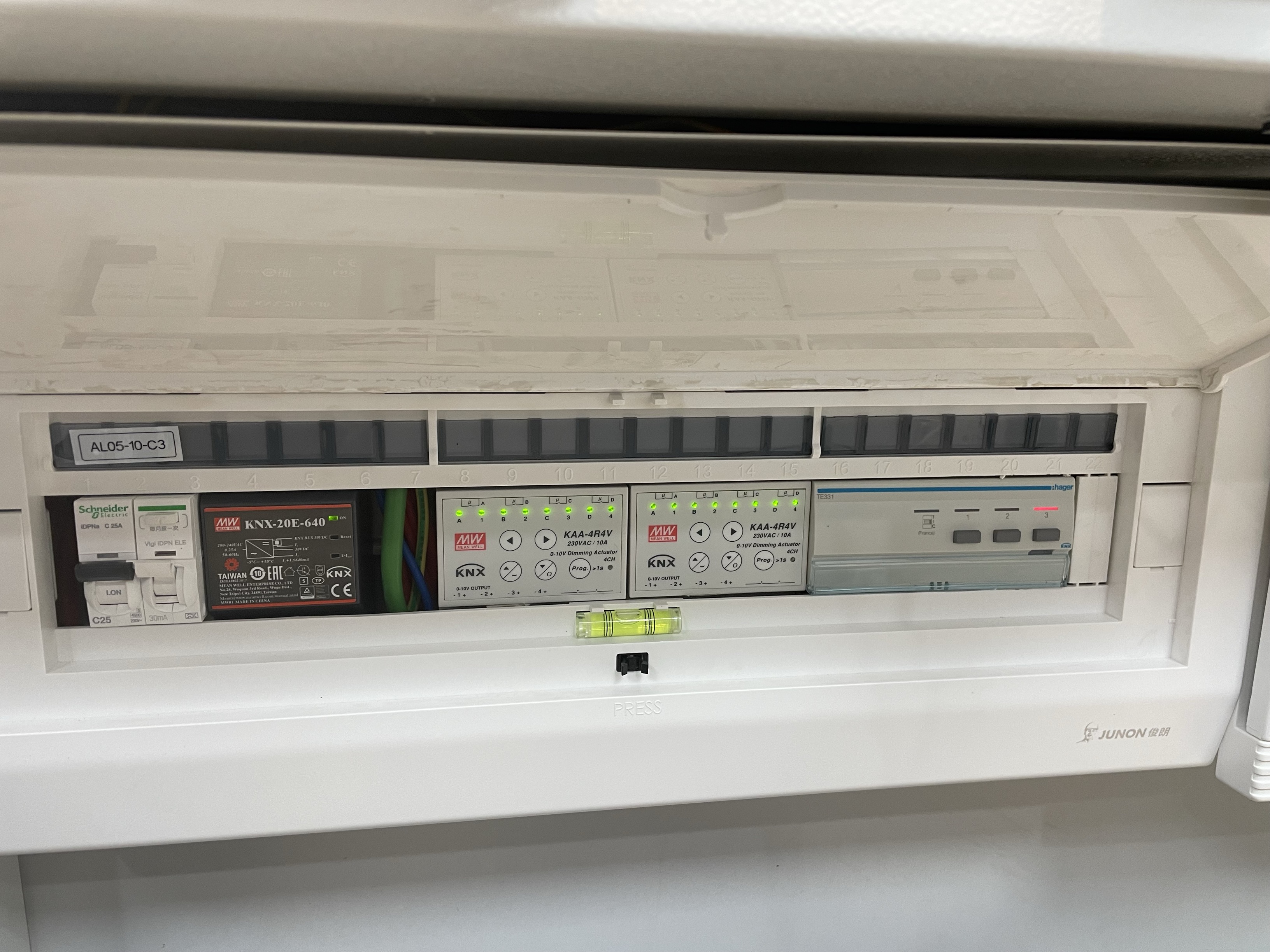

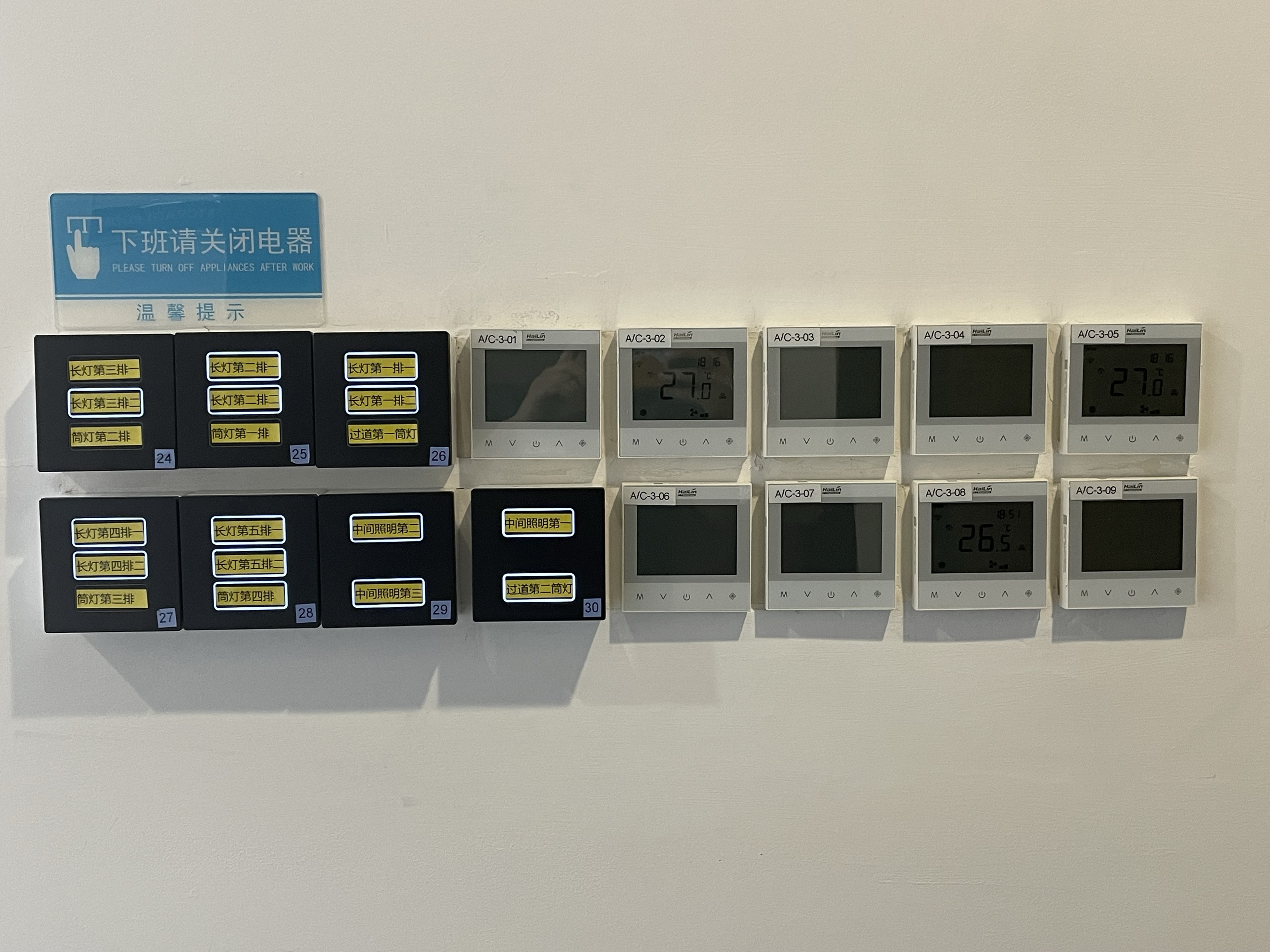

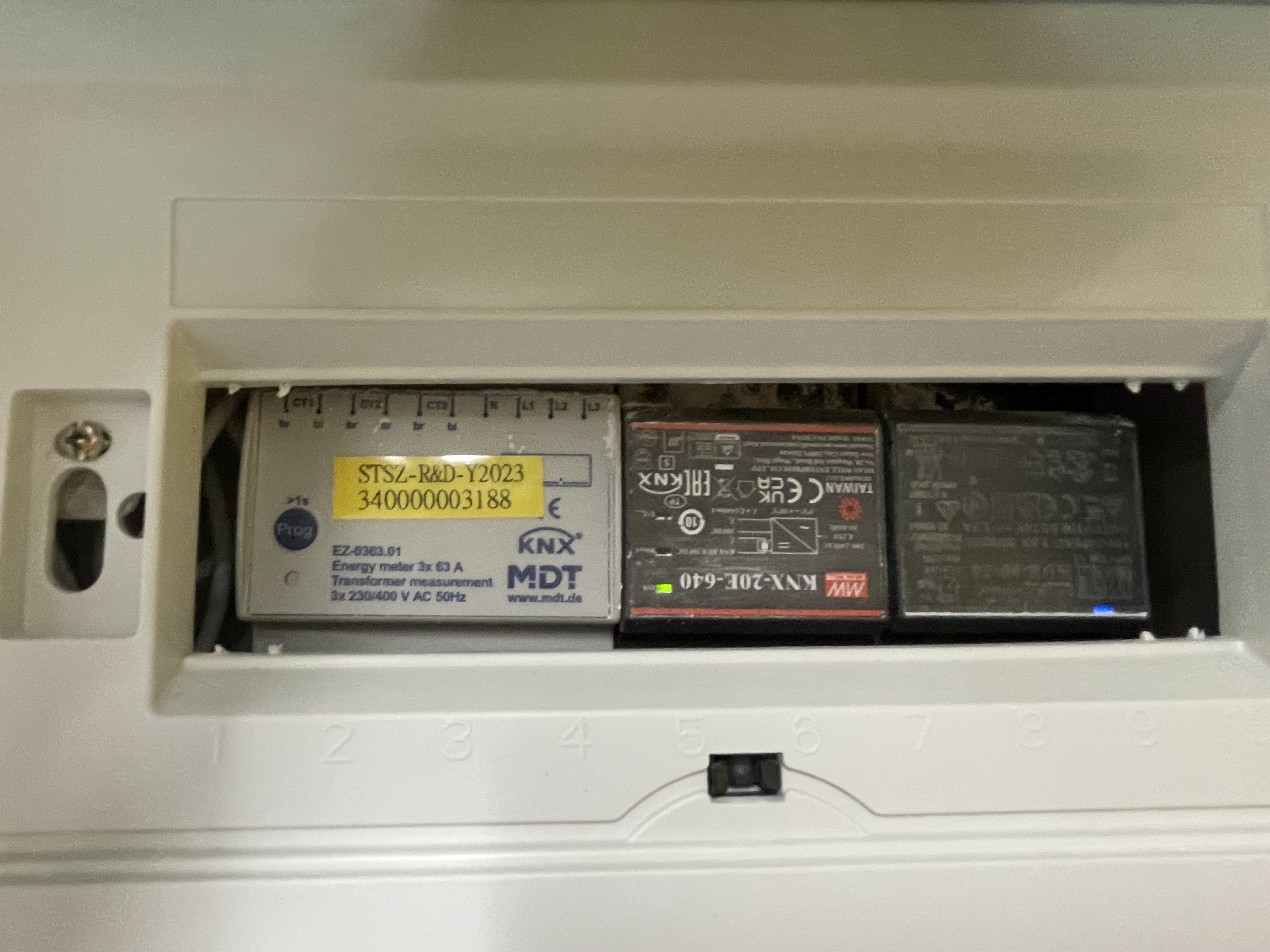

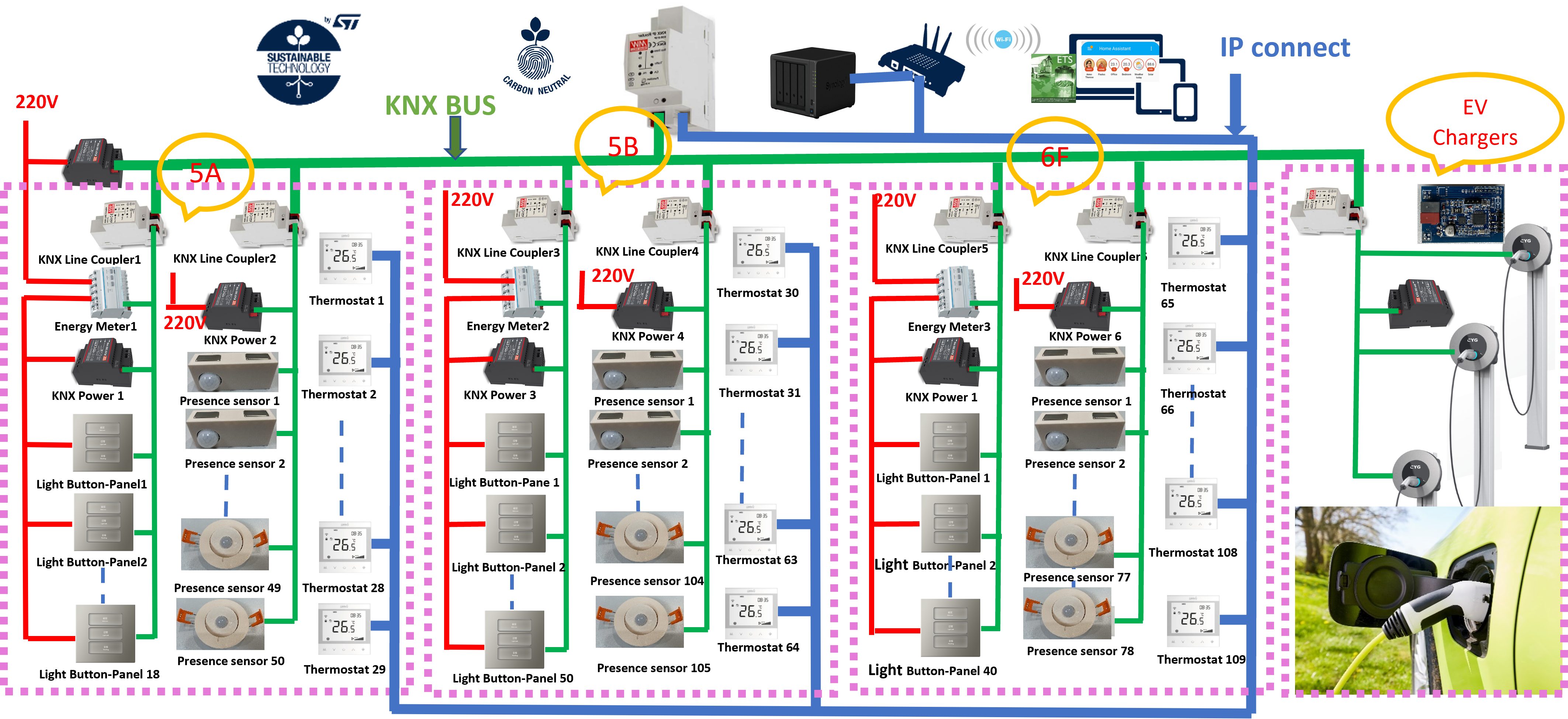

meters with more than 470 KNX devices. There are include KNX button panels, KNX presence sensors, KNX line couplers, IP routers,

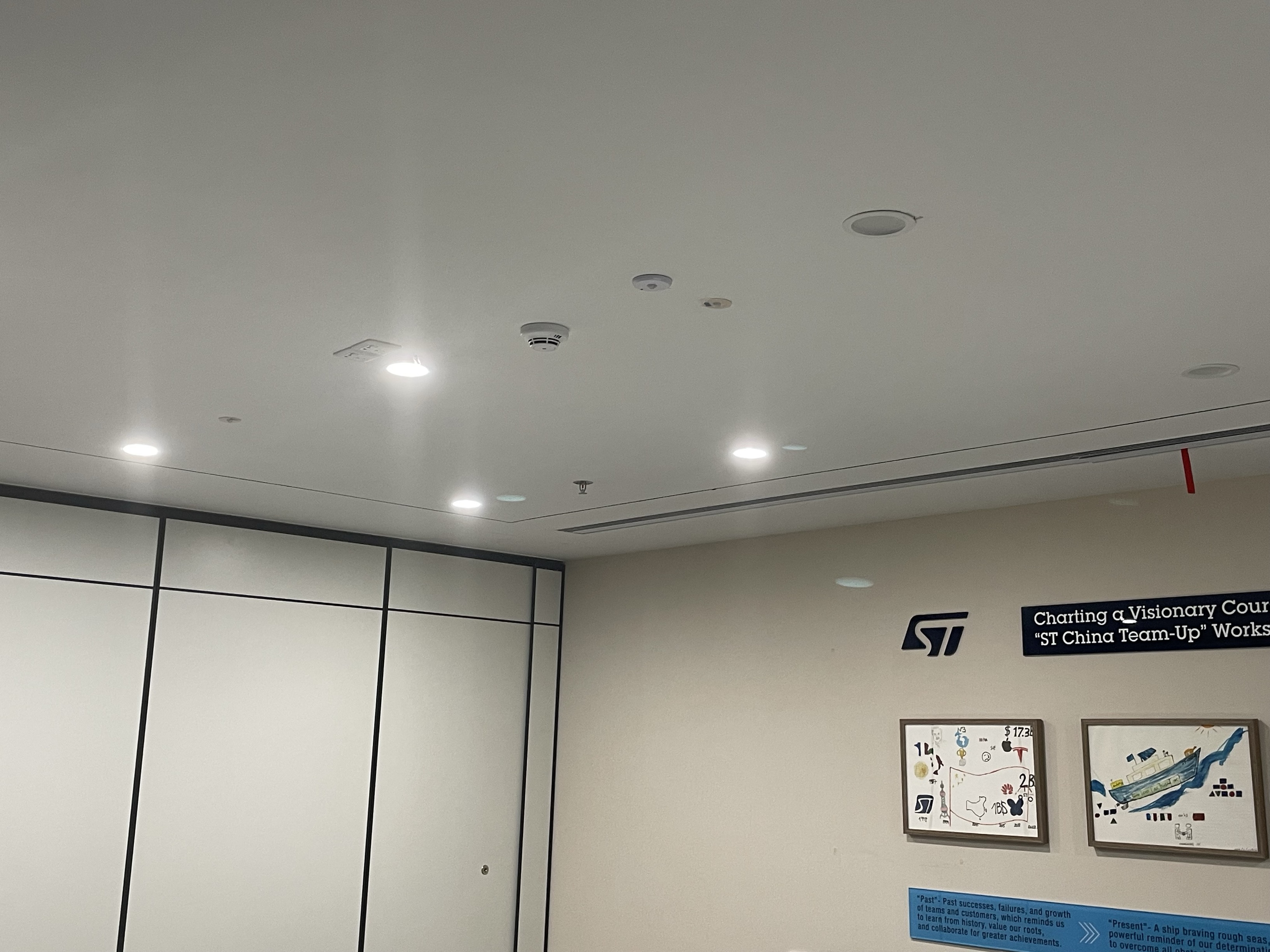

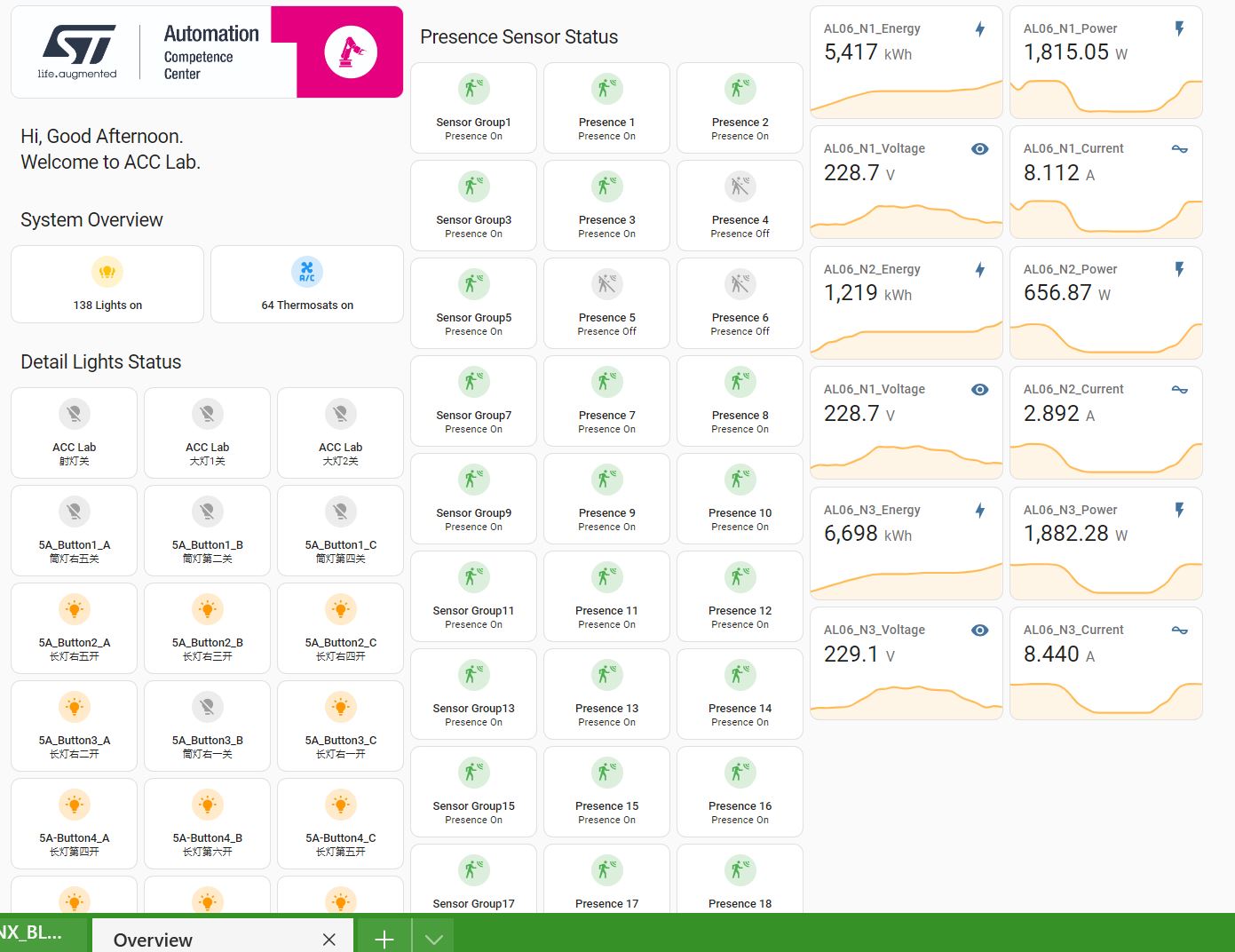

and KNX meters. Thermostats are connected through IP. Through the KNX IP router, the entire KNX system is integrated into Home Assistant. Thanks to the presence detection sensors, all lights and air conditioners can be automatically switched on and off. Based on the automation function of Home Assistant, thermostat operation mode, temperature setpoint,
and fan speed can be set which based one time scheduler, environment temperature, or employee habits. all system devices can be monitored and controlled in home assistant platform.

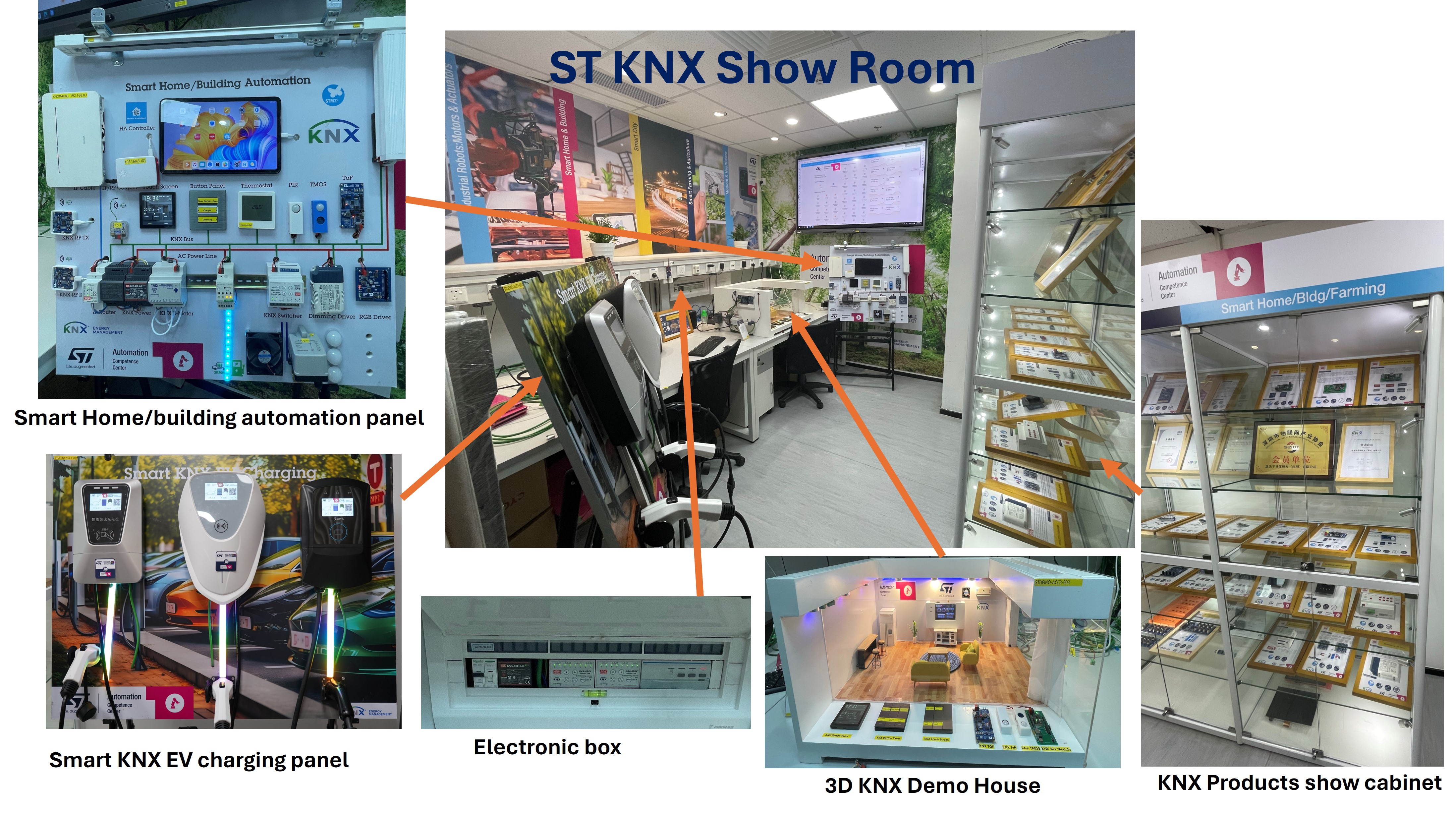

same time, A special KNX showroom was built in this project. which was used to promot KNX and STKNX solutions to potential KNX customers.
