Sojuela
Family house in Sojuela
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Family house |
| Project Type | Residential |
| Year of Completion | 2019 |
| Project Size | 101 – 500 |
| Number of KNX Devices Used | 26 – 100 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 251 – 500 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Automatic Occupancy Detection, Weather Dependent Control, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control, CO2 / Humidity Measuring, Floor Heating Control
- Security and Safety - Smoke/Fire Detection, Intrusion Detection / Alarm Systems, Supervision (e.g. Cameras)
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering - Data Logging, Visualisation, Peak Demand Monitoring, Load Shedding , Energy Harvesting (Avoiding use of batteries)
- Other - Video Control, Irrigation Control, Distributed Facilities
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming, Messaging (e.g. SMS)
- Blind and Shutter Control - Individual Control, Group & Central Control, Preset Positioning, Automatic Programs
Customers Description

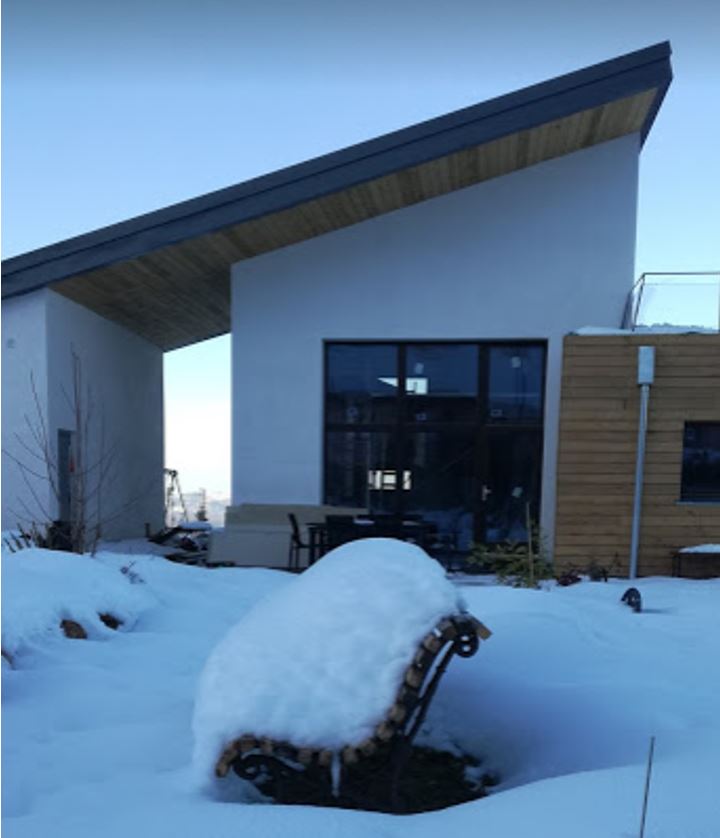

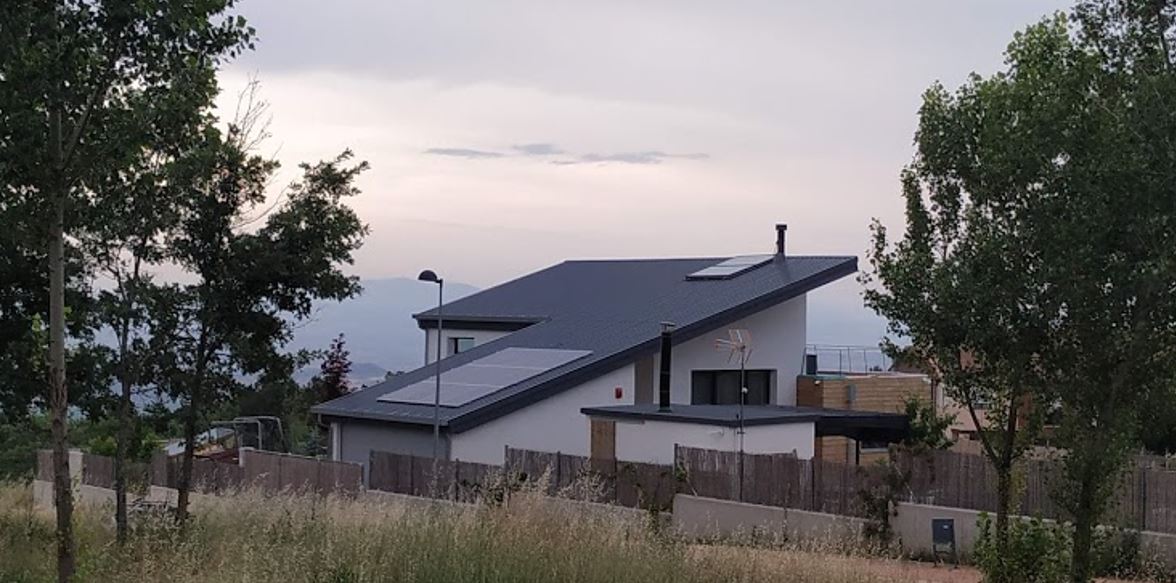

Casa Pasiva Moncalvillo es una casa unifamiliar aislada situada a 900mts de altitud en la población riojana de Sojuela en La Rioja.

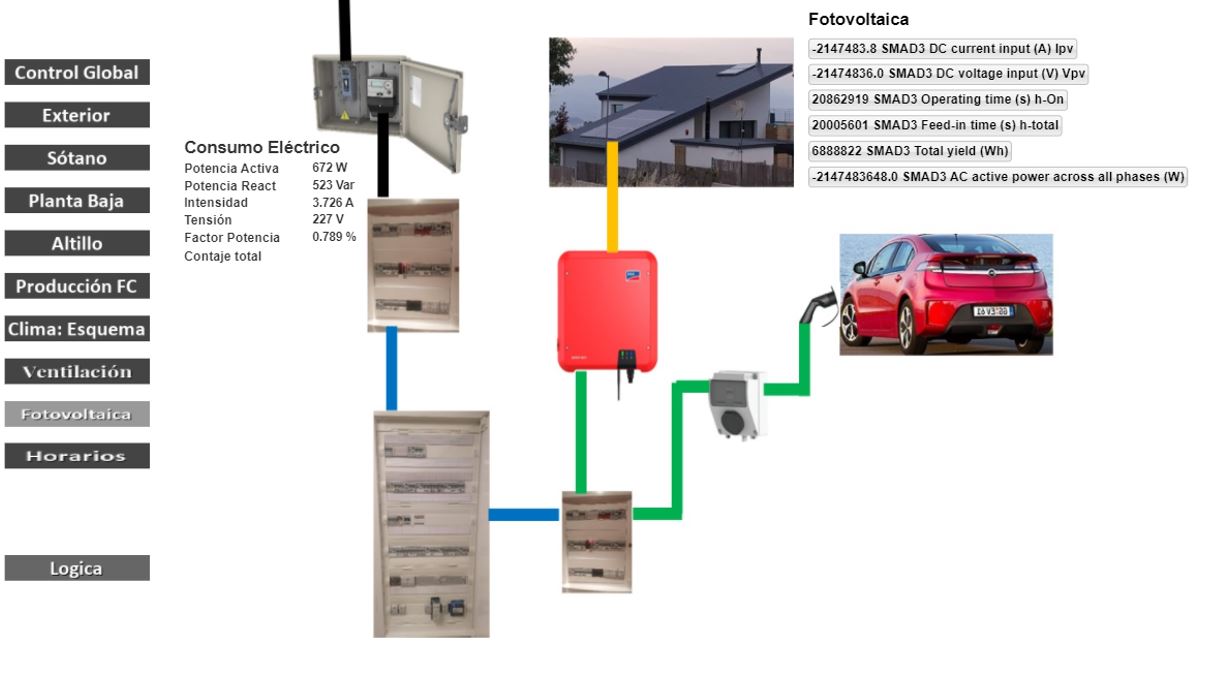

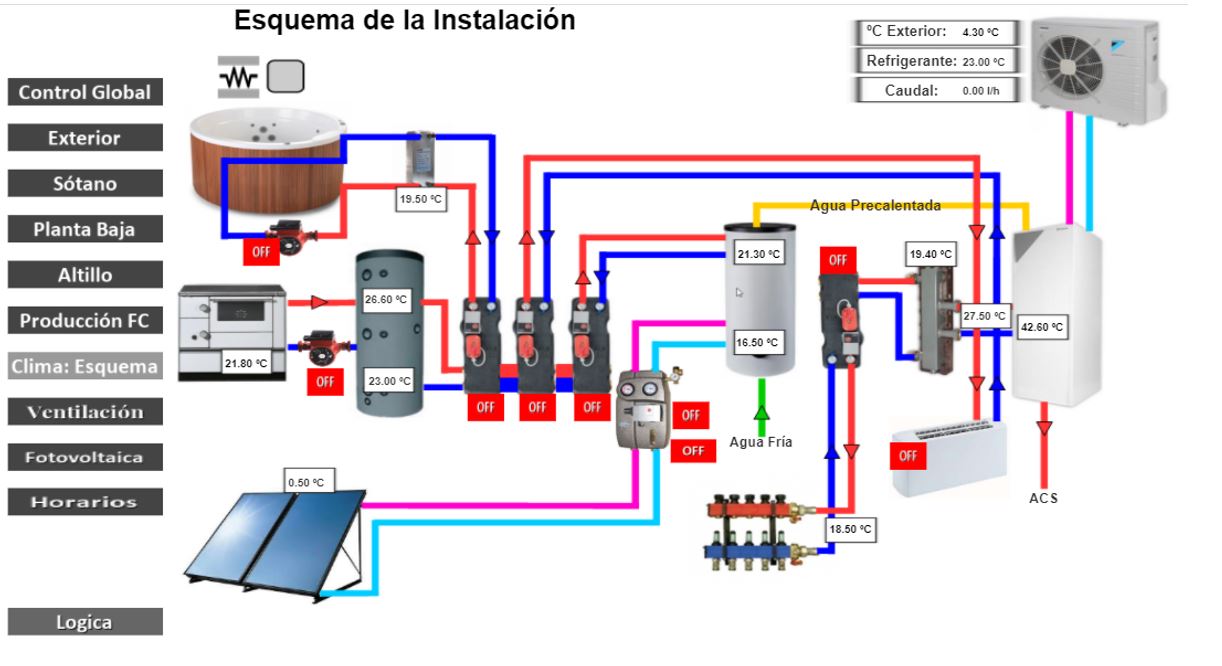

Se trata de un ambicioso proyecto de vida que además sirve a ICM Ingeniería de Show Room de casa consumo casi nulo realizada bajo los estándares más exigentes en cuanto a aislamiento y estanquidad al aire; aunando la implantación de energías renovables mediante aerotermia 8kw, solar térmica 2 paneles, solar fotovoltaica 5kw repartido en dos string de 3 y 2kw orientados a oeste y sur respectivamente, ventilación con recuperación zenhder confort 350, biomasa mediante leña cocina calefactora wamsler 20kw y gestión inteligente domótica con BMS con KNX y MODBUS (control clima, control cortinas y persianas, control total de iluminación, control cargador eléctrico vehículo, control producción fotovoltaica, control de energías térmicas).
Contact Information
| Company Name | ICM INGENIERIA |
| Company Email | guillermo@icmingenieria.com |
| Company Website | http://www.icmingenieria.com/ |
| Contact Name | Guillermo Garrido |
| Contact Function | System Integrator |
