Tauern Spa Kaprun
Leisure in Kaprun
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Leisure |
| Project Type | Commercial |
| Year of Completion | 2020 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 301 – 500 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 501 – 1.000 |
| Man Power | 1 – 5 |
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Constant Light Control, Lighting Colour Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Weather Dependent Control, Floor Heating Control
- Security and Safety - Smoke/Fire Detection
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering
- Other
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming, Messaging (e.g. SMS)
- Blind and Shutter Control - Individual Control, Group & Central Control, Preset Positioning, Automatic Programs, Wind and Rain Protection, Sun Tracing (interaction with HVAC / lighting)
Customers Description

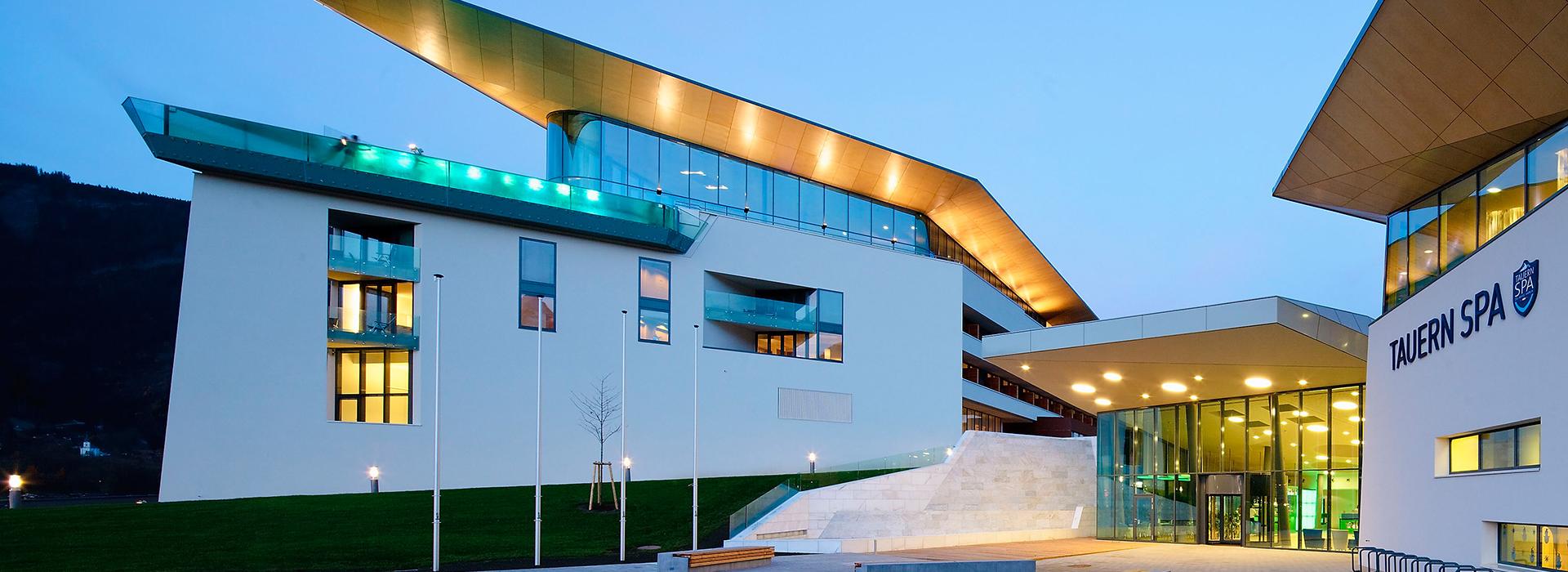

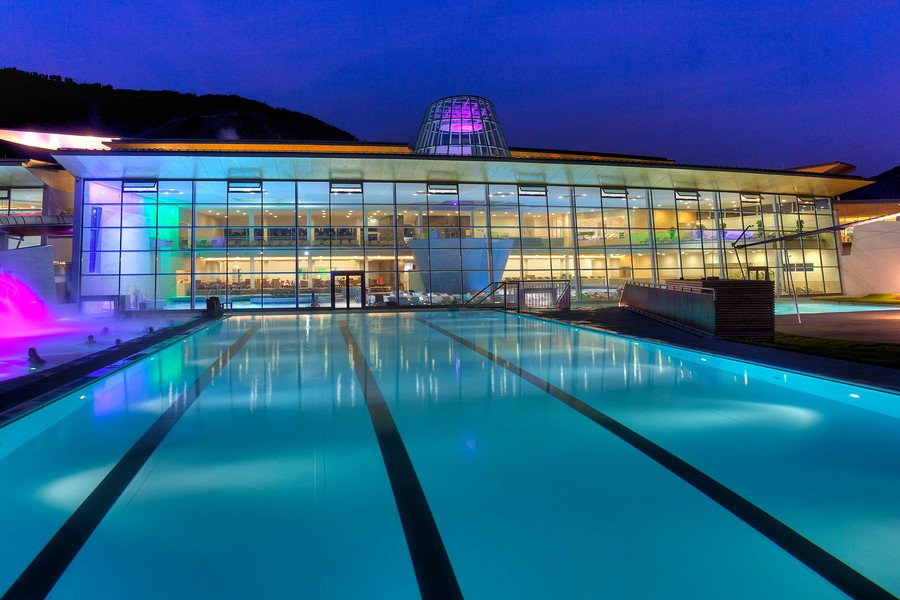

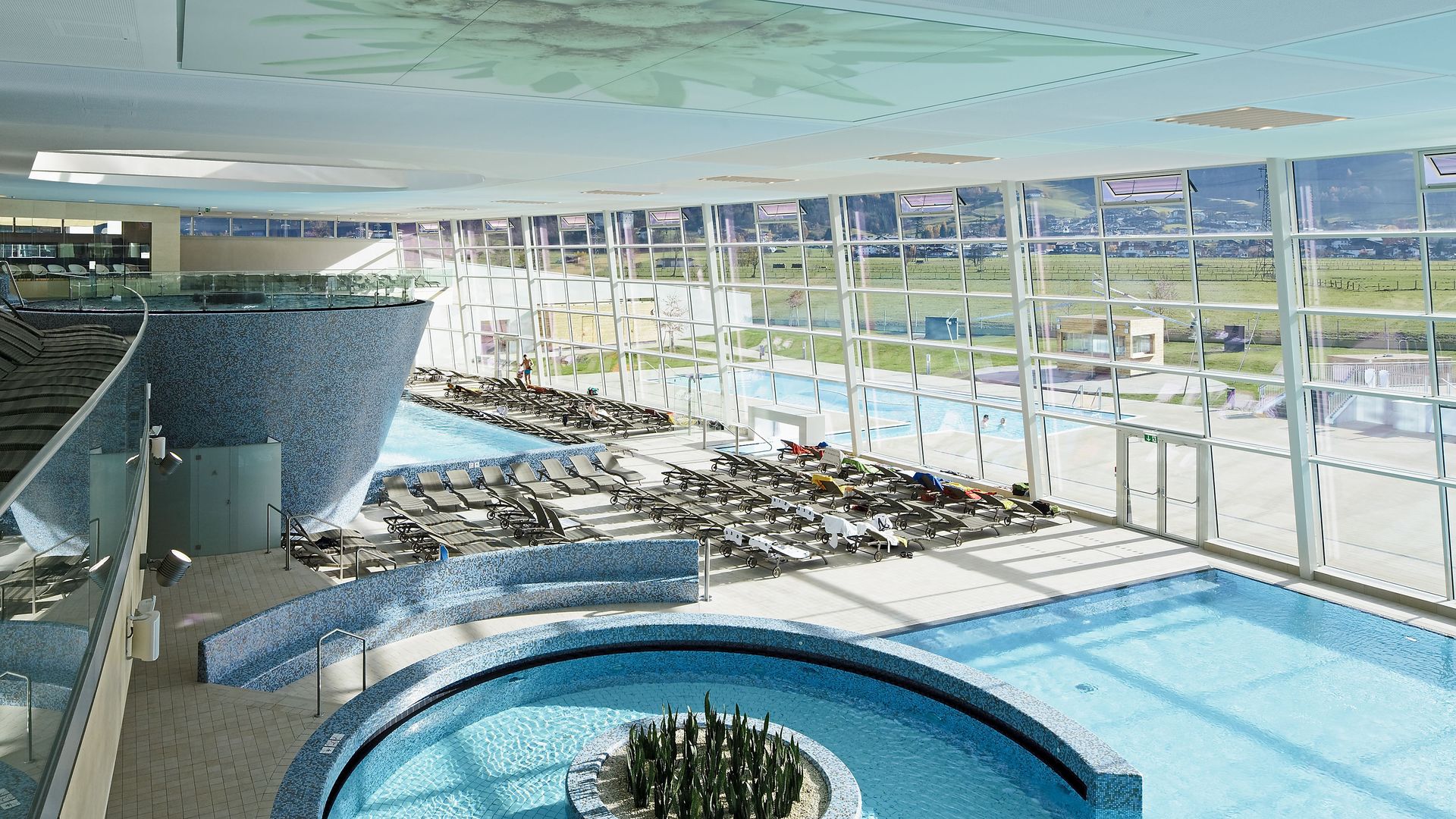

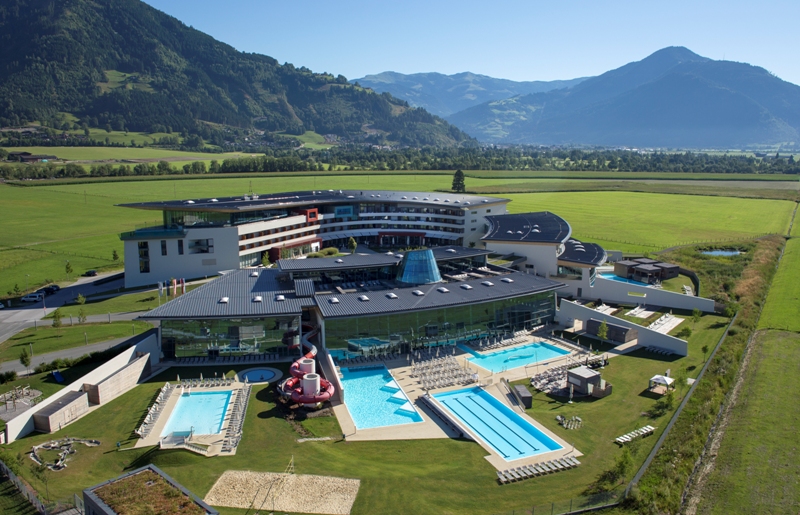

Tauern Spa Kaprun
Eine neugebaute Therme mit mehreren Badebereichen, Relaxzonen, Gastronomie und seit 2020 einen erweiterten 4* Hotel.
Realisiert wurden zentrale Licht und Jalousiesteuerungen, sowie eine zentrale Störmelde Anzeige. Die Gänge werden mittels KNX/DMX Gateway mit einen Farbwechsel angesteuert. Sonnensegel fahren automatisch bei Sonneneinstrahlung ein und aus. Die Fassaden und Aussenbeleuchtung wird über eine Wetterstation mit frei definierbaren Grenzwerten angesteuert.
Die Gebäudeteile sind über IP Router vernetzt und das gesamte Gebäude ist über einen Gira Homeserver visualisiert.
Contact Information
| Company Name | Smarthomekrainer GmbH |
| Company Email | a.schaupper@smarthomekrainer.at |
| Company Website | http://www.smarthomekrainer.at |
| Contact Name | Antonio Schaupper |
| Contact Function | System Integrator |
