Tuborg Havn

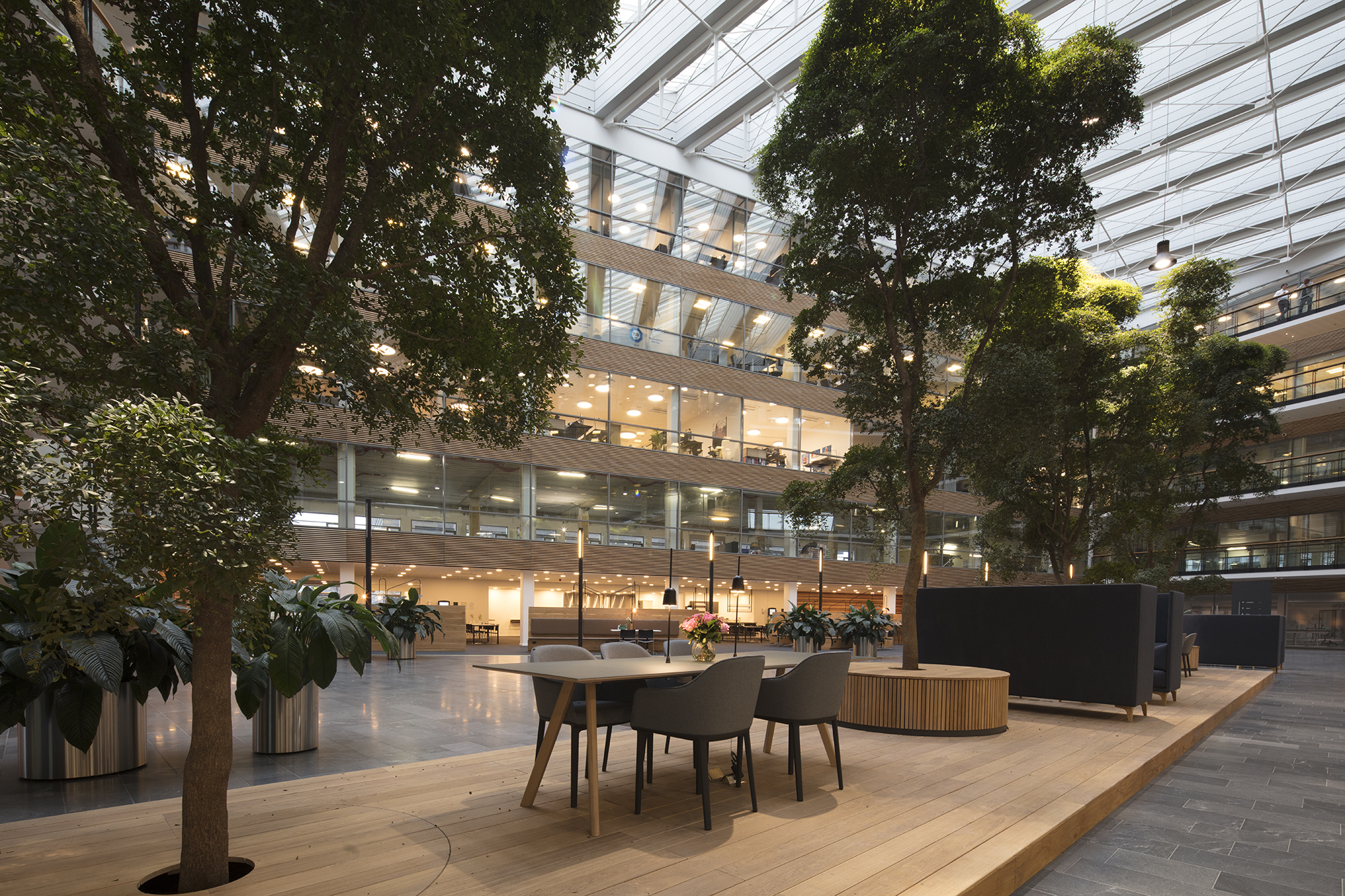

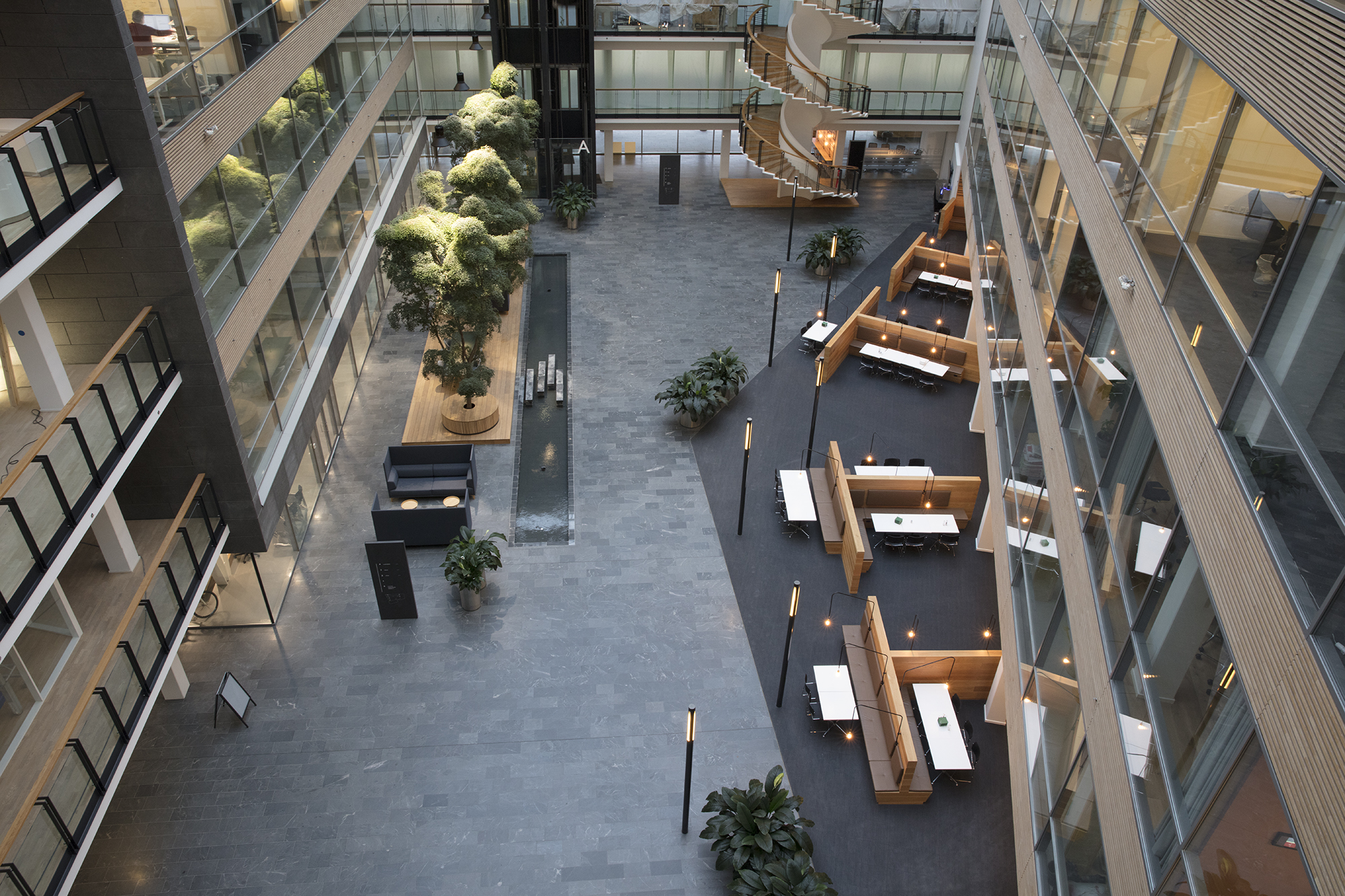

Office building in Copenhagen
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Office building |
| Project Type | Commercial |
| Year of Completion | 2019 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 501 – 1.000 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 1.001 – 2.000 |
| Man Power | 6 – 10 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Timed Control, Constant Light Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Automatic Occupancy Detection, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control, CO2 / Humidity Measuring, Natural Ventilation
- Security and Safety - Access Control, Intrusion Detection / Alarm Systems
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation
- Other - Audio Control, Home Appliances Control
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming
- Blind and Shutter Control - Individual Control, Group & Central Control, Preset Positioning, Automatic Programs, Wind and Rain Protection, Sun Tracing (interaction with HVAC / lighting)
Customers Description
The project is a recontruction of the office building for new companies that rent office spaces in the beatyfull harbor area of the old danish beer manufactor Tuborg.
The project had a big focus on the energy consumtion of lightning and HVAC functions of the renovation therefore we installed complete room automation with heating, cooling and ventilation in meeting spaces and office rooms. In every room we use LED DALI lightning that all are daylight controlled lightning. Water meters, heating meters, door telephone systems integration.
Visualisation for 3 building for complete control for both HVAC and lightning for the building inspectors and water/heating/electrical metering integration. Integration to via BACNET to Central ventilation systems. 16" touchpanels in reception on each floor for controling the rooms. Small GIRA touchscreens in almost every room for induvidually controlling the rooms.
Contact Information
| Company Name | TOFT Installation ApS |
| Company Email | hn@toftinstallation.dk |
| Company Website | http://www.toftinstallation.dk |
| Contact Name | Henrik Nielsen |
| Contact Function | Installer |
