Valenor - VBB120

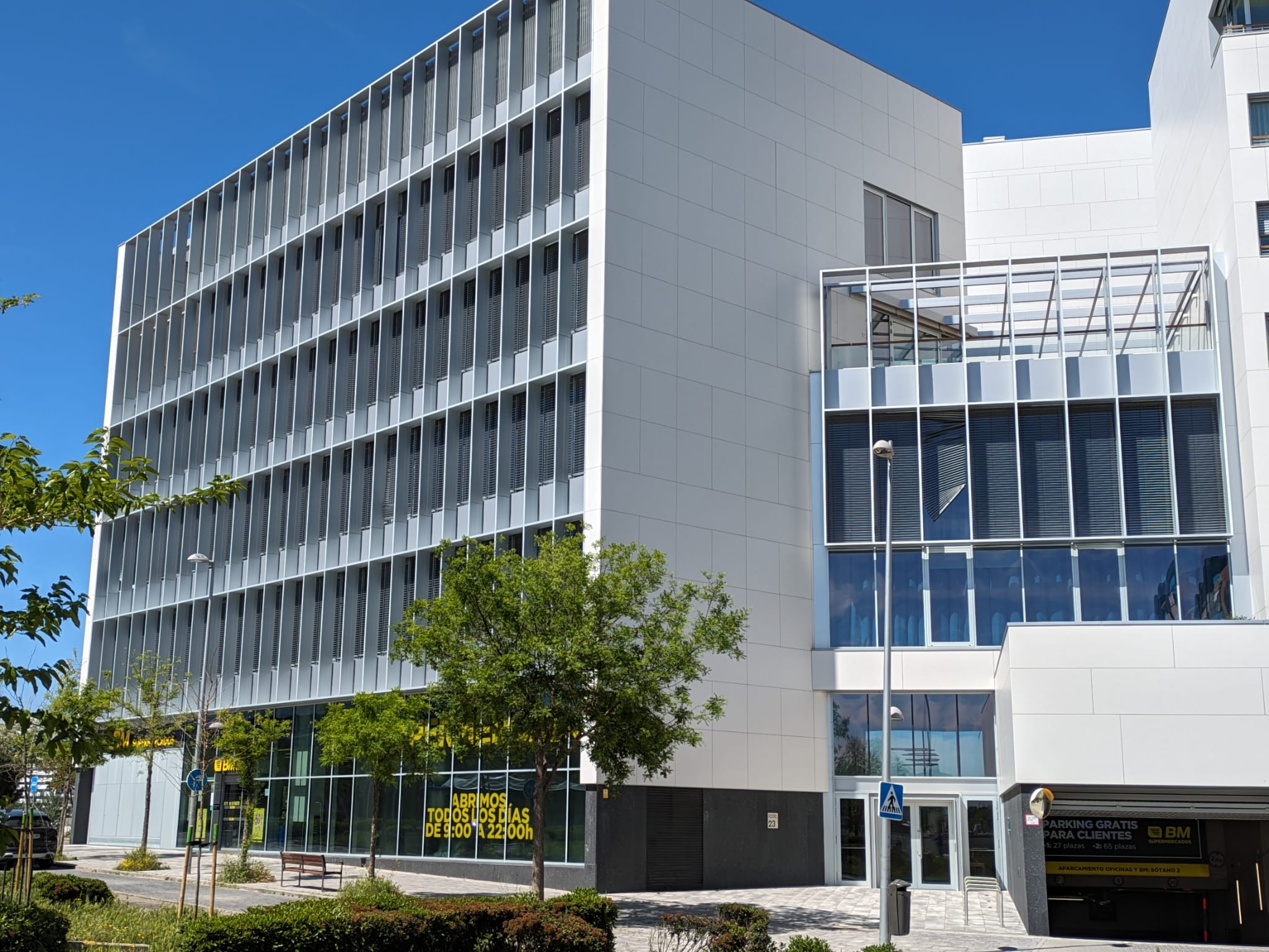

Office building in Madrid
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Office building |
| Project Type | Commercial |
| Year of Completion | 2023 |
| Project Size | 1.001 – 5.000 |
| Number of KNX Devices Used | 101 – 300 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 251 – 500 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control, Lighting Colour Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Automatic Occupancy Detection, Individual Room Control / Zone Control, CO2 / Humidity Measuring
- Security and Safety - Smoke/Fire Detection, Access Control
- Operation and Visualisation - PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation
- Other - Intercom, Audio Control, Video Control
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming
- Blind and Shutter Control - Individual Control, Group & Central Control, Automatic Programs, Sun Tracing (interaction with HVAC / lighting)
Customers Description

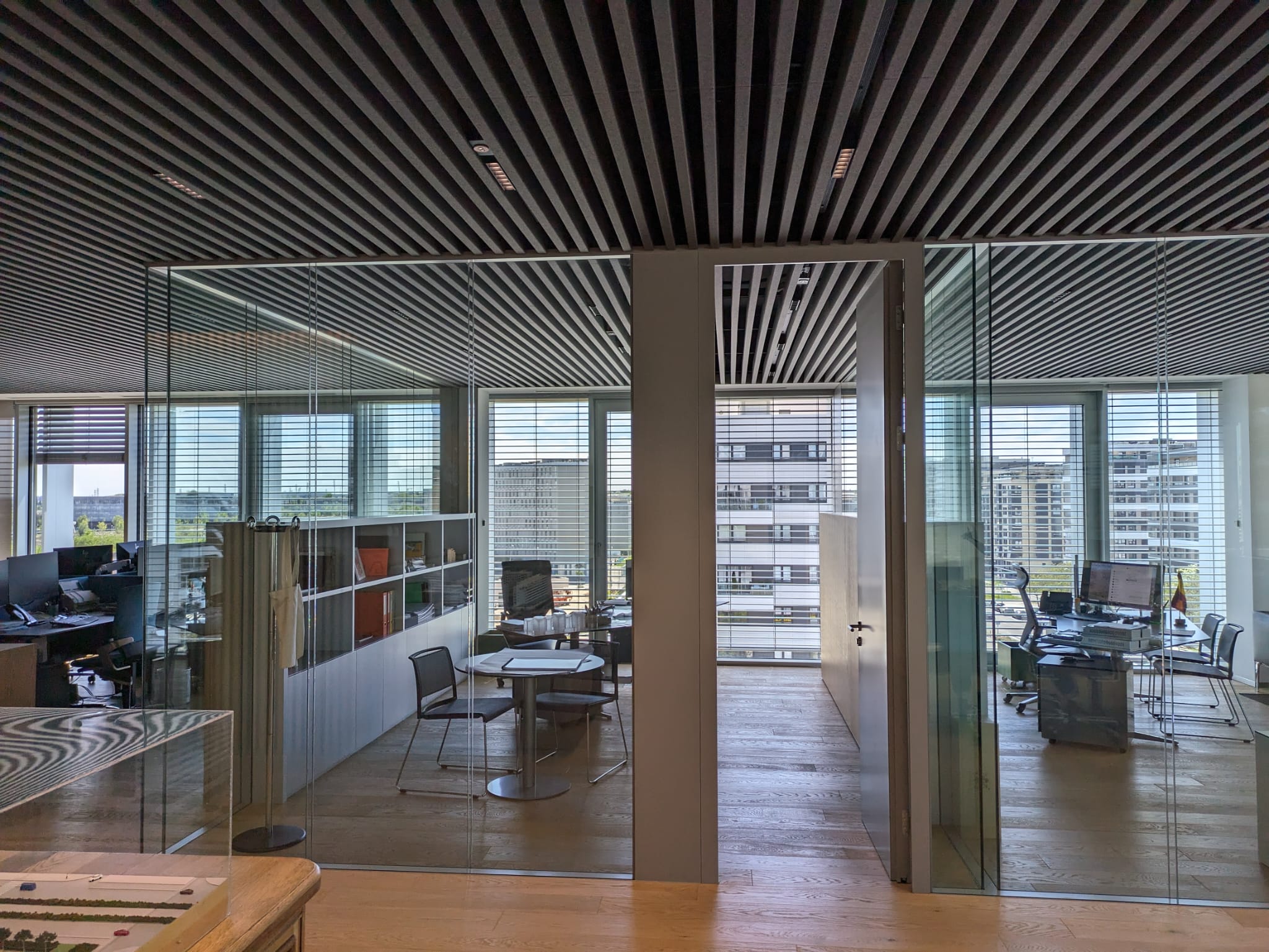

Office Building with an important amount of technology.
The customer loves Building Automation, and loves KNX.
The project mainly includes Lighting, Shading and HVAC control, but also integrates Access control, Energy measurement, Audio/Video and Voice Control.
All by IP conection to a NETx Platform mainly with KNX, but also BACnet, Modbus TCP and Lutron.

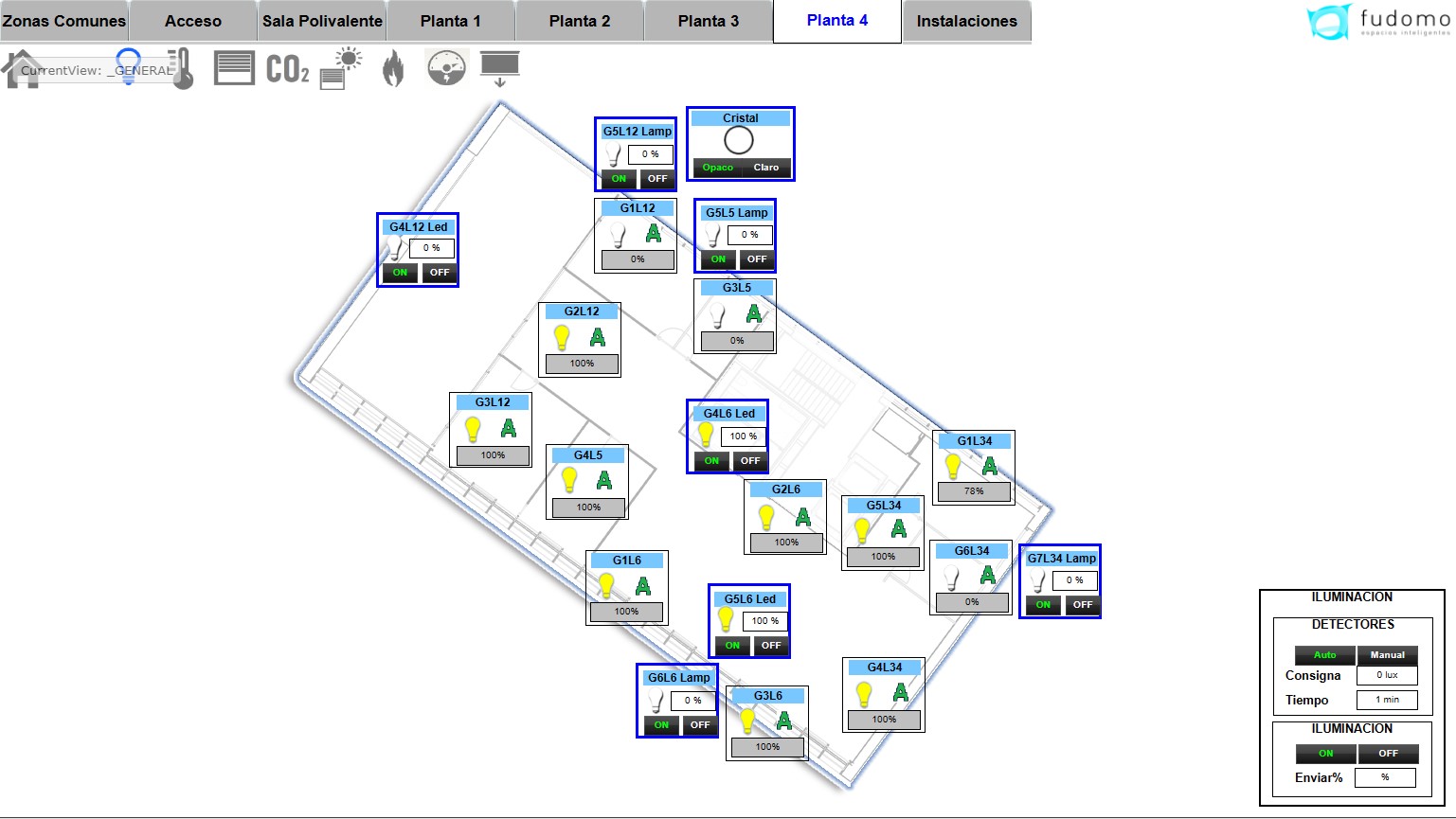

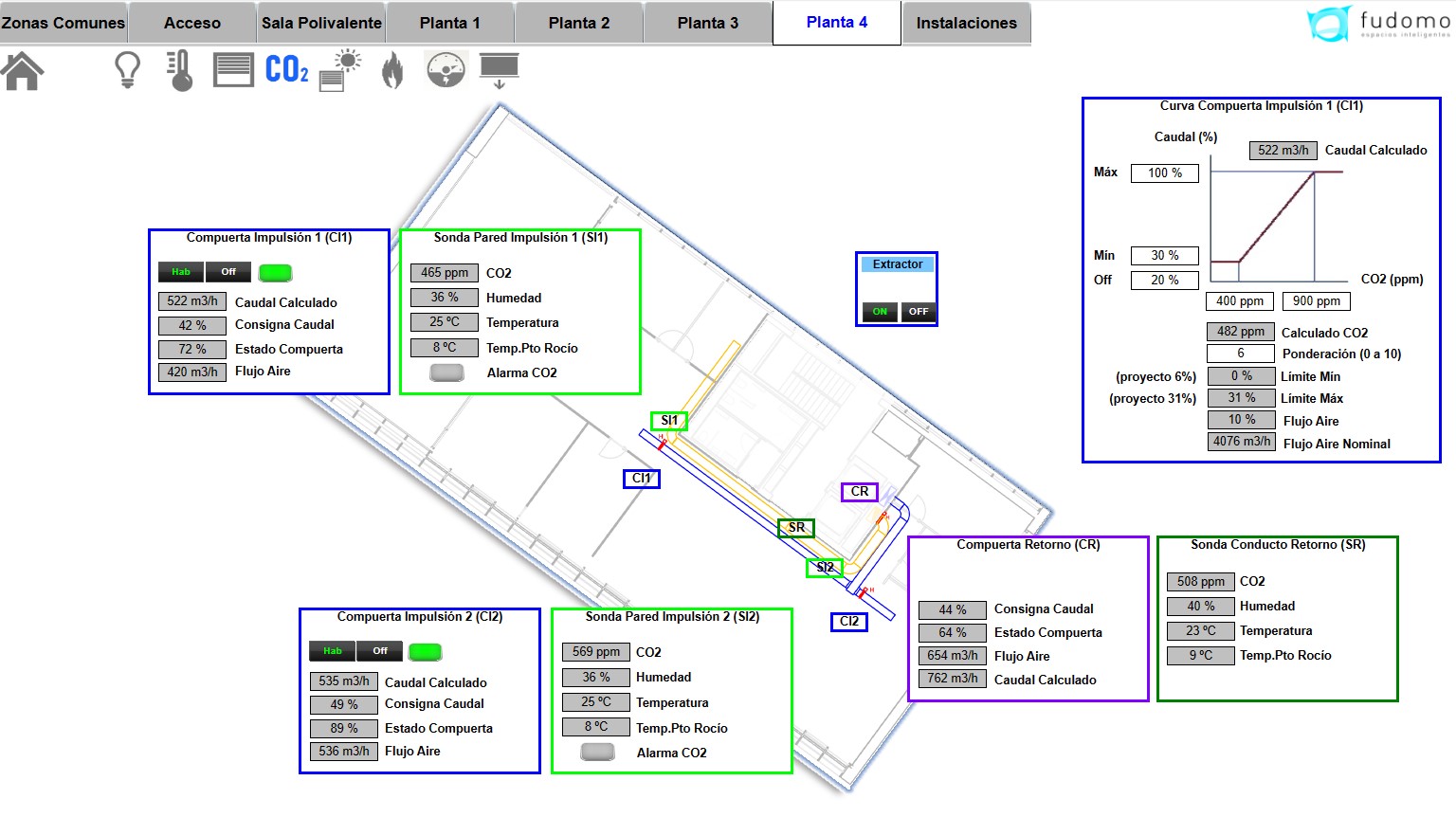

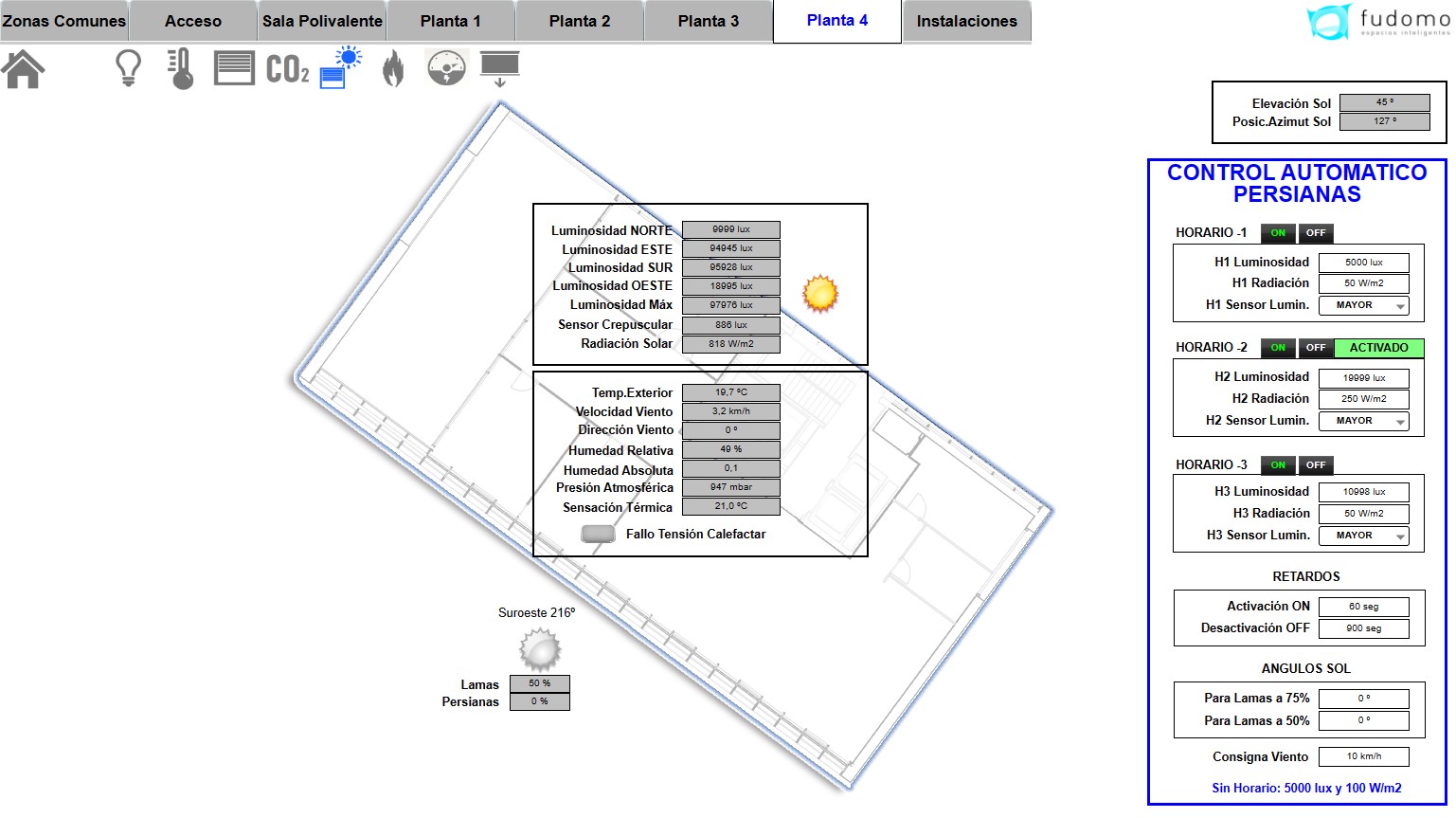

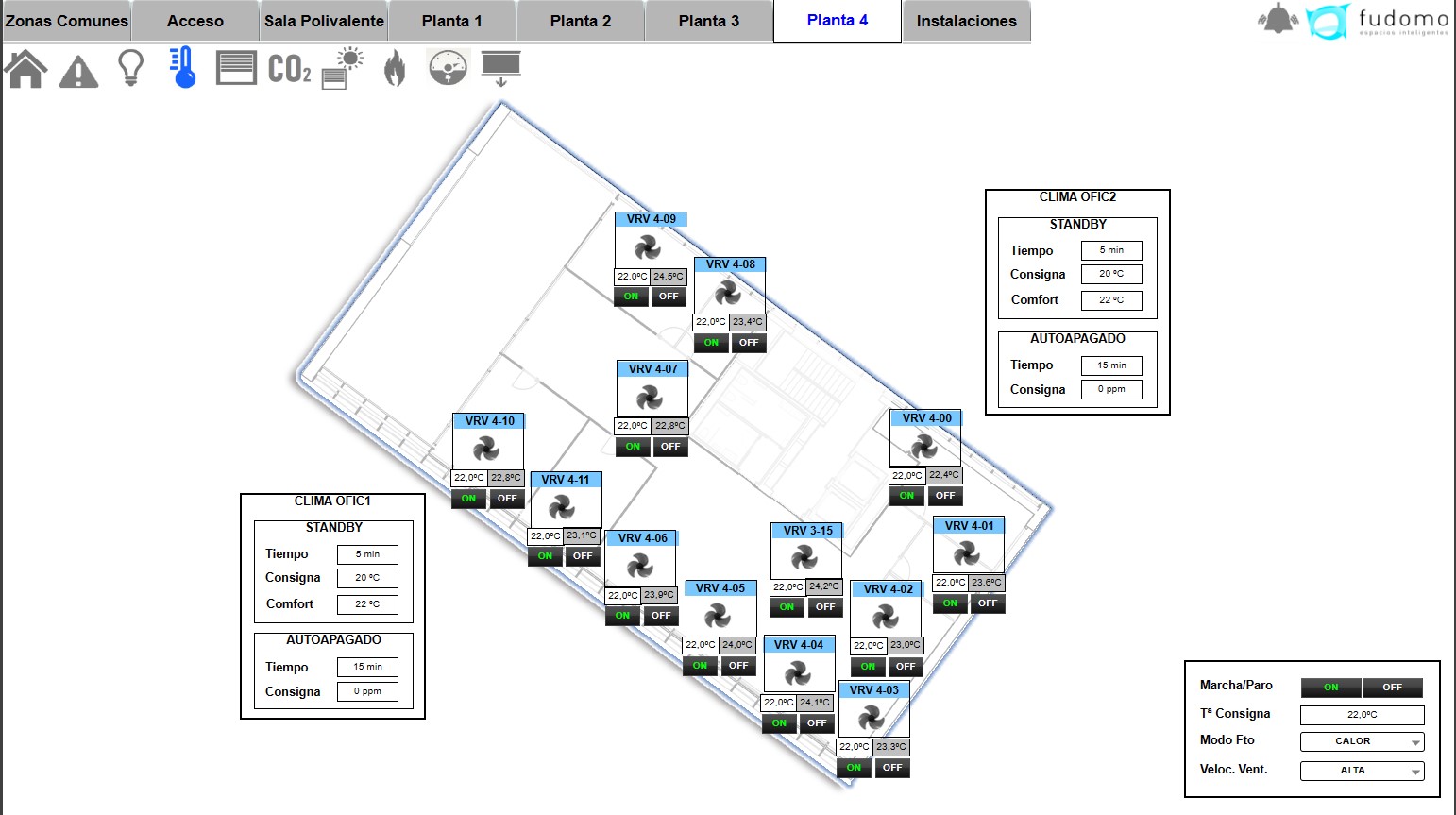

Focused on Energy Efficiency thanks to lighting constant control with movement detection, shading control by sun position, Ventilation depending on CO2 concentration and Air conditioning by movement detection too.
Project ready for Homekit by SIRI control or remote control by Iddero APP.
