Villa Bendinat
Family house in Calvià
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Family house |
| Project Type | Residential |
| Year of Completion | 2020 |
| Project Size | 501 – 1.000 |
| Number of KNX Devices Used | 101 – 300 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 101 – 250 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Lighting Colour Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control, Natural Ventilation, Floor Heating Control, Boiler and burner Control
- Security and Safety - Access Control, Presence Simulation, Supervision (e.g. Cameras), Interaction with HVAC/Lighting

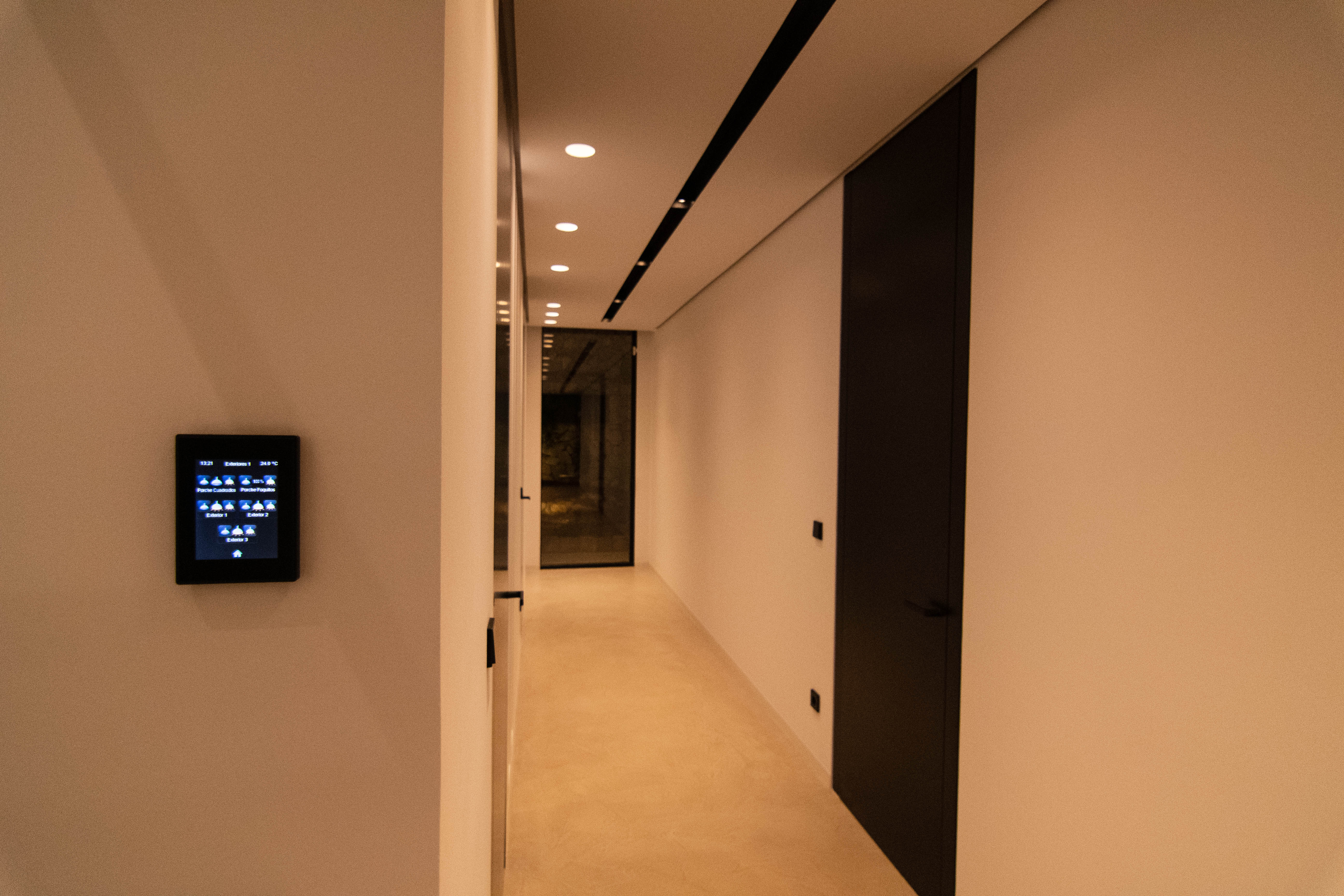

- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering
- Other - Intercom, Audio Control, Distributed Facilities
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming, Messaging (e.g. SMS)
- Blind and Shutter Control
Customers Description

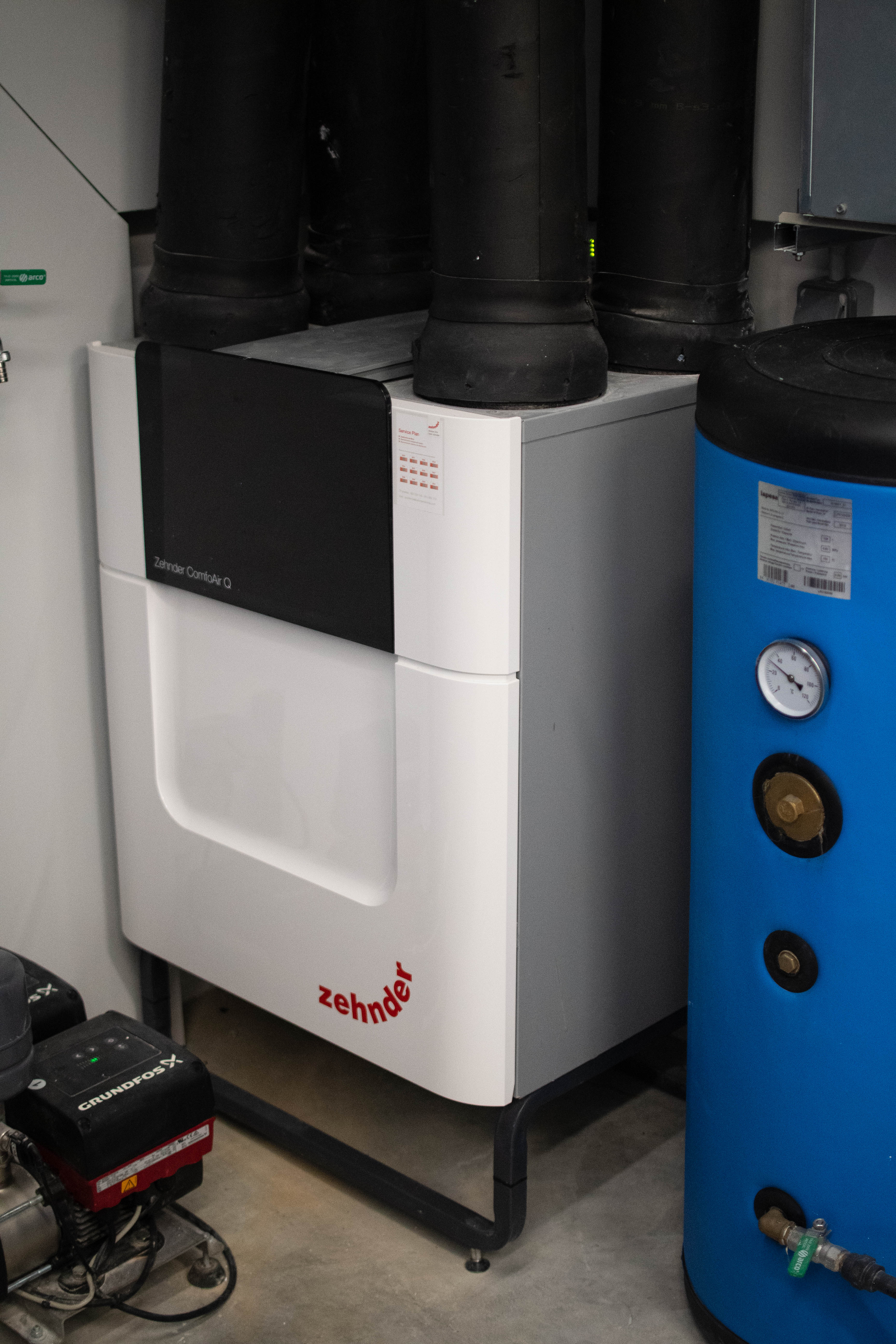

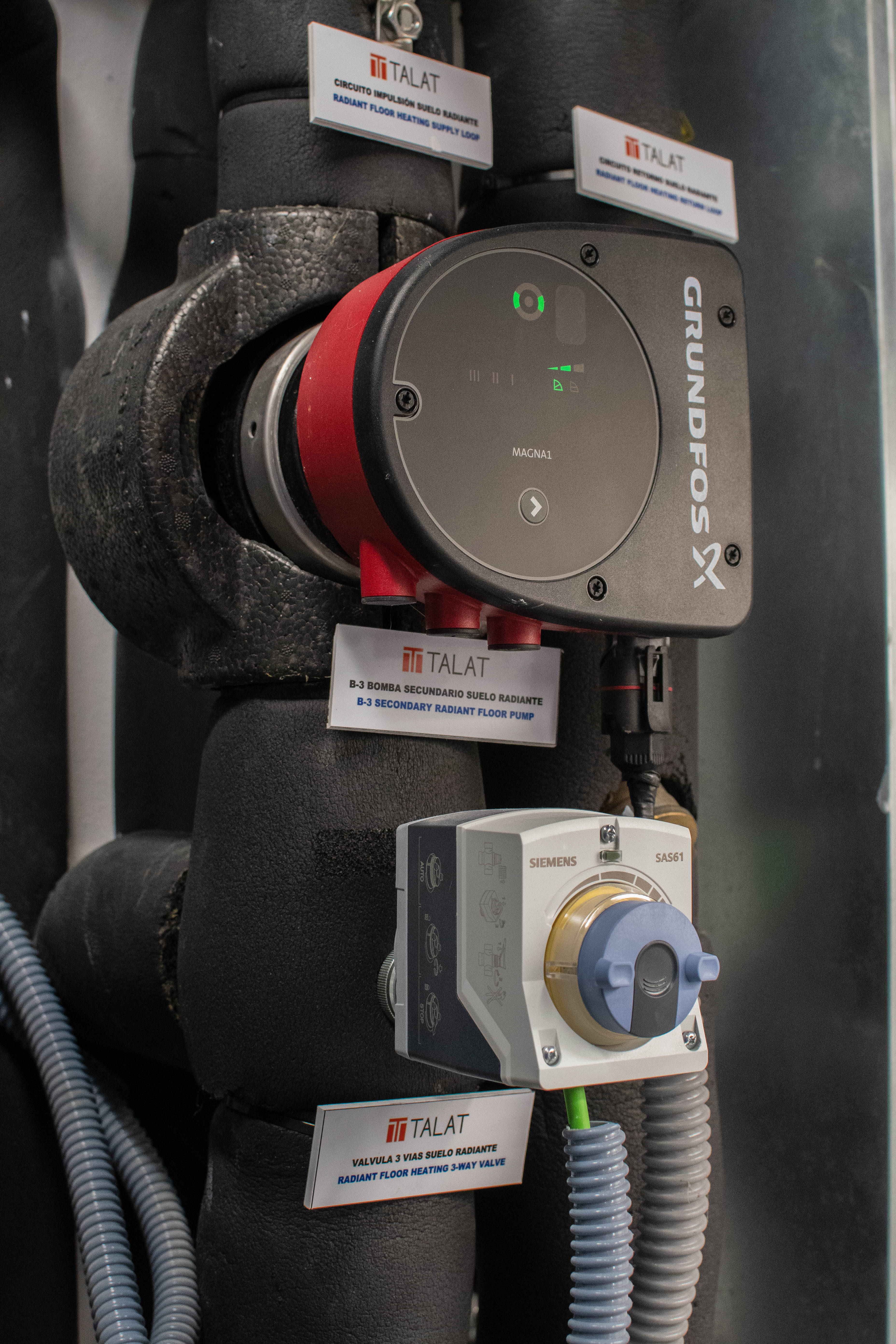

Vivienda unifamiliar equipada con gestión de alumbrado por regulación y presencia. Sistema de clima por VRV con recuperación de energía, capaz de proporcionar frío y calor simultáneamente en diferentes estancias y aprovechar, de manera eficiente, el calor residual de la refrigeración para la producción de calefacción y agua caliente sanitaria. Calefacción por suelo radiante con temperatura regulada por válvula proporcional. Uso de las condiciones climáticas exteriores para optimizar la climatización. Producción de ACS. Sistema de ventilación Zehnder de flujos cruzados. Control de acceso e intercomunicación. Sistema de CCTV. Sistema de audio SONOS.

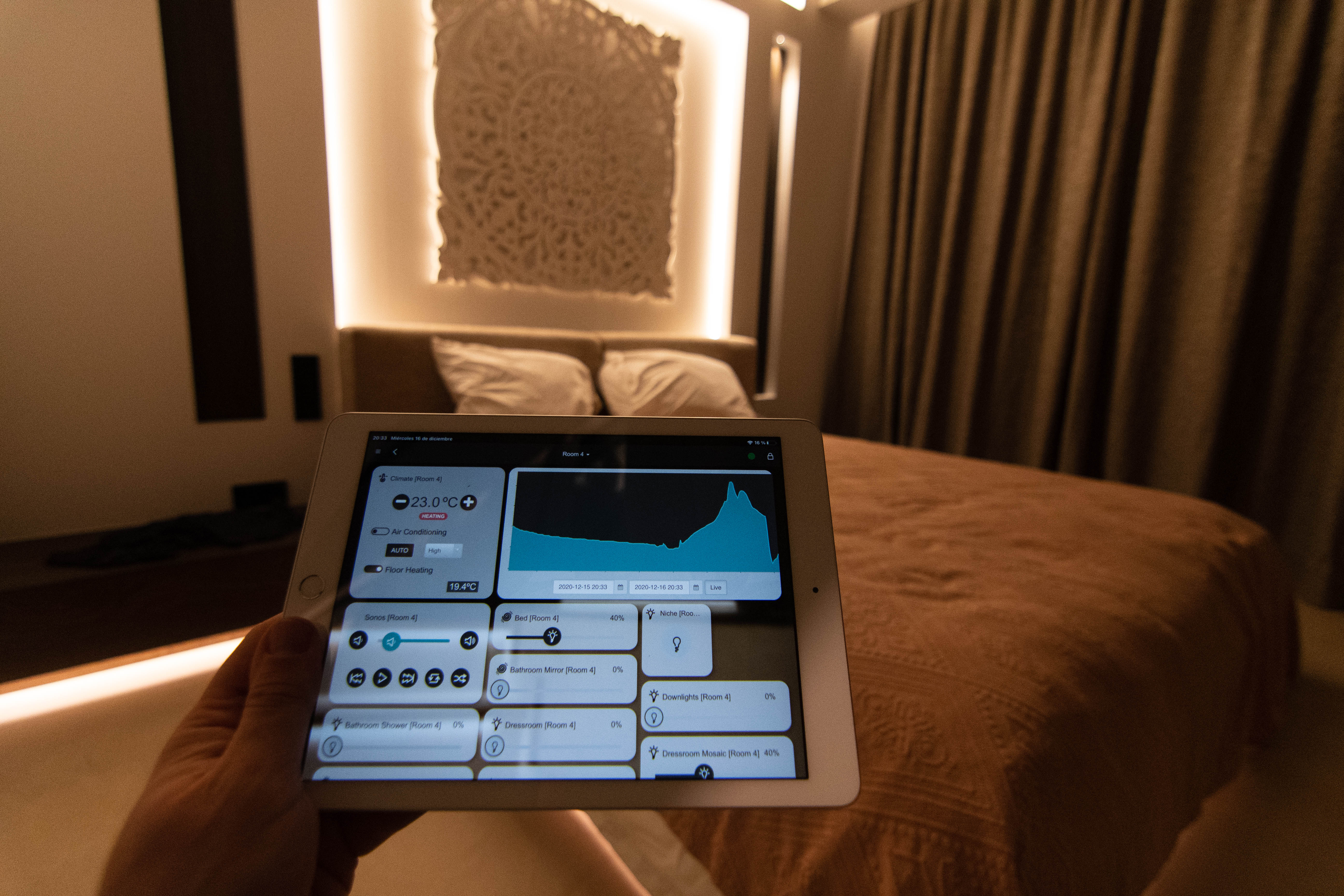

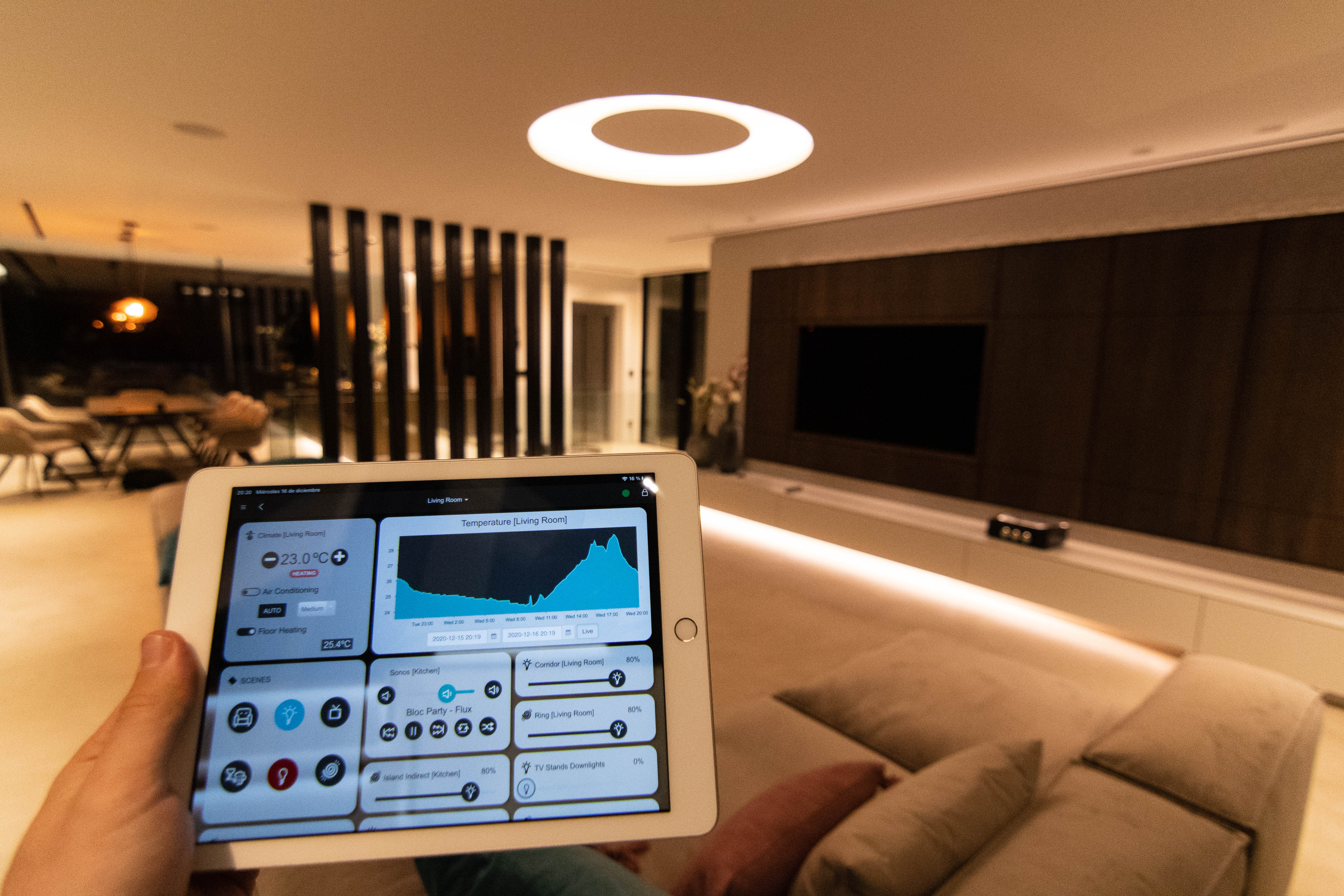

Todo ello integrado en el sistema KNX mediante pasarelas y actuadores, y monitorizado y gestionado desde el web server MOSAIC donde el usuario final también podrá crear y modificar sus propias escenas y horarios para ajustarlos a sus hábitos proporcionando así confort y eficiencia energética.
Contact Information
| Company Name | TALAT |
| Company Email | info@talat.es |
| Company Website | http://www.talat.es |
| Contact Name | Alejandro Díaz |
| Contact Function | System Integrator |
