Villa Natalia
Villa in HALKIDIKI
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Villa |
| Project Type | Residential |
| Year of Completion | 2019 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 101 – 300 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 501 – 1.000 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control, Lighting Colour Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Weather Dependent Control, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control, CO2 / Humidity Measuring, Natural Ventilation, Floor Heating Control, Boiler and burner Control
- Security and Safety - Smoke/Fire Detection, Faults (e.g. Leak Detection, Glass Break Detection, Window Contacts), Access Control, Intrusion Detection / Alarm Systems, Presence Simulation, Supervision (e.g. Cameras), Interaction with HVAC/Lighting

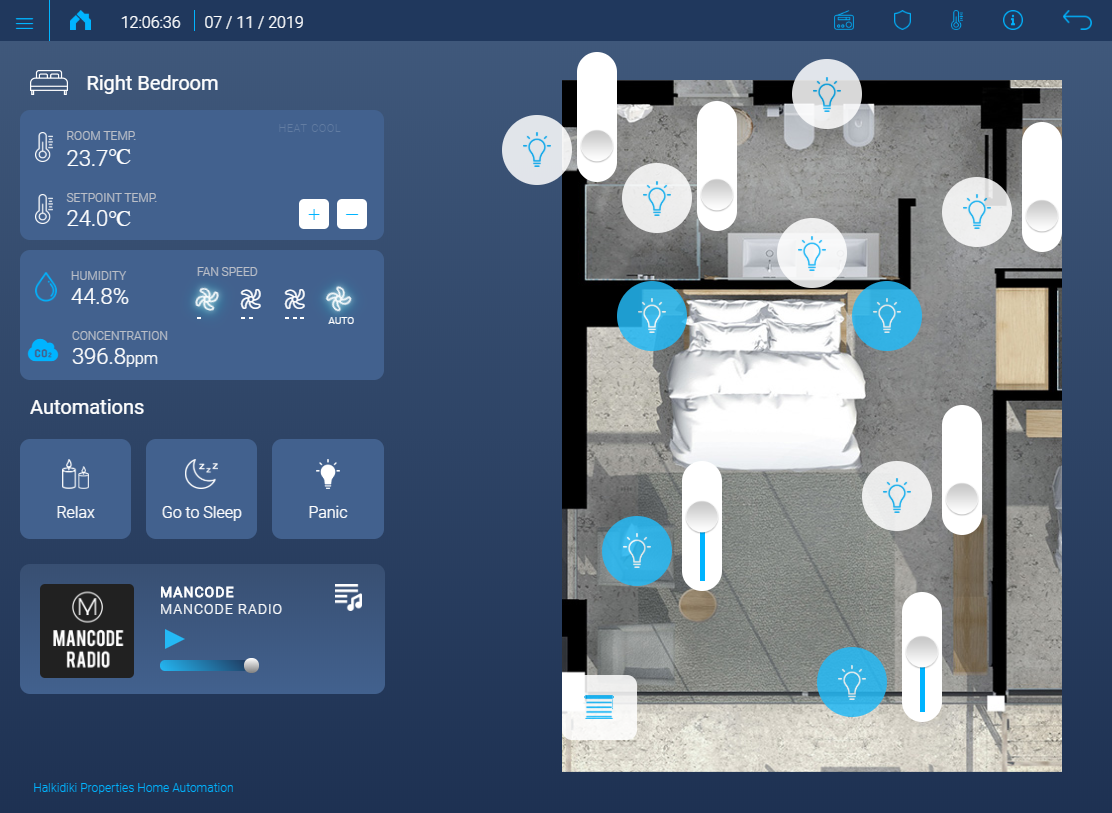

- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection, Peak Demand Monitoring
- Other - Intercom, Audio Control, Video Control, Home Appliances Control, Distributed Facilities
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming, Messaging (e.g. SMS)

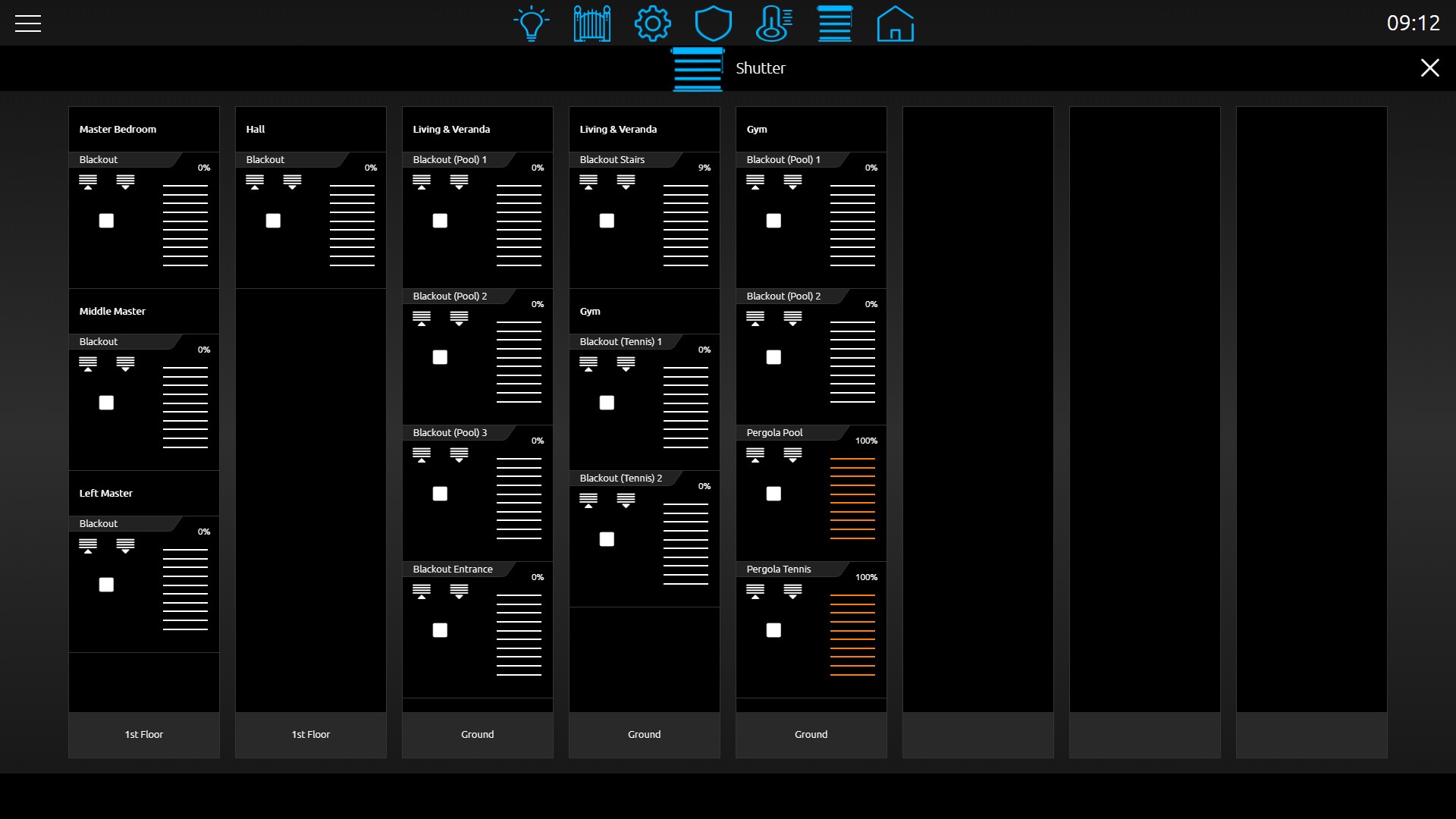

- Blind and Shutter Control - Individual Control, Group & Central Control, Preset Positioning, Automatic Programs, Wind and Rain Protection
Customers Description

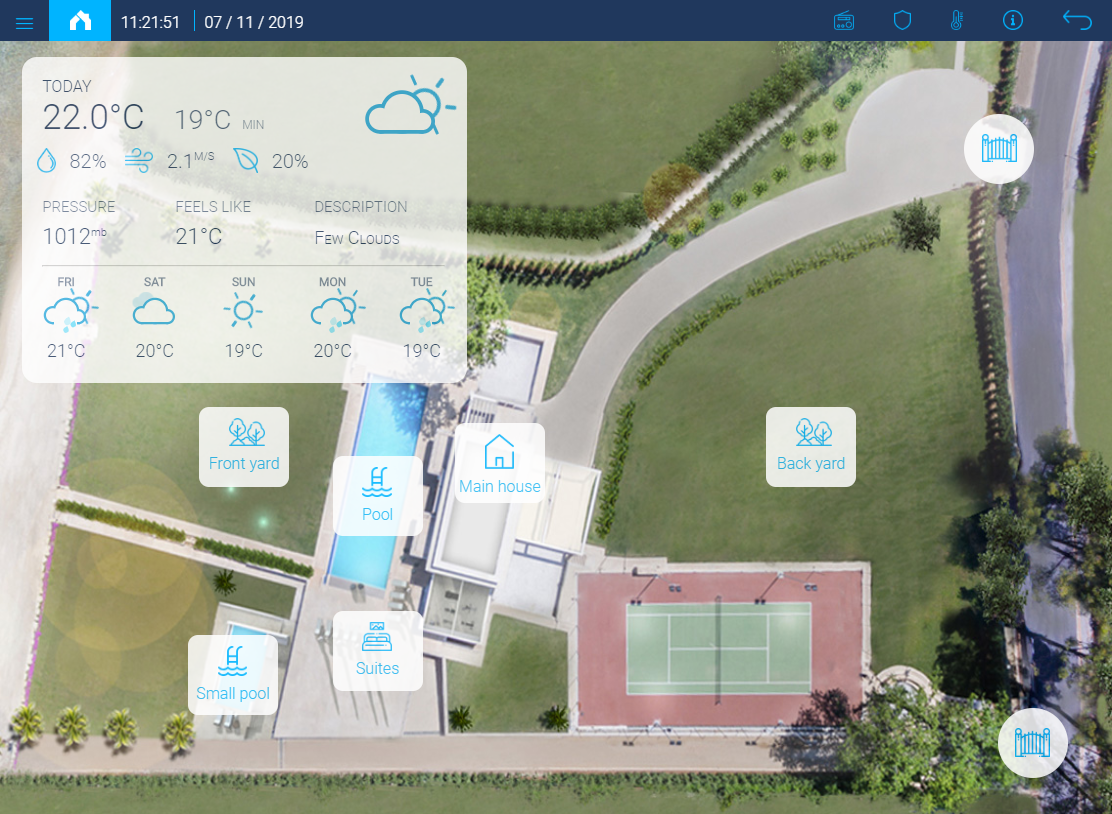

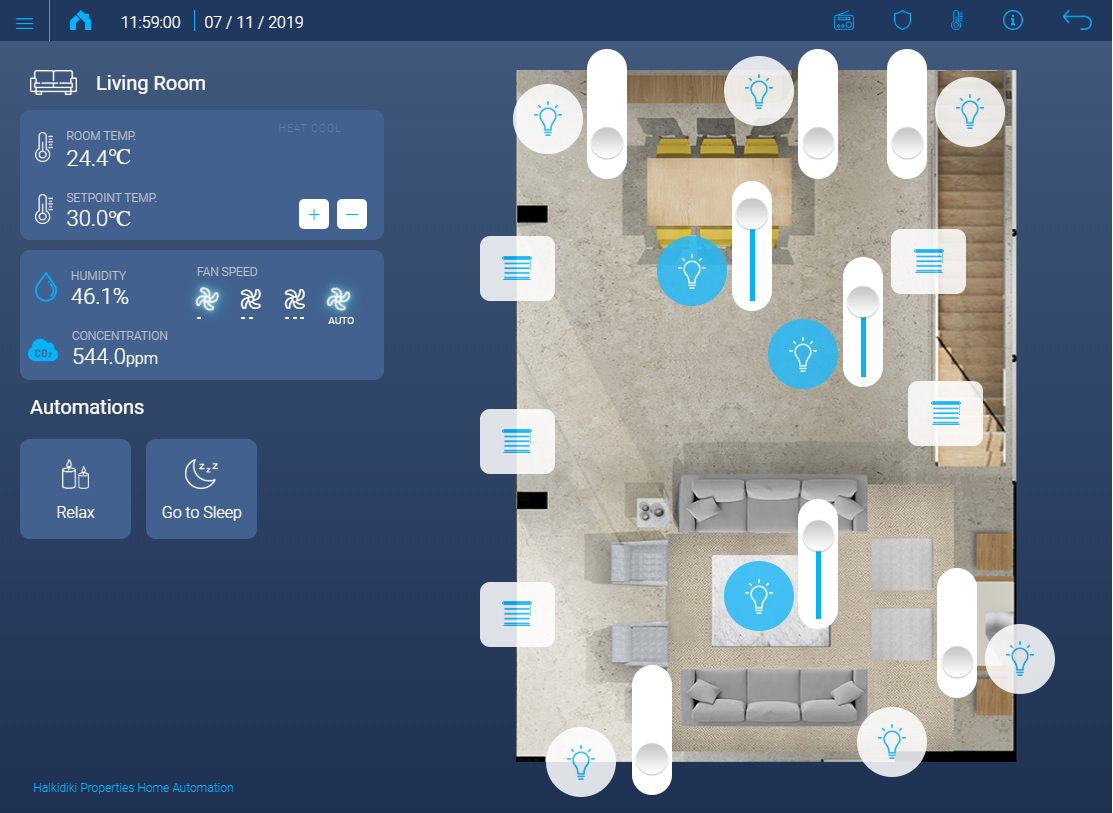

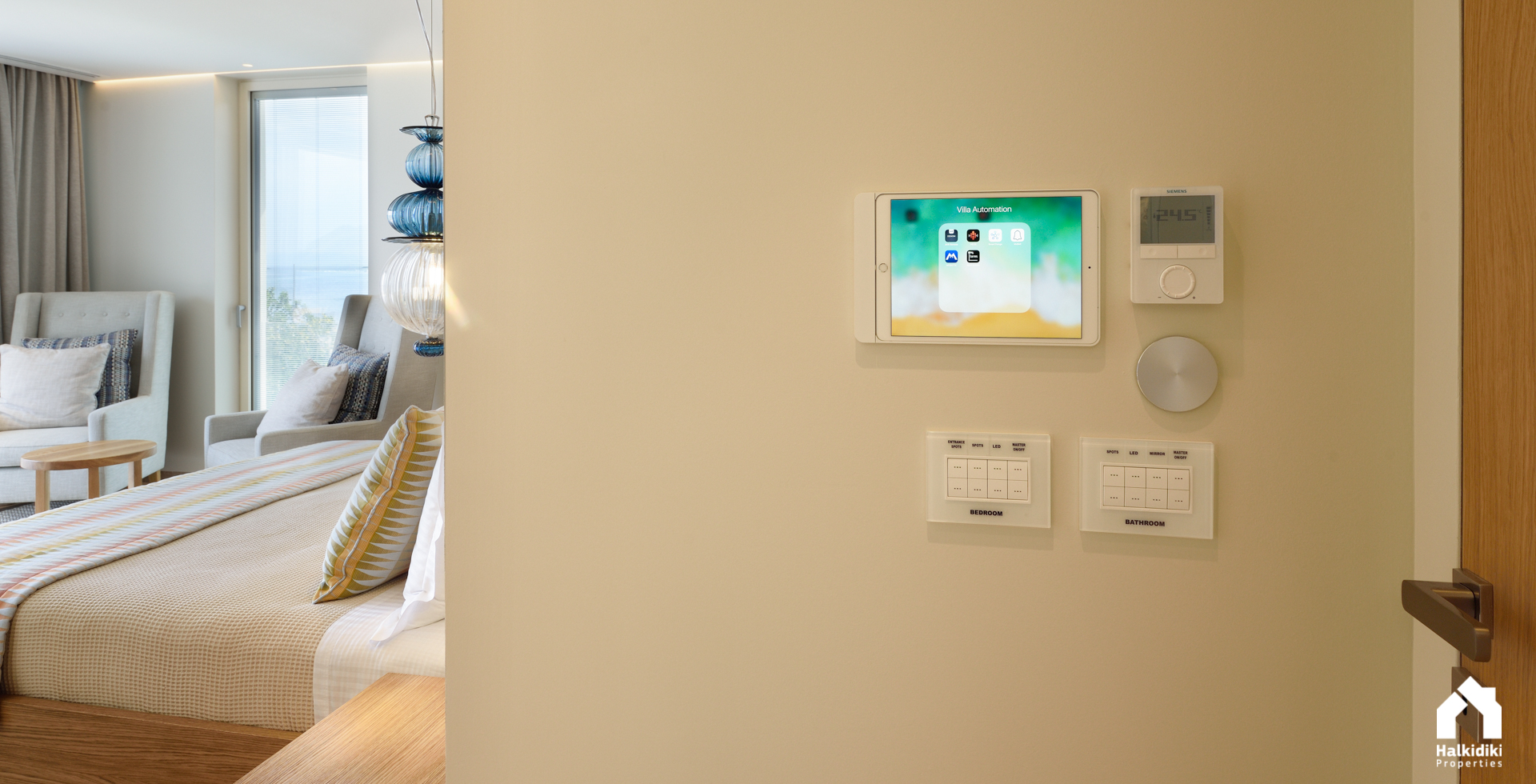

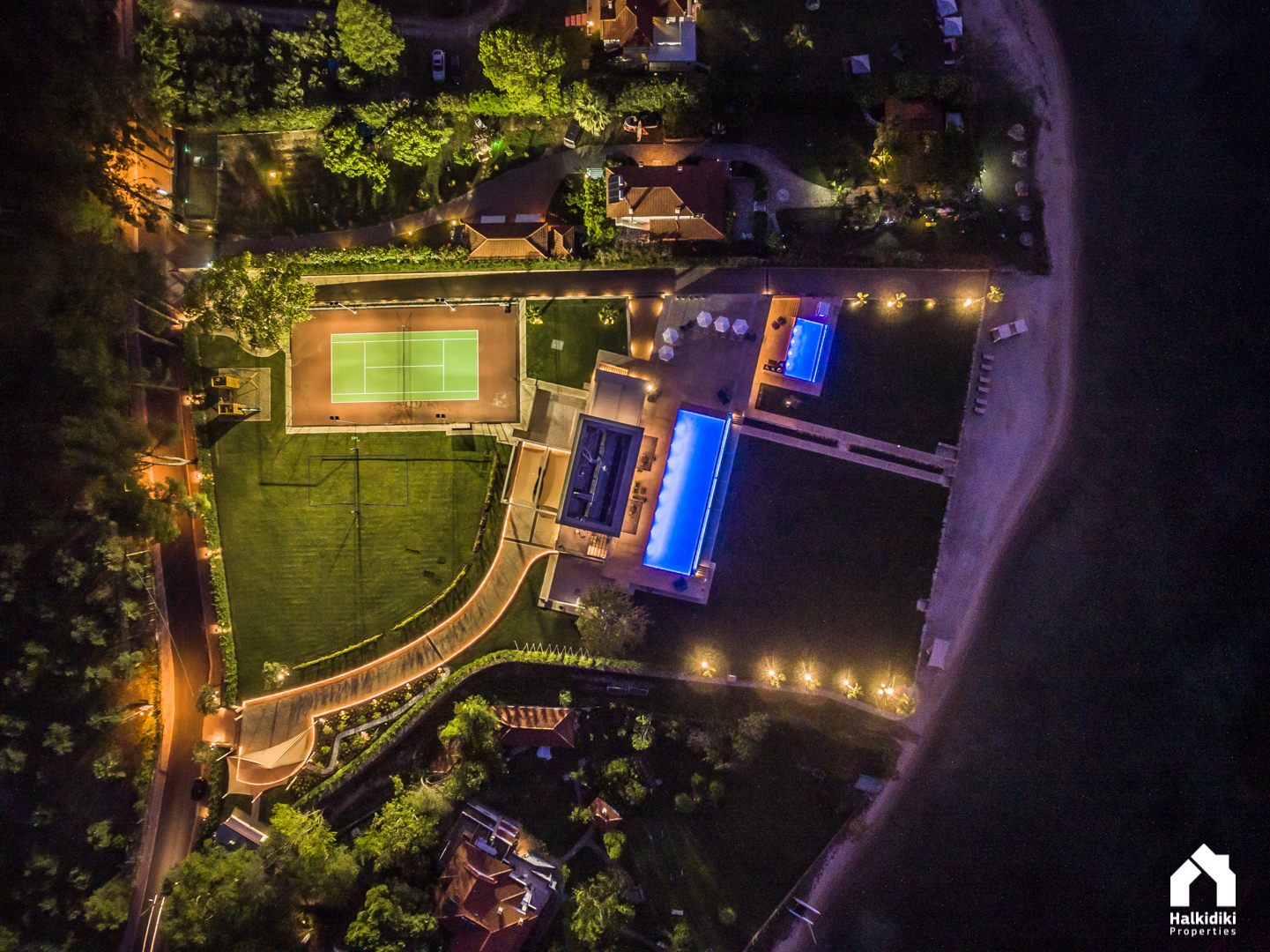

The ultimate luxury experience with over 900 sq.m of living outdoor and indoor space spread on three levels located in a spacious territory of 9.816 sq.m. The 8-bedroom Villa includes a full range of modern amenities available using in-villa iPad’s, switches and sensors controlled by innovative KNX smart house automation system.

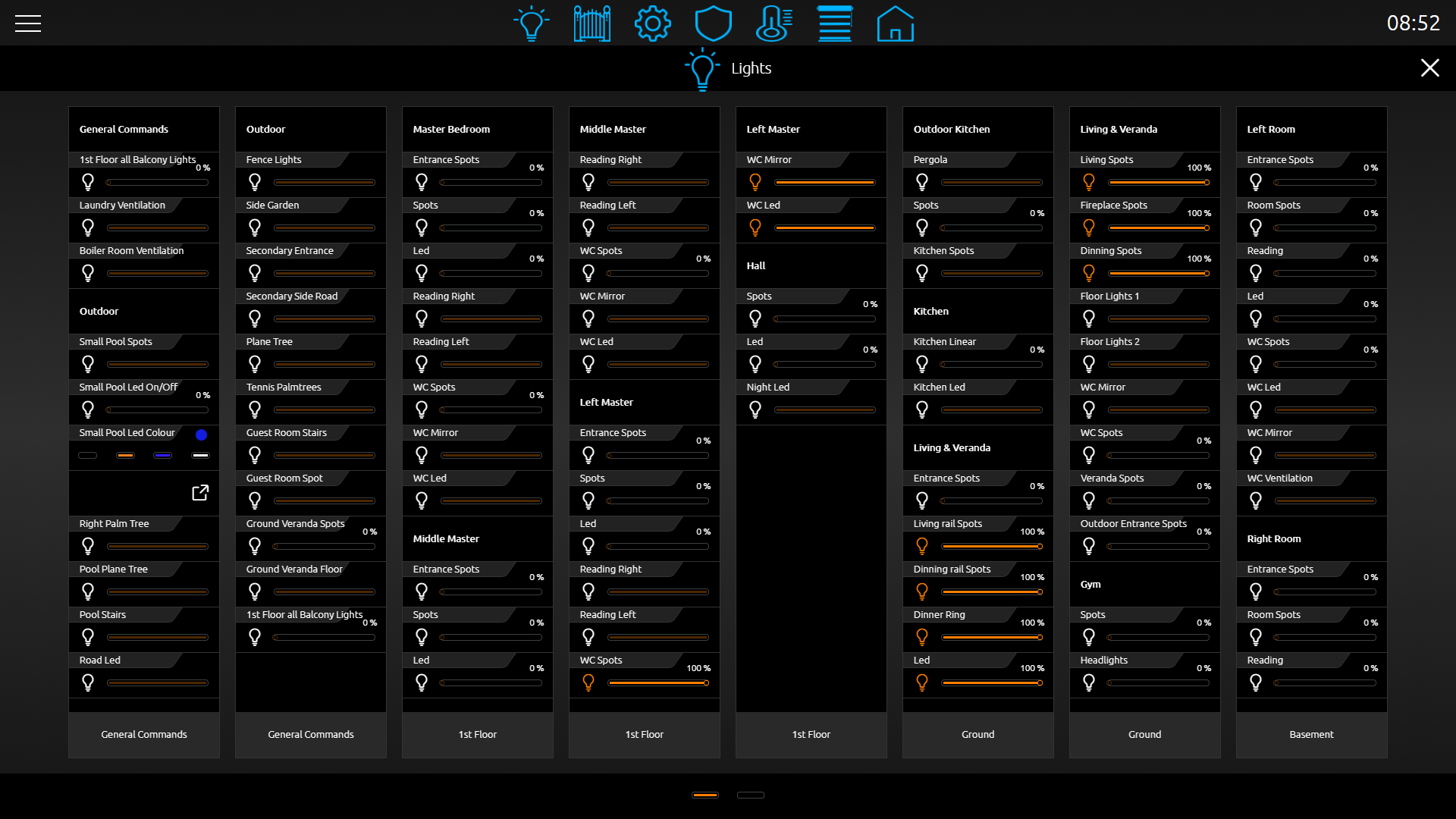

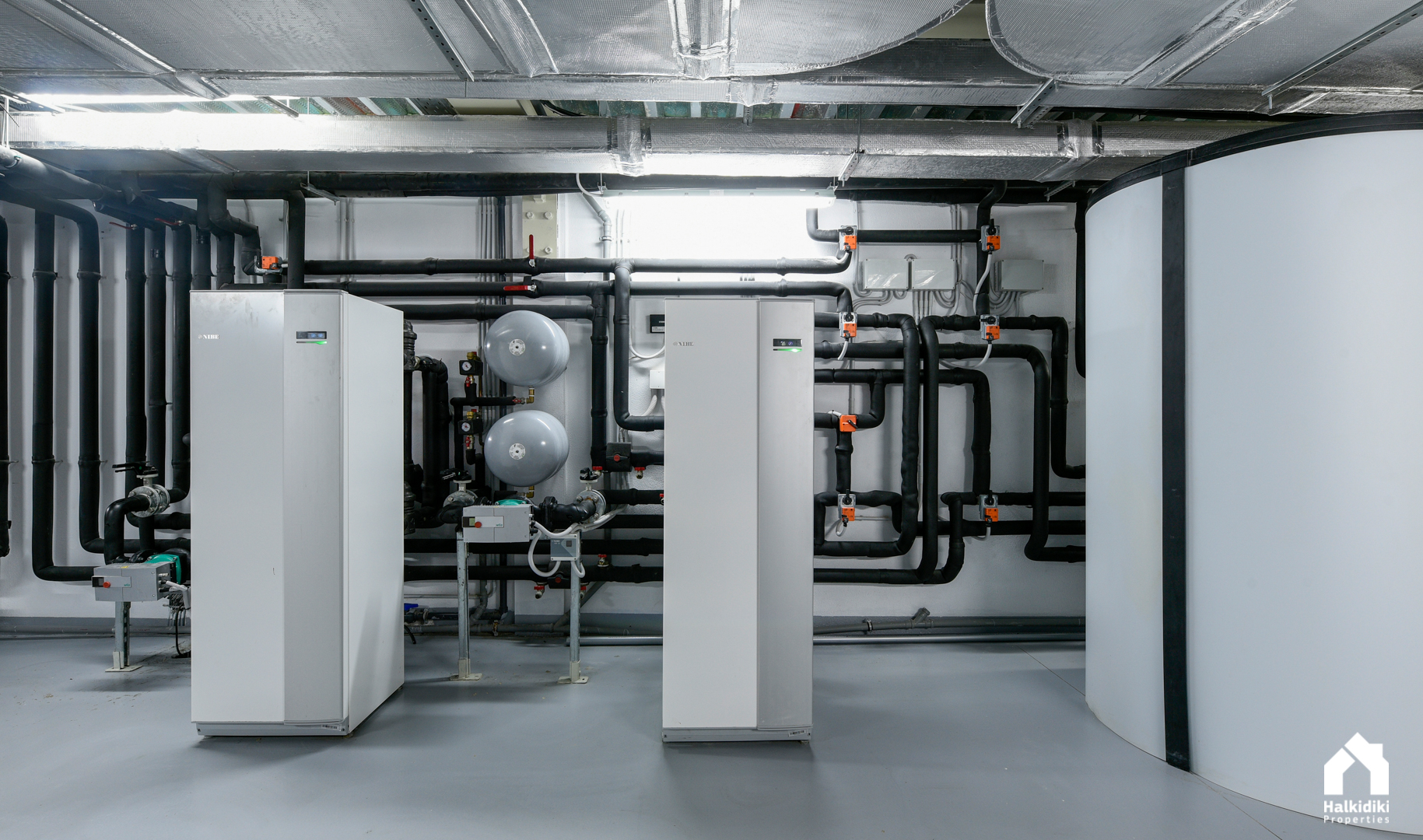

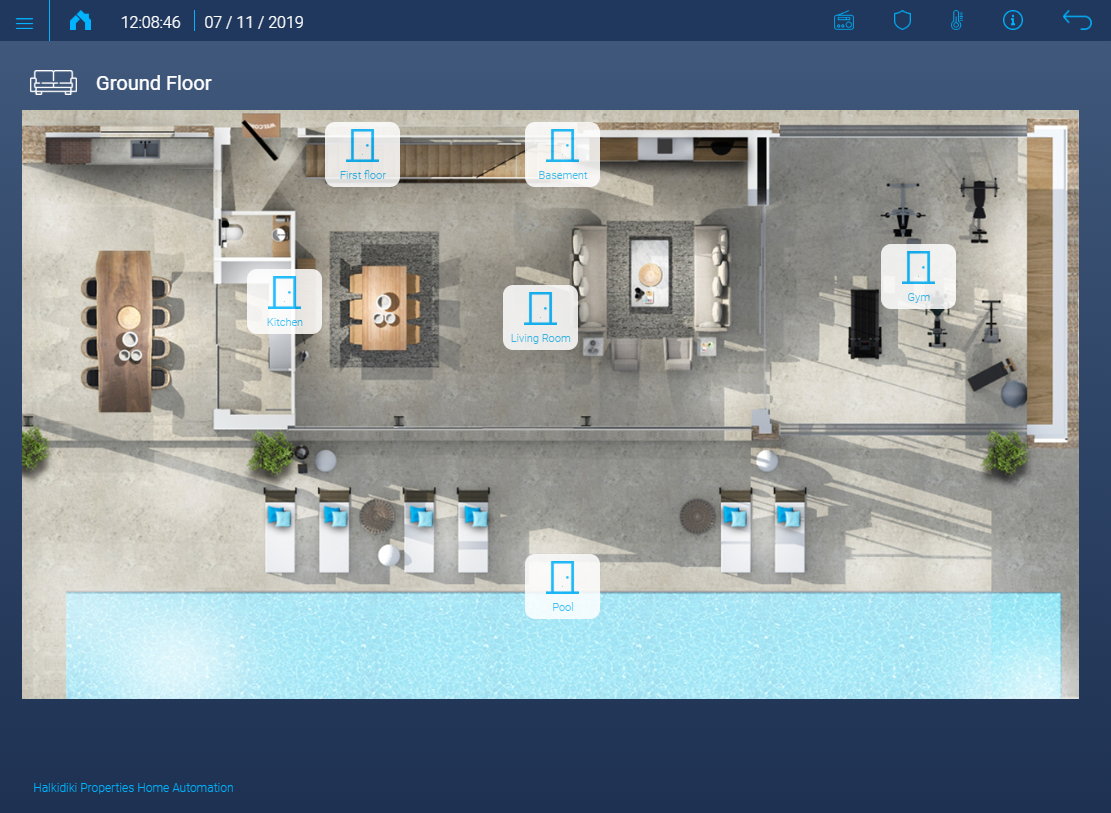

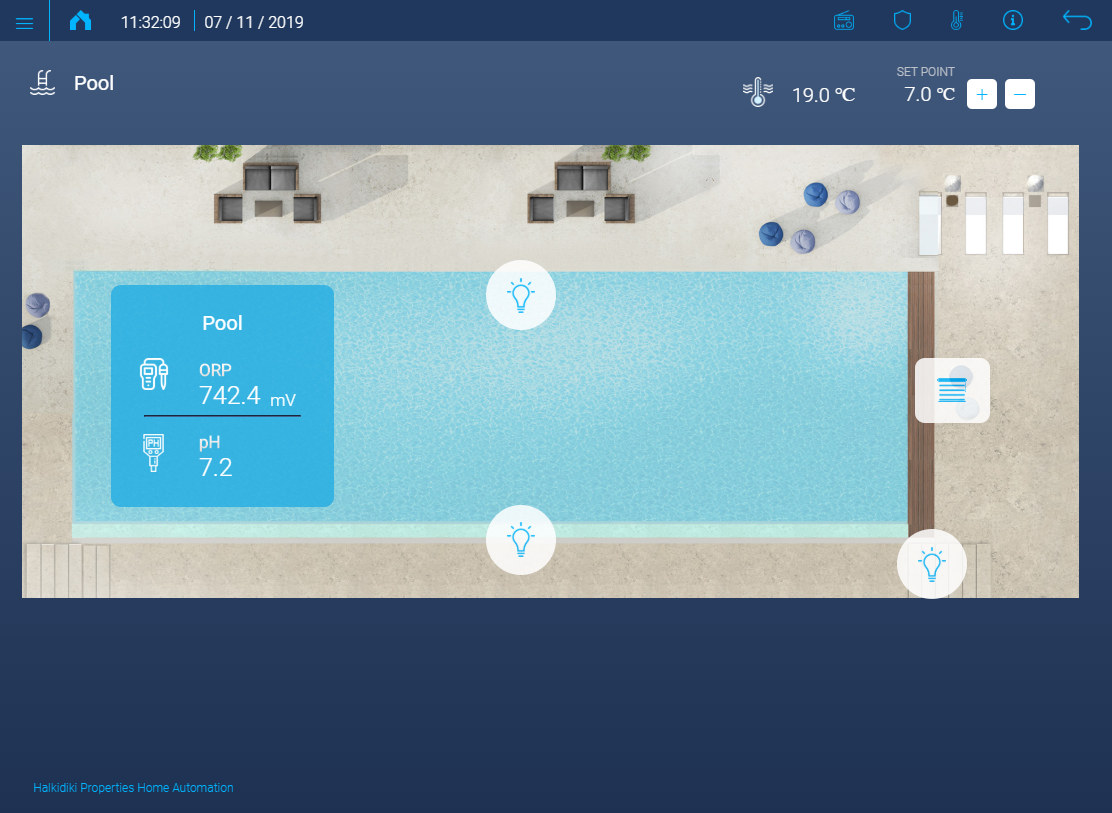

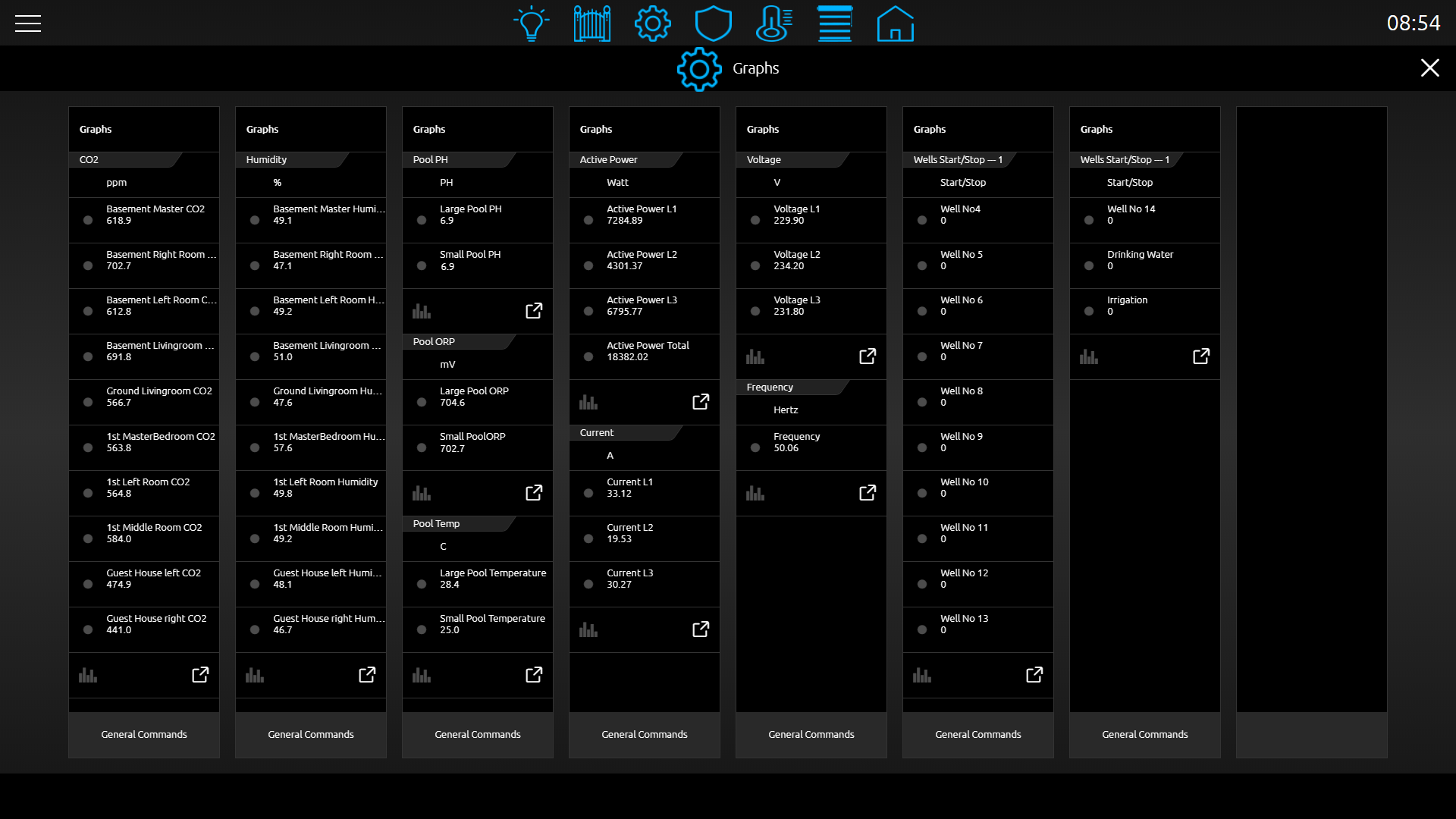

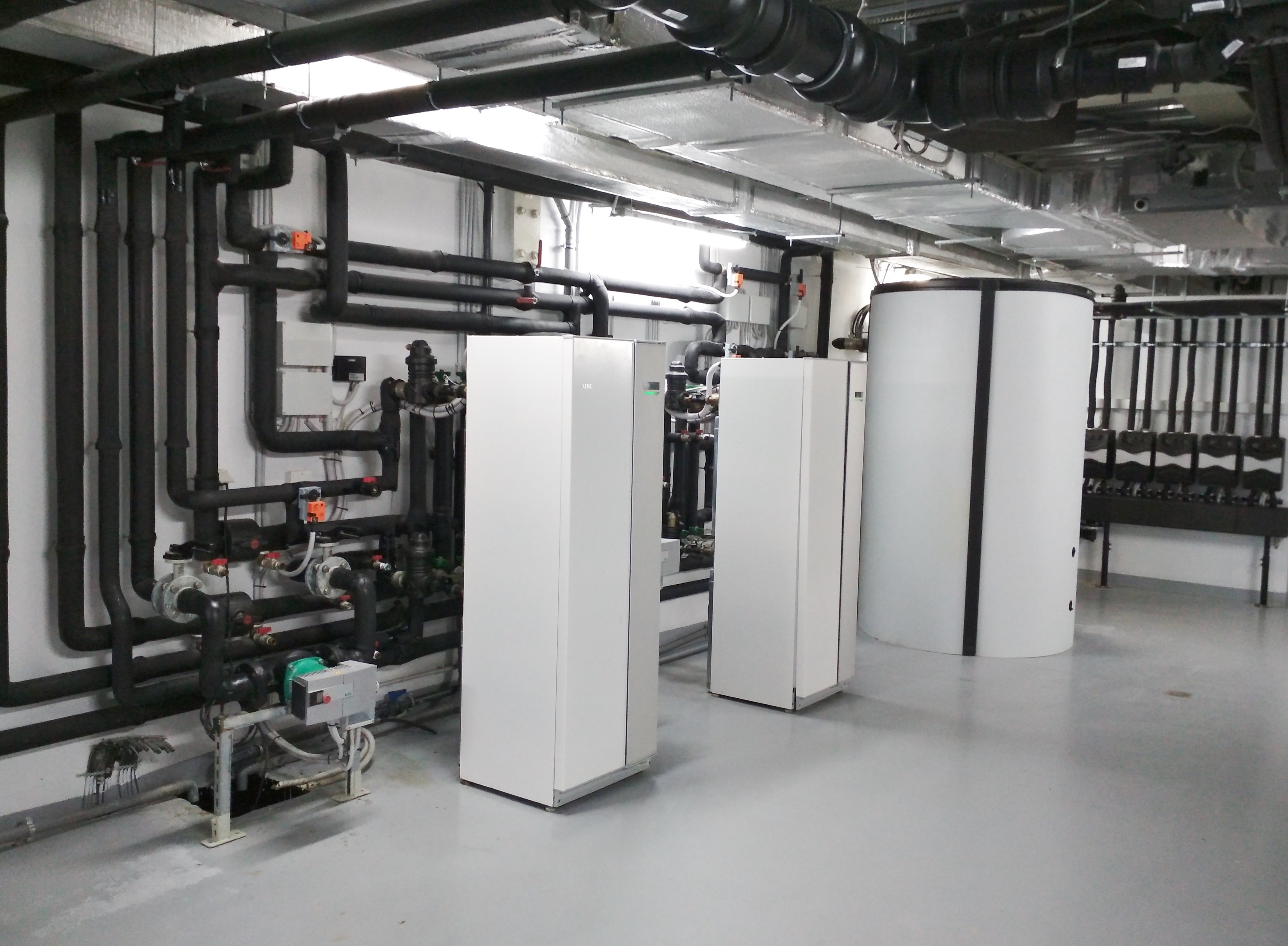

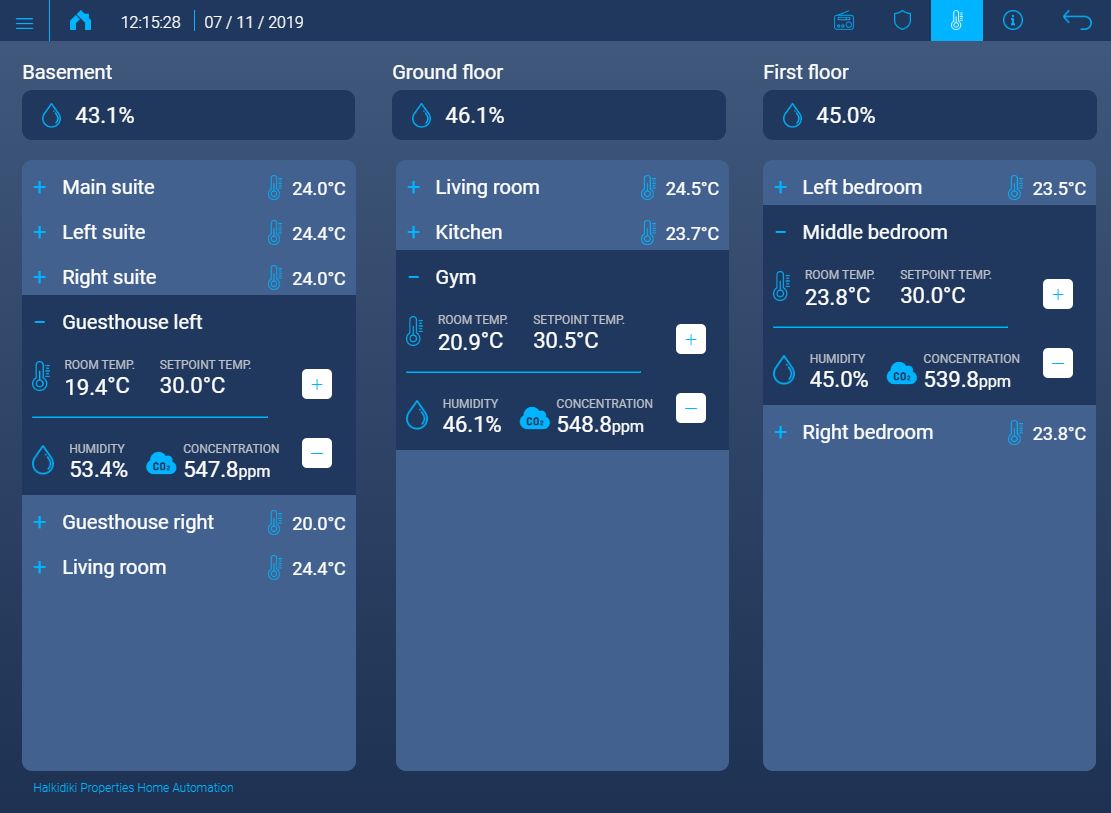

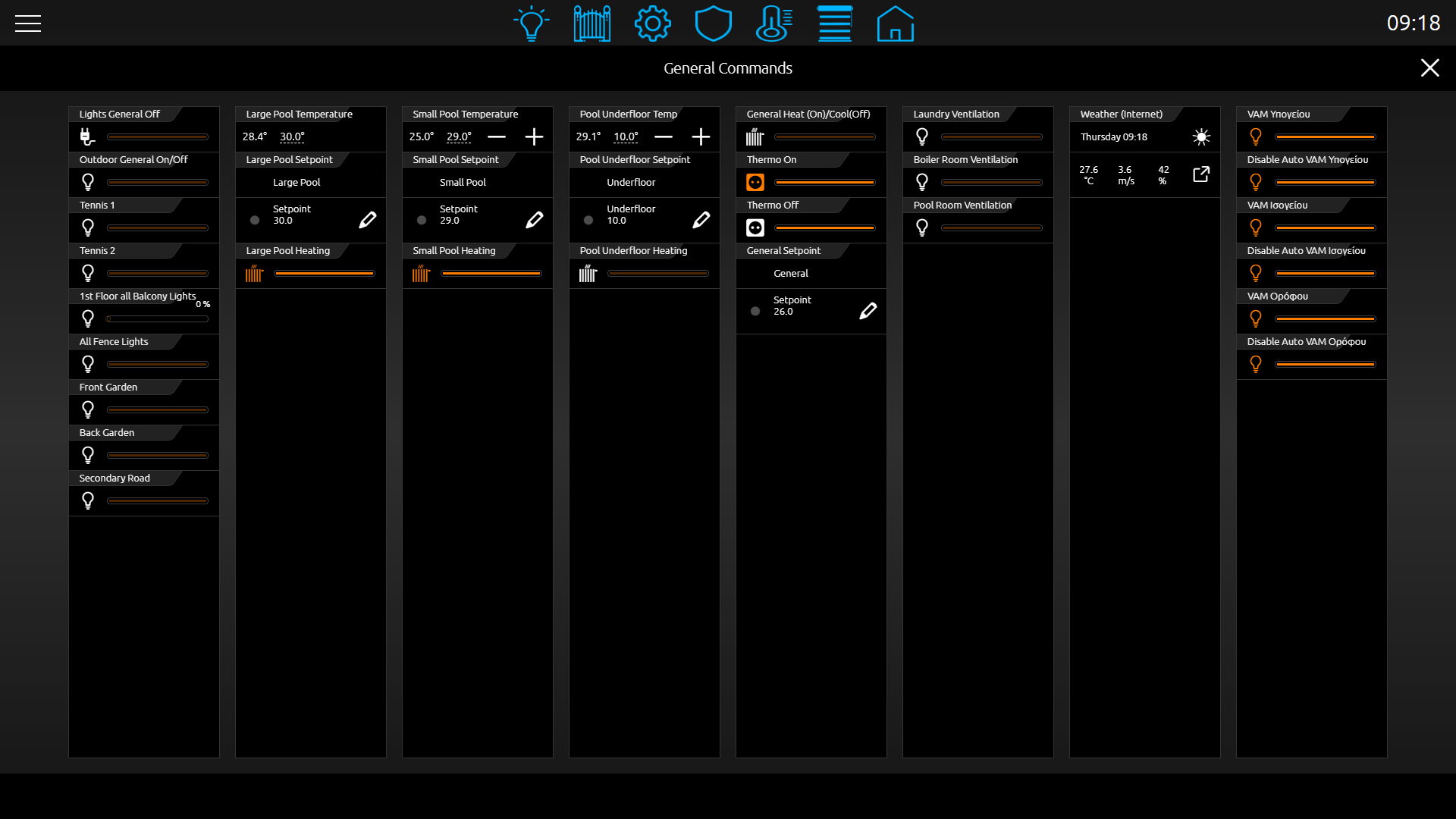

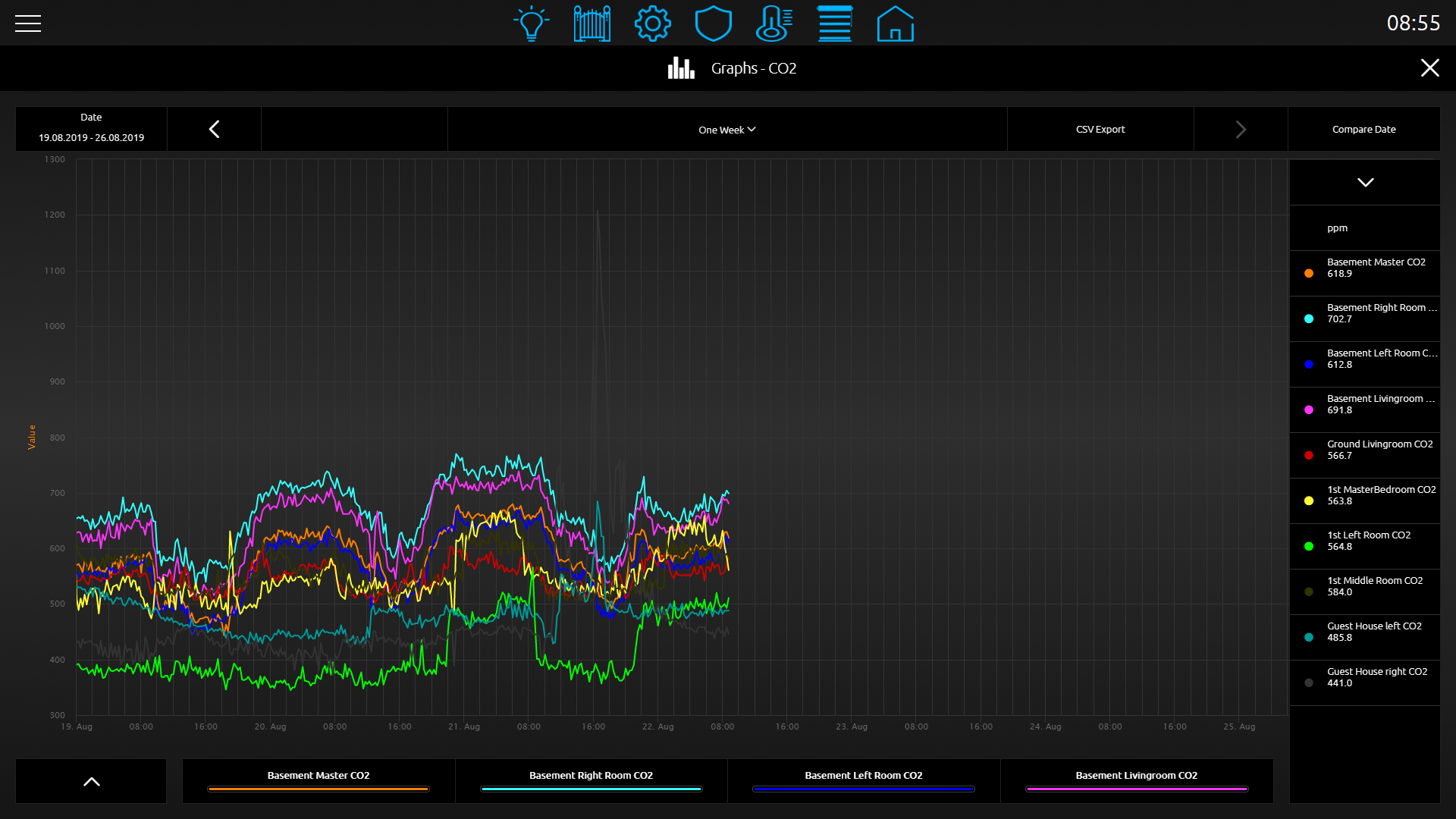

Dali, DMX, RGBW, 1-10V & phase cut dimmers control the lighting. KNX-Modbus handles VRV/VAM/Heat pumps. KNX-Bacnet interconnects with the BMS system & supervises all the water pumps for water abstraction. Temperature/Humidity/CO2 Sensors accomplish the perfect environment regulating underfloor heating/cooling, VRV and VAM. Temperature/COP/PH sensors regulate pool heating & water quality. Water sensors protect from water leakage. Voltage & Energy meters measure energy consumption. Weather station controls lighting, scenes & shutters. KNX switches & Touchscreens supervise and control all automation functions, including Alarm system, Intercom, CCTV & music.
Contact Information
| Company Name | AUTOMATIONSYSTEMS - TRIANTAFILLIDIS |
| Company Email | info@automationsystems.gr |
| Company Website | http://www.automationsystems.gr/ |
| Contact Name | MOUSTAKALIS KLEARCHOS |
| Contact Function | System Integrator |
