Andy Ellis
looks at the variables involved in designing a heating system using weather
compensation for maximum comfort and efficiency.
It seems that the weather is becoming less predictable. In recent years, the number of days at sub-zero temperatures which have occurred annually within the UK, for example, has fluctuated greatly. In 2020, the number of days per month with air frost peaked in March, at 7.9 days. In 2021, it peaked in January, with 18.5 days (source: Statista). A frost day is any day with a minimum temperature below zero.
In
our search for efficiency and comfort, we need to mitigate these fluctuations,
and we can do so using weather compensation.
What's
the difference between weather compensation and simply relying on a thermostat?
Normally,
the heat output of a heat source is reduced in summer months and increased as
the weather gets colder. During periods of cold weather there are greater
losses throughout the building and thus a greater amount of energy is required
in order to maintain the set point temperature inside.
When
using weather compensation, we are primarily concerned with customer comfort by
maintaining the internal temperature of the house as close as possible to the
set point for extended periods of time. And as a consequence of compensating,
most systems will be more efficient.
Room (or load) compensation using PI (proportional integral) or PWM
(pulse width modulation) methods and individual room thermostats, is an
excellent way of maintaining even set point temperatures, but it tends to be
reactive and is not influenced by outside temperatures.
Weather
compensation on the other hand, is proactive. It takes outside temperature
readings and adjusts the boiler output before the house has had a chance to
cool down. Of course the subject is not a simple
one and involves a number of variables, some of which, in reality, are hard to
determine. These include:
• Rate of heat loss out of property – how
well is the building is insulated?
• Emitters - is the heat being emitted
into the property quickly (radiators) or slowly (underfloor)?
• Air tightness and air flow - how air
tight is the property and how well air is moved around? Properties with
mechanical ventilation and heat recovery (MVHR) will have a far more even heat
distribution.
• Temperature difference - in the depths
of winter when temperatures go below freezing, the temperature difference between
inside and outside will be greatest and thus more energy is required to heat
the building.
• Usage pattern - is the property used on a random basis? If so, heating from a low extreme to a high temperature is far less preferential than maintaining a constant temperature.

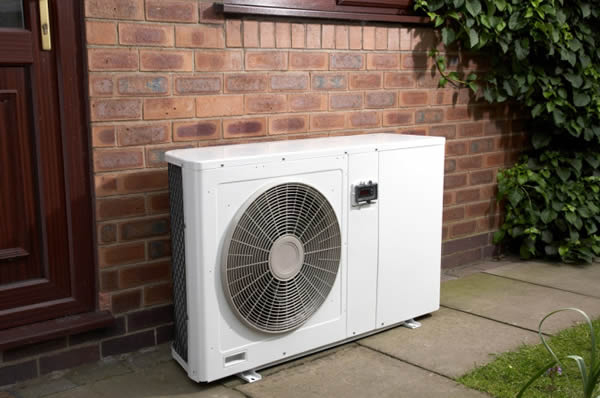

• Type of heat source – is
it a gas boiler, oil boiler or heat pump? The latter will be more efficient at
different loads and, in the case of air source heat pumps (ASHPs), at different
external air temperatures.
• Timers active – a hot
water timer or heating timer (including mode changes) will affect when the
boiler is active; in the case of an ASHP, maximum efficiency may be achieved
during the day when outside air temperatures are warmer.
• Matching temperature
demands and achieving maximum efficiency - this could be a case of juggling hot
water demand at 60oC, followed by, say, underfloor heating demand at
45oC.
• Heating system design -
low loss header, thermal store, pump speeds, mixer valves - all will make a
difference to how the system can operate.
As
a rough guide, changing thermostatic controls from on/off to PI could result in
an increase in efficiency between 5-15%.
By adding weather compensation, further increases can be achieved.
Implementing
weather compensation using KNX
The use of
KNX to control weather compensation requires careful consideration at the
design stage. For smaller installations, implementing the boiler manufacturer's
weather compensation functions may be the simplest and most cost-effective
solution.
A KNX/OpenTherm
interface will give installers access to outside temperature measurement via
the boiler and provide feedback of boiler flow temperatures as well as
providing an overall means of managed call for heat, for both heating and hot
water. As the heating and hot water system grows in size and complexity, then
the versatility of KNX comes into its own. Any number of different input and
output devices can be designed into the system along with the ability to
provide monitoring for problem-solving and longer-term maintenance and
diagnostics.

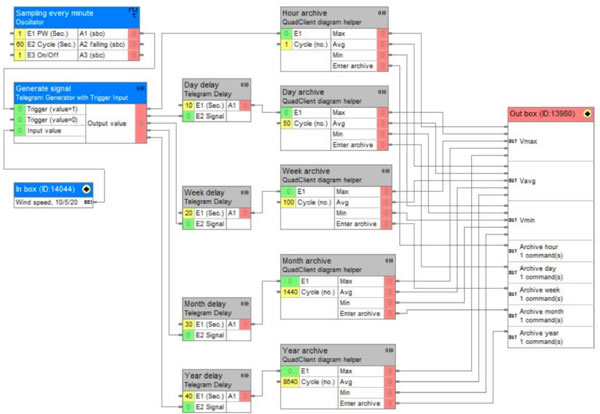

Heating design
will require elements of logic, and many KNX devices now come with basic logic
functions. However, in larger, more sophisticated systems, where flow
temperatures can be manipulated directly, then Proportional Integrated
Derivative (PID) logic functions may be required and thus a separate dedicated
logic controller too.
Like all
projects you will need to analyse the returns. In the case of weather
compensation, this is not easy, as you are dealing with so many unknowns.
However a simple payback calculation should quickly give you a reference as to
whether weather compensation is worthwhile in your given situation.
Conclusion
In a
well-designed system, weather compensation will ensure that the property
remains at a comfortable temperature throughout the winter and will deliver
more efficient operation. However, given the number of variables, each
installation will be bespoke. The challenge lies with quantifying the gains in
efficiency over and above a ‘non-compensated’ system.
One of the
added advantages of using KNX is that you will have access to all the
information on the KNX bus. By implementing monitoring and graphing software,
longer term trends and problems can be identified. Ultimately, you should think carefully before implementing weather compensation,
and be even more cautious about what you can claim to achieve.
