APP.CENISIO 10

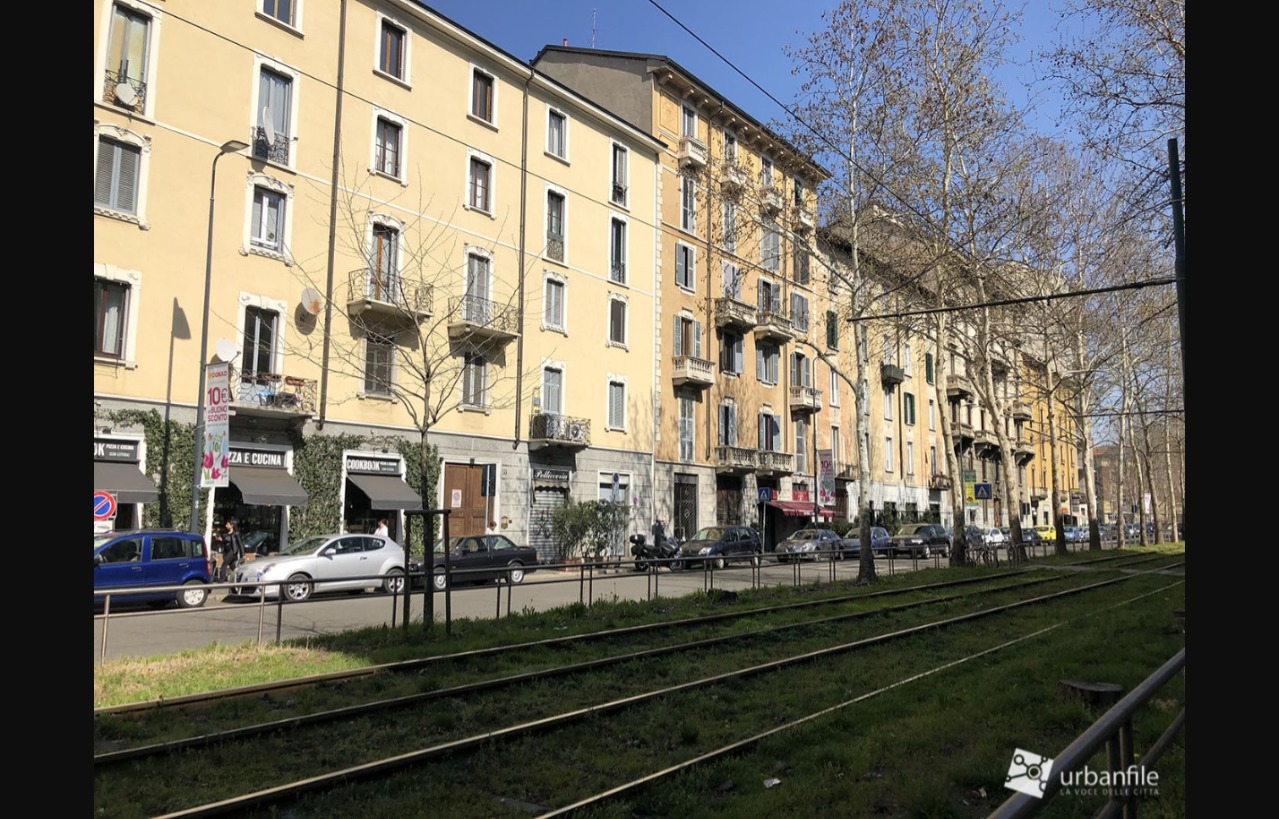

Apartment in MILANO
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Apartment |
| Project Type | Residential |
| Year of Completion | 2026 |
| Project Size | 101 – 500 |
| Number of KNX Devices Used | 26 – 100 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 101 – 250 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes
- Heating, Ventilation & Air conditioning (HVAC)
- Security and Safety - Supervision (e.g. Cameras)
- Operation and Visualisation - Web Servers, Tablets and smart phones
- Energy Management/Smart Metering - Metering, Visualisation, Current Detection
- Other - Home Appliances Control
- Automation and Remote Access - Logical Functions, System Supervision
- Blind and Shutter Control - Individual Control, Group & Central Control
Customers Description

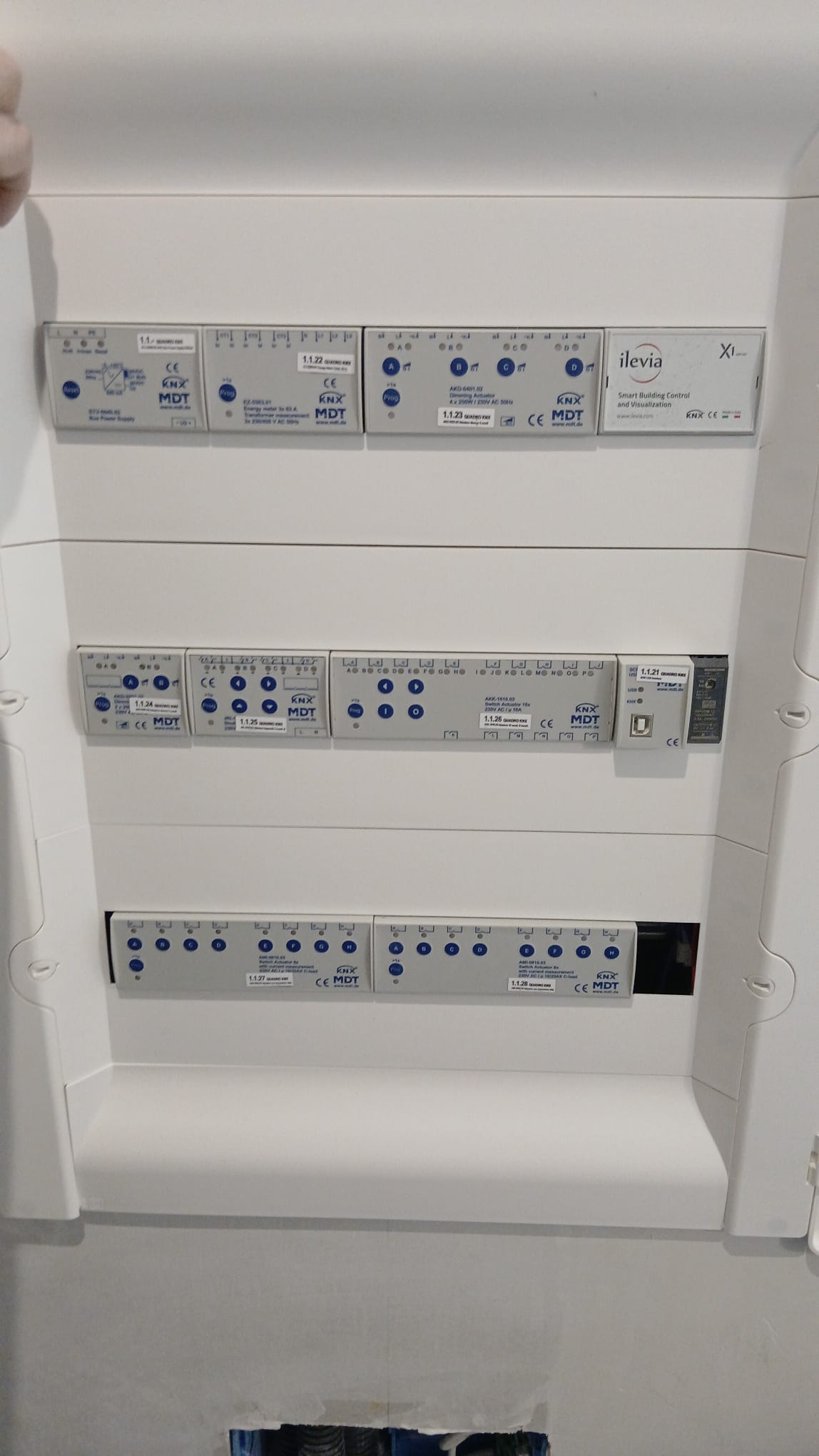

KNX system with Bticino Living Now 4- and 6-channel controllers, featuring LEDs that indicate changes in the status of outputs and scenarios. MDT Technologies DIN-rail KNX devices, including a 640 mA power supply, 1 2-channel dimmer module and 1 4-channel dimmer module (both phase-cut), electrical line reader module, 4-channel module for blinds, 16-channel on/off module for lights, 2 modules (8 channels each) for on/off control and parameter reading for each output, and an Ilevia Prof supervisor for remote monitoring of the system.
