Beijing Daxing airport intelligent lighting control system
City project in Beijing
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | City project |
| Project Type | Other |
| Year of Completion | 2019 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 1.000+ |
| KNX Transmission Media | Twisted pair |
| Man Hours | 251 – 500 |
| Man Power | 6 – 10 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control
- Security and Safety - Emergency Lighting
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection
- Other
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision
- Blind and Shutter Control
Customers Description

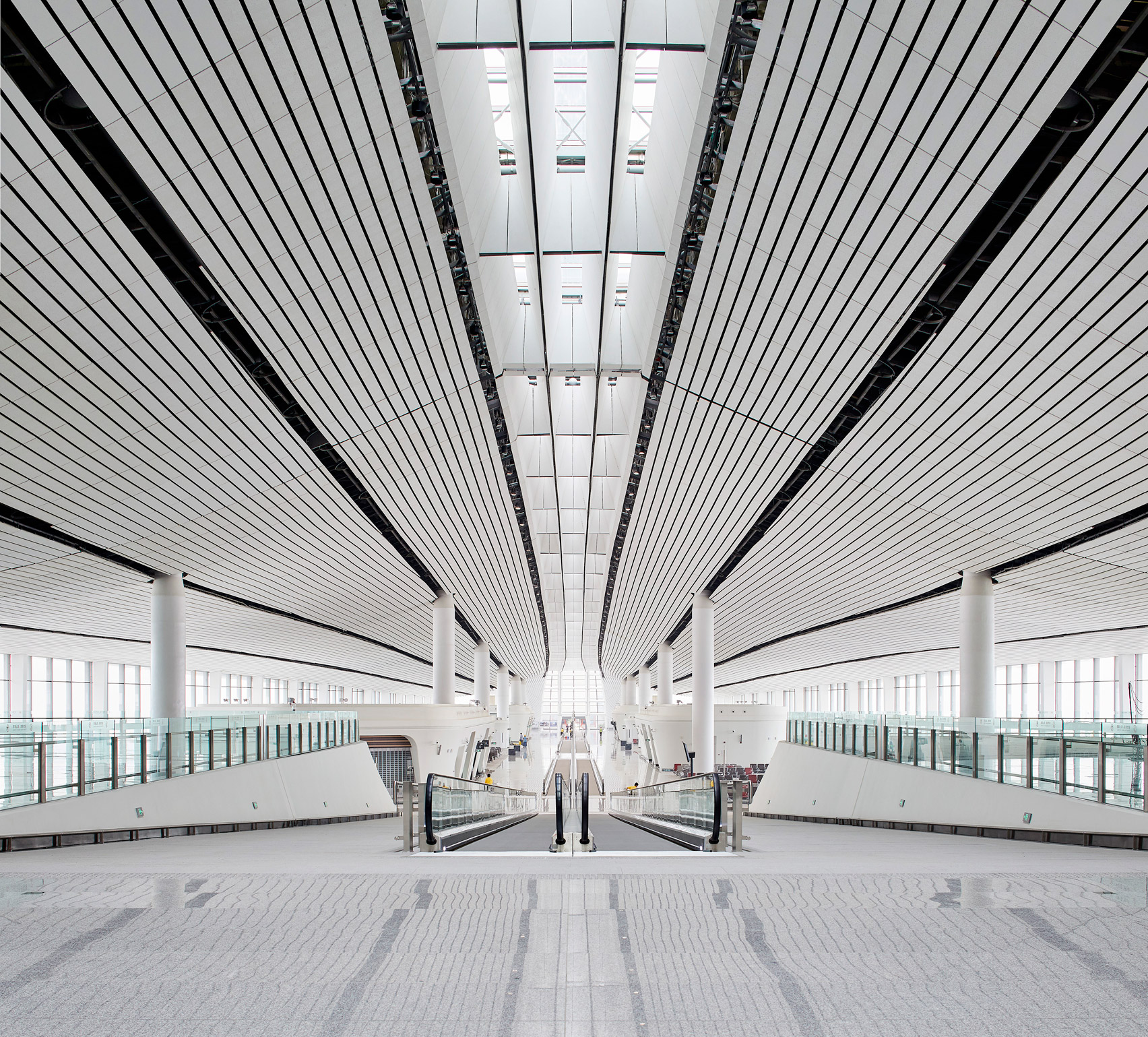

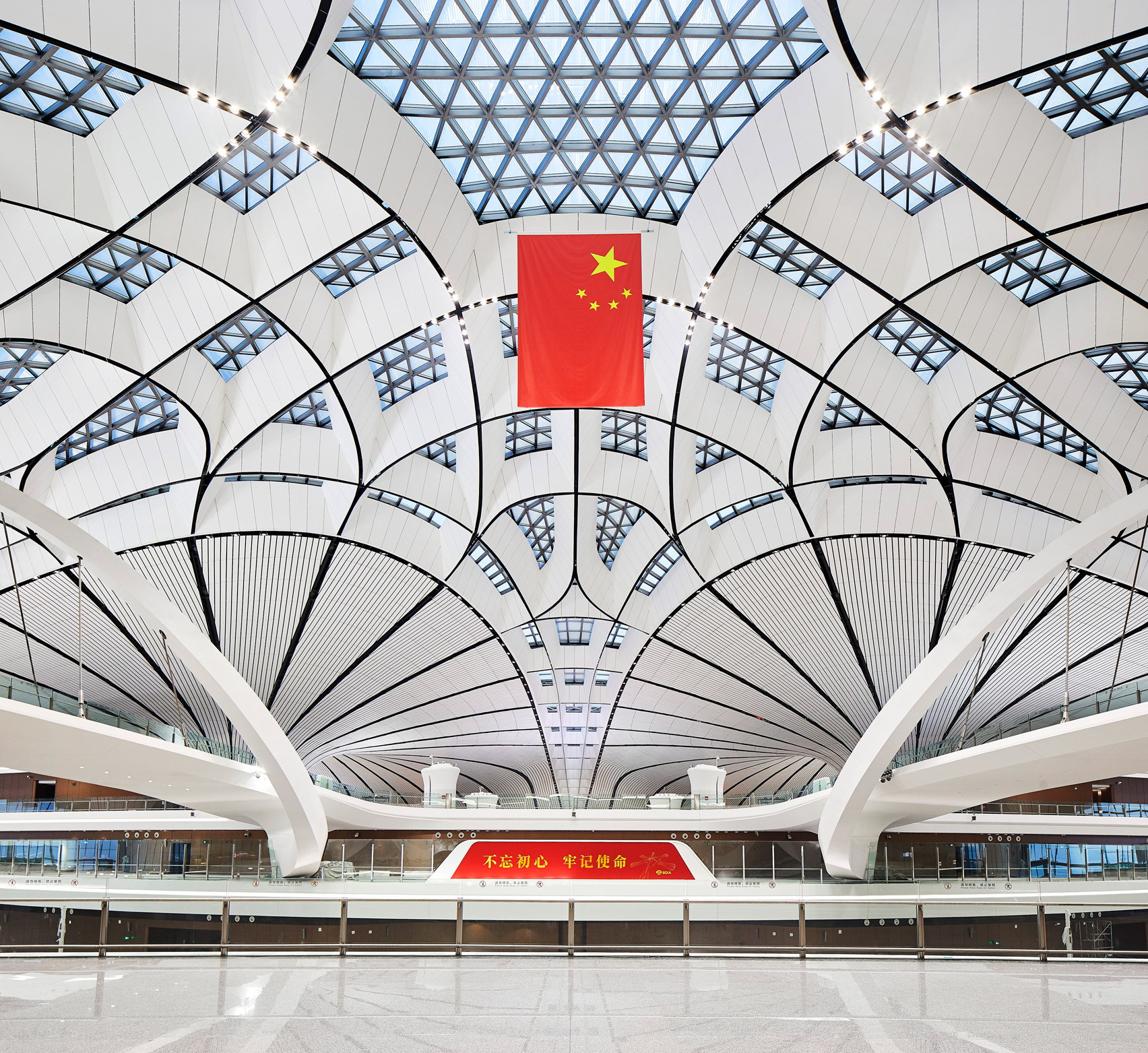

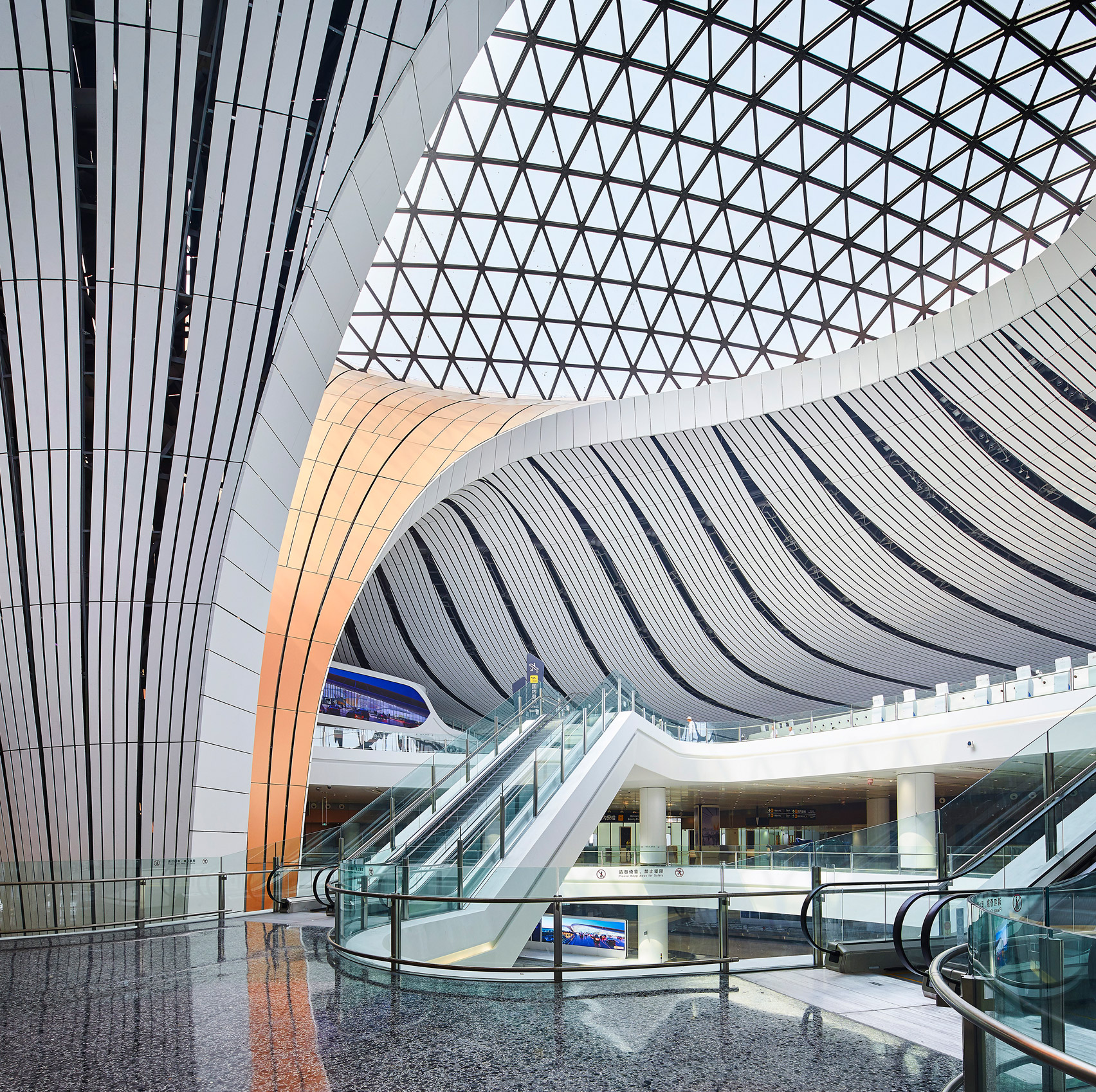

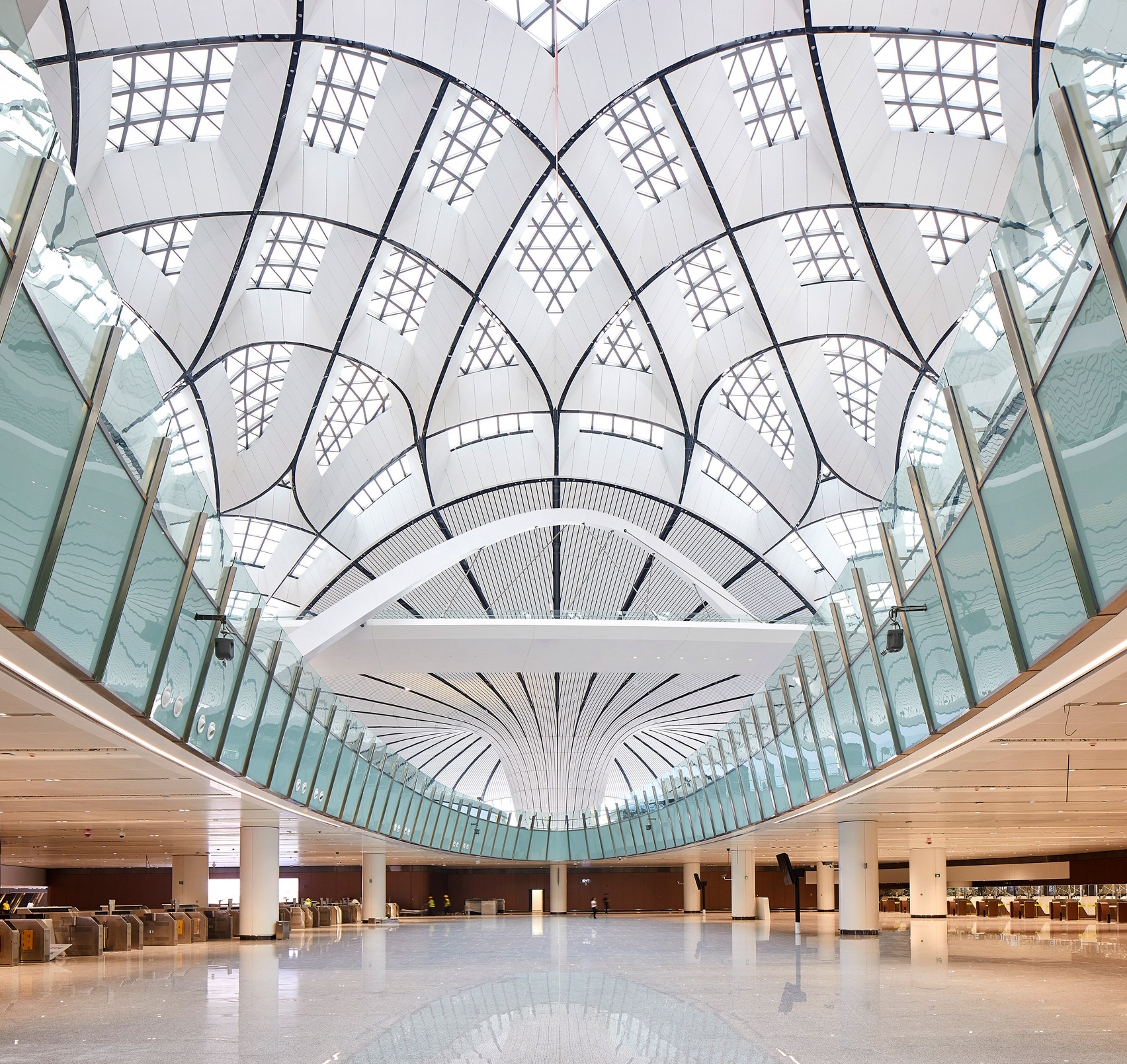

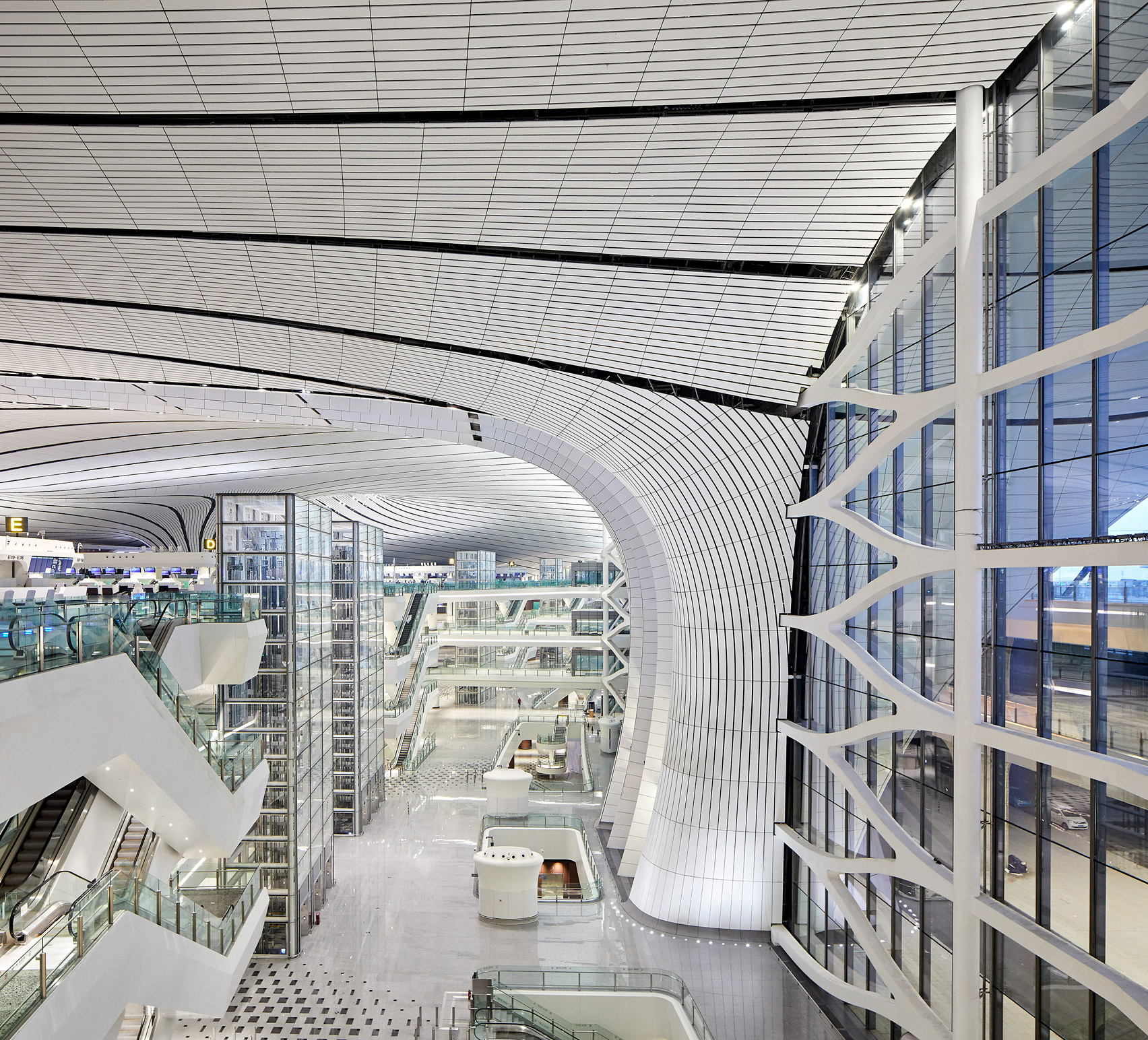

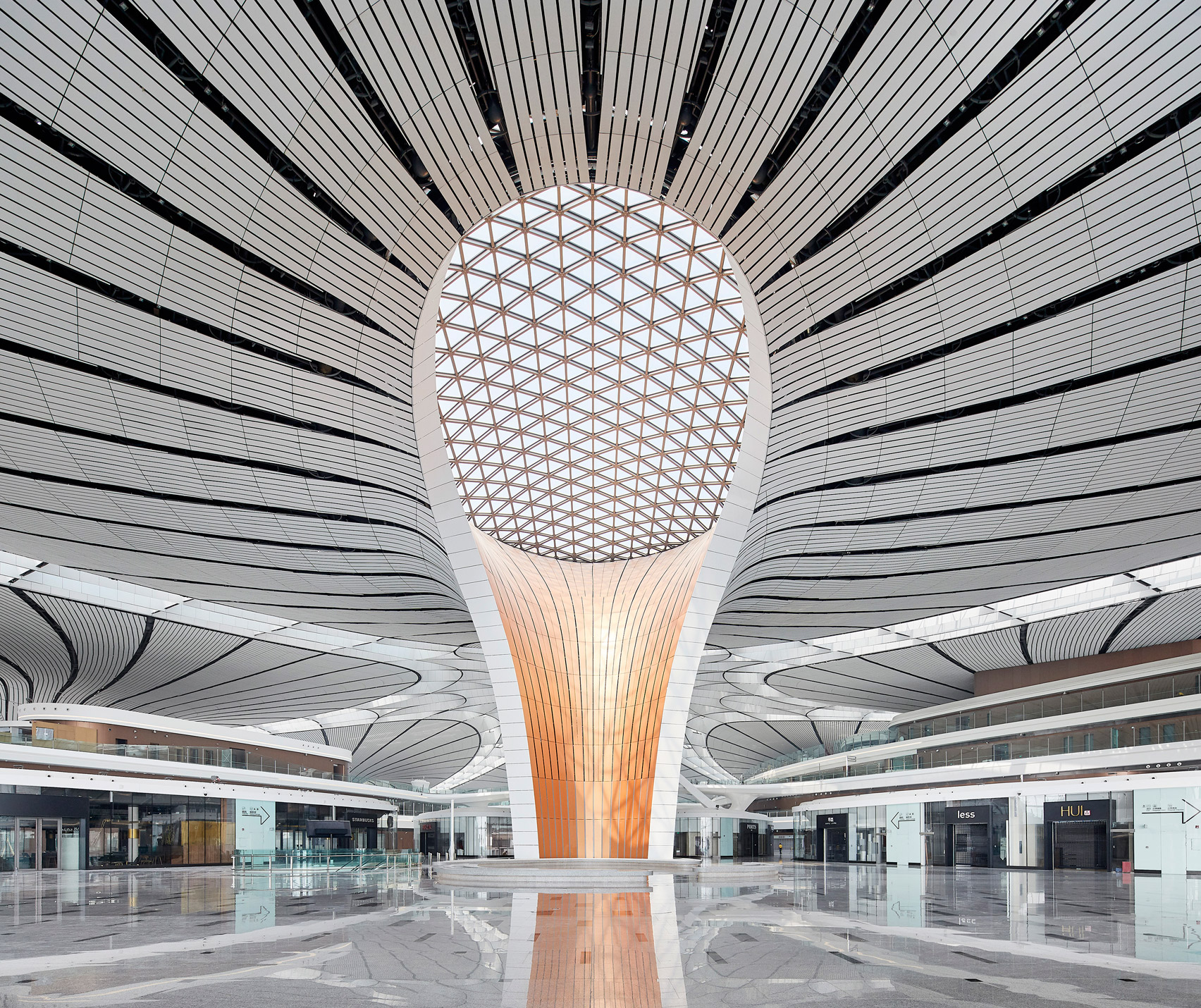

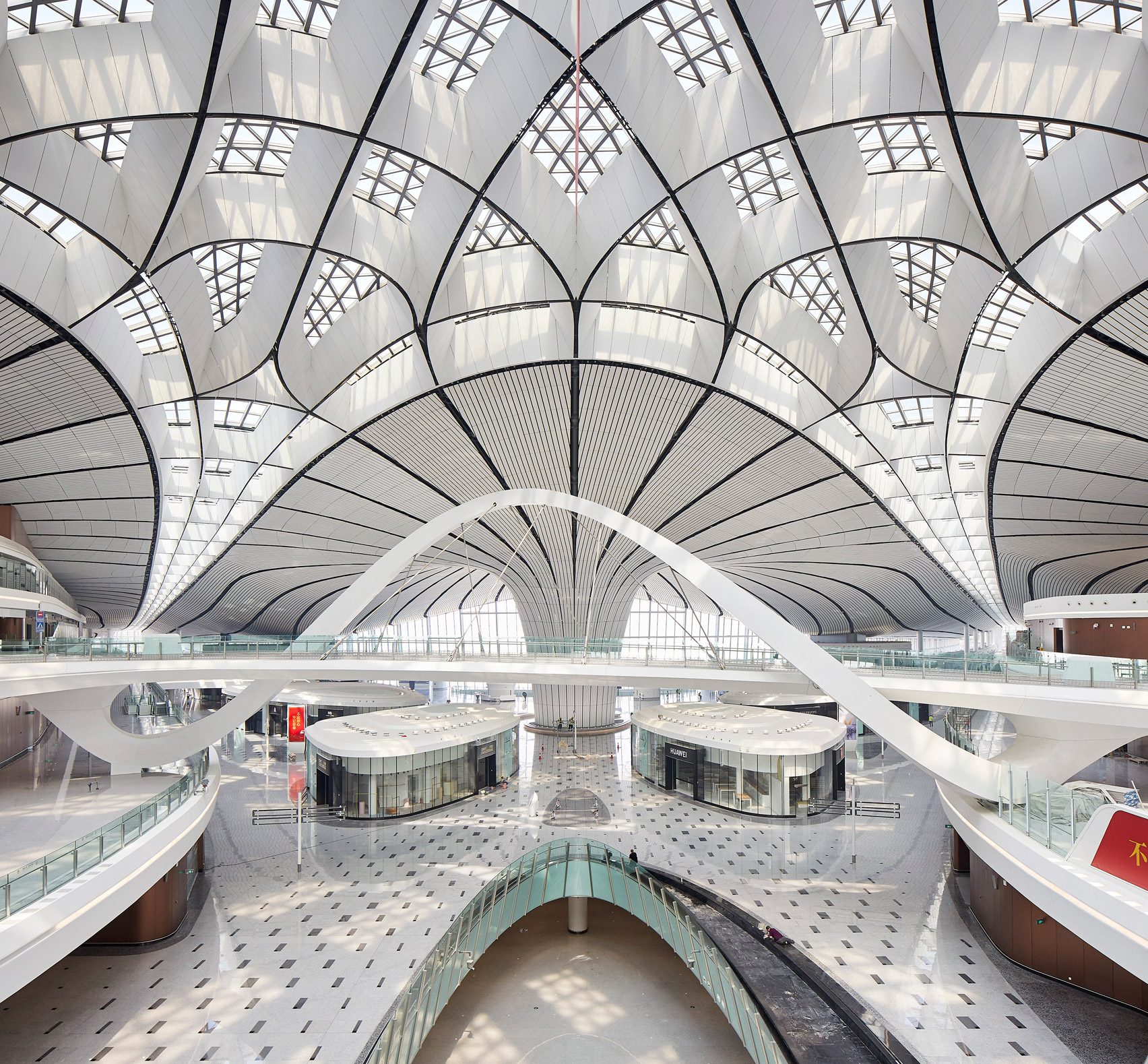

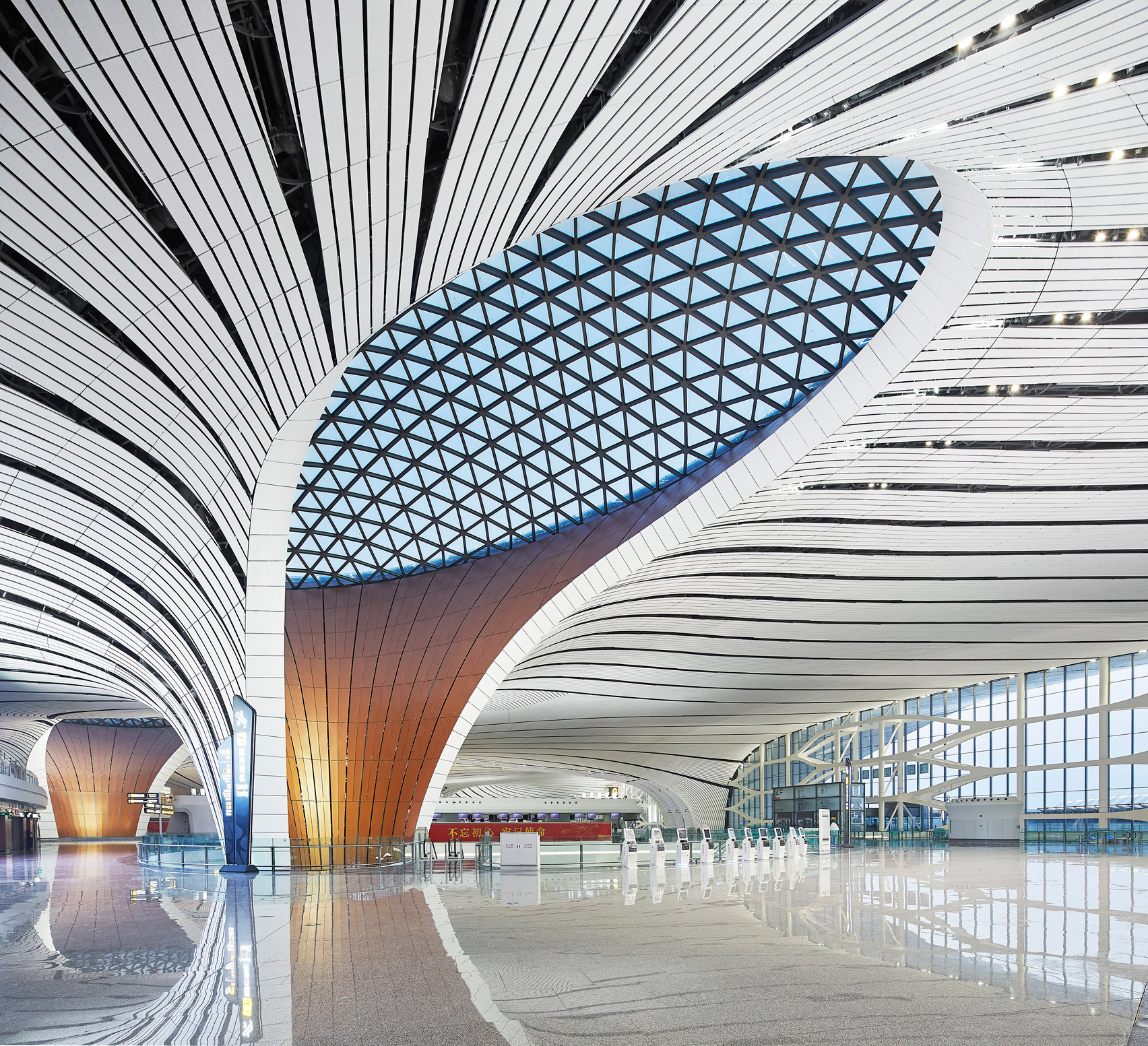

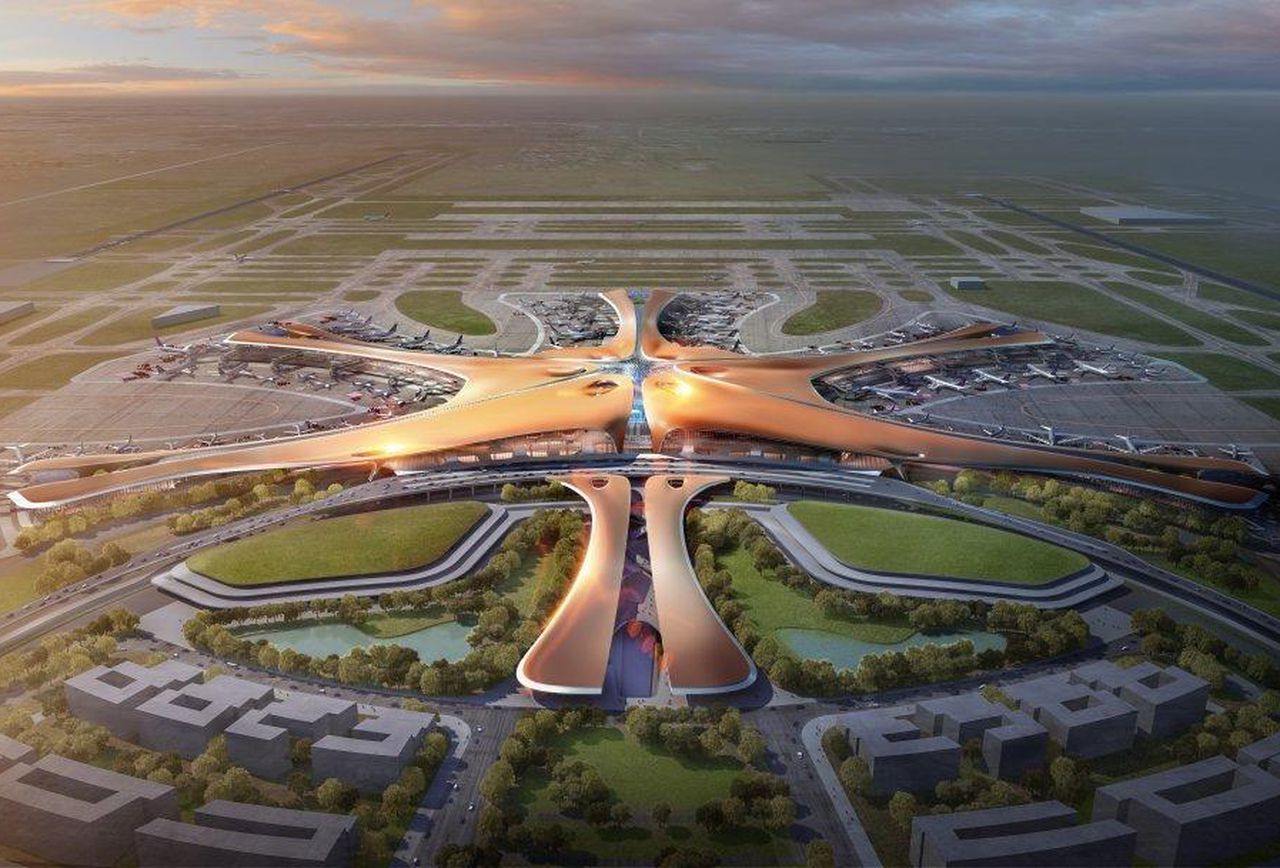

Beijing Daxing International Airport designed by the late architect Zaha Hadid and her Chinese partners.The terminal building is the largest single-structure airport terminal in the world, with an area of more than 1,000,000 ㎡，it took only five years to build, at a cost of 120 billion yuan。It was completed on June 30, 2019. The opening ceremony for the airport was held on September 25, 2019,with the airport opened to the public on September 26, 2019.
Beijing Daxing International Airport intelligent lighting control system is a control system designed according to "demand", and also a lighting control system that can be "intelligent growth and expansion".
10000 +lighting loop switch control, 80000 + Dali single address dimming control, 7000 + KNX sensor, 14 visual central
