Bestandsgebäude 2005 – integriertes KNX-Modernisierungsprojekt für Energieeffizienz, Komfort und intelligente Vernetzung
Family house in Leonberg
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Family house |
| Project Type | Residential |
| Year of Completion | 2005 |
| Project Size | 101 – 500 |
| Number of KNX Devices Used | 26 – 100 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 1.001 – 2.000 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Automatic Occupancy Detection, Weather Dependent Control, Individual Room Control / Zone Control, Floor Heating Control, Boiler and burner Control
- Security and Safety - Presence Simulation

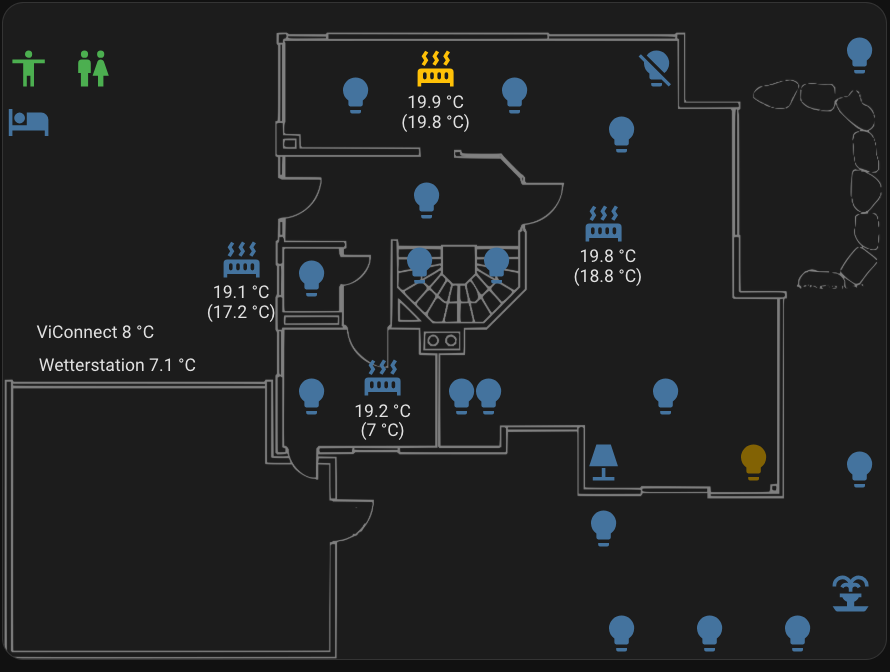

- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection, Fuel or Water tank level control, Peak Demand Monitoring, Energy Harvesting (Avoiding use of batteries), Use of Renewable Energies, Battery Storage
- Other - Audio Control, Home Appliances Control, Distributed Facilities
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming, Messaging (e.g. SMS)
- Blind and Shutter Control - Individual Control, Group & Central Control, Preset Positioning, Automatic Programs, Wind and Rain Protection
Customers Description

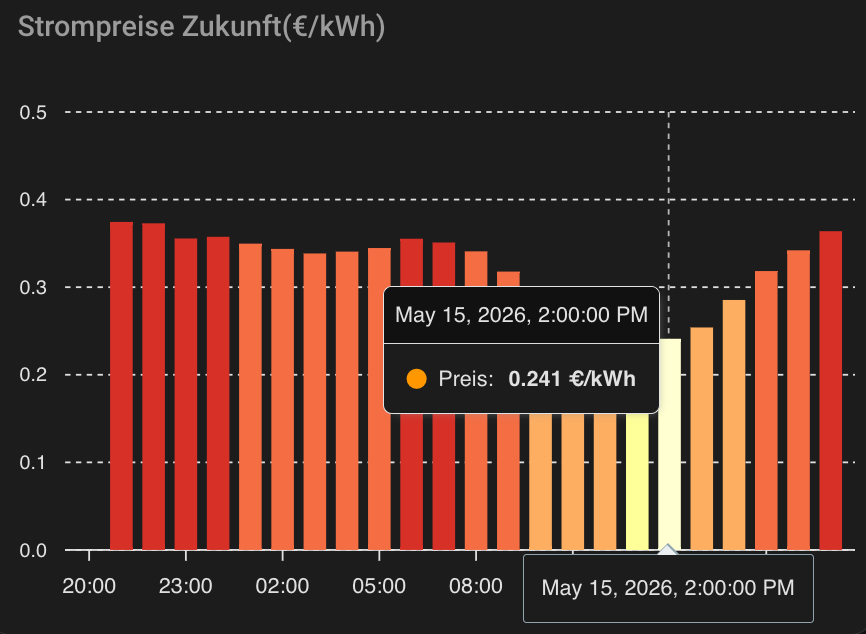

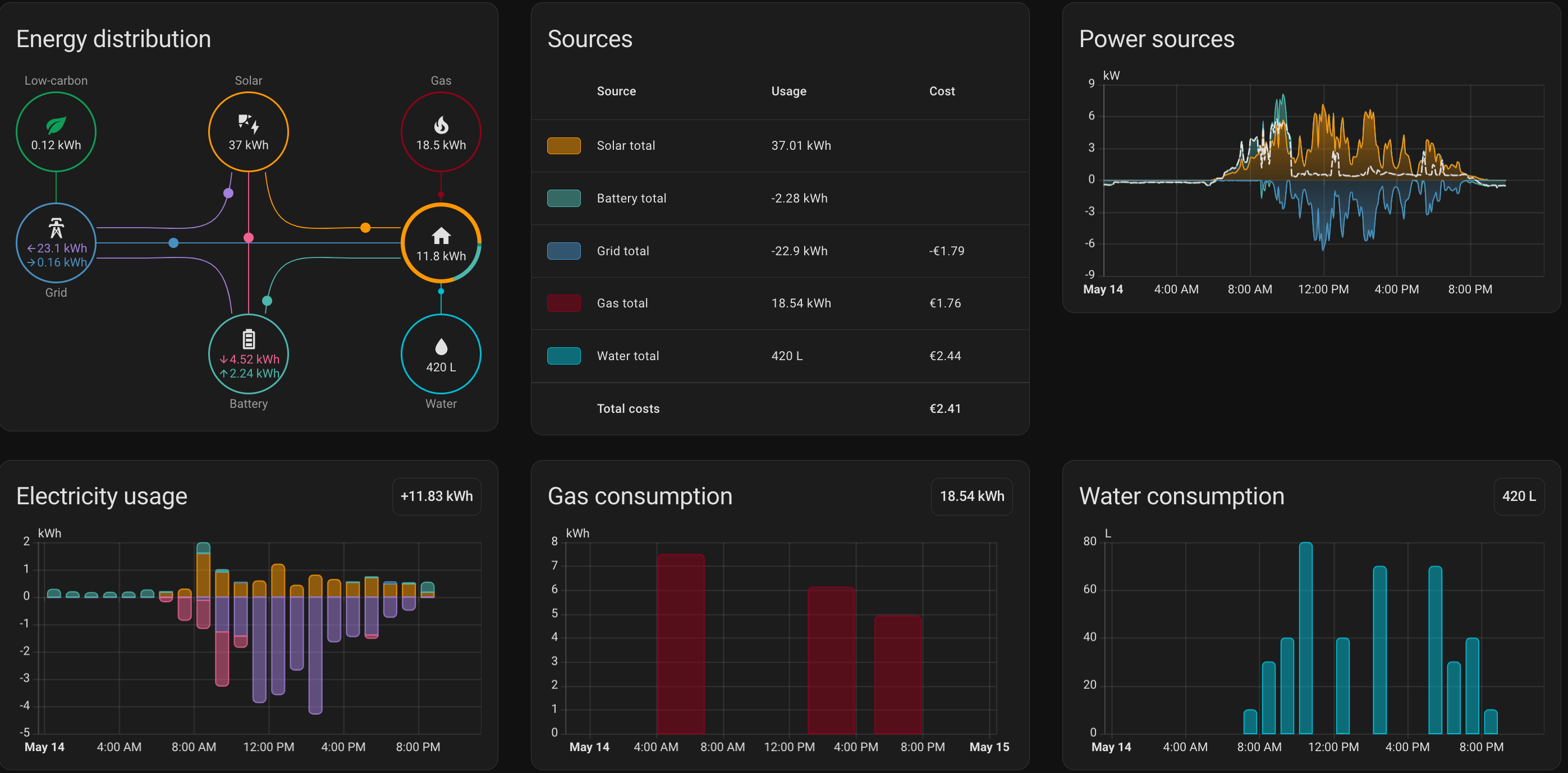

Dieses Bestandsprojekt aus dem Jahr 2005 wurde mit KNX zu einer vollständig integrierten Gebäudeautomation weiterentwickelt, die Komfort, Sicherheit und Energieeffizienz in einem zentralen System verknüpft. Auf rund 200–300 m² wurden etwa 70 KNX-Geräte von namhaften Herstellern wie Gira, Hager, ABB, MDT, Elsner und Schneider Electric/Merten über Twisted Pair, IP und RF vernetzt. Das System steuert Licht, HLK, Jalousien, Energieverbrauch, PV, Batteriespeicher, Wallbox und Haushaltsgeräte intelligent und synchronisiert. Home Assistant, dynamische Stromtarife, Solarprognose sowie Verbrauchsvisualisierung ermöglichen ein vorausschauendes Energiemanagement und erhöhte Energieeffizienz. Zusätzlich sorgen automatische Anwesenheitserkennung, Zentralfunktionen, Visualisierung, Fernzugriff und Notifications für hohen Komfort, Transparenz und Sicherheit. Damit wird das Gebäude zum intelligenten, zukunftssicheren Gesamtsystem.
