CONTROL DEL SISTEMA DE ILUMINACION CON KNX - FACULTAD DE ARQUITECTURA Y URBANISMO DE LA UNIVERSIDAD RICARDO PALMA
Educational in SANTIAGO DE SURCO / LIMA
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Educational |
| Project Type | Commercial |
| Year of Completion | 2022 |
| Project Size | 1 – 100 |
| Number of KNX Devices Used | 1 – 25 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 101 – 250 |
| Man Power | 6 – 10 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Lighting Colour Control
- Heating, Ventilation & Air conditioning (HVAC)
- Security and Safety
- Operation and Visualisation - Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering
- Other
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming
- Blind and Shutter Control
Customers Description

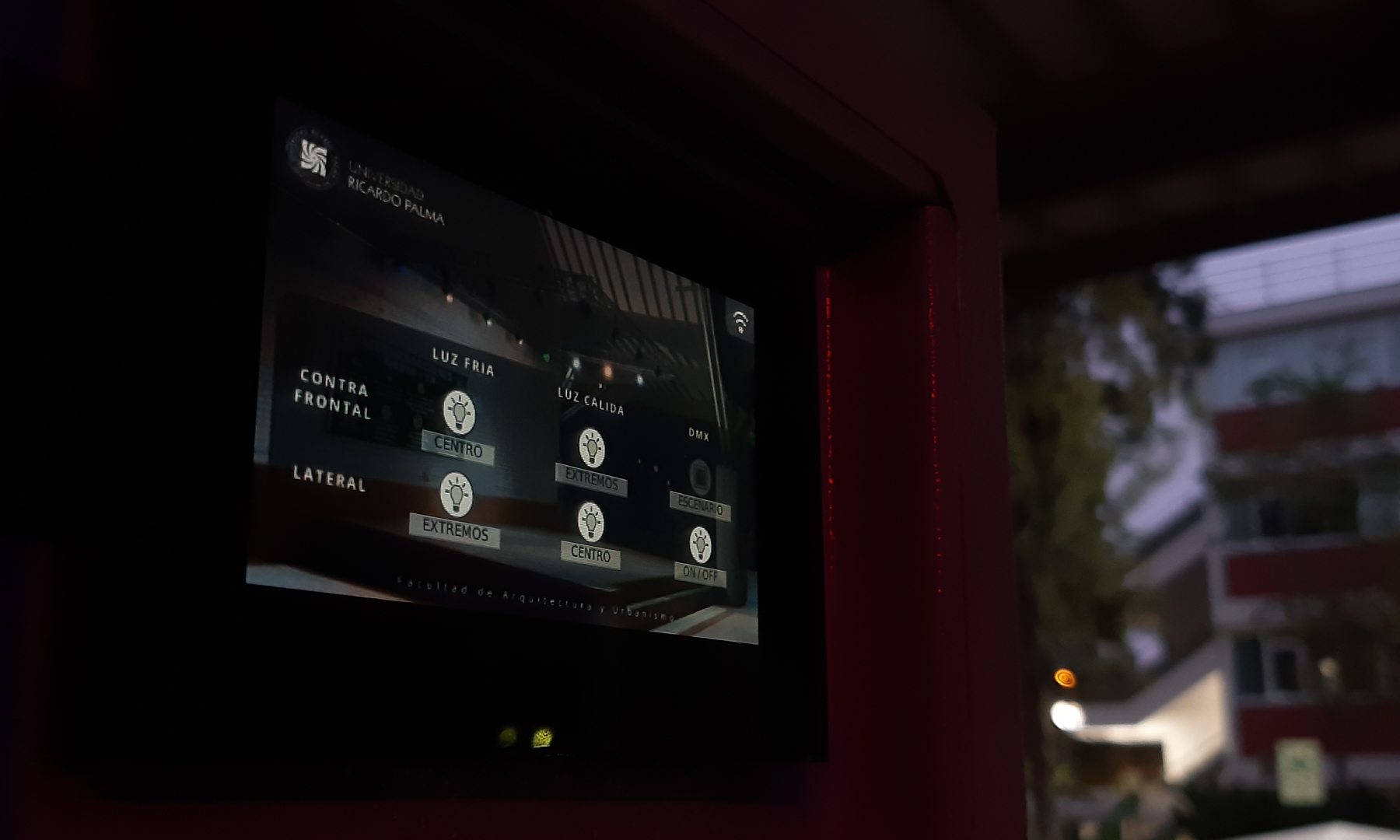

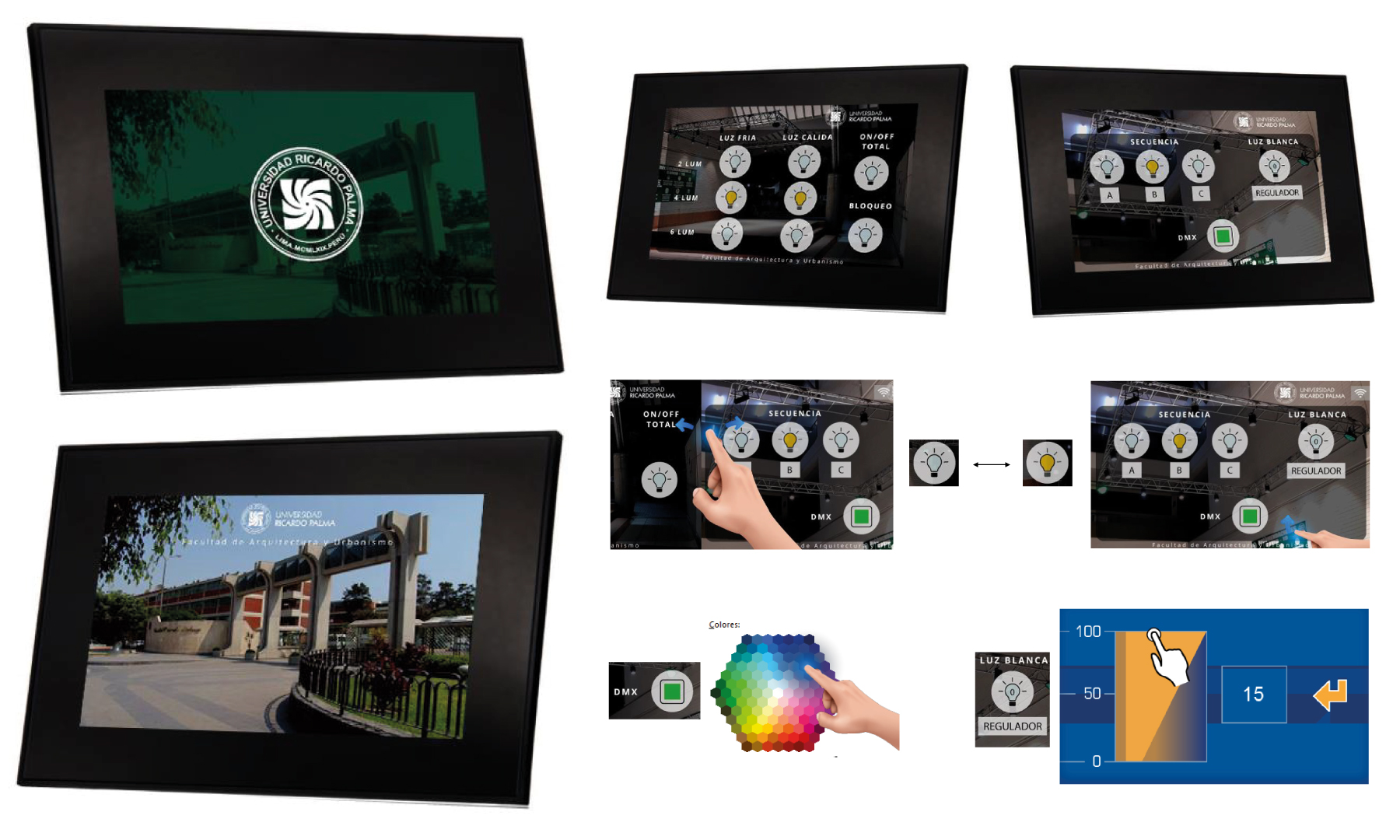

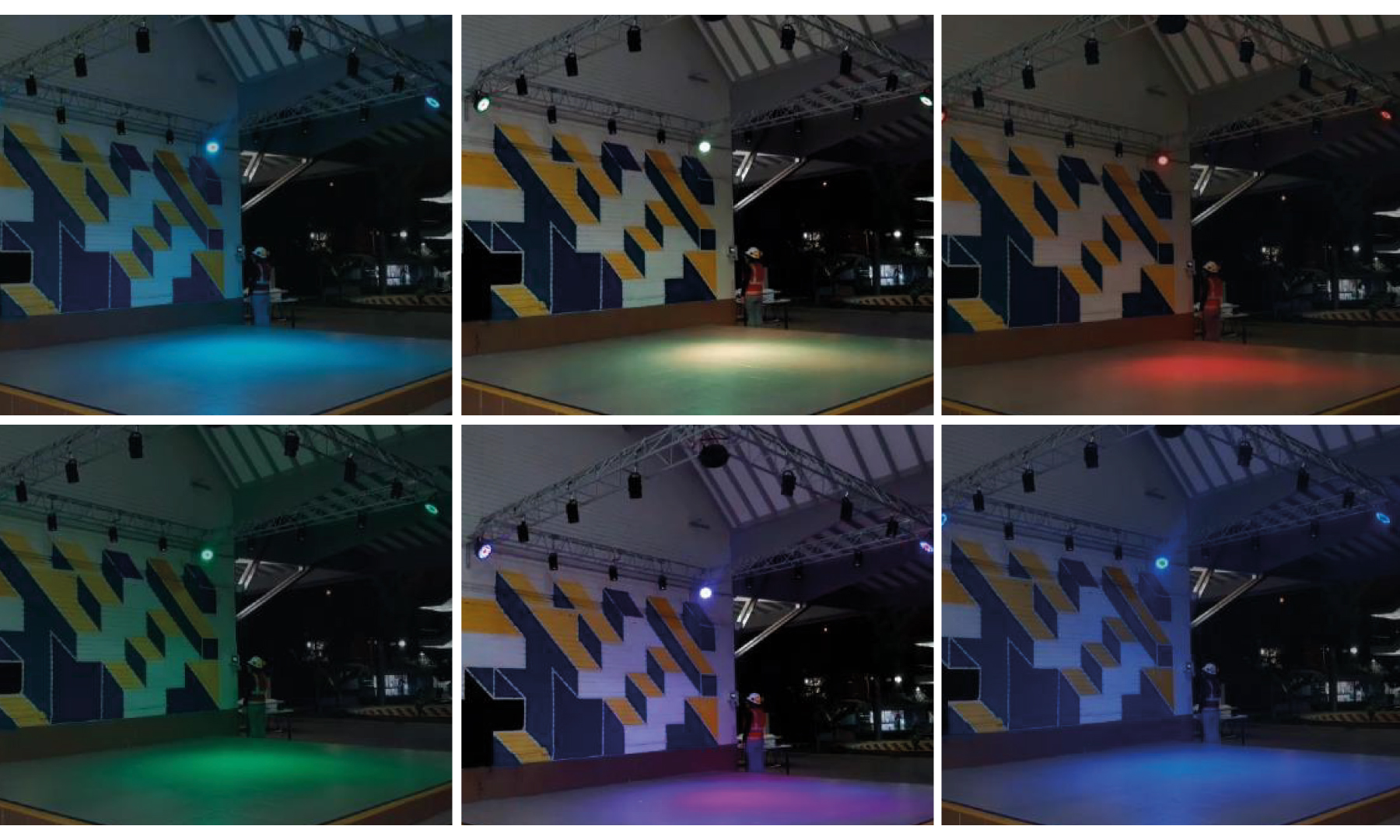

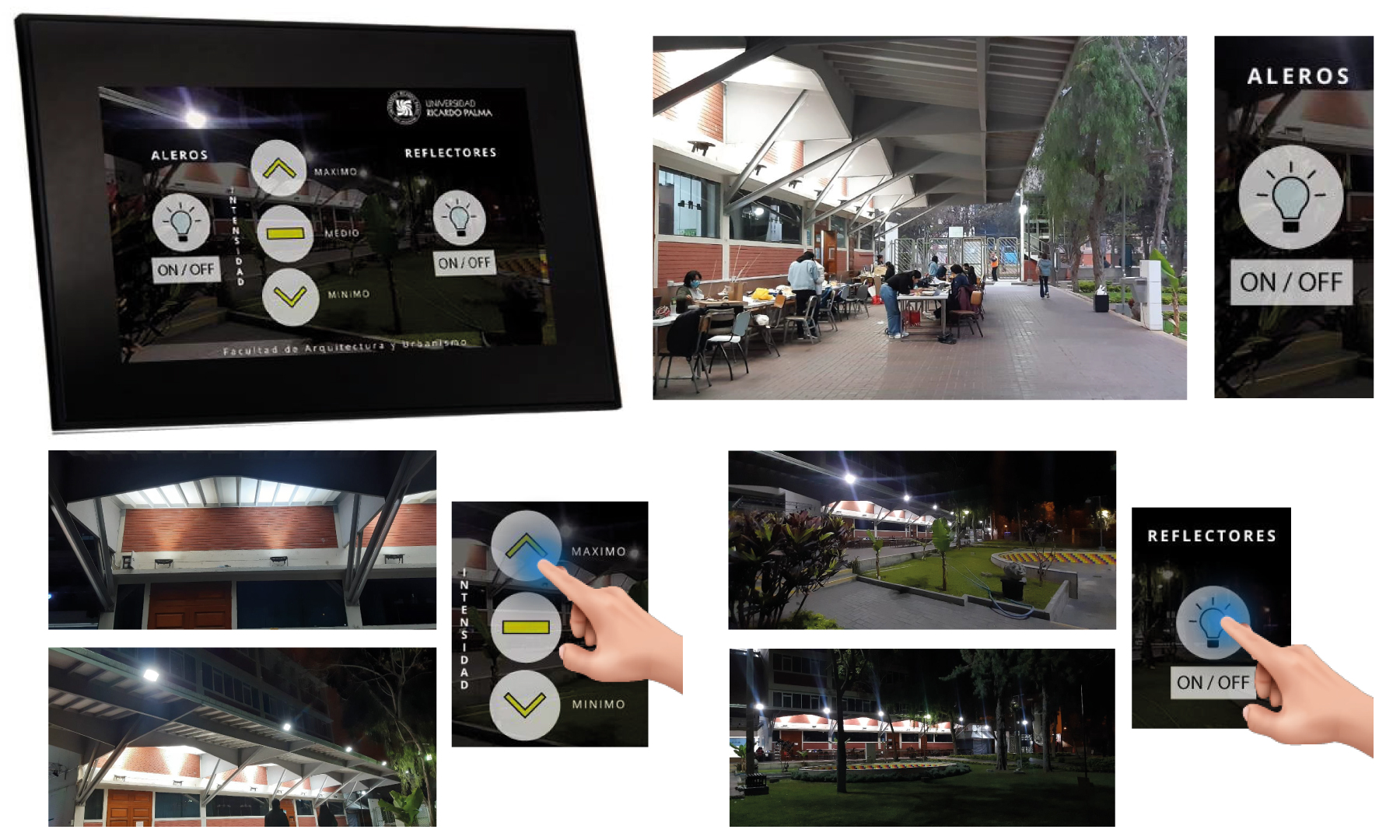

El proyecto desarrollado cuenta con un estudio luminotécnico de los ambientes involucrados en el control de iluminación, buscando así un confort visual para los estudiantes de la Facultad de Arquitectura de la Universidad Ricardo Palma. El sistema KNX permitió tener control de diversos tipos de luminarias; la mesa de trabajo cuenta con un sensor de presencia y equipos On/Off y Dimmer, que permiten un manejo dimmable por horario contemplando si el ambiente se encuentra ocupado, generando así confort y ahorro energético. El ambiente del escenario cuenta con control DMX y ON/OFF, logrando de esta forma tener un manejo de escenas acorde a las actividades recreativas realizadas en las instalaciones de la universidad. Asu vez; el control y monitoreo esta enlazado a una pantalla táctil que permite la manipulación de forma remota por parte del decano y personal autorizado de la Universidad Ricardo Palma.
Contact Information
| Company Name | INTTECIN |
| Company Email | jrumayn@inttecin.com |
| Company Website | https://inttecin.com/ |
| Contact Name | JONATHAN RUMAY NARREA |
| Contact Function | System Integrator |
