ENERCO BUILDING
Office building in PRISHTINA
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Office building |
| Project Type | Commercial |
| Year of Completion | 2022 |
| Project Size | 1.001 – 5.000 |
| Number of KNX Devices Used | 101 – 300 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 101 – 250 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Timed Control, Automatic Occupancy Detection, Constant Light Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Automatic Occupancy Detection, Individual Room Control / Zone Control
- Security and Safety - Presence Simulation, Interaction with HVAC/Lighting
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering - Visualisation
- Other
- Automation and Remote Access - System Supervision, Remote Programming
- Blind and Shutter Control - Individual Control, Group & Central Control
Customers Description

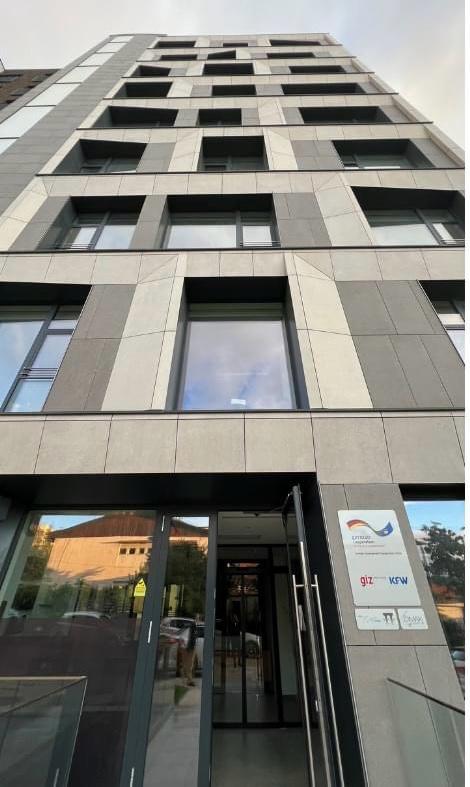

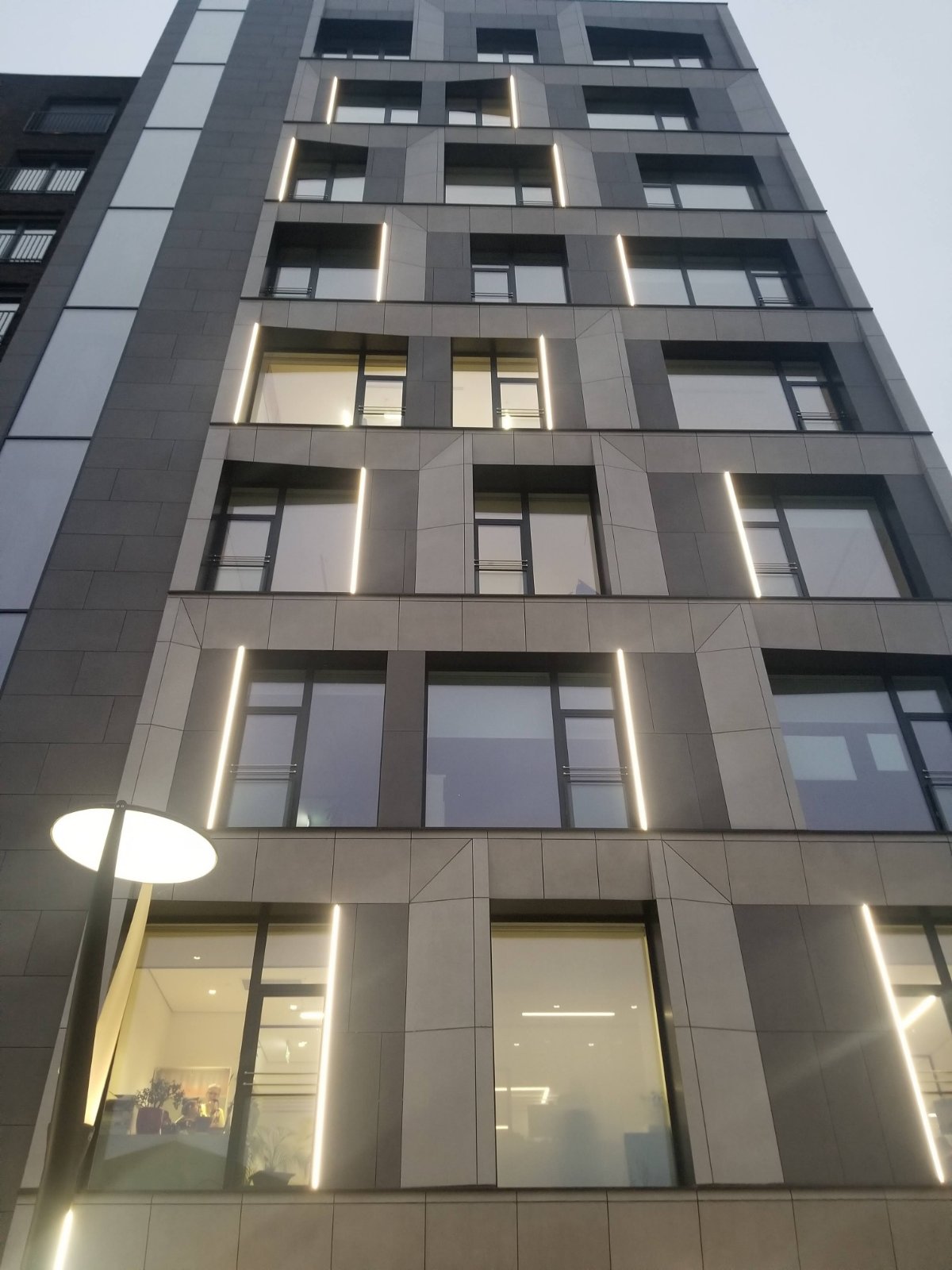

This building is used as HQ of an International organization.
Nearly 80 offices equipped with 600 DALI dimmable lighting fittings. About 80 motorized curtains, and same number of fancoil units.
Presence detectors with 4 internal sensors are used to save energy, using Constant light control function for dimming, switching of fancoil units when no persons inside.
In addition magnetic contacts on the balcony doors are used in order to switch of the heating/cooling when the door is open.

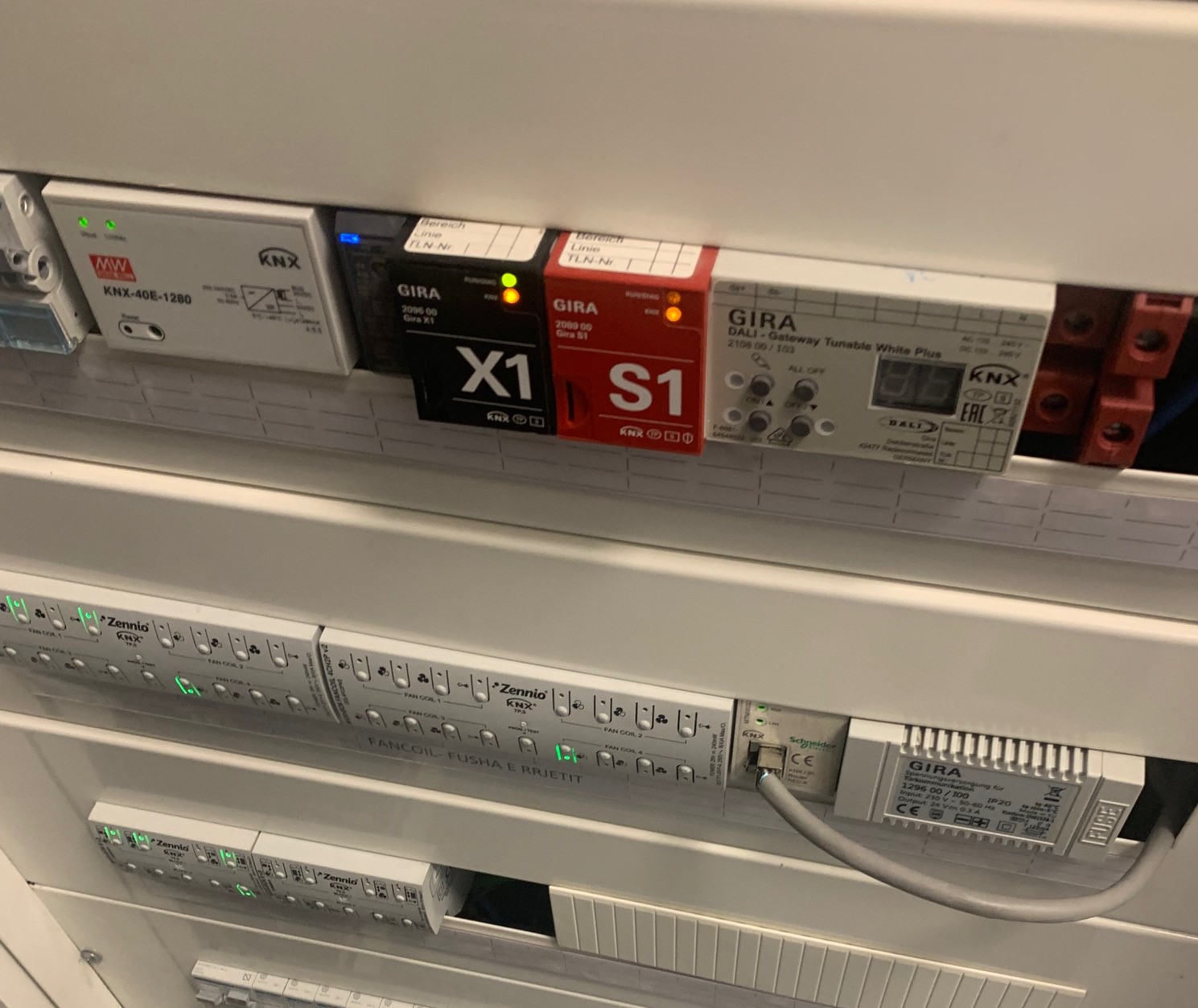

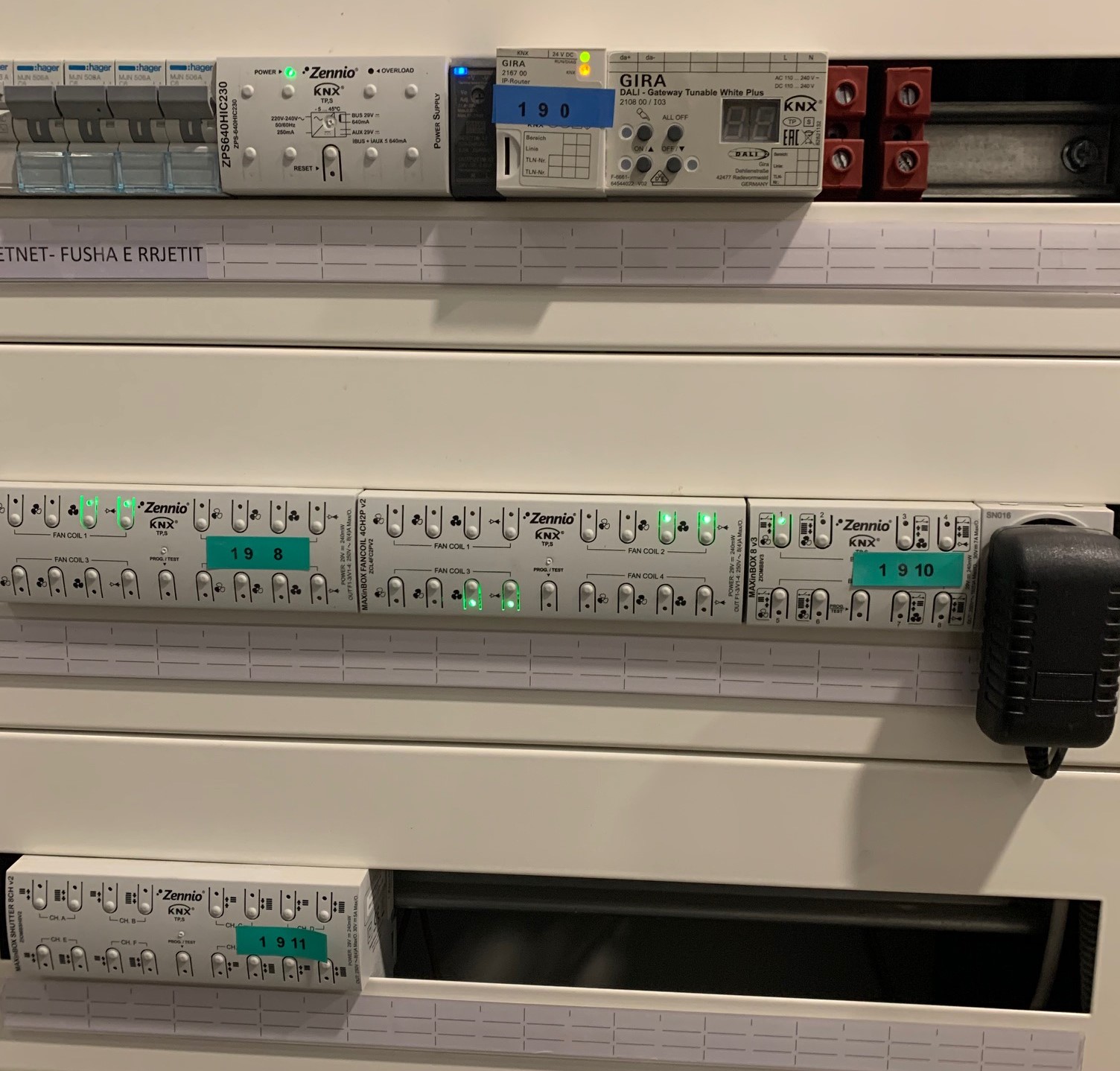

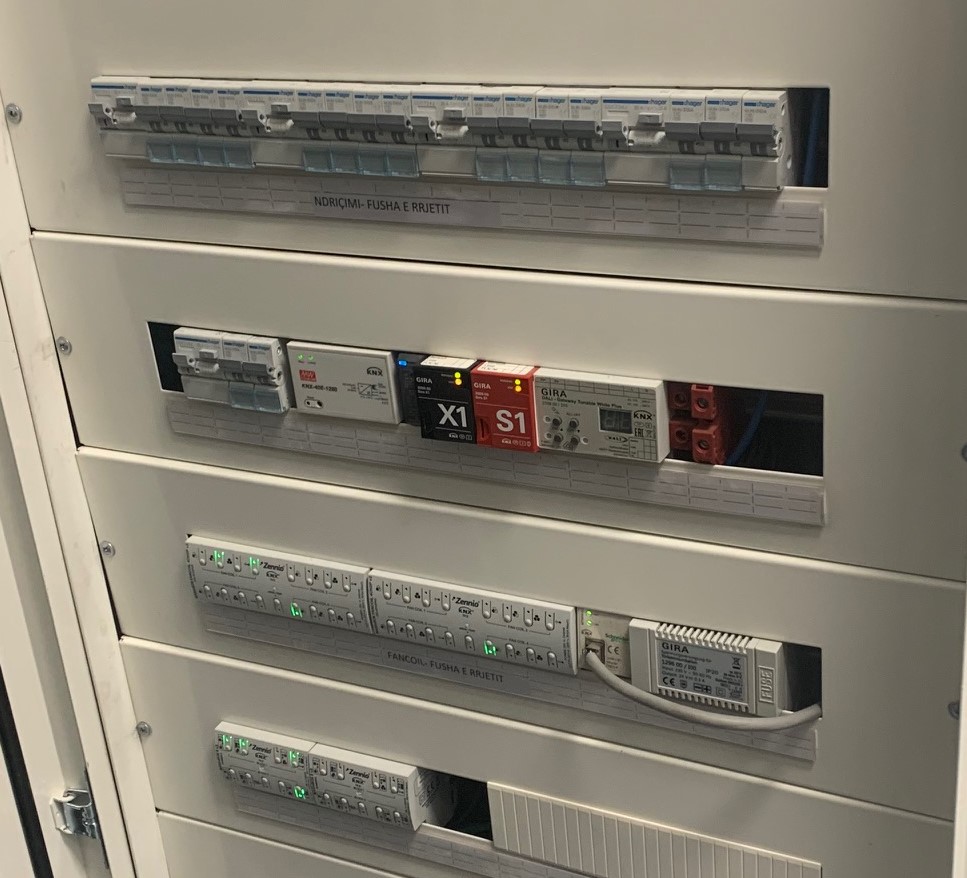

The brands fof the KNX devices are:
For all actuators Zennio is used,

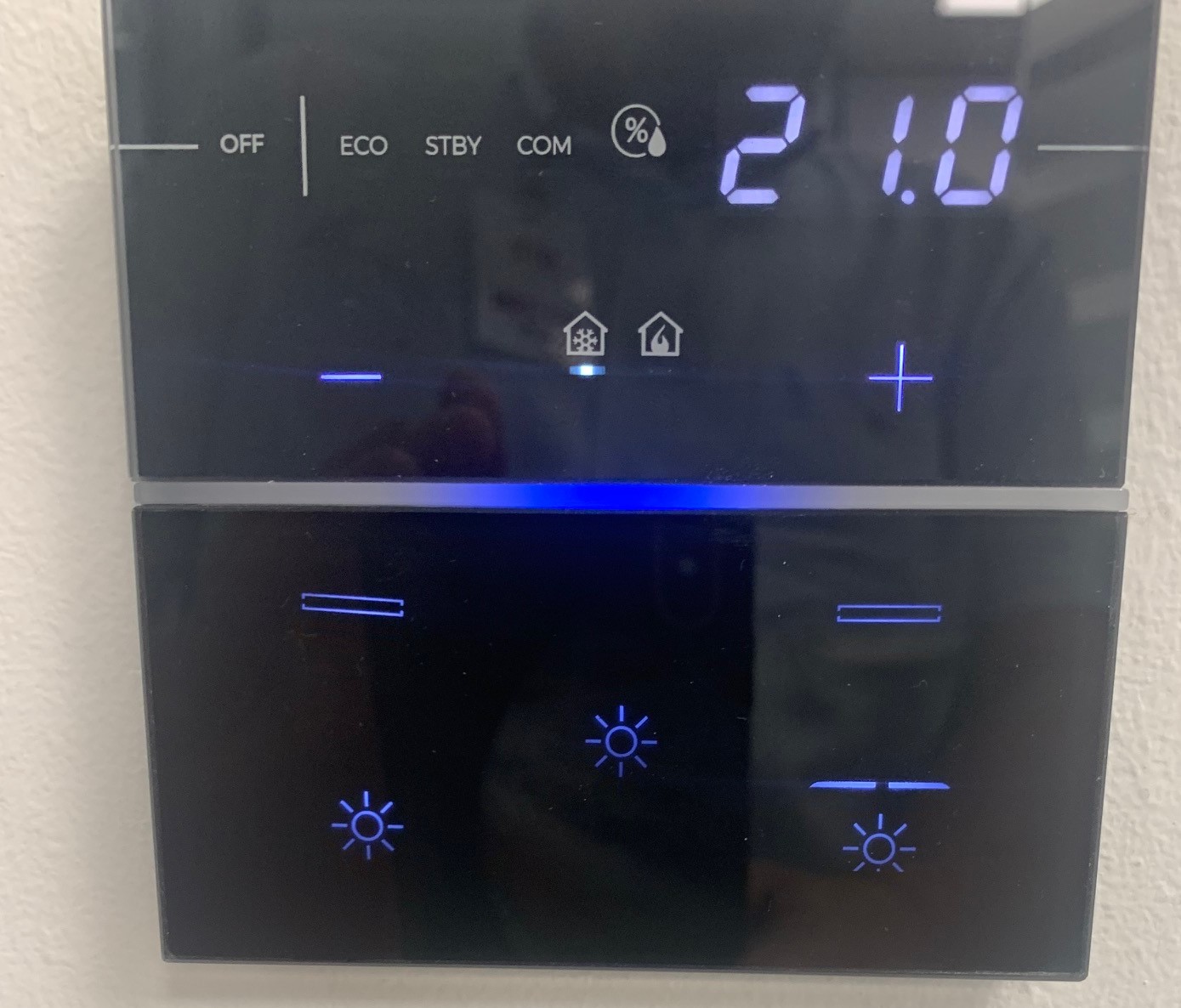

Thermostats and push buttons are from Eelectron.
IP routers, webserver and remote safe access are from GIRA.
Presence detectors from Theben.
The project is expected to be integrated into BMS soon.
