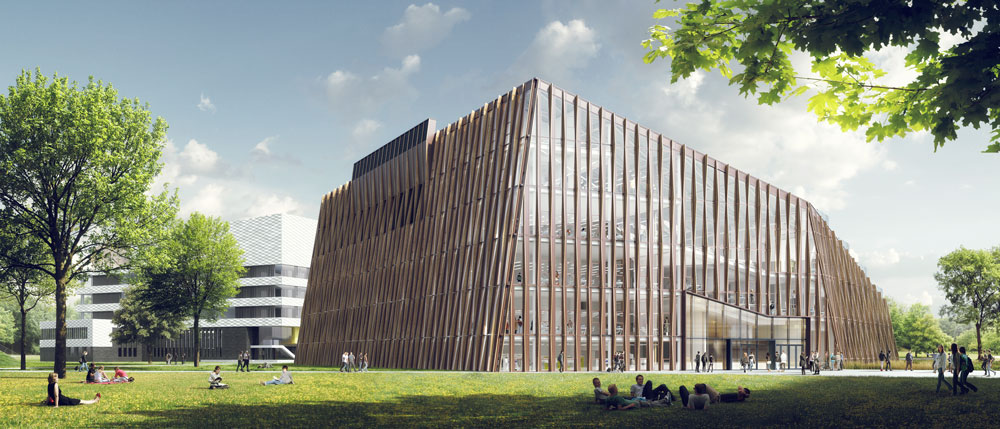

Energy Academy, het meest duurzame en slimme onderwijsgebouw van Nederland
Educational in Groningen
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Educational |
| Project Type | Commercial |
| Year of Completion | 2017 |
| Project Size | 1.001 – 5.000 |
| Number of KNX Devices Used | 1.000+ |
| KNX Transmission Media | Twisted pair |
| Man Hours | 2.000+ |
| Man Power | 1 – 5 |
Detailed Description
Energy Efficiency

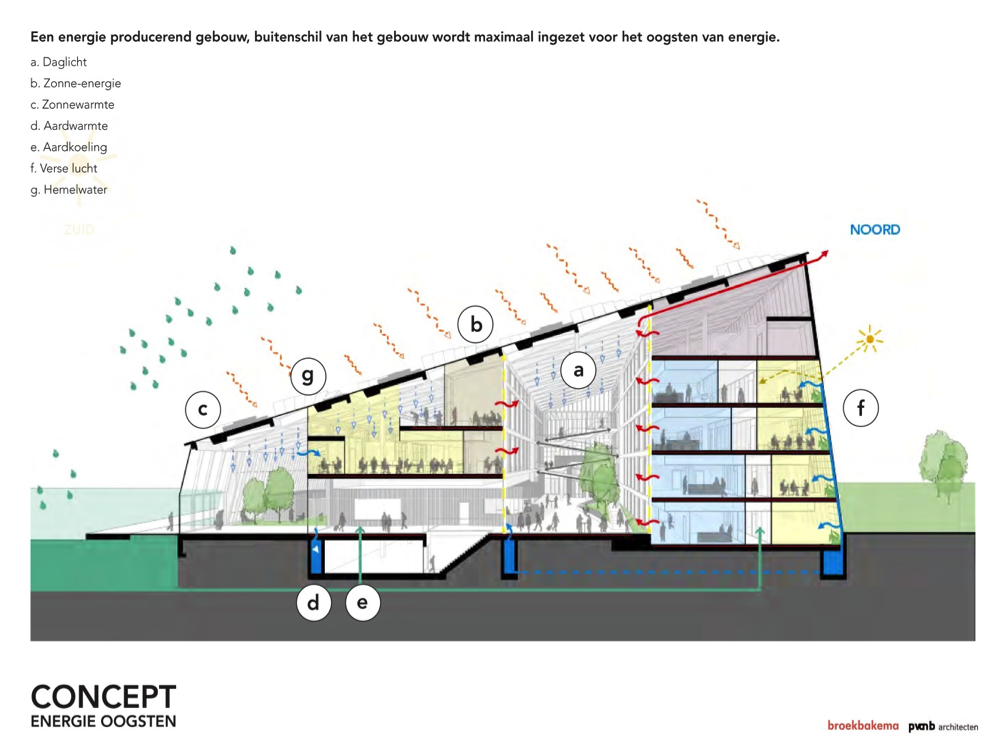

The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Automatic Occupancy Detection, Weather Dependent Control, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control, CO2 / Humidity Measuring, Natural Ventilation, Floor Heating Control
- Security and Safety - Smoke/Fire Detection, Faults (e.g. Leak Detection, Glass Break Detection, Window Contacts), Interaction with HVAC/Lighting
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection, Energy Harvesting (Avoiding use of batteries), Use of Renewable Energies
- Other - Audio Control, Irrigation Control, Distributed Facilities
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision
- Blind and Shutter Control - Individual Control, Group & Central Control, Automatic Programs, Wind and Rain Protection, Sun Tracing (interaction with HVAC / lighting)
Customers Description
Naast de bekende toepassing voor het sturen van verlichting (1400 DALI armaturen) is KNX met name toegepast voor klimaat regeling en energie monitoring. C02, beweging en temperatuur sensoren sturen de KNX VAV motoren naar de juiste stand. Ruimte bedienunits geven de gebruiker de mogelijkheid voor individuele regeling van temperatuur, verlichting, ventilatie en zonwering. Juist de koppeling tussen KNX en andere systemen zorgen voor de juiste synergie binnen het gebouw. De E en W wereld vloeien samen waardoor dit meest duurzame en slimme resultaat. https://www.youtube.com/watch?v=g1YcZ1J4oIc
Contact Information
| Company Name | ENGIE Services |
| Company Email | chris.hartendorp@engie.com |
| Company Website | http://www.engie-services.nl |
| Contact Name | Chris Hartendorp |
| Contact Function | System Integrator |
