Horten Upper Secondary School (Horten VGS)
Educational in Horten, Vestfold
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Educational |
| Project Type | Commercial |
| Year of Completion | 2019 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 1.000+ |
| KNX Transmission Media | Twisted pair |
| Man Hours | 2.000+ |
| Man Power | 11 – 25 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control, Lighting Colour Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Automatic Occupancy Detection, Weather Dependent Control, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control, CO2 / Humidity Measuring, Floor Heating Control
- Security and Safety
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Touch Panels & Display Panels
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Use of Renewable Energies
- Other
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Remote Programming
- Blind and Shutter Control - Individual Control, Group & Central Control, Automatic Programs, Wind and Rain Protection, Sun Tracing (interaction with HVAC / lighting)
Customers Description

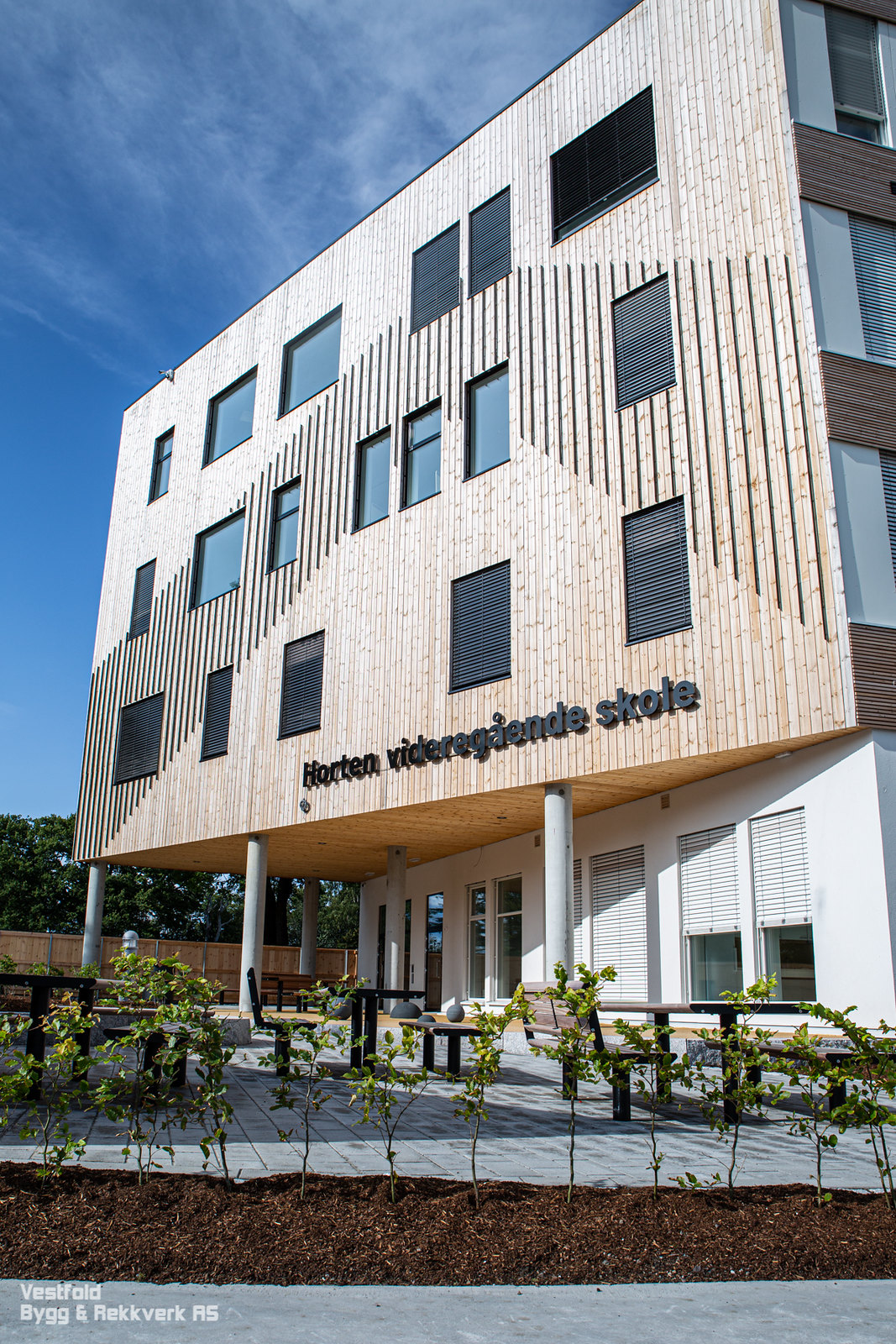

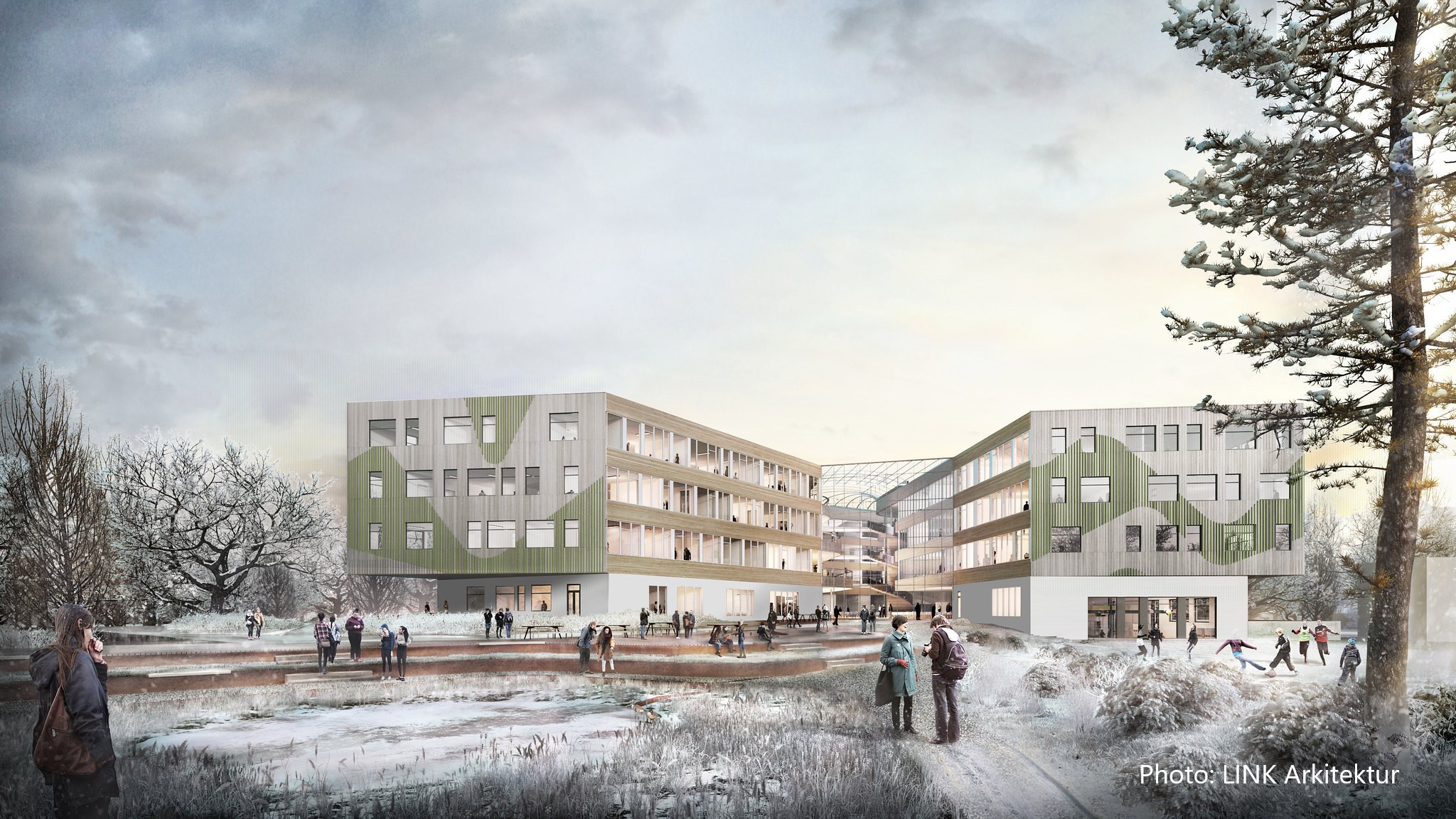

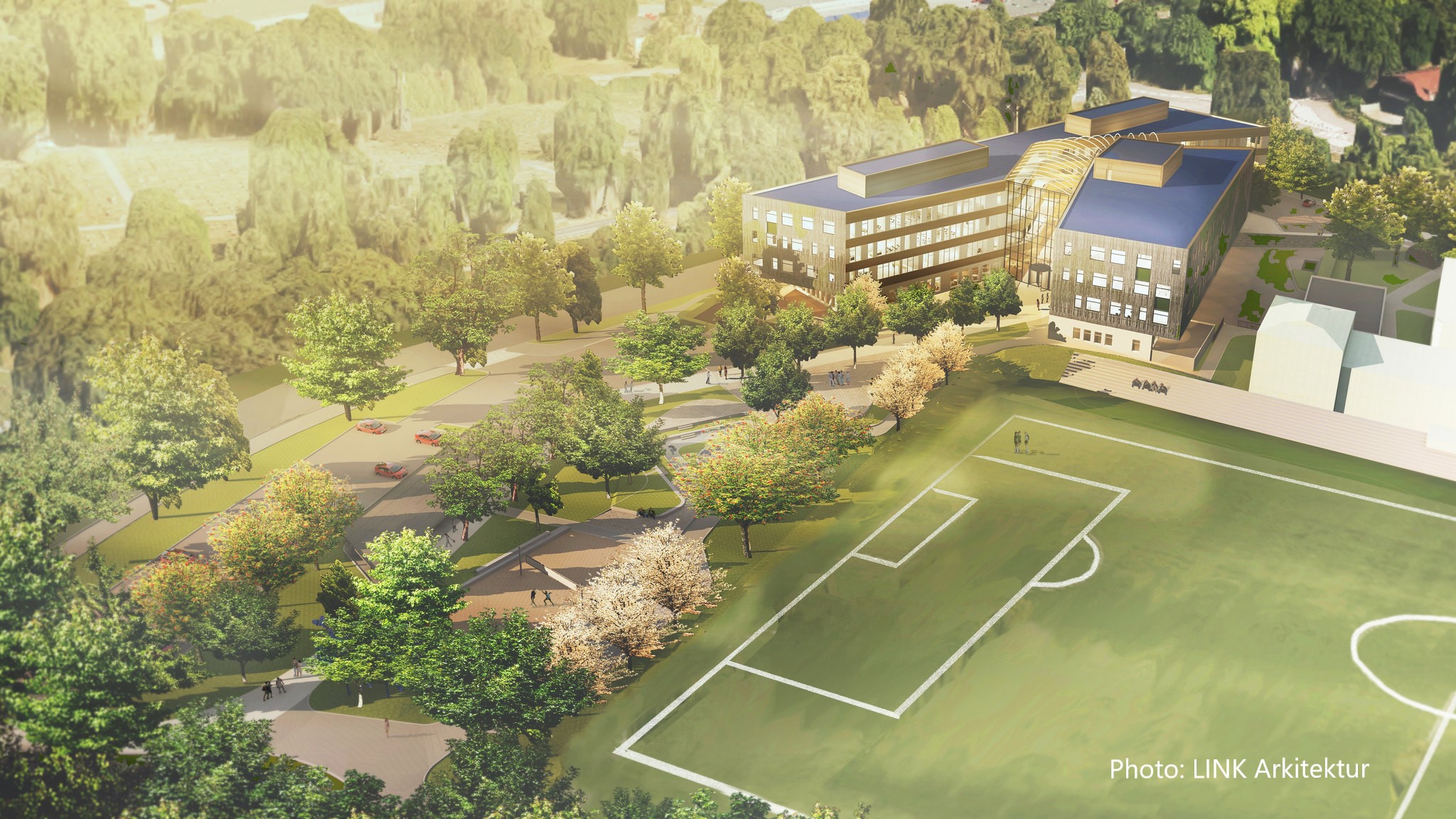

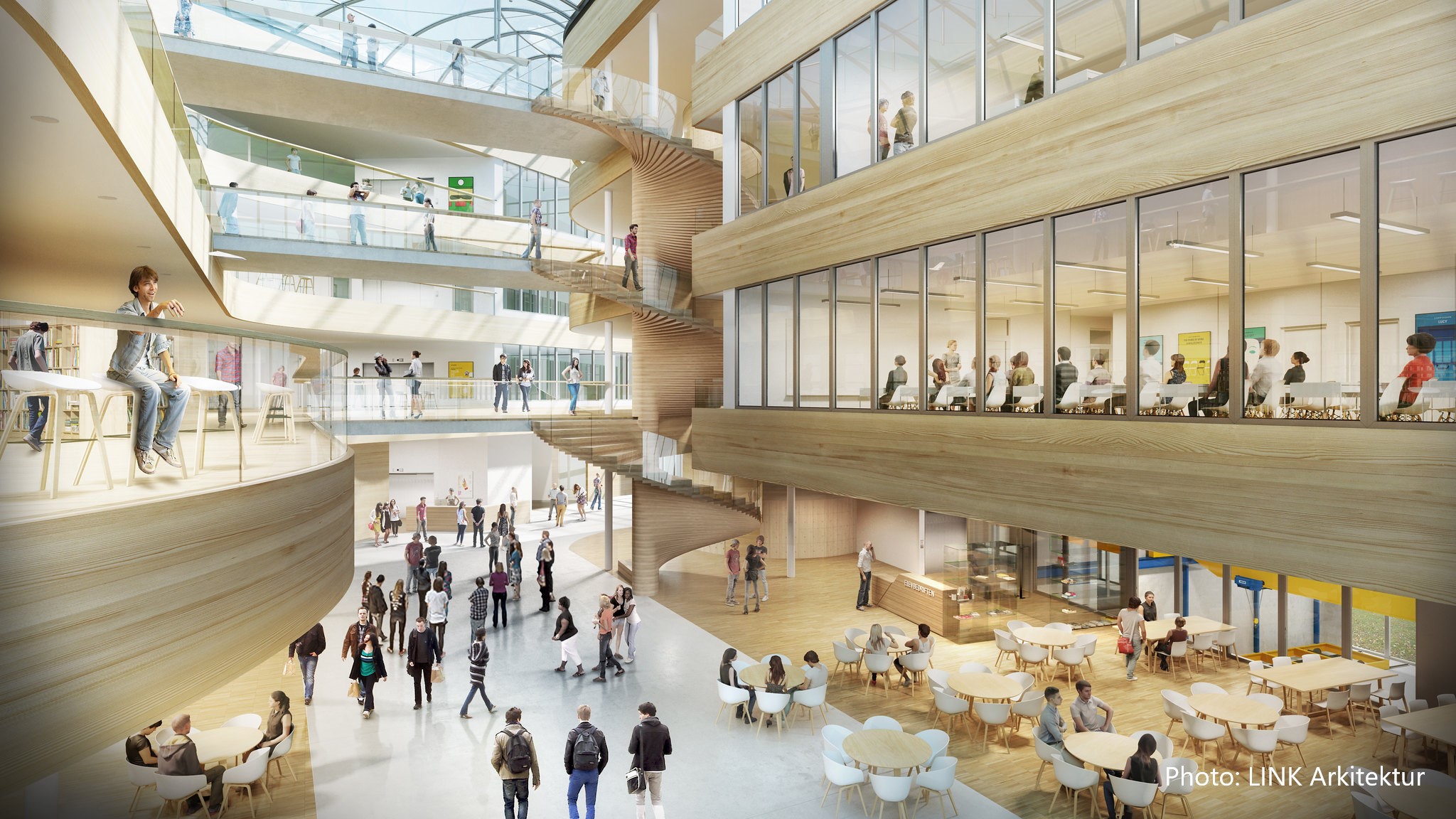

Horten VGS is 18,000 square meters spread over four floors. The school is built as an energy-positive building and will be Norway's highest environmentally classified education building. In March 2019, Horten VGS became the winner of the BREAAM Awards. Most of the automation in the building is controlled by MultiController from function Technology, by integrating heating/cooling, DALI/HCL, sunscreen, daylight control and HVAC in one product. The ease of installation with plug-in connection based on Wago prefabricated cables made the installation very cost-effective. The School will have a solar cell plant of approx. 3 500 m². The heating solution is with geo wells, water-borne heat and cooling.
Contact Information
| Company Name | Alt Installasjon AS / function Products AS |
| Company Email | post@altinstallasjon.no |
| Company Website | https://www.altinstallasjon.no/ |
| Contact Name | Atle Malm / Martin Olsen |
| Contact Function | Installer |
