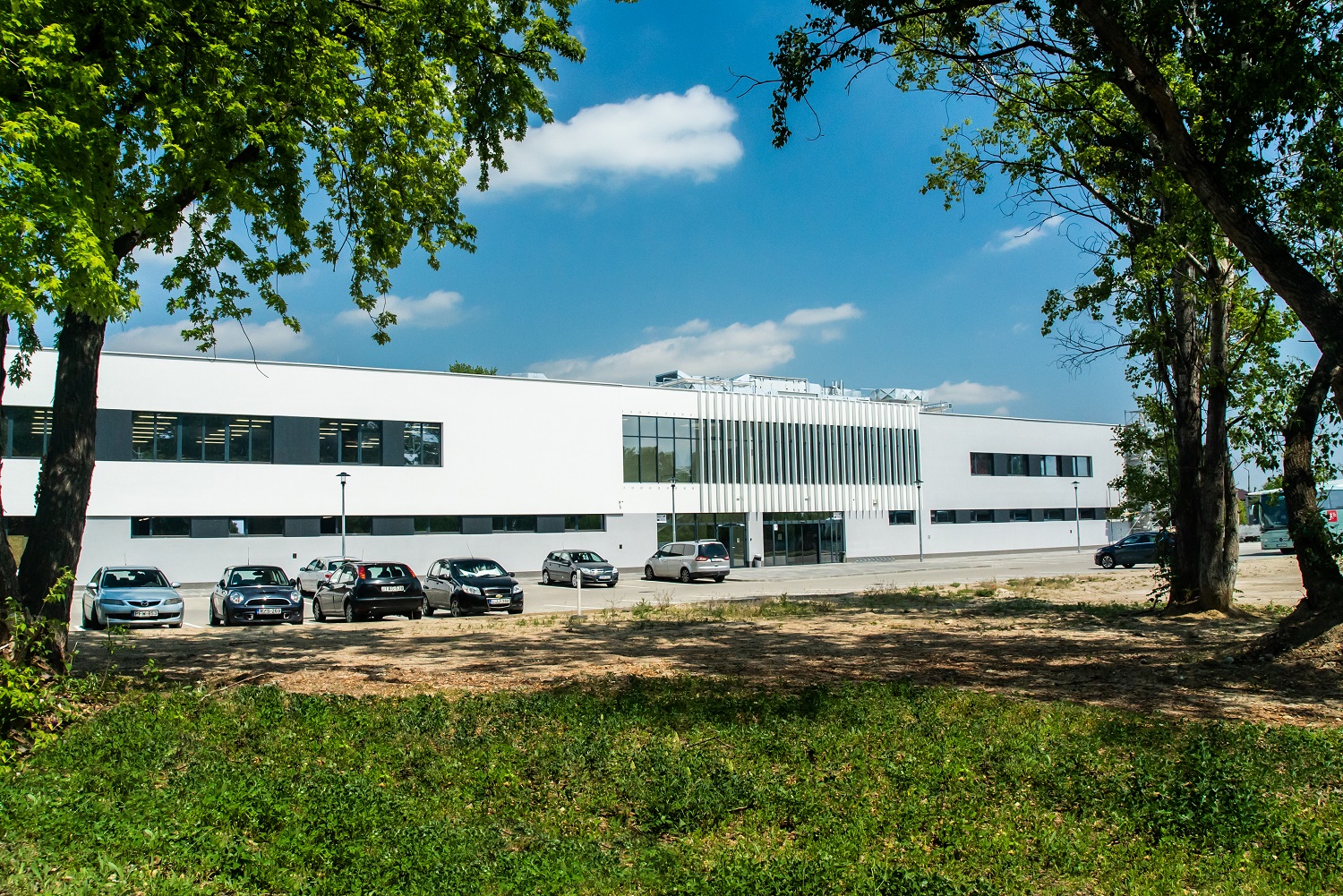

Ice Rink (Mátyásföldi Jégcsarnok)
Leisure in Budapest
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Leisure |
| Project Type | Commercial |
| Year of Completion | 2022 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 26 – 100 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 1 – 100 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Weather Dependent Control, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control, CO2 / Humidity Measuring, Floor Heating Control, Boiler and burner Control
- Security and Safety
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Tablets and smart phones
- Energy Management/Smart Metering - Data Logging, Visualisation, Use of Renewable Energies
- Other
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming, Messaging (e.g. SMS)
- Blind and Shutter Control
Customers Description
DALI lamps above the auditorium and the rink could be integrated with the help of the KNX system. This was important in order to achieve energy efficient operation.

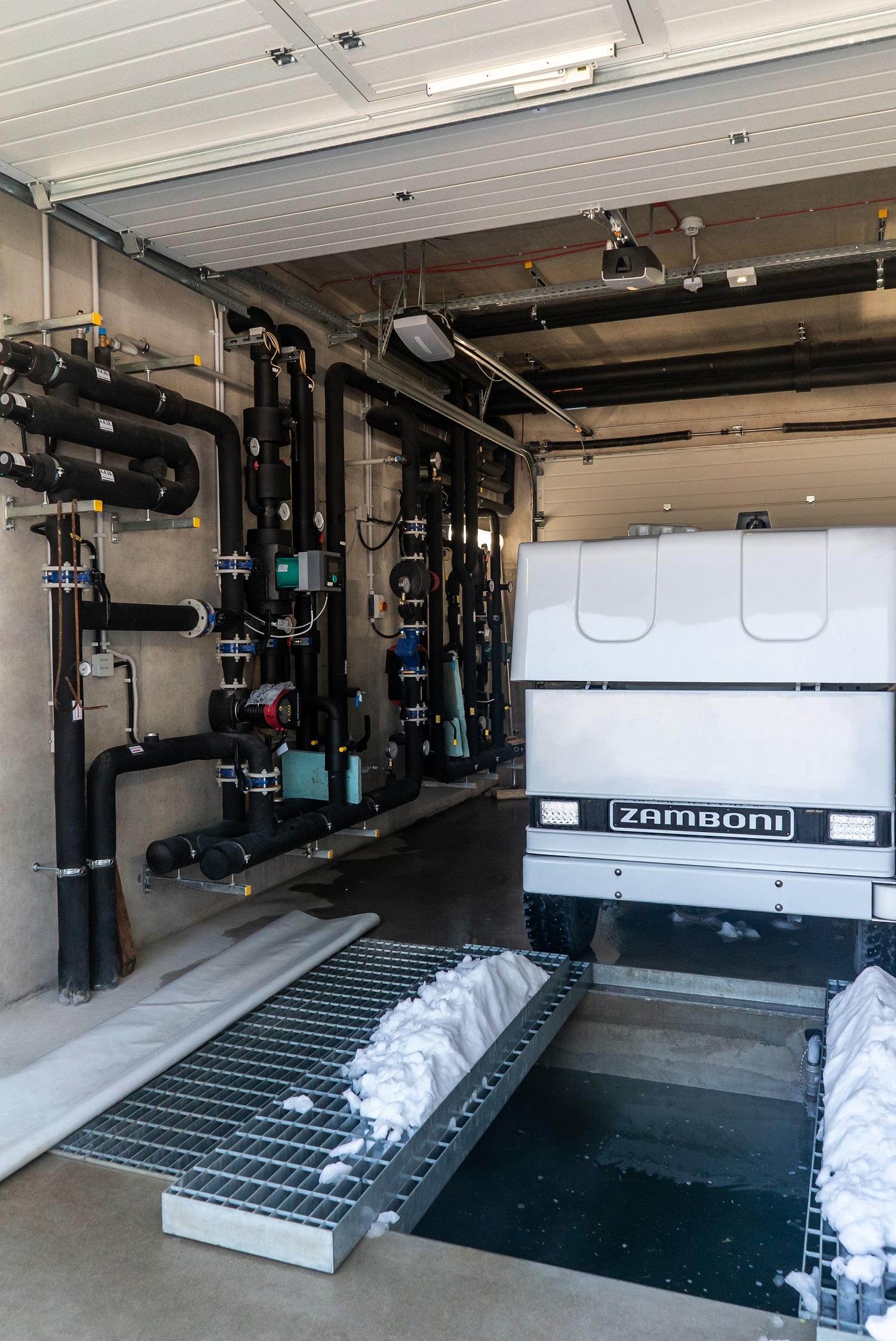

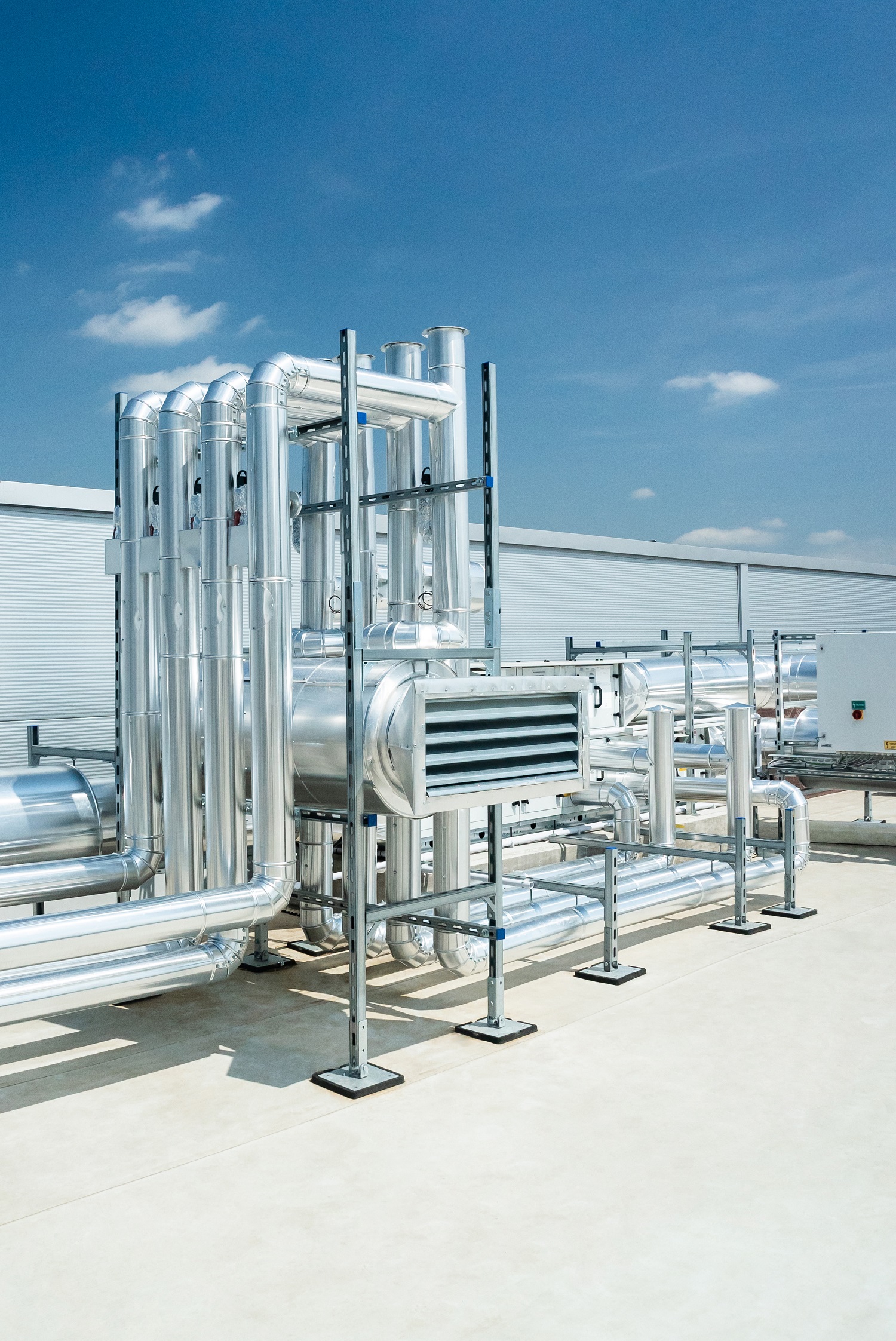

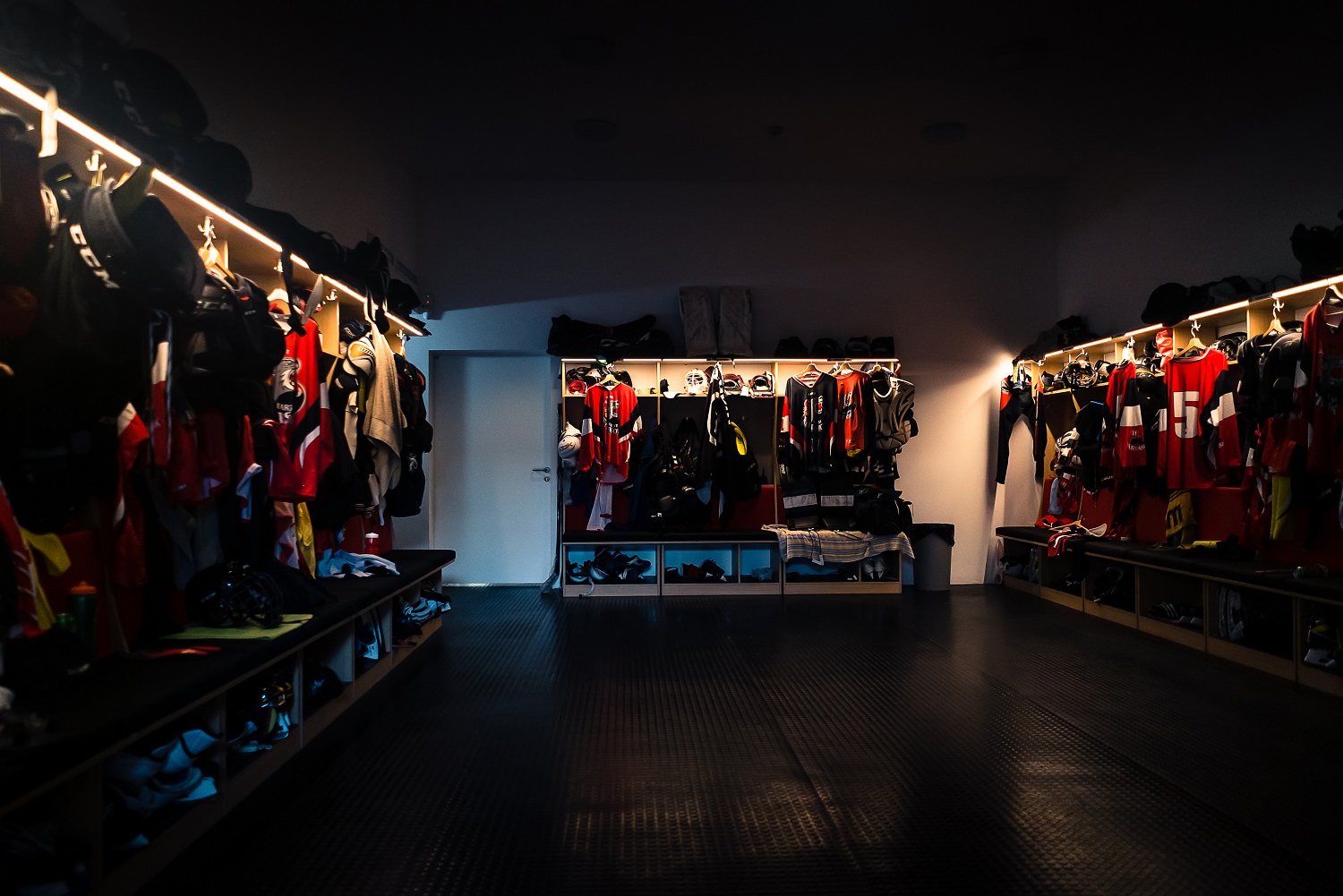

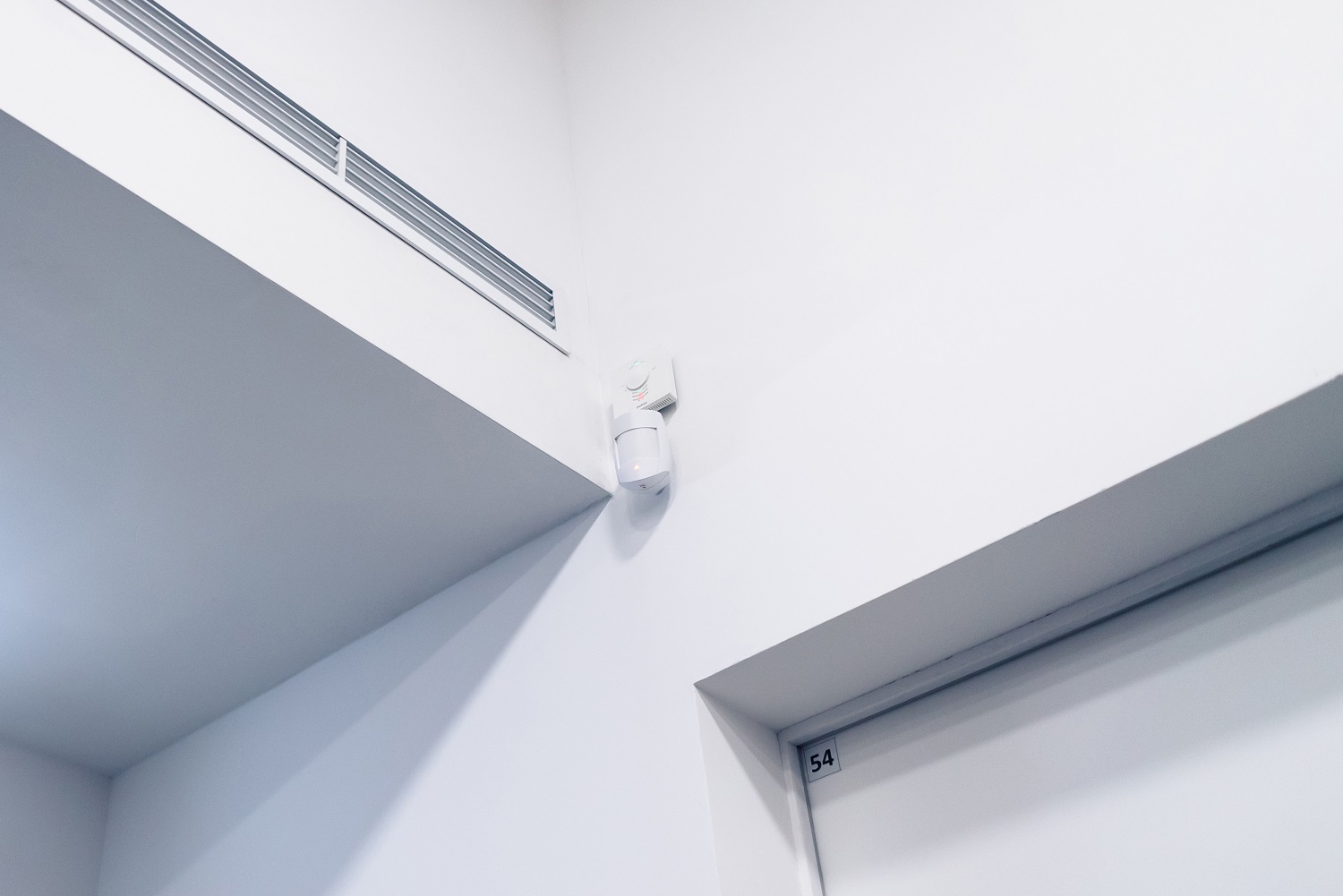

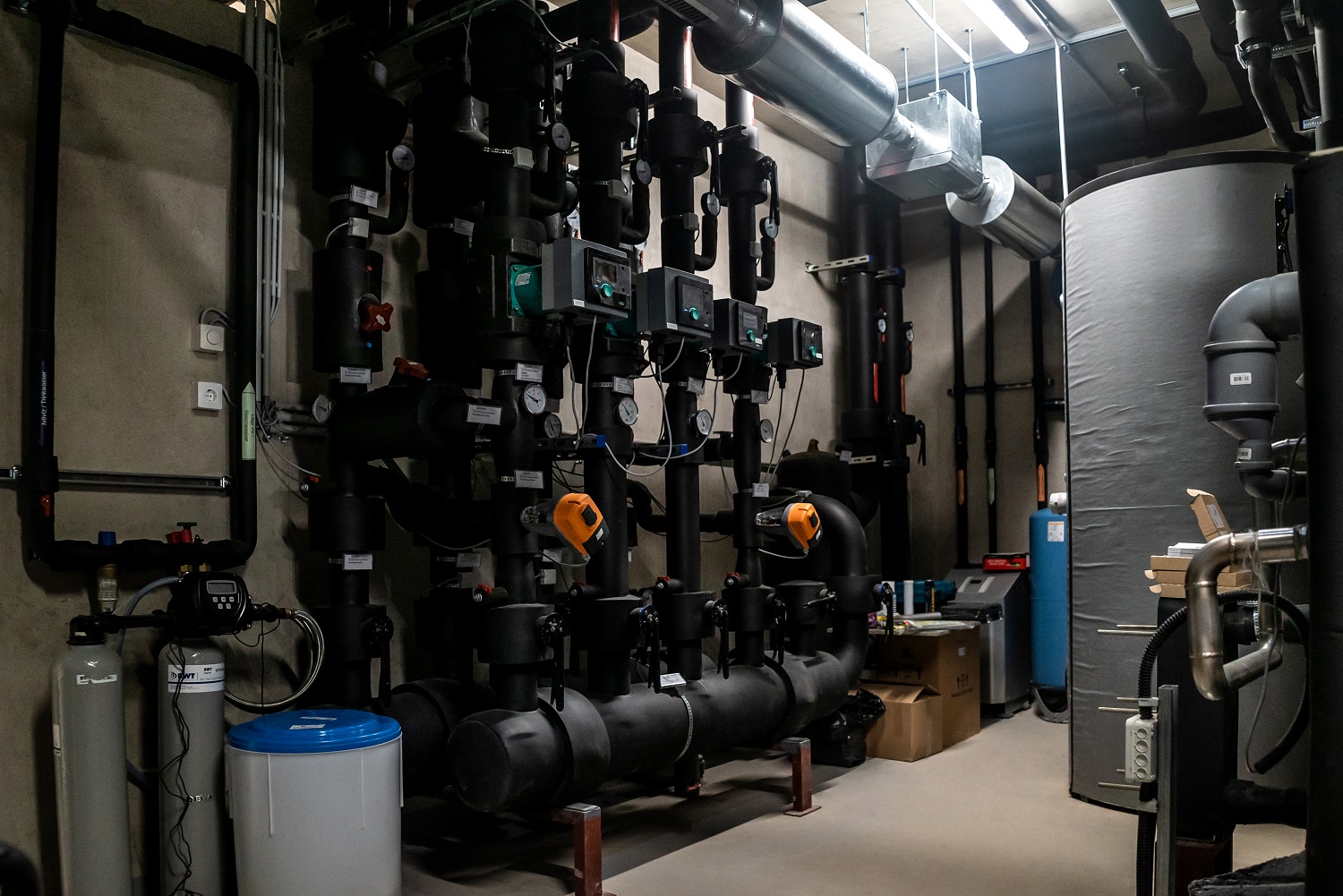

The audience visiting the hall consists mostly of children in the morning hours and adults take over the ice in the evening. A KNX/Dali gateway provided us the freedom to be able to make lighting scenes. The dressing room and recreational facility rooms are only used for certain amounts of time during the day, so a hanging fitting of heating-cooling and ventilation was required. The best choice was Amun 716 S KNX, a combined humidity, temperature and CO2 sensor. The sensors send signals via the KNX to the central heating controllers and order the waste heat of ice production to be used or the heat pumps to turn on. The operating personnel gets information on actual and historic data on the eibPort dashboard. They get notified of any malfunction via email and they can intervene remotely.
