INSTITUTO POLITECNICO ESCUELAS SAN JOSE (JESUITAS)
New project in Valencia
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | New project |
| Project Type | Other |
| Year of Completion | 2017 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 101 – 300 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 1.001 – 2.000 |
| Man Power | 6 – 10 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Boiler and burner Control
- Security and Safety - Interaction with HVAC/Lighting

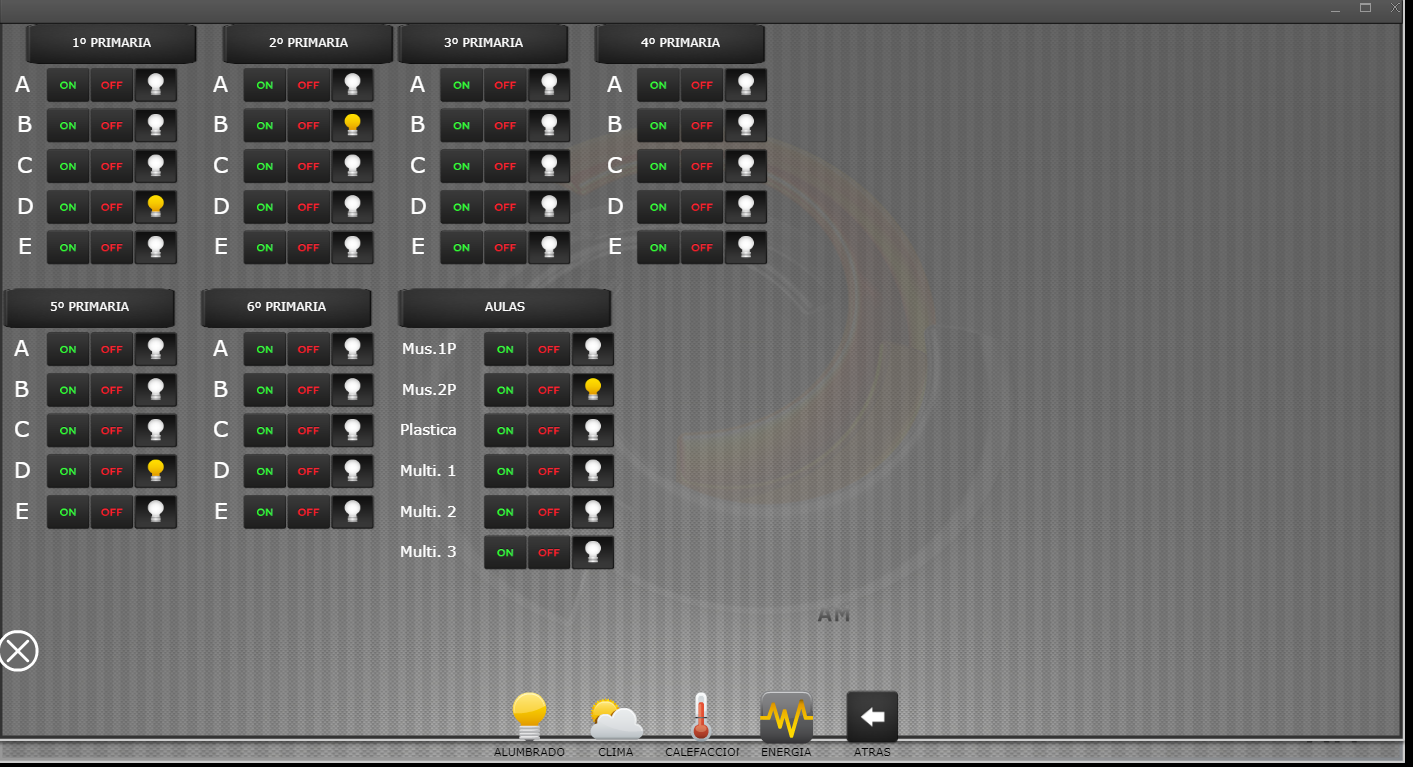

- Operation and Visualisation - PC Visualisation, Web Servers, Touch Panels & Display Panels

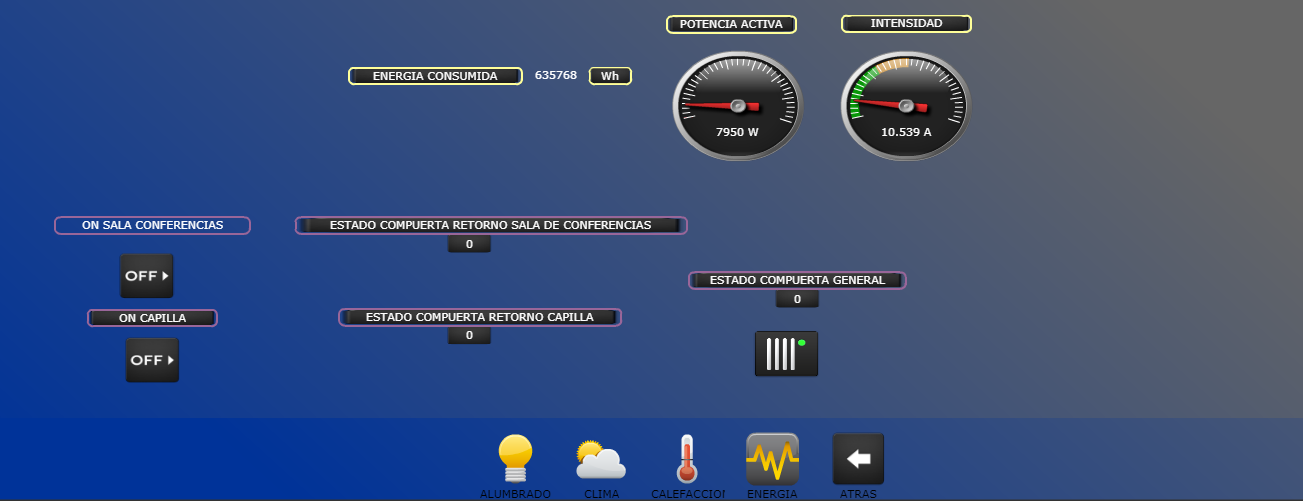

- Energy Management/Smart Metering - Metering, Data Logging, Visualisation
- Other
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming
- Blind and Shutter Control
Customers Description

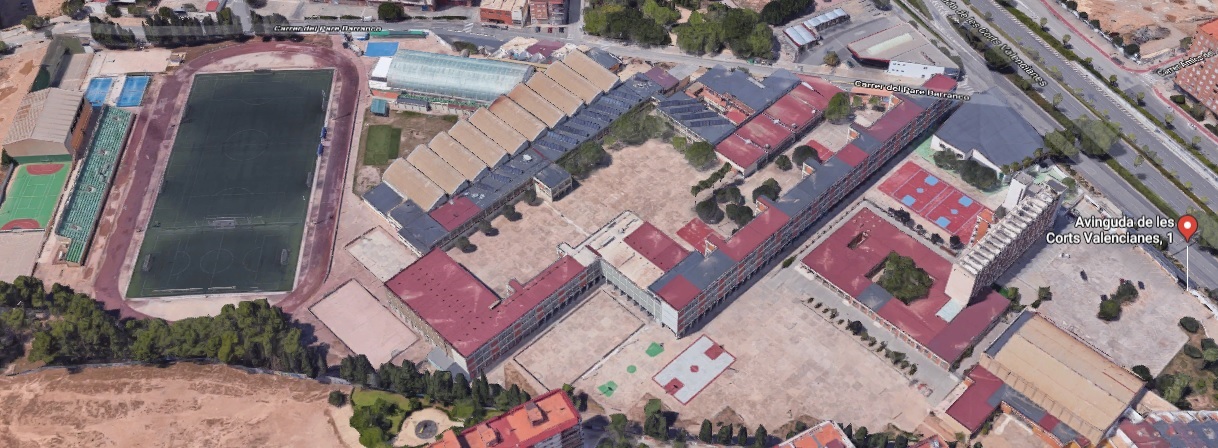

El Instituto Politécnico Escuelas San José alberga, en sus casi 100.000 metros cuadrados, un edificio de servicios, zona deportiva con piscina olímpica y tres etapas primaria, secundaria y Formación Profesional. El control de los edificios cuenta con control de iluminación, HVAC, Smart Metering y visualización. El objetivo futuro del alumnado y tutor del Departamento de Eficiencia Energética e Instalaciones Eléctricas, pasa por integrar en la visualización el control de las ocho salas de calderas y tres instalaciones solares térmicas, así como la medida de energía de los diferentes edificios.
Contact Information
| Company Name | INSTITUTO POLITECNICO ESCUELAS SAN JOSE (JESUITAS) |
| Company Email | juan.camacho@escuelassj.com |
| Company Website | http://fp.esj.es/eficienciaenergetica/#about |
| Contact Name | JUAN JOSE CAMACHO ANTELO |
| Contact Function | System Integrator |
