KNX Building Automation – Residential & Commercial Building
New project in Baden
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | New project |
| Project Type | Other |
| Year of Completion | 2026 |
| Project Size | 1 – 100 |
| Number of KNX Devices Used | 1 – 25 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 501 – 1.000 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Individual Room Control / Zone Control, Floor Heating Control
- Security and Safety - Faults (e.g. Leak Detection, Glass Break Detection, Window Contacts)
- Operation and Visualisation - Switches / Push Buttons, Touch Panels & Display Panels
- Energy Management/Smart Metering
- Other
- Automation and Remote Access - Timed Functions, Logical Functions
- Blind and Shutter Control - Individual Control, Group & Central Control, Preset Positioning, Automatic Programs, Wind and Rain Protection, Sun Tracing (interaction with HVAC / lighting)
Customers Description

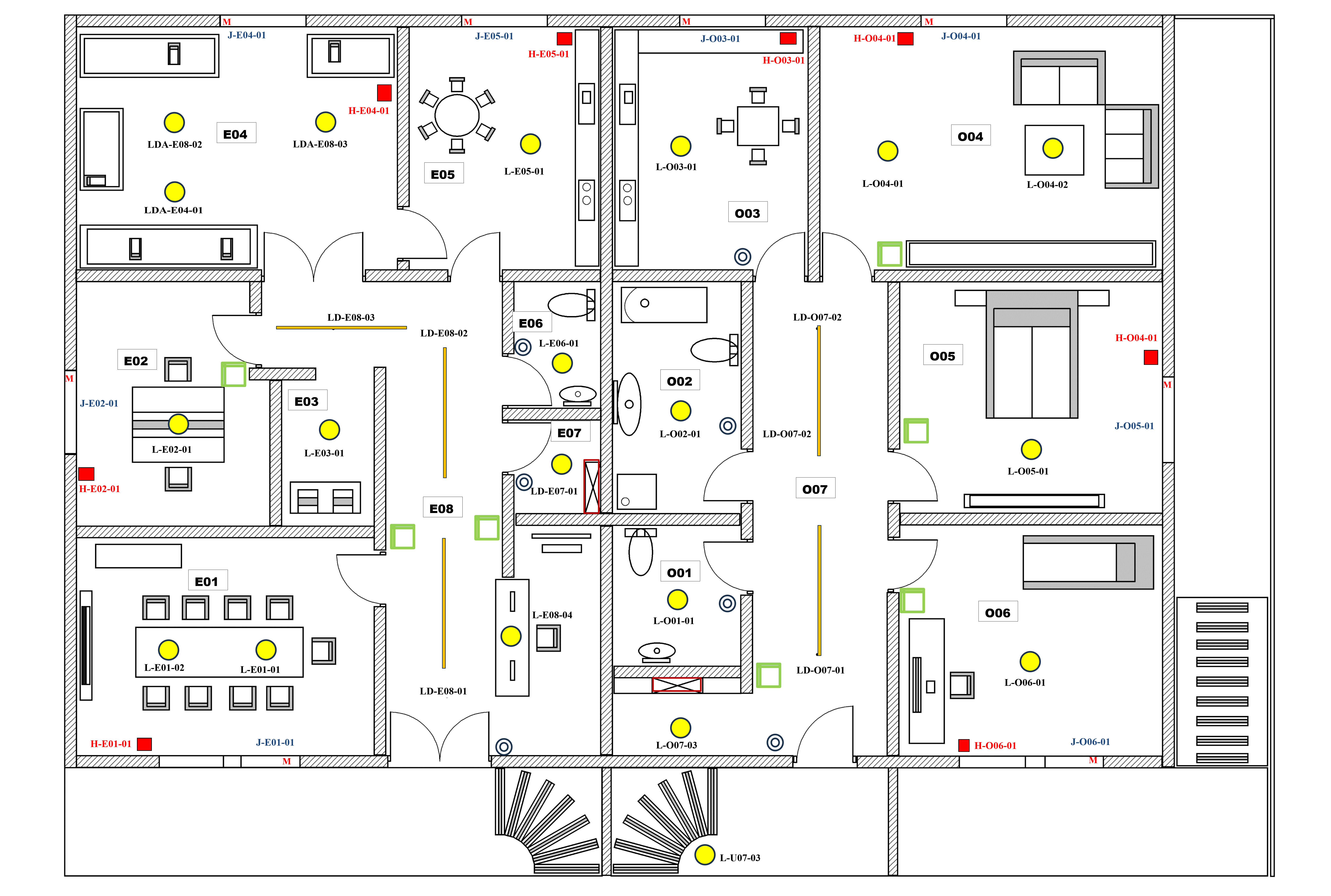

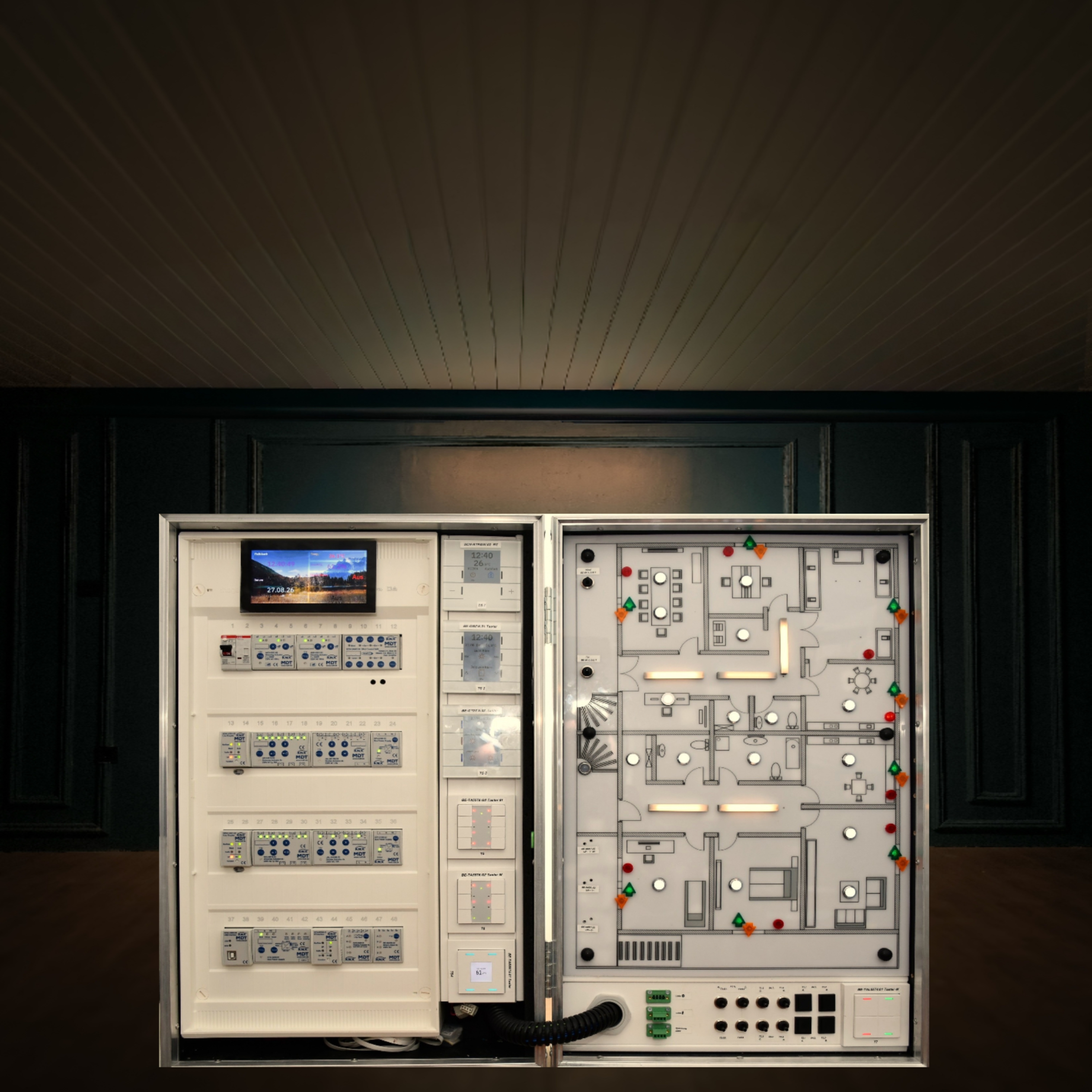

This KNX training and demonstration project represents a residential and commercial building environment and was designed, installed, programmed and commissioned as a complete practical KNX system. The installation integrates lighting and dimming, blind and shutter control with automatic sun tracking and weather protection, heating and individual room control, scenes, central functions, time schedules, logical functions, window/door contact monitoring and visualisation. The project uses KNX TP and KNX IP communication and includes KNX Secure. It demonstrates the planning, parameterisation, commissioning, diagnostics and interaction of different KNX functions within one integrated building automation system.
