KNX Topology Explorer
Other in Roskilde
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Other |
| Project Type | Other |
| Year of Completion | 2026 |
| Project Size | 1 – 100 |
| Number of KNX Devices Used | 1 – 25 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 1 – 100 |
| Man Power | 1 – 5 |
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting
- Heating, Ventilation & Air conditioning (HVAC)
- Security and Safety
- Operation and Visualisation - PC Visualisation
- Energy Management/Smart Metering
- Other
- Automation and Remote Access
- Blind and Shutter Control
Customers Description
Learning KNX topology on paper is one thing, truly grasping the scale of a maxed out installation is another. Students complete their KNX training without ever internalising what 59+k addressable devices actually means in practice.

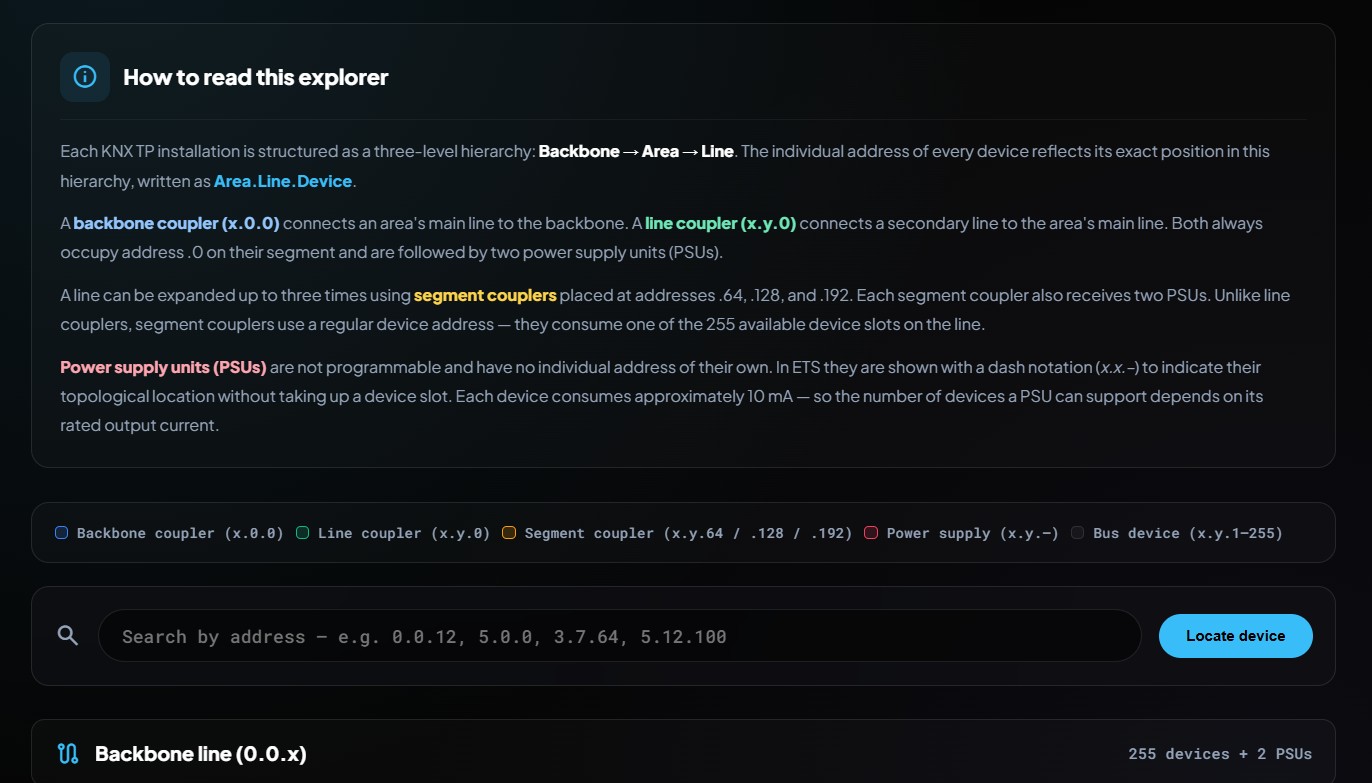

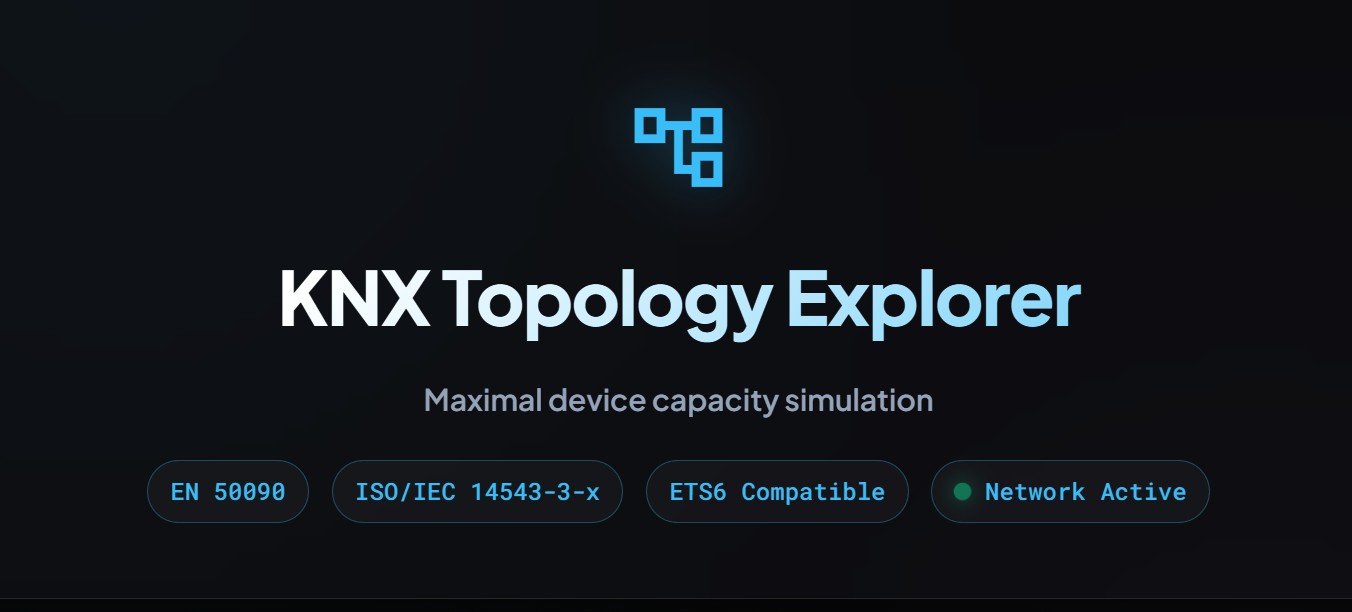

The KNX Topology Explorer was built to close that gap. It is a fully interactive, browser-based teaching tool that renders the complete hierarchy of a maximum KNX TP installation, backbone, areas, and lines.

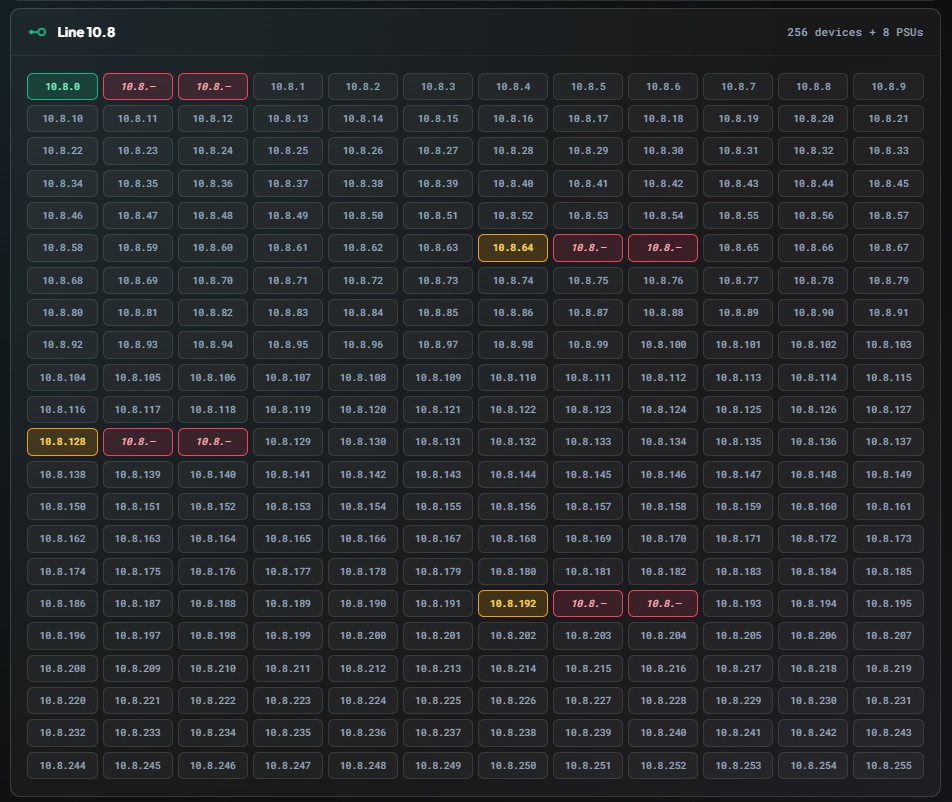

Students can expand each layer, locate any address instantly, and visually distinguish between backbone-, line- , segment-couplers, and power supply units through colourcoding.
This free tool runs entirely in the browser, making it accessible in any classroom, anywhere in the world via - https://marcdahl.dk/knxtotal.html
By turning an abstract specification into something students can explore with their own hands, the KNX Topology Explorer transforms one of the most commonly misunderstood concepts in KNX education into a moment of genuine discovery.
Contact Information
| Company Name | marcdahl.dk |
| Company Email | marc.dahl@gmail.com |
| Company Website | https://marcdahl.dk |
| Contact Name | Marc Sonne Dahl |
| Contact Function | System Integrator |
