Lighting Project of YHT High Speed Railway Tunnels
Transportation in Bilecik
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Transportation |
| Project Type | Other |
| Year of Completion | 2018 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 501 – 1.000 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 2.000+ |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control
- Heating, Ventilation & Air conditioning (HVAC)
- Security and Safety - Emergency Lighting
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers
- Energy Management/Smart Metering - Data Logging, Visualisation, Energy Harvesting (Avoiding use of batteries)
- Other
- Automation and Remote Access - Timed Functions, Logical Functions
- Blind and Shutter Control
Customers Description

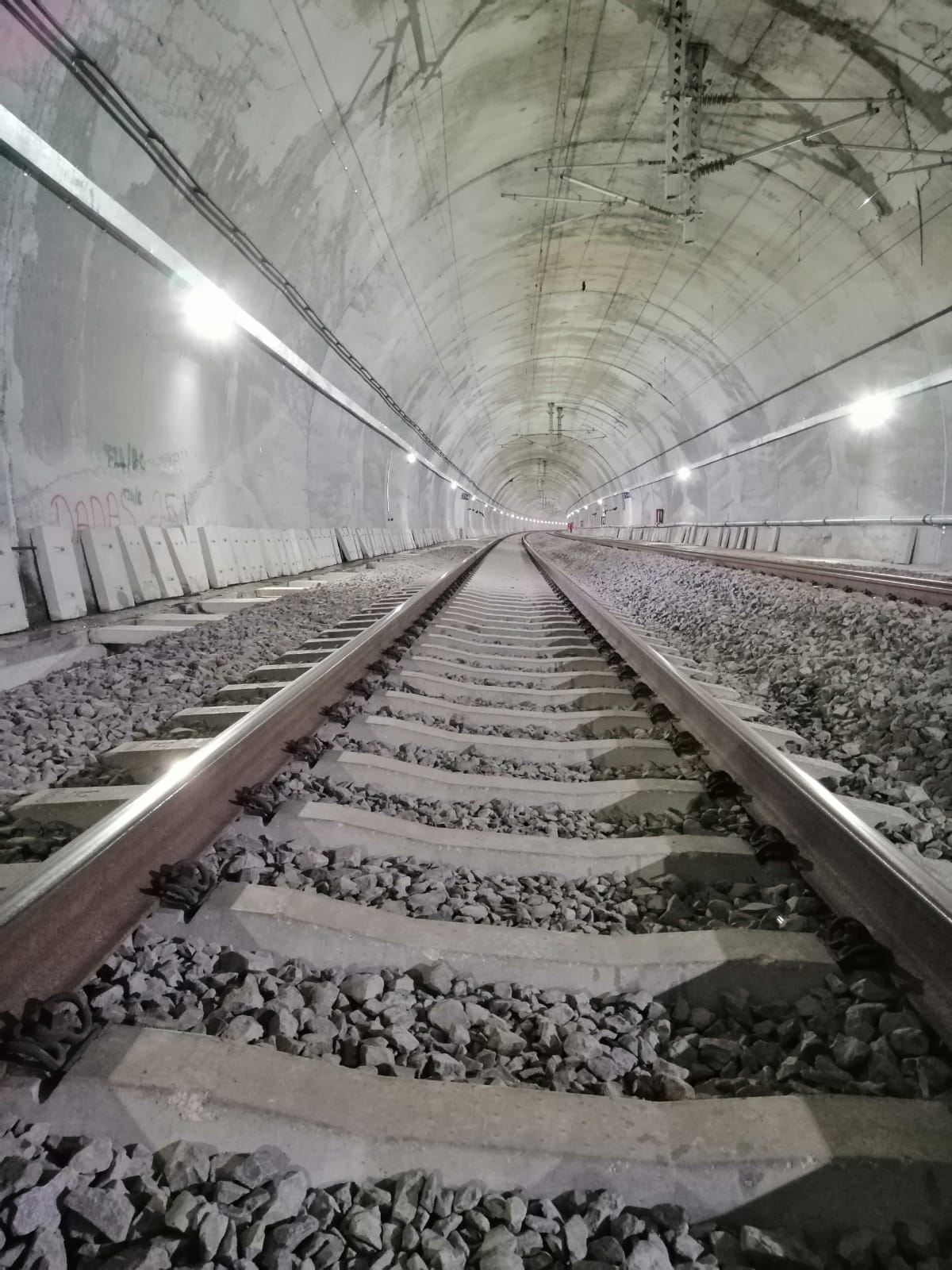

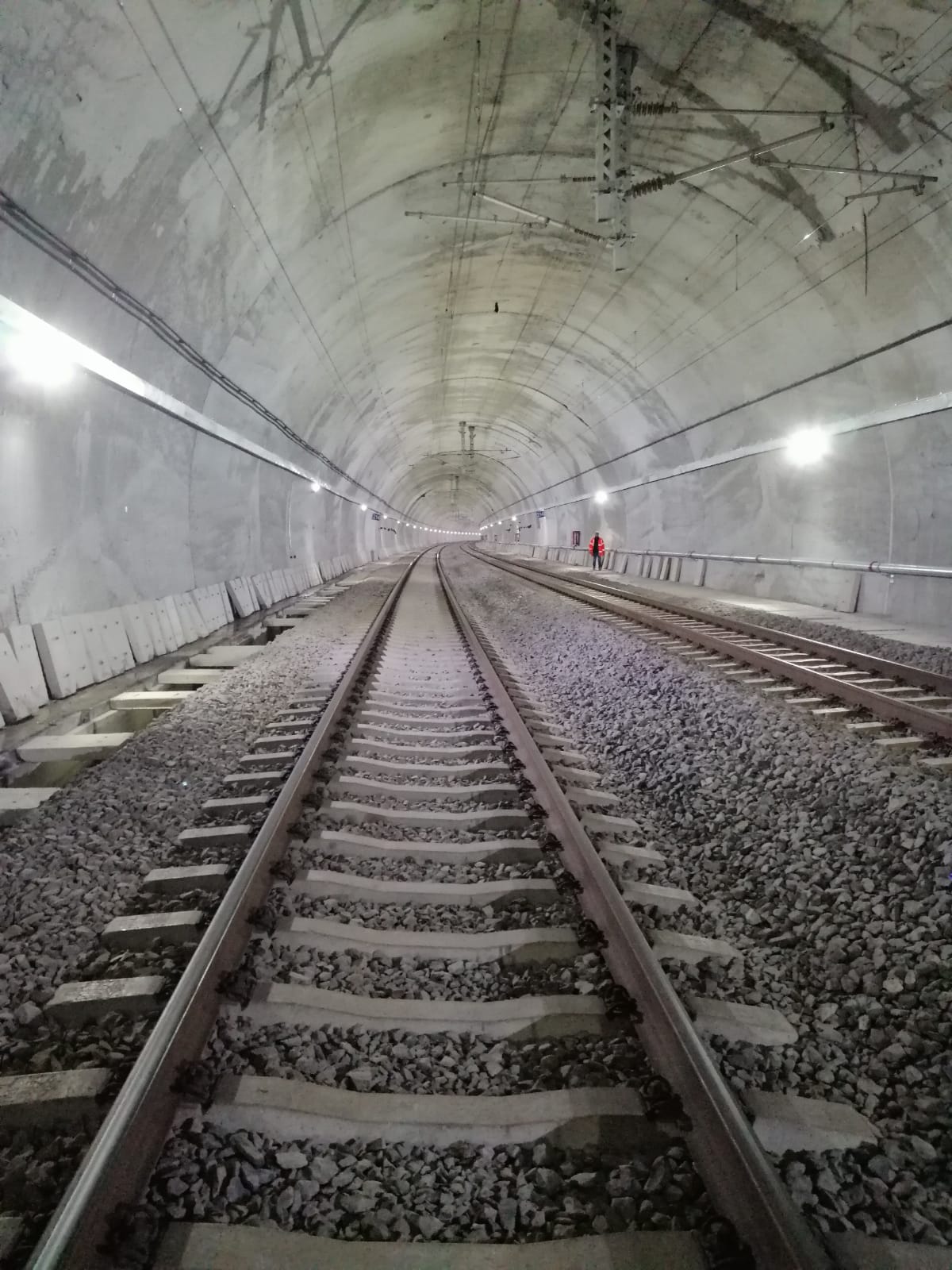

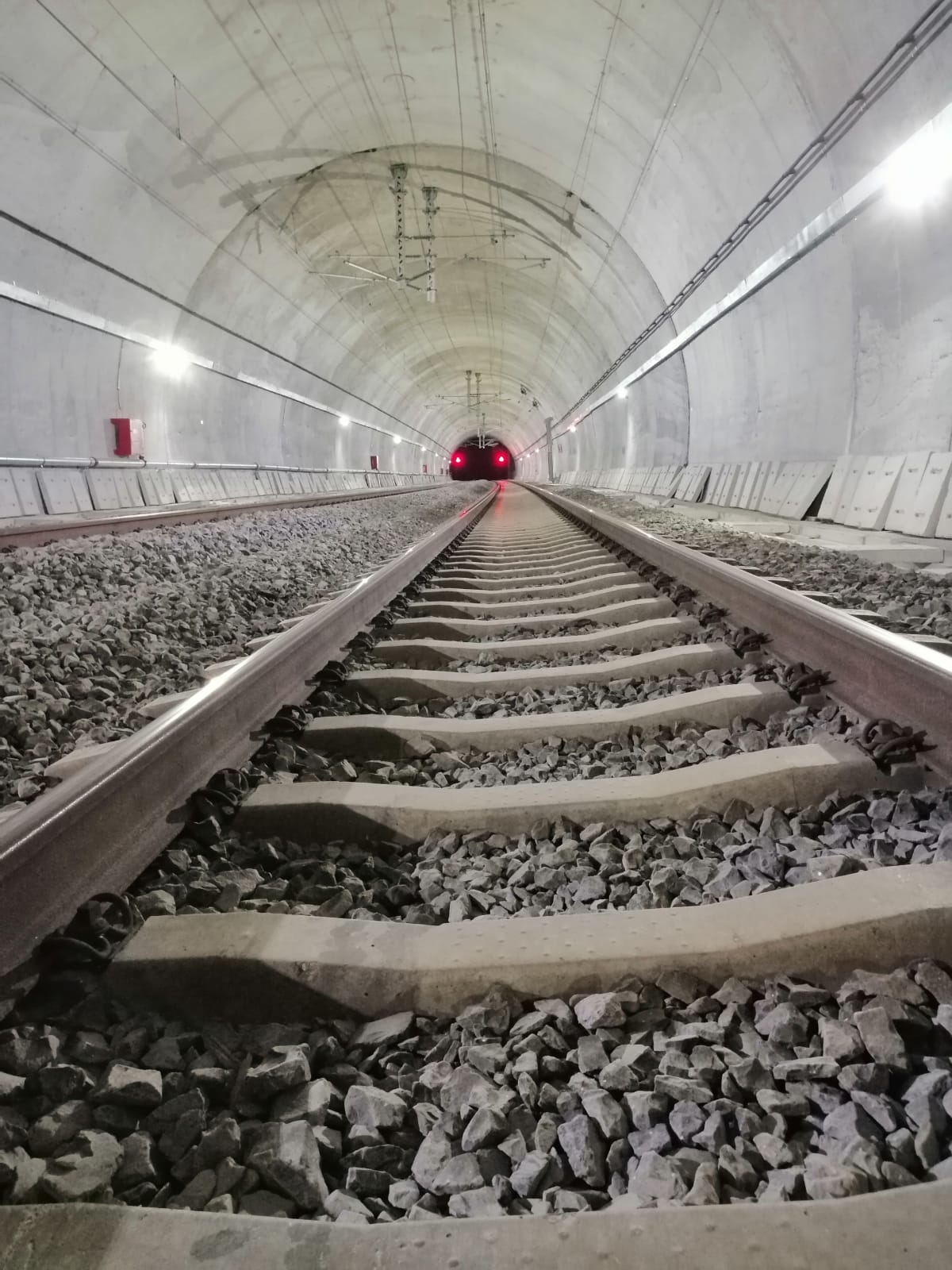

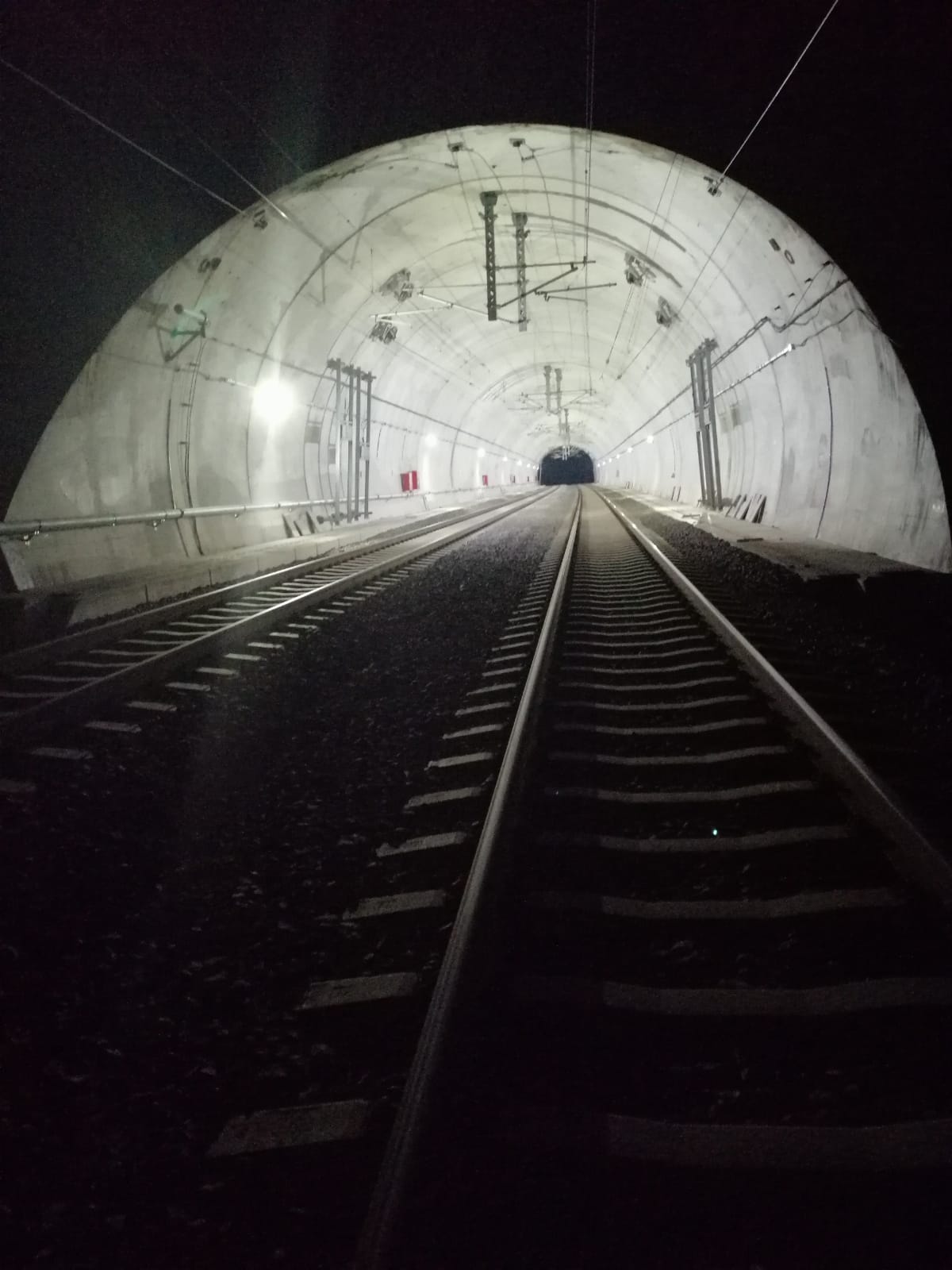

Every tunnel has DALI lightings (EAE) on DALI busbar system (EAE). DALI lines are connected to LCP (Lighting Distribution Panel) which includes KNX Dali Gateways and IP Routers. LCPs directly connected to TCP / IP.

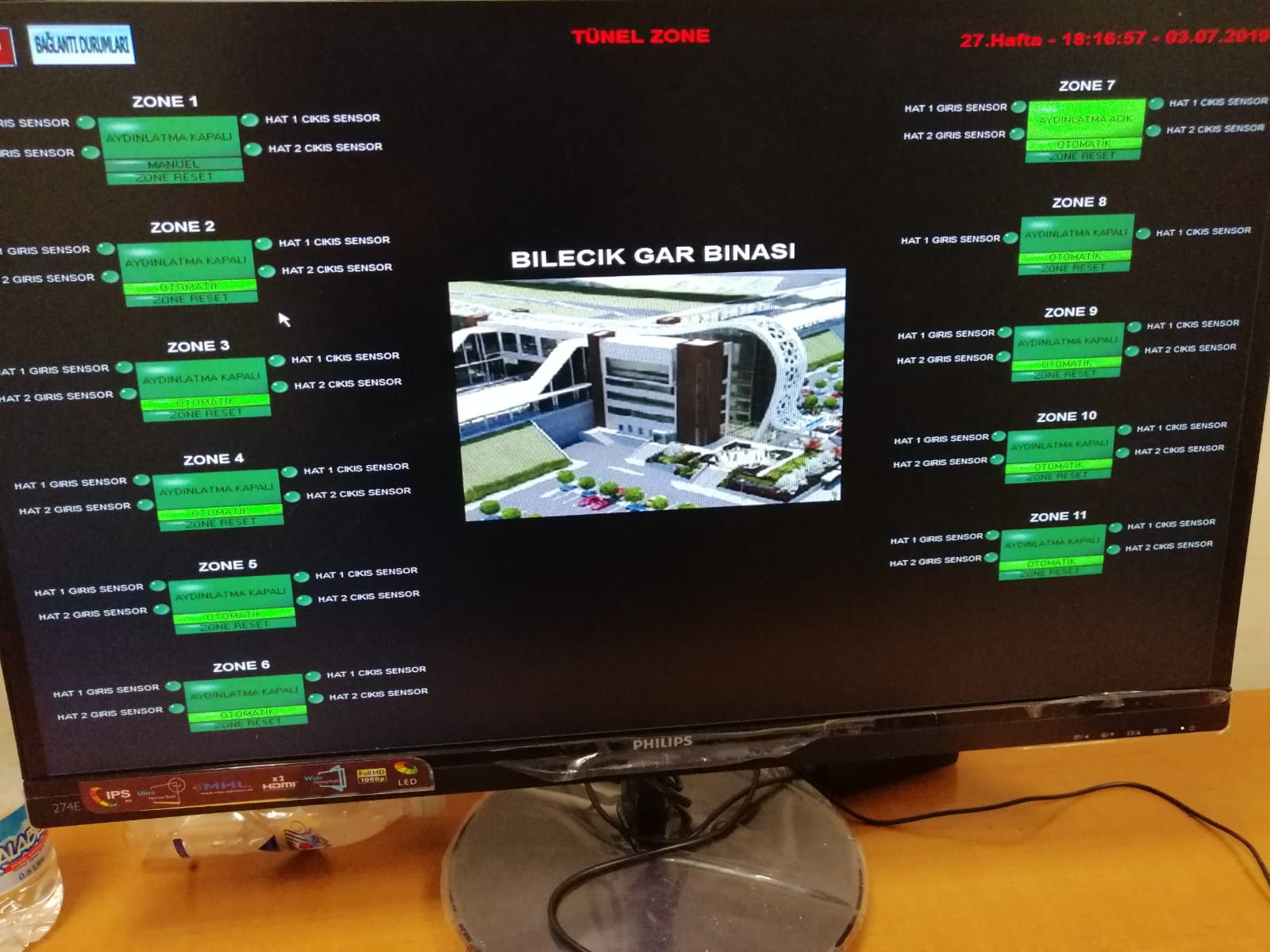

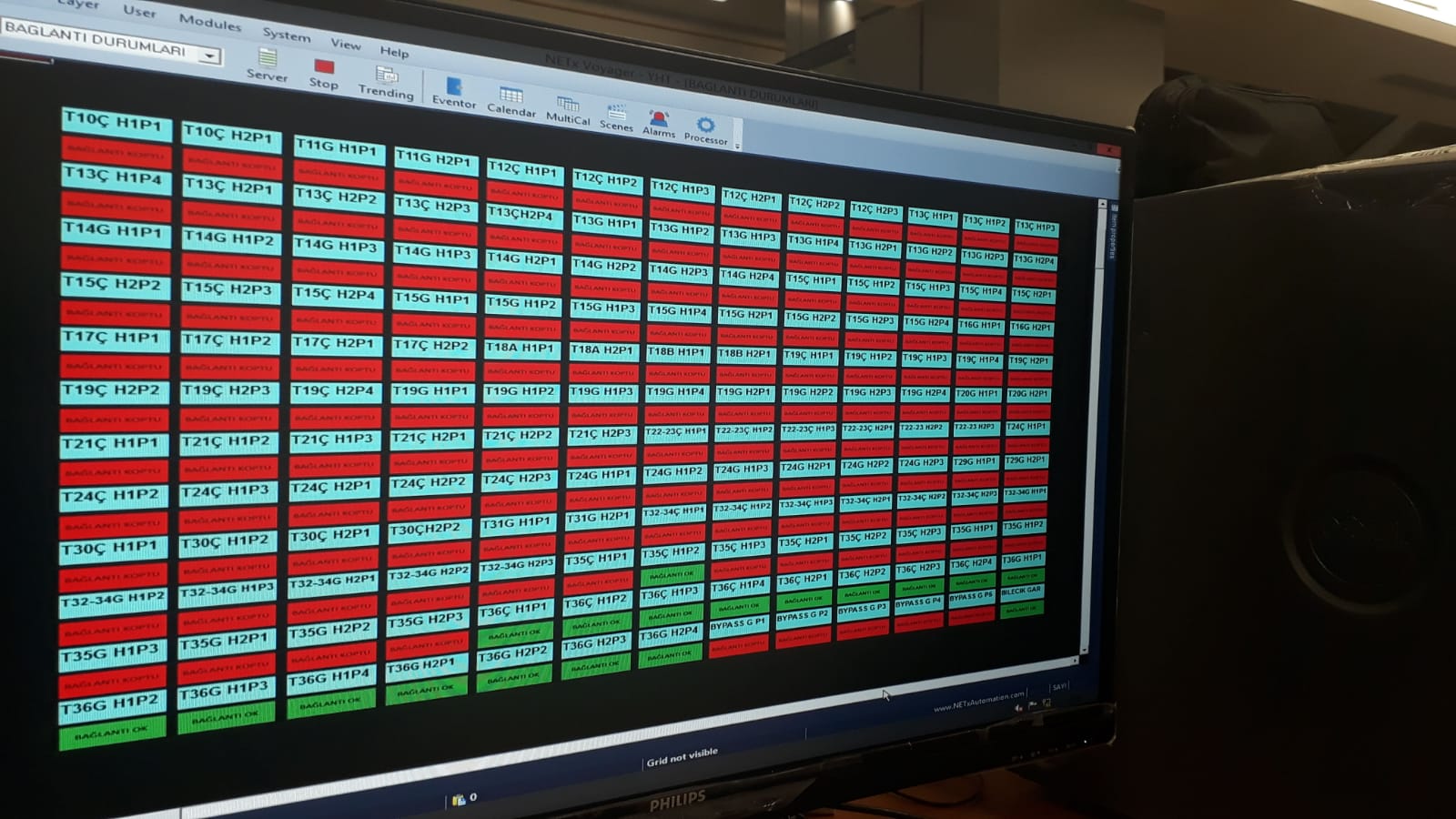

Projects is designed to control via NetX BMS Server Software. Beside of manual operation, every tunnel has sensors on both sides of tunnel. By using an algorithm we are able to understand whether the train is inside of the tunnel or not. All fixtures light up when train is about to enter tunnel. If train stays inside, lights will not be turned off. If train leaves to tunnel, it will be detected by sensor and finally lights will be turned off.

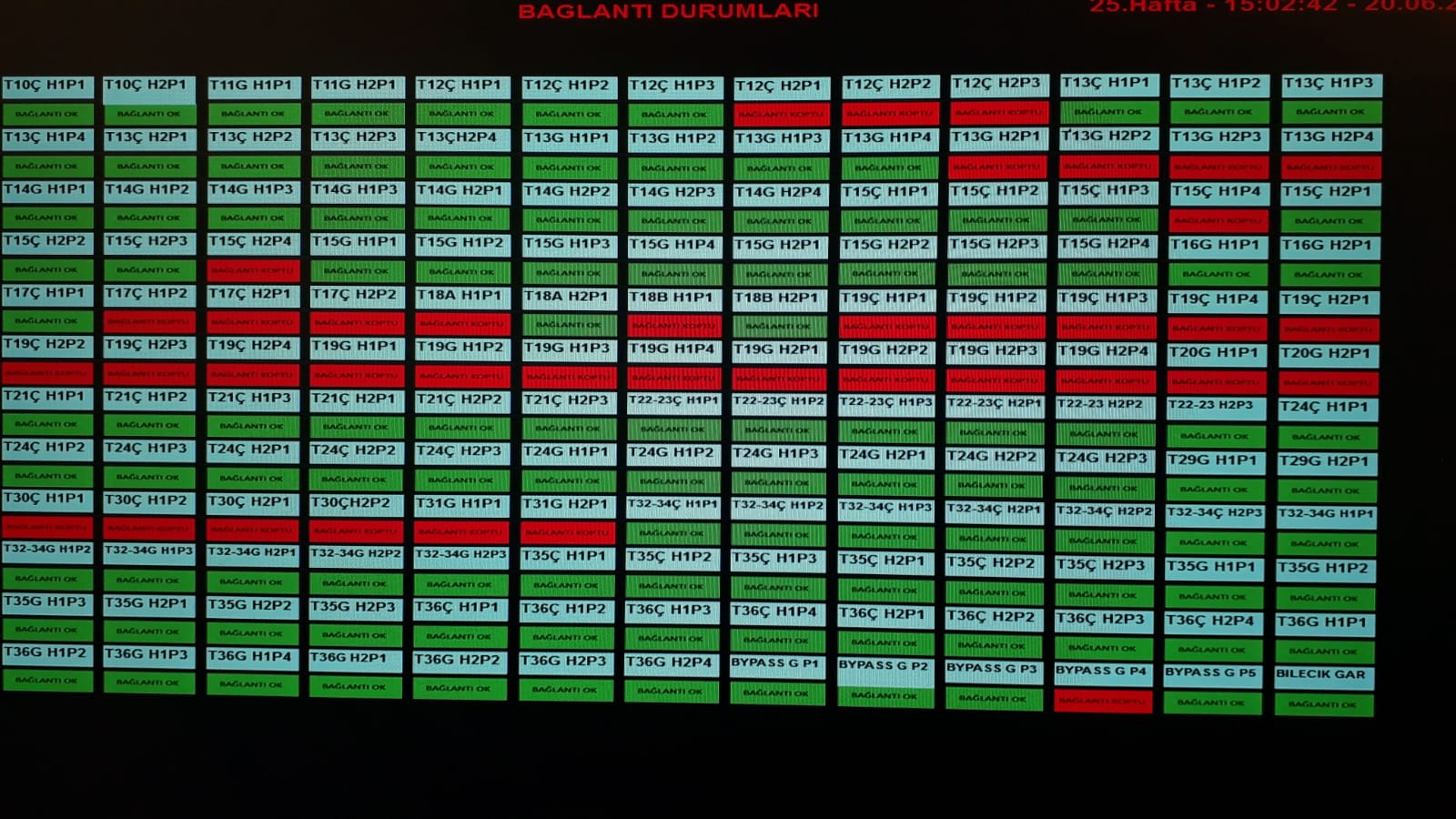

What information do we get from tunnel lightings?
- Fault of gateway supply
- Fault mains connected
- Faulty driver information
- Faulty lamp information
- Driver offline information
-Faulty emergency lighting
- Functional test reports for emergency
- Battery duration test reports for emergency lighting
Contact Information
| Company Name | EAE |
| Company Email | edalgic@eae.com.tr |
| Company Website | https://eaetechnology.com/en/ |
| Contact Name | Emre Dalgıç |
| Contact Function | Planner |
