Mazzeh Commercial Building
Office building in Damascus / Western Villas Mazzeh
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Office building |
| Project Type | Commercial |
| Year of Completion | 2024 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 26 – 100 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 251 – 500 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Lighting Colour Control
- Heating, Ventilation & Air conditioning (HVAC)
- Security and Safety
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering
- Other
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming
- Blind and Shutter Control - Individual Control, Group & Central Control, Automatic Programs
Customers Description

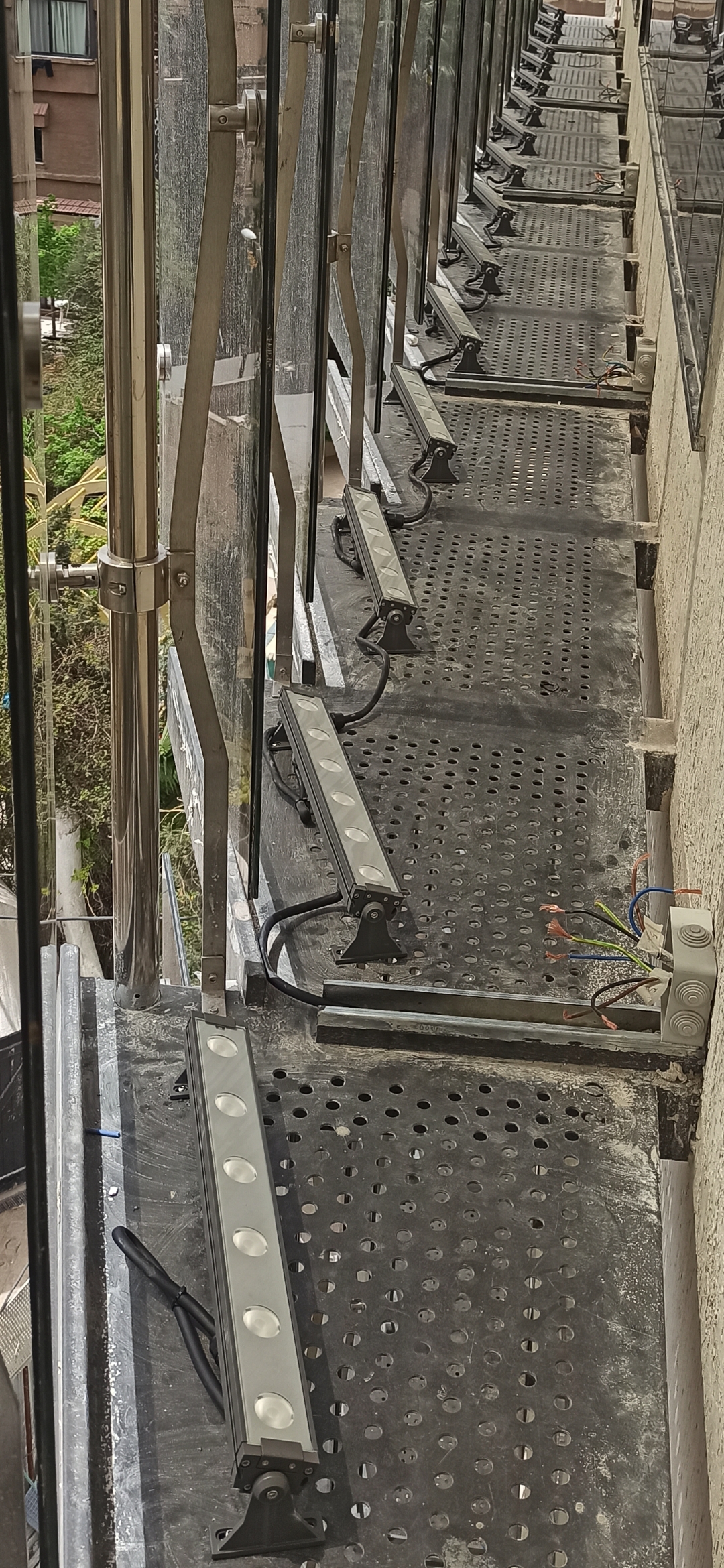

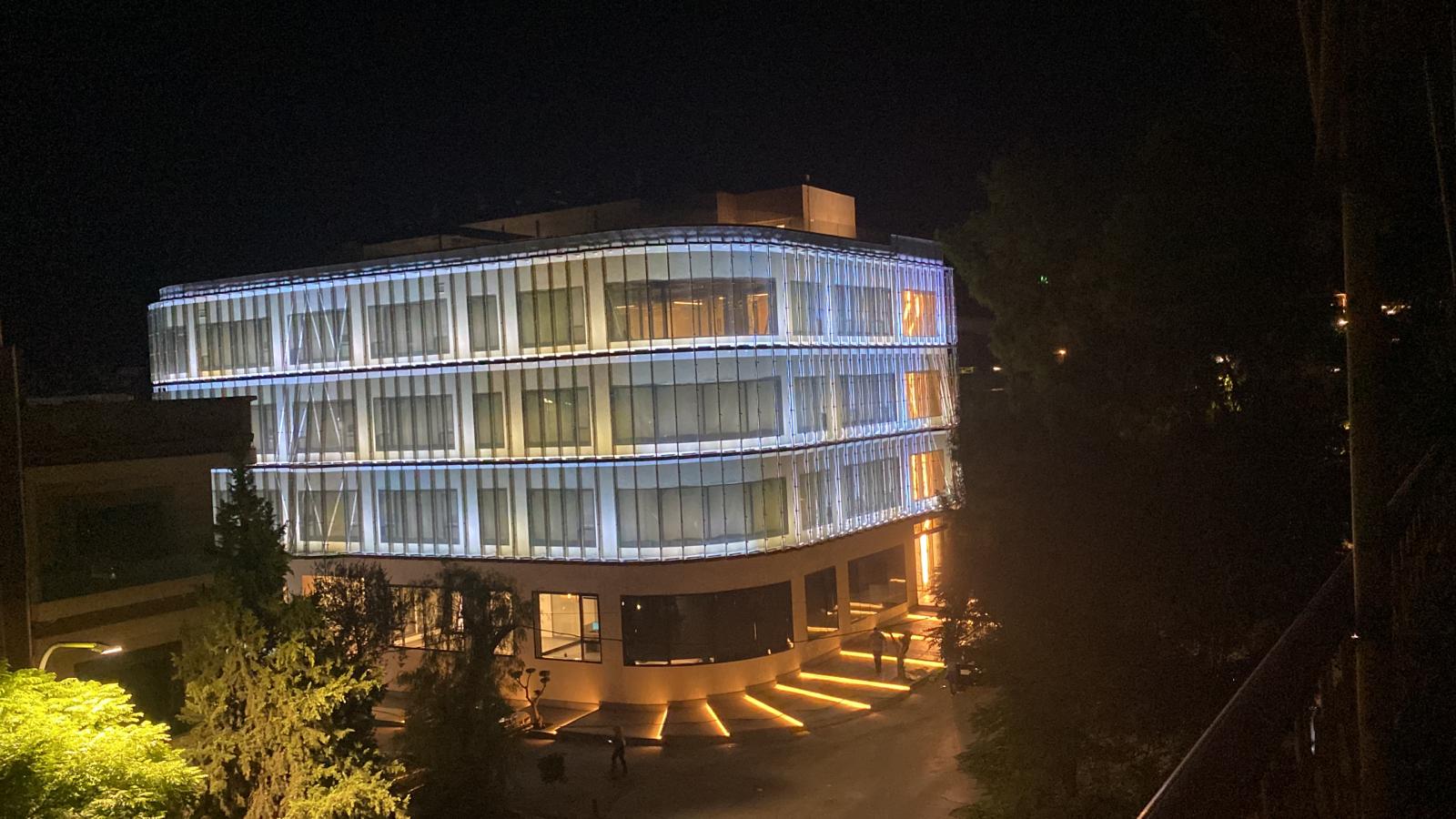

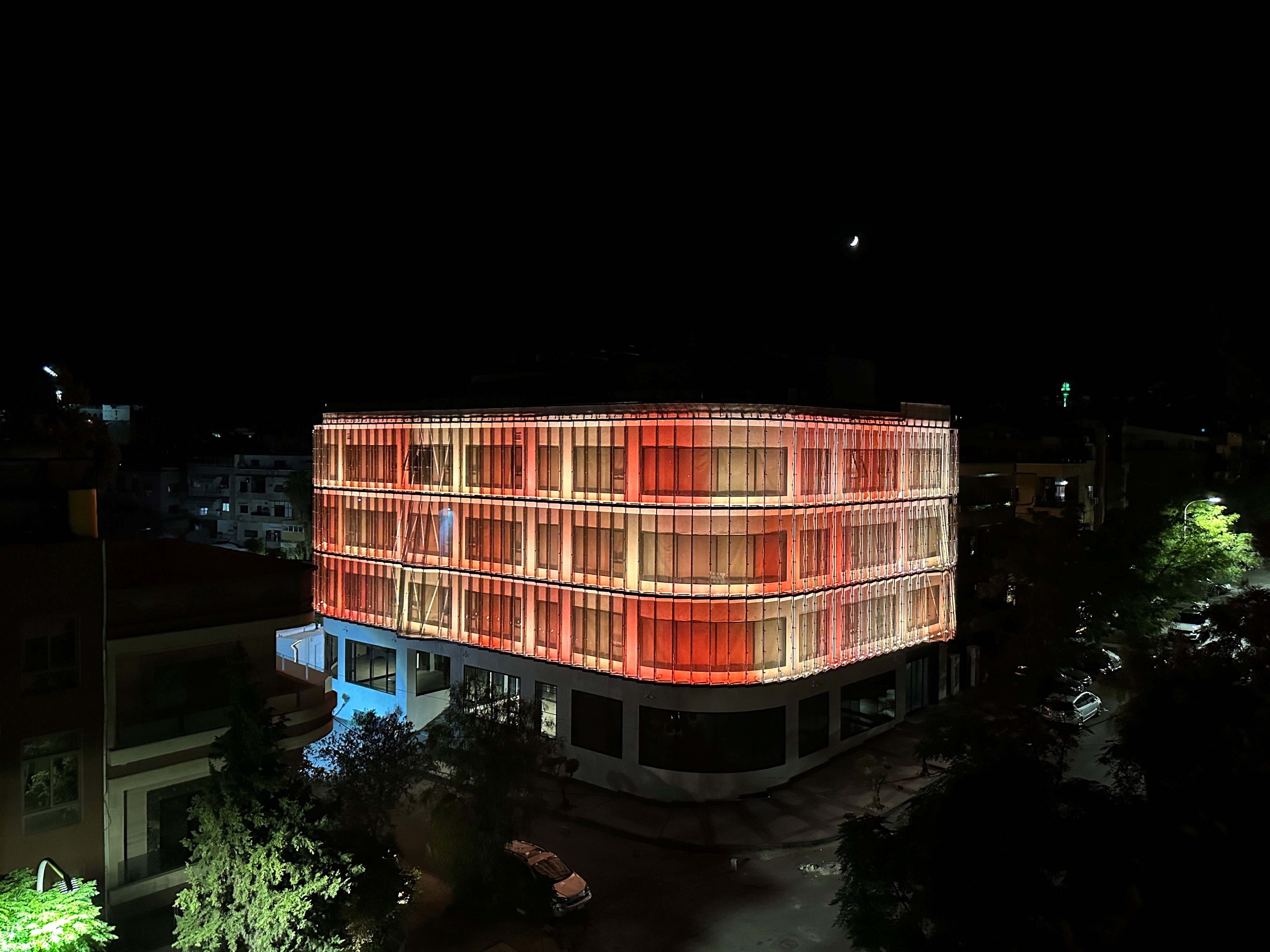

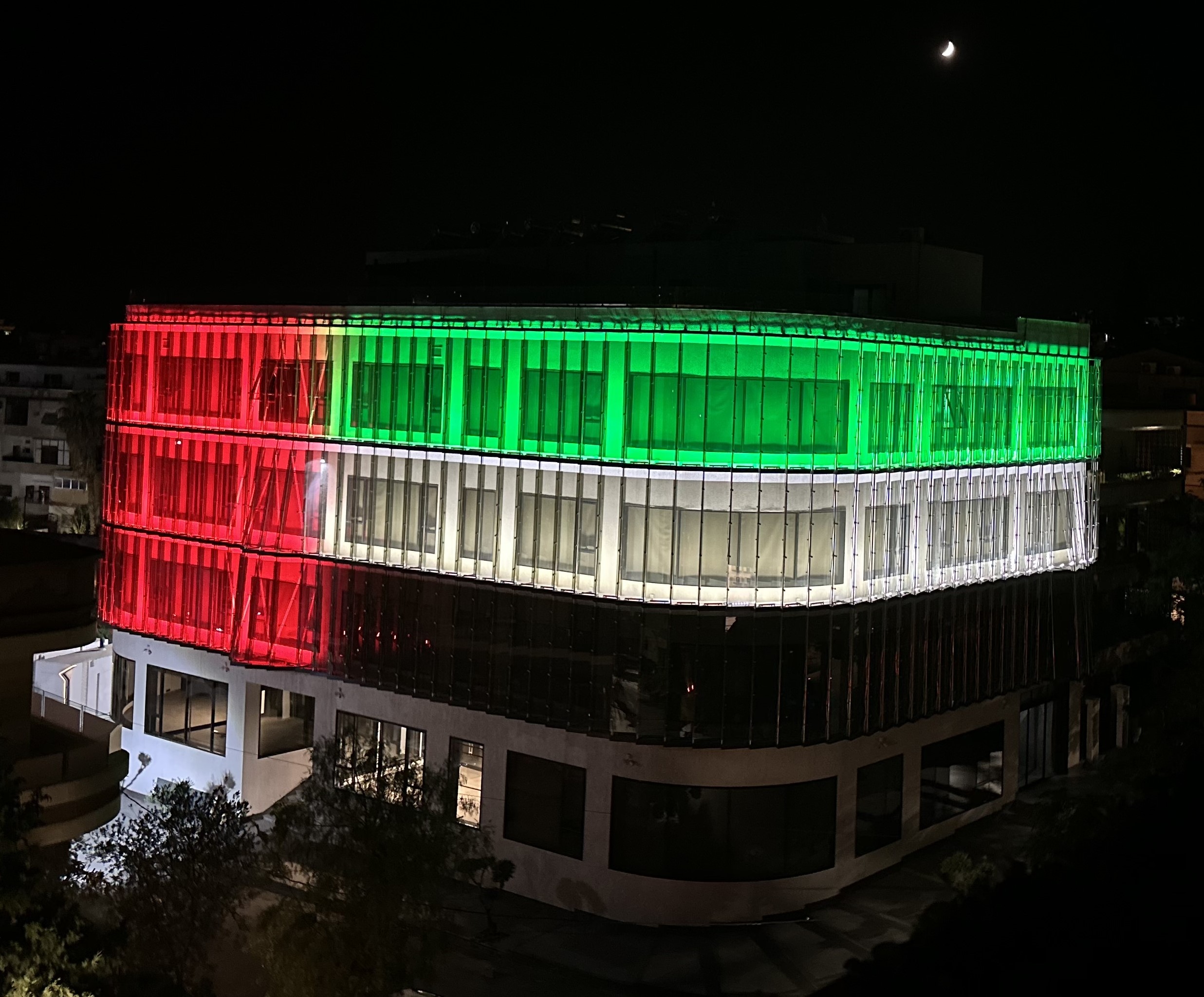

The first and still only project in Syria that uses DMX lighting as its external façade lighting.

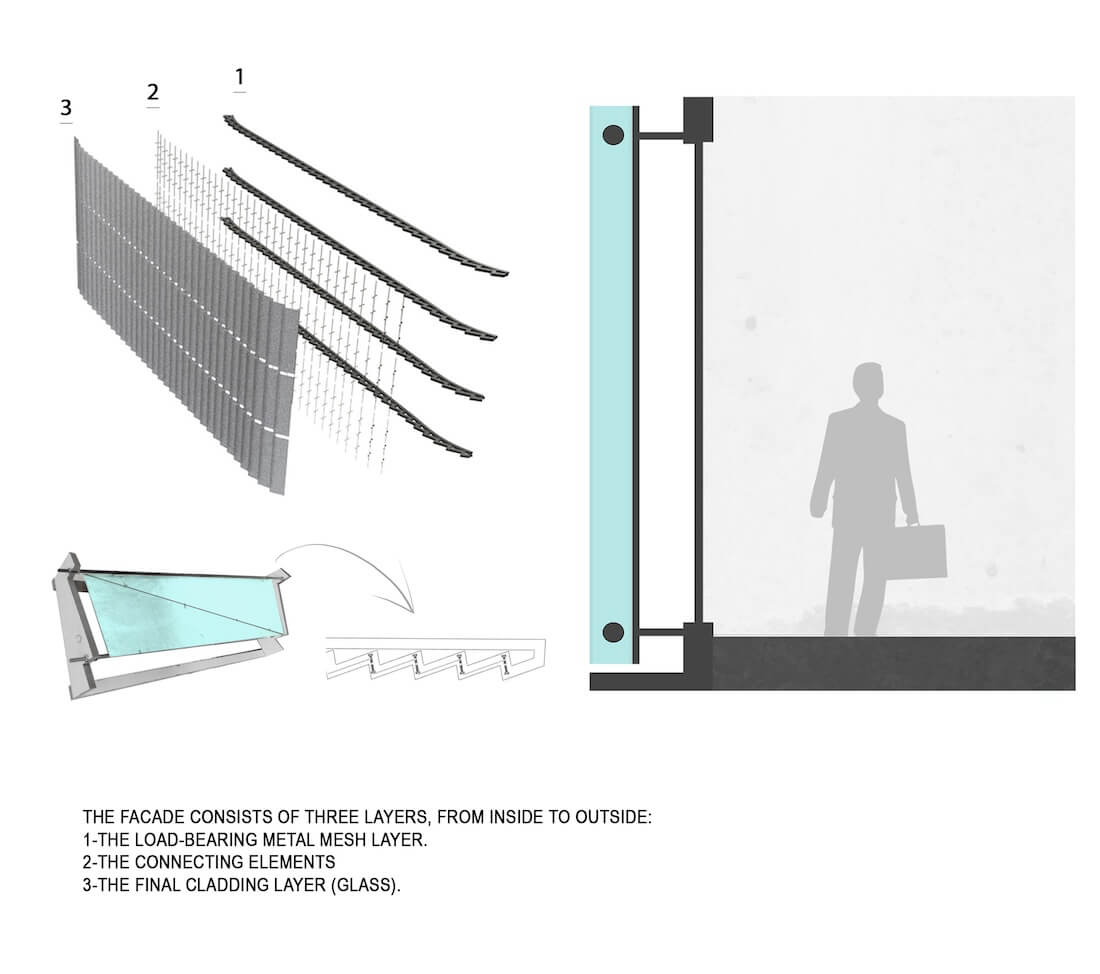

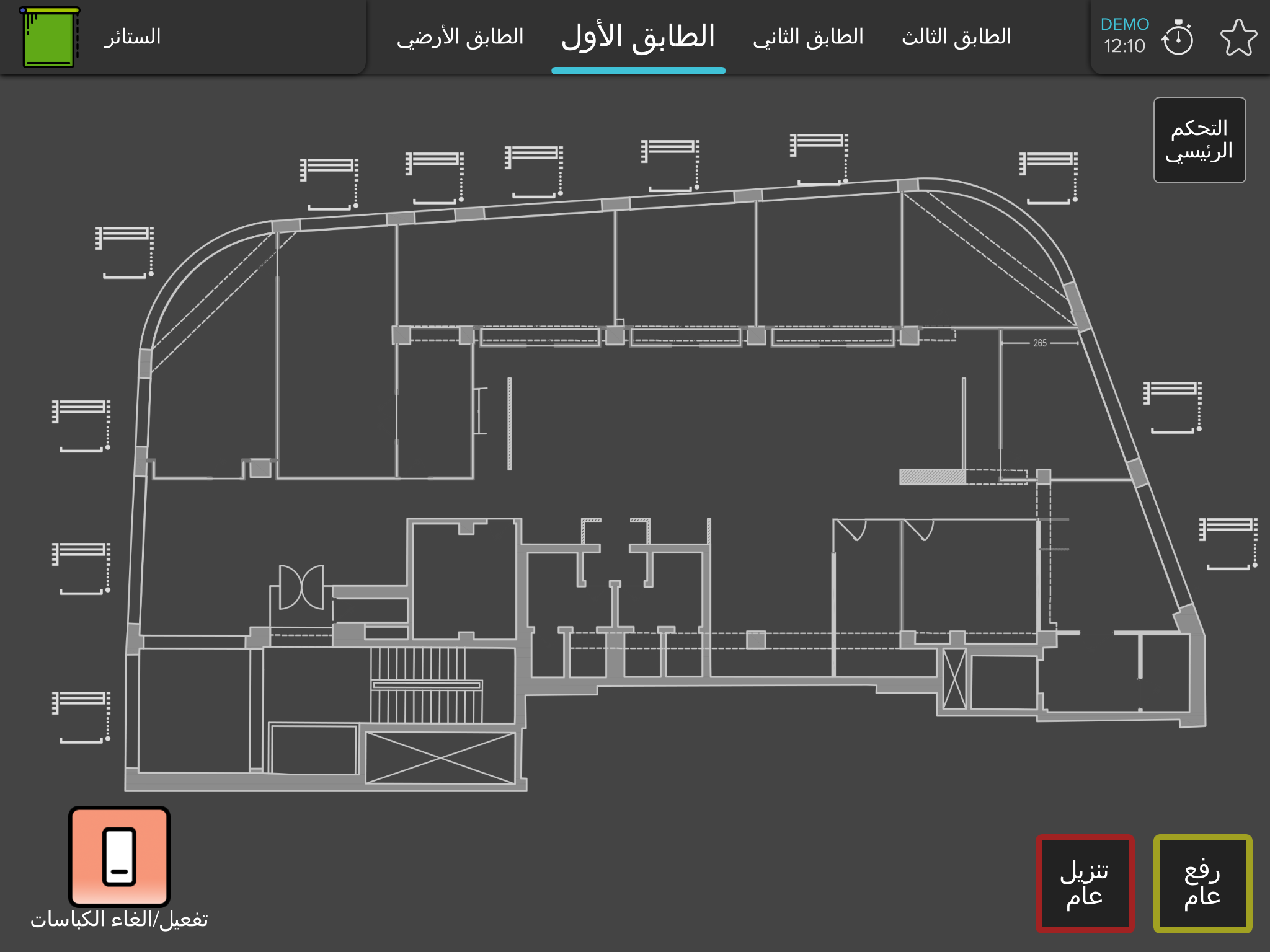

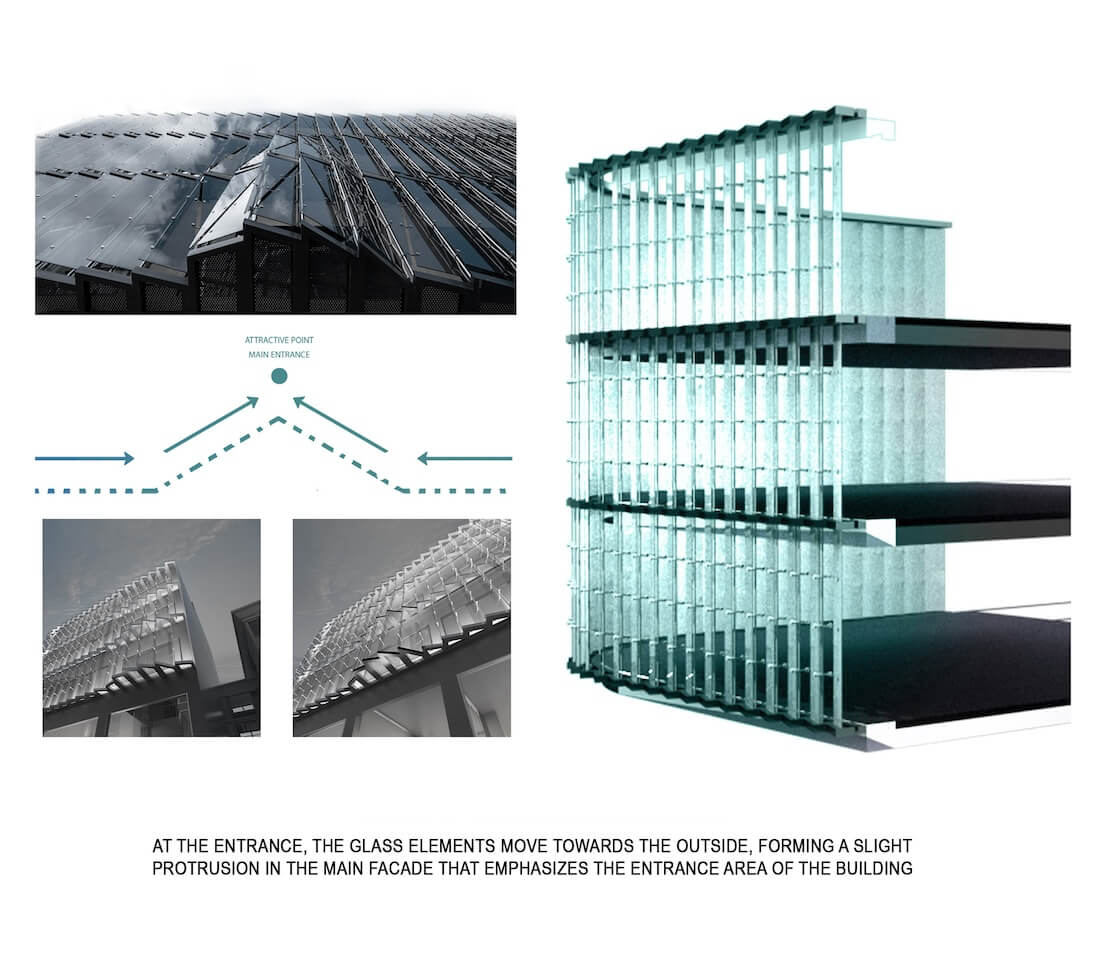

The lighting fixtures are fixed against the façade which consists of offices windows, therefore windows curtains need to be closed on sunset before turning the lights on, hence, during office hours each office has individual control of its curtains through push-buttons, on sunset all push-buttons are locked, curtains closes and lights turns on to pre-defined scene.

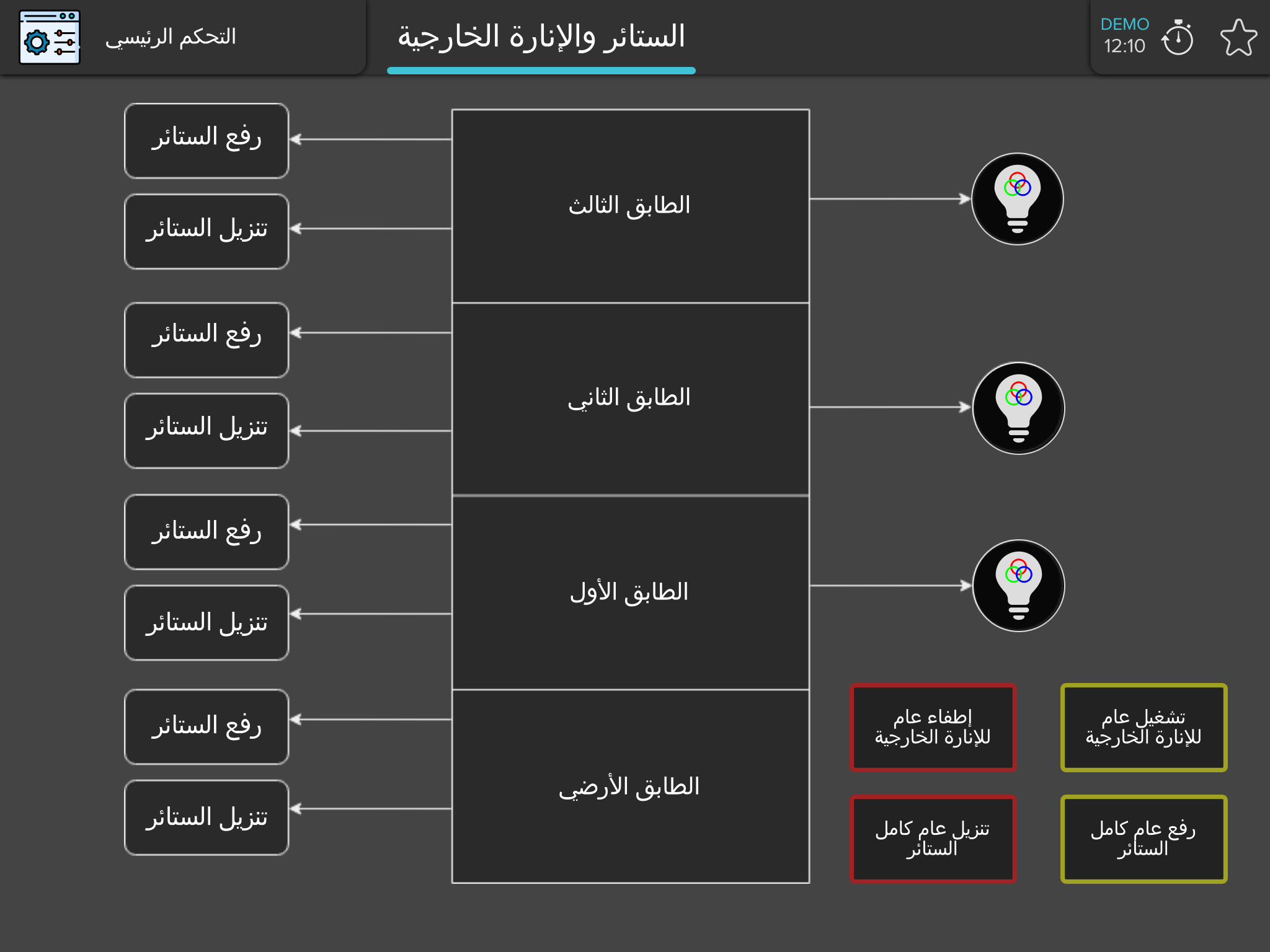

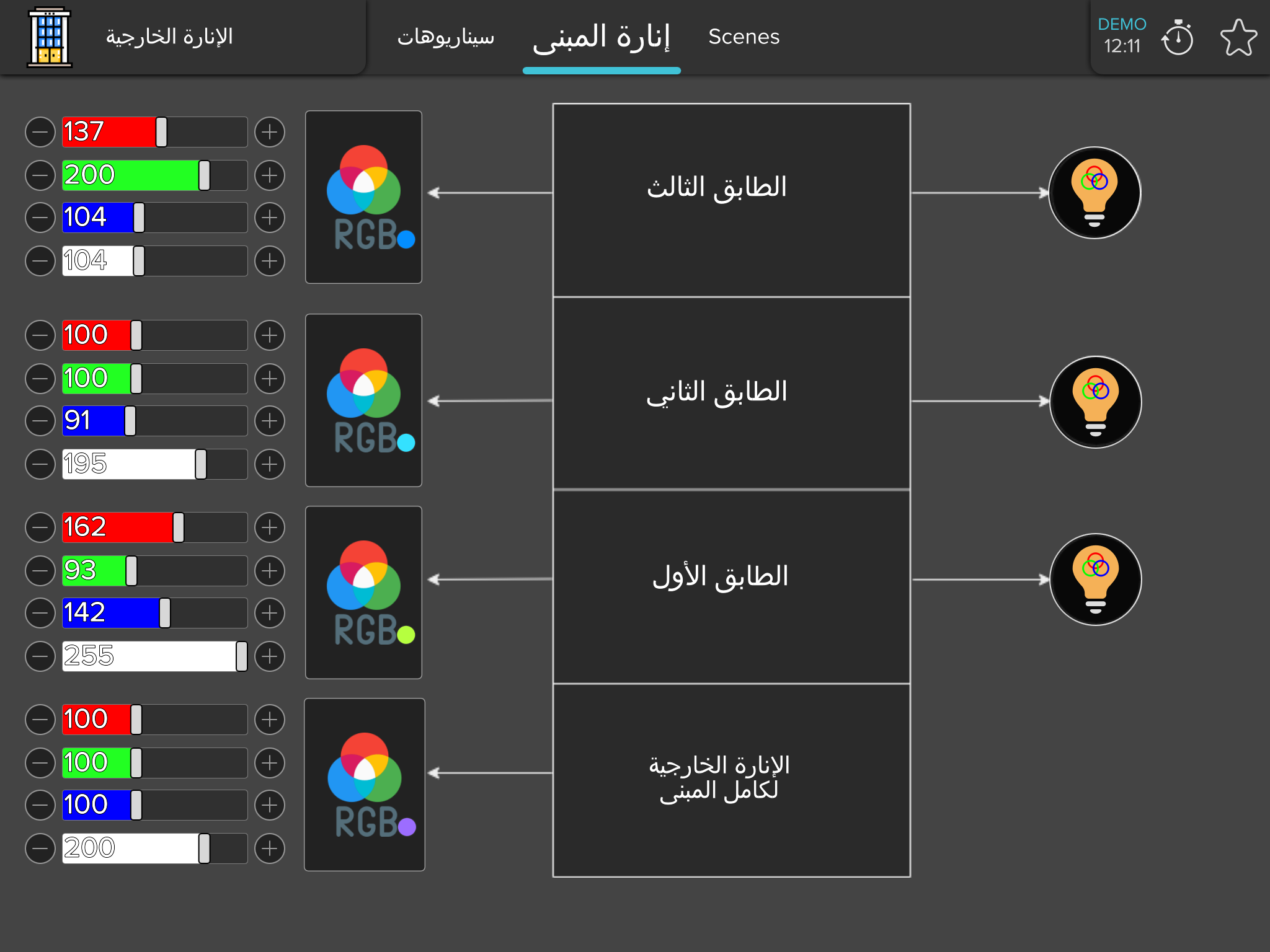

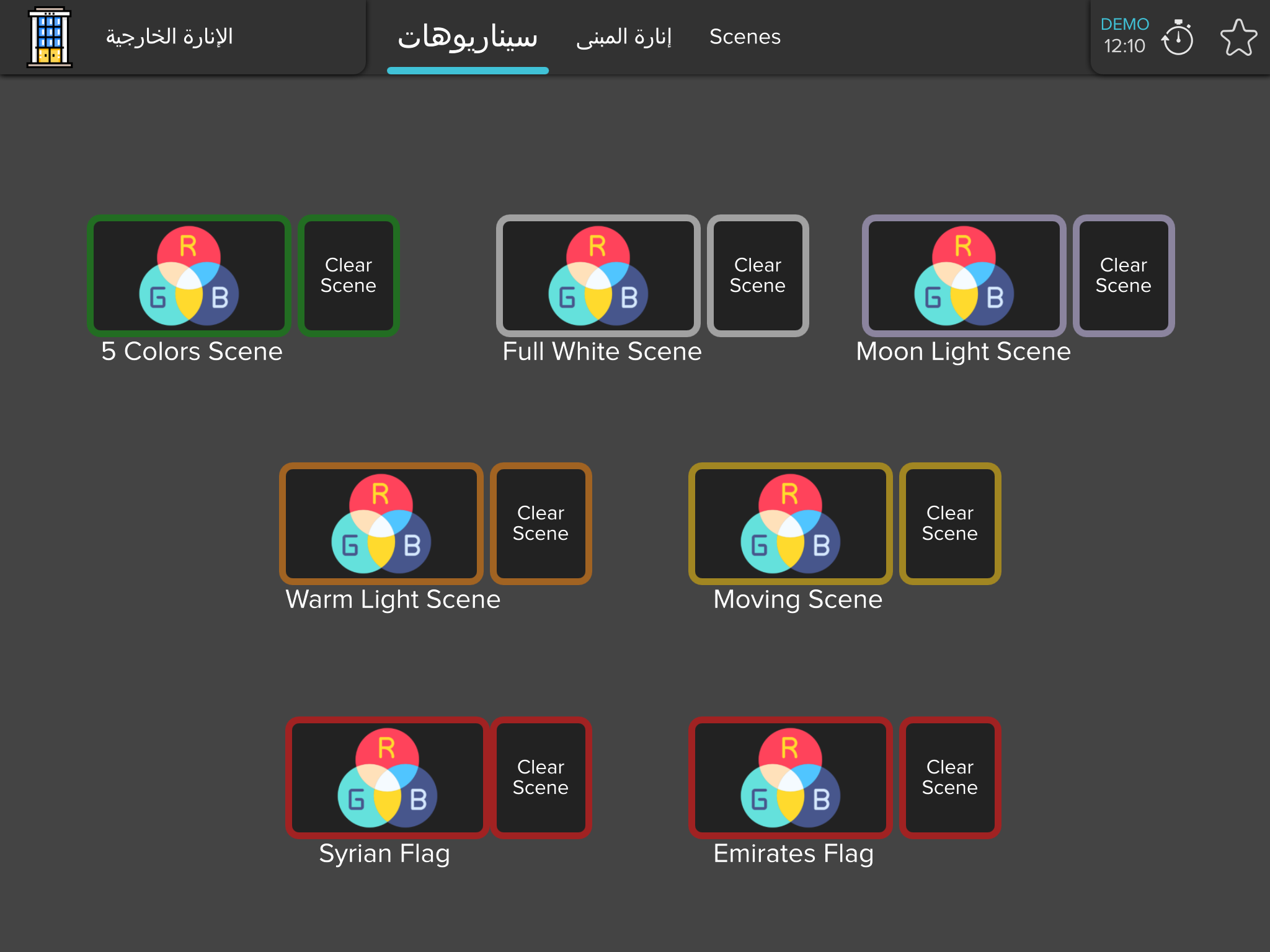

All lighting scenes are controlled through mobile application by integrating DMX with KNX to have a single user-friendly interface to do this job.

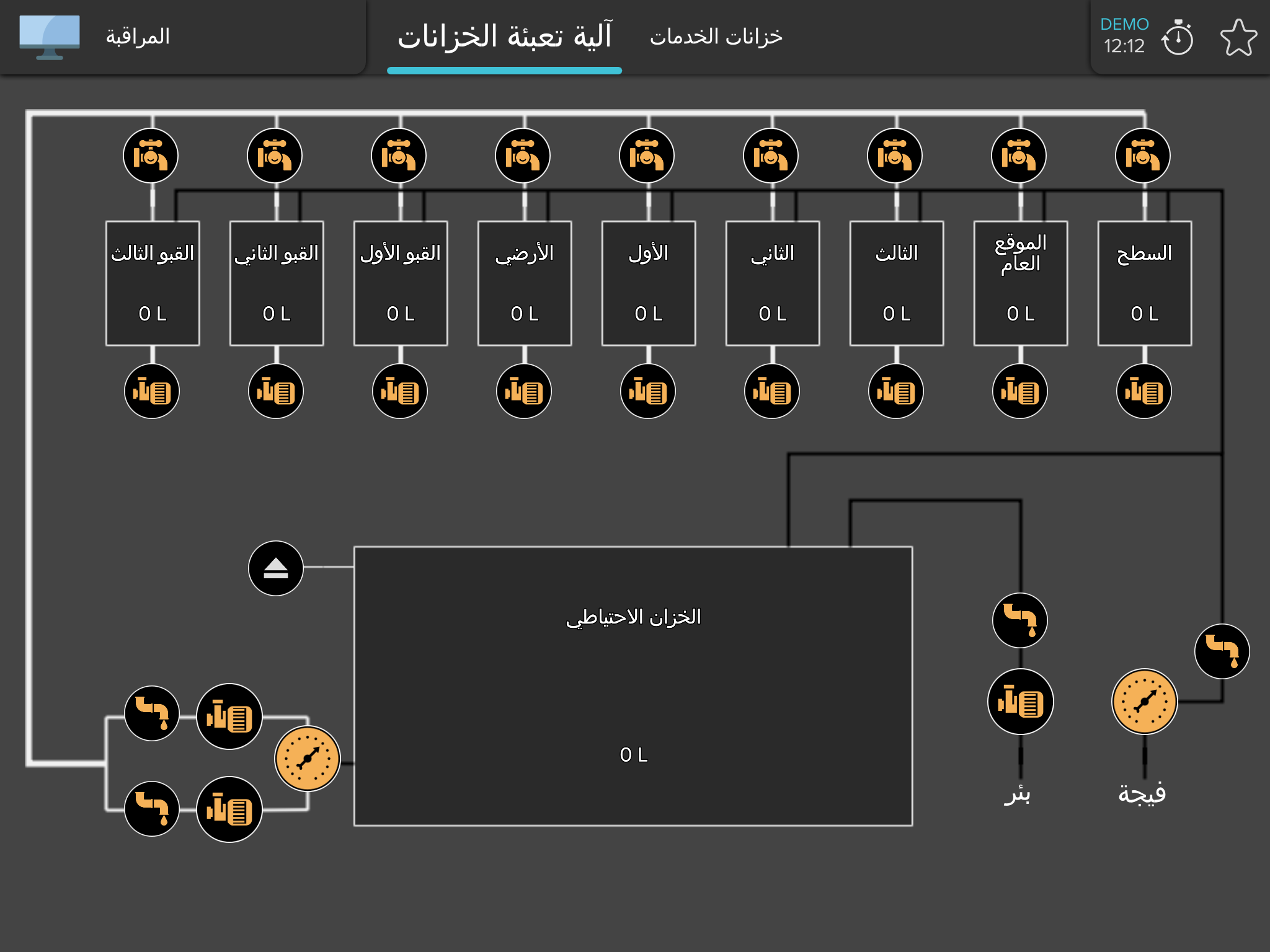

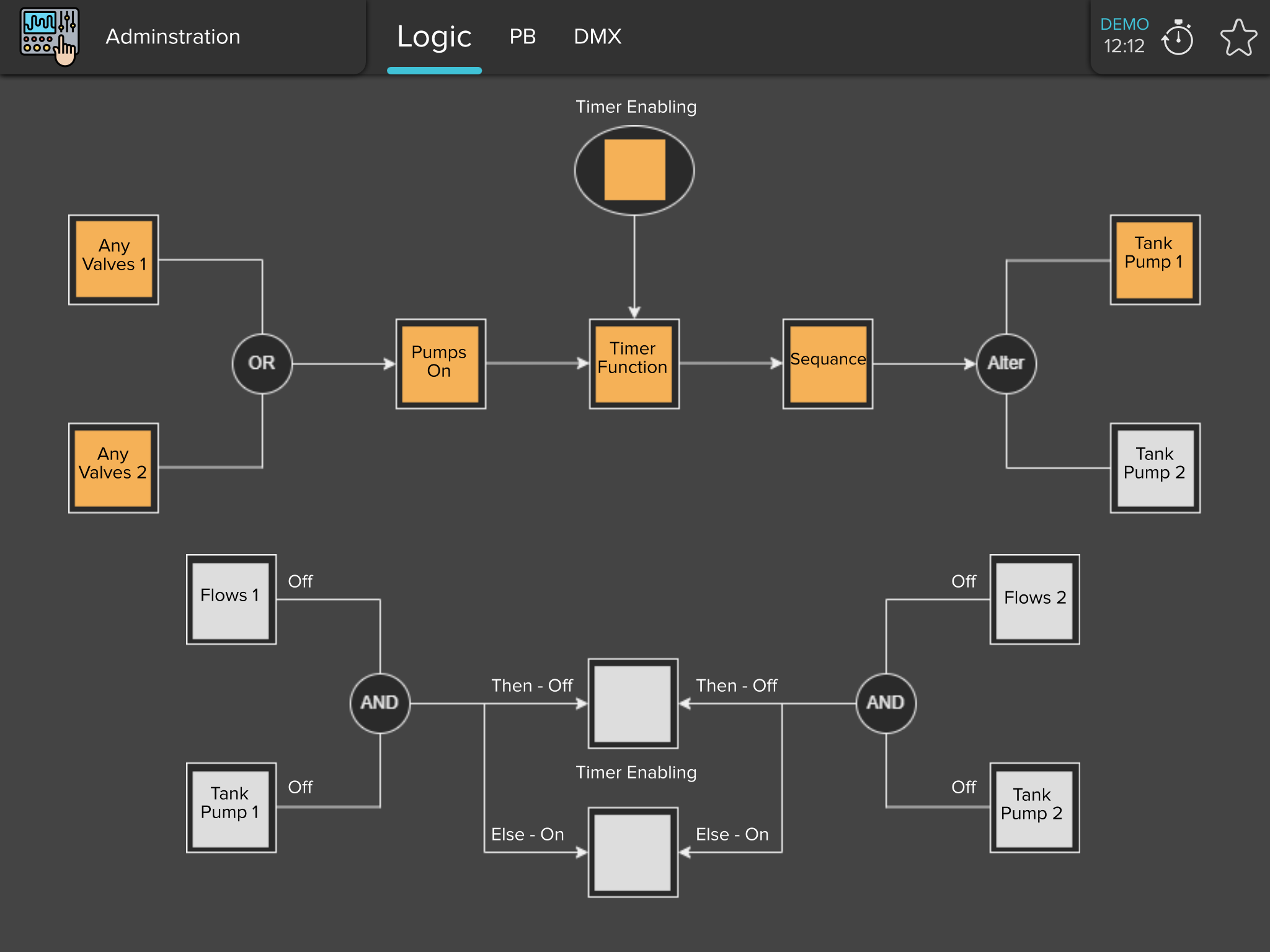

On the other hand, the interface displays all information regarding water supply and storage of the building (tanks level, pumps status, pump failure alert) with a controlled tanks refill from the main tank when water reach certain level.
Also showing dirty water sewer level and alarming when over flow using water leakage sensors, fuel tank level for generators and boiler.
