UBS L27 Auckland
Office building in Auckland
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Office building |
| Project Type | Commercial |
| Year of Completion | 2019 |
| Project Size | 101 – 500 |
| Number of KNX Devices Used | 26 – 100 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 1 – 100 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control, Lighting Colour Control
- Heating, Ventilation & Air conditioning (HVAC) - Automatic Occupancy Detection
- Security and Safety
- Operation and Visualisation - Touch Panels & Display Panels
- Energy Management/Smart Metering
- Other
- Automation and Remote Access - Timed Functions
- Blind and Shutter Control - Individual Control, Group & Central Control, Preset Positioning, Automatic Programs
Customers Description
UBS is a global company that was looking to utilise a floor of one of top buildings in Auckland CBD waterfront for their new office. Following their high standard and demand for reliable, backward compatible, energy efficient & easily interfaced system, they selected a system based on KNX.

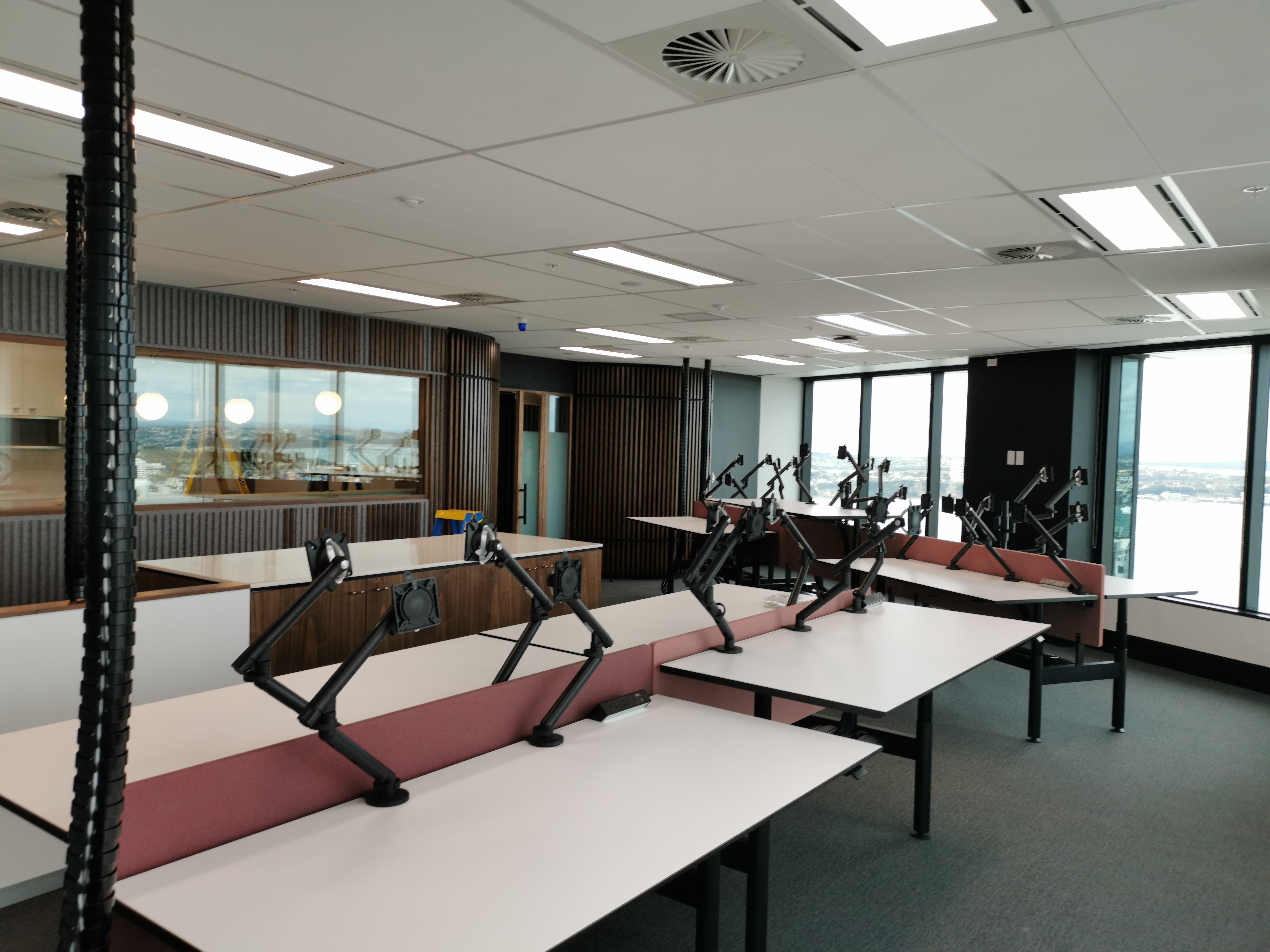

The system performs energy efficiency by constant lighting control, daylight harvesting, time scheduled operation, presence & absence detection...At the same time the system automatically and semi-automatically control blinds to reduce heat through glazed area (the office is on sunny side of the building). Also, presence detection is interfaced with BMS for comfort/standby operation of air conditioning.

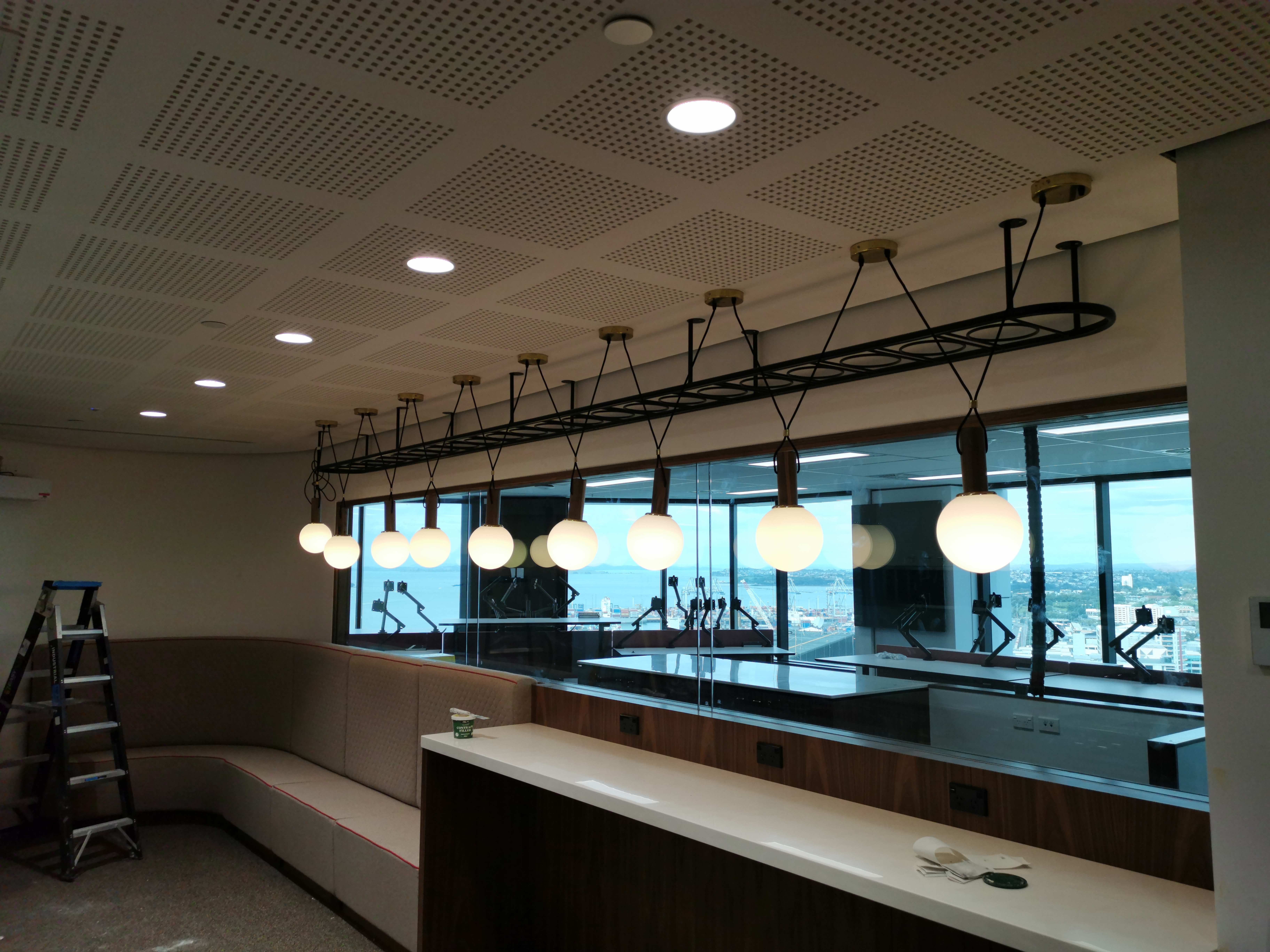

Colour changes of indicator luminaires outside of board & meeting rooms determine occupancy and usage of the rooms.
Interface with Crestron allows operation & overriding of connected equipment in Boardroom & meeting rooms and enable Boardroom tp be divided in 2 independently controllable areas
Contact Information
| Company Name | Smart Building Technologies |
| Company Email | aleksandar@SmartBT.co.nz |
| Company Website | http://www.SmartBT.co.nz |
| Contact Name | Aleksandar Soldatovic |
| Contact Function | System Integrator |
