Megacentro de Compras Gómez Pardo
Other in Yerba Buena, Tucumán
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Other |
| Project Type | Commercial |
| Year of Completion | 2026 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 301 – 500 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 2.000+ |
| Man Power | 6 – 10 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control, Lighting Colour Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Automatic Occupancy Detection, Weather Dependent Control, CO2 / Humidity Measuring, Natural Ventilation
- Security and Safety - Emergency Lighting, Interaction with HVAC/Lighting
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Touch Panels & Display Panels
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection, Use of Renewable Energies
- Other
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming
- Blind and Shutter Control - Individual Control, Automatic Programs, Wind and Rain Protection, Sun Tracing (interaction with HVAC / lighting)
Customers Description

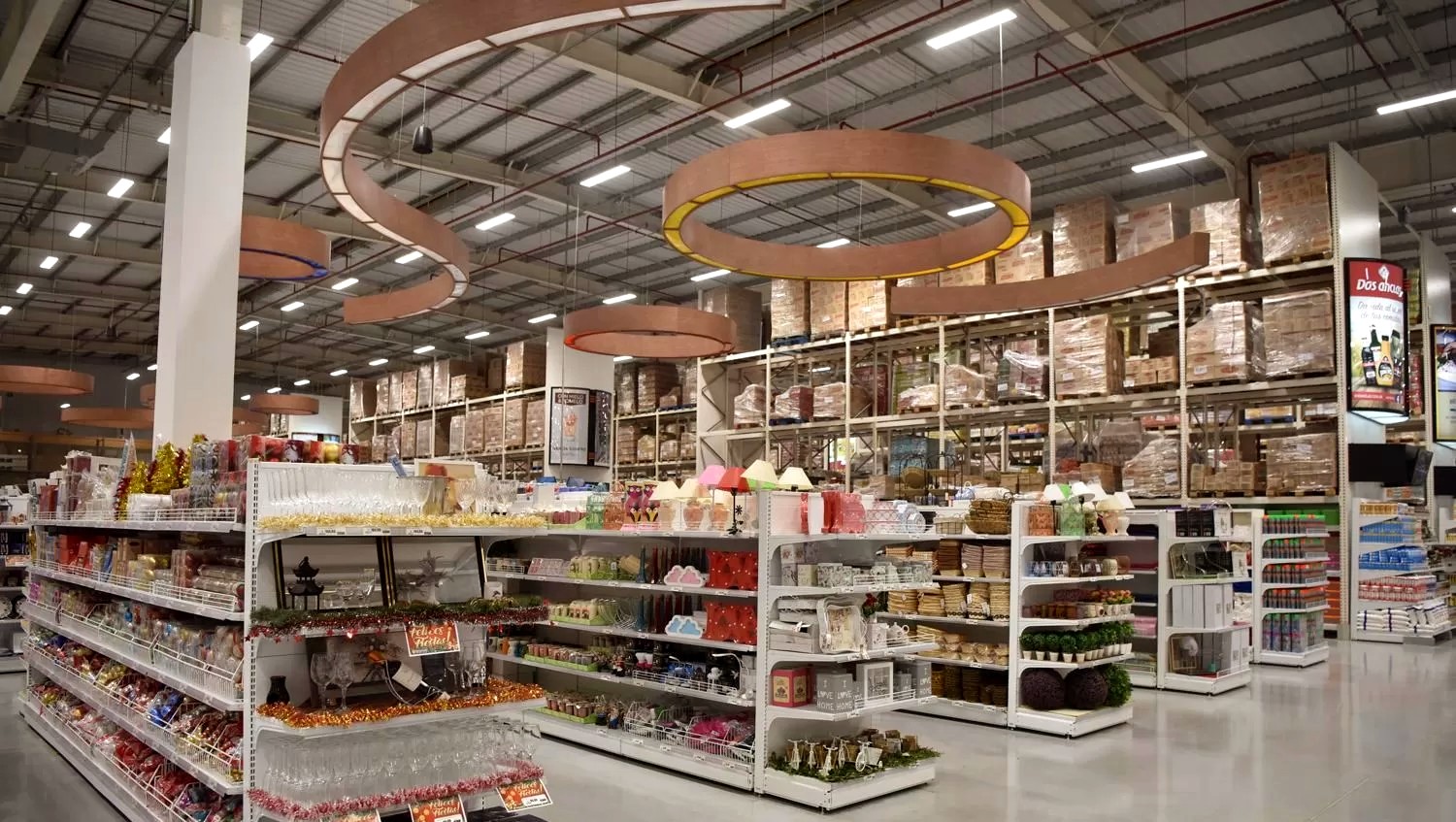

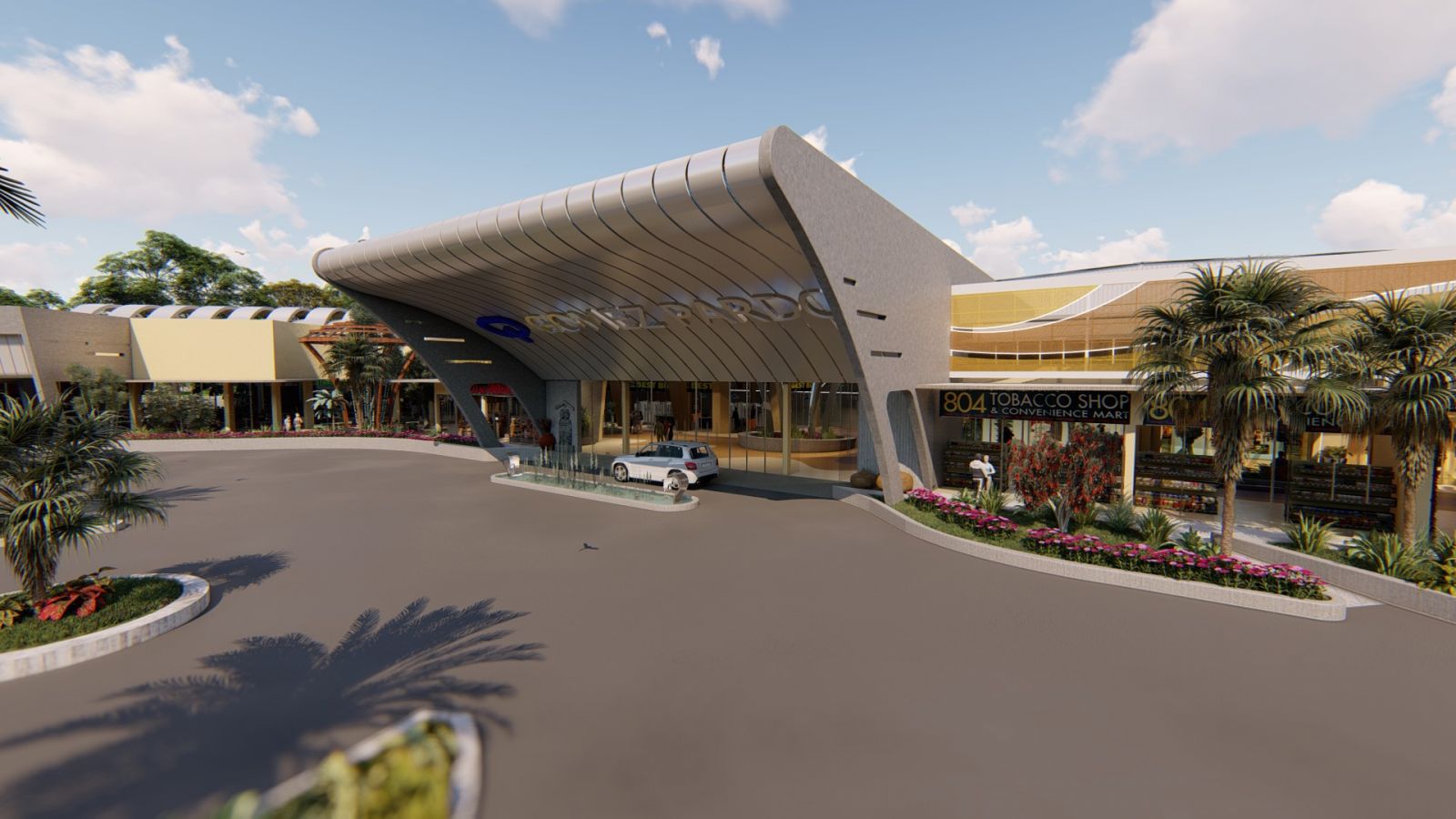

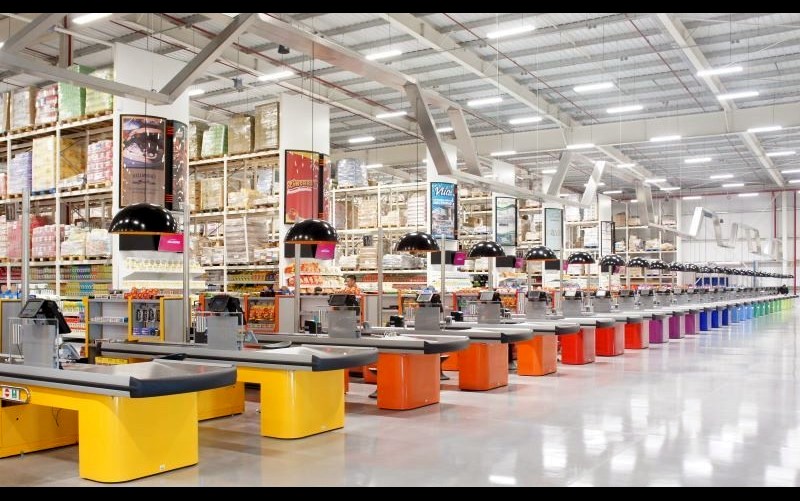

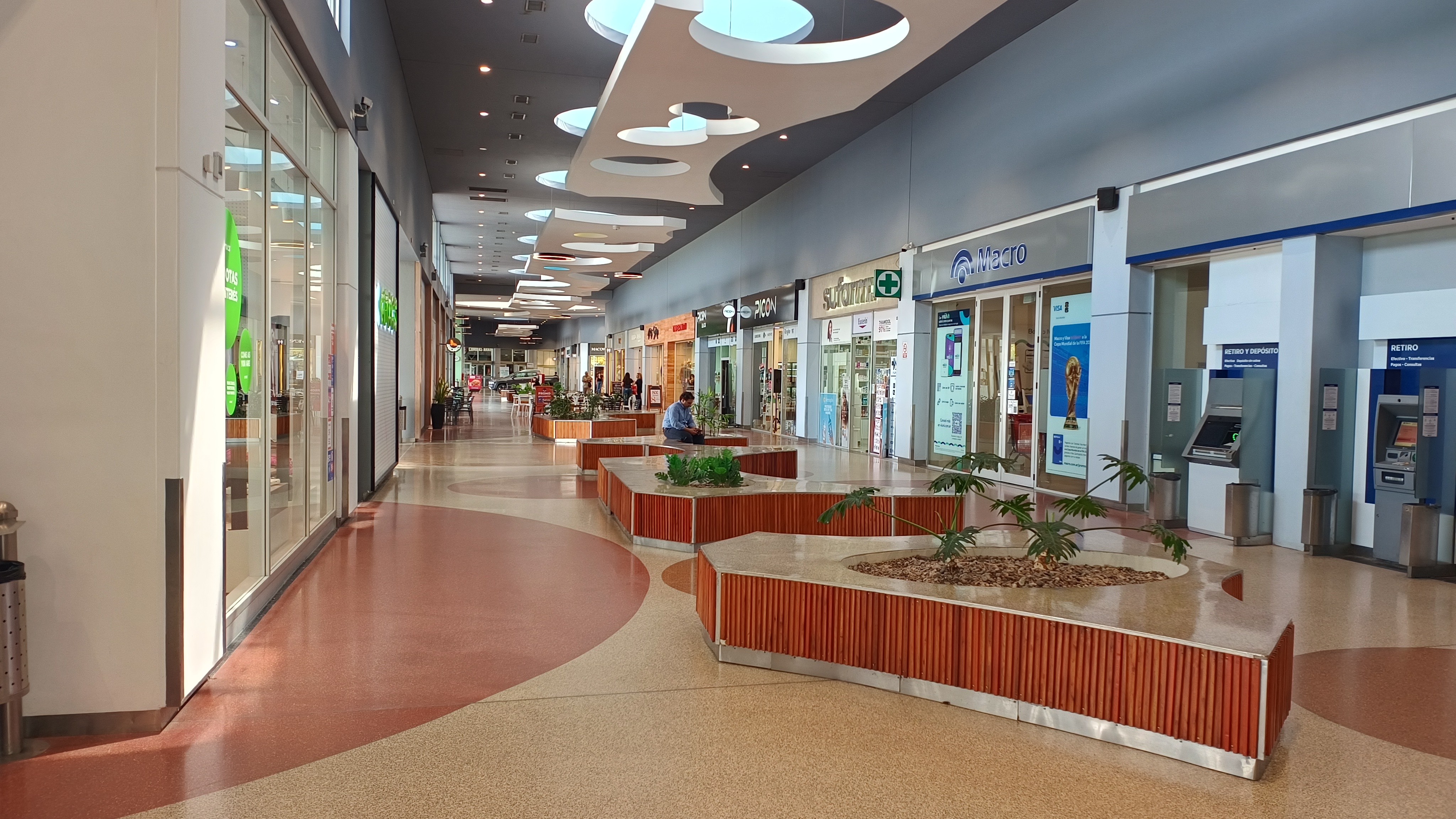

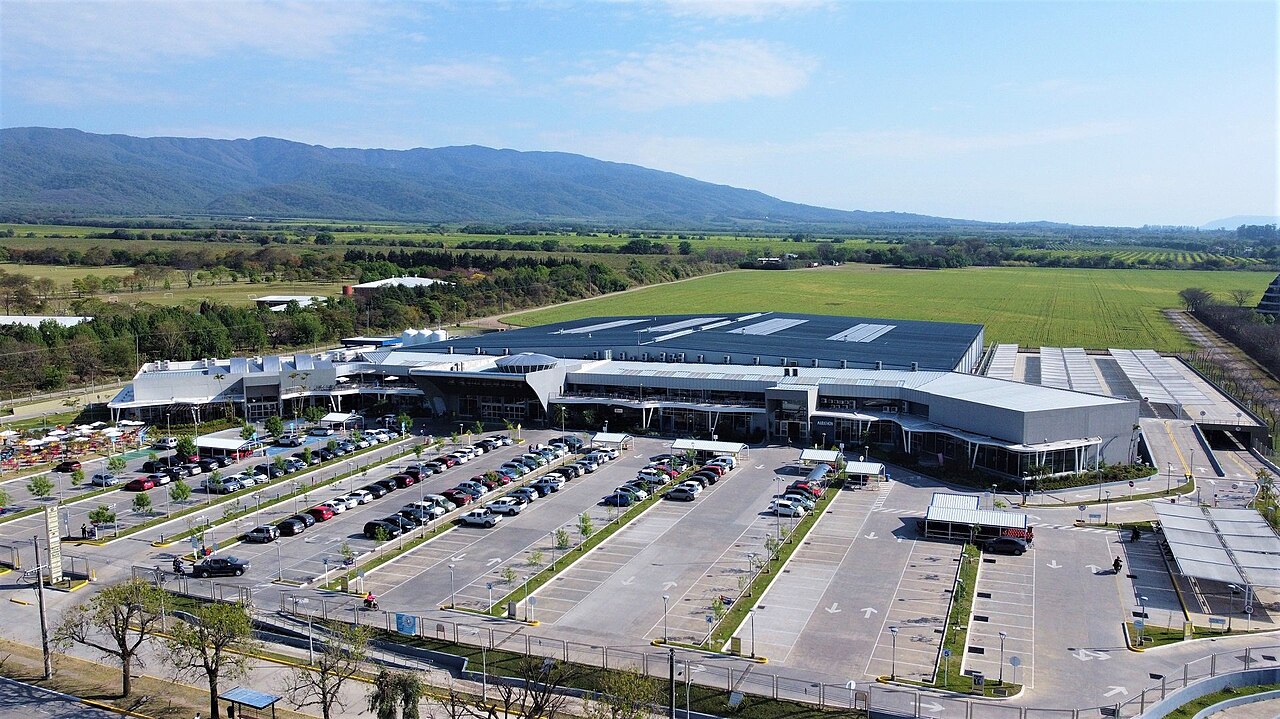

The Gomez Pardo Shopping Megacentre, located in Yerba Buena, Tucumán Province, is one of the largest shopping centres in northern Argentina. The complex covers 18,000 m² and includes a supermarket with sales area and warehouse, a gallery with more than 30 retail stores, and a 12,000 m² parking area.

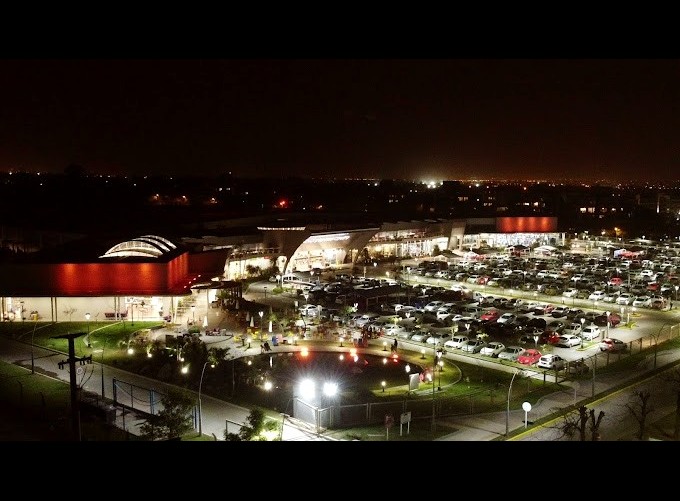

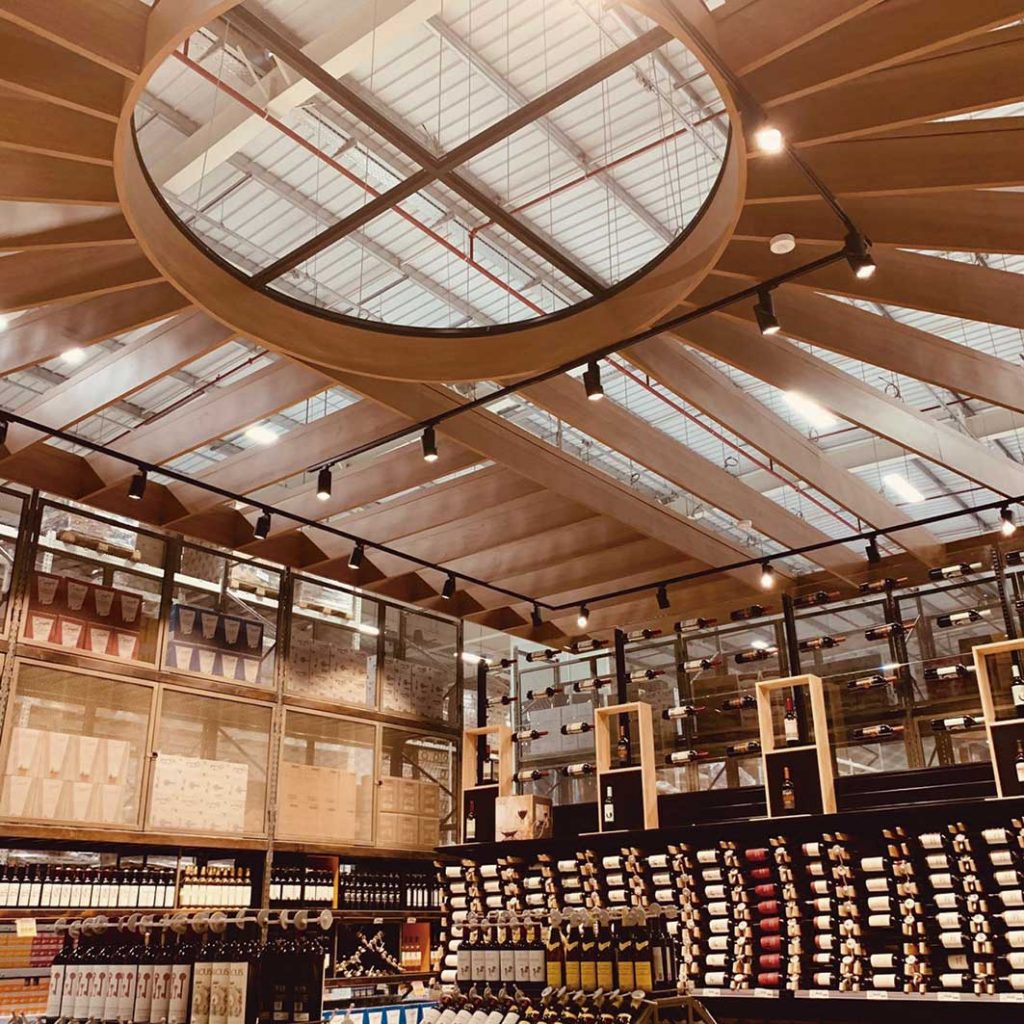

The KNX system integrates lighting, HVAC and metering through 250 KNX devices. Lighting is controlled via DALI and automatically regulated according to external brightness. An RGB façade lighting system performs scheduled colour changes.

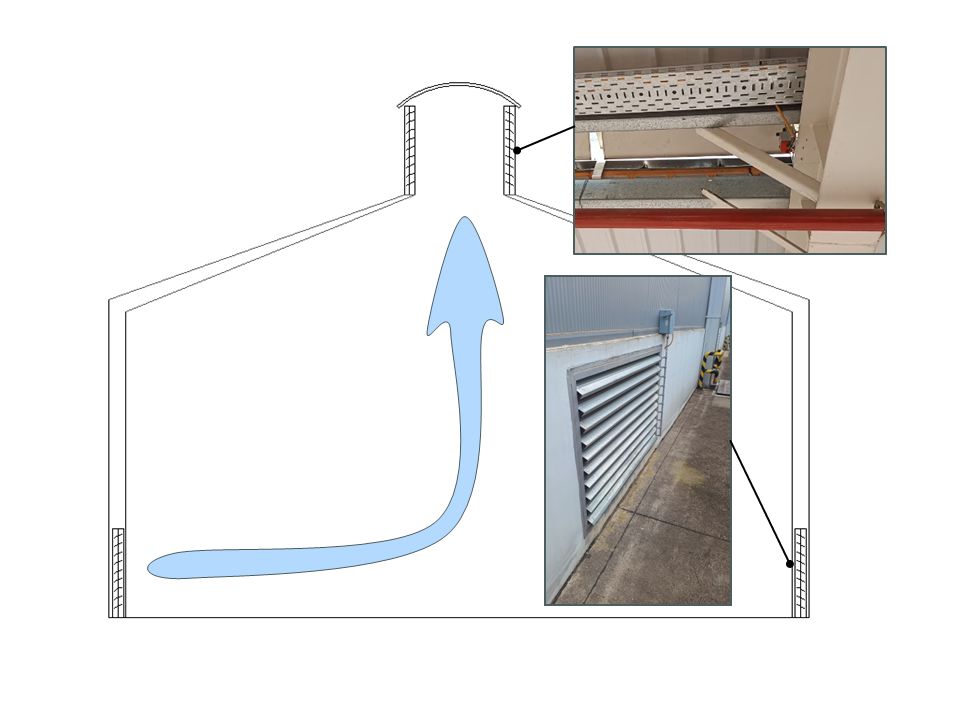

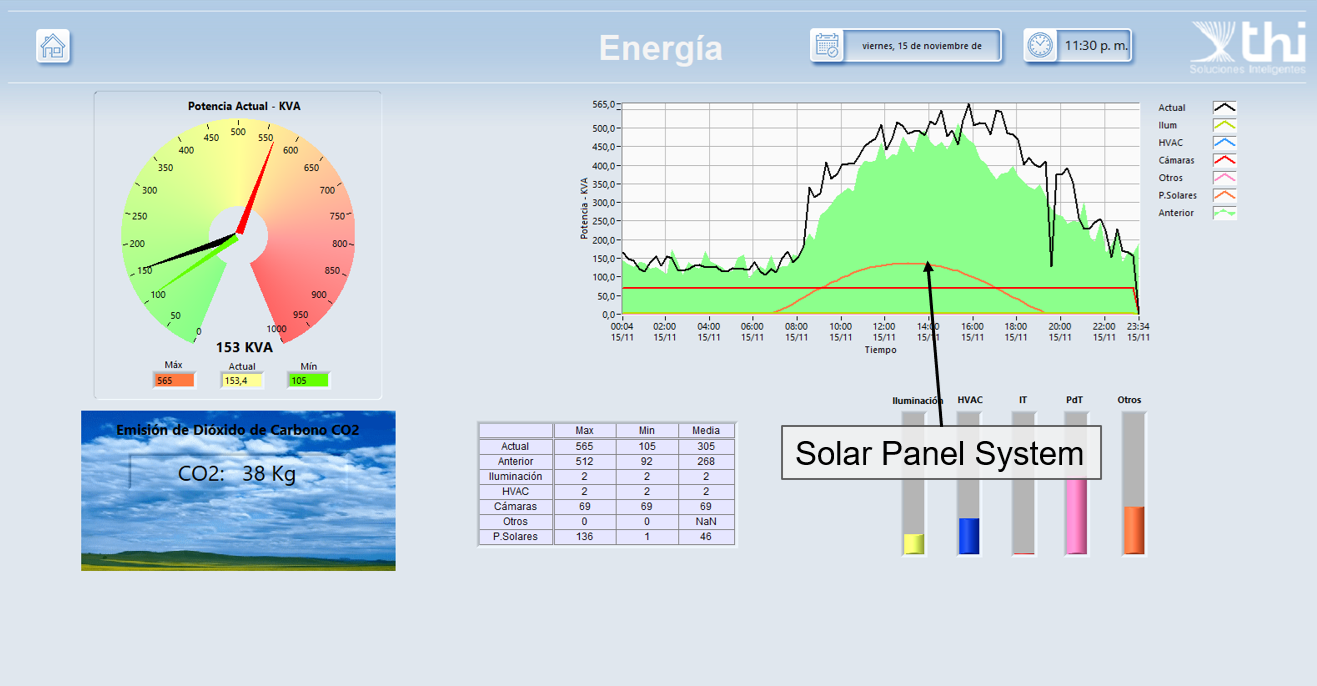

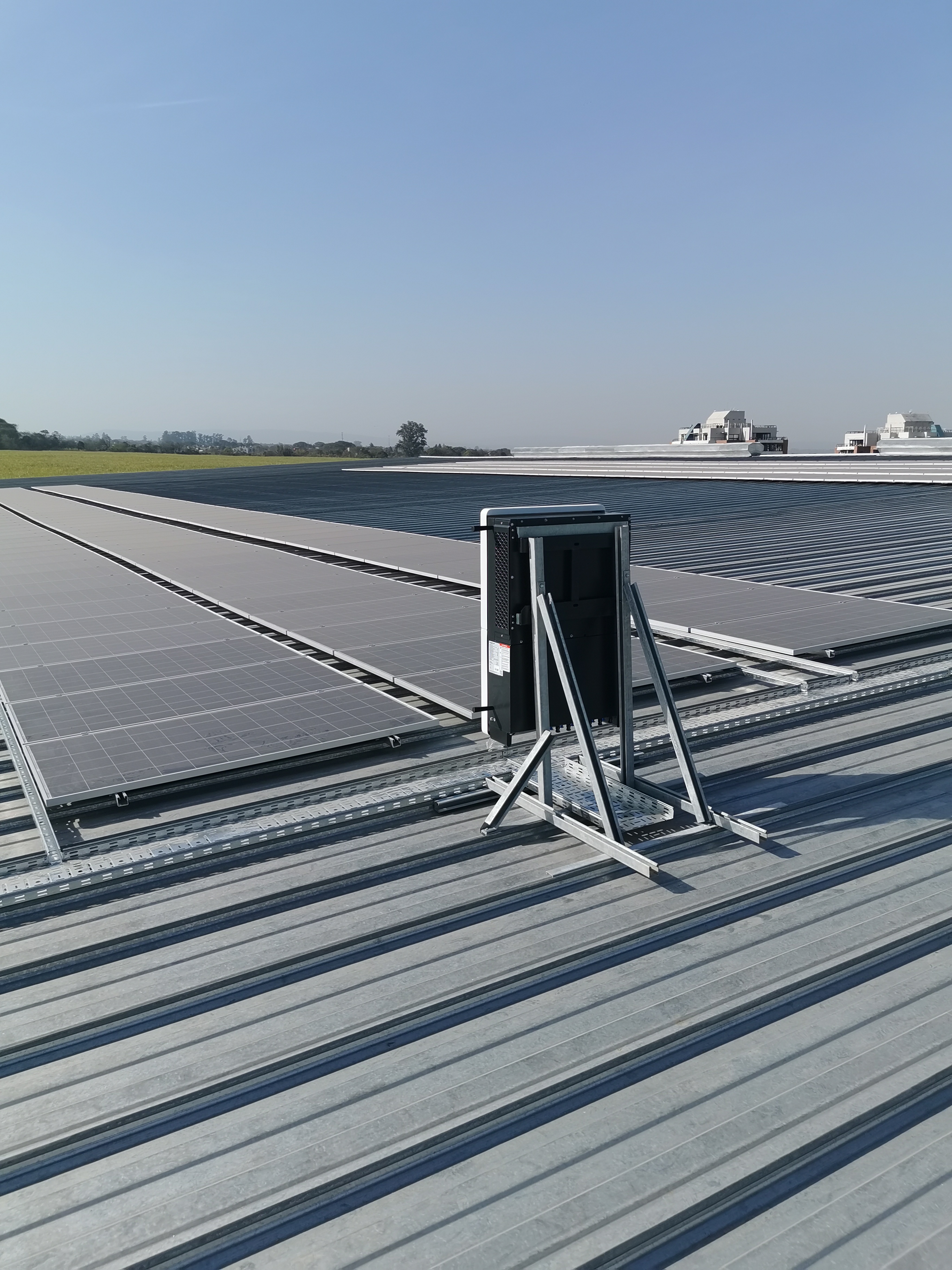

Energy efficiency is enhanced through CO₂-controlled ventilation, natural ventilation and night free-cooling managed by roof and side-wall blinds. A 1,400 m² solar panel system with a capacity of 228 kW contributes to daytime energy savings.

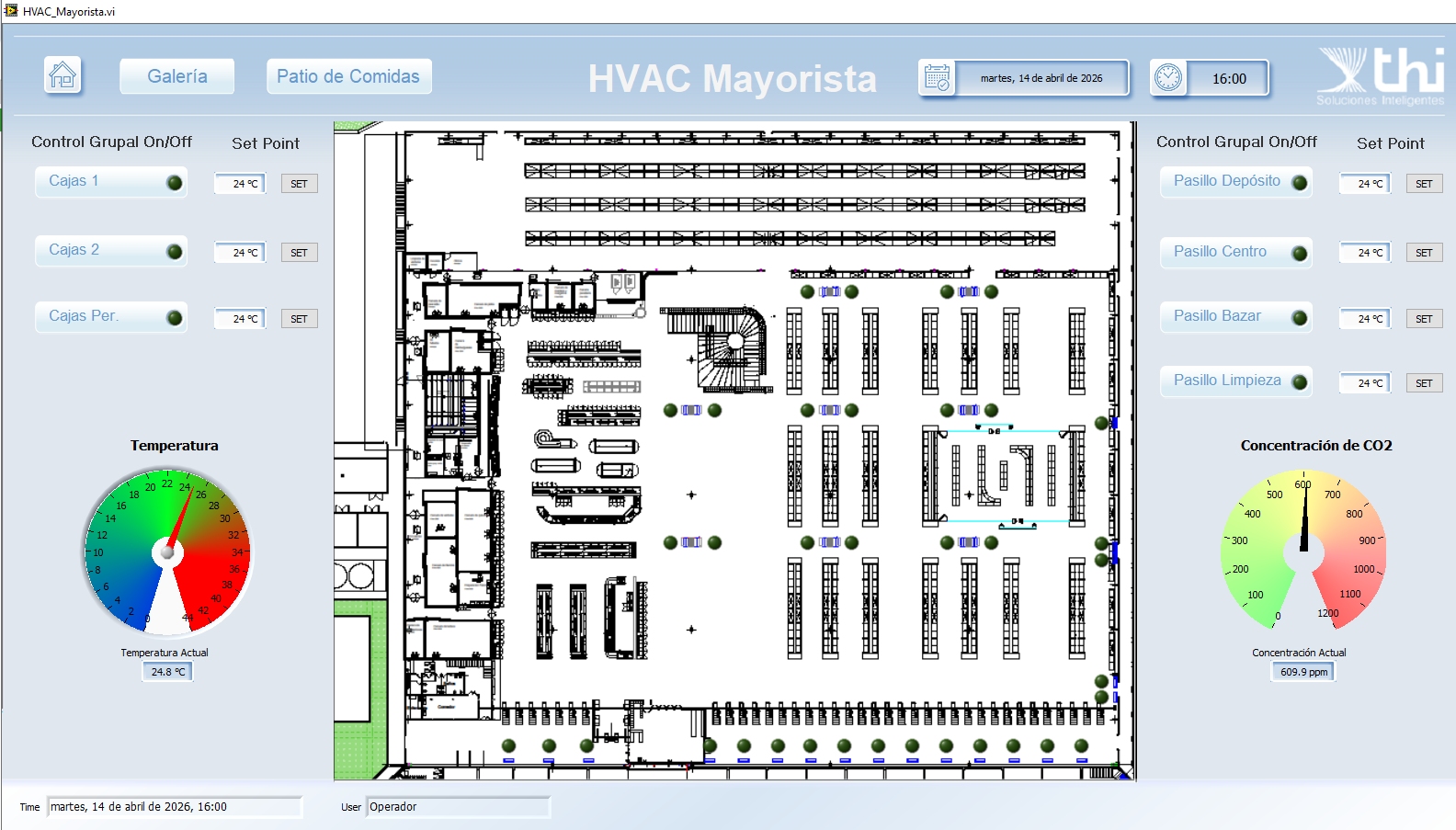

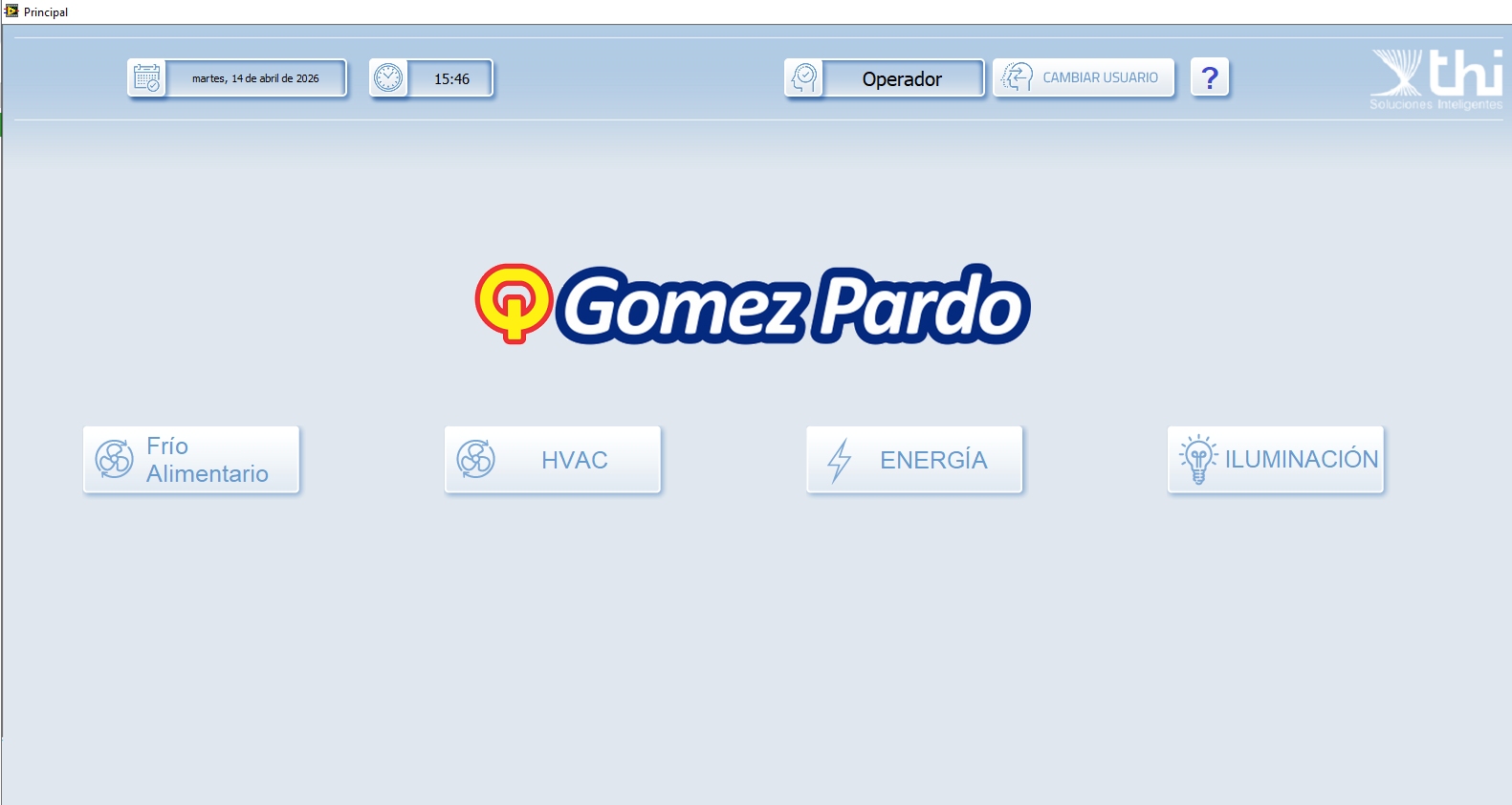

HVAC is integrated with the Daikin system through a BACnet gateway, while all building information is monitored and supervised through a KNX SCADA system.
Contact Information
| Company Name | THI S.A.I.C. |
| Company Email | pablo@thi.com.ar |
| Company Website | http://thi.com.ar |
| Contact Name | Pablo E. Thierry |
| Contact Function | System Integrator |
