Mine Museum
New project in PARNASSOS
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | New project |
| Project Type | Other |
| Year of Completion | 2003 |
| Project Size | 1.001 – 5.000 |
| Number of KNX Devices Used | 26 – 100 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 501 – 1.000 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Light Scenes
- Heating, Ventilation & Air conditioning (HVAC) - CO2 / Humidity Measuring, Natural Ventilation
- Security and Safety - Emergency Lighting
- Operation and Visualisation - Switches / Push Buttons, IR Remote Control, PC Visualisation
- Energy Management/Smart Metering
- Other - Audio Control
- Automation and Remote Access
- Blind and Shutter Control
Customers Description

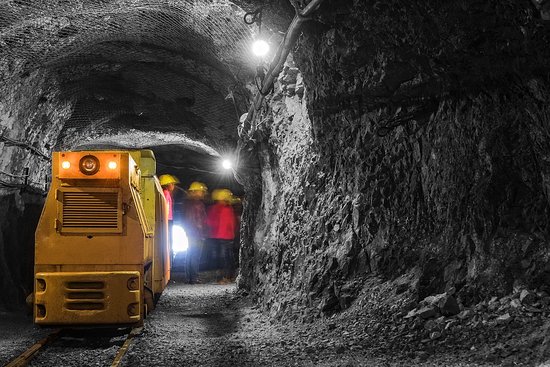

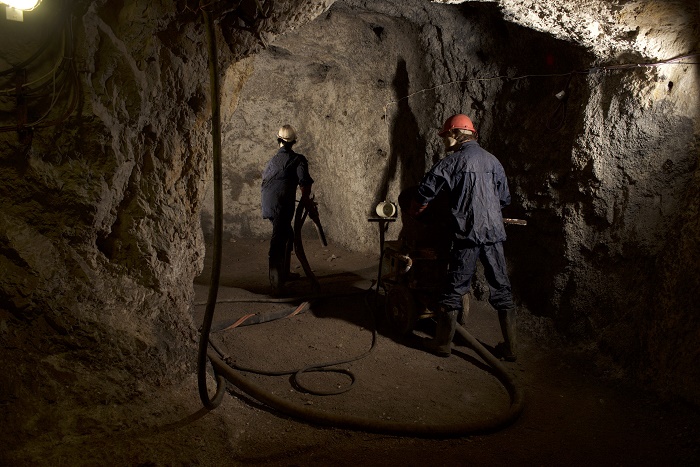

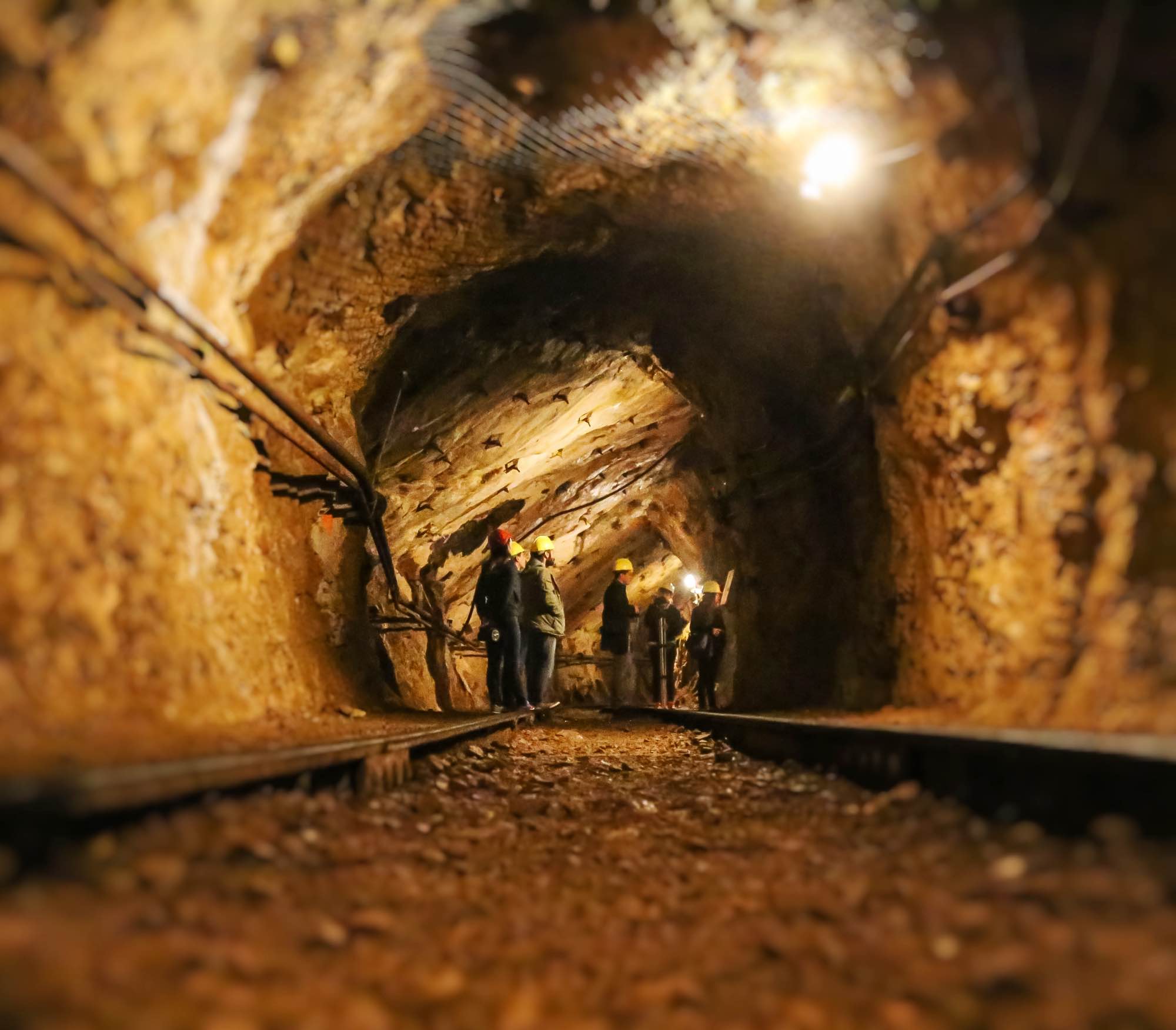

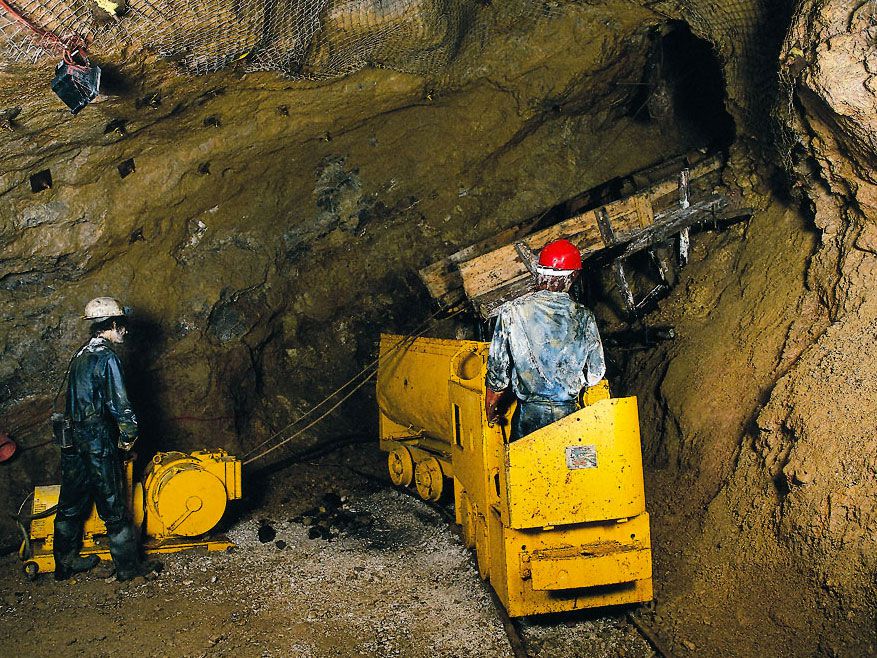

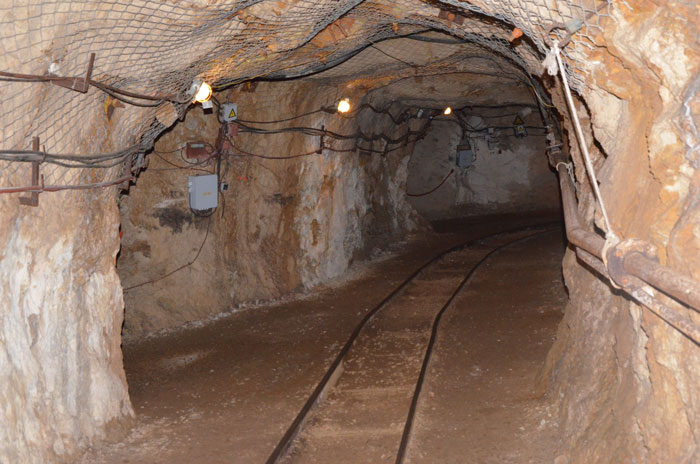

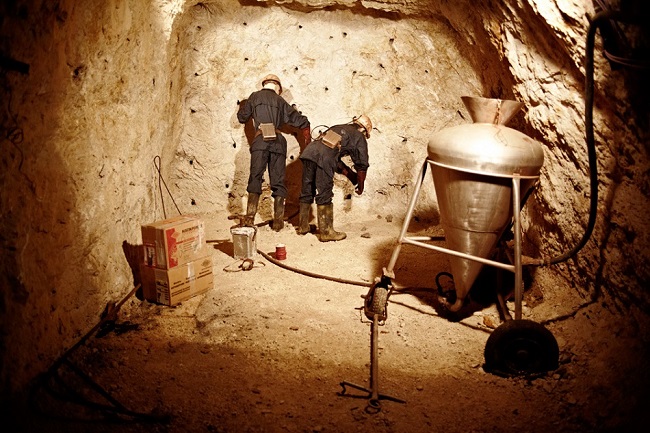

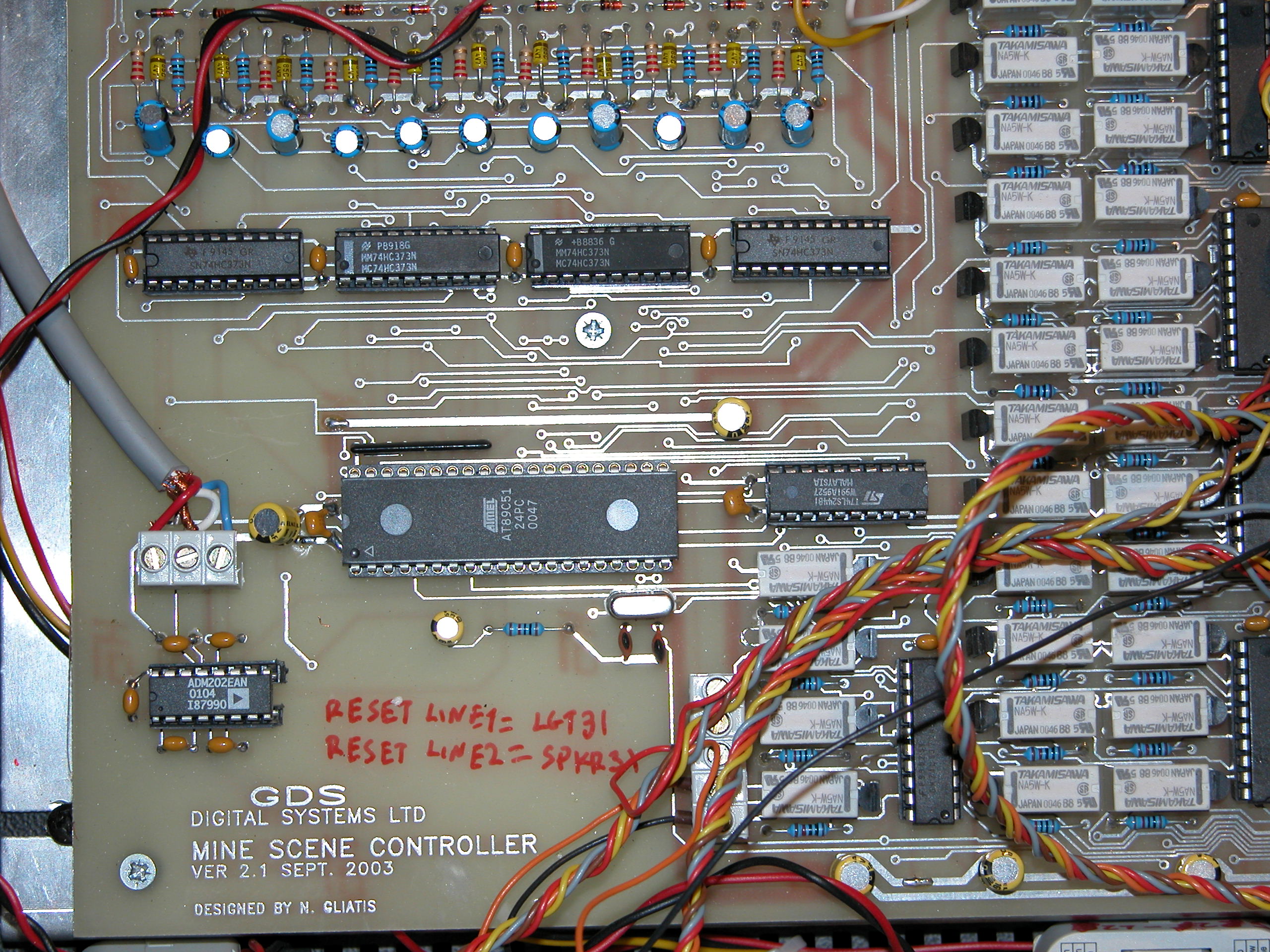

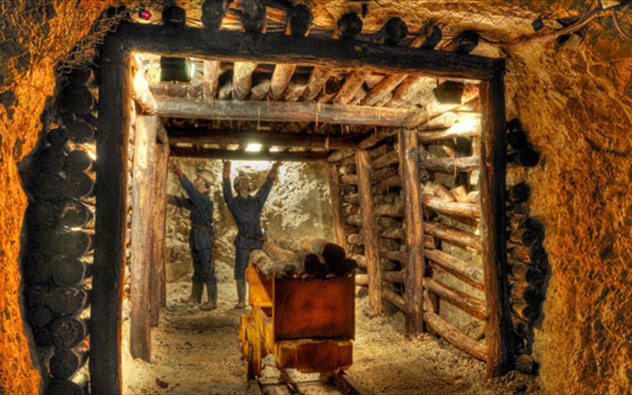

The museum is a finished 520m mine at 850m alt. It demonstrates the mining process. Digging, drilling, putting the charges, explosions, carrying the blast products. Visitors feel they are in a real working mine. They can hear voices of working men and equipment, they can see blasts and falling rocks. The goal is achieved by special designed effects. KNX controls the electromechanical systems, lights, multimedia, smoke machines, sound amplifiers the speakers and the narration language (out of 8). To achieve accurate control and synchronization a special device developed. It communicates serially with a PC application also developed for this purpose and produces the appropriate KNX telegrams on the bus that connects everything. A special scripting language developed in order to provide the means to parameterize the functionality without KNX reprogramming. Humidity within the mine was another issue and special waterproof KNX devices used. KNX is up and running in this harsh environment.
Contact Information
| Company Name | GDS DIGITAL SYSTEMS LTD |
| Company Email | info@gds.com.gr |
| Company Website | http://www.gds.com.gr |
| Contact Name | NICK GLIATIS |
| Contact Function | System Integrator |
