Multiple Metro Stations - Sydney
Public building in Sydney Metro Stations - City
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Public building |
| Project Type | Commercial |
| Year of Completion | 2024 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 1.000+ |
| KNX Transmission Media | Twisted pair |
| Man Hours | 2.000+ |
| Man Power | 100+ |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control, Lighting Colour Control
- Heating, Ventilation & Air conditioning (HVAC)
- Security and Safety - Emergency Lighting
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Touch Panels & Display Panels
- Energy Management/Smart Metering
- Other
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming
- Blind and Shutter Control
Customers Description

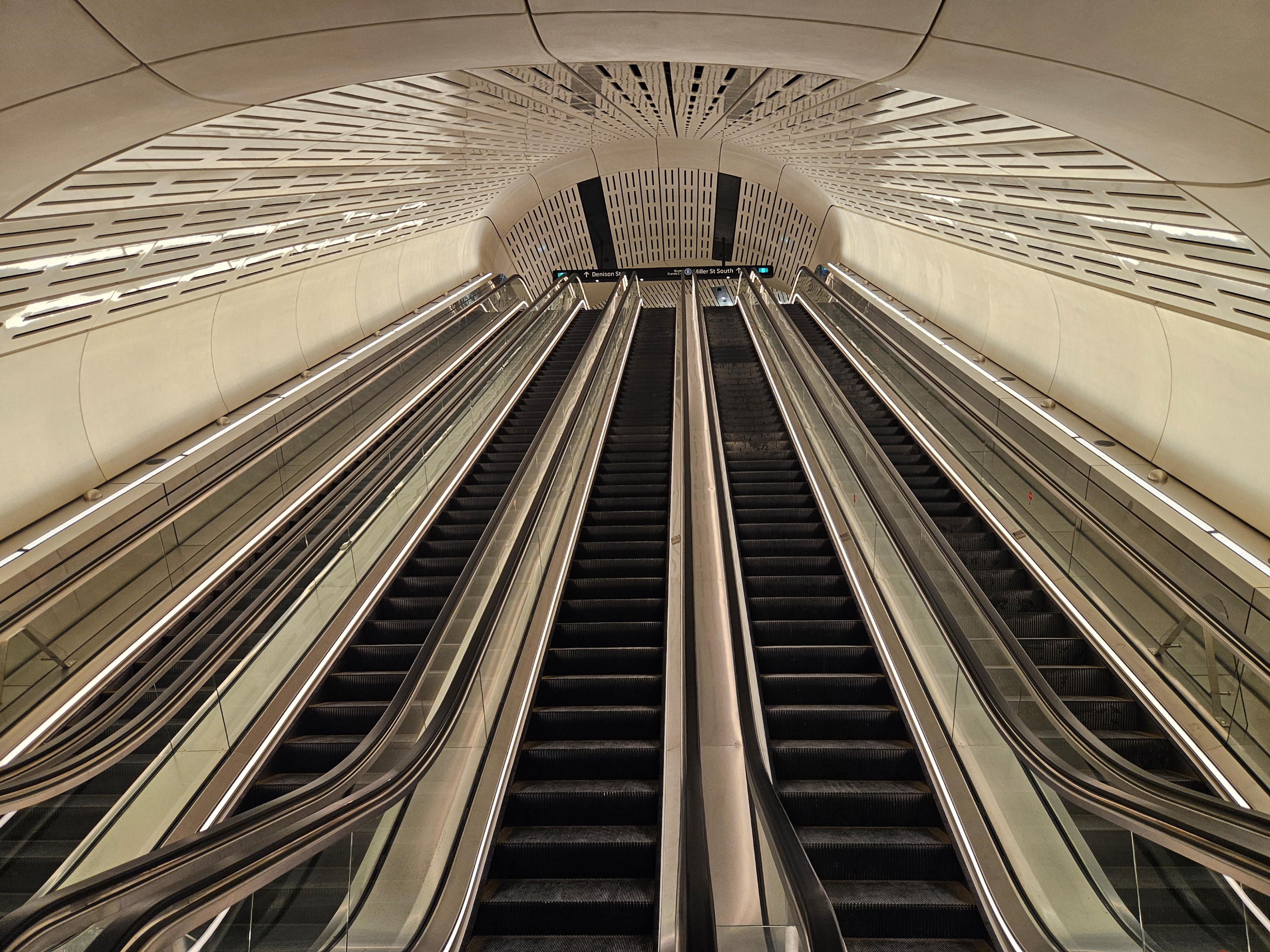

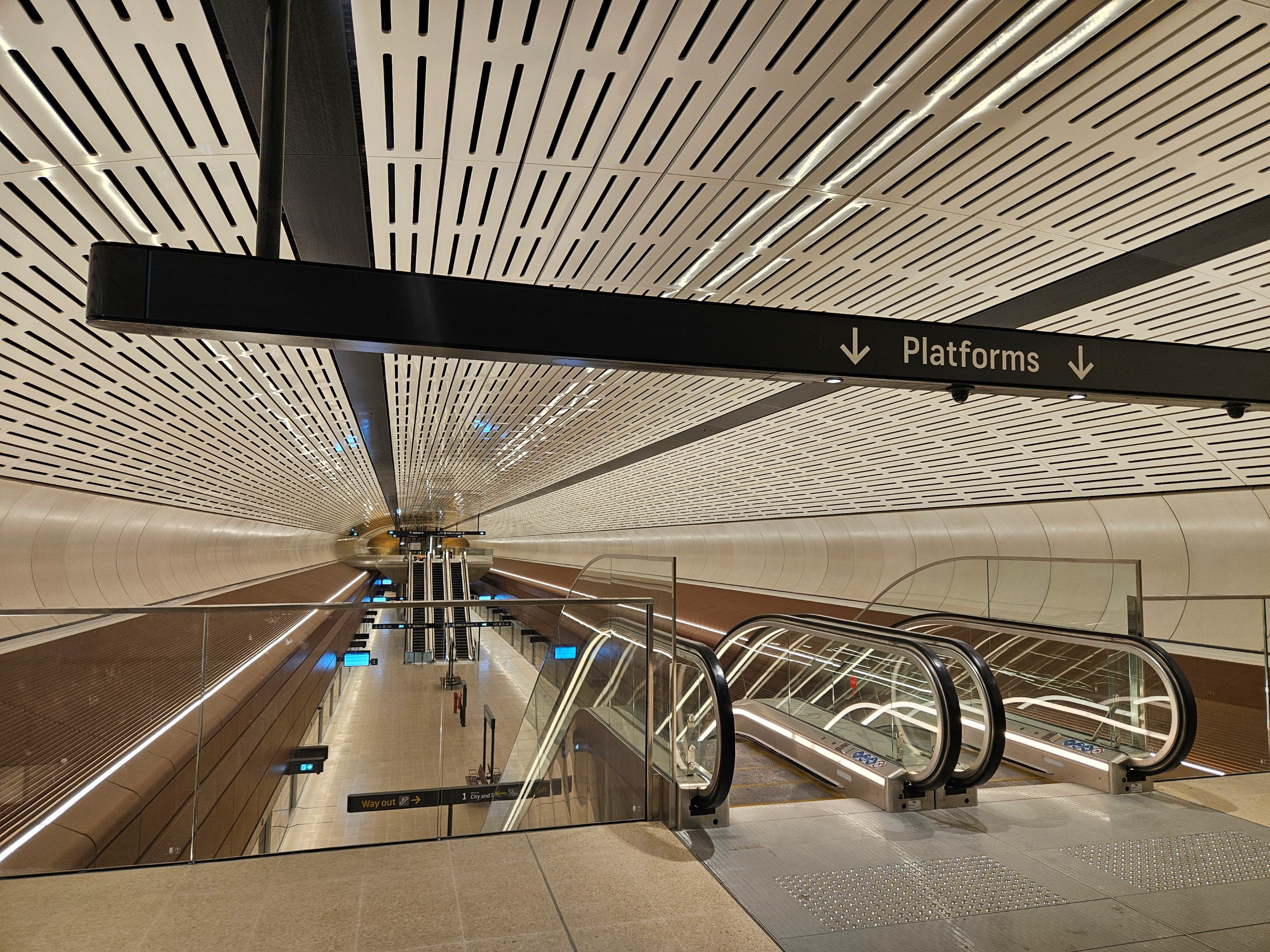

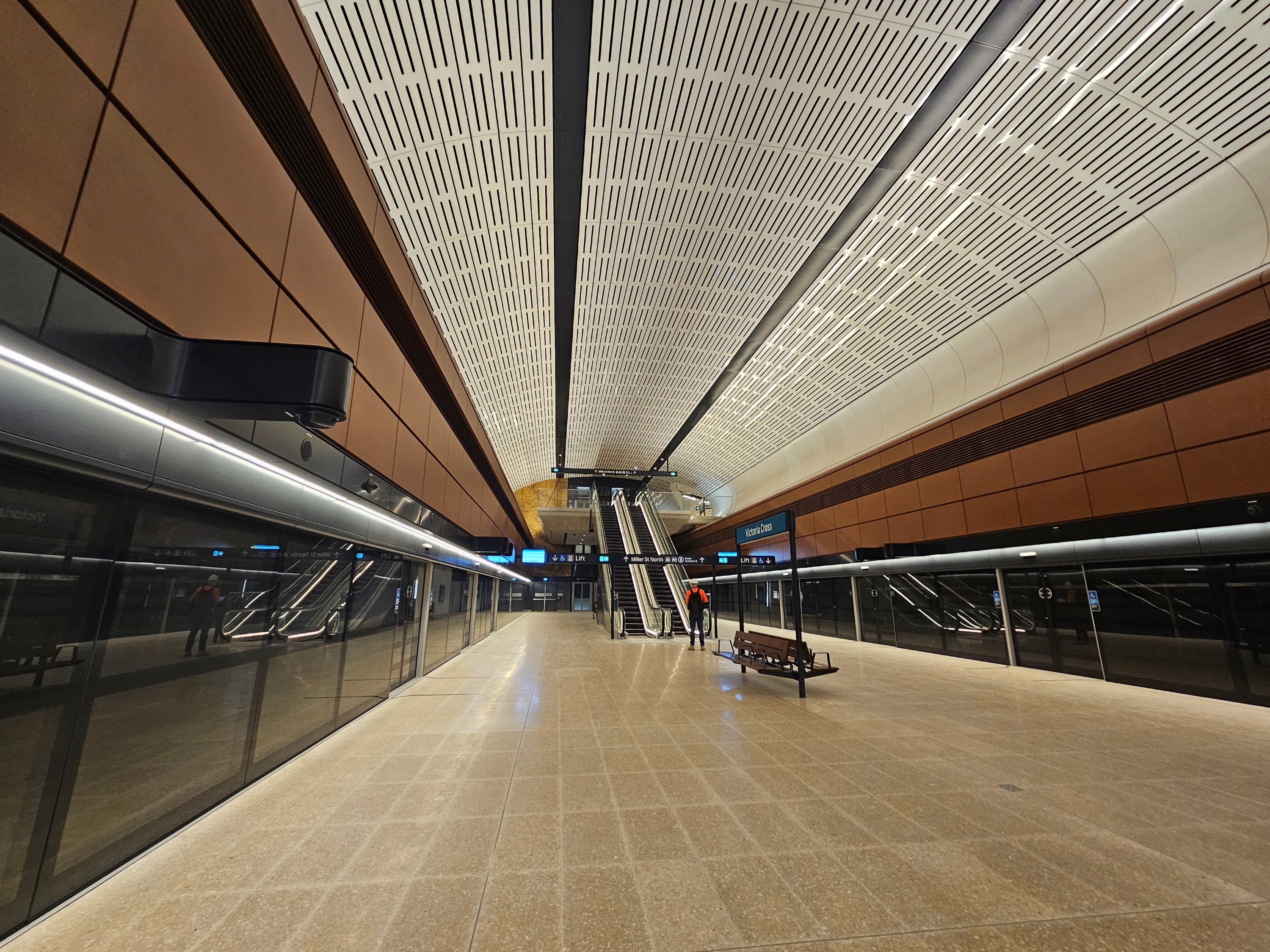

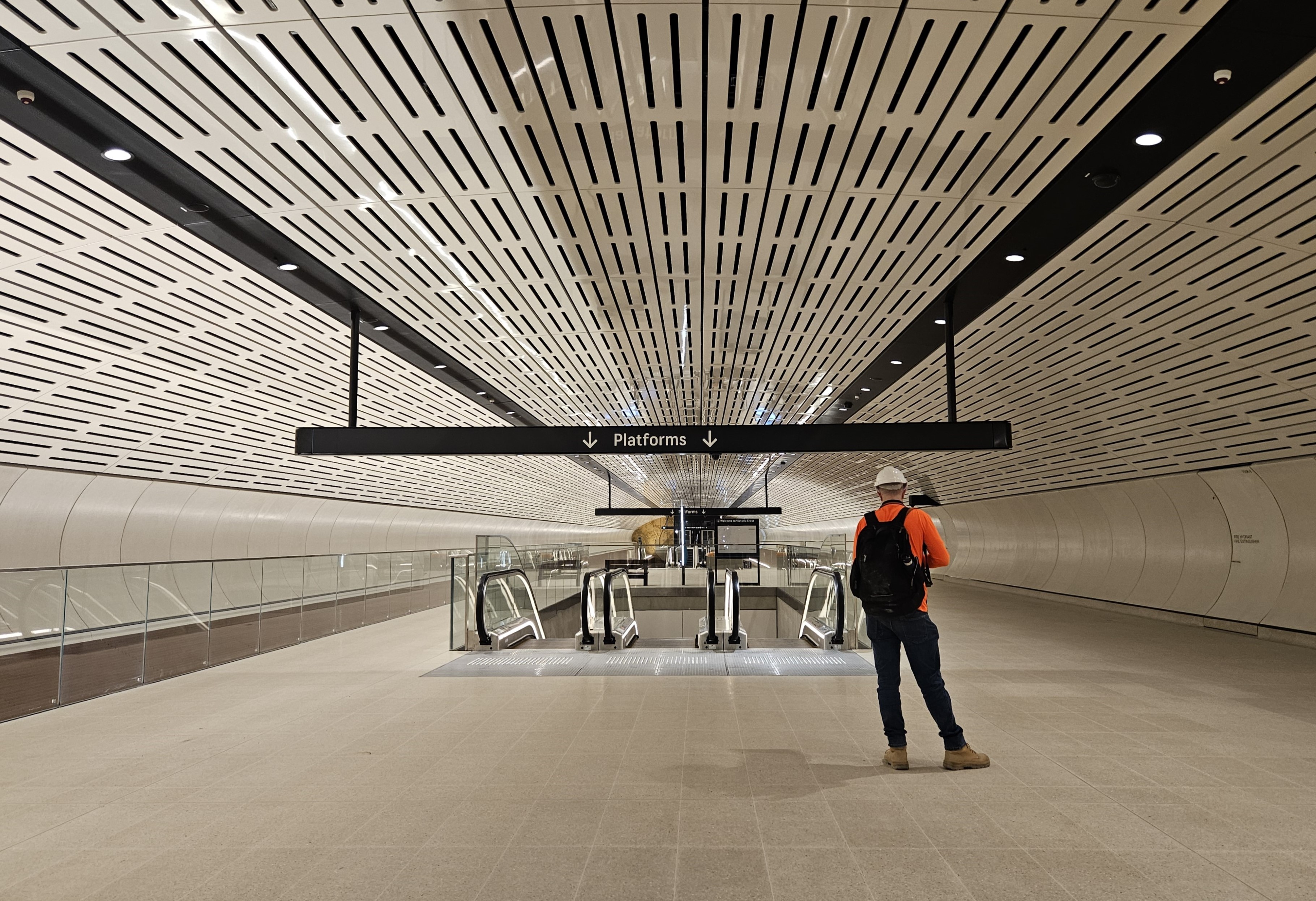

Sydney Metro is Australia's biggest public transport project, being delivered in multiple stages.
Spanning 16km, the Chatswood to Sydenham line is the latest stage to delivered, and is scheduled for opening in mid 2024. As part of this, mySmart has delivered five of the seven Sydney Metro Stations along the line, with each project delivered with a different electrical contractor. These stations include Crows Nest Station, Victoria Cross Station, Barangaroo Station, Gadigal Station, and Central Station.
The five stations alone are over 200,000 square metres in size, and provided employment for over 20,000 people in the delivery, design and construction overall. With features like Australia’s largest railway cavern, at 300 metres long, 25 metres wide and 16 metres high (Victoria Cross Station) and sprawling artworks, these stations are once in a lifetime infrastructure investments that are changing the face and accessibility of transport across the city.
Contact Information
| Company Name | mySmart |
| Company Email | info@mysmart.com.au |
| Company Website | https://mysmart.com.au |
| Contact Name | Peter Garrett |
| Contact Function | System Integrator |
