MV/MS-Karlstetten
Public building in Karlstetten
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Public building |
| Project Type | Commercial |
| Year of Completion | 2023 |
| Project Size | 101 – 500 |
| Number of KNX Devices Used | 26 – 100 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 101 – 250 |
| Man Power | 11 – 25 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection

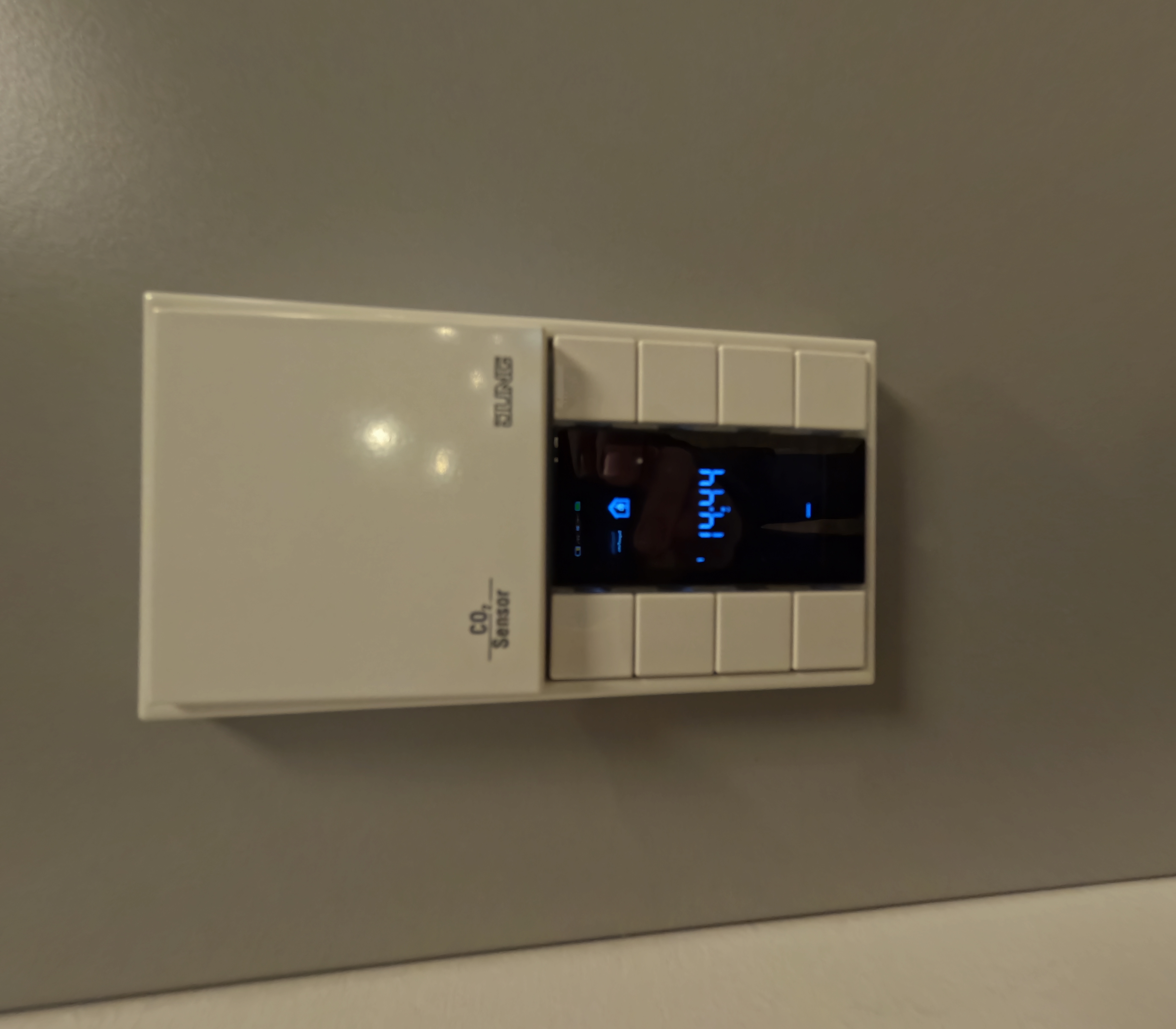

- Heating, Ventilation & Air conditioning (HVAC) - Automatic Occupancy Detection, CO2 / Humidity Measuring, Floor Heating Control
- Security and Safety - Emergency Lighting, Interaction with HVAC/Lighting
- Operation and Visualisation - Switches / Push Buttons, Touch Panels & Display Panels
- Energy Management/Smart Metering - Visualisation
- Other
- Automation and Remote Access - Timed Functions
- Blind and Shutter Control - Individual Control, Wind and Rain Protection
Customers Description

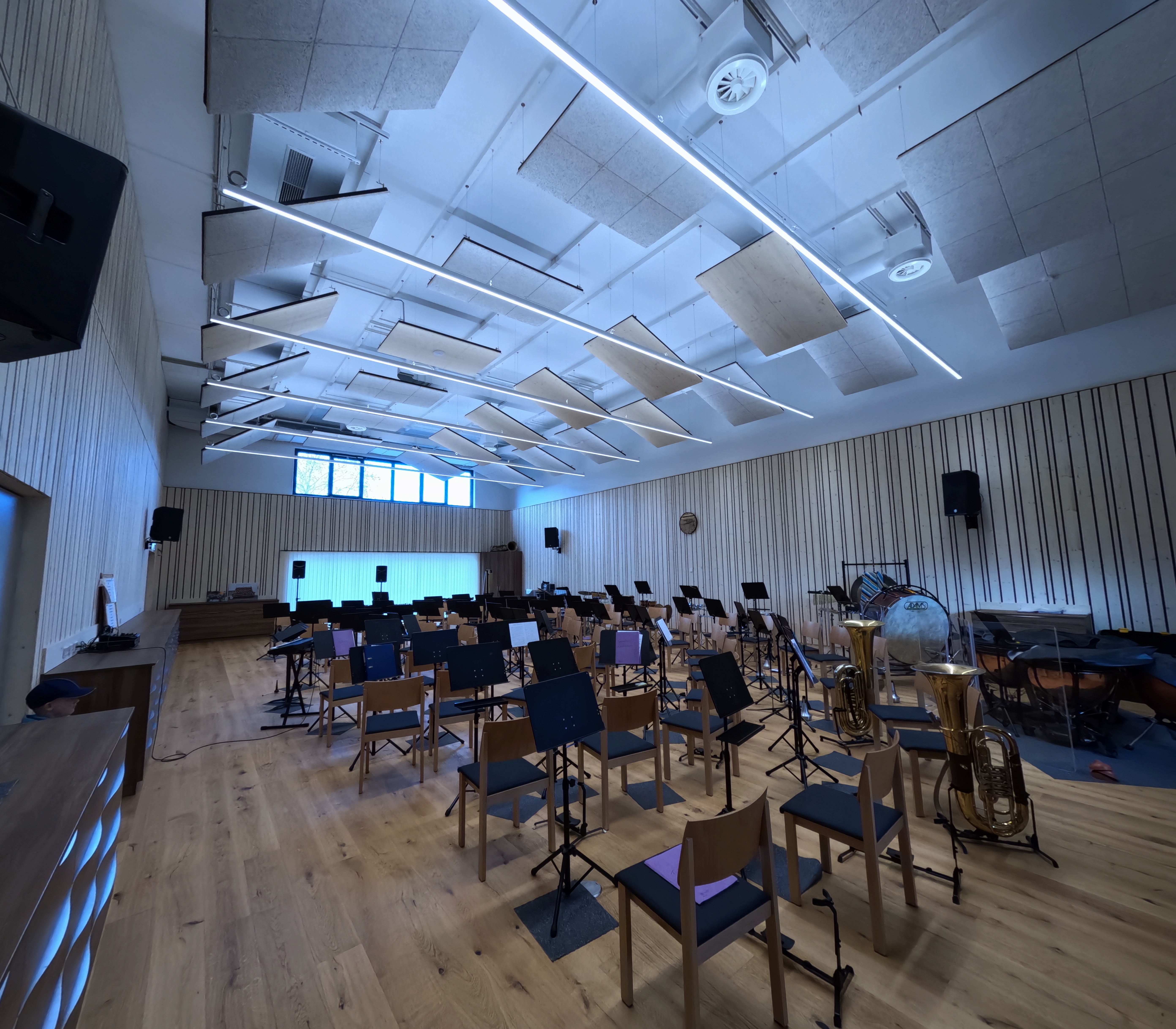

Bei diesem Projekt handelt es sich um einen Neubau im Ortszentrum. In diesem Gebäude wurde auf zwei Ebenen Platz für die Musikschule Dunkelsteinerwald und den Musikverein Karlstetten geschaffen. Für die Gebäudeautomation wurde bewusst auf den herstellerunabhängigen KNX-Bus gesetzt. Im Erdgeschoss wurde ein Probesaal mit ca. 200m² mit Fußbodenheizung und Lüftungsanlage errichtet. Die Musikschule, bestehend aus 5 Unterrichtsräumen, wurde ebenfalls mit einer Einzelraumregelung und Beschattungssteuerung ausgestattet.
