NOMIA An AI is trained by KNX data
Hotel in MYKONOS
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Hotel |
| Project Type | Commercial |
| Year of Completion | 2024 |
| Project Size | 1.001 – 5.000 |
| Number of KNX Devices Used | 101 – 300 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 1.001 – 2.000 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Automatic Occupancy Detection, Weather Dependent Control, Individual Room Control / Zone Control, CO2 / Humidity Measuring, Natural Ventilation, Boiler and burner Control
- Security and Safety - Smoke/Fire Detection, Faults (e.g. Leak Detection, Glass Break Detection, Window Contacts), Access Control, Emergency Lighting, Supervision (e.g. Cameras)

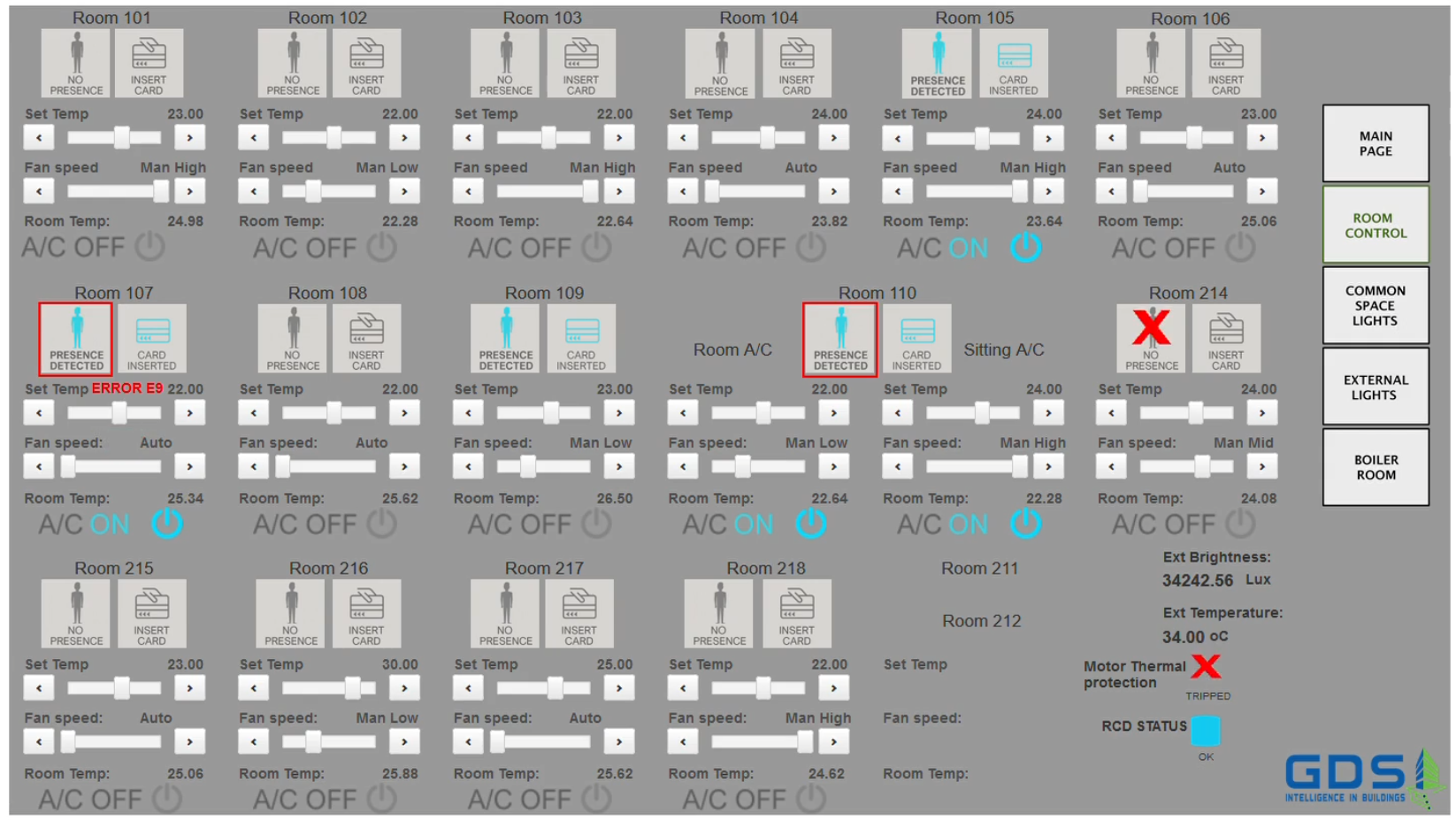

- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Peak Demand Monitoring, Load Shedding , Use of Renewable Energies
- Other - Audio Control, Irrigation Control
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming, Messaging (e.g. SMS)
- Blind and Shutter Control - Individual Control, Group & Central Control
Customers Description
From smart to intelligent there is a giant leap. “Machine learning”. For this application an AI model is under continuous training targeting energy management and comfort. Room occupation is based on algorithms and machine learning not only on a presence detector. The hotel “knows” that there are guests in the rooms even if they are sleeping or resting at the balcony by combining the information from the corridor cameras, the room presence detector, the Wifi connections and the KNX traffic. The energy model predicts the energy demand and utilizes the renewable sources at the highest possible degree. Result of the efficient management is 20 suites with heated pools each, Restaurant, Bar, Kitchen, laundry, GYM, SPA, lighting and full A/C to operating with a 3X80A / 230-400V power source. To feed the AI model, KNX open API REST used and the naming of group addresses defined under certain rules. Once a day the model is deployed into the real working environment.
Contact Information
| Company Name | GDS DIGITAL SYSTEMS LTD |
| Company Email | info@gds.com.gr |
| Company Website | https://gds.com.gr/ |
| Contact Name | NICK GLIATIS |
| Contact Function | System Integrator |
