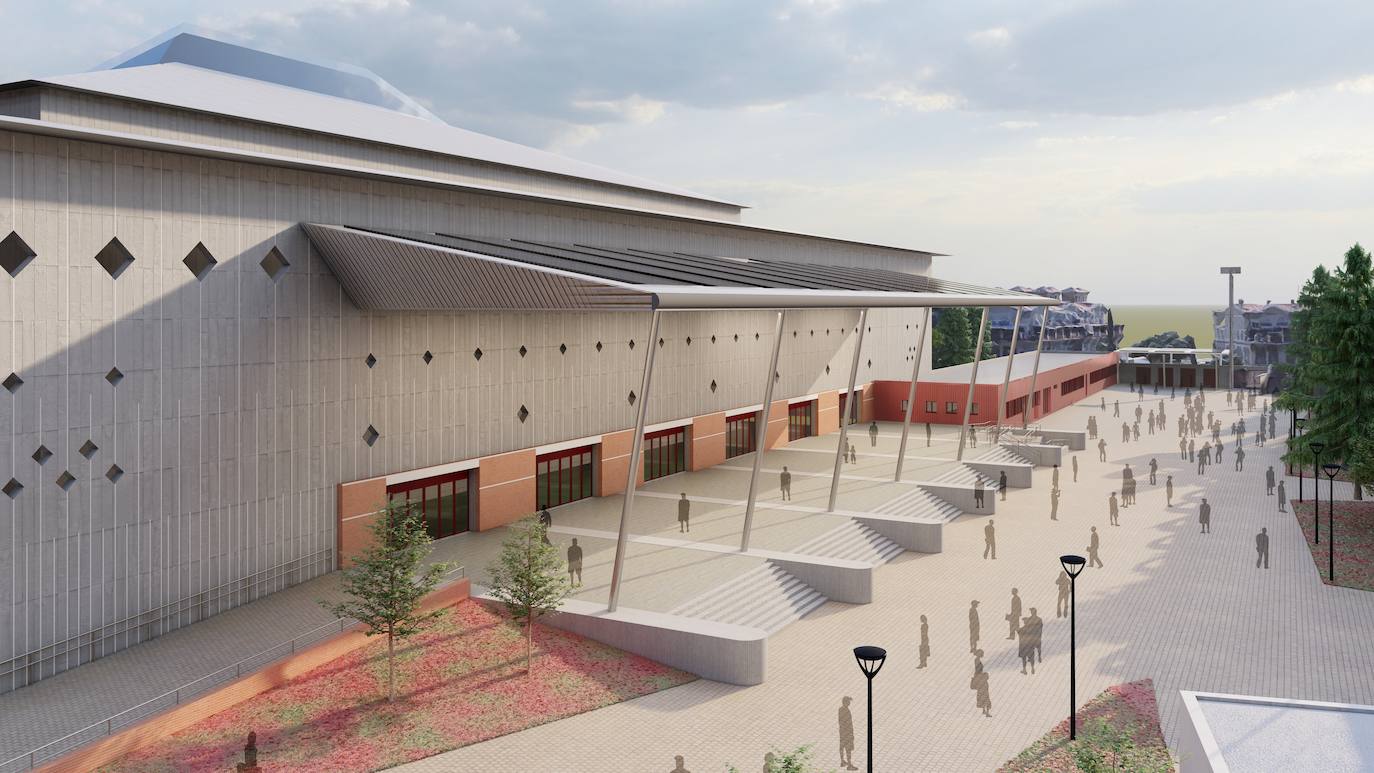

Palacio de los Deportes de Granada
Leisure in Granada
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Leisure |
| Project Type | Commercial |
| Year of Completion | 2026 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 26 – 100 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 1.001 – 2.000 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Automatic Occupancy Detection, Weather Dependent Control, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control, CO2 / Humidity Measuring, Natural Ventilation, Floor Heating Control, Boiler and burner Control
- Security and Safety - Emergency Lighting, Interaction with HVAC/Lighting
- Operation and Visualisation - Switches / Push Buttons, IR Remote Control, PC Visualisation, Web Servers, Tablets and smart phones
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection, Fuel or Water tank level control, Peak Demand Monitoring, Load Shedding , Energy Harvesting (Avoiding use of batteries), Use of Renewable Energies
- Other - Distributed Facilities
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming, Messaging (e.g. SMS)
- Blind and Shutter Control - Individual Control, Group & Central Control, Preset Positioning, Automatic Programs, Wind and Rain Protection, Sun Tracing (interaction with HVAC / lighting)
Customers Description

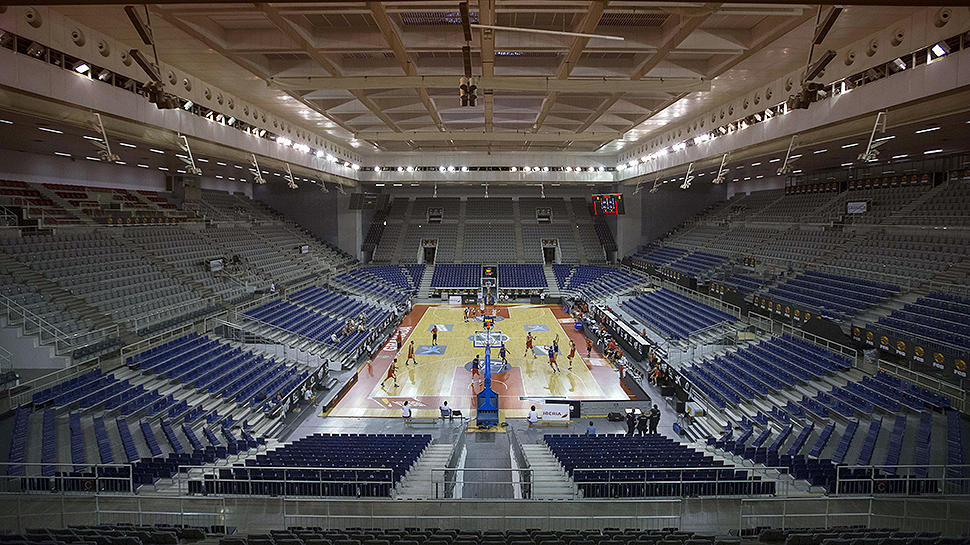

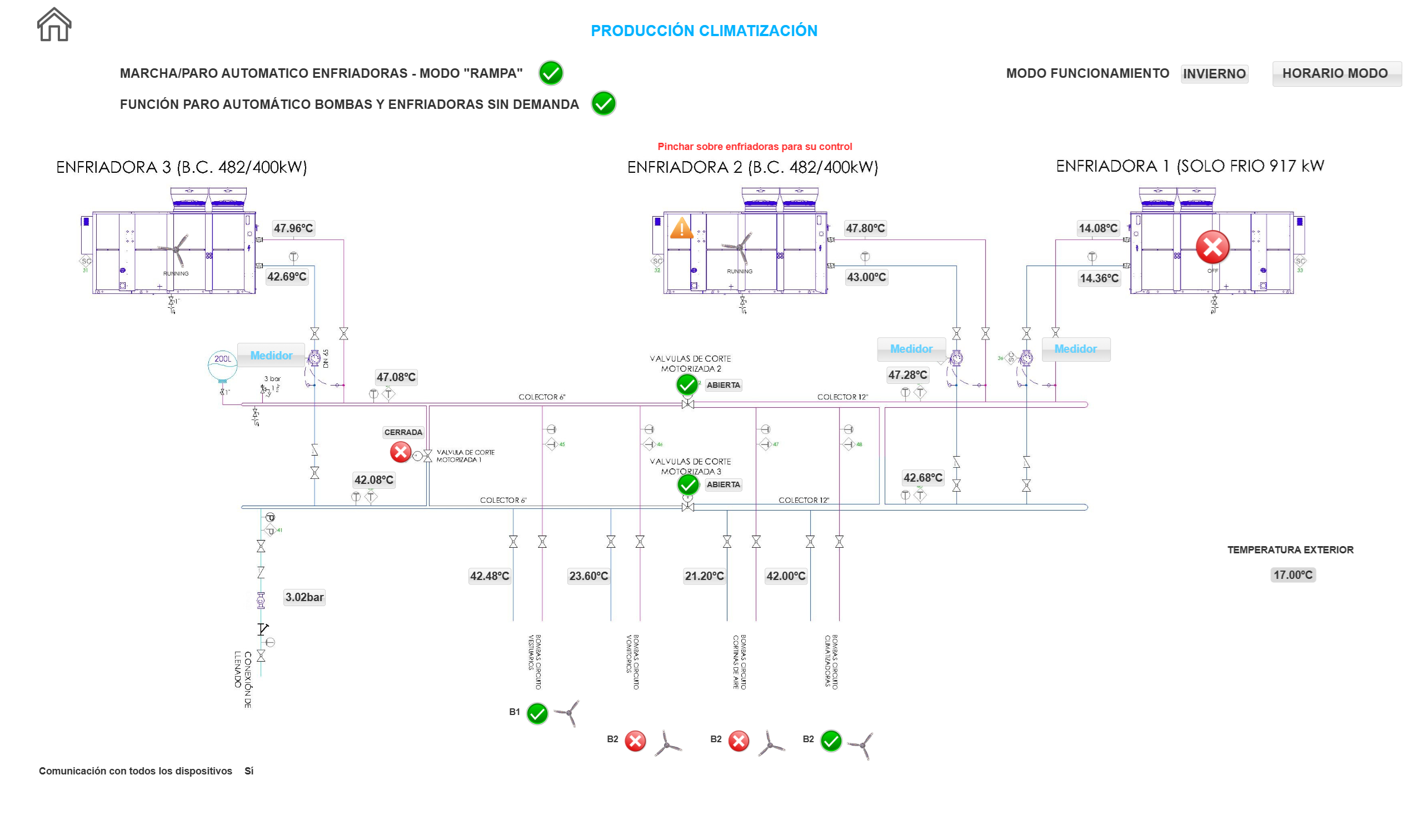

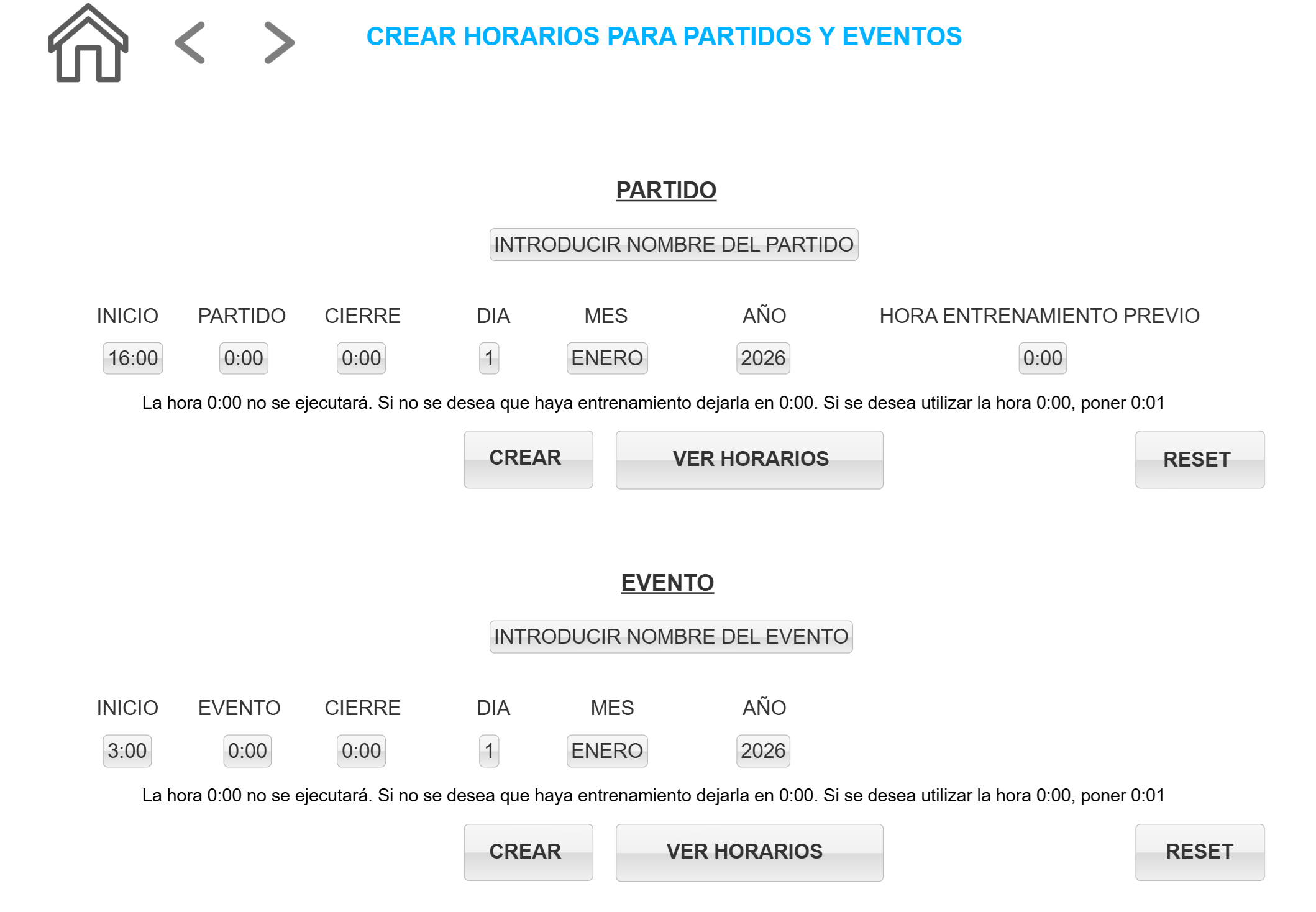

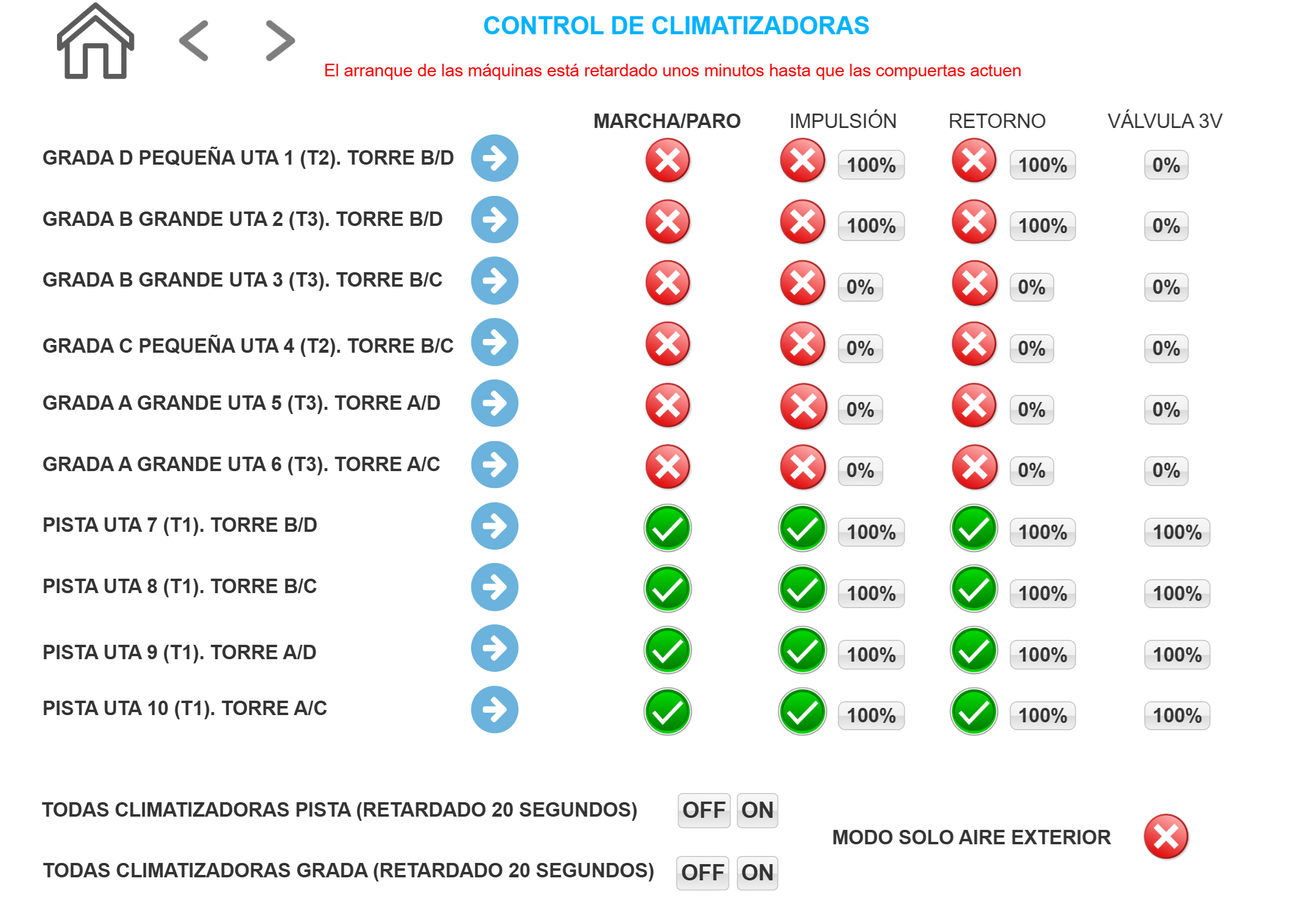

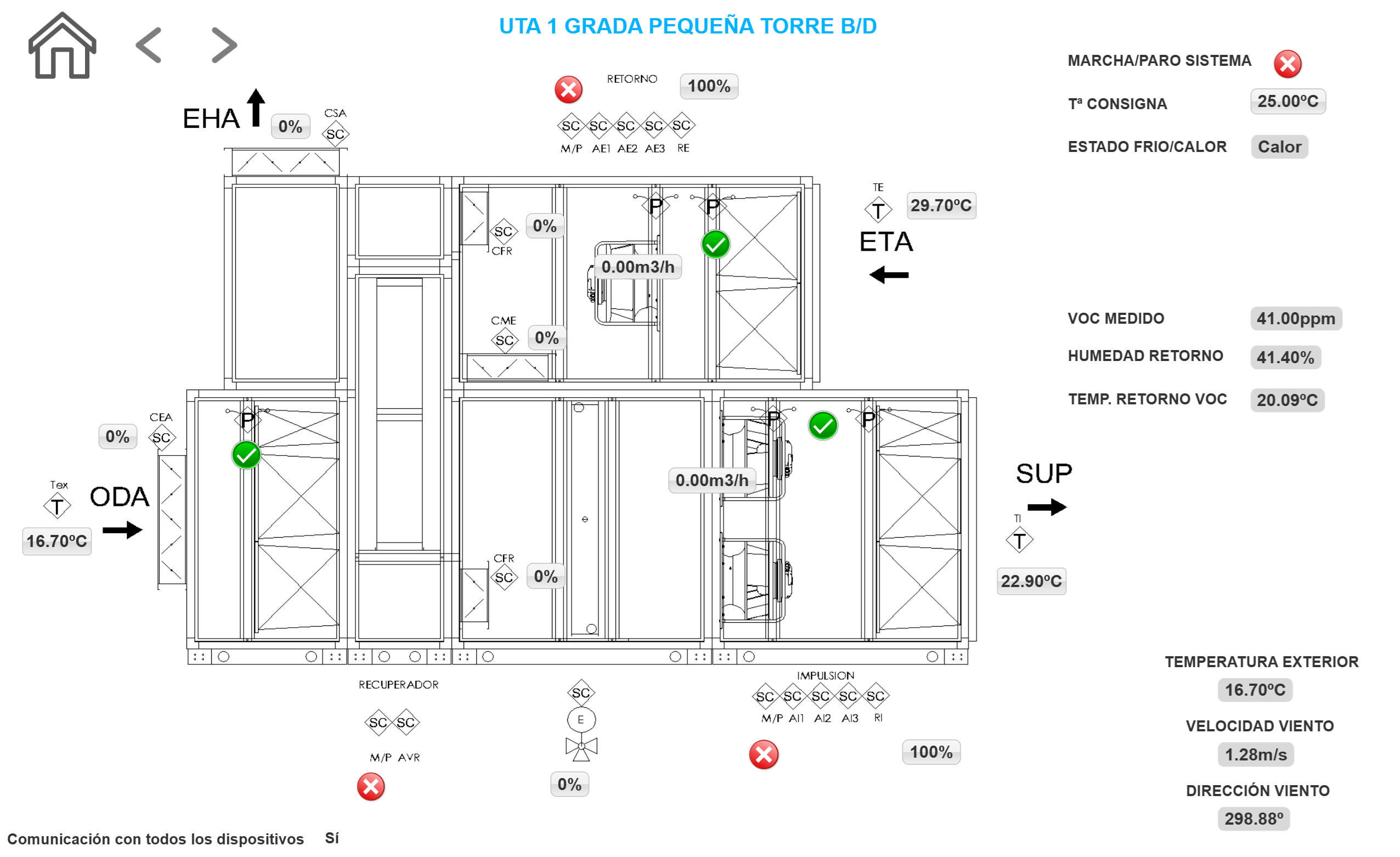

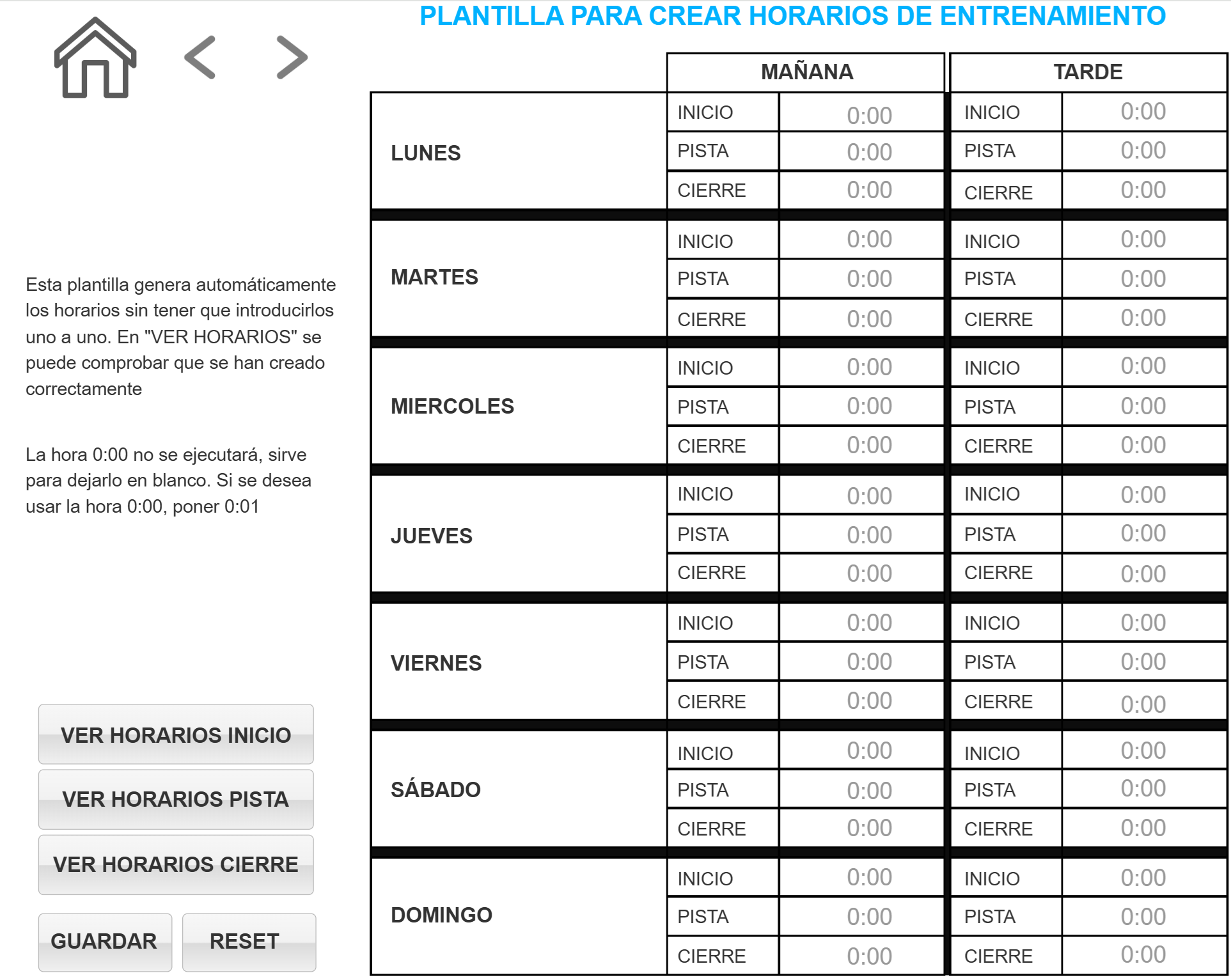

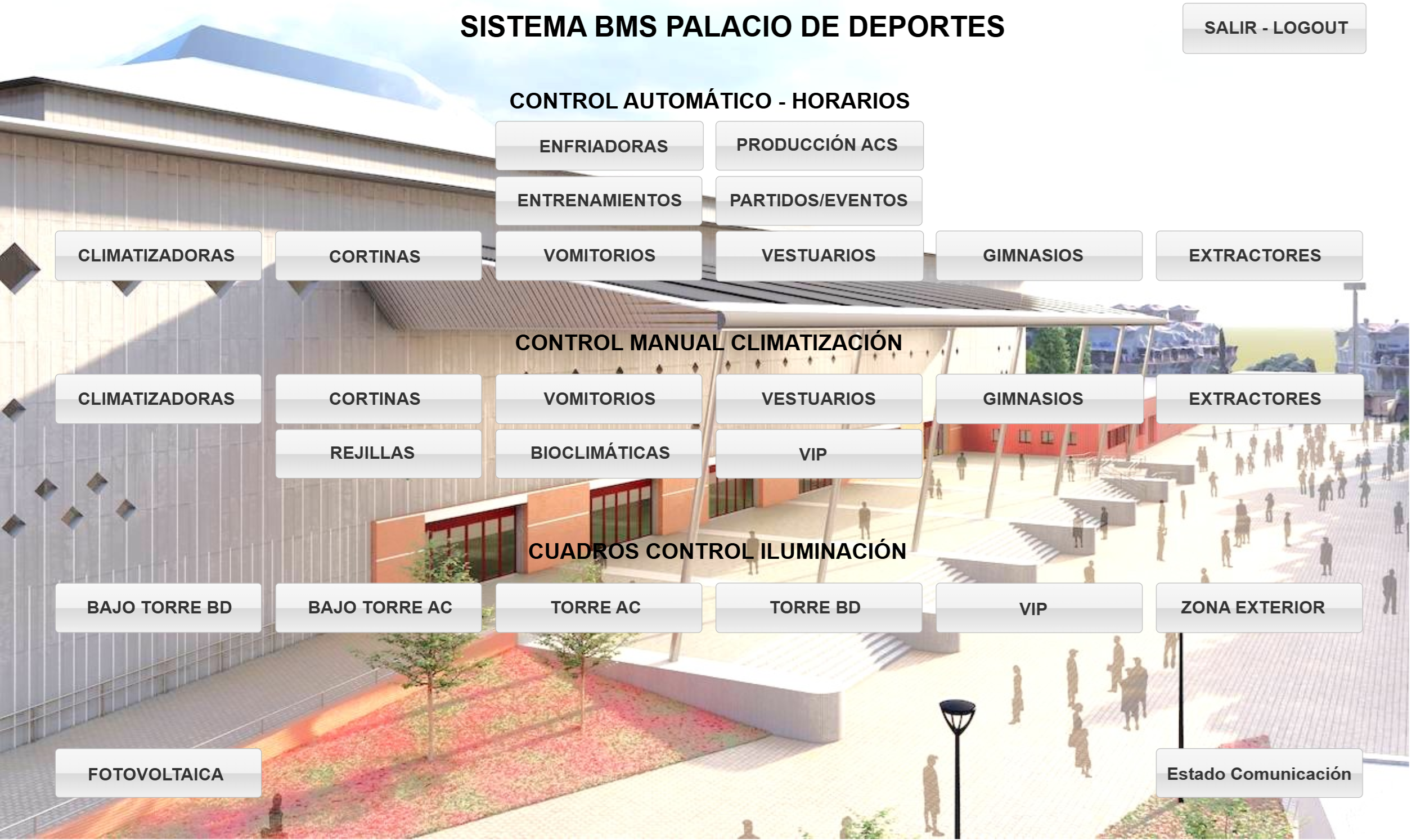

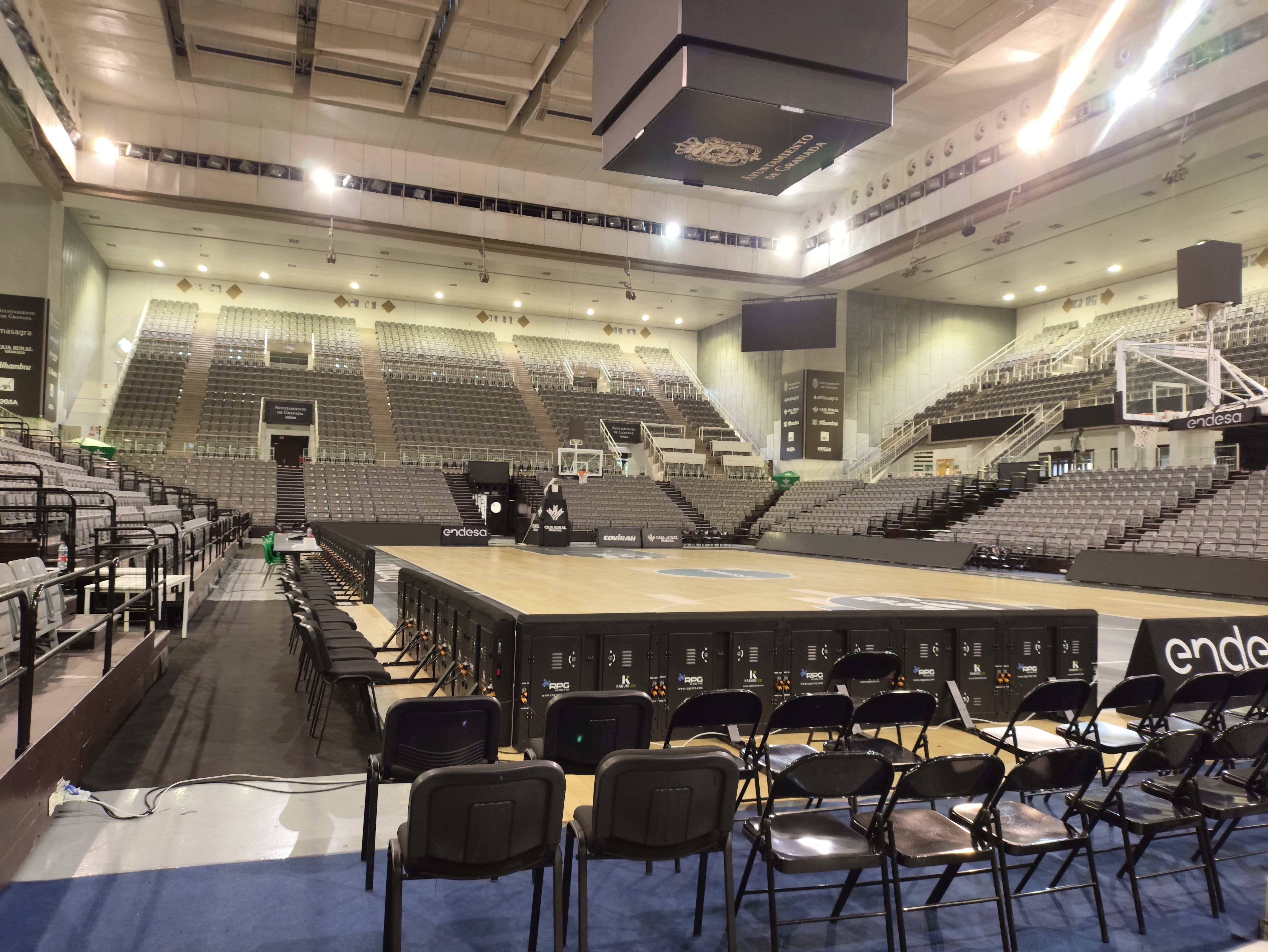

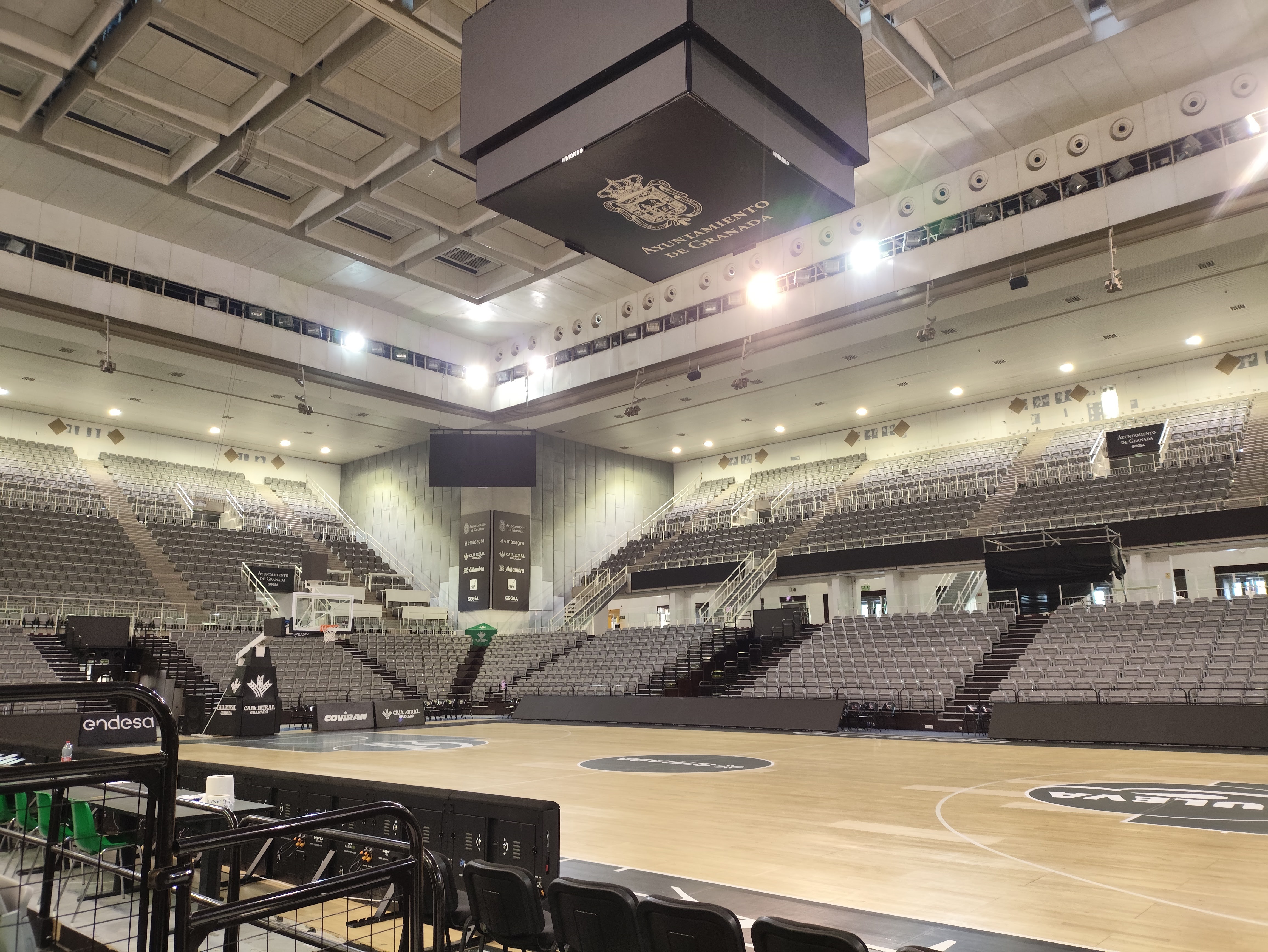

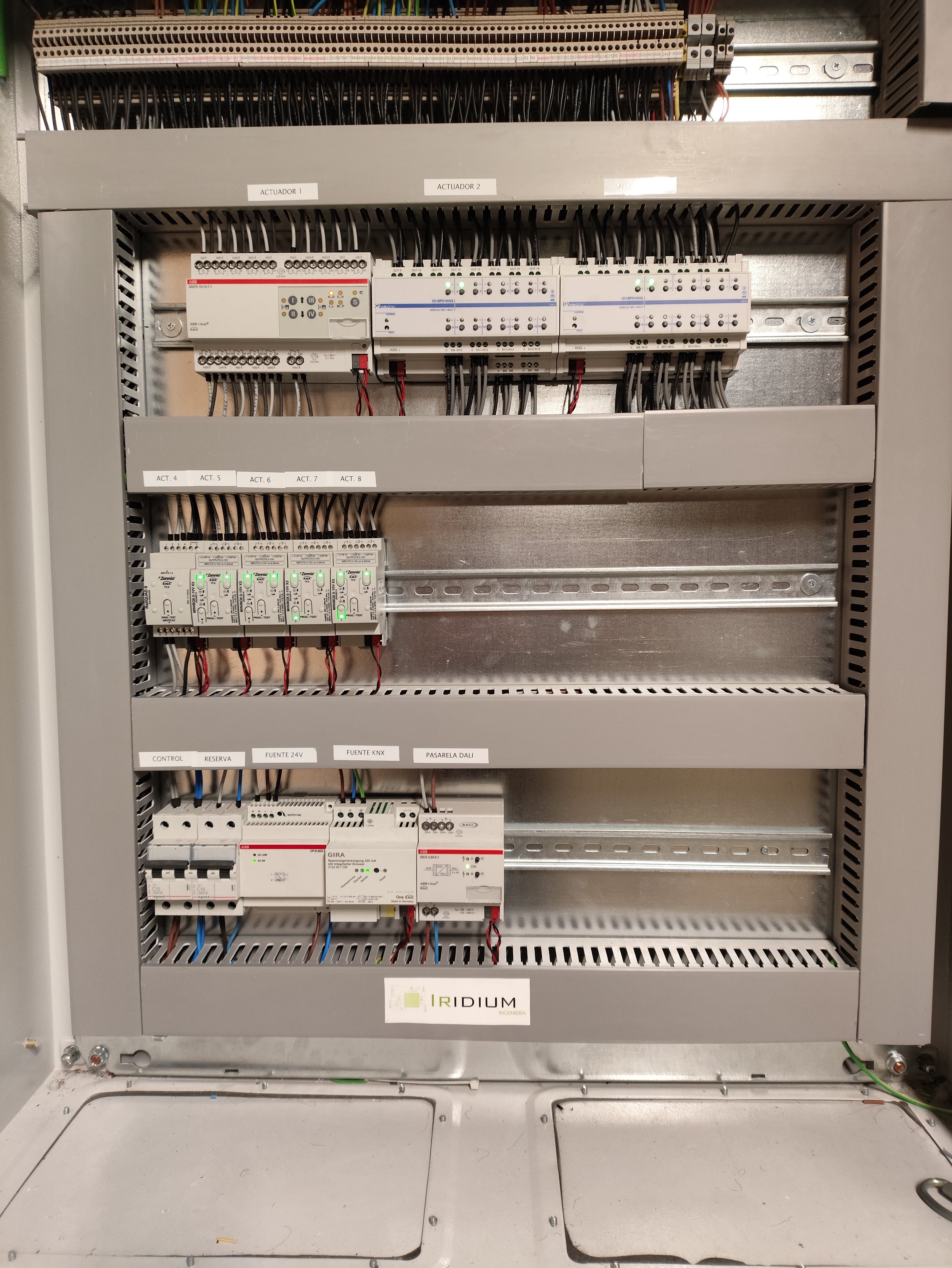

Control total de instalaciones en el Estadio del Coviran Granada, equipo de baloncesto de Liga ACB España (1ª División). Se utiliza para múltiples propósitos. El edificio funciona de forma autónoma según los eventos que se producen en él: entrenamientos, partidos, congresos, conciertos, espectáculos, competiciones de motor. Según el evento el edificio se adapta a las necesidades de ventilación, renovación de aire, climatización e iluminación. Los usuarios sólo tienen que determinar la fecha del evento y el tipo de este. El uso del día a día se gestiona desde una simple plantilla para no tener que crear diferentes horarios. Se controlan múltiples sistemas de iluminación, enfriadoras de climatización, aerotermias ACS, climatizadoras, UTA's, fancoils, equipos de producción, sistemas de ventilación bioclimáticos, producción fotovoltaica, medición de electricidad, medición de energía calorífica, etc. Todo con 95% de KNX.
Contact Information
| Company Name | IRIDIUM AVANZA S.L. |
| Company Email | alfaro@ingenieriairidium.es |
| Company Website | http://www.ingenieriairidium.es |
| Contact Name | Jose Luis Alfaro Perez |
| Contact Function | System Integrator |
