Plus City
Entertainment in Pasching
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Entertainment |
| Project Type | Commercial |
| Year of Completion | 2016 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 1.000+ |
| KNX Transmission Media | Twisted pair |
| Man Hours | 1.001 – 2.000 |
| Man Power | 1 – 5 |
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Lighting Colour Control
- Heating, Ventilation & Air conditioning (HVAC)
- Security and Safety - Access Control, Interaction with HVAC/Lighting
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Tablets and smart phones
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection, Peak Demand Monitoring
- Other - Video Control
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Messaging (e.g. SMS)
- Blind and Shutter Control - Individual Control, Group & Central Control, Automatic Programs, Wind and Rain Protection, Sun Tracing (interaction with HVAC / lighting)
Customers Description

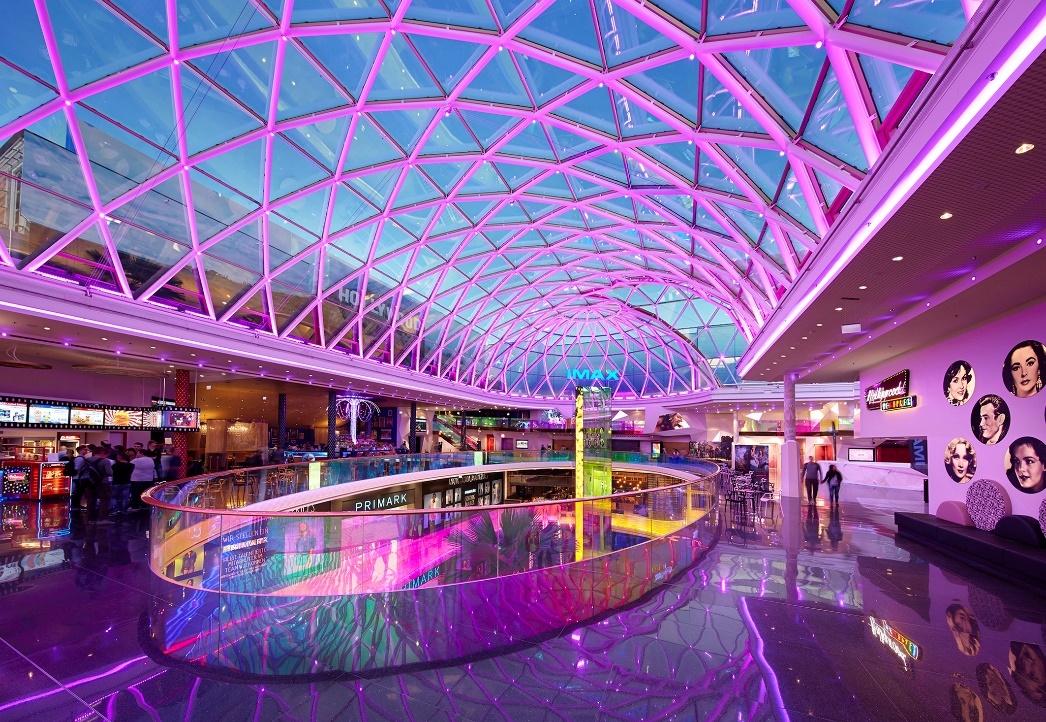

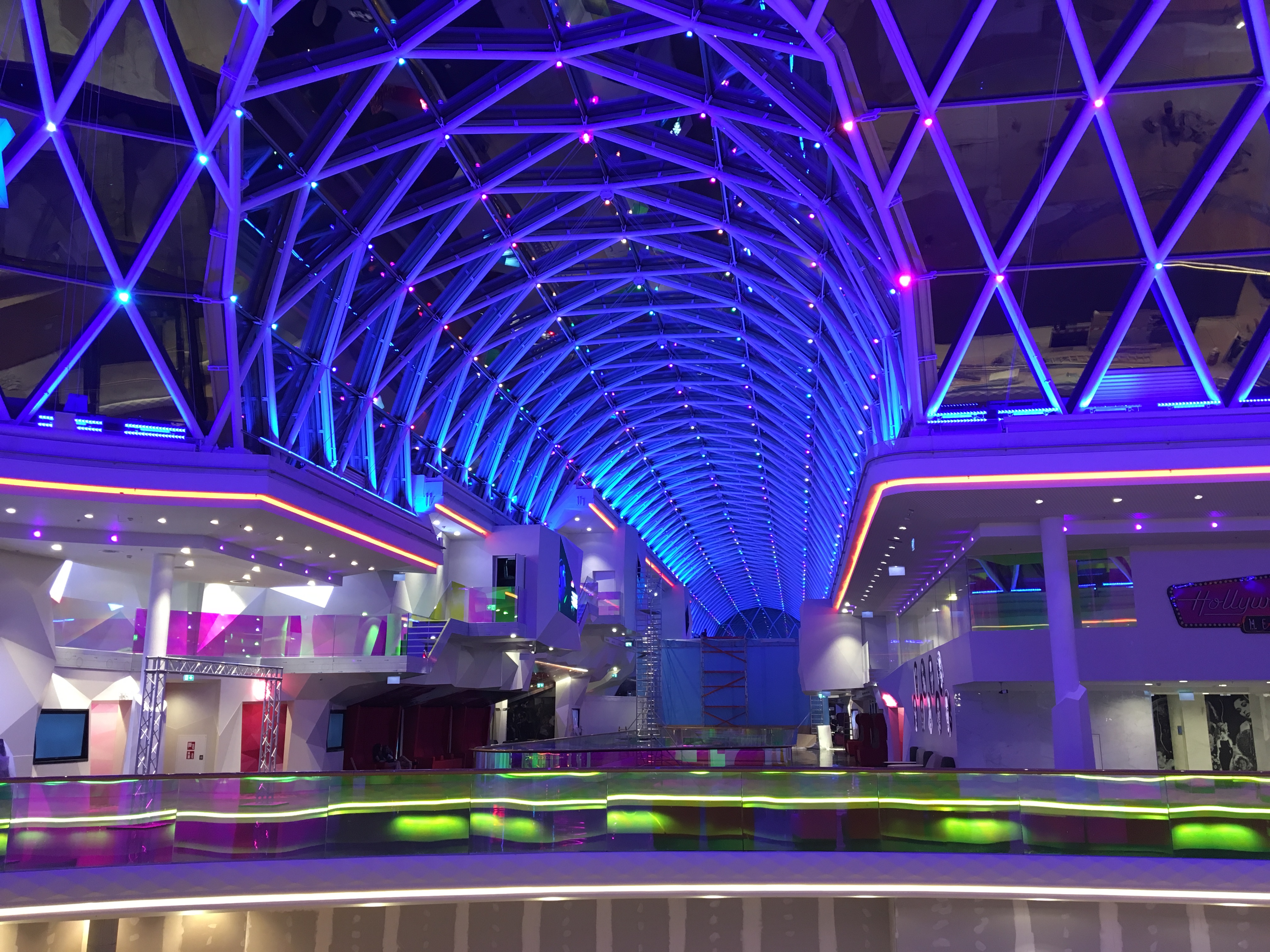

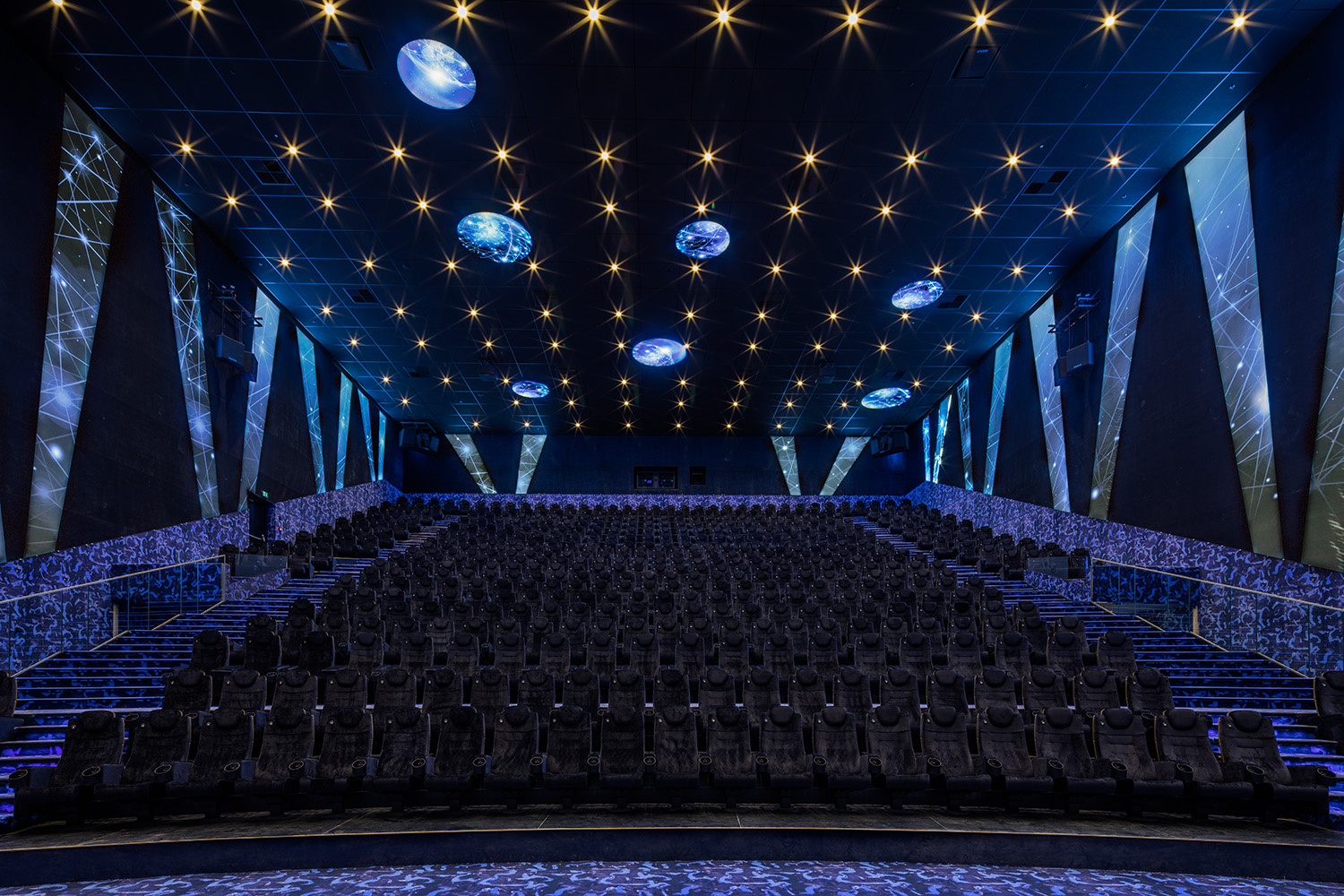

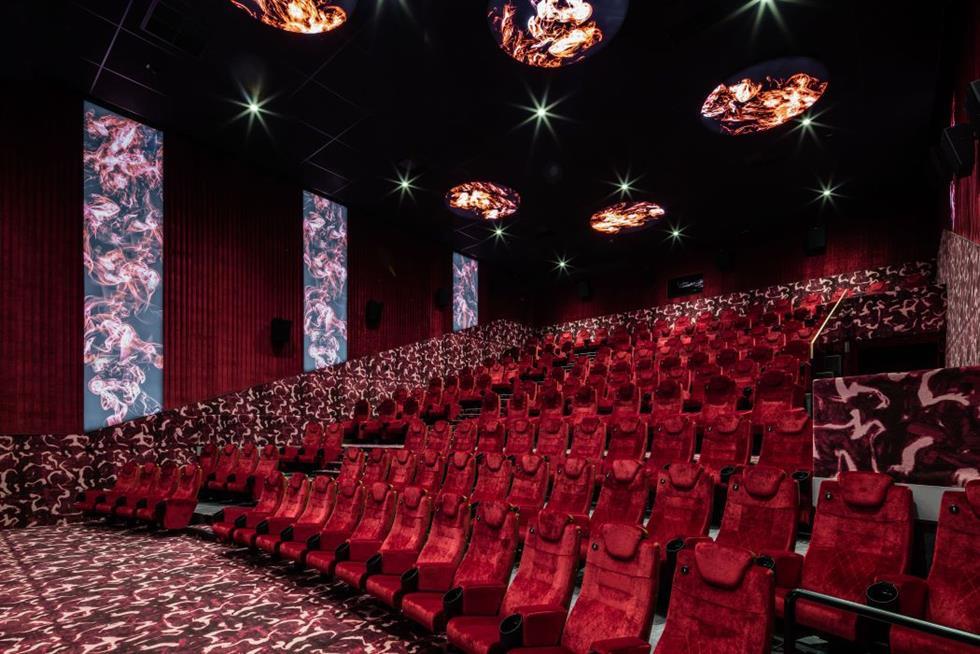

PlusCity wie auch Hollywood Megaplex Kino wurden dabei mit zentraler Beleuchtungssteuerung ausgestattet, dessen Schwerpunkt auf der Integration unterschiedlicher Technologien liegt. Der KNX Bus bildet die Basis, über den Server werden außerdem DALI und DMX Systeme verbunden.

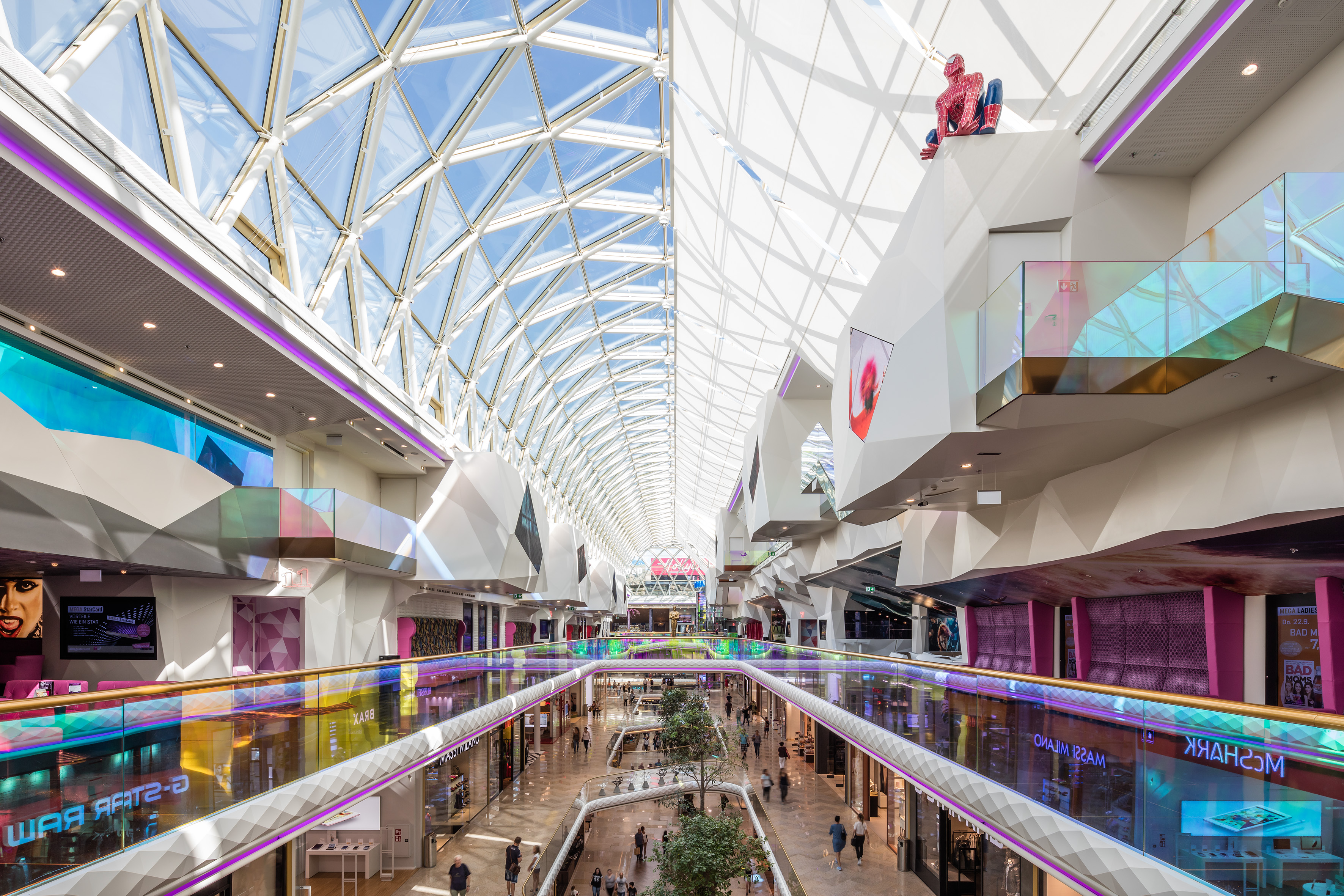

In der PlusCity (Center und Parkhäuser) wie auch im Megaplex ist mit dem NETx MaRS Modul eine minutengenaue Abfrage des Energieverbrauchs von KNX Subzählern für Strom, Kälte, Heizung und Wasser möglich. Mittels Schnittstelle zu GLT werden die Übergeordneten Betriebszeiten u. Störmeldungen übertragen.
Contact Information
| Company Name | Hross & Partner Ges.m.b.H |
| Company Email | office@hross-partner.at |
| Company Website | http://www.hross-partner.at/ |
| Contact Name | Hr. Ing. Peter Hross |
| Contact Function | Planner |
