Smart KNX EV Charger system
New project in Shenzhen
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | New project |
| Project Type | Other |
| Year of Completion | 2024 |
| Project Size | 1 – 100 |
| Number of KNX Devices Used | 1 – 25 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 1 – 100 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting
- Heating, Ventilation & Air conditioning (HVAC)
- Security and Safety
- Operation and Visualisation

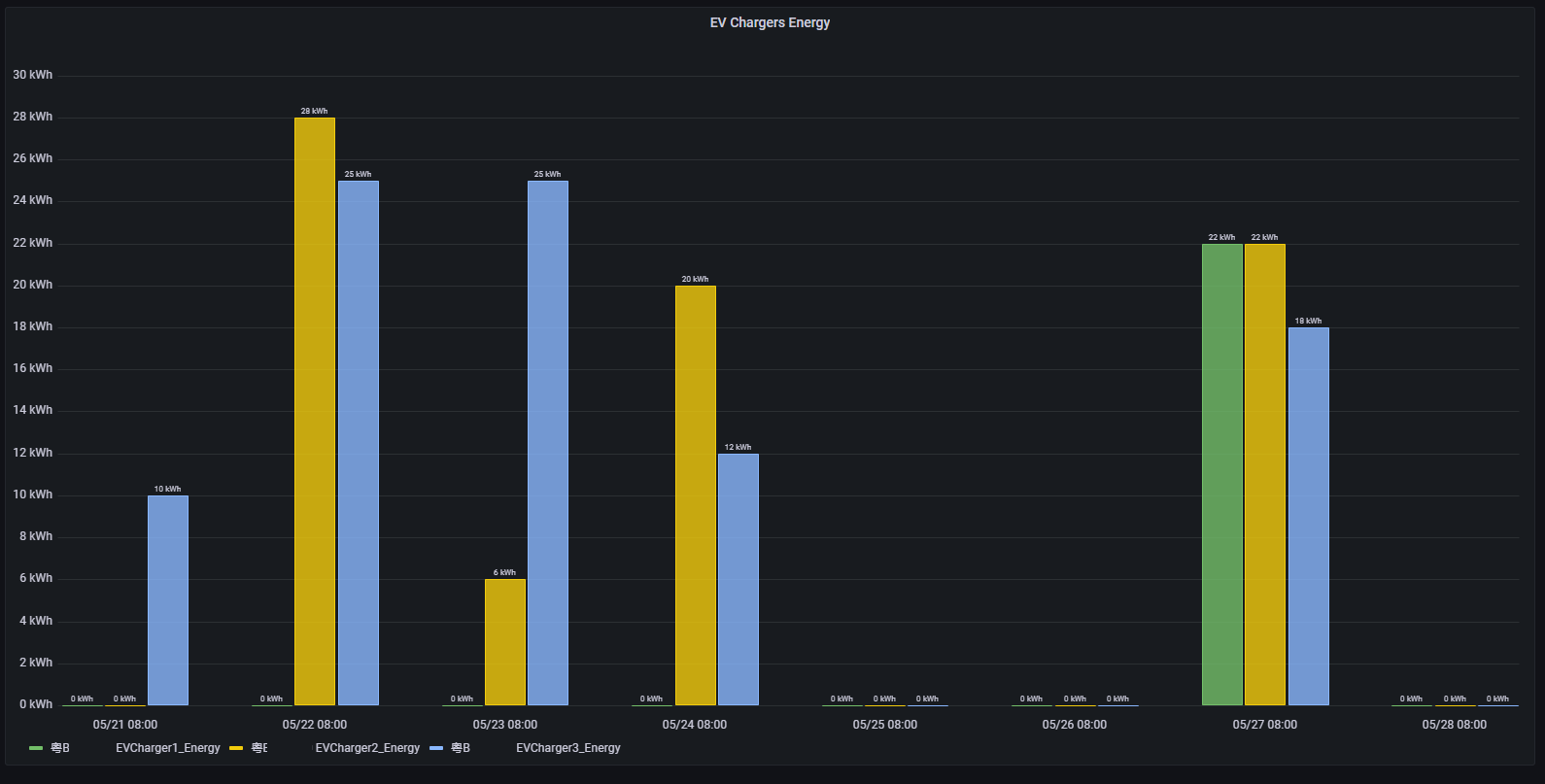

- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection
- Other
- Automation and Remote Access - Logical Functions, System Supervision
- Blind and Shutter Control
Customers Description

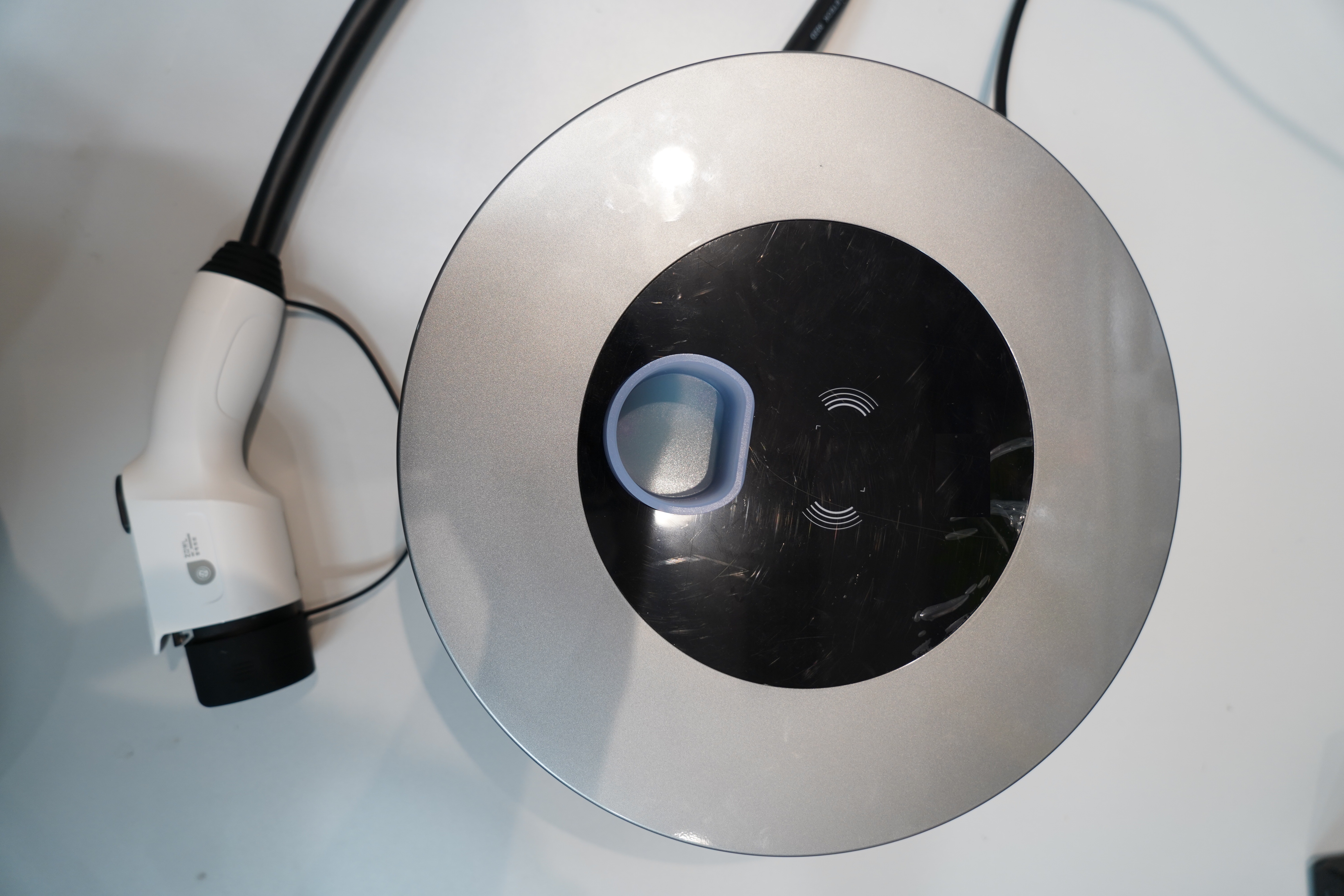

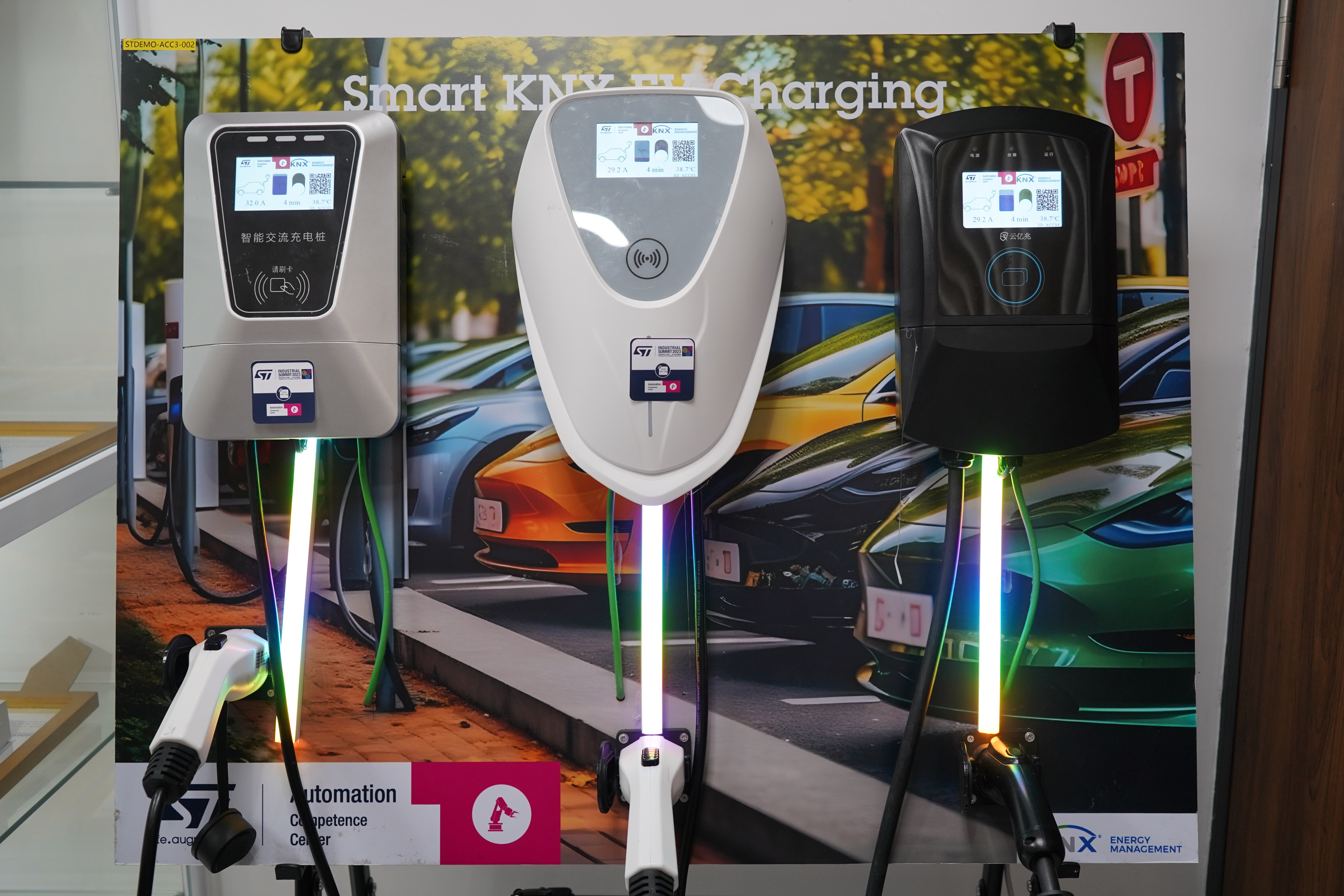

KNX TP inteface was added to every EV charger, via KNX TP interface, different EV chargers are directly integrated with Energy managment control board,
the load for every EV charger can be dynamically adjusted which based on system Power supply capability, EV charger priority and other system devices power request.

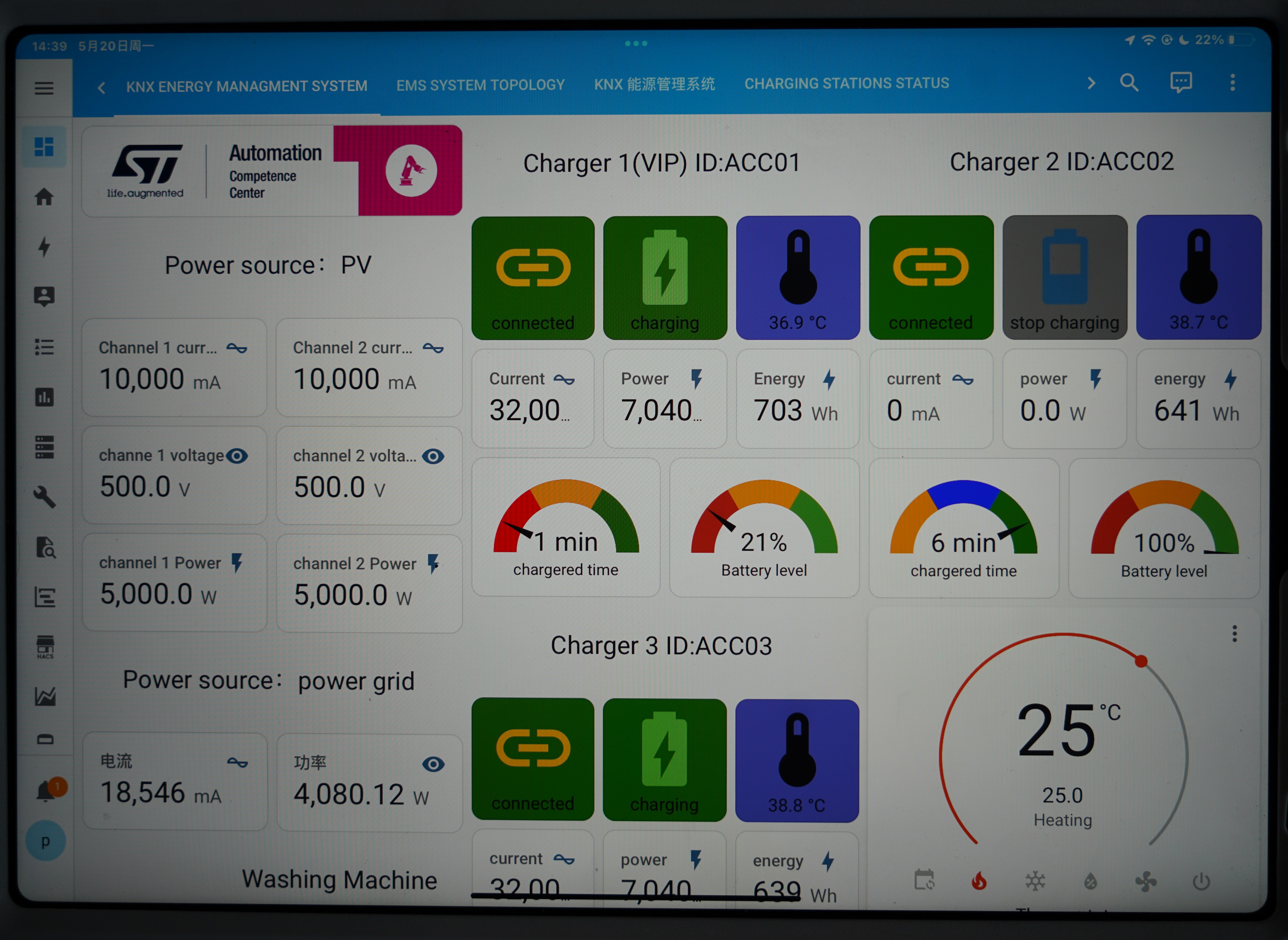

through KXN IP router, whole KNX EV charger system was integrated with home assistant,all EV charger's status can be monitored and controlled in home assistant platform. this project has been show to many potential KNX customers.
Contact Information
| Company Name | STMicroelectronics(ShenZhen)R&D Co.,Ltd. |
| Company Email | roger.li@st.com |
| Company Website | https://www.st.com/en/interfaces-and-transceivers/stknx.html |
| Contact Name | roger li |
| Contact Function |
