Supervisión ycontrol de iluminación y estado de circuitos de centro de análisis clínicos en Hospital.

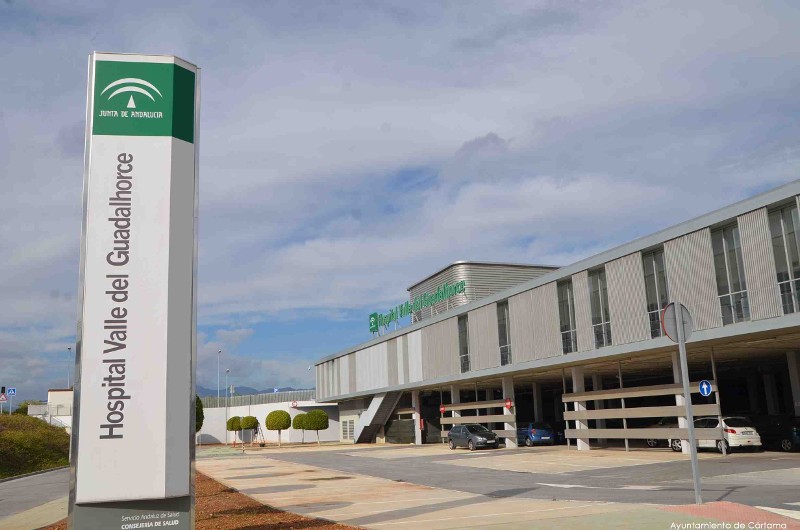

Health care in Cartama
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Health care |
| Project Type | Commercial |
| Year of Completion | 2019 |
| Project Size | 501 – 1.000 |
| Number of KNX Devices Used | 26 – 100 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 251 – 500 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Light Scenes
- Heating, Ventilation & Air conditioning (HVAC)
- Security and Safety
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Tablets and smart phones
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection
- Other
- Automation and Remote Access - Timed Functions, System Supervision, Remote Programming
- Blind and Shutter Control
Customers Description

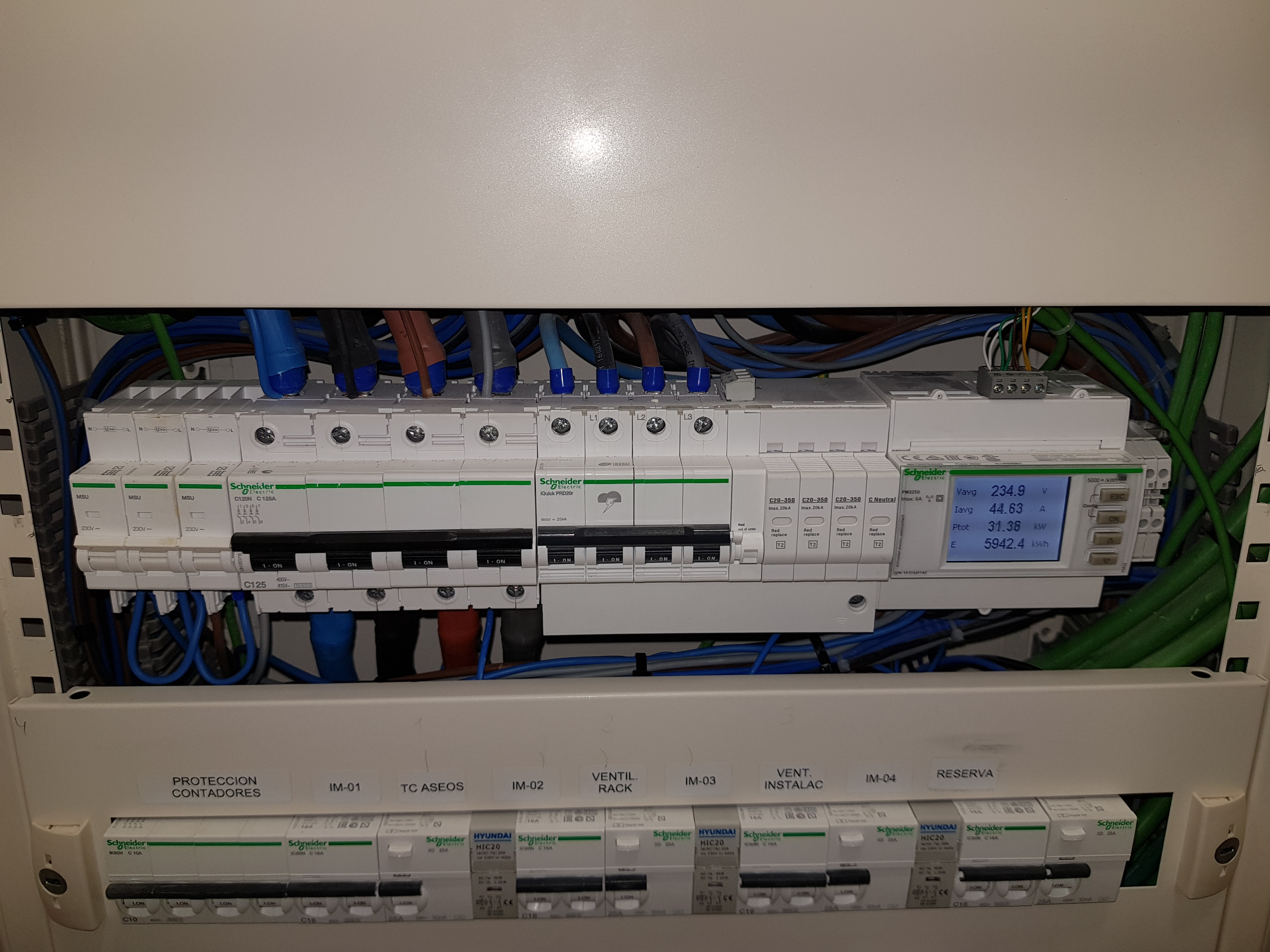

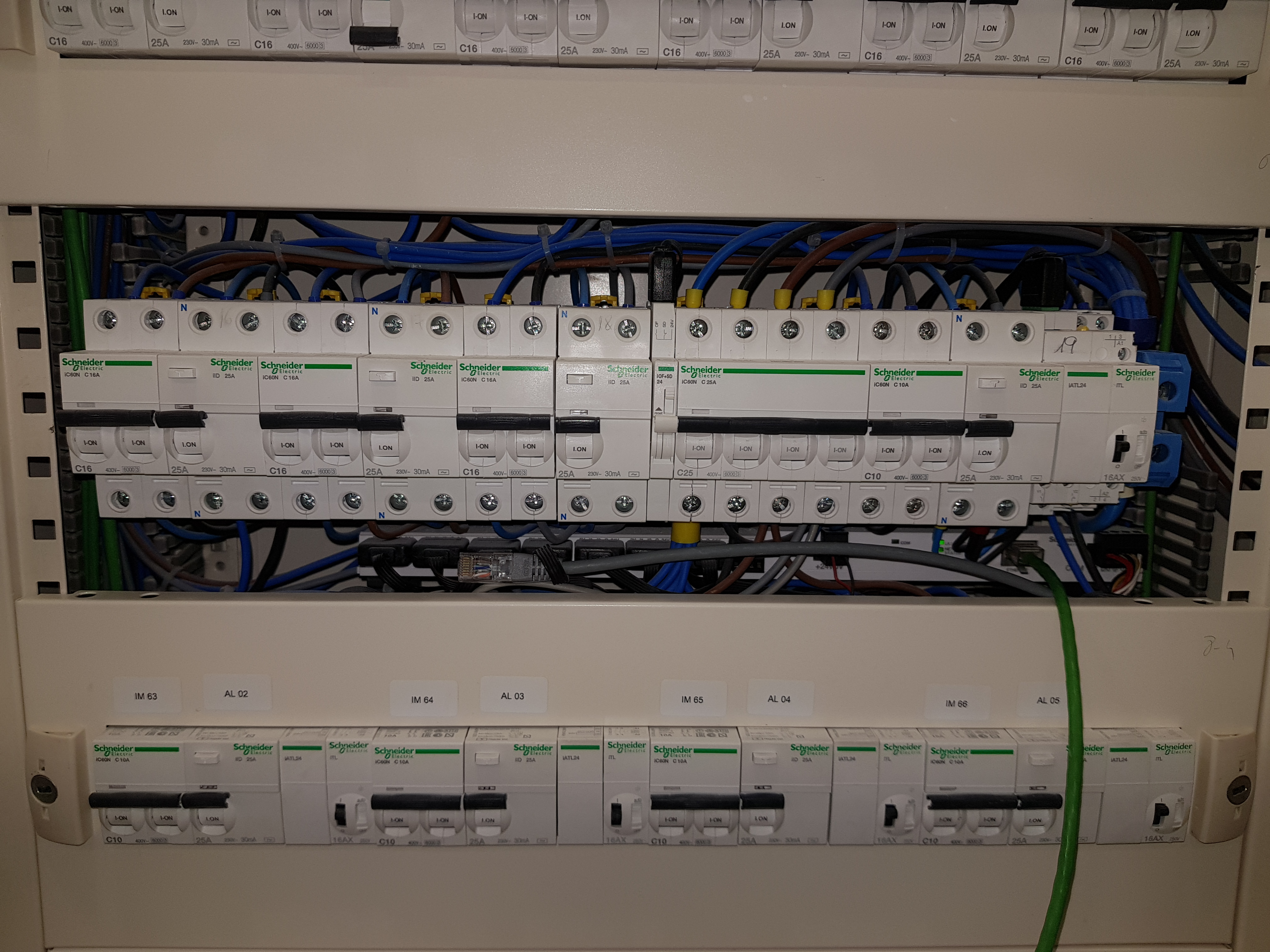

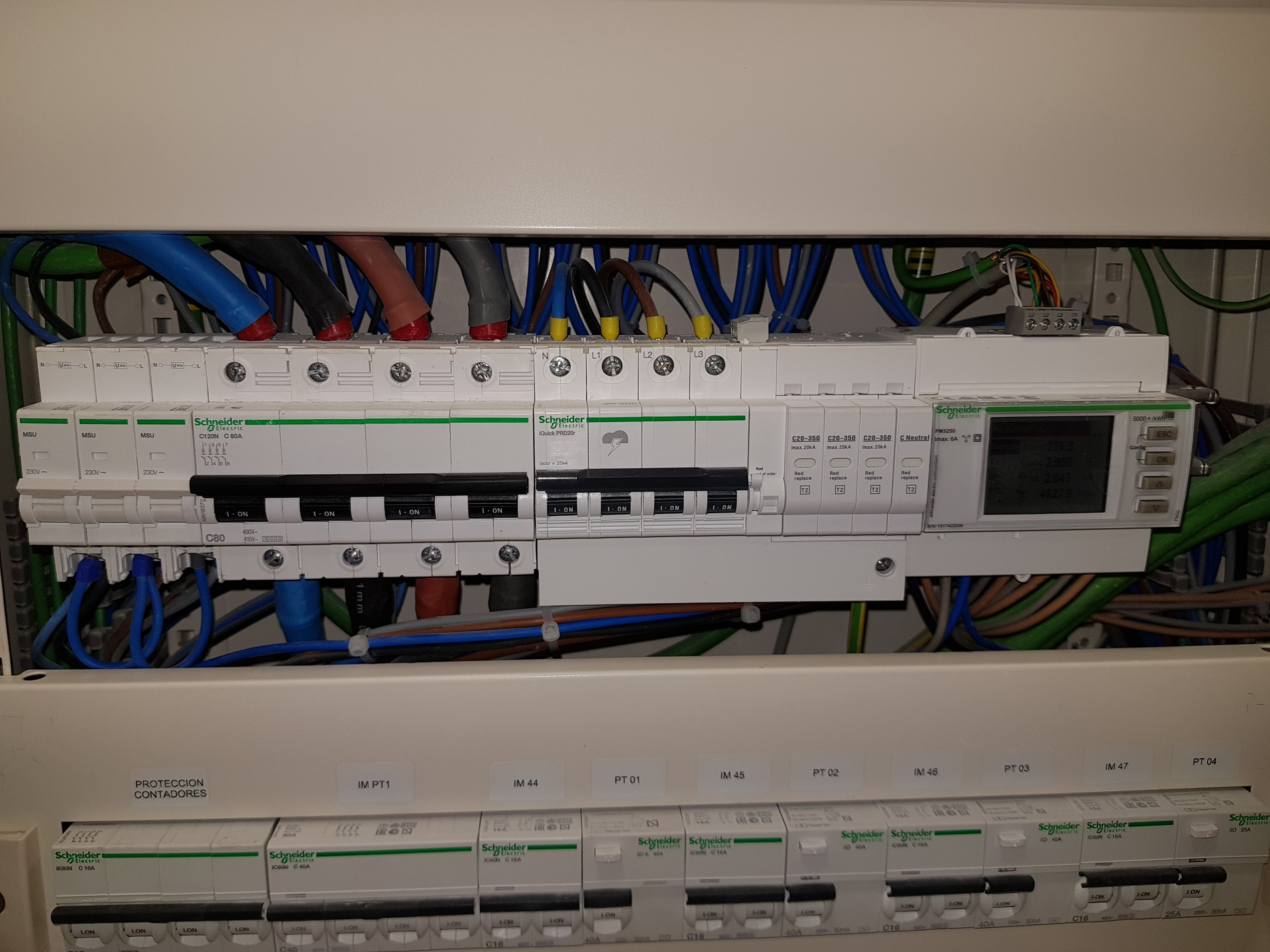

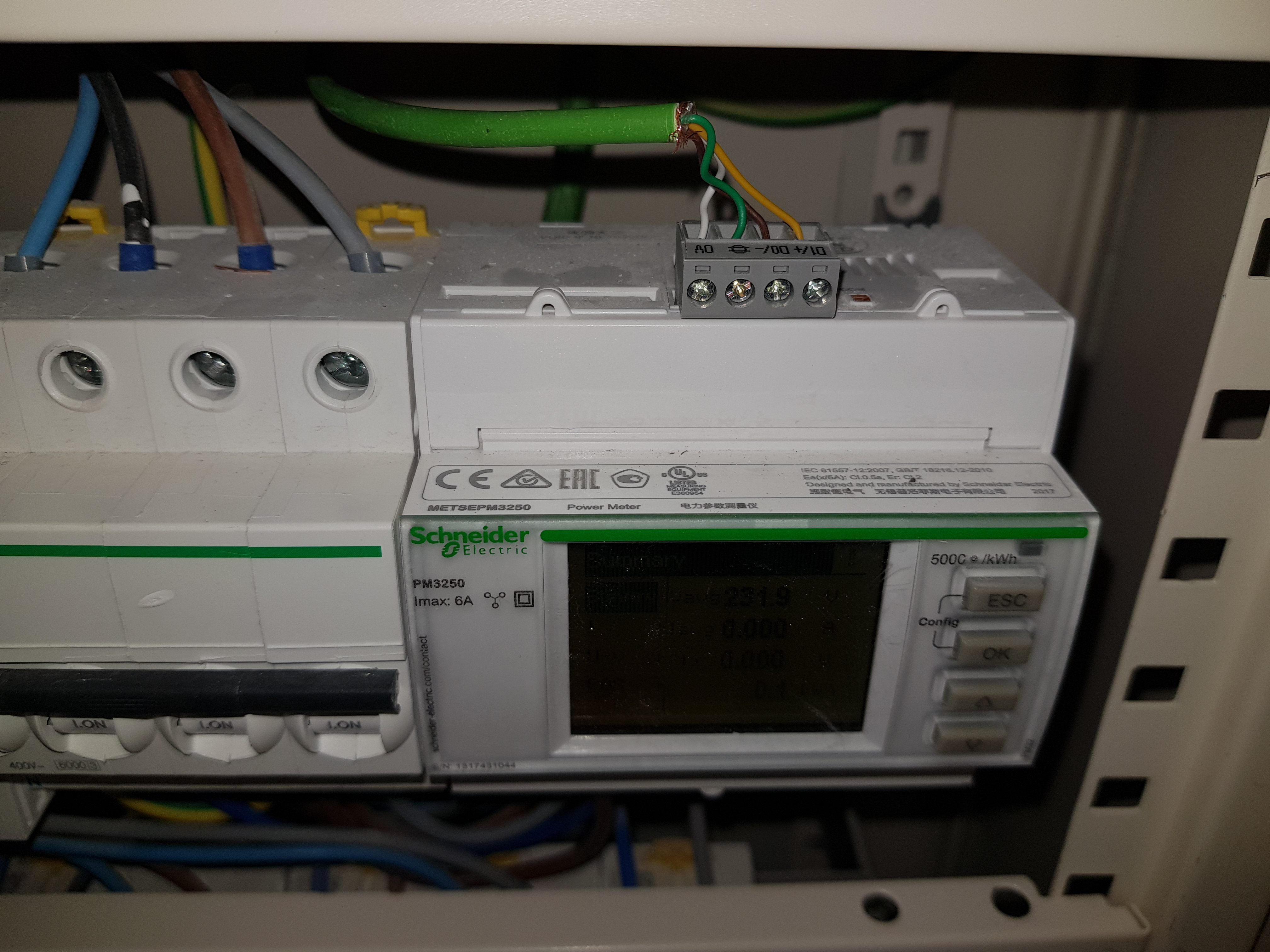

En esta instalación, se realiza la supervisión y control de los dispositivos de Schneider Acti9 en cuadro así como los analizadores de red para seguimiento de consumos.
Se dispone de supervisión web en la que se permite visualmente el control de toda la iluminación del laboratorio de análisis, bloqueo de los circuitos, control mediante calendario de todo el sistema, gráficas de consumos y visualización de los parámetros de red eléctrica de entrada a cuadro.

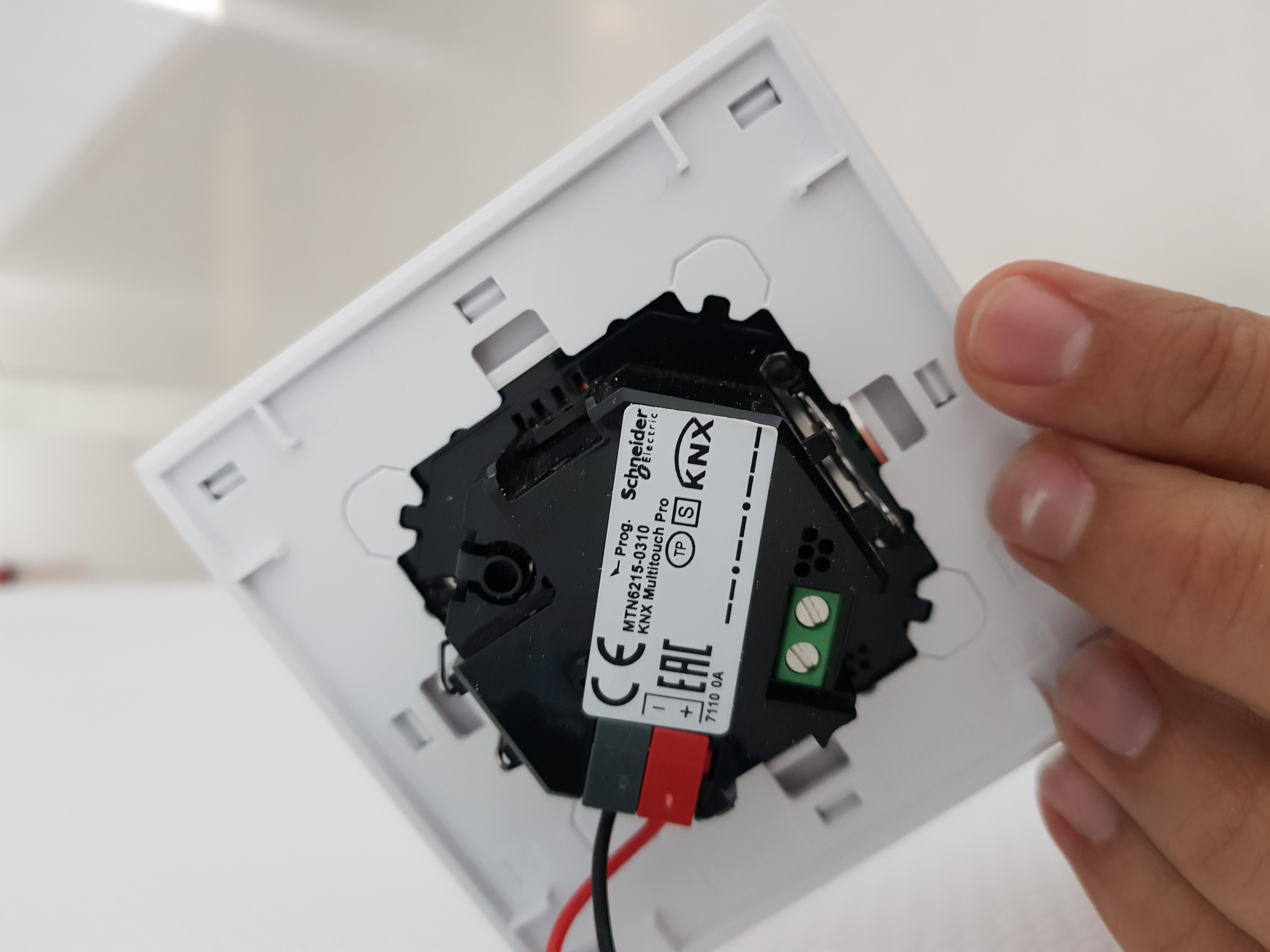

Además existen paneles táctiles para la gestión de los encendidos por parte del usuario.
Contact Information
| Company Name | ATISoluciones |
| Company Email | rserrano@atisoluciones.com |
| Company Website | https://www.atisoluciones.com |
| Contact Name | Raúl Serrano Espejo |
| Contact Function | System Integrator |
