Telemundi III

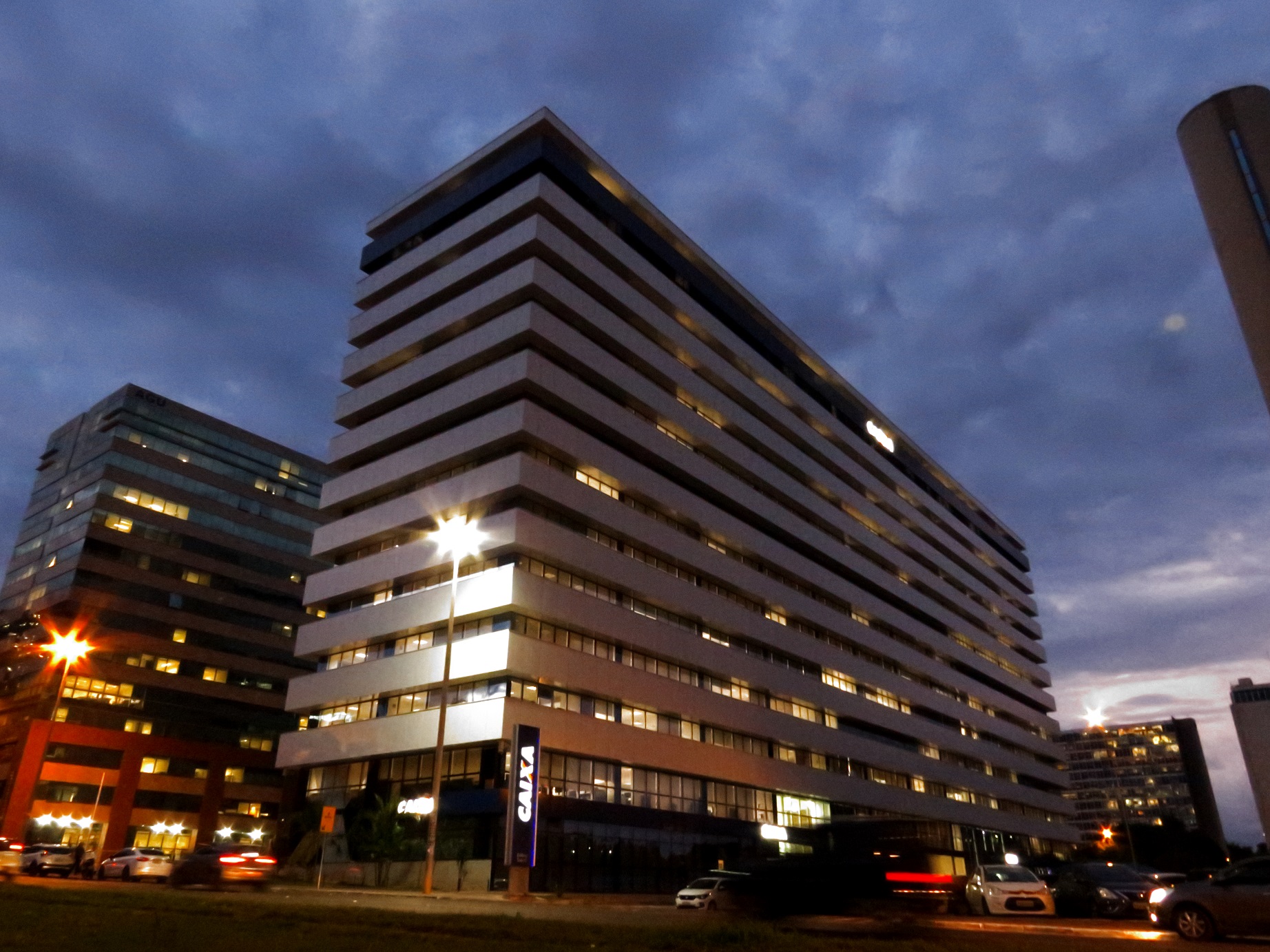

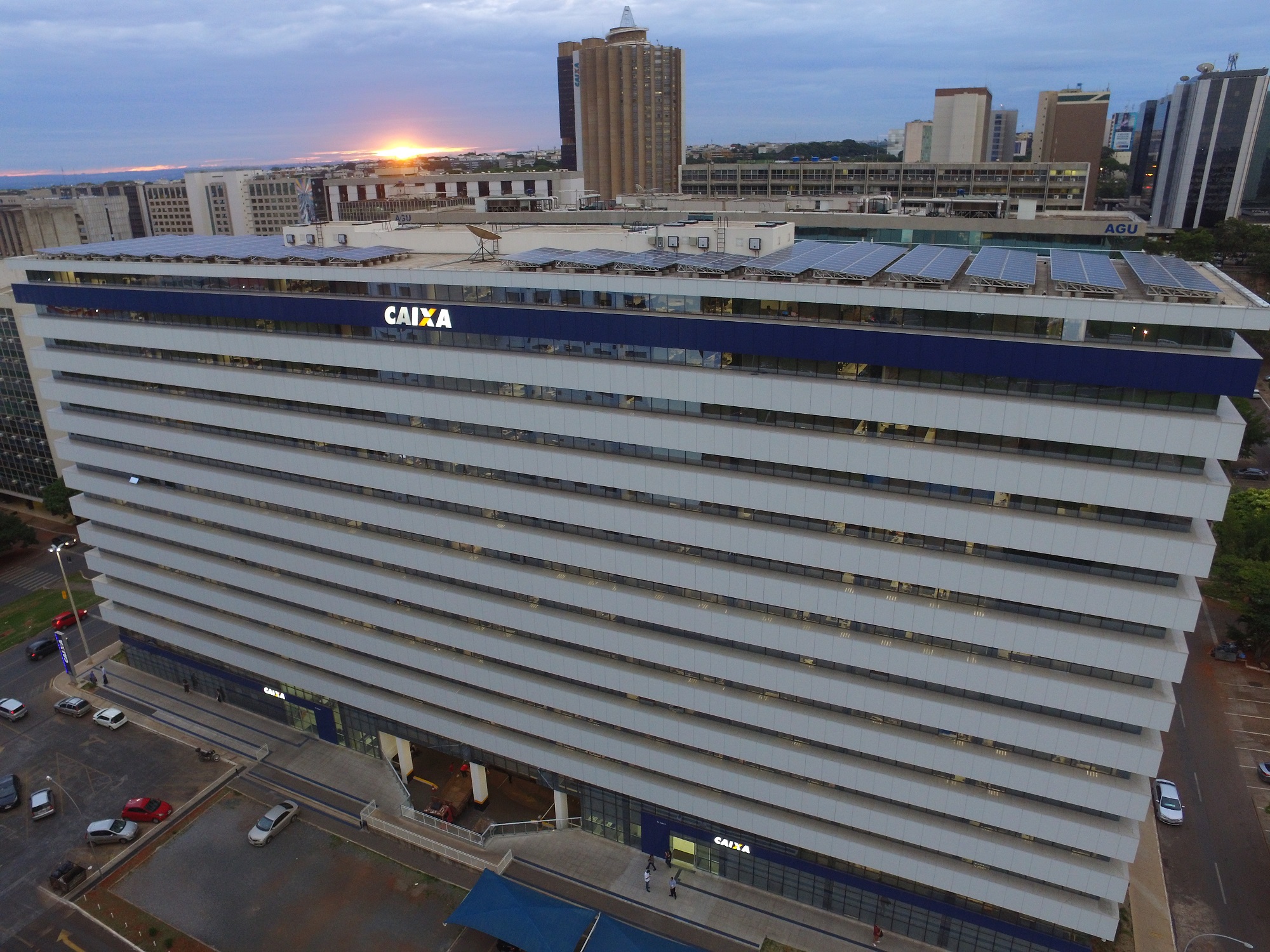

Office building in Brasília
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Office building |
| Project Type | Commercial |
| Year of Completion | 2017 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 1.000+ |
| KNX Transmission Media | Twisted pair |
| Man Hours | 2.000+ |
| Man Power | 11 – 25 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Timed Control, Automatic Occupancy Detection, Constant Light Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control
- Security and Safety
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers
- Energy Management/Smart Metering - Metering, Visualisation, Fuel or Water tank level control
- Other
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision
- Blind and Shutter Control
Customers Description
Procel-Edifica (Brazilian Certification Program) design oriented.

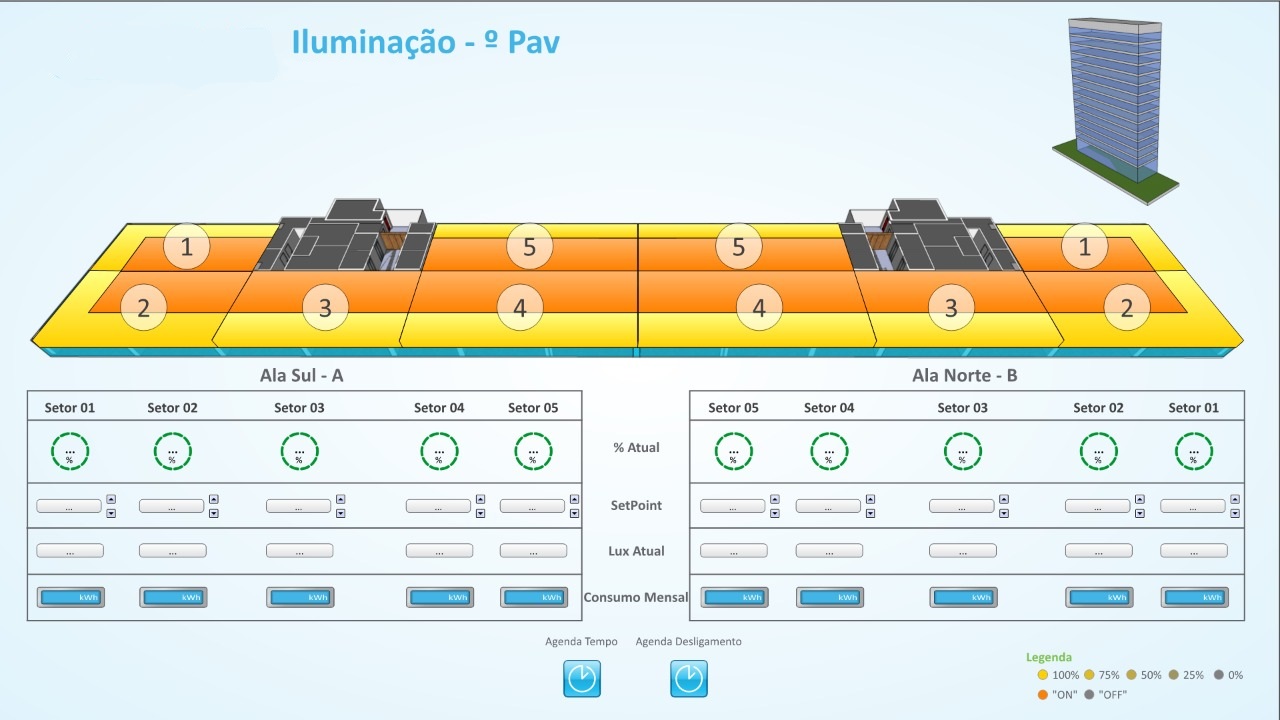

13 open office floors with 1200 sq meters each with constant light control for the DALI LED panels (window row) and direct switching with energy measurement of the remaining LED panels all controlled by presence sensors.
KNX flexibility reduced impacts on layout changes (meeting rooms)
5 garage floors: lights controlled via KNX presence sensors
Garage exhaust fans via time schedule
Cold water, waste and rain water working under KNX control logics.
Modbus used with power meters and BACNET with VRF main controlers and SCADA.
