Torre Castellana Norte (Torre Cepsa)
Office building in Madrid
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Office building |
| Project Type | Commercial |
| Year of Completion | 2019 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 1.000+ |
| KNX Transmission Media | Twisted pair |
| Man Hours | 2.000+ |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Constant Light Control
- Heating, Ventilation & Air conditioning (HVAC)
- Security and Safety
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Tablets and smart phones
- Energy Management/Smart Metering
- Other
- Automation and Remote Access - Logical Functions, System Supervision, Messaging (e.g. SMS)
- Blind and Shutter Control - Individual Control, Group & Central Control, Preset Positioning, Automatic Programs, Wind and Rain Protection, Sun Tracing (interaction with HVAC / lighting)
Customers Description
Edificio diseñado por Foster & Partners y reformado en 2018. Consta de 34 plantas de oficinas en orientación Norte-Sur ((68 semiplantas donde KNX controla 34 persianas y unos 180 drivers DALI y emergencias DALI en cada una). La toplogía original del edificio estaba compuesta por 4 áreas TP y 34 líneas TP, generandose un exceso de trafico de telegramas que impedia el funcionamiento correcto del los equipos KNX. La reforma consistió en tres aspectos:
1) Modificar la topología pasando a 68 líneas KNX TP con 68 IP-Routers.
2) Reprogramar todos los dispositivos KNX orginales (no fue necesario sustituirlos).

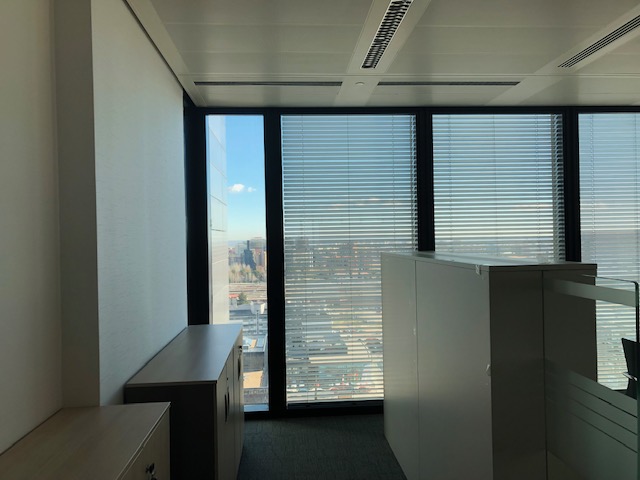

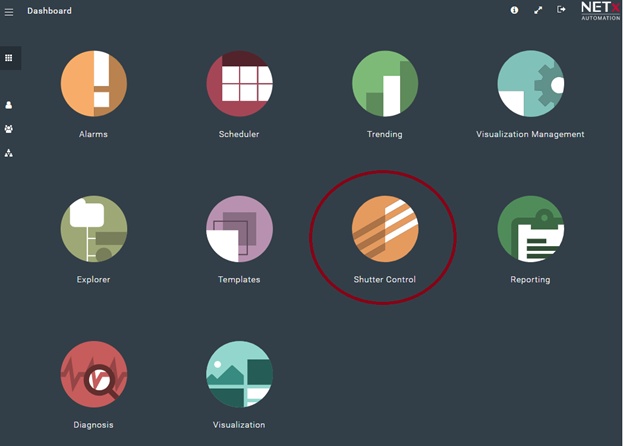

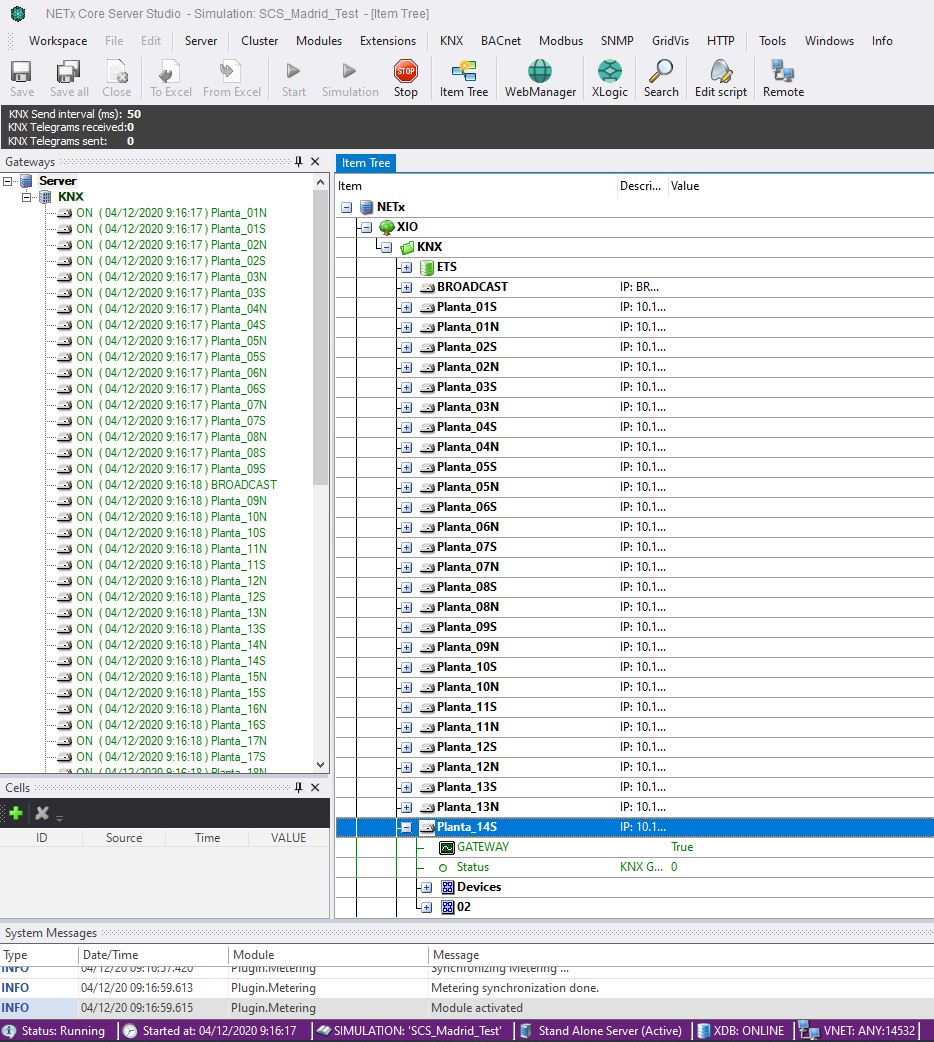

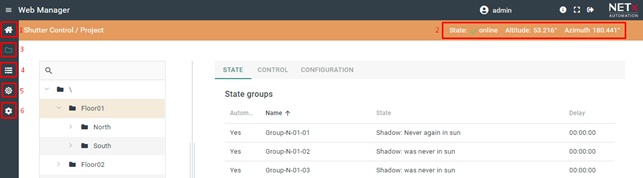

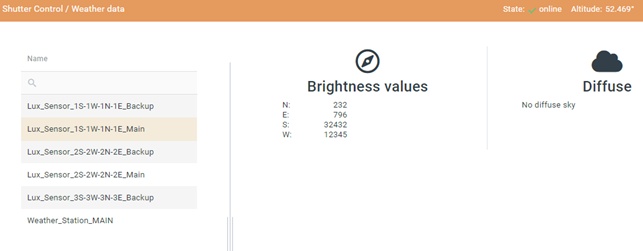

3) Integrar todas las señales en una Plataforma BMS con software de gestión de persianas automatico y diseñar una visualización global del edificio y particular para cada semi-planta.
Actualmente KNX funciona con normalidad y el BMS controla todos los sistemas de iluminación y persianas, sin incidencias y con satisfaccion del cliente y de los usuarios.
Contact Information
| Company Name | SAPIENX AUTOMATION SL |
| Company Email | juliodiazgarcia@gmail.com |
| Company Website | http://www.sapienx.es |
| Contact Name | JULIO DIAZ GARCIA |
| Contact Function | Planner |
